exposure, Figure 2d, the emission from the healthy bone surface is
almost negligible (in comparison to the scratched surface), with an IE
≈ 28, Figure 2e, making the distinction between healthy and damaged
bone clear.
The images shown in Figure 2b-d clearly demonstrate the ability
of 1.Eu.Na to selectively bind and hence image the damaged bone
sites, likely occurring through chelation to exposed Ca(II) sites within
these cracks. To confirm this, the ability of 1.Eu to bind to such
scratched bone regions was also investigated. The confocal fluorescence
laser-scanning microscopy images (Figure S13) indeed showed that
1.Eu did bind to the scratched areas. However, the contrasting ability
is much diminished relative to 1.Eu.Na, with an EI of only 2 being
determined after 24 h of exposure (Figure 2f), an order of magnitude
smaller IE than that for 1.Eu.Na. Furthermore, unlike the case for
1.Eu.Na, no significant change was seen in the Eu(III) emission
intensity between samples exposed to 1.Eu for 4 and 24 h, respectively
(Figure S14). This clearly highlights the important role that the
iminodiacetate moieties in 1.Eu.Na play to selectively bind the agent
to the damaged hydroxyapaptite lattice, resulting in effective imaging
of such bone damage.
Figure 2. Confocal laser-scanning microscopy images of bone sample
immersed in a 1 × 10-3 M solution of 1.Eu.Na (pH 7.4, 20 mM HEPES, 135
mM KCl): (a) Reflected light image: 0 h, (b) Control, (c) 4 h, (d) 24 h. Bar )
150 µm. (e) Contrast between Eu(III) emission from 1.Eu.Na inside and outside
the scratch after 24 h. (f) The contrast observed using 1.Eu (1 × 10-3 M) after
24 h.

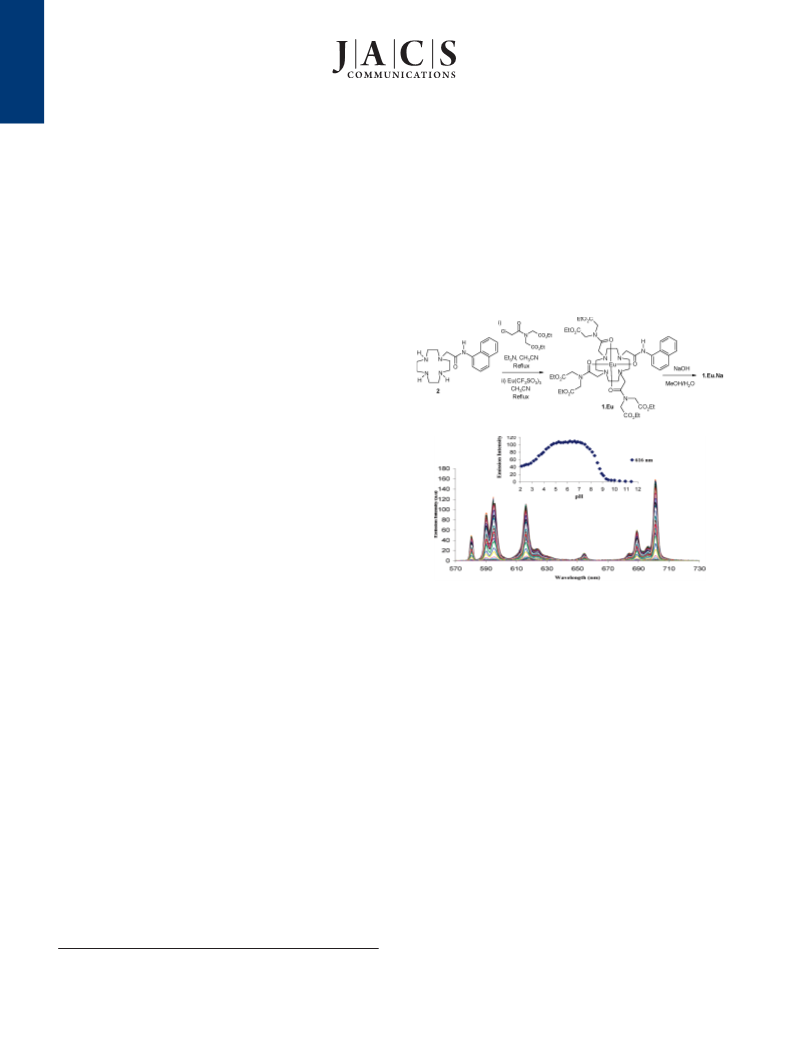

of these ions, with the exception of Co(II) and Ni(II) (Figures S9-10)
which resulted in quenching of the Eu(III) emission.
In summary, we have developed the first example of a cyclen based
Eu(III) complex, incorporating the iminodiacetate functionalities (as
selective Ca(II) binding motifs), as a lanthanide luminescent contrast
agent for bone structure analysis. We are in the process of further
studying the properties of 1.Eu.Na and other related Eu(III) and Gd(III)
structures as bone imaging agents.
We next evaluated the ability of 1.Eu.Na to act as a luminescent
imaging agent for bone cracks. To demonstrate this, several bovine
tibia specimens were sectioned and polished to give mechanically
smooth surfaces (see Supporting Information), which should have low
or no affinity for 1.Eu.Na and, hence, would not result in positive
luminescent imaging of such areas. The same samples were then
scratched using established protocols,11,12 exposing fresh Ca(II) sites.
These specimens were then treated with a 1 × 10-3 M aqueous solution
of 1.Eu.Na (in 135 mM of KCl at pH 7.4) for a period of 0 to 24 h.
For comparison, polished and scratched bone samples were also treated
with 1.Eu. Using steady-state fluorescence, the Eu(III) emissions from
the samples containing ‘smooth’ and scratched bone surfaces were
first recorded using specimens that were stained for 4 and 24 h. The
results clearly demonstrated that the Eu(III) emission from the scratched
areas was more intense than that of the undamaged surface, with all
of the D0 f FJ transitions being clearly visible, even after 4 h of
staining. Similarly, using 1.Eu, some Eu(III) emission was also visible.
However, in comparison to 1.Eu.Na, the emission was significantly
less visible (Figures S11-12). Furthermore, by analyzing the intensity
ratios of the various Eu(III) ∆J transitions, it was clear that the ratio
between ∆J ) 1 and 2 was significantly greater for 1.Eu than for
1.Eu.Na, for which the ratio was almost 1:1. This would suggest that
1.Eu bound to the scratched surface in a different manner to 1.Eu.Na,
which is to be expected, as in 1.Eu the Ca(II) chelating moieties are
blocked.
The samples were next imaged using confocal fluorescence laser-
scanning microscopy. The overall results are shown in Figure 2 (Figure
2a shows the bone scratch as a reflected light image), where in Figure
2c and 2d the emission (recorded at 616 nm) arising from the bone
surface of the same sample after 4 and 24 h staining/exposure to
1.Eu.Na is clearly visible, being most pronounced within the scratched
areas. In contrast, Figure 2b shows no such emission arising from a
bone surface that was exposed to 1.Eu.Na for 24 h, after which it was
scratched and imaged. Hence, the presence of exposed Ca(II) sites is
a prerequisite for the successful binding of 1.Eu.Na to the bone surface
and, hence, imaging of any damaged bone surface. It is also clear from
Figure 2b-d that the emission contrast between the healthy bone
surface and the scratched areas enhances significantly with increasing
1.Eu.Na exposure time. While Figure 2c shows that the Eu(III)
emission from the crack is clearly distinguishable from the surrounding
undamaged bone after only 4 h of exposure, where the intensity
enhancement (IE) (at 616 nm) within the scratched area is only twice
that measured for the unscratched area. In contrast, after 24 h of
Acknowledgment. We thank IRCSET (Postgraduate award to
B.M.), TCD, QUB, and RCSI for financial support and The
University of Canterbury, New Zealand, for a 2009 Erskine
Fellowship to T.G.
