Fabrication of double emission enhancement fluorescent nanoparticles with combined pet and aiee effects

Article abstract of DOI:10.3390/molecules25235732

The major challenge in the fabrication of fluorescent silica nanoparticles (FSNs) based on dye-doped silica nanoparticles (DDSNs) is aggregation-caused fluorescence quenching. Here, we constructed an FSN based on a double emission enhancement (DEE) platform. A thio-reactive fluorescence turn-on molecule, N-butyl-4-(4-maleimidostyryl)-1,8-naphthalimide (CS), was bound to a silane coupling agent, (3-mercaptopropyl)-trimethoxysilane (MPTMS), and the product N-butyl-4-(3-(trimethoxysilyl-propylthio)styryl)-1,8-naphthalimide (CSP) was further used to fabricate a core–shell nanoparticle through the St?ber method. We concluded that the turn-on emission by CSP originated from the photoinduced electron transfer (PET) between the maleimide moiety and the CSP core scaffold, and the second emission enhancement was attributed to the aggregation-induced emission enhancement (AIEE) in CSP when encapsulated inside a core–shell nanoparticle. Thus, FSNs could be obtained through DEE based on a combination of PET and AIEE effects. Systematic investigations verified that the resulting FSNs showed the traditional solvent-independent and photostable optical properties. The results implied that the novel FSNs are suitable as biomarkers in living cells and function as fluorescent visualizing agents for intracellular imaging and drug carriers.

Full text of DOI:10.3390/molecules25235732

molecules
Article
Fabrication of Double Emission Enhancement
Fluorescent Nanoparticles with Combined PET and
AIEE Effects
Hsing-Ju Wu 1,2 and Cheng-Chung Chang 3,4,
*
1
Research Assistant Center, Show Chwan Memorial Hospital, Changhua 500, Taiwan; hildawu09@gmail.com
Department of Biology, National Changhua University of Education, Changhua 500, Taiwan
Graduate Institute of Biomedical Engineering, National Chung Hsing University, No.145, Xing Da Road,
Taichung 402, Taiwan
Intelligent Minimally-Invasive Device Center, National Chung Hsing University, No.145, Xing Da Road,
Taichung 402, Taiwan
2
3
4
*
Correspondence: ccchang555@dragon.nchu.edu.tw; Tel.: +886-4-22840734
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editor: Takahiro Kusukawa
Received: 14 November 2020; Accepted: 3 December 2020; Published: 4 December 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: The major challenge in the fabrication of fluorescent silica nanoparticles (FSNs) based on
dye-doped silica nanoparticles (DDSNs) is aggregation-caused fluorescence quenching.
Here, we constructed an FSN based on a double emission enhancement (DEE) platform. A thio-reactive
fluorescence turn-on molecule, N-butyl-4-(4-maleimidostyryl)-1,8-naphthalimide (CS), was bound
to a silane coupling agent, (3-mercaptopropyl)-trimethoxysilane (MPTMS), and the product
N-butyl-4-(3-(trimethoxysilyl-propylthio)styryl)-1,8-naphthalimide (CSP) was further used to fabricate
a core–shell nanoparticle through the Stöber method. We concluded that the turn-on emission by CSP
originated from the photoinduced electron transfer (PET) between the maleimide moiety and the CSP
core scaffold, and the second emission enhancement was attributed to the aggregation-induced emission
enhancement (AIEE) in CSP when encapsulated inside a core–shell nanoparticle. Thus, FSNs could
be obtained through DEE based on a combination of PET and AIEE effects. Systematic investigations
verified that the resulting FSNs showed the traditional solvent-independent and photostable optical
properties. The results implied that the novel FSNs are suitable as biomarkers in living cells and function
as fluorescent visualizing agents for intracellular imaging and drug carriers.
Keywords: fluorescent silica nanoparticles (FSN); double emission enhancement (DEE); Stöber method;
photoinduced intramolecular electron transfer (PET); aggregation-induced emission enhancement
(AIEE)
1. Introduction
Silica nanoparticles (SNs) have many functions that make them superior to other similar polymers,
such as ease of synthesis and surface modification, chemical and physical stability, biocompatibility
and excellent dispersibility in aqueous media [
inert, so it is to expect a low environment impact and is therefore an ideal material for coating
nanomaterials, encapsulating molecules or drug carriers [ ]. Thus, research on dye-doped silica
nanoparticles (DDSNs) has been rapidly gaining attention in the past two decades [ ]. Researchers have
a great interest in constructing DDSNs with controllable size, high emission intensity and good
photostability at physiological pH for potential applications in many nanotechnology fields [ ].
1]. In particular, SN is nonluminescent and chemically
2
3
4
When DDSN-embedded dyes are replaced by a fluorophore, fluorophore-doped silica nanoparticles
(FSNs) are obtained, which offer all the diagnostic and theragnostic features required for their
nanotechnological application in biological fields [
5,
6]. Compared with luminescent dye-doped latex
Molecules 2020, 25, 5732; doi:10.3390/molecules25235732
www.mdpi.com/journal/molecules

Molecules 2020, 25, 5732
2 of 12
nanoparticles [7,8], intrinsically luminescent nanomaterials [9] or quantum dots (QDs) [10], FSNs are
very successful tools as fluorescent emitters in nanotechnological applications. Here, we discuss
FSNs as fluorophore-doped inner silica nanoparticles of DDSN without any modification of the silica
nanoparticle surface with a fluorescent dye.
Since great progress has been made in preparing DDSNs, FSNs can be prepared by incorporating
fluorophores into the silica networks or their shells via physical processes or chemical reactions [3].
At present, versatile silane technology can not only encapsulate fluorophores with excellent optical
properties but also accurately adjust the shape and size to produce an ideal nanomaterial. Considering
their successful application in biological research [10
as biomarkers [14 15] and even for diagnosis [16]. In particular, in vivo imaging is the leading biological
application of FSNs [17 18]. The encapsulation of designated fluorophores determines the optical
properties of the FSNs and their application, such as multicolor imaging [19] or NIR imaging [20 21].
,11], FSNs are applied in fluorescent sensors [12,13],
,
,
,
As we expected, when fluorophores are incorporated into silica nanoparticles, FSN possesses a better
photostability because the silica matrix (or shell) protects the fluorophores from oxygen and other
harmful species, which may cause photobleaching. However, in most cases, it is difficult to obtain
a highly luminescent FSN via common encapsulation methods due to their aggregation-caused
quenching (ACQ) effect. The ACQ and their poor photostability in aqueous media are two common
problems of organic fluorescence dyes that cause a dramatic reduction in the fluorescence imaging
quality. Successful FSNs must overcome this critical problem of ACQ caused by a high density of
fluorophores inside the FSN core. Thus, some effective strategies based on molecular construction
have been proposed. One strategy introduces aggregation-induced emission enhancement (AIEE)
molecules, especially functionalized AIEE molecules, to form FSNs, which are then coated with a silane
coupling agent [21–23]. AIEE is a process that contrasts with the ACQ effect, in which nonemissive
luminogens are induced to emit light by aggregate formation based on a working mechanism of
restricted intramolecular rotation (RIR) [24]. Another strategy employs a local hydrophobic cage
inside the FSN, in which a long-chain hydrophobic silane coupling agent is introduced into the FSN to
prevent the π−π stacking of fluorophores and inhibit the twisted intramolecular charge transfer (TICT)
or RIR to prevent the ACQ effect and inward diffusion of water molecules [25–27].
In a previous study, we developed a 1,8-naphthalimide-based fluorescence turn-on probe CS
containing a maleimide group for the detection of biological thiols. This probe can not only be used
to detect intracellular thiol in living HepG2 cells but also dengue virus via fluorescent imaging [28].
The purpose of this research is to combine the photoinduced electron transfer (PET) principles
and the characteristics of AIEE to develop a nanosystem with double fluorescence enhancement.
First, biosensor CS was bound with thiol-modified supported silane coupling reagent MPTMS
(mercapto-propyltrimethoxysilane) to achieve a fluorescence enhancement by PET. Then, the Stöber
method was used to prepare FSNs with a fluorescent core and a silica shell, which promoted the second
emission enhancement based on AIEE. The study confirmed that this FSN was optically stable, and its
fluorescent performance was not affected by aqueous media or most organic solvents. Further surface
modification can effectively improve the water solubility and the successful uptake by living cells.
The results imply that these new fluorescent nanoparticles are suitable as new fluorescent materials
and can be used in intracellular imaging and as biomarkers.
2. Results and Discussion
2.1. Material Design and DEE
Maleimides are known to readily undergo a selective electrophilic Michael addition reaction with
thiol groups and are responsible for emission switching in the fluorescence system [29]. When RS-H
undergoes addition across the C=C bond of the maleimide unit to disrupt the n–π electronic conjugation,
it thereby hinders the PET and then causes fluorescence enhancement. Thus, maleimide- coupled
fluorophores are known to be fluorescence turn-on probes, whose fluorescence increases dramatically

Molecules 2020, 25, 5732
3 of 12
upon reaction with biothiols [30–32]. Based on this behavior, we prepared a cysteine probe by linking
a maleimide to naphthalimide fluorophores. The starting material N-butyl-4-bromo-1,8-naphthalimide
was coupled with vinyl aniline by means of the Heck reaction to generate the intermediate
N-butyl-4-(4-aminostyryl)-1.8-naphthalimide and then converted to the target compound CS with maleimide.
Since CS successfully and rapidly reacts with cysteine and is used to label appropriate amino acids in dengue
virus proteins and light-on single dengue virus spots in cells [28], we carried out the thiolate reaction of CS
with MPTMS to generate CSP in a high yield above 90%. CSP, a precursor of FSNs, was expected to retain
the emission turn-on optical property due to the decrease in PET, which is the first emission enhancement of
DEE. Furthermore, we also found that CSP can form fluorescent organic nanoparticles (FONs) based on
AIEE, which means that CSP should also induce AIEE when covalently grafted to the nanoparticle silica
network and encapsulated in the core of FSNs. Thus, the DEE distinguishing feature based on the first
emission enhancement caused by PET disappeared, and the second emission enhancement was attributed
to the AIEE during core–shell silica nanoparticle formation (Figure 1).
Figure 1. Synthesis of CSP and illustration of fluorescent organic nanoparticles (FONs), CSP-doped
silica nanoparticles with a TEOS hydrolysis shell (CSP-NP@OH) and CSP-doped silica nanoparticles
with a TEOS/APTMS mixed hydrolysis shell (CSP-NP@OH/NH2). (i) MPTMS, rt, 1 h; (ii) THF/H2O
mixed solvent; (iii) TEOS, C2H5OH, NH4OH; (iv) TEOS, APTMS, C2H5OH, NH4OH.
2.2. PET and AIEE
The absorption and fluorescence spectral properties of CS in the absence and addition of thiol
reagents are shown in Figure 2a. Upon the addition of mercaptan (ethanethiol, cysteine, MPTMS, 10 eq.
)
to the CS-containing ethanol solution, the absorbance peak at 390 nm and the patterns did not change
much, while the emission intensities increased with quantum yields from ~0.021 (510 nm) to ~0.5,
which was caused by decreasing PET from the core scaffold to the maleimide moiety in the excited state.
This high signal-to-noise ratio (~35-fold) of the thiolation products allowed us to prepare a fluorophore
by employing a silane coupling reagent to construct a bright DDSN emitter. Thus, we prepared
compound CSP, and its solvent effect on the fluorescence response was evaluated as shown in Figure 2b.
It is worth noting that the emission enhancement from CS to CSP occurred both in organic solvents
and aqueous solvents.
Unexpectedly, a higher quantum yield of CSP was observed in polar (protic) solvents, except for
water. In previous studies, we investigated the AIEE properties to discuss the fluorescence behavior of
solid-state and aqueous fluorogens, and we observed the formation of fluorescent organic nanoparticles

Molecules 2020, 25, 5732
4 of 12
(FONs) [33–35]. Briefly, the AIE phenomenon was easily detected in the emission spectra in THF/H2O
mixed solvents, as shown in Figure 3, which was also supported by the fluorescence microscopy and
SEM images (Figure 3d,e). The SEM image of the Fs prepared from a related mixed solvent clearly shows
nanoparticles with a mean diameter ranging 50~120 nm, which were CSP concentration-dependent.
Here, we prove that CSP can self-assemble to form nanoparticles and that the thermal relaxation of the
excited state was suppressed due to the restriction of intramolecular rotation when CSP aggregated
inside the nanoparticles. Under this condition, the flat molecules can intermolecularly stack with
each other in the concentrated or solid state, resulting in an emissive non-resonance excitonic state of
H-aggregates or emissive J-aggregates. Usually, these types of dyes are emissive in organic solvents as
well as in the solid state, even though they exhibit a
regarded as an AIEgen but rather as a “nonresonant exciton system” facilitating the AIEE and causing
the CSP-containing nanoparticles to become emitter FONs [36 38]. Nevertheless, this result provides
π-stacking pattern. Therefore, CSP should not be
–
evidence that CSP possesses the emissive-aggregate potential to form FONs, which is the reason for
the brighter fluorescence of powdered CSP. Furthermore, the FONs are suitable as a core for silane
coupling agents used to coat the shell by the Stöber method. Thus, we expect that the bare FONs can
be reinforced for use as fluorescent dots by silane coating to form FON-doped silica nanoparticles.
Figure 2. Absorbance (left) and emission (right) spectra represented by extinction coefficient and
quantum yield, respectively. (a) Thiol-induced CS in ethanol; (b) solvent effect of compound CSP
excited at the wavelengths of the absorption maxima. The insert spectra show the zoom in of tops
of absorption/emission spectra, and the inset photos show the emission color changes of the probes
(10 µM) under a handheld ultraviolet lamp (365 nm).

Molecules 2020, 25, 5732
5 of 12
Figure 3.
The inset photos show (
) the fluorescence microscopy image (a 390
(
a
) Absorbance and (
) the emission color changes under a handheld ultraviolet lamp (365 nm);
20 nm bandpass filter as the excitation light source,
b) emission spectra of CSP in THF/H2O mixed solvents of various ratios.
c
(
d
±
with emission collected through a 410 nm long-pass filter); and (e) the SEM images of CSP FONs
prepared from THF/H2O = 1/1, v/v (25 µM).
2.3. Construction of FSNs
As we ensured that the CSP could form FONs, ACQ should not occur upon CSP aggregation inside
the nanoparticles. We propose that the AIEE-characteristic CSP, containing a silane coupling moiety,
should be suitable for generating FSN based on the DDSN principle. To construct the CSP-based
core–shell-structured nanoparticle FSN, another silane coupling reagent, tetraethyl orthosilicate (TEOS),
was used to co-hydrolyze with CSP and coat the surface of the resulting FSN through a modified
Stöber method, affording CSP-SN@OH with a hydroxyl-terminated surface (Figure 1, pathway iii).

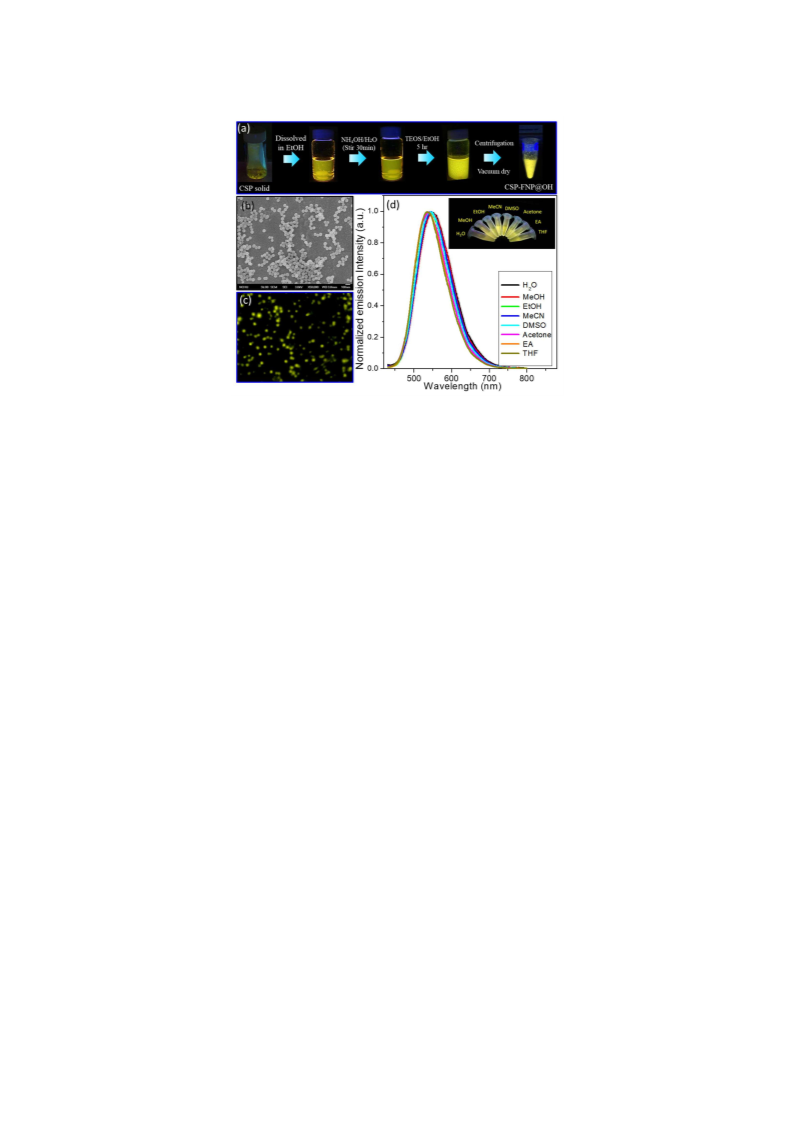

As shown in Figure 4a, in the preparation procedure, further emission enhancement was observed
when the silane coupling reaction was performed by adding TEOS and forming CSP-SN@OH.
The CSP-SN@OH nanoparticle product was characterized by SEM and fluorescence microscopy,
as shown in Figure 4b,c, respectively. Meanwhile, the size distribution located at 80 nm (Min ~57 nm,
Max ~ 105 nm), by collecting it from the dynamic light scattering (DLS) (Figure S2), which revealed
a broad dispersion in size, thus we extracted the size of NWs from the statistical analysis of several
SEM images to identify 60–70 nm of product CSP-SN@OH. Since the CSPs were encapsulated in the
core of a silanol surface nanoparticle in an aggregated state, the obtained FSN@OH was expected to
emit strong fluorescence due to the AIEE, as mentioned above. Therefore, compared with the solvent
effect of the CSP monomer (Figure 2b), Figure 4d shows the persistent emission without any solvent
effect when CSP-SN@OH was dispersed in water and other solvents. This result indicated that the
CSP fluorophore was perfectly encapsulated and protected inside the poly siloxane shell, resulting in
unique optical properties, which satisfactorily met the requirements of superior biomarkers and biotags.
To optimize the construction conditions of CSP-SN@OH, we observed that the emission enhancements
and sizes of the produced nanoparticles became more spherical and uniform as the amount of TEOS
added increased from 100 to 1000
µL (Figure S3), which was accompanied by a redshift of the spectra
from 510 to 540 nm, with respect to the CSP in ethanol.

Molecules 2020, 25, 5732
6 of 12
Figure 4.
(a) Preparation scheme of CSP-SN@OH from CSP; (b) SEM images (scale bar 100 nm);
(
c
)fluorescencemicroscopyimage(Ex: 390
±
20nmbpfilter; Em: 410nmlpfilter)and(d
)solvent-independent
emission spectra of CSP-SN@OH in various solvents. The inset photos show the emission color under a
handheld ultraviolet lamp (365 nm).
Furthermore, the Lippert plots of CS, CSP and CSP-SN@OH were obtained and provided further
insight (Figure S4). It is known that the Lippert slope represents the intramolecular charge transfer
(ICT) or TICT variation degree of the molecule to the solvent as well as the sensitivity of the molecule
to the environment. We observed that the Lippert slope (stock shift ∆ν to solvent polarity
∆f) of
CSP-SN@OH was flatter than that of CS and CSP, which indicates that CS and CSP showed similar and
apparent ICT changes, while the produced nanoparticles were not affected by the solvent. The result
is consistent with Figures 2b and 4d. Moreover, the redshifted emission of CSP-SN@OH could be
attributed to the restricted intramolecular rotation mechanism-caused rigid-TICT state molecular
conformation of CSP in nanoaggregates [35]. For example, the coplanar-to-twist molecule geometry
restricted the inner core of the nanoparticle. In summary, the optical property change from CS to CSP
was attributed to PET rather than ICT, and the change from CSP to CSP-SN@OH was attributed to ICT
(TICT) caused by restricted intramolecular rotation to achieve the AIEE.
2.4. Surface Modification and Cellular Imaging
We incubated A549 lung cancer cells with the CSP-SN@OH nanoparticles, which were not easily
taken up by the cells. Surface modification was performed with a similar procedure following the
construction of CSP-SN@OH but using a mixture of APTMS/TEOS (Figure 1 pathway iv). We also
evaluated the effect of the mixing ratio of these two silane-coupling agents (TEOS/APTMS = 8/2, 7/3,
6/4 and 5/5 in 1000 µL total volume) on the nanoparticle construction (Figure S5). It was found that
the product did not easily form spherical nanoparticles until the ratio of TEOS/APTMS exceeded
7/3; increasing the ratio of APTMS resulted in larger products and more complex products. Finally,
inter-sphere silane coupling reactions occurred when the TEOS/APTMS ratio was greater than 5/5.
The characterization of the sizes, emission wavelengths and solvent-independent effects of these
APTMS-modified nanoparticles is shown in Figure S2 and Figure 5. We chose the nanoparticle
constructed at a ratio of 7/3 as our product nanoparticle CSP-SN@OH/NH2, whose spectral properties
are consistent with those of CSP-SN@OH, but better water solubility and dispersion in the solvent
were observed. It is worth noting that this nanoparticle was affected by the solvent to some extent,
which was attributed to possible interlaced cross-coupling on the TEOS/APTMS hybrid surface to
achieve a larger gap, through which solvent molecules can penetrate the shell of the nanoparticle.

Molecules 2020, 25, 5732
7 of 12

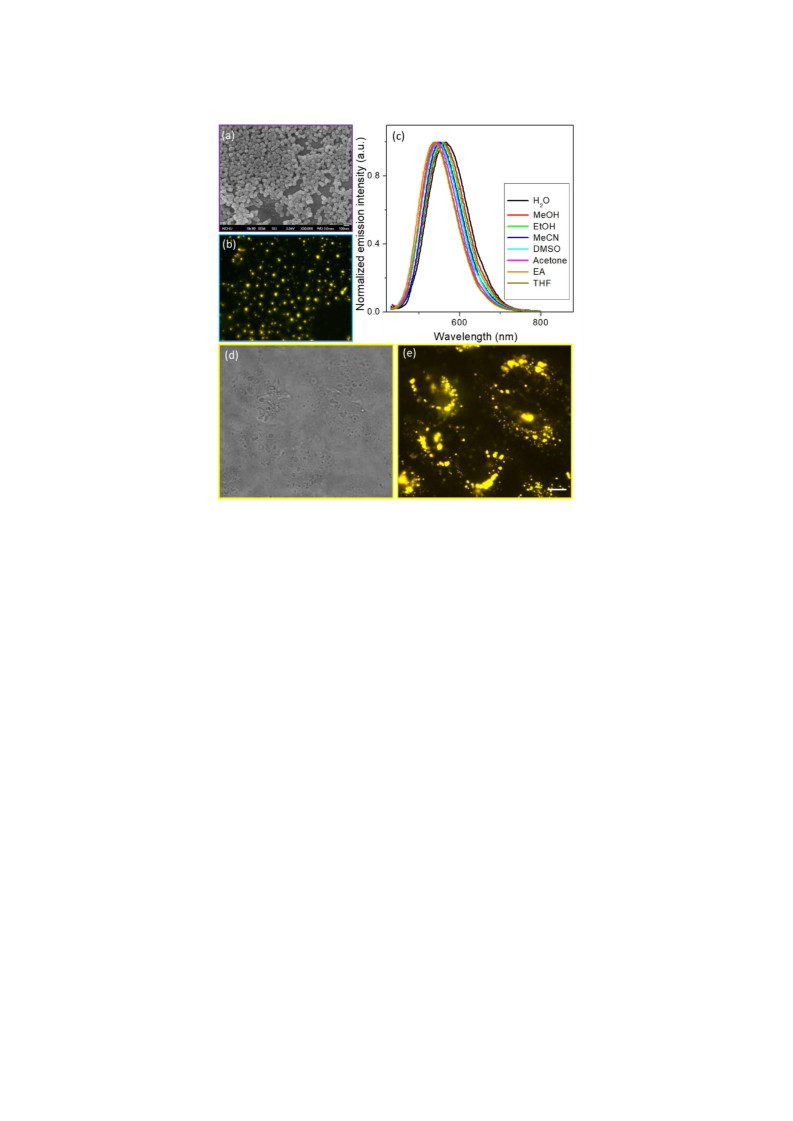

Figure 5.
Em: 410 nm lp filter); and (
(
a
) SEM images (scale bar 100 nm); (
b
) fluorescence microscopy image (Ex: 390 ± 20 nm bp filter
;
c) solvent effect emission spectra of CSP-SN@OH/NH2. Cellular imaging of
CSP-SN@OH/NH2 (1 mg, incubated 12 h) in A549 cancer cells. (d) Brightfield. (e) UV cube (ex 390/10 nm,
410 long-pass filter). Scale bar = 10 µM.
We evaluated the cellular uptake and cell viability of the nanoparticle and found that the cellular
uptake of the CSP-SN@OH/NH2 nanoparticles was higher than that of the CSP-SN@OH nanoparticles.
Figure 5 clearly reveals that CSP-SN@OH/NH2 stayed in the cytoplasm of the A549 cells. This result
indicates that the amine-modified silica nanoparticles presented higher cellular uptakes compared with the
uptake of the hydroxylated silica nanoparticles. Therefore, we also evaluated the cellular cytotoxicity of
CSP-SN@OH/NH2 in human cancer cell lines HeLa (cervical) and A549 (lung) and human normal cell line
MRC-5 (lung), and low cytotoxicity (over 90% normal cell viability, 5 mg) was observed for 24 h (Figure S6).
Eventually, continuing the experiment in Figure 5e, we benchmarked the photostability of the produced
nanoparticles against those cell markers for long-term live-cell imaging. To perform this comparison,
CSP-SN@OH/NH2, MitoTracker™ Red (mitochondria tracker), lysotracker green (lysosome tracker)
and Nile Red (lipid droplet tracker) incubated in A549 cells were continuously imaged for over 300 s,
and then the emission intensity was monitored under the same light source and region of interest (ROI).
In Figure S7, CSP-SN@OH/NH2 cell staining images present the most photostability over the other
trackers, and surprisingly, the photostability of fluorescence remained unchanged for more than 250 s.
These superiorities of the produced nanoparticle make us look forward to more functional applications
where these FSNs (CSP-SN@OH or CSP-SN@OH/NH2) will be coupled with organic drugs or biosensors,
making them a very powerful tracing tool for drug carriers.

Molecules 2020, 25, 5732
8 of 12
3. Experiment
3.1. Materials
The chemicals tetraethyl orthosilicate (TEOS), Mercaptopropyl)trimethoxysilane (MPTMS) and
ammonium hydroxide solution (25%) employed in this study were of the best analytical grade available and
obtained from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA) or Merck Ltd. (Darmstadt, Germany),
andwereusedwithoutfurtherpurification. Allthesolventsforspectralmeasurementswereofspectrometric
grade and other reagents were purchased from Aldrich and used as received.
3.2. Apparatus
The absorption and fluorescence spectra were generated using a Thermo Genesys 6 UV-visible
spectrophotometer (Thermo Fisher Scientific Inc, Waltham, MA, USA ) mounted on a double beam
sample detecting with a 1 nm resolution and a HORIBA JOBIN-YVON FluoroMax-4 spectrofluorometer
(HORIBA Ltd., Kyoto, Japan), with a 1 nm bandpass filter in a 1 cm cell length at room temperature,
respectively. The fluorescence images were taken under a Leica AF6000 fluorescence microscope with
a DFC310 FX digital color camera (Major Instruments Co., Ltd., New Taipei City, Taiwan). The SEM
images of the nanostructures were obtained using a JEOL JSM-7800F Prime Schottky field emission
scanning electron microscope (JEOL Ltd. Tokyo, Japan). Dynamic light scattering (DLS) measurement
was recorded using a SZ-100–HORIBA (HORIBA Ltd., Kyoto, Japan).
3.3. Cell Culture Conditions and Cellular Imaging
MRC-5 (human normal lung fibroblast cell line, BCRC, Hsinchu, Taiwan) and HeLa (human cervical
carcinoma cells, BCRC, Hsinchu, Taiwan) used CORNING® MEM (Minimum Essential Medium) as
the culture medium, and the A549 human lung adenocarcinoma cancer cell (BCRC, Hsinchu, Taiwan)
line was grown in RPMI 1640 (Gibco/Invitrogen, Cat. No. 22400-089) medium containing 10% fetal
bovine serum (FBS). The cells were cultured at 37 ◦C in a humidified atmosphere (95% air and 5% CO2)
and then seeded onto coverslips and incubated for 24 h before observation by cellular imaging. On the
next day, cells were incubated with nanoparticles for 12 h; here, the stock solutions of the compounds
were diluted in serum-free medium before use (1:100 v/v). The fluorescence images were taken under
Leica AF6000 fluorescence microscopy with a DFC310 FX digital color camera. The excitation sources
were 390/10 or 470/20 nm bandpass for compounds. Fluorescence photographs were taken through
related ranges tubes.
3.4. Synthesis of N-Butyl-4-(3-(Trimethoxysilyl-Propylthio)Styryl)-1,8-Naphthalimide (CSP)
To prepare CSP as an FSN precursor, as depicted in Figure 1, previous thiol sensor N-butyl-4-
(4-maleimidostyryl)-1,8-naphthalimide (CS) (Figure S1) [28], was used. In a typical procedure, in an
oven-dried 25 mL round-bottom flask, CS was taken (0.2 g, 0.5 mmol) in 10 mL EtOH.
Then, 3-Mercaptopropyl)trimethoxysilane (MPTMS, Sigma-Aldrich, 1.96 g, 10 mmol) was added to
the system, and the resultant mixture was stirred for 2 h at room temperature. The reaction mixture
was concentrated under high vacuum to a trace amount and hexane was poured to recrystallize the
product yellow powder CSP. Yield 0.26 g, 81%. 1H-NMR (400 Hz, DMSO-d6):
δ 9.01 (d, J = 8.0 Hz,
1H), 8.54 (d, J = 8.2 Hz, 1H), 8.50 (d, J = 8.0 Hz, 1H), 8.29 (d, J = 8.2 Hz, 1H), 8.28 (d, J = 16.0 Hz, 1H),
7.99 (d, J = 7.8 Hz, 2H), 7.93 (dd, J = 8.0, 7.8 Hz, 1H), 7.65 (d, J = 16.0 Hz, 1H), 7.35 (d, J = 7.8 Hz, 2H),
4.10 (t, 2H), 4.04 (t, 2H), 3.45 (s, 9H), 2.47 (m, 2H), 1.62 (m, 2H), 1.39 (m, 2H) 1.35 (m, 2H), 0.91 (t, 3H),
0.71 (m, 2H) ppm. HRMS (ESI, m/z): [M + H]+ 644.81; found, 645.2. Anal. Calcd for CSP C34H36N2O7SSi:
C, 63.33, H, 5.63; N, 4.34; CSP·0.5H2O: C34H37N2O7.5SSi; found: C, 62.46; H, 5.70; N, 4.21.

Molecules 2020, 25, 5732
9 of 12
3.5. Determination of Quantum Yields
The quantum yields of PTZ derivatives were determined according to the literature [39].
Φu = Φs × (Afu × As × λexs × ηu)/(Afs × Au × λexu × ηs)
where
spectra; A is the absorbance area at the excitation wavelength;
refractive index of the solution; and the subscripts u and s refer to the unknown and the standard,
respectively. Here, we used Rhodamine Green as a standard and for the same ex, we chose BMVC as
Φ
u is the quantum yield of unknown; Af is the integrated area under the corrected emission
λ
ex is the excitation wavelength; is the
η
λ
the standard, which has the quantum yield of 0.25 in glycerol and 0.02 in DMSO [40].
3.6. Construction of CSP-SN@OH
In brief, 7.5 µmol of CSP in 0.1 mL of DMSO was slowly added to a 15 mL ethanol solution
under ultrasound irradiation. Then, 0.195 mL of distilled water and 0.32 mL of ammonium hydroxide
(25%) were added into the mixture. The solution was stirred at room temperature for approximately
30 min, after which 100, 500 or 1000 µL of TEOS in 3.5 mL of an ethanol solution were added
dropwise into the mixture and stirred at room temperature for another 24 h. Finally, the mixture
was centrifuged (6000 rpm/20 min) and washed with water and ethanol three times to remove the
unencapsulated compound.
3.7. Construction of CSP-SN@OH/NH2
Similar to the process for CSP-SN@OH, 7.5 µmol of CSP in 0.1 mL of DMSO was slowly added
to a 15 mL ethanol solution under ultrasound irradiation. Then, 0.195 mL of distilled water and
0.32 mL of ammonium hydroxide (25%) were added into the mixture. The solution was stirred at
room temperature for approximately 30 min, after which (0.8/0.2, 0.7/0.3, 0.6/0.4 or 0.5/0.5 mL/mL) of
TEOS/APTMS 1 mL in 3.5 mL of an ethanol solution were added dropwise into the mixture and stirred
at room temperature for another 24 h. Finally, the mixture was centrifuged (6000 rpm/20 min) and
washed with water and ethanol three times to remove the unencapsulated compound.
4. Conclusions
In this manuscript, the PET inhibition-induced fluorescence enhancement phenomenon was
promoted according to the AIEE effect, which can be used to build a novel DEE platform. The room
temperature-reacted thiol biosensor CS was silanized with MPTMS to produce CSP, which was
the first stage of the emission enhancement due to the inhibition of PET. After that, another silane
coupling agent was further added to coat a silica shell around the CSP core with the Stöber method.
The emission of the obtained silica nanoparticles CSP-SN@OH was expected to increase further
with AIEE. Systematic investigations verified that the resulting CSP-SN@OH showed the traditional
solvent-independent and photostable optical properties in aqueous media as well as in most organic
solvents. This result implies that these novel fluorescent nanoparticles are suitable as biomarkers
in living cells and function as fluorescent visualization agents for intracellular imaging and drug
carriers. There are several issues to address in our study. 1: The suppression of the molecular TICT
process can induce emission enhancements, which may arise from a mechanism of self-assembly
(present AIEE) and/or the “non-resonant exciton system” of the molecule. 2: The compound CSP
simultaneously possessed AIE and PET properties and could form FONs, which are suitable for the
FSN fabrication of DDSNs. 3. This superior property allowed us to construct a double emission
enhancement silica nanoparticle.

Molecules 2020, 25, 5732
10 of 12
Supplementary Materials: The following are available online. General procedure for the synthesis of probes,
Figure S1: Reagents and conditions, Figure S2. Dynamic light scattering (DLS) data, Figure S3: SEM images of
preparation CSP-SN@OH and their response emission spectra, Figure S4: The slopes of the Lippert plots, Figure S5:
SEM images of preparation CSP-SN@OH/NH2, Figure S6: The cytotoxicity evaluation of CSP-SN@OH/NH2,
Figure S7: The performance of CSP-SN@OH/NH2 for long-term imaging.
Author Contributions: Conceptualization, C.-C.C.; methodology, H.-J.W. and C.-C.C.; data analysis, H.-J.W. and
C.-C.C.; investigation, H.-J.W. and C.-C.C.; data curation, H.-J.W. and C.-C.C.; writing—original draft preparation,
C.-C.C.; writing—review and editing, C.-C.C.; project administration, C.-C.C.; funding acquisition, C.-C.C.
All authors have read and agreed to the published version of the manuscript.
Funding: The authors thank the Ministry of Science and Technology (MOST 108-2113-M-005-006)
(MOST 109-2224-E-005-001) of Taiwan for financial support.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
3.
4.
Bamrungsap, S.; Zhao, Z.; Chen, T.; Wang, L.; Li, C.; Fu, T.; Tan, W. Nanotechnology in therapeutics: A focus
on nanoparticles as a drug delivery system. Nanomedicine 2012, 7, 1253–1271. [CrossRef] [PubMed]
Biju, V. Chemical modifications and bioconjugate reactions of nanomaterials for sensing, imaging,
drug delivery and therapy. Chem. Soc. Rev. 2014, 43, 744–764. [CrossRef] [PubMed]
Montalti, M.; Prodi, L.; Rampazzo, E.; Zaccheroni, N. Dye-doped silica nanoparticles as luminescent
organized systems for nanomedicine. Chem. Soc. Rev. 2014, 43, 4243–4268. [CrossRef] [PubMed]
Esim, O.; Kurbanoglu, S.; Savaser, A.; Ozkan, S.A.; Ozkan, Y. Chapter 9 Nanomaterials for Drug Delivery
Systems. In New Developments in Nanosensors for Pharmaceutical Analysis; Ozkan, S.A., Shah, A., Eds.;
Academic Press: Cambridge, MA, USA, 2019; pp. 273–301. [CrossRef]
5.
6.
7.
Wang, K.; He, X.; Yang, X.; Shi, H. Functionalized silica nanoparticles: A platform for fluorescence imaging
at the cell and small animal levels. Acc. Chem. Res. 2013, 46, 1367–1376. [CrossRef] [PubMed]
Burns, A.; Ow, H.; Wiesner, U. Fluorescent core-shell silica nanoparticles: Towards “Lab on a Particle”
architectures for nanobiotechnology. Chem. Soc. Rev. 2006, 35, 1028–1042. [CrossRef]
Miragoli, M.; Novak, P.; Ruenraroengsak, P.; Shevchuk, A.I.; Korchev, Y.E.; Lab, M.J.; Tetley, T.D.; Gorelik, J.
Functional interaction between charged nanoparticles and cardiac tissue: A new paradigm for cardiac
arrhythmia? Nanomedicine 2013, 8, 725–737. [CrossRef]
8.
9.
Prilloff, S.; Fan, J.; Henrich-Noack, P.; Sabel, B.A. In vivo confocal neuroimaging (ICON): Non-invasive, functional
imaging of the mammalian CNS with cellular resolution. Eur. J. Neurosci. 2010, 31, 521–528. [CrossRef]
Novio, F.; Simmchen, J.; V
ázquez-Mera, N.; Amorín-Ferré, L.; Ruiz-Molina, D. Coordination polymer
nanoparticles in medicine. Coord. Chem. Rev. 2013, 257, 2839–2847. [CrossRef]
10. Kuijk, A.; van Blaaderen, A.; Imhof, A. Synthesis of monodisperse, rodlike silica colloids with tunable aspect
ratio. J. Am. Chem. Soc. 2011, 133, 2346–2349. [CrossRef]
11. Yi, D.; Zhang, Q.; Liu, Y.; Song, J.; Tang, Y.; Caruso, F.; Wang, Y. Synthesis of Chemically Asymmetric Silica
Nanobottles and Their Application for Cargo Loading and as Nanoreactors and Nanomotors. Angew. Chem.
Int. Ed. Engl. 2016, 55, 14733–14737. [CrossRef]
12. Wang, X.D.; Meier, R.J.; Wolfbeis, O.S. Fluorescent pH-sensitive nanoparticles in an agarose matrix for imaging
of bacterial growth and metabolism. Angew. Chem. Int. Ed. Engl. 2013, 52, 406–409. [CrossRef] [PubMed]
13. Wang, X.D.; Stolwijk, J.A.; Lang, T.; Sperber, M.; Meier, R.J.; Wegener, J.; Wolfbeis, O.S. Ultra-small, highly
stable, and sensitive dual nanosensors for imaging intracellular oxygen and pH in cytosol. J. Am. Chem. Soc.
2012, 134, 17011–17014. [CrossRef] [PubMed]
14. Bae, S.W.; Tan, W.; Hong, J.I. Fluorescent dye-doped silica nanoparticles: New tools for bioapplications.
Chem. Commun. (Camb.) 2012, 48, 2270–2282. [CrossRef] [PubMed]
15. Wang, L.; Zhao, W.; Tan, W. Bioconjugated silica nanoparticles: Development and applications. Nano Res.
2008, 1, 99–115. [CrossRef]
16. Nagesetti, A.; McGoron, A.J. Multifunctional organically modified silica nanoparticles for chemotherapy,
adjuvant hyperthermia and near infrared imaging. Colloids Surf. B Biointerfaces 2016, 147, 492–500. [CrossRef]
17. Zhu, M.; Nie, G.; Meng, H.; Xia, T.; Nel, A.; Zhao, Y. Physicochemical properties determine nanomaterial
cellular uptake, transport, and fate. Acc. Chem. Res. 2013, 46, 622–631. [CrossRef] [PubMed]

Molecules 2020, 25, 5732
11 of 12
18. Biffi, S.; Petrizza, L.; Rampazzo, E.; Voltan, R.; Sgarzi, M.; Garrovo, C.; Prodi, L.; Andolfi, L.; Agnoletto, C.;
Zauli, G.; et al. Multiple dye-doped NIR-emitting silica nanoparticles for both flow cytometry and in vivo
imaging. RSC Adv. 2014, 4, 18278–18285. [CrossRef]
19. Soster, M.; Juris, R.; Bonacchi, S.; Genovese, D.; Montalti, M.; Rampazzo, E.; Zaccheroni, N.; Garagnani, P.;
Bussolino, F.; Prodi, L.; et al. Targeted dual-color silica nanoparticles provide univocal identification of
micrometastases in preclinical models of colorectal cancer. Int. J. Nanomed. 2012, 7, 4797–4807. [CrossRef]
20. Lian, Y.; Ding, L.J.; Zhang, W.; Zhang, X.A.; Zhang, Y.L.; Lin, Z.Z.; Wang, X.D. Synthesis of highly stable
cyanine-dye-doped silica nanoparticle for biological applications. Methods Appl. Fluoresc. 2018, 6, 034002. [CrossRef]
21. Compagnin, C.; Baùu, L.; Mognato, M.; Celotti, L.; Miotto, G.; Arduini, M.; Moret, F.; Fede, C.; Selvestrel, F.;
Rio Echevarria, I.M.; et al. The cellular uptake of meta-tetra(hydroxyphenyl)chlorin entrapped in organically
modified silica nanoparticles is mediated by serum proteins. Nanotechnology 2009, 20, 345101. [CrossRef]
22. Kumar, R.; Roy, I.; Ohulchanskyy, T.Y.; Goswami, L.N.; Bonoiu, A.C.; Bergey, E.J.; Tramposch, K.M.;
Maitra, A.; Prasad, P.N. Covalently dye-linked, surface-controlled, and bioconjugated organically modified
silica nanoparticles as targeted probes for optical imaging. ACS Nano 2008, 2, 449–456. [CrossRef]
23. Mahtab, F.; Lam, J.W.; Yu, Y.; Liu, J.; Yuan, W.; Lu, P.; Tang, B.Z. Covalent immobilization of
aggregation-induced emission luminogens in silica nanoparticles through click reaction. Small 2011
7, 1448–1455. [CrossRef] [PubMed]
,
24. Hong, Y.; Lam, J.W.; Tang, B.Z. Aggregation-induced emission. Chem. Soc. Rev. 2011, 40, 5361–5388.
[CrossRef] [PubMed]
25. Zhang, X.; Zhang, X.; Yang, B.; Liu, L.; Hui, J.; Liu, M.; Chen, Y.; Wei, Y. Aggregation-induced emission dye
based luminescent silica nanoparticles: Facile preparation, biocompatibility evaluation and cell imaging
applications. RSC Adv. 2014, 4, 10060–10066. [CrossRef]
26. Jiao, L.; Liu, Y.; Zhang, X.; Hong, G.; Zheng, J.; Cui, J.; Peng, X.; Song, F. Constructing a Local Hydrophobic
Cage in Dye-Doped Fluorescent Silica Nanoparticles to Enhance the Photophysical Properties. ACS Cent. Sci.
2020, 6, 747–759. [CrossRef] [PubMed]
27. Chiang, Y.C.; Lai, Z.L.; Chen, C.M.; Chang, C.C.; Liu, B. Construction of emission-tunable nanoparticles
based on a TICT-AIEgen: Impact of aggregation-induced emission versus twisted intramolecular charge
transfer. J. Mater. Chem. B 2018, 6, 2869–2876. [CrossRef]
28. Girouard, S.; Houle, M.H.; Grandbois, A.; Keillor, J.W.; Michnick, S.W. Synthesis and characterization of
dimaleimide fluorogens designed for specific labeling of proteins. J. Am. Chem. Soc. 2005, 127, 559–566.
[CrossRef] [PubMed]
29. Matsumoto, T.; Urano, Y.; Shoda, T.; Kojima, H.; Nagano, T. A thiol-reactive fluorescence probe based on donor-excited
photoinduced electron transfer: Key role of ortho substitution. Org. Lett. 2007, 9, 3375–3377. [CrossRef]
30. Yang, Y.; Huo, F.; Yin, C.; Chao, J.; Zhang, Y. An ‘OFF–ON’ fluorescent probe for specially recognize on Cys
and its application in bioimaging. Dye. Pigment. 2015, 114, 105–109. [CrossRef]
31. Huo, F.; Kang, J.; Yin, C.; Zhang, Y.; Chao, J. A turn-on green fluorescent thiol probe based on the 1,2-addition
reaction and its application for bioimaging. Sens. Actuators B Chem. 2015, 207, 139–143. [CrossRef]
32. Liu, T.; Huo, F.; Yin, C.; Li, J.; Chao, J.; Zhang, Y. A triphenylamine as a fluorophore and maleimide as a bonding
group selective turn-on fluorescent imaging probe for thiols. Dye. Pigment. 2016, 128, 209–214. [CrossRef]
33. Lin, M.-S.; Yang, S.-J.; Chang, H.-W.; Huang, Y.-H.; Tsai, Y.-T.; Wu, C.-C.; Chou, S.-H.; Mondal, E.; Wong, K.-T.
Incorporation of a CN group into mCP: A new bipolar host material for highly efficient blue and white
electrophosphorescent devices. J. Mater. Chem. 2012, 22, 16114–16120. [CrossRef]
34. Chen, J.W.; Chang, C.C. A Dual Anticancer Efficacy Molecule: A Selective Dark Cytotoxicity Photosensitizer.
ACS Appl. Mater. Interfaces 2016, 8, 29883–29892. [CrossRef]
35. Würthner, F.; Kaiser, T.E.; Saha-Möller, C.R. J-aggregates: From serendipitous discovery to supramolecular
engineering of functional dye materials. Angew. Chem. Int. Ed. Engl. 2011, 50, 3376–3410. [CrossRef] [PubMed]
36. Moon, H.; Xuan, Q.P.; Kim, D.; Kim, Y.; Park, J.W.; Lee, C.H.; Kim, H.-J.; Kawamata, A.; Park, S.Y.; Ahn, K.H.
Molecular-Shape-Dependent Luminescent Behavior of Dye Aggregates: Bent versus Linear Benzocoumarins.
Cryst. Growth Des. 2014, 14, 6613–6619. [CrossRef]
37. Chen, J.W.; Chen, C.M.; Chang, C.C. A fluorescent pH probe for acidic organelles in living cells. Org. Biomol.
Chem. 2017, 15, 7936–7943. [CrossRef]

Molecules 2020, 25, 5732
12 of 12
38. Tung, Y.T.; Chang, C.C.; Lin, Y.L.; Hsieh, S.L.; Wang, G.J. Development of double-generation gold nanoparticle
chip-based dengue virus detection system combining fluorescence turn-on probes. Biosens. Bioelectron. 2016
,
77, 90–98. [CrossRef]
39. Velapoldi, R.A.; Tønnesen, H.H. Corrected Emission Spectra and Quantum Yields for a Series of Fluorescent
Compounds in the Visible Spectral Region. J. Fluoresc. 2004, 14, 465–472. [CrossRef]
40. Chang, C.C.; Kuo, S.H.; Kang, C.C.; Chang, T.C. Solvent effect on photophysical properties of a fluorescence
probe: BMVC. J. Lumin. 2006, 119–120, 84–90. [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional
affiliations.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
