Phototriggered Dynamic and Biomimetic Growth of Chlorosomal Self-Aggregates

Article abstract of DOI:10.1021/jacs.8b13056

Supramolecular polymerizations mimicking native systems, which are step-by-step constructions to form self-aggregates, were recently developed. However, a general system to successively and spontaneously form self-aggregates from monomeric species remains

Full text of DOI:10.1021/jacs.8b13056

Subscriber access provided by TULANE UNIVERSITY
Communication
Phototriggered dynamic and biomimetic
growth of chlorosomal self-aggregates
Shogo Matsubara, and Hitoshi Tamiaki
J. Am. Chem. Soc., Just Accepted Manuscript • DOI: 10.1021/jacs.8b13056 • Publication Date (Web): 09 Jan 2019
Downloaded from http://pubs.acs.org on January 9, 2019
Just Accepted
“Just Accepted” manuscripts have been peer-reviewed and accepted for publication. They are posted
online prior to technical editing, formatting for publication and author proofing. The American Chemical
Society provides “Just Accepted” as a service to the research community to expedite the dissemination
of scientific material as soon as possible after acceptance. “Just Accepted” manuscripts appear in
full in PDF format accompanied by an HTML abstract. “Just Accepted” manuscripts have been fully
peer reviewed, but should not be considered the official version of record. They are citable by the
Digital Object Identifier (DOI®). “Just Accepted” is an optional service offered to authors. Therefore,
the “Just Accepted” Web site may not include all articles that will be published in the journal. After
a manuscript is technically edited and formatted, it will be removed from the “Just Accepted” Web
site and published as an ASAP article. Note that technical editing may introduce minor changes
to the manuscript text and/or graphics which could affect content, and all legal disclaimers and
ethical guidelines that apply to the journal pertain. ACS cannot be held responsible for errors or
consequences arising from the use of information contained in these “Just Accepted” manuscripts.
is published by the American Chemical Society. 1155 Sixteenth Street N.W.,
Washington, DC 20036
Published by American Chemical Society. Copyright © American Chemical Society.
However, no copyright claim is made to original U.S. Government works, or works
produced by employees of any Commonwealth realm Crown government in the course
of their duties.

Page 1 of 6
Journal of the American Chemical Society
Phototriggered dynamic and biomimetic growth of chlorosomal self-
aggregates
1
2
3
4
5
Shogo Matsubara, and Hitoshi Tamiaki*
6
7
Graduate School of Life Sciences, Ritsumeikan University, Kusatsu, Shiga 525-8577, Japan
8
9
Supporting Information Placeholder
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
(Fig. 1a, left),7,9,12 and the aggregates are tube-like (a 5–30
ABSTRACT: Supramolecular polymerizations mimick-
ing native systems, which are step-by-step construction to
form self-aggregates, were recently developed. However,
a general system to successively and spontaneously form
nm diameter) or lamellar structures.10,11,13 Chlorosomal self-
aggregates were able to be prepared in vitro by self-assembly
of BChl-c, d, or e isolated from natural chlorosomes and
their model molecules such as Zn-HM (Fig. 1a, middle).8,14–
self-aggregates from monomeric species remains chal-
18 However, directly forming a tube-like structure as in a nat-
lenging. Here we report a photoinduced supramolecular
ural chlorosome is difficult because of the spontaneous for-
polymerization system as a biomimetic formation of chlo-
rophyll aggregates which are the main light-harvesting
antennas in photosynthetic green bacteria, called “chloro-
somes”. In this system, inert chlorophyll derivatives were
mation of amorphous particle-like aggregates. The predom-
inant preparation of tube-like chlorosomal aggregates was
required to stand aggregates in a solution for over 1 week as
described in previous reports.14–18 These studies indicated
UV-irradiated to gradually produce active species through
that the conventional method as shown in Fig. 1b preferen-
deprotection. Such active monomers spontaneously as-
tially induced the formation of kinetically trapped metasta-
ble aggregates, whereas tube-like aggregates are thermody-
namically stable.
sembled to form fiber-like chlorosomal self-aggregates in
a similar manner as a dynamic growth of natural chloro-
somal self-aggregates. The study would be useful for elu-
cidation of the formation process of the chlorosomal ag-
gregates and construction of other supramolecular struc-
tures in nature.
Supramolecular polymerization has been investigated in the
last decade for the step-by-step construction of biological
systems.1–5 Most of the supramolecular aggregates were
quickly prepared by dispersing a large amount of self-assem-
bling species (active species) in poor solvents at controlled
temperature and concentration. Particularly, the preparation
of aggregate nuclei known as seeds is important for sponta-
neous supramolecular polymerization.1,3,4 Supramolecular
structures in nature are gradually formed by assembling a
small amount of spatiotemporally biosynthesized active spe-
cies in which seeds are produced in limited amounts.
Here, we report a spatiotemporally controlled supramo-
lecular polymerization system whose conditions are similar
to those used in biosystem preparation; that is based on the
protection of active species and photoinduced deprotection
of the inactive species. Temporally inactive species prepared
by photoremovable protection of active species were illumi-
nated with light to generate self-assembling species (photo-
deprotection) to form its self-aggregates, where an active
monomer was gradually supplied as in native chlorosome
systems. In this study, we focused on constructing a special
light-harvesting antenna in a green photosynthetic bacterium
called “chlorosome”6–13 and mimicked its natural biological
supramolecular system.

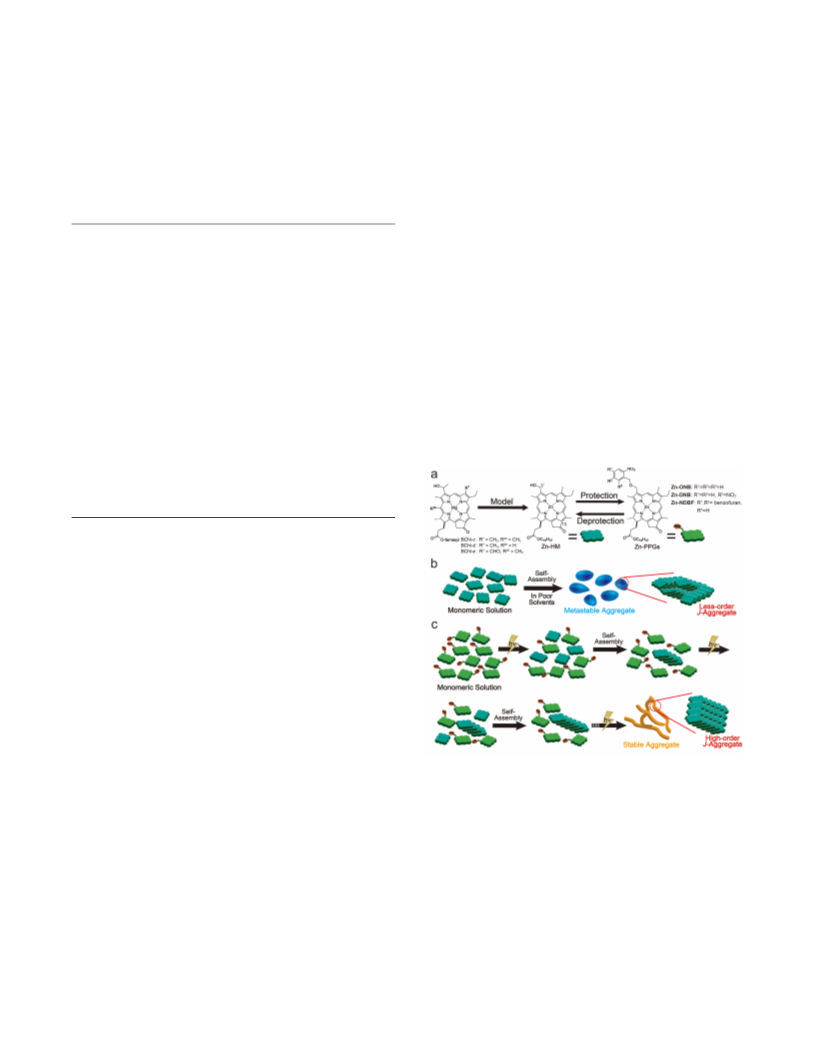

Figure 1. Schematic chlorophyll self-assembly. (a) Chemi-
cal structures of natural BChl-c, d, and e molecules (left),
zinc Chl derivative possessing the 3-hydroxymethyl group
Zn-HM as a synthetic model (middle), and its protected
compounds with a photoremovable group Zn-PPGs (right).
(b) Self-assembly of synthetic Zn-HM to form metastable
aggregates. (c) Photoinduced deprotection of Zn-PPGs and
successive self-assembly of Zn-HM to directly form stable
nanofibers with a high-order J-aggregate.
To directly construct tube-like chlorosomal aggregates,
we propose a biomimetic system that gradually supply self-
assembling chlorophyll (Chl) molecules (Fig. 1c) by photol-
ysis of Chl derivatives (Fig. 1a, right) possessing a
A single chlorosome is constructed from J-aggregates of
bacteriochlorophyll-c, d, or e (BChl-c, d, or e) molecules
ACS Paragon Plus Environment

Journal of the American Chemical Society
photoremovable protecting group. Photoremovable protec-
Page 2 of 6
green),15,23 demonstrating that Zn-DNB was photo-depro-
tected by UV-irradiation to produce Zn-HM which self-as-
sembled to form chlorosomal self-aggregates (AggUV-1). The
result of reverse-phase high performance liquid chromatog-
raphy (RP-HPLC)-mass spectrometry (MS) analysis also in-
dicated that Zn-DNB was deprotected to generate Zn-HM.
Before photoirradiation, a single HPLC peak of Zn-DNB
was observed at 13.5 min (Fig. 2c, red). During irradiation,
an arising 10.5-min peak was assigned to Zn-HM by com-
parison with the authentic sample (Fig. 2c, black and blue).
1
2
3
4
5
6
7
8
tion has been utilized in various systems including fluores-
cence emission imaging and drug delivery systems.19–22 Be-
cause hydrogen bonding between a hydroxy group at the 31-
position and a keto carbonyl group at the 13-position as well
as coordination of the hydroxy group with a central metal are
essential for construction of in vivo and in vitro chlorosomal
J-aggregates.8,9,11,13 Chl derivatives protected at the 31-hy-
droxy group Zn-PPGs (Zn-ONB, Zn-DNB, and Zn-
NDBF) cannot assemble to form their chlorosomal self-ag-
gregates. Zn-PPGs were irradiated with UV-light to gener-
ate Zn-HM, which could self-assemble to form chlorosomal
aggregates.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 2. Photoinduced self-assembly of chlorophyll deriv-
atives. (a) UV-vis absorption and CD spectral change of Zn-
DNB (20 µM) in 1%(v/v) EtOH-hexane with UV-irradiation
(red to blue). (b) UV-vis absorption and CD spectra of Zn-
HM (20 µM) in tetrahydrofuran (THF; black) and 1%(v/v)
EtOH-hexane (green). (c) HPLC profiles of Zn-HM (upper),
Zn-DNB before UV irradiation (middle), and Zn-DNB after
UV irradiation for 28 min (lower); HPLC conditions: Cos-
mosil 5C18AR-II 3.0f × 150 mm, acetonitrile : acetone : pyr-
idine : H2O = 75.6 : 18.9 : 0.5 : 5, 1.0 mL/min.
Zn-DNB possessing a dinitrobenzyl group21,22 showed the
highest deprotection yield in the three Zn-PPGs as shown in
Supplementary Information. The photoinduced self-aggre-
gation behaviour of Zn-DNB was investigated using UV-
visible (vis) absorption and circular dichroism (CD) spectra.
Zn-DNB was dissolved in a 1%(v/v) EtOH-hexane solution
to give two sharp peaks called Soret and Qy absorption
bands at 426 and 654 nm, respectively (Fig. 2a, upper, red).
UV-irradiation (250–280 nm) to the Zn-DNB solution trig-
gered the appearance of red-shifted Soret and Qy bands at
450–500 and 735 nm, respectively, where CD signals were
visible (Fig. 2a, gray and blue). The resulting absorption
peaks and CD signals are comparable to those of Zn-HM
self-aggregates (AggHM) in 1%(v/v) EtOH-hexane (Fig. 2b,

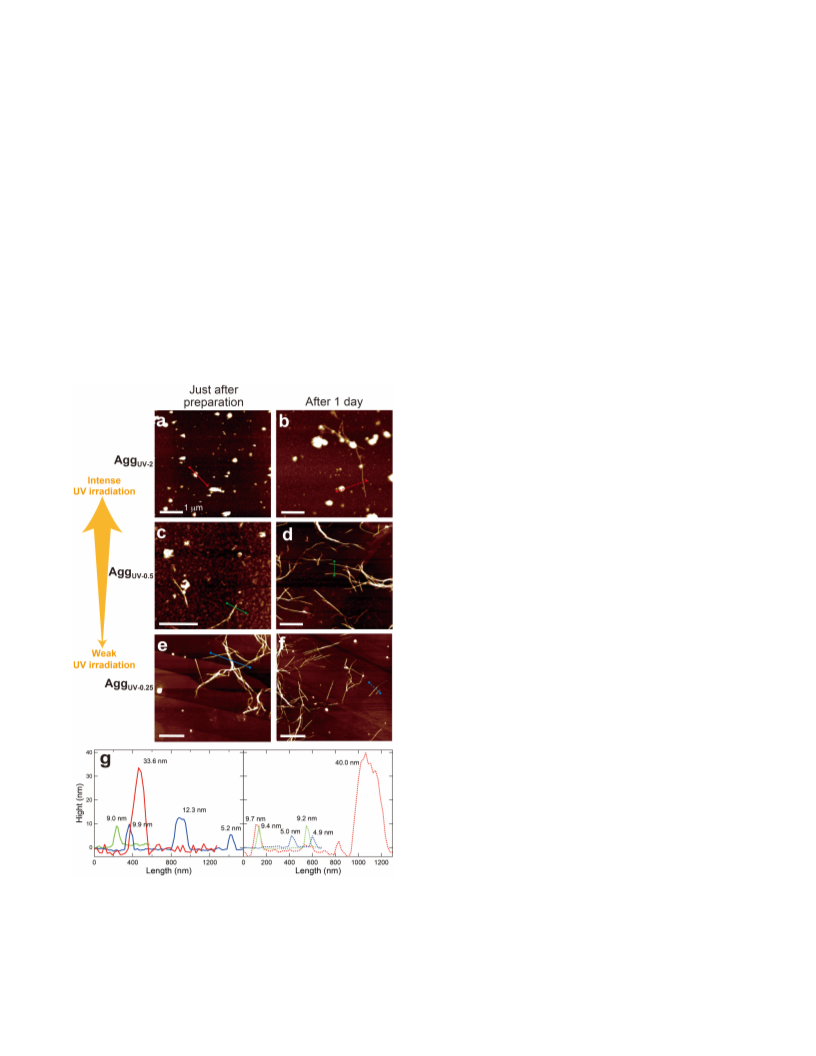

Figure 3. AFM images of (a) AggHM just after preparation
and (b) 1 week, and (c) those of AggUV-1 just after UV-
irradiation for 20 min and (d) after standing the solution for
1 day on an HOPG substrate; all the scale bars are 1 µm. (e)
Height profiles along yellow, green, red, and blue lines in
Figs. 3b and 3d. (f) Schematic tube-like monolayer (left) and
bilayer structures (right) of Zn-HM self-aggregates.
To observe the structural morphology of self-aggregates
AggHM and AggUV-1, we analyzed their solids prepared by
drop-casting the sample solutions on a highly oriented
ACS Paragon Plus Environment

Page 3 of 6
Journal of the American Chemical Society
pyrolytic graphite (HOPG) substrate by atomic force micros-
for 1 day on an HOPG substrate; all the scale bars are 1 µm.
(g) Height profiles along solid (just after preparation; left)
and broken red, green, and blue lines (after 1 day; right) in
Figs. 4a/b, 4c/d, and 4e/f.
1
2
3
4
5
6
7
8
copy (AFM) measurements. Just after preparation, AggHM
was the principal nanoparticles present with 300–600
(NPlarge) and 100–200 nm (NPmedium) diameters (Fig. 3a), and
nanofibers (NFs) were partially observed after standing in
the solution for 1 week (Fig. 3b). This transformation indi-
cated that NP and NF were thermodynamically metastable
and stable aggregates, respectively, which agrees with pre-
vious studies.15 One more month later, numerous NFs were
observed (Fig. S11a), showing that metastable NPs slowly
transformed into more stable NFs. In contrast to AggHM, Ag-
gUV-1 just after preparation (20-min illumination) formed
small nanoparticles (NPsmall) with a <50 nm diameter (Fig.
3c). Interestingly, transformation into NF with an accompa-
nying decrease in NPsmall was observed after standing for 1
day (Fig. 3d), and more NFs were observed after 1 week (Fig.
S11c); this transformation was much faster than that of Ag-
gHM. The diameter of these NFs was 5 or 10 nm (Fig. 3e).
Based on previously reported data for self-aggregates of Zn-
HM,15 these NFs were tube-like monolayer or bilayer aggre-
gates (Fig. 3f).
AggHM was formed by assembling a large number of Zn-
HM molecules simultaneously, while AggUV-1 was gradually
constructed from deprotected Zn-HM by UV-irradiation.
The aforementioned different behaviours of AggHM and Ag-
gUV-1 were attributed to the supply rate of self-assembling
Zn-HM (active spices). To control the rate, the light inten-
sity was changed and the structural morphology of the ob-
tained self-aggregates was investigated by AFM. UV-
irradiation of a Zn-DNB solution with a 2-fold higher light
intensity more rapidly generated Zn-HM aggregates (Ag-
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
gUV-2) than the aforementioned photoirradiation experiment
(Figs. S10c and d). AggUV-2 just after 10-min irradiation
formed slightly larger NPs than the corresponding ones in
AggUV-1, to form NPmedium with a 200–300 nm diameter (Fig.
4a). NFs were partially observed in AggUV-2 after 1 day and
showed lower transformation into NFs (Fig. 3b) compared
to AggUV-1. After standing for one more week, numerous
NFs were observed in AggUV-2 (Fig. S11d), and their trans-
formation into NF from NP was faster than that of AggHM
.
UV-irradiation with 0.5-fold intensity for Zn-DNB re-
sulted in slower formation of self-aggregates of Zn-HM (Fig.
S10). Just after 40 min of irradiation, the aggregates(AggUV-
0.5) partially produced NFs (Fig. 4c). Furthermore, reducing
UV-irradiation to a light intensity of 0.25-fold afforded Zn-
HM much more slowly (Fig. S10a) and the aggregates (Ag-
gUV-0.25) were primarily NF forms just after 80-min illumina-
tion (Fig. 4e). After standing for an additional day, numerous
NFs were observed in AggUV-0.5 and AggUV-0.25 (Figs. 4d and
4f). A rapid supply of Zn-HM resulted in promoting the for-
mation of metastable NPs and inhibiting formation of the
thermodynamically stable NFs, but a slow supply promoted
the formation of NFs and inhibited that of NPs. The for-
mation of NFs was largely dependent on the rate of Zn-HM
production. We demonstrated that the spatiotemporal con-
trol of active species resulted in formation of fiber (tube)-
like aggregates mimicking a biological supramolecular sys-
tem such as a chlorosome.
The optical properties of AggUV-1 prepared by photo-
deprotection of Zn-DNB to Zn-HM in 1%(v/v) EtOH-hex-
ane were nearly the same as those of AggHM produced by the
quick addition of hexane to an EtOH solution of Zn-HM
(Figs. 2a and b). This indicated that the local supramolecular
structures were identical. Thermodynamically stable NFs
were likely formed by gradually elongating a small J-aggre-
gate (J-aggregate block), which functioned as a nucleus or
seed for NFs (Fig. 4). In contrast, metastable NPs (NPsmall
,
NPmedium, and NPlarge) were formed by van der Waals and hy-
drophobic interactions between J-aggregate blocks, similar
to a polycrystalline made of a large number of single crystals,
which was prepared by rapid crystal growth.24,25
Figure 4. AFM images of (a) AggUV-2, (c) AggUV-0.5, and (e)
AggUV-0.25 just after irradiation with a UV-light of double,
half, and quarter power comparing to the preparation of Ag-
gUV-1 for 10, 40, and 80 min, respectively, and (b) AggUV-2
,
(d) AggUV-0.5, and (f) AggUV-0.25 after standing in the solution
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 4 of 6
1
ORCID
2
Hitoshi Tamiaki: 0000-0003-4797-0349
3
4
Notes
The authors declare no competing financial interests.
5
6
7
ACKNOWLEDGMENT
8
9
We thank Prof. Manabu Abe of Hiroshima University for his
valuable advice about photo-removable protecting groups.
This work was supported by JSPS KAKENHI Grant Num-
bers JP18J21058 and JP17H06436.
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
Figure 5. Assembly pathways toward nanofibers and nano-
particles. Pathways I and II were characterized by NP and
NF formations, respectively.
REFERENCES
[1] Ogi, S.; Sugiyasu, K.; Manna, S.; Samitsu, S.; Takeuchi, M. Liv-
ing supramolecular polymerization realized through a biomi-
metic approach, Nat. Chem. 2014, 6, 188–195.
[2] Kang, J.; Miyajima, D.; Mori, T.; Inoue, Y.; Itoh, Y.; Aida, T. A
rational strategy for the realization of chain-growth supramolec-
ular polymerization, Science 2015, 347, 646–651.
[3] Ogi, S.; Stepanenko, V.; Thein, J.; Würthner, F. Impact of alkyl
spacer length on aggregation pathways in kinetically controlled
supramolecular polymerization, J. Am. Chem. Soc. 2016, 138,
670–678.
[4] He, X.; Hsiao, M.; Boott, C. E.; Harniman, R. L.; Nazemi, A.; Li,
X.; Winnik, M. A.; Manners, I. Two-dimensional assemblies
from crystallizable homopolymers with charged termini, Nat.
Mater. 2017, 16, 481–488.
[5] Besenius, P. Controlling supramolecular polymerization through
multicomponent self-assembly, J. Polym. Sci. A: Polym. Chem.
2017, 55, 34–78.
[6] Holzwarth, A. R.; Griebenow, K.; Schaffner, K. Chlorosomes,
photosynthetic antennae with novel self-organized pigment
structures, J. Photochem. Photobiol. A: Chem. 1992, 65, 61–71.
[7] Hildebrandt, P.; Tamiaki, H.; Holzwarth, A. R.; Schaffner, K.
Resonance Raman spectroscopic study of metallochlorin aggre-
gates, J. Phys. Chem. 1994, 98, 2192–2197.
By rapid supply of Zn-HM, self-assembly of J-aggregate
blocks to construct NPs (Fig. 5, Pathway I) occurred prefer-
entially compared to growth of J-aggregates to form NFs.
Large NPs constructed just after preparation of AggHM and
AggUV-2 slowly converted to NF over a long time (1 week)
through reverse Pathway I to the J-aggregate block. Small
NPs prepared just after preparation of AggUV-1 transformed
to NFs for 1 day because they readily disassembled into J-
aggregate block (disassembly process). A decrease in NPsmall
was accompanied by transformation into NFs (Fig. 3d),
while NPlarge and NPmedium continued to be observed without
full conversion after standing in the solution for 1 day. In
contrast, elongation of the J-aggregate block with Zn-HM
monomers formed NFs (Fig. 5, Pathway II) simultaneously
with significantly slow supply of Zn-HM by photo-depro-
tection as in AggUV-0.25 (Fig. 4e). Particularly, Pathway II
was similar for forming natural chlorosomal self-aggregates
by assembling successively biosynthesized BChl molecules,
and thus we mimicked the biological supramolecular for-
mation process by controlling the supply rate of the active
species. Formation of NFs using the system is the first direct
model to mimic the growth of natural chlorosomal self-ag-
gregates, and the model can be used to evaluate the in vivo
dynamic formation of chlorosomes. The photo-deprotection
systems would be useful for producing a variety of supramo-
lecular structures in nature such as protein aggregates and
biomembranes, as a photoremovable protecting group can be
used to protect amines, amides, thiols, and carboxylic/phos-
phoric/sulfuric acids as well as any hydroxy groups.
[8] Tamiaki, H. Supramolecular structure in extramembraneous an-
tennae of green photosynthetic bacteria, Coord. Chem. Rev. 1996,
148, 183–197.
[9] Olson, J. M. Chlorophyll organization and function in green pho-
tosynthetic bacteria, Photochem. Photobiol. 1998, 67, 61–75.
[10] Montaño, G. A.; Bowen, B. P.; LaBelle, J. T.; Woodbury, N. W.;
Pizziconi, V. B.; Blankenship, R. E. Lamellar organization of
pigments in chlorosomes, the light harvesting complexes of
green photosynthetic bacteria, Biophys. J. 2004, 87, 1165–1172.
[11] Ganapathy, S.; Oostergetel, G. T.; Wawrzyniak, P. K.; Reus, M.;
Chew, A. G. M.; Buda, F.; Boekema, E. J.; Bryant, D. A.;
Holzwarth, A. R.; de Groot, H. J. M. Alternating syn-anti bacte-
riochlorophylls form concentric helical nanotubes in chloro-
somes, Proc. Natl. Acad. Sci. U. S. A. 2009, 106, 8525–8530.
[12] Orf, G. S.; Blankenship, R. E. Chlorosome antenna complexes
from green photosynthetic bacteria, Photosynth. Res. 2013, 116,
315–331.
[13] Günther, L. M.; Jendrny, M.; Bloemsma, E. A.; Tank, M.;
Oostergetel, G. T.; Bryant, D. A.; Knoester, J.; Köhler, J. Struc-
ture of light-harvesting aggregates in individual chlorosomes, J.
Phys. Chem. B 2016, 120, 5367−5376.
[14] Huber, V.; Sengupta, S.; Würthner, F. Structure–property rela-
tionships for self-assembled zinc chlorin light-harvesting dye ag-
gregates, Chem. Eur. J. 2008, 14, 7791–7807.
ASSOCIATED CONTENT
Supporting Information.
The Supporting Information is available free of charge on
the ACS Publications website.
General information, synthesis procedures, spectral data,
Figure S1–S11 (PDF).
AUTHOR INFORMATION
[15] Shoji, S.; Hashishin, T.; Tamiaki, H. Construction of chloroso-
mal rod self-aggregates in the solid state on any substrates from
synthetic chlorophyll derivatives possessing an oligomethylene
chain at the 17-propionate residue, Chem. Eur. J. 2012, 18,
13331–13341.
Corresponding Author
tamiaki@fc.ritsumei.ac.jp.
ACS Paragon Plus Environment

Page 5 of 6
Journal of the American Chemical Society
[16] Shoji, S.; Mizoguchi, T.; Tamiaki, H. In vitro self-assemblies of
[21] Cameron, J. F.; Frechet, J. M. J. Photogeneration of organic ba-
ses from o-nitrobenzyl-derived carbamates., J. Am. Chem. Soc.
1991, 113, 4303–4313.
[22] Klán, P.; Šolomek, T.; Bochet, C. G.; Blanc, A.; Givens, R.; Ru-
bina, M.; Popik, V.; Kostikov, A.; Wirz, J. Photoremovable pro-
tecting groups in chemistry and biology: Reaction mechanisms
and efficacy, Chem. Rev. 2013, 113, 119−191.
[23] Saga, Y.; Nakai, Y.; Tamiaki, H. Temperature-dependent spec-
tral changes of self-aggregates of zinc chlorophylls esterified by
different linear alcohols at the 17-propionate, Supramol. Chem.
2009, 21, 738–746.
[24] Toda, A.; Keller, A. Growth of polyethylene single crystals from
the melt: Morphology, Colloid Polym. Sci. 1993, 271, 328–342.
[25] Yoshikawa, H. Y.; Murai, R.; Adachi, H.; Sugiyama, S.;
Maruyama, M.; Takahashi, Y.; Takano, K.; Matsumura, H.; In-
oue, T.; Murakami, S.; Masuhara H.; Mori, Y. Laser ablation for
protein crystal nucleation and seeding, Chem. Soc. Rev. 2014, 43,
2147–2158.
bacteriochlorophylls-c from Chlorobaculum tepidum and their
supramolecular nanostructures, J. Photochem. Photobiol. A:
Chem. 2016, 331, 190–196.
1
2
3
4
5
6
7
8
[17] Shoji, S.; Ogawa, T.; Hashishin, T.; Ogasawara, S.; Watanabe,
H.; Usami, H.; Tamiaki, H. Nanotubes of biomimetic supra-
molecules constructed by synthetic metal chlorophyll derivatives,
Nano Lett. 2016, 16, 3650–3654.
[18] Ogi, S.; Grzeszkiewicz, C.; Würthner, F. Pathway complexity in
the self-assembly of a zinc chlorin model system of natural bac-
teriochlorophyll J-aggregates, Chem. Sci. 2018, 9, 2768–2773.
[19] Patchornik, A.; Amit, B.; Woodward, R. B. Photosensitive pro-
tecting groups, J. Am. Chem. Soc. 1970, 92, 6333–6335.
[20] Kaplan, J. H.; Forbush, B. J.; Hoffman, F. Rapid photolytic re-
lease of adenosine 5’-triphosphate from a protected analogue:
Utilization by the Na:K pump of human red blood cell ghosts,
Biochemistry 1978, 17, 1929–1935.
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
ACS Paragon Plus Environment

Journal of the American Chemical Society
Page 6 of 6
Insert Table of Contents artwork here
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
6
ACS Paragon Plus Environment
