SHORT COMMUNICATION
Multifunctional Dithiocarbamates as Ligands Towards the Rational Synthesis
of Polymetallic Arrays: An Example Based on a Piperizine-Derived
Dithiocarbamate Ligand
James D. E. T. Wilton-Ely,*[a] Dina Solanki,[a] and Graeme Hogarth*[a]
Keywords: Dithiocarbamates / Piperazine / Multimetallic arrays / Ruthenium complexes / Coordination chemistry
The zwitterionic piperazine-derived dithiocarbamate com-
plex [(dppm)2Ru(S2CNC4H8NCS2)] has been prepared and
utilised in the synthesis of multimetallic arrays incorporating
a wide range of transition metal centres.
(© Wiley-VCH Verlag GmbH & Co. KGaA, 69451 Weinheim,
Germany, 2005)
molecule containing two secondary amine centres. Such
species react with CS2 to afford a zwitterionic product,[5,6]
whereby one of the amines acts as a nucleophile and the
second as a base. Under the right conditions, only small
amounts of the symmetrical double salt [S2CN(X)-
NCS2][H2N(X)NH2] (X = spacer) are formed, which is a
key advantage of this approach as this allows one end of the
amine to be extended selectively by reaction with carbon
disulfide. Reaction of the zwitterionic product,
[H2NC4H8NCS2], with a metal complex results in the for-
mation of a new metal-amine compound, which in turn can
react with further CS2 to generate a new metal-containing
dithiocarbamate ligand. In this manner multimetallic arrays
can be constructed in a modular, step-wise fashion
(Scheme 1). This approach, which is demonstrated by the
reactions shown in Scheme 2, can be extended using tri- and
tetradentate amines to incorporate further dimensionality.
As a proof of concept, we have used cheap and commer-
cially available piperazine in order to demonstrate the ease
and potential of such an approach. We have used the ruthe-
nium() complex cis-[RuCl2(dppm)2][7] to provide a cis-
Ru(dppm)2 moiety as the initial metal fragment. This choice
was based on our observation that cis-[RuCl2(dppm)2]
reacts cleanly with a wide range of dithiocarbamate salts to
afford the cations [Ru(S2CNR2)(dppm)2]+ in high yield.
These complexes are easily characterised by a range of spec-
troscopic techniques, of which 31P NMR spectroscopy
proves particularly useful.
Introduction
Dithiocarbamates are extremely versatile ligands which
form complexes with all the transition metals, leading to
the stabilisation of a wide range of oxidation states.[1] Since
their complexes are easily prepared and manipulated, a
wide range of applications have been developed in areas as
diverse as materials science, medicine and agriculture.
Given this versatility, their well-defined architecture and the
bountiful metal-centred electrochemistry shown by these
complexes,[2] it is surprising that they have found little use
in the burgeoning area of supramolecular chemistry. Re-
cently, however, Beer and co-workers have started to ad-
dress this issue, preparing a range of exciting new supramo-
lecular architectures based on multifunctional dithiocar-
bamate ligands, many of which show interesting structural-
redox properties.[3] It is clear from this work that dithiocar-
bamates have the potential to be utilised to a far greater
extent than found currently in the areas of supramolecular
chemistry and materials science. With this in mind we have
focused our initial efforts on the development of multiden-
tate dithiocarbamate ligands for the synthesis of multimet-
allic arrays. Such arrays could be one, two or three-dimen-
sional in nature, the dimensionality being easily controlled
as a function of the properties of both the metal and ligand.
We envisage that these materials will show novel physical
properties in their own right and will be explored as precur-
sors to the synthesis of well-defined nanoparticulates in a
manner developed extensively by O’Brien and co-workers.[4]
Addition of CS2 to piperazine in water results in the for-
mation of the zwitterion, H2NC4H8NCS2 (1), which is read-
ily isolated (Scheme 2). Addition of one equivalent of cis-
[RuCl2(dppm)2] to this zwitterion, followed by an excess of
NaBF4 affords [(dppm)2Ru(S2CNC4H8NH2)][BF4]2 (2) in
high yield,[8] which is then converted into the new complex,
[(dppm)2Ru(S2CNC4H8NCS2)] (3), upon sequential ad-
dition of two equivalents of base and CS2. The latter is a
Results and Discussion
A simple strategy for the synthesis of multimetallic wires
is outlined below (Scheme 1). It centres on the use of a
[a] Department of Chemistry, University College London,
20 Gordon Street, London, WC1H 0AJ, UK
E-mail: j.wilton-ely@ucl.ac.uk
g.hogarth@ucl.ac.uk
Eur. J. Inorg. Chem. 2005, 4027–4030
DOI: 10.1002/ejic.200500430
© 2005 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
4027

J. D. E. T. Wilton-Ely, D. Solanki, G. Hogarth
SHORT COMMUNICATION

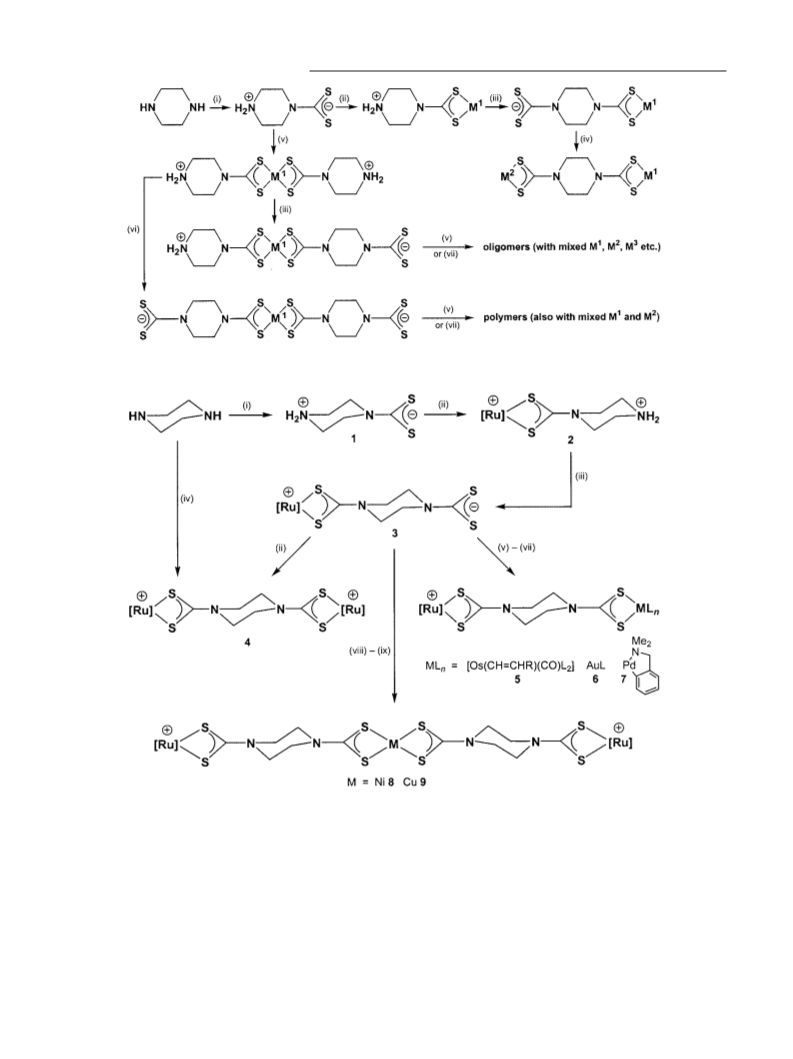

Scheme 1. (i) CS2; (ii) M1X; (iii) 2NEt3, CS2; (iv) M2X; (v) M1X2; (vi) 4NEt3, 2CS2; (vii) M2X2.
Scheme 2. [M] = Ru(dppm)2;L = PPh3; R = C6H4Me-4; (i) CS2; (ii) cis-[RuCl2(dppm)2], 2NaBF4; (iii) 2NEt3, CS2; (iv) 2NEt3, 2CS2; 2cis-
[RuCl2(dppm)2]; (v) [Os(CH=CHR)Cl(CO)(BTD)L2] (BTD = 2,1,3-benzothiadiazole); (vi) ClAuL; (vii) [Pd(C6H4CH2NMe2)Cl]2; (viii)
Ni(OAc)2; (ix) Cu(OAc)2.
key building block and can be considered to be a metallo- tathesis. In order to confirm the bridging nature of the di-
dithiocarbamate. In order to demonstrate its utility we thiocarbamate, a crystallographic study of 4 was performed
treated this compound with a second equivalent of cis- (Figure 1).[10] The bridging dithiocarbamate mode found in
[RuCl2(dppm)2] to afford (after salt metathesis) the binu- 4 is rare but not unique; Shaver and co-workers having re-
clear complex [(dppm)2Ru(S2CNC4H8NCS2)Ru(dppm)2]- cently prepared a related diruthenium complex, [Cp(PPh3)-
[BF4]2 (4).[9] The same complex is also produced in a one- Ru(S2CNC6H4NCS2)Ru(PPh3)Cp], from the unusual reac-
step reaction upon addition of Na2[S2CNC4H8NCS2] to tion of two equivalents of [CpRu(PPh3)2SH] with para-
two equivalents of cis-[RuCl2(dppm)2] followed by salt me- phenylenediisothiocyanate.[11] A dinuclear tin complex has
4028
© 2005 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.eurjic.org
Eur. J. Inorg. Chem. 2005, 4027–4030

Multifunctional Dithiocarbamates as Ligands for Polymetallic Arrays
SHORT COMMUNICATION
Figure 1. Structure of the cation in [{Ru(dppm)2}2(S2CNC4H8NCS2)][BF4]2 (4).
also been reported.[6a] Zwitterion 3 can be employed to pre-
pare a wide range of dithiocarbamate-bridged binuclear
metal complexes as we have illustrated with the formation
of 5–7,[9] in which osmium,[8] gold and palladium centres,
respectively, are coordinated using suitable reagents.
In each of the cases described above, the added metal
centre binds only a single dithiocarbamate ligand. Trimetal-
lic units based on two bidentate dithiocarbamate ligands
result from the addition of metals with two dithiocarbam-
ate-binding sites. In order to illustrate this, we treated 3 with
nickel and copper acetate to quantitatively afford [{(dppm)2-
Ru(S2CNC4H8NCS2)}2M][BF4]2 [M = Ni (8), Cu (9)]
(Scheme 2).[9] These examples illustrate the ease of incorpo-
ration of diamagnetic and paramagnetic centres which show
well-defined and understood redox properties into these ar-
rays. We have extended this strategy to the formation of
tetranuclear complexes upon coordination of zwitterion 3
to FeIII, CoIII and LaIII centres and are currently using
methyl-substituted piperazines to prepare chiral materials.
We have also begun work using 1,4,7-triazacyclononane
and 1,4,8,11-tetraazacyclotetradecane (cyclam) as a build-
ing block to prepare multidentate dithiocarbamate ligands
with the aim of preparing magnetic 2D sheet-like structures
with large cavities.
