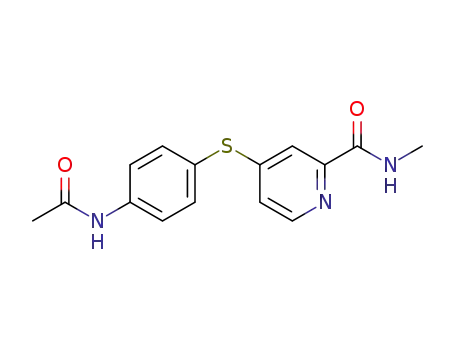

A novel series of N-methylpicolinamide-4-thiol derivatives were synthesized and evaluated on human cancer cell lines. Among them, compound 6p displayed potent and broad-spectrum anti-proliferative activities in vitro on some human cancer cell lines, even better than sorafenib. The advanced kinase inhibitory assays showed that compound 6p could selectively inhibit Aurora-B kinase. The biological results were rationalized by the molecular docking study, which indicated the stable interactions of 6p with the Aurora-B kinase.

Full text of DOI:10.3390/molecules17066331

Molecules 2012, 17, 6331-6347; doi:10.3390/molecules17066331
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Phenolics and Flavonoids Compounds, Phenylanine Ammonia
Lyase and Antioxidant Activity Responses to Elevated CO2 in
Labisia pumila (Myrisinaceae)
Hawa Z.E. Jaafar *, Mohd Hafiz Ibrahim and Ehsan Karimi
Department of Crop Science, Faculty of Agriculture, University Putra Malaysia, Serdang 43400,
Selangor, Malaysia
* Author to whom correspondence should be addressed; E-Mails: hawazej@gmail.com or
hawazej@agri.upm.edu.my; Tel.: +6-03-8947-4821 or +6-01-2372-3585; Fax: +6-03-8947-4918.
Received: 22 March 2012; in revised form: 17 May 2012 / Accepted: 21 May 2012 /
Published: 25 May 2012
Abstract: A split plot 3 × 3 experiment was designed to examine the impact of three
concentrations of CO2 (400, 800 and 1,200 µmol·mol−1) on the phenolic and flavonoid
compound profiles, phenylalanine ammonia lyase (PAL) and antioxidant activity in three
varieties of Labisia pumila Benth. (var. alata, pumila and lanceolata) after 15 weeks of
exposure. HPLC analysis revealed a strong influence of increased CO2 concentration on
the modification of phenolic and flavonoid profiles, whose intensity depended on the
interaction between CO2 levels and L. pumila varieties. Gallic acid and quercetin were the
most abundant phenolics and flavonoids commonly present in all the varieties. With
elevated CO2 (1,200 µmol·mol−1) exposure, gallic acid increased tremendously, especially
in var. alata and pumila (101–111%), whilst a large quercetin increase was noted in var.
lanceolata (260%), followed closely by alata (201%). Kaempferol, although detected
under ambient CO2 conditions, was undetected in all varieties after exposure. Instead,
caffeic acid was enhanced tremendously in var. alata (338~1,100%) and pumila
(298~433%). Meanwhile, pyragallol and rutin were only seen in var. alata (810 µg·g−1
DW) and pumila (25 µg·g−1 DW), respectively, under ambient conditions; but the former
compound went undetected in all varieties while rutin continued to increase by 262% after
CO2 enrichment. Interestingly, naringenin that was present in all varieties under ambient
conditions went undetected under enrichment, except for var. pumila where it was
enhanced by 1,100%. PAL activity, DPPH and FRAP also increased with increasing CO2
levels implying the possible improvement of health-promoting quality of Malaysian
L. pumila under high CO2 enrichment conditions.

Molecules 2012, 17
6332
Keywords: CO2 enrichment; phenolics; flavonoids; phenylalanine ammonia lyase activity
(PAL); free radical scavenging (DPPH); ferric reducing antioxidant potential (FRAP)
1. Introduction
Carbon dioxide is regarded as one of the most limiting factors in photosynthesis. Currently, the CO2
concentration in ambient atmosphere is about 380 µmol·mol−1 and it is expected to increase by
600 µmol·mol−1 CO2 by end of 2050 [1]. The prospect of improving photosynthesis in crops through
CO2 enrichment has interested plant scientists for many years [2]. Enriching plants with high levels of
CO2 has been proven to increase plant growth, morphology, development, and yield of many crops,
and this response is a function of CO2 rate and duration of exposure [3]. Crops under enriched CO2
atmosphere acquire positive features with enhanced plant adaptation and growth. The greatest
advantages of CO2 enrichment is in the enhancement of leaf gas exchange capacity, particularly under
undesirable climatic conditions [4].
Plant antioxidants have been a focus of attention in recent years due to the health preservation
functions of these components that can help reduce the threat of chronic diseases such as cancer,
diabetes and hypertension. This is attributed to the high scavenging activity of antioxidants towards
free radicals that are usually associated with these diseases [5]. It is currently known that phenolic
acids and flavonoids are antioxidants with high anti-inflammatory and anti-carcinogenic activities [6,7].
It is also known that phenolics and flavonoids can function as reducing agents, free radical scavengers
and quenchers of singlet oxygen formation [8]. High contents of natural flavonoids and phenolic acids
are found in green tea, fruits, and vegetables, while some amounts of phenolics also exist in red wine
and coffee [9]. These components of polyphenols have been proven to have significant roles in the
curing cancer and other human ailments [10]. The concentration of phenolics and flavonoids in plants
varies among organs, tissues and developmental stage, and is influenced by environmental factors such
as temperature, UV and visible radiation, nutrient and water availabilities, and atmospheric CO2
concentration [11].
The exposure of medicinal plants to high level of CO2 may give positive response in the form of
increased anti-oxidative properties [12]. Furthermore, several researchers have found increase in
anti-oxidative activity under elevated CO2 exposure due to increases in the levels of some secondary
metabolite compounds that might up-regulate the antioxidant activity [13,14]. As it is generally known
that secondary metabolism and primary metabolism are inter-related by the rates at which substrates
are diverted from primary pathways and channeled into the secondary biosynthetic routes [15]. Several
environmental factors affecting growth, photosynthesis and other parts of primary metabolism will also
affect secondary metabolism [16]. Resource allocation hypotheses such as the carbon-nutrient balance
(CNB) [17] and growth differentiation balance (GDB) [18] have been proposed by researchers to
predict the effects of increased CO2 concentration on plant secondary metabolites. They assume that
changes in carbon source-sink relationship, as a consequence of carbon availability, determines
variations in the relative partitioning of carbon to growth and production of carbon based secondary
metabolites (CBSM). Recently, in Malaysia, it has been found that the enrichment of Labisia pumila

Molecules 2012, 17
6333
and Zingiber officinale with high levels of CO2 could increase the secondary metabolite production [19,20].
The same result was in agreement with data previously obtained from Pinus taeda [4], Podophyllum
hexandrum [21], Digitalis lanata [22], Brassica oleracea [23] and Hypericum perforatum [24].
Labisia pumila, Benth. popularly known as Kacip Fatimah, is a sub-herbaceous plant with creeping
stems from the family Myrsinaceae that is found widespread in Indochina and throughout the
Malaysian forest. Recently, it was found that this herb is a good source of natural antioxidants due to
its high content of anthocyanins, flavonoids, and phenolic acids [25,26]. Results of elevated CO2
imposition on total phenolics and flavonoids have been reported by Ibrahim et al. [27], however, there
is no available information on the effects of CO2 concentration on the profiling of phenolics and
flavonoids composition and antioxidant activity of this plant under high CO2 conditions, especially for
three recognized varieties of this plant (var alata, pumila and lanceolata). Previous research has shown
that there no significant differences in the total phenolics, flavonoids and carbohydrate content
between those varieties [28]. This study was performed to evaluate the effects of elevated CO2
enrichment on leaf of phenolics and flavonoids compounds in the three varieties of L. pumila. The
DPPH, FRAP activity and phenylalanine ammonia lyase (PAL) were also determined in the study.
2. Results and Discussion
2.1. HPLC Analysis of Phenolics
In the study, initially, four phenolics compounds were determined, i.e., (gallic acid, pyragallol,
caffeic acid and salicylic acid). However, only three phenolics compounds were revealed to be present
as no salicylic acid was detected in all three varieties under ambient levels or exposure to elevated
CO2 conditions.
Leaf profiling results for phenolic compounds were observed to be significantly influenced by the
interaction between CO2 and varieties (p ≤ 0.01; Table 1; Figure 1). Among the phenolic acid
compounds profiled, gallic acid exhibited the highest concentration. With increasing CO2 the gallic
acid levels increased tremendously, but at different rates for the different varieties under different CO2
concentrations. Increased CO2 levels from 400 to 800 µmol·mol−1 CO2, saw the gallic acid component
in var. alata improve by 86% (448 µg·g−1 dry weight vs. 837 µg·g−1 dry weight) followed by var.
pumila (30%) and lanceolata (16.4%) (Table 2). However further exposure to 1,200 µmol·mol−1 CO2
showed a remarkable improvement of gallic acid in var. lanceolata (130%), more than var. alata
(111%) and var. pumila (101%), implying that increased CO2 levels had a direct impact on gallic acid
concentration that varied among varieties. Under exposure to elevated CO2 (1,200 µmol·mol−1) the
gallic acid content of var. alata and lanceolata was higher than pomegranate (901 µg·g−1 dry weight),
but lower than onion that recorded 1,490 µg·g−1 dry weight. The present data indicate that enrichment
of L. pumila with high CO2 can possibly enhance the production of gallic acid in the three varieties.

Molecules 2012, 17
6334
Table 1. Phenolics content (µg·g−1 dry weight) in three varieties of Labisia pumila grown
under different CO2 concentration.
CO2 levels (µmol·mol−1)
Varieties
Alata
Pumila
Lanceolata
Alata
Pumila
Lanceolata
Alata
Pumila
Gallic acid *
Pyragallol
Caffeic acid
448.12 ± 2.44 d 810.03 ± 2.44 47.83 ± 3.22 f
400
215.48 ± 4.32 g
406.03 ± 3.22 f
837.434 ± 0.87 b
282.17 ± 0.43 g
474.33 ± 3.67 c
948.28 ± 6.77 a
435.69 ± 9.87 e
935.91 ± 4.34 a
ND
ND
ND
ND
ND
ND
ND
ND
43.92 ± 2.11 f
115.21 ± 1.14 e
215.51 ± 2.54 c
177.35 ± 2.56 d
ND
543.88 ± 3.44 a
237.86 ± 5.66 b
ND
800
1200
Lanceolata
ND = not detected. All analyses are the mean of nine measurements ± standard error of mean.
Results expressed in µg·g−1of dry plant material. Means not sharing a common letter were
significantly different at p ≤ 0.05.*
Figure 1. The RP-HPLC chromatogram of phenolics compounds in the leaves of
Labisia pumila. Identification of compounds: gallic acid, pyrogallol and caffeic acid.
Table 2. Percent of increase or decrease of phenolics compounds in three varieties of
Labisia pumila grown under elevated CO2 concentration (800 and 1,200 µmol·mol−1).
Var. alata
1,200
(µmol·mol−1) (µmol·mol−1) (µmol·mol−1) (µmol·mol−1) (µmol·mol−1) (µmol·mol−1)
Var. pumila
Var. lanceolata
Phenolic
800
800 1,200
800 1,200
compounds
Gallic acid
Pyragallol
Caffeic acid
+86%
−100%
+338%
+111%
−100%
+1010%
+30%
0%
+101%
0%
+16.4%
0%
+130%
0%
+298%
+433%
−100%
−100%
Results expressed in percent; + and − indicate respectively increase and decrease of component
concentrations when exposed to CO2.

Molecules 2012, 17
6335
What was more interesting with modification of CO2 is the non-detectability of pyragallol in var.
alata when exposed to 800 and 1,200 µmol·mol−1 CO2 although the component were only detected in
var. alata at high concentration under ambient CO2 condition. A similar effect was observed with var.
lanceolata where caffeic acid was not detected when the plant exposed to elevated CO2 (800 and
1,200 µmol·mol−1 CO2), although a significant increase in caffeic acid concentration was observed in
both var. alata and pumila. The caffeic acid concentration recorded increases by 338% and 1010% for
var. alata and 298% and 433% for var. pumila at 800 and 1,200 µmol·mol−1 CO2 respectively.
A similar result was obtained by Lindroth et al. [29] whereby exposure to 650 µmol·mol−1 CO2 had
increased phenolic compounds (gallic acid, phenolic glycosides, gallotannin, and ellagitannin) in
aspen, oak and maple seedlings. Vurro et al. [30] also saw increased phenolics components in Thymus
vulgaris with exposure to 500 µmol·mol−1 CO2. They also found supplementation with elevated CO2
increased the superoxide dismutase and gluthatione reductase activity and essential content in the
plants. The current results exhibited an enhanced of the medicinal properties of L. pumila, particularly
the gallic acid compounds through CO2 enrichment. The increase in phenolics compounds in the
current study under elevated CO2 might be attributed to increased L. pumila growth under CO2
exposure that enhanced the concentration of phenolics per gram dry mass basis of L. pumila [31].
The current result showed an agreement with CNB and GDB hypotheses [17,18] that predict an
increase in phenolics content under elevated CO2 conditions. From previous study by Ibrahim and
Jaafar [27] it was found that the total phenolics and flavonoids have a significant positive correlation
with total biomass and specific leaf leaf area that indicated the increase in secondary metabolites
content in L. pumila was due to enhanced plant morphology that might contain more plant secondary
metabolites [19].
2.2. HPLC Analysis of Flavonoids
The results obtained from the analysis of flavonoids are shown in Table 3. Five flavonoid
compounds were analyzed, i.e., rutin, naringenin, myrecetin, quercetin and kaempferol (Figure 2).
From the result, it observed that the production of kaempferol became undetectable in the three
L. pumila varieties when the plants were exposed to elevated CO2. Under ambient CO2 conditions
kaempferol content was found to be higher in var. pumila (221.91 µg·g−1 dry weight), followed by var.
alata (186.71 µg·g−1 dry weight) and the least in var. lanceolata, that recorded only 163.71 µg·g−1 dry
weight (Table 3). Meanwhile, increasing the CO2 concentration from 400 to 1,200 µmol·mol−1
generally resulted in enhanced quercetin in all of the varieties. Under ambient CO2 levels the quercetin
in var. pumila recorded the highest value at 105.66 µg·g−1 dry weight compared to var. alata and var.
pumila that recorded 57.61 µg·g−1 dry weight and 56.90 µg·g−1 dry weight, respectively. With
increasing CO2 concentration from 800 to 1,200 µmol·mol−1, the increase in quercetin concentration in
var, alata (absolute) was by 3-fold (179%) and 4-fold (221%), var. lanceolata by about two and five
fold (81%–260%); and lowest increases in quercetin occurred in var. pumila that recorded at only
10%–20% (Table 4). In the present study, elevated CO2 exposure did not enhance quercetin content as
much in black tea and papaya that recorded 1,107 and 1,260 µg·g−1 dry weight values, respectively.

Molecules 2012, 17
6336
Table 3. The concentrations of flavonoid compounds in three varieties of Labisia pumila
grown under different CO2 concentration.
Flavonoid content (µg·g−1 dry weight)
CO2 levels
Varieties
(µmol·mol−1)
400
Kaempferol
Quercetin *
Myricetin
Rutin
Naringenin
139.20 ± 2.56 c
Alata
186.71 ± 0.34 b 57.61 ± 1.22 g
87.81 ± 0.34 c
ND
Pumila
221.91 ± 0.21 a 105.66 ± 2.11 f 30.41 ± 2.33 e 24.51 ± 0.45 c 80.44 ± 0.98 d
Lanceolata 162.71 ± 0.31 c 56.90 ± 2.34 g
27.45 ± 3.11 f
160.88 ± 3.44 c 273.84 ± 7.44 b
117.42 ± 4.11 e
ND
ND
87.11 ± 1.78 e
Alata
Pumila
ND
ND
ND
ND
ND
ND
ND
ND
800
41.8 ± 3.22 b 619.59 ± 9.78 b
Lanceolata
Alata
103.13 ± 2.78 f 49.73 ± 0.54 d
183.32 ± 5.43 b 287.77 ± 0.21 a
127.52 ± 0.45 d
205.91 ± 0.21 a 85.76 ± 1.45 c
ND
ND
ND
ND
1200
Pumila
ND
87.45 ± 2.54 a 947.85 ± 9.76 a
Lanceolata
ND
ND
ND = not detected. All analyses are the mean of nine measurements ± standard error of mean. Results
expressed in µg·g−1 of dry plant material. Means not sharing a common letter were significantly different at
* p ≤ 0.05.
Figure 2. The RP-HPLC chromatogram of flavonoids compounds in the leaves of Labisia
pumila. Compound identification as labeled.
Table 4. Percent of increase or decrease of flavonoid compounds in three varieties of
Labisia pumila grown under elevated CO2 concentration (800 and 1,200 µmol·mol−1)
Var alata
Var pumila
1,200
(µmol·mol−1) (µmol·mol−1) (µmol·mol−1) (µmol·mol−1) (µmol·mol−1) (µmol·mol−1)
Var lanceolata
Flavonoid
800
1,200
800
800 1,200
compounds
Kaempferol
Quercetin
Myricetin
Rutin
−100%
+179%
+210%
0%
−100%
+221%
+226%
0%
−100%
+10%
−100%
+20%
−100%
+81%
+75%
0%
−100%
+260%
+203%
0%
−100%
+70%
−100%
+262%
+1100%
Naringenin
−100%
−100%
+683%
−100%
−100%
Results expressed in percent; + and − indicate respectively increase and decrease of component
concentrations when exposed to CO2.

Molecules 2012, 17
6337
The enhancement of myricetin concentration in CO2-enriched L. pumila was only observed in var.
alata and var. lanceolata. Under 800 and 1,200 µmol·mol−1 CO2 enrichment myricetin in var. alata
increased by 210% and 226%, respectively, compared to ambient conditions that just recorded
87.11 µg·g−1 dry weight (Table 3). In var. lanceolata myricetin concentration improved from
27.45 µg·g−1 dry weight in 400 µmol·mol−1 CO2 to 49.73 µg·g−1 dry weight in 800 µmol·mol−1 CO2
and 85.76 µg·g−1 dry weight under 1,200 µmol·mol−1 CO2 enrichment. Interestingly, myricetin
disappeared in var. pumila when it was exposed to higher than ambient CO2. In contrast, the
production of rutin and naringinin was only enhanced in var. pumila exposed to higher CO2 of 800 and
1,200 µmol·mol−1 CO2. There were no related increases found in the varieties alata and lanceolata
with increasing CO2 level (Table 3). Under ambient conditions, rutin was only detected in var. pumila.
As CO2 levels increased from 800 to 1,200 µmol·mol−1 CO2 rutin was enhanced by 70% and 260%,
respectively in var. pumila. Meanwhile under ambient CO2 levels the naringenin content was highest
in var. alata, recording values of 139.21 µg·g−1 dry weight, followed by var. lanceolata (87.11 µg·g−1
dry weight) and the lowest in var. pumila (80.44 µg·g−1 dry weight). Upon CO2 enrichment with
800 µmol·mol−1 CO2 and 1,200 µmol·mol−1 CO2 the naringenin content in var. pumila increased
tremendously by 345% and 581%, respectively, compared to var. alata under ambient conditions. The
naringenin content in var. pumila with a value of 947.85 µg·g−1 dry weight under 1,200 µmol·mol−1
CO2 was slightly low compared to grapefruit (1,150 µg·g−1 dry weight), that was found to contain the
highest naringenin compared to other plant sources, but is relatively higher compared to tomato
(448 µg·g−1 dry weight) and orange (887 µg·g−1 dry weight) [32,33]. Naringenin is a flavonoid that is
considered to have a bioactive effect on human health as an antioxidant, free radical scavenger,
anti-inflammatory, carbohydrate metabolism promoter, and immune system modulator [20]. The
increase in quercetin and naringenin in the present study under elevated CO2 have also been documented
by Ghasemzadeh et al. [20] in ginger where they observed increased quercetin and naringenin to be
about 26% and 480%, respectively, in ginger leaves when exposed to 800 µmol·mol−1 CO2.
The increase in production of total phenolics and flavonoids in the present study might be due to
increased production of total non structural carbohydrates when plants are exposed to elevated CO2.
The same observation was also reported by Wang et al. [34] and Malikov et al. [35] in Fragaria
ananassa and Betula pendula, respectively, when exposed to high CO2 levels. Ibrahim et al. [19]
previously have indicated that the increased production of secondary metabolites in L. pumila under
elevated CO2 was due to an accumulation of starch and soluble sugars under high exposure to CO2
(800 and 1,200 µmol·mol−1). In other study, Ibrahim and Jaafar [36] also found that the increase in the
production of total phenolics and flavonoids was concomitantly followed by an increase in the
production of fructose. The increase in production of secondary metabolites by the increase in fructose
content had been observed by Hilal et al. [37] in quinoa seedlings where the increase in total phenolics
and flavonoids of the seedlings under UV-B radiation was significantly related to an increase in
fructose content in quinoa leaves. The up-regulation of plant secondary metabolites with increasing
fructose levels under elevated CO2 might be due to enhanced activity of the pentose phosphate
pathway to supply high levels of erythose-4-phosphate, which is used as a substrate for the synthesis
of lignin and secondary metabolite compounds in the shikimic acid pathway [38]. The increase in
the production of erythose-4-phoshate implies a high production of fructose because both these
compounds are synthesized in the same reaction in the pentose phosphate pathway catalyzed by

Molecules 2012, 17
6338
transaldolase [39]. The current results suggest that the increased production of secondary metabolites
in L. pumila under elevated CO2 might be due to enhanced production of erythose-4-phosphate under
this condition.
Wang et al. [34], obtained the same result when CO2 was enriched at 950 µmol·mol−1 in strawberry
the concentrations of flavonoid compounds such as p-coumaroylglucose, dihydroflavonol, quercetin
3-glucoside, quercetin 3-glucuronide, kaempferol 3-glucoside contents, cyanidin 3-glucoside, pelargonidin
3-glucoside, and pelargonidin 3-glucoside succinate were significantly enhanced. The same finding was
also observed with Chabot et al. [40] who showed the ability of elevated CO2 concentrations to
enhance flavonoid components in Gigaspora margarita where the exposure to high CO2 enhanced
flavonoid compounds like quercetin, morin, hesperetin, genistein and chrysin. Estiarte et al. [41] also found
exposure that exposure of Triticum aestivum c.v. Yecora Rojo to elevated CO2 at 550 µmol·mol−1
enhanced the production of flavonoids and their components. They observed that a flavonoid
compound (isoorientin) content was enhanced by 14% under elevated CO2 conditions. The interspecific
difference in the phenolics and flavonoid compounds in this study might be due to the differences in
enyzme stimulation for each compound, precursor availability, differing biosynthetic pathways,
genetic and carbon allocation to plant parts either for storage or structural components.
Stimulation of secondary metabolite production of L. pumila under elevated CO2 in the present
study might be due to increased availability of carbon uptake due to enhancement of leaf gas exchange
properties [27]. Under elevated CO2 net photosynthesis was up-regulated, the increase in net
photosynthesis with high levels of CO2 increased the production of total non-structural carbohydrates.
The increase in production of total non-structural carbohydrate under elevated CO2 was observed in
Citrus aurantrium when exposed to 670 µmol·mol−1 CO2 [42]. Plant polyphenols (flavonoid and
phenolics) are biosynthesized via several routes and thus constitute a heterogeneous group from the
metabolic point of view. The two basic pathways involved are the shikimic acid and the malonic acid
pathways. The shikimic acid pathway is able to convert simple carbohydrate precursors derived from
glycolysis and pentose phosphate pathway into aromatic amino acids [20]. Previous studies have
shown that the increase in phenolic and flavonoid compound is related to the balance between
carbohydrate sources and sinks, such that greater source or sink ratio under exposure to elevated CO2
will results in higher phenolic concentration and compounds [43,44]. The present result suggest that
enhancement of leaf gas exchange under elevated (photosynthesis) have increase the availability of
carbohydrate that enhance the production of phenolics and flavonoid content in L. pumila.
2.3. Phenylalanine Ammonia Lyase (PAL) Activity
The PAL activity was influenced by CO2 concentrations (p ≤ 0.05; Figure 3). In all the three
varieties PAL activity was found to be consistently highest under 1,200 µmol−1·mol−1 CO2 with values
ranging between (11.24–12.45 nM transcinnamic mg−1 protein hour−1) than at 800 µmol−1·mol−1 CO2
that recorded PAL activity just 6.78 to 7.56 nM transcinnamic mg−1 protein hour−1. Under ambient
CO2 conditions, PAL activity in the three varieties registered the lowest values, between 2.94 and 3.87 nM
transcinnamic mg−1protein hour−1. The present study showed that as CO2 levels increased, the
production of PAL activity was also enhanced. It can be hypothesized that the increase in production
of secondary metabolites in the present work could be attributed to an increase in PAL activities under

Molecules 2012, 17
6339
high CO2 levels. This is basically due to the fact that PAL is a precursor to total phenolics and
flavonoids biosynthesis [45,46]. The increase in PAL activity in the current study might also be related
to reduction in nitrogen content in plant exposed to high CO2 levels which could have increased the
availability of phenylalanine (phe) due to restriction in the protein production that enhanced
phenylalanine partitioning to the production of CBSM [47]. The increase in PAL activity was usually
followed by increase in C/N ratio due to enhanced growth rate under elevated CO2 that easily reduced
nitrogen content. Winger et al. [48] indicated that increases in the C/N ratio in plants were an
indication of increases in the synthesis of plant secondary metabolites, especially phenolics and
flavonoids. The increase in PAL activity under high CO2 was also observed by Matros et al. [49] and
Hartley et al. [50] in tobacco and Spergula avensis, respectively.
Figure 3. The effects of different CO2 concentration on PAL activity of three varieties of
L. pumila. N = 9. Bars represent standard error of differences between means (SEM).
16
14
12
10
400
800
8
6
4
2
0
1200
Alata
Pumila
Lanceolata
Varieties
2.4. Radical Scavenging Activity (DPPH)
Generally, the highest DPPH antioxidant activity was recorded with 1,200 µmol·mol−1 CO2
followed by 800 µmol·mol−1 CO2 and the lowest for 400 µmol·mol−1 CO2 treatment. The treatment
effects of DPPH were contributed by CO2 levels (p ≤ 0.05; Figure 4). At 370 µg/mL, the DPPH
antioxidant activity recorded the highest inhibition value (62.89–66.74%) when exposed to
1,200 µmol·mol−1CO2, followed by the 800 µmol·mol−1 CO2 (56.21–59.24%), and the least in the
400 µmol·mol−1 CO2 treatment (44.62–49.52%). This study showed that L. pumila methanolic extract
has a good free radical scavenging activity, and, hence, it can be used as a radical scavenging agent
acting possibly as a primary antioxidant. This result also implies that exposure to high CO2
concentrations could significantly enhance the DPPH radical scavenging activity of a medicinal plant. It
is noteworthy that the DPPH assay principally measures the activity of water-soluble antioxidants [51].
Results of the current work suggest that high CO2 supply is advantageous to L. pumila in the
improvement of the antioxidant activity of water-soluble antioxidants. In our previous study, besides
phenolics and flavonoid compounds, other water-soluble antioxidants of the extracts such as ascorbic
acid and anthocyanin could also exert an additive effect on DPPH radical scavenging activity.

Molecules 2012, 17
Figure 4. Leaf DPPH scavenging activities in different varieties of L. pumila under
6340
different CO2 levels. BHT and α-tocopherol were used as positive controls.
90
80
70
60
50
40
30
20
10
0
400
800
1200
Control
Carbon dioxide levels (µmol·mol−1)
All analyses are mean ± standard error of mean (SEM); N = 9. Means not sharing a common single
letter are significantly different at p ≤ 0.05. a Results expressed in percent of free radical inhibition.
2.5. Reducing Ability (FRAP)
The ferric reducing antioxidant potential (FRAP) was influenced by CO2 exposure (p ≤ 0.01). The
FRAP assay is very simple, fast and precise, and was recently developed to measure the total
antioxidant power of biological fluids [52]. The FRAP activity was found to followed similar trend
with DPPH antioxidant activity where the highest activity was observed in 1,200 µmol·mol−1 CO2,
followed by 800 µmol·mol−1 CO2 and 400 µmol·mol−1 CO2 (Figure 5). The reducing ability of extracts
from different varieties of L. pumila with 1,200 µmol·mol−1 CO2 was in the range of 817.14 to
874.26 µm of Fe(II) dry weight, whilst at 800 µmol·mol−1 CO2 the improvement was only 700.27 to
777.24 µm Fe(II) dry weight. Comparatively, at ambient CO2 concentration of 400 µmol·mol−1 CO2 a
low reducing ability of the leaf extract (516.33 to 570.12 µm of Fe(II) dry weight; Table 5) was
observed. The FRAP values for the methanolic extracts of the leaves, were statistically and
significantly lower than vitamin C and α-tocopherol, but higher than that of BHT. Our finding is in
agreement with that of Wang et al. [34], who reported the increase in FRAP activity in strawberry fruit
by 24% as exposed to elevated CO2 concentrations at 950 µmol·mol−1CO2.The enhancement of DPPH
and FRAP activity under elevated CO2 in the present study might be due to increase in production of
total phenolics and flavonoids under high levels of CO2. The present study suggest that the increase
antioxidant capabilities under elevated CO2 might be to up-regulation of production of plant secondary
metabolites that were characterized high production of phenolics and flavonoids compounds.

Molecules 2012, 17
Figure 5. Leaf total antioxidant activity (FRAP) in different varieties of L. pumila under
6341
different CO2 levels. BHT and α-tocopherol were used as positive controls.
4000
3500
3000
2500
2000
1500
1000
500
0
400
800
1200
Control
Carbon dioxide levels (µmol·mol−1)
All analyses are mean ± standard error of mean (SEM); N = 9. Means not sharing a common single
letter are significantly different at p ≤ 0.05. a Results expressed in percent of free radical inhibition.
3. Experimental
3.1. Experimental Location, Plant Materials and CO2 Treatments
The experiment was carried out under a growth house at Field 2, Faculty of Agriculture Glasshouse
Complex, Universiti Putra Malaysia (longitude 101°44'N and latitude 2°58'S, 68 m above sea level)
with a mean atmospheric pressure of 1.013 kPa. Three-month old L. pumila seedlings that were
propagated from leaf cuttings of var. alata, var. pumila and var. lanceolata were left for a month in a
nursery to acclimatize until they were ready for the treatments. The seedlings were planted in soil-less
medium containing coco-peat, burnt paddy husk and well composted chicken manure in 5:5:1 (v/v)
ratio in 25-cm diameter polyethylene bags. Organic fertilizer was applied every two weeks using well
composted chicken manure at 20 g/plant. Carbon dioxide enrichment treatment started when the
seedlings reached four months of age where plants were exposed to 400, 800 and 1,200 µmol·mol−1
CO2. This 2-factorial experiment was arranged in a split plot using a randomized complete block
design with CO2 levels being the main plot, and varieties as the sub-plot replicated three times. Each
treatment consisted of nine seedlings. The seedlings were raised in specially constructed growth houses
receiving 12-h photoperiod and average photosynthetic photon flux density of 300 µmol·m−2s−1. Day and
night temperatures were recorded at 30 ± 1.0 °C and 20 ± 1.5 °C, respectively, and relative humidity at
about 70% to 80%. Vapor pressure deficit ranged from 1.01 to 2.52 kPa. Carbon dioxide at 99.8%
purity was supplied from a high-pressure CO2 cylinder and injected through a pressure regulator into

Molecules 2012, 17
6342
fully sealed 2 m × 3 m growth houses at 2-h daily and applied continuous from 08:00 to 10:00 a.m. The
CO2 distributed inside the growth house by having two opening at the edge of the constructed growth
chamber that were mounted a small fan. During enrichment, small low r.p.m. fans were simultaneously
used to disperse CO2 evenly inside the constructed growth house. The CO2 concentration at different
treatments was measured using Air Sense™ CO2 sensors designated to each chamber during CO2
exposition period. Plants were watered three to four times a day at 5 min per session to ensure normal
growth of plant using drip irrigation with emitter capacity of 2 L·h−1. The experiment lasted for
15 weeks from the onset of treatment [53,54].
3.2. Preparation of Extracts for RP-HPLC
Samples were extracted using methanol as a solvent as described by Crozier et al. [55]. Two grams
of freeze-dried leaf were weighed and placed into a 100 mL conical flask, and treated with 80% (v/v)
aqueous methanol (40 mL). It was followed by an addition of 6 M HCl (10 mL). The mixture was
refluxed for 2 h at 90 °C and filtered using Whatman No. 1 filter paper (Whatman, Durham, UK)
followed by evaporation of the filtrate using a vacuum rotary evaporator (Buchi, Arbon, Switzerland).
The crude extracts were re-dissolved in methanol for RP-HPLC analyses.
3.3. Analyses of Phenolic and Flavonoid Compounds by RP-HPLC
The phenolic and flavonoid compounds of the leaf of Labisa pumila were quantitatively measured
by reversed-phase HPLC based on the method described by Crozier et al. [55] with some
modifications. Phenolic standards used were gallic acid, caffeic acid and pyrogallol. Flavonoid
standards were quercetin, rutin, myricetin, kaempferol and naringin at stock concentrations of
100 µg/mL. An aliquot of sample extract was loaded on the HPLC equipped with an Intersil ODS-3
(5 μm 4.6 × 150 mm, Gl Science Inc) analytical column. Solvents comprising deionised water (solvent A)
and acetonitrile (solvent B) were used. The pH of water was adjusted to 2.5 with trifluoroacetic acid.
The phenolic and isoflavonoid compounds were detected at 280 nm while flavonoid compounds at
350 nm. The column was equilibrated by 85% solvent A and 15% solvent B. Then the ratio of solvent
A was increased to 85% in 50 min followed by reducing solvent B to 15% in 55 min. This ratio was
maintained to 60 min for the next analysis with flow rate at 0.6 mL/min.
3.4. Phenylalanine-Ammonia-Lyase (PAL)
Phenylalanine-ammonia-lyase (PAL) activity was measured using the method described by
Martinez and Lafuente [56]. The enzyme activity was determined by measuring spectrophotometrically
the production of trans-cinnamic acid from L-phenylalanine. Enzyme extract (10 µL) was incubated at
40 °C with 12.1 mM L-phenylalanine (90 µL, Sigma, Chicago, IL, USA) that were prepared in 50 mM
Tris-HCl, (pH 8.5). After 15 min of reaction, trans-cinnamic acid yield was estimated by measuring
increase in the absorbance at 290 nm. Standard curve was prepared by using a trans-cinnamic acid
standard (Sigma) and the PAL activity was expressed as nM trans-cinnamic acid µg−1 protein h−1.

Molecules 2012, 17
6343
3.5. DPPH Radical Scavenging Assay
The DPPH free radical scavenging activity of each sample was determined according to the method
described by Ibrahim et al. [57]. A solution of 0.1 mM DPPH in methanol was prepared. The initial
absorbance of the DPPH in methanol was measured at 515 nm. An aliquot (40 µL) of an extract was
added to 3 mL of methanolic DPPH solution. The change in absorbance at 515 nm was measured after
30 min. The antiradical activity (AA) was determined using the following formula:
AA% = 100 − [(Abs:sample − Abs:empty sample)] × 100)/Abs:control
The optic density of the samples, the control and the empty samples were measured in comparison
with methanol. One synthetic antioxidant, BHT (butylated hydroxytoluene) and α-tocopherol, were
used as positive controls. The antioxidant capacity based on the DPPH free radical scavenging ability
of the extract was expressed in percent of free radical inhibition
3.6. Reducing Ability (FRAP Assay)
The ability to reduce ferric ions was measured using modifying methods of Benzie and Strain [52].
An aliquot (200 µL) of the extract with appropriate dilution was added to FRAP reagent (3 mL,
10 parts of 300 mM sodium acetate buffer at pH 3.6, 1 part of 10 mM TPTZ solution and 1 part of
20 mM FeCl3·6H2O solution) and the reaction mixture was incubated in a water bath at 37 °C. The
increase in absorbance at 593 nm was measured after 30 min. The antioxidant capacity based on the
ability to reduce ferric ions of the extract was expressed as expressed in µM Fe(II)/g dry mass and
compared with those of standards for BHT, ascorbic acid, and α-tocopherol.
3.7. Statistical Analysis
Data were analyzed using analysis of variance by SAS version 17. Mean separation test between
treatments was performed using Duncan multiple range test and standard error of differences
between means was calculated with the assumption that data were normally distributed and equally
replicated [58,59].
4. Conclusions
The manipulation of CO2 may be an effective method to increase the expression of phenolic and
flavonoid compounds in L. pumila. The phenolic and flavonoid profiles are dependent on the
interspecific variability between CO2 levels and L. pumila varieties. High performance liquid
chromatography (HPLC) results showed that gallic acid and quercetin were the most abundant
phenolic and flavonoid acids in Malaysian L. pumila varieties, which can be further improved with
elevated CO2. From the study, it was noted that the increase in the production of phenolics and
flavonoids under elevated CO2 might be due to enhanced PAL activity as CO2 levels increased. From
the study, it was observed that the increase in production of plant secondary metabolites in L. pumila
was followed by enhancement of the antioxidant activity (DPPH and FRAP) under exposure of
elevated CO2. The present results showed the potential use of CO2 enrichment techniques for
enhancement of medicinal properties of this plant for future cultivation.

Molecules 2012, 17
6344
Acknowledgements
The authors are grateful to the Ministry of Higher Education Malaysia and Research Management
Centre, Universiti Putra Malaysia for financing this work under the Research University Grant Scheme
No. 91007; and the Ministry of Agriculture and Agro-Based Industry for partially funding the work
under the Science Fund Scheme No. 5450487.
References and Notes
1. Taylor, J.A.; Llyold, J. Sources and sinks of atmospheric CO2. Aust. J. Bot. 1992, 40, 401–418.
2. Porter, M.A.; Grodzinski, B. CO2 enrichment of protected crops. Hort. Res. 1985, 7, 345–398.
3. Brevoort, P. The blooming United State botanical market: A new overview. Herbalgram 1998,
44, 33–46.
4. Mark, S.J.; Jackson, S.B. Growth responses of Quercus petraea, Fraxinus excelsior and Pinus
sylvestris to elevated carbon dioxide, ozone and water supply. New Phytol. 2000, 146, 437–451.
5. Byers, T.; Guerrero, N. Epidemilogic evidence for vitamin C and vitamin E in cancer prevention.
Am. J. Clin. Nutr. 1995, 62, 1385–1392.
6. Heijnen, C.G.; Haenen, G.R.; Vanacker, F.A.; Vijgh, W.J.; Bast, A. Flavonoids as peroxynitrite
scavengers:the role of the hydroxyl groups. Toxicol. In Vitro 2001, 15, 3–6.
7. Chun, O.K.; Kim, D.O.; Lee, C.Y. Superoxide radical scavenging activity of the major
polyphenols in fresh plums. J. Agric. Food Chem. 2003, 51, 8067–8072.
8. Chan, E.W.C.; Lim, Y.Y.; Wong, L.F.; Lianto, F.S.; Wong, S.K.; Lim, K.K.; Joe, C.E.; Lim, T.Y.
Antioxidant and tyrosinase inhibition properties of leaves and rhizomes of ginger species.
Food Chem. 2008, 109, 477–483.
9. Ho, C.T.; Lee, C.Y.; Hungan, M.T. Phenolics compounds in food and their effects on health
(analysis, occurance, and chemistry). J. Am. Chem. Soc. 1992, 43, 2–19.
10. Harborne, J.B.; Williams, C.A. Advances in flavonoid research science. Phytochemistry 2000, 55,
481–504.
11. Booker, F.L. Influence of carbon dioxide enrichment, ozone and nitrogen fertilization on cotton
(Gossypium hirsutum L.) leaf and root composition. Plant Cell Environ. 2000, 23, 573–583.
12. Polle, A.; Eiblmeier, M.; Sheppard, L.; Murray, M. Responses of antioxidative enzymes to
elevated CO2 in leaves of beech (Fagus sylatica L.) seedlings grown under a range of nutrient
regimes. Plant Cell Environ. 1997, 20, 1317–1321.
13. Schwanz, P.; Polle, A. Antioxidative systems, pigment and protein contents in leaves of adult
Mediterranean oak species (Quercus pubescens and Quercus. ilex) with lifetime exposure to
elevated CO2. New Phytol. 1998, 140, 411–423.
14. Pérez-López, U.; Robredo, A.; Lacuesta, M.; Sgherri, C.; Muñoz-Rueda, A.; Navari-Izzo, F.;
Mena-Petite, A. The oxidative stress caused by salinity in two barley cultivars is mitigated by
elevated CO2. Physiol. Plantarum 2009, 135, 29–42.
15. Mattson, W.J.; Julkunen-Tiitto, R.; Herms, D.A. CO2 enrichment and carbon partitioning to
phenolics: Do plant responses accord better with the protein competition or the growth-
differentiation balance models? Oikos 2005, 111, 337–347.

Molecules 2012, 17
6345
16. Bryant, J.P.; Chapin, F.S.; Klein, D.R. Carbon nutrient balance of boreal plants in relation to
vertebrate herbivory. Oikos 1983, 40, 357–368.
17. Herms, D.A.; Matson, W.J. The dilemma of plants: To grow or defend. Quart. Rev. Biol. 1992,
67, 283–335.
18. Ibrahim, M.H.; Jaafar, H.Z.E.; Rahmat, A.; Abdul Rahman, Z. The relationship between phenolics
and flavonoids production with total non structural carbohydrate and photosynthetic rate in
Labisia pumila Benth. under high CO2 and nitrogen fertilization. Molecules 2011, 16, 162–174.
19. Ibrahim, M.H.; Hawa, Z.E.J. Carbon dioxide fertilization enhanced antioxidant compounds in
Malaysian Kacip Fatimah (Labisia pumila Blume). Molecules 2011, 16, 6068–6081.
20. Ghasemzadeh, A.; Jaafar, H.Z.; Rahmat, A. Elevated carbon dioxide increases contents of
flavonoids and phenolic compounds, and antioxidant activities in Malaysian young ginger
(Zingiber officinale Roscoe.) varieties. Molecules 2010, 15, 7907–7922.
21. Chaturvedi, A.K.; Vashistha, R.J.; Rawat, N. Effect of CO2 Enrichment on photosynthetic
behavior of Podophyllum Hexandrum Royle, an endangered medicinal herb. J. Am. Sci. 2009,
5,113–118.
22. Stuhlfauth, T.; Fock, H.P. Effect of whole season CO2 enrichment on the cultivation of a
medicinal plant, Digitalis lanata. J. Agron. Crop Sci. 1990, 164, 168–173.
23. Schonhof, I.; Klaring, H.P.; Krumbein, A.; Schreiner, M. Interaction between atmospheric CO2
and glucosinolates in broccoli. J. Chem. Ecol. 2007, 33, 105–114.
24. Save, R. Effects of atmospheric carbon dioxide fertilization on biomass and secondary metabolites
of some plant species with pharmacological interest under greenhouse conditions. Afinidad 2007,
64, 237–241.
25. Ibrahim, M.H.; Jaafar, H.Z.E. The relationship of nitrogen and C/N ratio with secondary
metabolites levels and antioxidant activities in three varieties of malaysian kacip fatimah (Labisia
pumila Blume). Molecules 2011, 16, 5514–5526.
26. Ibrahim, M.H.; Jaafar, H.Z.; Rahmat, A.; Rahman, Z.A. Effects of nitrogen fertilization on
synthesis of primary and secondary metabolites in three varieties of kacip fatimah (Labisia
Pumila Blume). Int. J. Mol. Sci. 2011, 12, 5238–5254.
27. Ibrahim, M.H.; Jaafar, H.Z. Enhancement of leaf gas exchange and primary metabolites under
carbon dioxide enrichment up-regulates the production of secondary metabolites in Labisia
pumila seedlings. Molecules 2011, 16, 3761–3777.
28. Karimi, E.; Jaafar, H.Z.; Ahmad, S. Phytochemical analysis and antimicrobial activities of
methanolic extracts of leaf, stem and root from different varieties of Labisa pumila Benth.
Molecules 2011, 16, 4438–4450.
29. Lindroth, R.L.; Kinney, K.K.; Platz, C.L. Responses of diciduous trees to elevated CO2:
Productivity, phytochemistry, and insect performance. Ecology 1993, 74, 763–777.
30. Vurro, E.; Bruni, R.; Bianchi, A.; Sanità, L. Elevated atmospheric CO2 decreases oxidative stress
and increases essential oil yield in leaves of Thymus vulgaris grown in a mini FACE system.
Environ. Exp. Bot. 2009, 65, 99–106.
31. Ibrahim, M.H.; Jaafar, H.Z.E. Photosynthetic capacity, photochemical efficiency and chlorophyll
content of three varieties of Labisia pumila Benth. Exposed to open field and greenhouse growing
conditions. Acta Physiol. Plant. 2011, 33, 2179–2185.

Molecules 2012, 17
6346
32. Felgines, C.; Texier, O.; Morand, C.; Manach, C.; Scalbert, A.; Régerat, F.; Rémésy, C.
Bioavailability of the flavanone naringenin and its glycosides in rats. Am. J. Physiol. Gastrointest. L.
2000, 279, G1148–G1154.
33. Ho, P.C.; Saville, D.J.; Coville, P.F.; Wanwimoluk, S. Content of CYP3A4 inhibitors, naringin,
naringenin and bergapten in grapefruit and grapefruit juice products tomato. Pharm. Acta Helv.
2000, 74, 379–385.
34. Wang, Y.S.H.; Bunce, A.J.; Maas, L.J. Elevated carbon dioxide increases contents of antioxidant
compounds in field-grown strawberries. J. Agric. Food Chem. 2003, 51, 4315–4320.
35. Malikov, V.M.; Yuledashev, M.P. Phenolic compounds of plants of the Scutellaria L. genus:
Distribution, structure, and properties. Chem. Nat. Compd. 2002, 38, 358–406.
36. Ibrahim, M.H.; Jaafar, H.Z.E. Involvement of carbohydrate, protein and phenylanine ammonia
lyase on up-regulation of production of secondary metabolites (total phenolics and flavonoid) in
Labisia pumila (Blume) Fern-Vill (Kacip Fatimah) under high CO2 and different nitrogen levels.
Molecules 2011, 16, 4172–4190.
37. Hilal, M.; Parrado, M.E.; Rosa, M.; Gallardo, M.; Orce, L.; Massa, E.D. Epidermal lignin
deposition in quinoa cotyledons in response to UV-B radiation. Photochem. Photobiol. 2004, 79,
205–210.
38. Dennis, D.T.; Blakeley, S.D. Carbohydrate Metabolism. In Biochemistry and Molecular Biology
of Plants; Buchanan, B.B., Gruisem, W., Jones, R.L., Eds.; American Society of Plant
Physiologists: Rockville, MD, USA, 2000; pp. 630–675.
39. Johnson, R.H.; Lincoln, D.E. Sagebrush carbon allocation patterns and grasshopper nutrition:
The influence of CO2 enrichment and soil mineral limitation. Oecologica 1991, 87, 127–134.
40. Chabot, S.; Belrhlid, R.; Chenevert, R.; Pichie, Y. Hyphal growth promotion in vitro of 27
mycorrhizal fungus, Gigaspora margarita Becker & Hall, by the activity of structurally specific
28 flavonoid compounds under CO2 enriched condition. New Phytol. 1992, 122, 461–467.
41. Estiarte, M.; Penuelas, J.; Kimball, B.A.; Hendrix, D.L.; Pinter, P.J.; Wall, G.W.; Lam-orte, R.L.;
Hunsaker, D.J. Free-air CO2 enrichment of wheat: Leaf flavonoid concentration throughout the
growth cycle. Physiol. Plant. 1999, 105, 423–433.
42. Schwanz, P.; Kimball, B.A.; Idso, S.B.; Hendrix, D.L.; Polle, A. Antioxidants in sun and shade
leaves of sour orange trees (Citrus aurantium) after long-term acclimation to elevated CO2.
J. Exp. Bot. 1996, 47, 1941–1950.
43. Herrmann, K.M.; Weaver, L.M. The shikimate pathway. Ann. Rev. Plant Phys. Plant Mol. Biol.
1999, 50, 473–503.
44. Penuelas, J.; Estiarte, M. Can elevated CO2 affect secondary metabolism and ecosystem function?
Trees 1998, 13, 20–24.
45. Muzika, R.M. Terpenes and phenolics in response to nitrogen fertilization: A test of the
carbon/nutrient balance hypothesis. Chemoecology 1993, 4, 3–7.
46. Fajer, E.D.; Bowers, M.D.; Bazaaz, F.A. The effects of nutrients and enriched CO2 environment
on the production of carbon based allelochemicals in Plantago: A test of the carbon/nutrient
balance hypothesis. Am. Nat. 1992, 140, 707–723.

Molecules 2012, 17
6347
47. Meyer, S.; Cerovic, Z.G.; Goulas, Y.; Montpied, P.; Demotes, S.; Bidel, L.P.R.; Moya, I.; Dreyer, E.
Relationship between assessed polyphenols and chlorophyll contents and leaf mass per area ratio
in woody plants. Plant Cell Environ. 2006, 29, 1338–1348.
48. Winger, A.; Purdy, S.; Maclean, A.; Pourtau, N. The role of sugars in integrating environmental
signals during the regulation of leaf senescence. New Phytol. 2006, 161, 781–789.
49. Matros, A.; Amme, S.; Kettig, B.; Buck, S.G.H.; Sonnewald, U.Y.; Mock, H.P. Growth at
elevated CO2 concentrations leads to modified profiles of secondary metabolites in tobacco cv.
SamsumNN and to increased resistance against infection with potato virus Y. Plant Cell Environ.
2006, 29, 126–137.
50. Hartley, S.E.; Jones, C.G.; Couper, G.C.; Jones, T.H. Biosynthesis of plant phenolics compounds
in elevated atmospheric CO2. Glob. Change Biol. 2000, 6, 497–506.
51. Frankel, E.N.; Huang, S.W.; Kanner, J.; German, J.B. Interfacial phenomena in the evaluation of
antioxidants: Bulk oils versus emulsions. J. Agric. Food Chem. 1994, 42, 1054–1059.
52. Benzie, I.F.; Strain, J.F. The ferric reducing ability of plasma (FRAP) as a measure of
“antioxidant power”: The FRAP assay. Anal. Biochem. 1996, 239, 70–76.
53. Ibrahim, M.H.; Jaafar, H.Z.E.; Haniff, M.H.; Raffi, M.Y. Changes in growth and photosynthetic
patterns of oil palm seedling exposed to short term CO2 enrichment in a closed top chamber.
Acta Physiol. Plant. 2010, 32, 305–313.
54. Ibrahim, M.H.; Hawa, Z.E.J. Primary, secondary metabolites, H2O2, maliondialdehyde and
photosynthetic responses of Orthosiphon stimaneus Benth. to different irradiance levels. Molecules
2012, 17, 1159–1176.
55. Crozier, A.; Lean, M.E.J.; McDonald, M.S.; Black, C. Quantitative analysis of the flavonoid
content of commercial tomatoes, onions, lettuce, and celery. J. Agric. Food Chem. 1997, 45, 590–595.
56. Martinez-Tellez, M.A.; Lafuente, M.T. Effects of high temperature conditioning on ethylene,
phenylalanine ammonia lyase, peroxidase and polyphenol oxidase in flavedo of chilled “Fortune”
mandarin fruit. J. Plant Physiol. 1997, 150, 674–678.
57. Ibrahim, M.H.; Jaafar, H.Z.E.; Asmah, R.; Zaharah, A.R. Involvement of Nitrogen on Flavonoids,
Glutathione, Anthocyanin, Ascorbic Acid and Antioxidant Activities of Malaysian Medicinal
Plant Labisia pumila Blume (Kacip Fatimah). Int. J. Mol. Sci. 2012, 13, 393–408.
58. Ibrahim, M.H.; Hawa, Z.E.J. Reduced photoinhibition enhanced kacip fatimah (Labisia pumila
Blume) secondary metabolites, phenyl alanine lyase and antioxidant activity. Int. J. Mol. Sci.
2012, 13, 5290–5306.
59. Ibrahim, M.H.; Jaafar, H.Z. Impact of elevated carbon dioxide on primary, secondary metabolites
and antioxidant responses of Eleais guineensis Jacq. (Oil Palm) seedlings. Molecules 2012, 17,
5195–5211.
Sample Availability: Not available.
© 2012 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
