244 J ournal of Medicinal Chemistry, 1998, Vol. 41, No. 2
Kinney et al.
(br s, NH), 5.09 (s, 2H), 3.35-3.24 (m, 4H), 2.68 (t, J ) 6.5
Hz, 2H), 1.68 (p, J ) 6.5 Hz, 2H), 1.46 (s, 9H).
4.81 (q, J ) 7 Hz, 2H), 4.98, 4.75 (br s, NH), 4.80, 4.45 (br s,
2H), 3.84, 3.60 (br m, 2H), 3.26-3.15 (m, 2H), 1.91 (p, J ) 6.5
Hz, 2H), 1.50 (t, J ) 7 Hz, 3H), 1.45 (s, 9H).
[3-[[[[(1,1-Dim e t h yle t h yl)oxy]ca r b on yl]m e t h yl](2-
et h oxy-3,4-d ioxo-1-cyclob u t en -1-yl)a m in o]p r op yl]ca r -
ba m ic Acid Ben zyl Ester (26). An ethanolic solution (60
mL) of 25 (4.49 g, 13.9 mmol) under nitrogen was added to
3,4-diethoxy-3-cyclobutene-1,2-dione (2.0 mL, 13 mmol) in the
same solvent (60 mL) over 1 h. After 3.5 more hours, the
reaction mixture was preadsorbed onto silica gel and purified
by flash chromatography (7.5-cm diameter, gradient elution
with 30-60% ethyl acetate in petroleum ether) to afford 26
as a viscous colorless oil (5.26 g, 91%): MS (+CI) 447 (MH+,
100), 391 (38); 1H NMR (CDCl3, 400 MHz) δ 7.35 (m, 5H), 5.55,
4.97 (br m, NH), 5.10 (s, 2H), 4.75, 4.73 (q, J ) 7 Hz, 2H),
4.29, 3.99 (s, 2H), 3.74, 3.49 (t, J ) 6.5 Hz, 2H), 3.29-3.22 (m,
2H), 1.84-1.75 (m, 2H), 1.48, 1.47 (s, 9H), 1.45-1.40 (m, 3H).
(8,9-Dioxo-2,6-d ia za bicyclo[5.2.0]n on -1(7)-en -2-yl)a ce-
ton itr ile (33). A solution of 32 (5.48 g, 16 mmol) in 96%
formic acid (40 mL) under nitrogen was prepared. After 24
h, the solvent was removed and the residue was dissolved in
2-propanol and concentrated several times. Ethanol (40 mL)
was added, and the suspension was stirred overnight and
filtered to afford 33 1/8hydrate as a white solid (1.50 g, 48%,
mp 215-218 °C): IR (KBr, cm-1) 3220, 1810, 1670, 1620, 1550;
MS (DEI) 191 (M+, 57), 135 (41), 70 (41), 43 (70), 41 (100); 1H
NMR (DMSO, 400 MHz) δ 8.83 (br s, NH), 4.84 (s, 2H), 3.40-
3.30 (m, 4H), 1.95 (m, 2H). Anal. (C9H9N3O2‚1/8H2O).
2-[(1H-Tetr azol-5-yl)m eth yl]-2,6-diazabicyclo[5.2.0]n on -
1
1(7)-en e-8,9-d ion e (34). To a solution of 33 /8hydrate (1.54
(8,9-Dioxo-2,6-d ia za bicyclo[5.2.0]n on -1(7)-en -2-yl)a ce-
tic Acid 1,1-Dim eth yleth yl Ester (27). To a cooled (20 °C)
flask containing 10% palladium on carbon (5.25 g) under
nitrogen was added 26 (5.25 g, 11.8 mmol) in ethanol (500 mL)
followed by 1,4-cyclohexadiene (11 mL, 0.12 mol) over 5 min.
After 5 h, the suspension was filtered through Celite with
generous ethanol washing (1 L). The ethanol was evaporated,
and the residue was dissolved in dichloromethane and purified
by flash chromatography (7.5-cm diameter, gradient elution
with 2.5-3% methanol in dichloromethane) to yield 27 as a
g, 8.0 mmol) in dry dimethylformamide (35 mL) under nitrogen
were added sodium azide (0.79 g, 12 mmol) and ammonium
chloride (0.65 g, 12 mmol). The reaction mixture was slowly
heated to 125 °C, maintained at this temperature for 2 h,
cooled to room temperature, and then filtered. The concen-
trated filtrate was dissolved in water and evaporated. The
1
residue was recrystallized from methanol to yield 34 /3hydrate
as off-white crystals (1.18 g, 61%, mp 264-267 °C): IR (KBr,
1
cm-1) 3200, 1810, 1660, 1540; H NMR (DMSO, 400 MHz) δ
8.70 (s, NH), 5.24 (s, 2H), 3.34-3.28 (m, 4H), 1.92 (m, 2H).
white solid (2.59 g, 82%, mp 167-168 °C): IR (KBr, cm-1
)
Anal. (C9H10N6O2‚1/3H2O).
3200, 1800, 1720, 1660, 1610; MS (EI) 266 (M+, 42), 210 (33),
166 (37), 165 (100), 154 (58), 138 (37), 70 (58); 1H NMR (DMSO,
400 MHz) δ 8.62 (br s, NH), 4.38 (s, 2H), 3.36-3.27 (m, 4H),
1.91 (m, 2H), 1.40 (s, 9H). Anal. (C13H18N2O4).
2-[2-(1H-Tetr azol-5-yl)eth yl]-2,6-diazabicyclo[5.2.0]n on -
1(7)-en e-8,9-d ion e (35). Following the procedure of 34, with
the exception that 3-bromopropionitrile was employed as a
reactant, delivered 35 (20% from 30, mp 255-262 °C dec): 1H
NMR (DMSO, 400 MHz) δ 8.52 (br s, NH), 4.01 (t, J ) 6.8 Hz,
2H), 3.34-3.23 (m, 4H), 3.23 (t, J ) 6.8 Hz, 2H), 1.89-1.84
(m, 2H). Anal. (C10H12N6O2).
[2-[N-[3-[(ter t-Bu tyloxyca r bon yl)a m in o]p r op yl]-N-(4-
et h oxy-2,3-d ioxocyclob u t -3-en -3-yl)a m in o]et h yl]p h os-

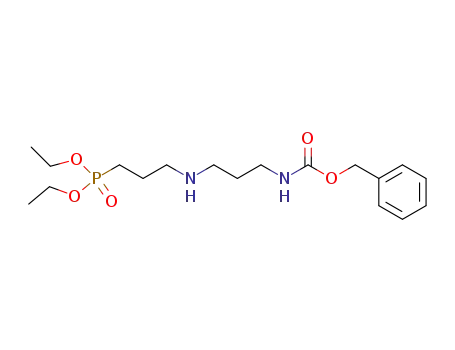

p h on ic Acid Dieth yl Ester (37). To a solution of 30 (77 g,
0.44 mol) in methanol (500 mL) was added diethyl vinylphos-
phonate (97%, 75 g, 0.44 mol) under nitrogen, and the mixture
was kept in a water bath at 20 °C for 48 h. The reaction
mixture was concentrated in vacuo, and the residue (160 g)
was added to a pad of Florisil (3 in. × 6 in.) and eluted with
dichloromethane/hexane (1/1), dichloromethane, and finally
10% methanol/dichloromethane to furnish [2-[N-[3-[(tert-bu-
tyloxycarbonyl)amino]propyl]amino]ethyl]phosphonic acid di-
ethyl ester (36) as a colorless oil (121 g, 80%): 1H NMR (CDCl3,
400 MHz) δ 5.12 (br s, NH), 4.09 (m, 4H), 3.19 (br q, J ) 6 Hz,
2H), 2.90 (m, 2H), 2.67 (t, J ) 6.5 Hz, 2H), 2.51 (br s, NH),
1.98 (dt, J ) 18, 7 Hz, 2H), 1.66 (p, J ) 6.5 Hz, 2H), 1.42 (s,
9H), 1.31 (t, 6H).
To a solution of 3,4-diethoxy-3-cyclobutene-1,2-dione (45 g,
0.265 mol) in absolute ethanol (1.2 L) under nitrogen was
added dropwise a solution of 36 (80 g, 0.24 mol) in absolute
ethanol (600 mL), and the reaction mixture was stirred at
ambient temperature 15 h. The reaction mixture was con-
centrated in vacuo, and the resulting residue was applied to a
pad of silica gel (6 in. × 4 in.) and eluted with a mixture of
dichloromethane/hexane (1/1) to remove excessive 3,4-di-
ethoxy-3-cyclobutene-1,2-dione and 10% methanol/dichlo-
romethane to yield 37 after evaporation as a viscous oil (107
g, 96%): 1H NMR (CDCl3, 400 MHz) δ 5.30 (br s, NH), 4.77
(q, J ) 7 Hz, 2H), 4.10 (m, 4H), 3.90 (m, 1H), 3.72 (t, J ) 7
Hz, 1H), 3.66 (m, 1H), 3.49 (t, J ) 7 Hz, 1H), 3.13 (m, 2H),
2.12 (m, 2H), 1.80 (m, 2H), 1.46 (t, J ) 7 Hz, 3H), 1.43 (s, 9H),
1.33 (t, J ) 7 Hz, 6H).
[2-(8,9-Dioxo-2,6-d ia za b icyclo[5.2.0]n on -1(7)-en -2-yl)-
eth yl]p h osp h on ic Acid Dieth yl Ester (14). A solution of
37 (100 g, 0.22 mol) in dichloromethane (600 mL) was cooled
in ice and treated with trifluoroacetic acid (300 mL). The
reaction mixture was left to warm to ambient temperature
overnight. The solution was concentrated in vacuo at 40 °C
and coevaporated with toluene (2 × 500 mL) to yield a viscous
oil (159.5 g), which was dissolved in absolute ethanol (1.5 L),
added dropwise over 8 h to a solution of triethylamine (350
(8,9-Dioxo-2,6-d ia za bicyclo[5.2.0]n on -1(7)-en -2-yl)a ce-
tic Acid Sod iu m Sa lt (28). An ethanolic (86 mL) solution of
27 (2.29 g, 8.60 mmol) was treated at room temperature with
a 2.5 N sodium hydroxide solution (3.5 mL, 8.7 mmol) and left
stirring overnight. The suspension was filtered and washed
with ethyl acetate to give a solid which was recrystallized from
methanol/water/2-propanol (final volume 50 mL) to afford 28
sodium salt hydrate (1.43 g, 66%, mp 280-300 °C dec): MS
(-FAB) 231 (M - H, 37), 209 (M - Na, 100); 1H NMR (DMSO,
1 drop of DCl, 400 MHz) δ 4.40 (s, 2H), 3.36-3.25 (m, 4H),
1.89 (m, 2H). Anal. (C9H9N2NaO4‚H2O).
3-(8,9-Dioxo-2,6-d ia za b icyclo[5.2.0]n on -1(7)-en -2-yl)-
p r op a n oic Acid (29). Following the procedure of 28, with
the exception that ethyl 3-bromopropionate was employed as
a reactant, afforded 29 as the sodium salt sesquihydrate (33%
overall from 11, mp 310 °C dec): 1H NMR (D2O, 400 MHz) δ
3.96 (t, J ) 7 Hz, 2H), 3.57-3.47 (m, 4H), 2.54 (t, J ) 7 Hz,
2H), 2.12-2.07 (m, 2H). Anal. (C10H11N2NaO4‚1.5H2O).
[3-[(Cya n om eth yl)a m in o]p r op yl]ca r ba m ic Acid 1,1-
Dim eth yleth yl Ester (31). A solution of (3-aminopropyl)-
carbamic acid 1,1-dimethylethyl ester (30; 6.00 g, 34 mmol)
in absolute ethanol (90 mL) was treated with sodium carbonate
(3.96 g, 37 mmol) followed by a solution of bromoacetonitrile
(2.6 mL, 37 mmol) in ethanol (30 mL) over 45 min. After
stirring at room temperature overnight, the contents of the
flask were filtered, preadsorbed onto silica gel, and purified
by flash chromatography (7-cm diameter, elution with 2.5%
methanol in dichloromethane) to afford 31 as a yellow oil (3.99
g, 55%): IR (neat, cm-1) 3330, 2240, 1700; MS (+CI) 214 (MH+,
1
20), 187 (76), 158 (100), 131 (44); H NMR (CDCl3, 400 MHz)
δ 4.80 (br s, NH), 3.61 (s, 2H), 3.22 (q, J ) 6.5 Hz, 2H), 2.79
(t, J ) 6.5 Hz, 2H), 1.69 (p, J ) 6.5 Hz, 2H), 1.45 (s, 9H).
[3-[(Cya n om eth yl)(2-eth oxy-3,4-d ioxo-1-cyclobu ten -1-
yl)a m in o]p r op yl]ca r ba m ic Acid 1,1-Dim eth yleth yl Ester
(32). A solution of 3,4-diethoxy-3-cyclobutene-1,2-dione (2.6
mL, 18 mmol) in absolute ethanol (90 mL) was treated with
31 (3.90 g, 18 mmol) in ethanol (30 mL) over 90 min. After
40 h, the reaction mixture was evaporated, dissolved in
dichloromethane, preadsorbed onto silica gel, and purified by
flash chromatography (7-cm diameter, gradient elution with
0-5% methanol in dichloromethane) to yield 32 as a yellow
oil (5.48 g, 90%): IR (neat, cm-1) 3360, 1800, 1600; MS (+FAB)
282 (76), 238 (98), 158 (100); 1H NMR (CDCl3, 400 MHz) δ
