Incorporating methyl and phenyl substituted stannylene units into oligosilanes. The influence on optical absorption properties

Article abstract of DOI:10.3390/molecules22122212

Molecules containing catenated heavy group 14 atoms are known to exhibit the interesting property of σ-bond electron delocalization. While this is well studied for oligo- and polysilanes the current paper addresses the UV-absorption properties of small tin containing oligosilanes in order to evaluate the effects of Sn-Si and Sn-Sn bonds as well as the results of substituent exchange from methyl to phenyl groups. The new stannasilanes were compared to previously investigated oligosilanes of equal chain lengths and substituent pattern. Replacing the central SiMe₂ group in a pentasilane by a SnMe₂ unit caused a bathochromic shift of the low-energy band (λmax = 260 nm) of 14 nm in the UV spectrum. If, instead of a SnMe₂, a SnPh₂ unit is incorporated, the bathochromic shift of 33 nm is substantially larger. Keeping the SnMe₂ unit and replacing the two central silicon with tin atoms causes shift of the respective band (λ = 286 nm) some 26 nm to the red. A similar approach for hexasilanes where the model oligosilane [(Me₃Si)₃Si]₂(SiMe₂)₂ (λmax = 253 nm) was modified in a way that the central tetramethyldisilanylene unit was exchanged for a tetraphenyldistannanylene caused a 50 nm bathochromic shift to a low-energy band with λmax = 303 nm.

Full text of DOI:10.3390/molecules22122212

molecules
Article
Incorporating Methyl and Phenyl Substituted
Stannylene Units into Oligosilanes. The Influence on
Optical Absorption Properties
Filippo Stella 1, Christoph Marschner 1,
*
and Judith Baumgartner 2,
*
ID
ID
1
Institute for Inorganic Chemistry, Graz University of Technology, Stremayrgasse 9, 8010 Graz, Austria;
filippo.stella@unipd.it
Institute for Chemistry, Karl-Franzens-University Graz, Stremayrgasse 9, 8010 Graz, Austria
Correspondence: christoph.marschner@tugraz.at (C.M.); baumgartner@tugraz.at (J.B.)
2
*
Received: 14 November 2017; Accepted: 5 December 2017; Published: 12 December 2017
Abstract: Molecules containing catenated heavy group 14 atoms are known to exhibit the interesting
property of σ-bond electron delocalization. While this is well studied for oligo- and polysilanes
the current paper addresses the UV-absorption properties of small tin containing oligosilanes in
order to evaluate the effects of Sn–Si and Sn–Sn bonds as well as the results of substituent exchange
from methyl to phenyl groups. The new stannasilanes were compared to previously investigated
oligosilanes of equal chain lengths and substituent pattern. Replacing the central SiMe2 group in a
pentasilane by a SnMe2 unit caused a bathochromic shift of the low-energy band (
λ
= 260 nm) of
max
14 nm in the UV spectrum. If, instead of a SnMe2, a SnPh2 unit is incorporated, the bathochromic shift
of 33 nm is substantially larger. Keeping the SnMe2 unit and replacing the two central silicon with tin
atoms causes shift of the respective band (
hexasilanes where the model oligosilane [(Me3Si)3Si]2(SiMe2)2 (
λ
= 286 nm) some 26 nm to the red. A similar approach for
= 253 nm) was modified in a
λ
max
way that the central tetramethyldisilanylene unit was exchanged for a tetraphenyldistannanylene
caused a 50 nm bathochromic shift to a low-energy band with λ = 303 nm.
max
Keywords: stannaoligosilanes;
σ-bond electron delocalization; UV-spectroscopy; single crystal
diffraction analysis
1. Introduction
It is well known that oligo- and polymeric chains of silicon, germanium, and tin atoms possess the
unusual feature of -bond electron delocalization [ ]. This property reflects the smaller HOMO-LUMO
σ
1
gaps of higher elements and in a molecular way resembles the semiconducting nature of the higher
group 14 elements and is best known for polysilanes [2].
Despite the fact that
so much different from the much more familiar concept of
σ
-bond electron delocalization seems to be an exotic property it is actually not
-bond electron delocalization. Both types of
π
delocalization rely on two important prerequisites. The first requirement is an electronic one and it says
that HOMO-LUMO gaps need to be reasonably small. This requirement is not met for alkanes which
is the reason that
-bonds between heavier elements. The second prerequisite is a spatial one and it requires the involved
orbitals to be in plane to allow extended orbital overlap over the involved atoms along the chain.
For the -bond electron delocalization this means all delocalized bonds are in one plane. A similar
overlap for -bond electron delocalization would require an all-trans-conformation of the involved
σ-bond electron delocalization is very much restricted to compounds containing
σ
π
σ
chain. As catenated heavier elements usually bear comparatively large substituents there are steric
1,2- and 1,3-interactions between these substituent, thereby causing a deviation from all-trans- to a
transoid conformation.
Molecules 2017, 22, 2212; doi:10.3390/molecules22122212
www.mdpi.com/journal/molecules

Molecules 2017, 22, 2212
2 of 13
While the phenomenon of
groups of Gilman and Kumada [
detail by Michl and others [
dependence of
σ
-bond electron delocalization has first been recognized by the research
3
–
5], the theoretical foundations of the effect have been studied in some
1,
6
–
8
]. Eventually, Tsuji and Tamao proved the concept of conformational
σ
-bond electron delocalization in oligosilanes, preparing a number of conformationally
constrained molecules [9–13].
Our group and others have shown that oligosilanes with large end groups exhibit a preference to
acquire a transoid conformation as long as the end groups are not too far apart from each other [14–20]
.
In a recent study we reported on the influence of the formal replacement of silicon atoms in oligosilanes
by germanium atoms on the
negligible [21]. However, related studies by Weinert and co-workers on the optical absorption
properties on oligogermanes [22 31] concentrated mainly on phenylated molecules which were found
σ-electron delocalization properties, which was found to be rather
–
to exhibit bathochromic shifted low-energy bands compared to our methylated oligosilanes of the
same chain lengths. This is not unexpected, as the introduction of more electronegative substituents is
known to cause absorption bands of oligosilanes to shift to longer wavelengths.
The current account is concerned with the influence of the formal exchange of silicon by tin atoms
and of methyl groups by phenyl substituents on the optical absorption properties, which reflect the
extent of σ-bond electron delocalization.
2. Results and Discussion
2.1. Synthesis
Over the last 20 years, our group has prepared many different oligosilanes. The key synthetic
advancement that allowed for the preparation of structurally reasonably complex molecules was the
discovery of the facile silanide formation accomplished by silyl group abstraction with potassium
alkoxides [32]. The potassium silanides thus obtained proved to be ideal building blocks, which could
be reacted with silyl halides of triflates to a large variety of oligosilanes. Subsequent application of
the silyl group abstraction method to silylated germanes [33] and stannanes [34] provides access to
silylated germanides and stannides. Synthesis of organostannanes with attached oligosilanyl groups
as required for the current study therefore could be achieved in a fairly straightforward way.
Reactions of tris(trimethylsilyl)silyl potassium [35
diphenyldichlorostannane provided bis[tris(trimethylsilyl)silyl]dimethylstannane (
(trimethylsilyl)silyl]diphenylstannane (2) in 86% and 61% yield, respectively (Scheme 1).
,
36] with dimethyldichlorostannane or
1) [37] and bis[tris
Scheme 1. Synthesis of bis[tris(trimethylsilyl)silylated] stannanes 1 and 2.
The NMR spectroscopic properties observed, and in particular the 29Si and 119Sn chemical shifts
of 1 [37] and 2 (Table 1), are quite similar and completely within the range of what to expect [38,39].

Molecules 2017, 22, 2212
3 of 13
Table 1. NMR spectroscopic characterization of 1, 2, 5, 6, and 8.
Compound
29Si (SiMe3)
29Si Si(EMe3)
119Sn
1
2
5
6
8
−7.7
−9.9
−7.8
−8.4
−7.1
−123.7
−133.9
−128.7
−131.8
-
−176
−174
−68
−114
−277 (SnMe), −464 (SnSi)
Single crystals of compound
2 were subjected to XRD analysis (Figure 1) showing 2 to crystallize
in the monoclinic space group P21/n. Structural parameters include Sn-Si bond distances of 2.6071(7)
and 2.6099(8) Å and an Si–Sn–Si bond angle of 132.507(17)◦. While a number of tin compounds
with two attached tris(trimethylsilyl)silyl groups are known, most of the structurally characterized
examples feature divalent tin, where the Sn–Si bonds are significantly elongated to values above
2.65 Å and the Si–Sn–Si bond angles are smaller than 115◦ [40
[(Me3Si)3Si]2SnCl2 [37] was found to exhibit quite similar Si-Sn distances of 2.604(3) Å and the
Si-Sn-Si angle of 142.5(1)◦ was even somewhat narrower than in
. For the structurally related cyclic
–43]. Nevertheless dichlorostannane
2
compound (Me2Si)2[(Si(SiMe3)2]2SnPh2 [44] the Si–Sn distances amount to 2.594(4) and 2.620(4) Å.
For the related compounds (Me3Si)3SiSniPr3 with only one tris(trimethylsilyl)silyl group and three
isopropyl groups on tin and hexakis(trimethylsilyl)distannane even shorter Si-Sn distance of 2.573(4)
and 2.5707(17) Å, respectively, were reported [45]. Of particular interest for the
are the conformational properties, which are reflected by the dihedral angles. As listed in Table 2,
the two relevant dihedral angles of are exhibiting a deviant conformational preference, which is
likely caused by steric interactions of the phenyl groups with trimethylsilyl groups.
σ-bond delocalization
2
Figure 1. Molecular structure of
2 (thermal ellipsoid plot drawn at the 30% probability level).
All hydrogen atoms are not shown for clarity (bond lengths in Å, angles in ◦). Sn(1)–C(7) 2.1603(19),
Sn(1)–C(1) 2.1609(19), Sn(1)–Si(1) 2.6071(7), Sn(1)–Si(5) 2.6099(8), Si(1)–Si(2) 2.3747(9), Si(2)–C(13)
1.872(2), Si(1)–Sn(1)–Si(5) 132.507(17).

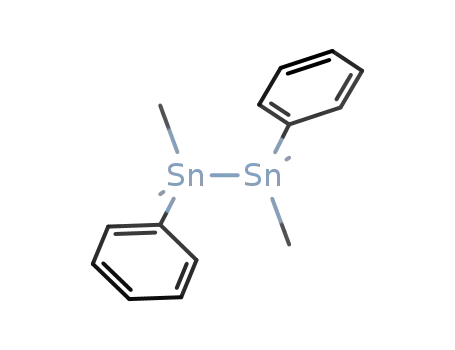

Starting out from 1,2-diphenylated distannanes
were obtained by treatment with two equiv triflic acid and treated further on with two equiv
tris(trimethylsilyl)silyl potassium. Tris(trimethylsilyl)silylated distannanes and were formed in 48%
3 [46,47] and 4, the respective triflates
5
6

Molecules 2017, 22, 2212
4 of 13
and 33% yields (Scheme 2). In addition to distannane
6
a few crystals of a tris(trimethylsilyl)silylated
tristannane (6a) were obtained. Although it was not possible to subject 6a to NMR spectroscopic
characterization, the few crystals obtained permitted crystallographic analysis (vide infra).
Table 2. Dihedral angles of the Si1–2–(Sn)1–3–Si1–2 framework of compounds 2, 5, 6, 6a, and 8.
◦
Dihedral Angles ω [ ] Determined by X-ray Crystallography
Compound
ω1
ω2
ω3
ω4
Conformation 1
2
5
6
6a
8
153
159
160
162
170
143
180
180
162
170
DD
TAT
TAT
TTTD
TT
159
160
161
148
1
A = anti, T = transoid, D = deviant.
Scheme 2. Synthesis of bis[tris(trimethylsilyl)silylated]distannanes 5 and 6.
The molecular structure of distannane
5
in the solid state (Figure 2) is isostructural to that
of the respective 1,2-bis[tris(trimethylsilyl)silyl]tetramethyldisilane [48,49] with slightly extended
cell parameters. Both compounds crystallize in the triclinic space group P-1 and feature perfect
trans-alignment along the Si–E–E–Si bond arrangement (E = Si, Sn) (Table 2). For the all-silicon
molecule we have shown that the conformational preference in the solid state is maintained in solution
so that
σ
-electron conjugation along a chain of six heavy atoms is facile [14]. Sn–Si distances of
5 are
with 2.579(3) Å shorter than in
2
reflecting the fact that only one bulky tris(trimethylsilyl)silyl group is
attached to a tin atom. The Sn–Sn bond distance of 2.7950(13) is close to that of 2.7930(12) observed
for (Me3Si)3SnSn(SiMe3)3 [45]. The Si–Sn–Sn bond angle of 119.939(12)◦ is somewhat increased in
comparison to that of the all-silicon analog.
Figure 2. Molecular structure of
5 (thermal ellipsoid plot drawn at the 30% probability level).
Non-labeled atoms are generated by symmetry operations. All hydrogen atoms are not shown for clarity
(bond lengths in Å, angles in ◦). Sn(1)–C(11) 2.182(9), Sn(1)–Si(1) 2.579(3), Sn(1)–Sn(1A) 2.7950(13),
Si(1)–Si(2) 2.344(3), Si(2)–C(1) 1.878(9), Si(1)–Sn(1)–Sn(1A) 116.47(6).

Molecules 2017, 22, 2212
5 of 13
Distannane
6
was found to crystallize with one additional benzene molecule in the monoclinic
space group P21/n (Figure 3). Also the structure of
trans-alignment along the Si–Sn–Sn–Si unit (Table 2). Compared to
6
contains an inversion center and thus exhibits
the Sn–Si distances of are slightly
5
6
elongated to a value of 2.5988(6) Å caused by the increased steric demand of the Ph2Sn unit compared
to Me2Sn. This is also responsible for the elongated Sn–Sn bond distance of 2.8217(7) observed for 6.
Figure 3. Molecular structure of
6 (thermal ellipsoid plot drawn at the 30% probability level).
Non-labeled atoms are generated by symmetry operations. All hydrogen atoms are not shown for
◦
clarity (bond lengths in Å, angles in ). Si(1)–Si(2) 2.3476(8), Si(1)–Sn(1) 2.5988(6), Si(2)–C(14) 1.8682(19),
Sn(1)–C(1) 2.1603(16), Sn(1)–Sn(1A) 2.8217(7), Si(1)–Sn(1)–Sn(1A) 119.939(12).
The molecular structure of 6a (Figure 4) in the solid state is asymmetric and a comparably small
dihedral angle (148◦) on one side of the molecule is observed (Table 2). As expected Sn–Sn bond
lengths of 6a are somewhat shorter than in 6 (2.8022(15) and 2.8161(14) Å) reflecting the diminished
interaction between phenyl and trimethylsilyl groups.
Figure 4. Molecular structure of 6a (thermal ellipsoid plot drawn at the 30% probability level).
All hydrogen atoms are not shown for clarity (bond lengths in Å, angles in ◦). Sn(1)–C(16) 2.151(14),
Sn(1)–Si(1) 2.583(4), Sn(1)–Sn(2) 2.8022(15), Sn(2)–Sn(3) 2.8161(14), Sn(3)–Si(5) 2.608(4), Si(1)–Si(2)
2.358(6), Si(2)–C(1) 1.885(18), Si(1)–Sn(1)–Sn(2) 123.01(11), Sn(1)–Sn(2)–Sn(3) 111.38(4).

Molecules 2017, 22, 2212
6 of 13
To study the influence of the exchange of silicon for tin atoms we decided to prepare a structure
isostructural to compound but with tris(trimethylsilyl)stannyl end groups. As depicted in Scheme 3
this goal can be achieved by reacting dimethyldichlorostannane with tris(trimethylsilyl)stannyl
1
potassium (obtained easily from tetrakis(trimethylsilyl)stannane (7) [34]) yielding compound 8 in
66% yield.
Scheme 3. Synthesis of 1,1,1,3,3,3-hexakis(trimethylsilyl)dimethyltristannane 8.
The structure of compound
all silicon compound Me2Si[Si(SiMe3)3]2 [50]. Both compounds crystallize in the monoclinic space
group C2/c with featuring somewhat larger cell axes. The Sn–Sn bond distance of 2.7871(6) Å is
close to what was observed for compound . Compared to compound 2 the longer Sn–Sn bonds and
8 (Figure 5) again exhibits isostructural properties to the respective
8
5
the diminished steric demand of the methyl groups at tin larger dihedral angles (Table 2) of 170◦
are possible.
Figure 5. Molecular structure of
8 (thermal ellipsoid plot drawn at the 30% probability level).
All hydrogen atoms are not shown for clarity (bond lengths in Å, angles in ◦). Sn(1)–Si(3) 2.5658(7),
Sn(1)–Si(1) 2.5728(8), Sn(1)–Si(2) 2.5758(8), Sn(1)–Sn(2) 2.7871(6), Sn(2)–C(10) 2.179(3), Sn(2)–Sn(1A)
2.7871(6), Si(1)–C(1) 1.876(3), Si(1)–Sn(1)–Sn(2) 105.02(2), Sn(1A)–Sn(2)–Sn(1) 122.946(18).
2.2. UV-Vis Spectroscopy
From our studies on the
σ-bond electron delocalization of oligosilanes and
germaoligosilanes [14–21] we have learned that that tris(trimethylsilyl)silyl terminated
methyloligosilanes exibit a strong preference for transoid conformations in the solid state
and in solution. Increasing the lengths of the main chain results in bathochromic shifts of the
low-energy (σ→σ*) transition indicating extension of the delocalized system. Exchange of selected
silicon atoms from the main chain for germanium was found to change the spectroscopic properties
only slightly. For a similar exchange of silicon with tin atoms a significantly stronger effect is expected.

Molecules 2017, 22, 2212
7 of 13
This expectation is already fulfilled for compound
1. The low-energy band of its UV spectrum
is located at 260 nm (Figure 6) which is 14 nm red shifted compared to the analogous all-silicon
compound [(Me3Si)3Si]2SiMe2.
Replacement of two additional silicon atoms leads to compound
8 with a central tristannanylene
unit. The low-energy band of the UV spectrum of (Figure 6) is located at 286 nm indicating another
8
red shift of 24 nm. Overall, the replacement of three silicon atoms with tin atoms in linear pentasilane
unit caused a bathochromic shift of 38 nm.
[(Me3Si)3Si]2(SiMe2)2, which is the all-silicon analog of compound
5, exhibits a low-energy band
at 253 nm. In contrast to this, the UV spectrum of (Figure 6) with the two central SnMe2 units
5
featured the respective band at 280 nm. The formal replacement of two silicon atoms with tin atoms
here amounts to a bathochromic shift of 27 nm.
Previous attempts to attach tris(trimethylsilyl)silyl groups to perphenylated silanylene units were
not successful, but the stannaoligosilanes of this study allow the study of the influence of attached
phenyl groups on the
of compounds with
spectra of and
(Figure 6) also show bands which we assign to π→π* transitions with vibrational
fine structure.
Compound , where compared to the two methyl groups on the central tin atom are replaced
by phenyl groups, shows a further bathochromic shift of 19 nm for a low-energy band at 279 nm
(Figure 6). Still, molecule contains a linear arrangement of five connected heavy atoms where the
-electron delocalization is supposed to occur. The overall formal replacement of a SiMe2 unit in
[(Me3Si)3Si]2SiMe2 with a SnPh2 entity causes a bathochromic shift of the low-energy band of 36 nm.
A similar relationship exists between is [(Me3Si)3Si]2(SiMe2)2 ( = 253 nm) and compound which
σ
-electron delocalization of the oligomers. This can be achieved by comparison
1
2
and compounds with
5
6. In addition to the σ→σ* transition bands, the UV
2
6
2
1
2
σ
λ
max
6
extends its low-energy band to 303 nm. The formal exchange of a tetramethyldisilanylene unit with a
tetraphenyldistannanylene in this case causes a 50 nm bathochromic shift.
Figure 6. Ultraviolet (UV) spectra of compounds 1, 2, 5, 6, and 8.
3. Materials and Methods
Experimental Section
All reactions involving air-sensitive compounds were carried out under an atmosphere of dry
nitrogen or argon using either Schlenk techniques or a glove box. Solvents were dried using a
column solvent purification system [51]. Potassium tert-butanolate was purchased exclusively from

Molecules 2017, 22, 2212
8 of 13
MERCK. Dichlorodiphenylstannane, dichlorodimethylstannane, hexaphenyldistannane (
4) and all
other chemicals were obtained from different suppliers and were used without further purification.
Tris(trimethylsilyl)silyl potassium [35 36], and tetrakis(trimethylsilyl)stannane ( ) [52] have been
prepared following published procedures.
,
7
1H- (300 MHz), 13C- (75.4 MHz), 119Sn- (111.8 MHz), and 29Si- (59.3 MHz) NMR spectra were
recorded on a Varian Unity INOVA 300 spectrometer (Varian, Palo Alto, CA, USA). If not noted
otherwise for all samples the used solvent was C6D6 or in case of reaction samples they were measured
with a D2O capillary in order to provide an external lock frequency signal. To compensate for the low
isotopic abundance of 29Si the INEPT pulse sequence was used for the amplification of the signal [53
,54].
Elementary analysis was carried using a Heraeus VARIO ELEMENTAR EL apparatus (Heraeus, Hanau,
Germany). UV spectra were measured on a Perkin Elmer Lambda 35 spectrometer (Perkin-Elmer
Corp., Waltham, MA, USA) using spectroscopy grade pentane as solvent. Spectra plotting was done
using Spectragryph 1.07 [55].
X-ray structure determination: For X-ray structure analyses the crystals were mounted onto
the tip of glass fibers, and data collection was performed with a BRUKER-AXS SMART APEX CCD
diffractometer (Bruker-AXS, Madison, WI, USA) using graphite-monochromated Mo K
(0.71073 Å). The data were reduced to F20 and corrected for absorption effects with SAINT [56] and
SADABS [57 58], respectively. Structures were solved by direct methods and refined by full-matrix
least-squares method (SHELXL97 and SHELX2013) [59 60]. All non-hydrogen atoms were refined
α radiation
,
,
with anisotropic displacement parameters. Hydrogen atoms were placed in calculated positions to
correspond to standard bond lengths and angles.
Crystallographic data for the structures of compounds
have been deposited with the Cambridge Crystallographic Data Center as supplementary publication
no. CCDC 1585436 ( ), 1585433 ( ), 1585432 ( ), 1585434 (6a), and 1585435 ( ). Copies of data can
2, 5, 6, 6a, and 8 reported in this paper
2
5
6
8
be obtained free of charge at: http://www.ccdc.cam.ac.uk/products/csd/request/. Figures of solid
state molecular structures were generated using Ortep-3 as implemented in WINGX [61] and rendered
using POV-Ray 3.6 [62].
Dimethyldiphenylstannane. A solution of PhMgBr in Et2O (prepared from Mg (466 mg, 19.2 mmol)
and bromobenzene (2986 mg, 19.2 mmol) was slowly added to dichlorodimethylstannane (2057 mg,
9.4 mmol) in THF (20 mL) at 0 ◦C. The mixture was stirred for 12 h before saturated NH4Cl solution
(30 mL) was added. The organic phase was separated, reduced in volume, and then passed through a
pad of silica gel. After evaporation of solvent dimethyldiphenylstannane (1829 mg, 64%) was obtained
as a colorless oil. NMR spectroscopic data in accordance with published values [63]: 119Sn-NMR
(δ in ppm): −60.
Chlorodimethylphenylstannane. To a solution of dimethyldiphenylstannane (1829 mg, 5.3 mmol) in
◦
Et2O (25 mL) HCl (1.2 equiv., 1 M solution in diethyl ether) was added at 0 C. The mixture was
allowed to come to r.t. and then stirred for 12 h before saturated NH4Cl solution (10 mL) was added.
The layers were separated, the organic layer dried over anhydrous Na2SO4 and the solvent removed.
Chlorodimethylphenylstannane (851 mg, 61%) was obtained as a colorless oil and was used without
further purification. NMR spectroscopic data in accordance with published values [63]: 119Sn-NMR
(δ in ppm): 91.
1,1-Bis[tris(trimethylsilyl)silyl]dimethylstannane (1). A solution of tris(trimethylsilyl)silyl potassium
(prepared from tetrakis(trimethylsilyl)silane (750 mg, 2.3 mmol) and tBuOK (284 mg, 2.4 mmol) in
DME (8 mL) was added to dichlorodimethylstannane (262 mg, 1.2 mmol) in THF (5 mL) very slowly at
r.t. and then stirred for 12 h. To the reaction mixture pentane (10 mL), THF (10 mL), and 2M H2SO4
(10 mL) were added, the phases separated, the organic phase dried with anhydrous Na2SO4 and the
solvent removed. Compound
a pentane/acetone 1:1 solution at r.t. m.p.: 85–95 ◦C. 1H-NMR (
s, 6H, SnMe2). 29Si-NMR ( 123.7 (Siq). 119Sn-NMR (
in ppm): 7.7 (SiMe3),
1
was obtained as colorless crystals (668 mg, 86%) by crystallization from
in ppm): 0.34 (s, 54H, SiMe3), 0.26
in ppm): 176. Anal.
δ
(
δ
−
−
δ
−

Molecules 2017, 22, 2212
9 of 13
calcd. for C20H60Si8Sn (644.09): C 37.30, H 9.39. Found: C 37.20, H 9.32. UV absorption: λ1 = 209 nm
(ε1 = 1.7 × 104 M−1 cm−1), λ2 = 260 nm (ε2 = 2.4 × 104 M−1 cm−1).
1,1-Bis[tris(trimethylsilyl)silyl]diphenylstannane (
2). Same procedure as for 1 using: dichlorodipheny
lstannane (446 mg, 1.3 mmol), tetrakis(trimethylsilyl)silane (757 mg, 2.4 mmol) and tBuOK (312 mg,
◦
2.5 mmol). Colorless crystalline
7.79 (m, 4H), 7.09 (m, 6H), 0.18 (s, 54H, SiMe3). 13C-NMR (
29Si-NMR ( 133.9 (Siq). 119Sn-NMR (
in ppm): 9.9 (SiMe3),
2
(613 mg, 61%) was obtained. m.p.: 143–145 C. 1H-NMR (δ in ppm):
in ppm): 142.7, 138.4, 127.9, 127.7, 3.5.
in ppm):
174 (1JSn–C = 264 Hz
δ
δ
−
−
δ
−
,
1JSi–Sn = 182 Hz, 2JSi–Sn = 39 Hz). Anal. calcd. for C28H64Si8Sn (768.23): C 46.90, H 8.40. Found: C 44.65,
H 8.33. UV absorption: λ1 = 209 nm (ε1 = 1.7
×
104 M−1 cm−1), λ2 = 260 nm (ε2 = 2.4 × 104 M−1 cm−1).
1,2-Diphenyltetramethyldistannane (
3). To chlorodimethylphenylstannane (851 mg, 3.3 mmol) in THF
(8 mL) metallic sodium (75 mg, 3.3 mmol) was added and stirred at r.t. for 48 h. A saturated NH4Cl
solution (10 mL) was added and extracted with Et2O. The organic layer was dried with over anhydrous
Na2SO4 and then the solvent removed. Compound
3 (578 mg, 48%) was obtained as a colorless oil
with spectroscopic values in accordance to published data [46,47]. 119Sn-NMR (δ in ppm): −118.
1,2-Bis[tris(trimethylsilyl)silyl]tetramethyldistannane (
(10 mL) triflic acid (384 mg, 2.6 mmol) was added dropwise at
5
). To a solution of 3◦(578 mg, 1.3 mmol) in CH2Cl2
−
40 C. The reaction mixture was
allowed to come to r.t. and was stirred for additional 12 h. (The clear solution was checked by
119Sn-NMR (
in ppm): 107 ppm) [64]. The solvent was removed and the residue dissolved in
δ
toluene (10 mL) followed by the dropwise addition of tris(trimethylsilyl)silyl potassium [prepared
from tetrakis(trimethylsilyl)silane (821 mg, 2.6 mmol) and tBuOK (316 mg, 2.8 mmol) in DME (8 mL).
The solvent was removed and the residue solved in toluene (10 mL)]. The reaction solution turns yellow
and then dark orange. Stirring was continued for 12 h. The work up procedure was done according
to the procedure for
obtained. m.p.: 222–225 ◦C. 1H-NMR (
12H, SnMe2), 0.22 (s, J = 12.3Hz, J = 10.2 Hz, J = 6.5 Hz, 54H, SiMe3). 13C-NMR (
8.7 (1JC–Sn = 36.8 Hz, SnMe2). 29Si-NMR (
3.1 (SiMe3), in ppm, CDCl3): 7.8 (SiMe3),
119Sn-NMR (
in ppm): 68. Anal. calcd. for C22H66Si8Sn (792.87): C 33.33, H 8.39. Found: C 33.21, H
1
. After recrystallization from CH2Cl2 colorless crystalline
in ppm, CDCl3): 0.38 (s, 2JH–Sn = 40.5 Hz, 3JH–Sn = 19.6 Hz
in ppm, CDCl3):
128.7 (Siq).
5 (483 mg, 48%) was
δ
,
δ
−
δ
−
−
δ
−
8.29. UV absorption: λ1 = 209 nm (ε1 = 1.7 × 104 M−1 cm−1), λ2 = 260 nm (ε2 = 2.4 × 104 M−1 cm−1).
1,2-Bis[tris(trimethylsilyl)silyl]tetraphenyldistannane (
hexaphenyldistannane (2000 mg, 2.8 mmol), triflic acid (858 mg, 5.7 mmol) [the addition of triflic acid
was done at r.t. and addition of triflate was checked by 119Sn-NMR (
in ppm): 100.2 ppm] [64],
6). The same procedure as for 1 was applied using
δ
−
tetrakis(trimethylsilyl)silane (1832 mg, 5.7 mmol) and tBuOK (705 mg, 6.3 mmol). The addition of
tris(trimethylsilyl) potassium and the following stirring was done at 40 ◦C. The pale yellow solid was
recrystallized from pentane/THF at
to , a few crystals of 1,3-bis[tris(trimethylsilyl)silyl]hexaphenyltristannane (6a) were also obtained.
: m.p.: 226–228 C. 1H-NMR (
13C-NMR ( in ppm, THF-d8): 143.6, 140.9, 130.4, 130.3, 4.7 (SiMe3). 29Si-NMR (
(SiMe3), in ppm): 114. Anal. calcd. for C42H74Si8Sn2 (1041.15): C 48.45,
131.8 (Siq). 119Sn-NMR (
−
20 ◦C to yield colorless crystalline
6 (619 mg, 33%). In addition
6
◦
6
δ
in ppm): 7.75 (m, 4H), 7.41 (m, 2H), 7.02 (m, 4H), 0.26 (s, 54H, SiMe3).
in ppm): 8.4
δ
δ
−
−
δ
−
H 7.16. Found: C 48.39, H 7.09. UV absorption: λ1 = 209 nm (ε1 = 1.7
(ε2 = 2.4 × 104 M−1 cm−1).
×
104 M−1 cm−1), λ2 = 260 nm
1,1,1,3,3,3-Hexakis(trimethylsilyl)dimethyltristannane (8). A solution of tetrakis(trimethylsilyl)-stannane
(397 mg, 0.97 mmol) in DME (5 mL) was treated with tBuOK (112 mg, 0.99 mmol) in DME at r.t.
After 12 h the solvent was removed and the residue dissolved with toluene (5 mL). This solution was
added dropwise to dichlorodimethylstannane (106 mg, 0.48 mmol) in THF (5 mL) and stirred for 12 h.
A saturated NH4Cl solution (5 mL) was added, the phases separated, the organic phase dried with
anhydrous Na2SO4 and the solvent removed. After recrystallization from CH2Cl2 colorless crystalline
8
(272 mg, 66%) was obtained. m.p.: 134–136 ◦C. 1H-NMR (
0.29 (s, 6H, SnMe2). 13C-NMR (
in ppm, CDCl3): 4.8 (Sn(SiMe3)3),
δ
in ppm, CDCl3): 0.32 (s, 18H, SiMe3),
7.1 (SnMe2). 29Si-NMR (
in ppm,
δ
−
δ

Molecules 2017, 22, 2212
10 of 13
D2O capillary):
(SnMe2),
−
7.1 (1J117/119Sn–Si = 324 Hz, 310 Hz, SiMe3). 119Sn-NMR (
464 (Sn(SiMe3)3). Anal. calcd. for C20H60Si6Sn3 (825.34): C 29.11, H 7.33. Found: C 29.02, H
δ
in ppm, THF-d8):
−
277
−
7.21. UV absorption: λ1 = 209 nm (ε1 = 1.7 × 104 M−1 cm−1), λ2 = 260 nm (ε2 = 2.4 × 104 M−1 cm−1).
4. Conclusions
With the intention to study the influence of incorporated heavier group 14 element atoms,
a number of stannaoligosilanes were synthesized. The UV absorption properties of these were
compared to those of previously investigated oligosilanes of equal chain lengths and substituent
pattern. Replacing one dimethylsilylene group in a pentasilane by a dimethylstannylene unit was found
to cause a bathochromic shift of the low-energy band (corresponding to HOMO-LUMO transition)
(λmax = 260 nm) of 14 nm. By introduction of a diphenylstannylene group the bathochromic shift is
raised to 33 nm. Keeping the dimethylstannylene unit and exchanging the two adjacent silicon atoms
by tin shifts the respective band (λ = 286 nm) some 26 nm to the red.
These results clearly show that by deliberate exchange of silicon for tin and switching to phenyl
substituents, the absorption properties and the degree of
over a large spectral range.
σ-bond electron delocalization can be tuned
Supplementary Materials: The following are available online, Table S1: Crystallographic information for
compounds 2, 5, 6, 6a, and 8.
Acknowledgments: Support of the study was provided by the Austrian Fonds zur Förderung der wissenschaftlichen
Forschung (FWF) via projects P-25124 (J.B.) and P-22678 (C.M.).
Author Contributions: F.S., C.M. and J.B. conceived and designed the experiments; F.S. performed the
experiments; F.S., C.M. and J.B. analyzed the data; J.B. carried out XRD analyses; C.M. and J.B. wrote the paper.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
Fogarty, H.A.; Casher, D.L.; Imhof, R.; Schepers, T.; Rooklin, D.W.; Michl, J. σ Bonds: Electronic Structure,
Photophysics, and Photochemistry of Oligosilanes. Pure Appl. Chem. 2009, 75, 999–1020. [CrossRef]
Miller, R.D.; Michl, J. Polysilane High Polymers. Chem. Rev. 1989, 89, 1359–1410. [CrossRef]
Gilman, H.; Atwell, W.H.; Schwebke, G.L. Ultraviolet Properties of Compounds Containing the
Silicon-Silicon Bond. J. Organomet. Chem. 1964, 2, 369–371. [CrossRef]
2.
3.
4.
5.
6.
7.
Sakurai, H.; Kumada, M. The Ultraviolet Spectra of Some Polysilanes. Bull. Chem. Soc. Jpn. 1964, 37,
1894–1895. [CrossRef]
Sakurai, H.; Yamamori, H.; Kumada, M. The Substituent Effect on the Ultraviolet Spectrum of
1,2-Diphenyltetramethyldisilane. Bull. Chem. Soc. Jpn. 1965, 38, 2024. [CrossRef]
Michl, J.; West, R. Conformations of Linear Chains. Systematics and Suggestions for Nomenclature.
Acc. Chem. Res. 2000, 33, 821–823. [CrossRef] [PubMed]
Tsuji, H.; Michl, J.; Tamao, K. Recent Experimental and Theoretical Aspects of the Conformational
Dependence of UV Absorption of Short Chain Peralkylated Oligosilanes. J. Organomet. Chem. 2003, 685, 9–14.
[CrossRef]
8.
9.
Jovanovic, M.; Antic, D.; Rooklin, D.; Bande, A.; Michl, J. Intuitive Understanding of
Loose and Localization in Tight Helical Conformations of an Oligosilane Chain. Chem. Asian J. 2017, 12,
1250–1263. [CrossRef] [PubMed]
Tamao, K.; Tsuji, H.; Terada, M.; Asahara, M.; Yamaguchi, S.; Toshimitsu, A. Conformation Control of
Oligosilanes Based on Configurationally Constrained Bicyclic Disilane Units. Angew. Chem. Int. Ed. 2000, 39,
3287–3290. [CrossRef]
σ Delocalization in
σ
10. Tsuji, H.; Terada, M.; Toshimitsu, A.; Tamao, K. σσ* Transition in anti,cisoid Alternating Oligosilanes:
Clear-Cut Evidence for Suppression of Conjugation Effect by a cisoid Turn. J. Am. Chem. Soc. 2003, 125,
7486–7487. [CrossRef] [PubMed]
11. Mallesha, H.; Tsuji, H.; Tamao, K. UV Absorption and Mass Spectra of n-Alkylsilyl End-Capped Anti,
Cisoid-Alternating Oligosilanes up to Docosasilane (Si22). Organometallics 2004, 23, 1639–1642. [CrossRef]

Molecules 2017, 22, 2212
11 of 13
12. Tsuji, H.; Fukazawa, A.; Yamaguchi, S.; Toshimitsu, A.; Tamao, K. All-anti-Pentasilane: Conformation Control
of Oligosilanes Based on the Bis(tetramethylene)-Tethered Trisilane Unit. Organometallics 2004, 23, 3375–3377.
[CrossRef]
13. Fukazawa, A.; Tsuji, H.; Tamao, K. All-anti-Octasilane: Conformation Control of Silicon Chains Using the
Bicyclic Trisilane as a Building Block. J. Am. Chem. Soc. 2006, 128, 6800–6801. [CrossRef] [PubMed]
14. Marschner, C.; Baumgartner, J.; Wallner, A. Structurally and Conformationally Defined Small Methyl
Polysilanes. Dalton Trans. 2006, 5667–5674. [CrossRef] [PubMed]
15. Wallner, A.; Wagner, H.; Baumgartner, J.; Marschner, C.; Rohm, H.W.; Kockerling, M.; Krempner, C.
Structure, Conformation, and UV Absorption Behavior of Partially Trimethylsilylated Oligosilane Chains.
Organometallics 2008, 27, 5221–5229. [CrossRef]
16. Wallner, A.; Hlina, J.; Konopa, T.; Wagner, H.; Baumgartner, J.; Marschner, C.; Flörke, U. Cyclic and Bicyclic
Methylpolysilanes and Some Oligosilanylene-Bridged Derivatives. Organometallics 2010, 29, 2660–2675.
[CrossRef]
17. Wallner, A.; Hlina, J.; Wagner, H.; Baumgartner, J.; Marschner, C. Conformational Control of Polysilanes:
The Use of CH2-Spacers in the Silicon Backbone. Organometallics 2011, 30, 3930–3938. [CrossRef] [PubMed]
18. Emanuelsson, R.; Löfås, H.; Wallner, A.; Nauroozi, D.; Baumgartner, J.; Marschner, C.; Ahuja, R.; Ott, S.;
Grigoriev, A.; Ottosson, H. Configuration- and Conformation-Dependent Electronic-Structure Variations in
1,4-Disubstituted Cyclohexanes Enabled by a Carbon-to-Silicon Exchange. Chem. Eur. J. 2014, 20, 9304–9311.
[CrossRef] [PubMed]
19. Hlina, J.; Stella, F.; Aghazadeh Meshgi, M.; Marschner, C.; Baumgartner, J. σ-Bond Electron Delocalization
in Oligosilanes as Function of Substitution Pattern, Chain Length, and Spatial Orientation. Molecules 2016
,
21, 1079. [CrossRef] [PubMed]
20. Aghazadeh Meshgi, M.; Baumgartner, J.; Marschner, C. Oligosilanylsilatranes. Organometallics 2015, 34,
3721–3731. [CrossRef] [PubMed]
21. Hlina, J.; Zitz, R.; Wagner, H.; Stella, F.; Baumgartner, J.; Marschner, C. σ-Bond Electron Delocalization of
Branched Oligogermanes and Germanium Containing Oligosilanes. Inorg. Chim. Acta 2014, 422, 120–133.
[CrossRef] [PubMed]
22. Amadoruge, M.L.; Gardinier, J.R.; Weinert, C.S. Substituent Effects in Linear Organogermanium Catenates.
Organometallics 2008, 27, 3753–3760. [CrossRef]
23. Weinert, C.S. Syntheses, Structures and Properties of Linear and Branched Oligogermanes. Dalton Trans.
2009, 1691–1699. [CrossRef] [PubMed]
24. Amadoruge, M.L.; Short, E.K.; Moore, C.; Rheingold, A.L.; Weinert, C.S. Structural, Spectral, and
Electrochemical Investigations of para-Tolyl-Substituted Oligogermanes. J. Organomet. Chem. 2010, 695,
1813–1823. [CrossRef]
25. Samanamu, C.R.; Amadoruge, M.L.; Yoder, C.H.; Golen, J.A.; Moore, C.E.; Rheingold, A.L.; Materer, N.F.;
Weinert, C.S. Syntheses, Structures, and Electronic Properties of the Branched Oligogermanes (Ph3Ge)3GeH
and (Ph3Ge)3GeX (X = Cl, Br, I). Organometallics 2011, 30, 1046–1058. [CrossRef]
26. Weinert, C.S. Synthetic, Structural, and Physical Aspects of Organo-Oligogermanes. Comments Inorg. Chem.
2011, 32, 55–87. [CrossRef]
27. Samanamu, C.R.; Amadoruge, M.L.; Schrick, A.C.; Chen, C.; Golen, J.A.; Rheingold, A.L.; Materer, N.F.;
Weinert, C.S. Synthetic, Structural, and Physical Investigations of the Large Linear and Branched
Oligogermanes Ph3GeGePh2GePh2GePh2H, Ge5Ph12, and (Ph3Ge)4Ge. Organometallics 2012, 31, 4374–4385.
[CrossRef]
28. Roewe, K.D.; Rheingold, A.L.; Weinert, C.S. A Luminescent and Dichroic Hexagermane. Chem. Commun.
2013, 49, 8380–8382. [CrossRef] [PubMed]
29. Roewe, K.D.; Golen, J.A.; Rheingold, A.L.; Weinert, C.S. Synthesis, Structure, and Properties of the
Hexagermane Pri3Ge(GePh2)4GePri3. Can. J. Chem. 2014, 533–541. [CrossRef]
30. Komanduri, S.P.; Shumaker, F.A.; Roewe, K.D.; Wolf, M.; Uhlig, F.; Moore, C.E.; Rheingold, A.L.; Weinert, C.S.
A Series of Isopropyl-Substituted Oligogermanes Pri3Ge(GePh2)nGePri3 (n = 0–3) Featuring a Luminescent
and Dichroic Pentagermane Pri3Ge(GePh2)3GePri3. Organometallics 2016, 35, 3240–3247. [CrossRef]

Molecules 2017, 22, 2212
12 of 13
31. Komanduri, S.P.; Shumaker, F.A.; Hallenbeck, S.A.; Knight, C.J.; Yoder, C.H.; Buckwalter, B.A.; Dufresne, C.P.;
Fernandez, E.J.; Kaffel, C.A.; Nazareno, R.E.; et al. Structure/Property Relationships in Branched
Oligogermanes. Preparation of (Me3Ge)3GePh, (Me2ButGe)3GePh, and (Me2PhGe)3GePh and Investigation
of Their Properties by Spectroscopic, Spectrometric and Electrochemical Methods. J. Organomet. Chem. 2017
,
848, 104–113. [CrossRef]
32. Marschner, C. Preparation and Reactions of Polysilanyl Anions and Dianions. Organometallics 2006, 25,
2110–2125. [CrossRef]
33. Fischer, J.; Baumgartner, J.; Marschner, C. Silylgermylpotassium Compounds. Organometallics 2005, 24,
1263–1268. [CrossRef]
34. Fischer, R.; Baumgartner, J.; Marschner, C.; Uhlig, F. Tris(trimethylsilyl)stannyl Alkali Derivatives: Syntheses
and NMR Spectroscopic Properties. Inorg. Chim. Acta 2005, 358, 3174–3182. [CrossRef]
35. Marschner, C. A New and Easy Route to Polysilanylpotassium Compounds. Eur. J. Inorg. Chem. 1998
,
221–226. [CrossRef]
36. Kayser, C.; Fischer, R.; Baumgartner, J.; Marschner, C. Tailor-made Oligosilyl Potassium Compounds.
Organometallics 2002, 21, 1023–1030. [CrossRef]
37. Mallela, S.P.; Geanangel, R.A. Preparation and Characterization of Tris(trimethylsilyl)silyl Derivatives of Tin.
X-Ray Crystal Structure of Cl2Sn[Si(Si(CH3)3)3]2. Inorg. Chem. 1990, 29, 3525–3528. [CrossRef]
38. Krempner, C. Polysilane Dendrimers. Polymers 2012, 4, 408–447. [CrossRef]
39. Marsmann, H.C.; Uhlig, F. Further advances in germanium, tin and lead NMR. In The Chemistry of Organic
Germanium, Tin and Lead Compounds; Rappoport, Z., Ed.; Wiley: Chichester, UK; New York, NY, USA, 2002;
Volume 2, pp. 399–460, ISBN 0-471-49738-X.
40. Arif, A.M.; Cowley, A.H.; Elkins, T.M. A Bulky Silyl Derivative of Tin(II). J. Organomet. Chem. 1987, 325,
C11–C13. [CrossRef]
41. Klinkhammer, K.W.; Schwarz, W. Bis(hypersilyl)tin and Bis(hypersilyl)lead, Two Electron-Rich Carbene
Homologs. Angew. Chem. Int. Ed. Engl. 1995, 34, 1334–1336. [CrossRef]
42. Katir, N.; Matioszek, D.; Ladeira, S.; Escudié, J.; Castel, A. Stable N-Heterocyclic Carbene Complexes of
Hypermetallyl Germanium(II) and Tin(II) Compounds. Angew. Chem. Int. Ed. 2011, 50, 5352–5355. [CrossRef]
[PubMed]
43. Arp, H.; Marschner, C.; Baumgartner, J.; Zark, P.; Müller, T. Coordination Chemistry of Disilylated
Stannylenes with Group 10 d10 Transition Metals: Silastannene vs Stannylene Complexation. J. Am.
Chem. Soc. 2013, 135, 7949–7959. [CrossRef] [PubMed]
44. Fischer, R.; Frank, D.; Gaderbauer, W.; Kayser, C.; Mechtler, C.; Baumgartner, J.; Marschner, C. α,ω-Oligosilyl
Dianions and Their Application in the Synthesis of Homo- and Heterocyclosilanes. Organometallics 2003, 22,
3723–3731. [CrossRef]
45. Baumgartner, J.; Fischer, R.; Fischer, J.; Wallner, A.; Marschner, C.; Flörke, U. Structural Aspects of
Trimethylsilylated Branched Group 14 Compounds. Organometallics 2005, 24, 6450–6457. [CrossRef]
46. Schmidt, R.K.; Oestreich, M. Transition-Metal-Free Conjugate Stannyl Transfer to α,β-Unsaturated Carbonyl
and Carboxyl Compounds in Basic Aqueous Media. Synlett 2008, 1690–1692. [CrossRef]
47. Ascher, K.R.S.; Eliyahu, M.; Bultent, E.J.; Meinema, H.A. Antifeedant Effects of Mixed Methylphenyl
Hexaorganoditin Compounds of the Type PhnMe6-nSnSn on Larvae of Spodoptera littoralis and Epilachna
varivestis. Appl. Organomet. Chem. 1987, 1, 303–309. [CrossRef]
48. Whittaker, S.M.; Brun, M.-C.; Cervantes-Lee, F.; Pannell, K.H. Synthesis, Structure, and Reactivity of the
Permethylated Decasilane (Me3Si)3SiSiMe2SiMe2SiMe3)3. J. Organomet. Chem. 1995, 499, 247–252. [CrossRef]
49. Lambert, J.B.; Pflug, J.L.; Allgeier, A.M.; Campbell, D.J.; Higgins, T.B.; Singewald, E.T.; Stern, C.L. A Branched
Polysilane. Acta Cryst. C 1995, 51, 713–715. [CrossRef]
50. Baumgartner, J.; Frank, D.; Kayser, C.; Marschner, C. Comparative Study of Structural Aspects of Branched
Oligosilanes. Organometallics 2005, 24, 750–761. [CrossRef]
51. Pangborn, A.B.; Giardello, M.A.; Grubbs, R.H.; Rosen, R.K.; Timmers, F.J. Safe and Convenient Procedure for
Solvent Purification. Organometallics 1996, 15, 1518–1520. [CrossRef]

Molecules 2017, 22, 2212
13 of 13
52. Becker, G.; Gekeler, M.; Hartmann, H.-M.; Mundt, O.; Westerhausen, M. Tetrakis(trimethylsilyl)silane,
-germane, and -stannane and Some Complexes of Lithium Tris(trimethylsilyl)silanide, -germanide and
-stannanide—M[Si(CH3)3]4 (M = Si, Ge, Sn), LxLi–M[Si(CH3)3]3. In Synthetic Methods of Organometallic and
Inorganic Chemistry. Groups 1, 2, 13, and 14; Herrmann, W., Auner, N., Klingebiel, U., Eds.; Thieme: Stuttgart,
Germany, 1996; Volume 2, pp. 186–192.
53. Morris, G.A.; Freeman, R. Enhancement of Nuclear Magnetic Resonance Signals by Polarization Transfer.
J. Am. Chem. Soc. 1979, 101, 760–762. [CrossRef]
54. Helmer, B.J.; West, R. Enhancement of 29Si NMR Signals by Proton Polarization Transfer. Organometallics
1982, 1, 877–879. [CrossRef]
55. Menges, F. Spectragryph—Optical Spectroscopy Software; Spectroscopy Ninja: Oberstdorf, Germany, 2017.
56. SAINTPLUS: Software Reference Manual, version 6.45; Bruker-AXS: Madison, WI, USA, 1997–2003.
57. Sheldrick, G.M. SADABS, version 2.10; Bruker AXS Inc.: Madison, WI, USA, 2003.
58. Blessing, R.H. An empirical correction for absorption anisotropy. Acta Cryst. A 1995, 51, 33–38. [CrossRef]
59. Sheldrick, G.M. Crystal structure refinement with SHELXL. Acta Cryst. C 2015, 71, 3–8. [CrossRef] [PubMed]
60. Sheldrick, G.M. A short history of SHELX. Acta Cryst. A 2008, 64, 112–122. [CrossRef] [PubMed]
61. Farrugia, L.J. WinGX and ORTEP for Windows: An Update. J. Appl. Cryst. 2012, 45, 849–854. [CrossRef]
62. POVRAY, version 3.6; Persistence of Vision Pty. Ltd.: Williamstown, Victoria, Australia, 2004. Available
online: http://www.povray.org/download/ (accessed on 9 July 2008).
63. Apodaca, P.; Cervantes-Lee, F.; Pannell, K.H. Mixed Aryl-Alkyl Organotin Compounds. Main Group
Met. Chem. 2011, 24, 597–602. [CrossRef]
64. Zarl, E.; Baumgartner, J.; Decker, K.; Fischer, R.; Seibt, B.; Uhlig, F. Solvent Influence in Reactions of
Fluoroalkyl Sulfonic Acids with Phenyldistannanes. Phosphorus Sulfur Silicon Relat. Elem. 2008, 183,
1923–1934. [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
©
2017 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
