Pyrrole β-amides: Synthesis and Characterization of a Dipyrrinone Carboxylic Acid and an N-
Confused Fluorescent Dipyrrinone
Tia Jarvis,a Carl Jacky Saint-Louis,a Alexander R. Fisch,a Korry L. Barnes,a Dolan Dean,a Luis A.
Flores,a Thomas F. Hunta, Lyndsay Munro,b Tyler J. Simmons,c Vincent J. Catalano,b Lei Zhu,c Alan K.
Schrocka and Michael T. Huggins.a,*
aDepartment of Chemistry, University of West Florida, Pensacola, Florida 32514, United States
bDepartment of Chemistry, University of Nevada, Reno, Reno, Nevada 89557, United States
cDepartment of Chemistry and Biochemistry, Florida State University, Tallahassee, Florida 32306, United
States
Abstract
Pyrrole β-amides are useful building blocks for the preparation of novel molecular architectures that can
be used in supramolecular chemistry and sensor development. Under basic conditions, pyrrole β-amides
with an α-aldehyde produce different condensation products when reacted with pyrrolinones depending
on the amide substitution. Secondary amides form the expected dipyrrinones, but unexpectedly undergo a
subsequent trans-amidation with the pyrrolinone nitrogen to produce an unsymmetrical imide (an N-
confused fluorescent dipyrrinone). Under the same conditions, tertiary amides produce the expected
dipyrrinone carboxylic acids, which have been shown to have strong self-association properties as
determined by vapor pressure osmometry measurements, NMR studies, and X-ray crystal structure
determination. Furthermore, an N-confused fluorescent dipyrrinone was produced from the same trans-
amidation reaction during attempts to decarboxylate a dipyrrinone amide with a 9-carboxylic moiety.
Keywords: pyrrole β-amides, dipyrrinones, hydrogen bonding, trans-amidation, self-association
1. Introduction
Molecular recognition driven by hydrogen bonding1–3 has been extensively studied over the years
and is frequently found in organic and biochemistry systems with amides and carboxylic acids being
among the most essential functional groups incorporated into the hydrogen bonding interactions.4,5
1

ACCEPTED MANUSCRIPT
Amide-to-amide hydrogen bonding (Figure 1A) has been recognized and studied for decades with typical
self-association constants, KA, on the order of 102 M-1 in hydrogen bond-promoting solvents such as
carbon tetrachloride and chloroform.3
Figure 1. A) Amide-to-amide homodimer hydrogen bonds. B) Carboxylic acid to carboxylic
acid homodimer hydrogen bonds. C) Amide-to-carboxylic acid heterodimer hydrogen bonds.
D) Backbone of unsubstituted dipyrrinones. E) Dipyrrinones-to-carboxylic acids heterodimer
hydrogen bonds. F) Dipyrrinone homodimer displaying acid-to-amide hydrogen bonding as
well as a third hydrogen bond between the pyrrole NH and the acid C=O.
Carboxylic acid to carboxylic acid hydrogen bonding (Figure 1B) has
also been investigated over the years.1–4 Hydrogen bonded carboxylic acid dimers have been shown to
exhibit even larger KA’s (~103 M-1) for self-association in hydrogen bond promoting solvents.2–4 In
contrast, the mixed type, amide-to-carboxylic acid hydrogen bonding (Figure 1C) has received far less
attention except in co-crystal formation,5 and usually in connection with molecular recognition/self-
assembly studies. By utilizing a combination of computational and experimental techniques, Rebek
determined the order of dimerization energy to be was carboxylic homodimer > amide-carboxylic dimers
2

ACCEPTED MANUSCRIPT
> amide homodimers. This dimerization energy order was also determined by computational methods to
be the same in the gas phase, in carbon tetrachloride and in N,N-dimethylformamide solutions, as well as
in molecular capsules.6
Dipyrrinones are well known participants in hydrogen bonding, and have been shown to be
effective receptors for carboxylic acids7–10 (Figure 1E). The hydrogen bonding pocket of the dipyrrinone
unit is composed of pyrrole and lactam N–H and a lactam C=O. There are numerous examples of
dipyrrinones participating in hydrogen bonding via self-association11–14 and with other species in a host-
–
guest type interaction, such as anions (Cl–, HSO4 , etc.) and benzoic acid.15 For self-association, the
traditional hydrogen bonding motif has the two dipyrrinone units held together by a network of four
intermolecular hydrogen bonds showing amide-to-amide hydrogen bonding involving the lactam rings as
well as the pyrroles N–H to lactam C=O hydrogen bonding (Figure 1F).8 When hydrogen bonding to
carboxylic acids, the complex displays acid-to-amide hydrogen bonding as well as a third hydrogen bond
between the pyrrole N–H and the acid C=O, Figure 1E.7,9,16
Interestingly, dipyrrinones have been shown to prefer the acid-to-amide hydrogen bonding
interactions.17,18 For example, dipyrrinones with a long alkyl linker between the dipyrrinone and the
carboxylic acid located at the C(9) position of the dipyrrinone were found to prefer the intramolecular
hydrogen bonded state with acid-to-amide hydrogen bonding over a self-associated dimer which would
have displayed the amide-to-amide hydrogen bonding motif.17 With a carboxylic acid at C(8) of the
dipyrrinone, intramolecular acid-to-amide hydrogen bonding is not possible. Dipyrrinone analogs with a
carboxylic acid at C(8) were found to adopt a self-associated state with the acid-to-amide hydrogen
bonding pattern, again over the traditional hydrogen bonding pattern found in dipyrrinones without
carboxylic acids.19
3

ACCEPTED MANUSCRIPT
Figure 2. 7-Aminodipyrrinone Targets
In our current study, we prepared new dipyrrinone analogs to further the understanding of
dipyrrinones as receptors for carboxylic acids. The target compounds contain a carboxylic acid at C(9)
with no linker and an amide at C(7) (Figure 2) which should provide flexibility for adjusting solubility as
well as an attachment point for incorporating the dipyrrinone moiety into larger supramolecular
architectures. In the course of preparing the target compounds, we encountered unexpected reactivity in
these new 7-amidodipyrrinones, which will also be discussed.
2. Results and Discussion
2a. Synthesis and Characterization
Synthesis of the target molecules began with the Knorr pyrrole preparation of the β-amide pyrrole
esters 2 and 3 from their corresponding acetoacetamide derivatives and ethyl acetoacetate in reasonable
yields (Scheme 1).20,21 Ceric ammonium nitrate oxidation of the pyrrole α-methyl to the corresponding
aldehyde afforded pyrroles 4 and 5 in 55–75% yield.22 Condensation of the tertiary amide derivative 5
with 3-ethyl-4-methylpyrrolin-2-one under basic conditions, KOH, provided target 6 in 83% yield.
Hydrolysis of the ester was observed under the reaction conditions producing the dipyrrinone 9-
carboxylic acid derivative 6, rather than preserving the ester of the pyrrole. Attempts to decarboxylate 6
using standard methods failed to yield the desired α-free dipyrrinone analog. Instead, the N-confused
fluorescent dipyrrinone 7 was isolated in 84% yield. This product was formed from an intramolecular
trans-amidation reaction involving the 7-amide substituent and the pyrrolinone N–H moieties of the
dipyrrinone resulting in the imide. Similar reactions to form this ring system have been observed with 7-
4

ACCEPTED MANUSCRIPT
ester dipyrrinone analogs, but never with amides.23 Decarboxylation of the 9-carboxylic acid did take
place, but it was not possible to determine which reaction occurred first, trans-amidation or
Scheme 1. Synthesis of target 7-amidodipyrrinone 6 and N-confused fluorescent dipyrrinones 7, 8, and 9
.
decarboxylation.
Condensation of the secondary amide derivative 4 with 3-ethyl-4-methylpyrrolin-2-one under
basic conditions with KOH failed to produce the desired dipyrrinone carboxylic acid targets.
Interestingly, the reaction of N-phenyl amide 4 under the same basic conditions as
5 produced the N-
confused fluorescent dipyrrinone carboxylic acid 8. As observed with 6, hydrolysis of the ester was
observed to provide the carboxylic acid product 8. The use of DBU as a non-nucleophilic base also
produced the N-confused fluorescent dipyrrinone, but as the ester 9 rather than the carboxylic acid.
Apparently, the secondary amide unit is more reactive in the trans-amidation reaction conditions than the
tertiary amide. All attempts to condense the secondary amide pyrrole aldehydes with the pyrrolinone
resulted in either the N-confused fluorescent dipyrrinone or the isolation of the starting material.
Previously known N-confused fluorescent dipyrrinones were prepared from pyrrole aldehydes with a β-
5

ACCEPTED MANUSCRIPT
ester moiety and were shown to be highly fluorescent with λmax for emission at ~500 nm in methanol.23
Samples 7, 8, and 9 are also fluorescent. The λmax for emission of 9 in acetonitrile was 578 nm with a
quantum yield of 0.55. The emission λmax for 8 in acetonitrile was 480 nm with quantum yield of 0.15.
Sample 7 has an emission λmax of 500 nm in acetonitrile, but a quantum yield of only 0.05. The
absorption and emission results for 7, 8, and 9 are summarized in the Supplemental Information.
2b. Constitutional Structure and Molecular Conformation
The constitutional structures for all of the products follow logically from the method of synthesis
and were verified by a combination of two-dimensional nuclear magnetic resonance spectroscopy
1H{1H}- NOESY, HSQC, and HMBC techniques. The 1H-NMR spectrum of pyrrole amide 5 in CDCl3 at
20 ºC was found to have broad signals for the ethyl groups of the β-amide at 3.2–3.8 ppm for the
methylenes and at 1.0–1.3 ppm for the methyls (See S10). The broad resonances are due to the restricted
rotation about the amide bond which resulted in the two ethyl moieties being spectroscopically different
at room temperature. Upon heating the sample to 60 ºC, the amide methylene and methyl signals
coalesced into one signal for the two CH2 groups at 3.4 ppm and one signal for the two CH3 at 1.1 ppm
indicating free rotation of the ethyl moiety at the higher temperatures.
Cooling the sample to -25ºC resulted in three separate resonances for the two methylene moieties
and two signals for the methyl groups (see S10). Integration of the three methylene signals indicated a
1:1:2 ratio. Additionally, the observed splitting patterns for the three methylene signals were more
complicated than the expected quartets. At the lower temperature, the restricted rotation of the amide
group along with the conformation adopted by the molecule resulted in diastereotopic CH2 moieties. Such
atropisomerism has been commonly observed in tertiary aromatic amides.24 In this case, the three signals
from the methylene moieties indicated two overlapping signals at 3.3 ppm with the other signals at 3.5
1
and 3.7 ppm. A H{1H}-gCOSY spectrum measured at 5 ºC indicated that the two signals at 3.5 and 3.7
ppm corresponded to the same methylene moiety. From the variable temperature (VT) NMR data,
6

ACCEPTED MANUSCRIPT
coalescence temperatures of 30–36 ºC were determined and an average
∆
G‡ of 18.4 kcal/mol was
calculated for the rotational energies barrier (Table 1). This value was compared to the literature value of
14–18 kcal/mol and fits within the range expected for these systems.25,26 The corresponding phenyl amide
1
aldehyde showed similar behavior in the H-NMR spectrum in CDCl3 at 20 ºC, but no VT-NMR
experiments were conducted as we expect similar results to pyrrole 5.
Table 1. Calculated
for CH2 A, CH2 B, and CH3 for 5 and 6.
∆
G‡ average for the rotational energies barriers
Compounds Groups Tc(K)
δv (ppm) ∆
G‡ (kcal/mol)
CH2 A
CH2 B
CH3
303
310
307
330
360
360
0.2
18.37
18.37
18.48
20.46
21.36
22.03
0.16
0.22
0.09
0.37
0.14
5
6
CH3
CH2 A
CH2 B
The solution state conformation of dipyrrinone carboxylic acid 6 was studied by NOESY
spectroscopy in CDCl3 at room temperature, see Supporting Information. The syn configuration of the
C(4)-C(5) alkene was confirmed by the presence of an NOE correlation between the C(5)-H and the C(3)-
CH3 as well as a correlation between the lactam and pyrrole.
1
The H-NMR spectrum in CDCl3 at 20 ºC of 6 showed two distinct quartets for the N-ethyl
methylenes and two distinct triplets for the methyls, indicating strongly restricted rotation of the amide
bond and no indication of the diastereotopic properties found in pyrrole amide 5 (see S12).
At 60 ºC in CDCl3, the resonances from the N-ethyl groups broadened substantially, however
they did not coalescence, indicating a higher energy of rotation for 6 than was observed for 5. It has
7

ACCEPTED MANUSCRIPT
previously been shown that (CDCl2)2 and CDCl3 can be used interchangeably for VT-NMR studies to
study dipyrrinones.14 Using (CDCl2)2 as the solvent, we conducted NMR studies over the temperature
range of 25–100 ºC. At 100 ºC, the amide alkyl groups are fully coalesced and appear as quartet and
triplet signals (See S11). The coalescence temperature for the N-ethyl groups in 6 was 83 °C with an
average ∆G‡ of 21.3 kcal/mol, significantly higher than what was measured for 5. Thus, the dipyrrinone
structure must provide additional steric interactions which hinders the rotation of the amide group. This
concept will be addressed further when discussing the X-ray crystal structure of 6.
2c. Self-Association of Dipyrrinone Carboxylic Acid 6
It has been well established that the hydrogen bonding pattern of dipyrrinones can be discerned
1
from analysis of the N–H chemical shifts in the H-NMR spectrum.11,14 In CDCl3, the pyrrole and lactam
N-H resonances are generally located below 8.0 ppm when the dipyrrinone is not participating in
hydrogen bonding or it is only weakly hydrogen bonded. In the dipyrrinone homodimer, Figure 1F, the
pyrrole and lactam N–H signals appear at 10.0–10.7 ppm and 10.9–11.5 ppm, respectively. Dipyrrinones
hydrogen bonded to a carboxylic acid, Figure 1E, have the pyrrole and lactam N–H signals at 8.1–9.2
ppm and 10.5–11.0 ppm, respectively. However, dipyrrinones with a carboxylic acid substituent in the 9-
position have been found with lactam and pyrrole N–H signals at 11.4–12.0 ppm and 10.0–10.5 ppm,
respectively. These results indicate a unique hydrogen bonding pattern for 9-carboxylic acid dipyrrinone
derivatives that has yet to be fully characterized due to poor solubility in non-polar organic solvents.
Dipyrrinone 6, with its enhanced solubility in non-polar organic solvents due to the C(7)-amide moieties,
provides a unique opportunity to gain a better understanding of this poorly understood aggregation state.
In CDCl3 at room temperature, a NOE correlation was observed between the carboxylic acid OH
and the lactam N–H in the NOESY spectrum, thus indicating their close proximity to each other. The
lactam and pyrrole N–H resonances for 6 in CDCl3 at room temperature were located at 11.8 and 10.2
ppm, respectively, within the range previously observed for 9-carboxylic acid dipyrrinone derivatives.
The chemical shifts for the lactam and pyrrole NHs as well as the carboxylic acid OH were found to be
8

ACCEPTED MANUSCRIPT
concentration independent over the 10 mM–0.01 mM concentration range. Based on these finding, it can
be concluded that the molecule prefers a dimeric aggregation state in nonpolar solvents.
Previous NMR studies in DMSO-d6 have shown that dipyrrinones exist as a monomer and are
hydrogen bonded to the solvent.11,14 Titration of DMSO-d6 into a CDCl3 solution of 6 at room temperature
showed only minor changes in the chemical shifts of the pyrrole and lactam N–H resonances at 5%
DMSO-d6, see Supporting Information. At 10% DMSO, the lactam N–H resonance was found at ~11.1
ppm and the pyrrole N–H resonance at ~10.6 ppm. With increasing amounts of DMSO-d6, the lactam and
pyrrole N–H resonances continued their transition to the locations found in 100 % DMSO-d6, 10.2 and
11.6 ppm, respectively. At 25% DMSO-d6, the lactam and pyrrole N–H chemical shifts are near the
locations as in pure DMSO-d6.
2d. Vapor Pressure Osmometry
Vapor pressure osmometry (VPO) has been found to be an effective technique to study the
aggregation properties of dipyrrinones in non-polar organic solvents.9,12,27 From such studies, the average
molecular weight of the species in solution is measured providing insight into how many molecules have
assembled in the aggregate. VPO measurements in chloroform at 45 °C for dipyrrinone acid 6 found a
molecular weight of 740±35 g/mol which corresponds to the dimeric aggregation state (formula weight of
the monomer is 359.42 g/mol). These results showing 6 exists as a dimer confirm the NMR analysis.
2e. X-Ray Crystallography
X-ray quality crystals of dipyrrinone 6 were obtained by the slow diffusion of hexanes into a 0.01
M solution of 6 in methylene chloride at room temperature. The crystallography results found that 6
adopted a dimeric structure in the solid state that has six intermolecular hydrogen bonds displaying the
carboxylic
acid
to
dipyrrinone
hydrogen
bonding
motif
(Figure
3).
9

ACCEPTED MANUSCRIPT
A)
B)
Figure 3. A) Ball and Stick representation of the X-ray structure of 6 showing the
intermolecular hydrogen bond for dimeric structure A. B) Ball and Stick
representation of the X-ray structure for 6 showing the intermolecular hydrogen
bond for dimeric structure B. They both displayed the amide to carboxylic acid
hydrogen bonding motif with a total of six intermolecular hydrogen bonds.
10

ACCEPTED MANUSCRIPT
Figure 4. Ball and Stick representation of the X-ray structure of 6 showing the π-π stacking
of dimers A and B and the hydrogen bonds between the amide C=O with lactam and pyrrole
NH.
Interestingly, the crystal lattice of 6 contains two different dimeric structures, although the two
dimer aggregates are quite similar having the same hydrogen bonding pattern (Figure 3). For dimeric
structure A, the OH···O=C lactam and pyrrole NH···O=C distances (H···O distances) were all within the
expected distances for hydrogen bonding, 1.76 and 2.14 Å, respectively (Figure 3A). The dipyrrinone
backbone of 6 was found to be essentially planar in dimeric structure A with a C(4A)-C(5A)-C(6A)-
N(2A) torsion angle of 3.81º (Figure 3A). In addition, the amide C=O was nearly perpendicular to the
plane of the dipyrrinone with a C(6A)-C(7A)-C(13A)-O(2A) torsion angle of 67.15º which places the two
ethyl substituents in two unique chemical environments and projecting towards the C(8A)-CH3. The
dimeric structure B found in the crystal lattice of 6 contains the same carboxylic acid to dipyrrinone
hydrogen bonding motif, however the dipyrrinone backbone was found to be less planar than dimeric
structure A with a C(4)-C(5)-C(6)-N(2) torsion angle of 20.68º. This conformation of the amide group
provides a plausible explanation for the increased barrier of rotation observed in the dipyrrinone amide as
compared to the pyrrole amide 5. In pyrrole amide 5, the two methyl groups are not impacting the rotation
of the amide bond. However, the increased steric constraints associated with the C(5) moiety in the
11

ACCEPTED MANUSCRIPT
dipyrrinone force the amide to adopt a conformation with the C=O pointing to the C(5) group and the N-
R2 moiety directed towards the C(8)-CH3. This resulted in a lengthened pyrrole N-H···O=C distance to
2.70 Å while the O-H···O=C and lactam N-H···O=C distances remained essentially the same 1.76 and
2.10 Å, respectively.
In the crystal lattice, dimer B has a dimer A located directly above and below as shown in Figure
4. As described above, the amide C=O in dimer A is nearly perpendicular to the dipyrrinone plane and
has two hydrogen bonds to the lactam and pyrrole NHs in dimer B above or below the plane of the
aggregate with lactam and pyrrole N-H···O=C distances of 2.51 ad 2.08 Å, respectively. These additional
interactions are a result of crystal packing forces in the solid state and are not expected to be observed in
solution.
3. Conclusions
The current study has identified a significant issue with using pyrrole amides as building blocks
to prepare dipyrrinone analogs with the unexpected trans-amidation of the 7-amide dipyrrinones analogs.
However, the unexpected imide formation has opened the doors to some interesting new chemistry that is
currently being explored further.
Using a pyrrole amide as the key intermediate, we have prepared a 9-dipyrrinone carboxylic acid
analog that is soluble in non-polar solvents. We have shown that it adopts a self-associated dimeric
structure with six intermolecular hydrogen bonds in solution and solid states. The hydrogen-bonded
dimers displayed an acid to amide hydrogen bonding motif. The dimeric structure appears to have a very
strong self-association constant, particularly as compared to the traditional dipyrrinone self-associated
dimer. Additional efforts are underway to use this new building block in self-assembly and
supramolecular chemistry.
4. Experimental Section
12

ACCEPTED MANUSCRIPT
4a. General Methods. Starting materials and solvents were purchased from commercial suppliers
1
unless noted otherwise. H-NMR spectra were recorded at 400 MHz, and 13C spectra at 100 MHz. All
chemical shifts are reported in ppm downfield from TMS (δ = 0.00 ppm) for 1H NMR and relative to the
central CDCl3 (δ = 77.16 ppm) for 13C-NMR. Vapor pressure osmometry (VPO) measurements were
performed in CHCl3 at 45 °C using a concentration range of 5–36 mM with benzil used for calibration.
Uv-visible and fluorescence spectra were obtained in acetonitrile.
4b. Synthesis Protocols.

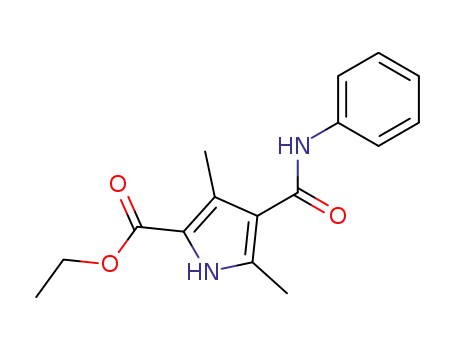

Synthesis of Ethyl 4-(phenylcarbamoyl)-3,5-dimethyl-1H-pyrrole-2-carboxylate (2). In a 250 mL round-
bottom flask, ethyl acetoacetate (16.0 g, 123 mmol) was dissolved in acetic acid (40 mL). The mixture
was cooled in an ice bath to 5 °C. To the mixture, NaNO2 (9.75 g, 141 mmol) dissolved in 25 mL of H2O
was added to the solution dropwise over a period of 15 min. The mixture turned red-orange after the
addition
and
was
stirred
vigorously
overnight
at
room
temperature.
Separately in a 500 mL round bottom flask, acetoacetanilide (23.97 g, 135 mmol) was dissolved
in acetic acid (100 mL) and heated to 60 °C. Zinc powder (10.0 g) was then added followed by the slow
addition of the ethyl acetoacetate and NaNO2 mixture over a period of 60 min. After the slow addition of
the nitrosated mixture, additional zinc powder (40.0 g) was added to the mixture in 5.0 g portions to give
a total of 50.0 g, 764 mmol, zinc powder addition. Each zinc powder addition resulted in the elevation of
the temperature of the mixture to 60–80 °C and the mixture was maintained at 60–80 °C for the entire
zinc addition. The mixture was vigorously stirred at 60 °C for 5 h. After 5 h, the mixture was diluted by
the addition of H2O (100 mL) and stirred for 1 h at 60 °C. After 1 h, the reaction mixture was poured into
a 2 L Erlenmeyer flask and diluted with 500 mL of H2O with crushed ice to equal to 1 L total volume.
The mixture was stirred vigorously for an additional 1 h. The resulting solid formed was collected by
vacuum filtration, washed with cold water and air-dried. The solid product was dissolved in 500 mL of
1:1 ethyl acetate:ethanol and filtered to remove any unreacted zinc powder. The product was concentrated
in vacuo and recrystallized from acetonitrile to yield the pure product (19.5 g, 68.1 mmol, 55 %). Mp
13

ACCEPTED MANUSCRIPT
215–216 °C; 1H NMR (400 MHz, CDCl3, 30 °C): δ (ppm) 8.94 (s, 1H), 7.57(d, J = 7.86 Hz, 2H), 7.36 (t,
J = 7.86, 2H); 7.29 (s, 1H), 7.12 (t, J = 7.25 Hz, 1H), 4.34 (q, J = 7.04 Hz, 2H), 2.60 (s, 3H), 2.52 (s, 3H),
1.38 (t, J = 7.04 Hz, 3H); 13C NMR (100 MHz, CDCl3, 30 °C): δ (ppm) 163.8, 138.1, 135.6, 129.1, 125.9,
124.2, 119.9, 118.7, 118.1, 60.3, 14.5, 13.4, 11.8; IR (KBr) (cm-1): 747.49, 1288, 1645, 1674.7, 2934,
2978.6, 3058, 3296; MS (EI+) 148, 194, 241, 286 m/z; HRMS (ESI+) calcd for C16H18N2O3 286.1317;
found 286.1312 amu.
Synthesis of Ethyl 4-(diethylcarbamoyl)-3,5-dimethyl-1H-pyrrole-2-carboxylate (3): Compound 3 was
prepared using N,N-diethylacetoacetamide in place of acetoacetanilide in the procedure for 2 with no
modifications. The crude product was recrystallized from methanol/water and dried to give the pure
1
product (25.5 g, 96 mmol, 78%). Mp 128–131 °C; H-NMR (400 MHz, CDCl3, 30 °C): δ (ppm) 8.81 (s,
1H), 4.30 (q, J = 7.4 Hz, 2H), 3.48 (m, 5H), 1.37 (t, 6H), 1.16 (m, 6H); 13C-NMR (100 MHz, CDCl3, 30
°C): δ (ppm) 167.1, 161.5, 129.8, 125.7, 120.4, 117.7, 60.0, 42.8, 38.7, 14.5, 13.1, 11.9, 11.14; IR (KBr)
(cm-1): 1089.6, 1193.7, 1278, 1625, 1674.7, 2934, 2983.6, 3276.1; MS (EI+) 148, 194, 239, 251, 266;
m/z; HRMS (ESI+) C14H22N2O3 calcd: 266.1630 amu; found: 266.1631 amu.
Synthesis of ethyl 5-formyl-3-methyl-4-(phenylcarbamoyl)-1H-pyrrole-2-carboxylate (4). Compound 2
(1.03 g, 3.60 mmol) was dissolved in methanol (80.0 mL). To a separate flask, ceric ammonium nitrate
(8.30 g, 15.1 mmol) was dissolved in H2O (10 mL) and then it was added slowly to the methanol mixture.
The orange mixture was stirred at rt for 24 h, then it was cooled below 0°C. Water was added to the
mixture to form a precipitate. The precipitate was collected via vacuum filtration and washed with cold
1
H2O yielding an orange compound (0.82 g, 2.70 mmol, 75%). Mp 224–227 °C; H NMR (400 MHz,
CDCl3, 30 °C)
δ (ppm); 10.04 (s 1H), 9.92 (s, 1H), 8.61 (s, 1H), 7.66 (d, J= 7.47 Hz, 2H), 7.39 (dd, J =
7.45 Hz, 2H), 7.18 (t, J = 7.47 Hz, 1H), 4.42 (q, J = 7.15 Hz, 2H), 2.68 (s, 3H), 1.42 (t, J = 7.15 Hz, 3H);
13C-NMR (100 MHz, DMSO, 30 °C)
δ
(ppm) 181.9, 162.2, 160.7, 139.4, 131.4, 129.1, 127.8, 127.0,
124.4, 124.0, 120.0, 61.0, 14.6, 11.21; IR (KBr) (cm-1): 757.4, 1094.1, 1259.1, 159.3, 1663.7, 2989.4,
14

ACCEPTED MANUSCRIPT
3198.2, 3237.9; MS (EI+) 93, 162, 208, 238, 300 m/z; HRMS (ESI+) C16H16N2O4 calcd: 300.1110 amu;
found: 300.1108 amu.
Synthesis of ethyl 4-(diethylcarbamoyl)-5-formyl-3-methyl-1H-pyrrole-2-carboxylate (5). In a 500 mL
round bottom flask, pyrrole phenyl amide 3 (3.34 g, 12.5 mmol) was dissolved in methanol (200 mL) and
water (100 mL). After stirring in an ice bath for 10 minutes, ceric ammonium nitrate (28.2 g, 51.4 mmol)
was added, and the reaction mixture was stirred for an additional 30 minutes while in the ice bath. It was
stirred for an additional 16 hours while allowed to slowly warm to room temperature. After 16 hours, the
solution was poured over 300 mL of ice water, and allowed to stand overnight at -5 º C. The precipitate
formed was filtered, washed with cold water, and dried overnight to afford the desired product (2.6 g,
1
9.27 mmol, 75%). Mp 121–124 °C; H NMR (400 MHz, CDCl3, 25 °C)
δ
(ppm) 10.27 (s, 1H), 9.94 (s,
(ppm) 182.6,
1H), 4.41 (m, 6H), 2.61 (s, 3H), , 1.42 (m, 9H); 13C NMR (100 MHz, CDCl3, 25 °C)
δ
163.6, 160.4, 133.3, 131.1, 123.8, 120.7, 61.3, 60.8, 14.3, 11.29; IR (KBr) (cm-1): 1020, 1089, 1273,
1605, 1679, 2720, 2874, 2978, 3206, 3301; MS (EI+) 72, 162, 180, 209, 251, 280 m/z; HR-MS (ESI+)
C14H20N2O4 calcd: 280.1423 amu; found: 280.1417 amu.
Synthesis
of
(Z)-4-(diethylcarbamoyl)-5-((4-ethyl-3-methyl-5-oxo-1,5-dihydro-2H-pyrrol-2-
ylidene)methyl)-3-methyl-1H-pyrrole-2-carboxylic acid (6): In a 500 mL round bottom flask, diethyl
pyrrole aldehyde 5 (2.53 g, 9.04 mmol) and 3-ethyl-4-methyl-1H-pyrrol-2-one (1.12 g, 9.04 mmol) were
dissolved in 4 M KOH (100 mL) and methanol (25 mL). The reaction mixture was heated at reflux for 4
hours, then stirred overnight at room temperature. The solution was chilled in an ice bath and acidified
with HCl (conc.) until red on pH paper. The resulting precipitate was collected by vacuum filtration,
washed with water, and dried. The crude product was recrystallized from methylene chloride and hexanes
to afford pure product (2.71g, 7.54 mmol, 83%). Mp 213–216 °C; 1H NMR (400 MHz, CDCl3, 30 °C): δ
(ppm) 14.40 (s, 1H), 11.76 (s, 1H), 10.19 (s, 1H), 5.98 (s, 1H), 3.63 (q, J = 6.9 Hz, 2H), 3.26 (q, J = 6.9
Hz, 2H), 2.39 (q, J = 7.5 Hz, 5H), 2.08 (s, 1H), 1.29 (t, J= 7.5 Hz, 3H), 1.13 (t, J= 7.8 Hz, 3H), 1.06 (t, J =
6.9 Hz, 3H); 13C NMR (100 MHz, CDCl3, 30 °C): δ (ppm) 175.8, 166.0, 142.3, 134.7, 133.1, 127.9,
15

ACCEPTED MANUSCRIPT
127.1, 123.4, 98.5, 43.1, 39.0, 16.7, 14.3, 13.2, 13.1, 11.5, 9.52; IR (KBr) (cm-1): 1129.3, 1178.8, 1278,
1506, 1654.8, 1724.2, 2879.5, 2939, 2963.8, 3063, 3097.6, 3236.5, 3500; MS (EI+) 243, 269, 287, 315,
359 m/z; HRMS (ESI+) C19H25N3O4 calcd: 359.1845 amu; found: 359.1854 amu.
Synthesis of 7-ethyl-3,8-dimethyl-1H-pyrrolo[3,2-f]indolizine-4,6-dione (7): In a 500 mL round bottom
flask, carboxylic acid dipyrrinone 6 (1.0 g, 2.79 mmol), potassium acetate (1.0 g) and sodium acetate
trihydrate (1.0 g) which had been grounded finely with a mortar and pestle, were mixed. The solid
mixture was heated to ~160 °C and maintained at that temperature until evolution of carbon dioxide was
observed to cease. The reaction mixture was cooled to room temperature and 400 mL of water was added
with vigorous stirring for one hour. The product was filtered, washed with cold acetone, and dried to give
°
1
the pure product (0.377 g, 1.55 mmol, 56%). MP of 310–315 C (dec): H NMR (400 MHz, DMSO, 30
°C): δ (ppm) ;13C NMR (100 MHz, DMSO, 30 °C): 11.48 (s, 1H), 6.86 (s, 1H), 6.64 (s, 1H), 2.31 (m,
5H), 2.13 (s, 3H), 1.06 (t, J = 8.32 Hz, 3H).δ (ppm) 168.40, 157.2, 141.9, 138.6, 136.4, 132.0, 122.2,
120.1, 115.6, 97.1, 16.5, 13.4, 11.4, 9.7; 1H-NMR (400 MHz, DMSO)
δ
(ppm); IR (ATR or KBR) (cm-
1): 1657.49, 1724.41, 2874.31, 2934.39, 2960.79, 3095.95, 2321.03; MS (EI+) 99, 183, 199, 227, 242
m/z; HRMS (ESI+) C14H14N2O2 calcd: 242.1055 amu; found: 242.1056 amu.
Synthesis of 7-ethyl-3,8-dimethyl-4,6-dioxo-4,6-dihydro-1H-pyrrolo[3,2-f]indolizine-2-carboxylic acid
(8). Compound 4 (0.30 g, 0.98 mmol) and 3-ethyl-4-methyl-1,5-dihydro-2H-pyrrol-2-one (0.14 g, 1.12
mmol) were dissolved in a mixture of 4M KOH (12 mL) and methanol (7 mL) resulting in a yellow
mixture. The reaction mixture was heated at reflux under N2 atmosphere for 24 h. After 24 h, the solution
was cooled to rt then acidified with HCl (conc.) until red on pH paper, resulting in a yellow precipitate
(0.27 g, 0.94 mmol, 96 %). Mp 345–351 °C. 1H NMR (400 MHz, DMSO, 30 °C)
δ (ppm) 12.33 (s, 1H), ,
6.57(s, 1H), 2.59 (s, 3H), 2.31 ( q, J = 7.87 Hz, 2H), 2.13 (s, 3H), 1.04 (t, J = 7.48Hz, 3H); 13C NMR (100
MHz, DMSO, 30 °C): δ (ppm) 168.2, 162.7, 157.0, 141.9, 141.2, 137.6, 133.3, 128.2, 123.7, 116.1, 96.2,
16.6, 13.4, 11.4, 9.81; IR (ATR) (cm-1): 3330 (w), 3019 (w), 1732 (s), 1657 (s), 1525 (w), 1470 (m), 1292
16

ACCEPTED MANUSCRIPT
(s), 1275 (s), 1185 (m), 1107 (m), 775 (m), 704 (m); HR-MS (ESI+) C
found 286.0950 amu.
H
N O calcd: 286.0954 amu;
15 14 2 4
Synthesis of Ethyl 7-ethyl-4,6-dihydro-3,8-dimethyl-4,6-dioxo-1H-pyrrolo[3,2-f]indolizine-2-carboxylate
(9): In a 50 mL round bottom flask, compound 4 (0.56 g, 2mmol) and 3-ethyl-4-methyl-1H-pyrrol-2-one (
0.275 g, 2.2 mmol) were dissolved in anhydrous ethanol (10 mL) and then DBU (1.5 mL) was added. The
reaction mixture was heated at reflux for 24 hrs. After refluxing, the reaction mixture was cooled in an ice
bath, then acetic acid (1.5 mL) was added followed by water (10 mL). The solution was chilled at -5 ºC
overnight, and the precipitate formed was filtered, and dried to afford the desired product (0.36 g, 1.14
1
mmol, 57%). Mp 315–320 ºC: H NMR (400 MHz, CDCl3, 30 °C)
δ (ppm) 9.08 (s. 1H), 6.37 (s, 1H),
4.40 (q, J = 7.20 Hz, 2H), 2.76 (s, 3H), 2.45 (m, 2H), 2.15 (s, 3H), 1.43 (t, J =7. 61 Hz, 3H), 1.16 (t, J =
7.61 Hz, 3H); 13C NMR (100 MHz, CDCl3, 30 °C): δ (ppm) 161.7,142.2, 142.1, 140.3, 137.1, 134.9,
130.1, 122.7, 117.2, 106.2, 94.1, 61.1, 16.8, 14.4, 13.1, 11.2, 9.61; IR (ATR) (cm-1): 3284 (w), 3065 (w),
2985 (w), 2870 (w), 1736 (s), 1699 (s), 1665 (w), 1453 (w), 1286 (s), 1271 (s), 1212 (m), 1106 (m), 1028
(w), 884 (w); HR-MS (EI+) C
H
N O calcd: 314.1267 amu; found: 314.1445 amu.
17 18 2 4
5. ASSOCIATED CONTENT
Supporting Information
The Supporting Information is available free of charge on the ACS Publications website:
1H NMR, 13C NMR, UV-visible, and fluorescent spectra as well as X-ray data and further
computational details.
6. AUTHOR INFORMATION
Corresponding Author
*
E-mail: mhuggins@uwf.edu
17

ACCEPTED MANUSCRIPT
7. Notes
The authors declare no competing financial interest.
8. Acknowledgements
The authors would like to acknowledge funding from the University of West Florida Office of
Undergraduate Research and the University of West Florida Office of Research and Sponsored Programs
9. References
(1)
(2)
(3)
Hamilton, W. C.; Ibers, J. A. Hydrogen bonding in solids: methods of molecular structure
determination; Frontiers in chemistry; W. A. Benjamin, 1968.
Jeffrey, G. A. An Introduction to Hydrogen Bonding; Topics in Physical Chemistry - Oxford
University Press; Oxford University Press, 1997.
Pimentel, G. C.; McClellan, A. L. The Hydrogen Bond; A Series of chemistry books; W.H.
Freeman, 1960.
(4)
(5)
Joesten, M. D.; Schaad, L. J. Hydrogen bonding; Marcel Dekker Inc, 1974.
Desiraju, G. R. Crystal engineering: the design of organic solids; Materials science monographs;
Elsevier, 1989.
(6)
(7)
(8)
Tzeli, D.; Theodorakopoulos, G.; Petsalakis, I. D.; Ajami, D.; Rebek, J. J. Am. Chem. Soc. 2011,
133 (42), 16977–16985.
Bonnett, R.; Davies, J. E.; Hursthouse, M. B.; Sheldrick, G. M. Proc. R. Soc. London B Biol. Sci.
1978, 202 (1147), 249–268.
Falk, H. The Chemistry of Linear Oligopyrroles and Bile Pigments; Monatshefte f{ü}r Chemie
Chemical Monthly Supplementa; Springer Vienna, 2012.
18

ACCEPTED MANUSCRIPT
(9)
Huggins, M. T.; Lightner, D. A. J. Org. Chem. 2000, 65 (19), 6001–6008.
(10) Huggins, M. T.; Salzameda, N. T.; Lightner, D. A. Supramol. Chem. 2011, 23 (3–4), 226–238.
(11) Cullen, D. L.; Black, P. S.; Meyer, E. F.; Lightner, D. A.; Quistad, G. B.; Pak, C. S. Tetrahedron
1977, 33 (5), 477–483.
(12) Huggins, M. T.; Lightner, D. A. Monatshefte fur Chemie 2001, 132 (2), 203–221.
(13) Nogales, D. F.; Ma, J.-S.; Lightner, D. A. Tetrahedron 1993, 49 (12), 2361–2372.
(14) Trull, F. R.; Ma, J.-S.; Landen, G. L.; Lightner, D. A. Isr. J. Chem. 1983, 23 (2), 211–218.
(15) Huggins, M. T.; Musto, C.; Munro, L.; Catalano, V. J. Tetrahedron 2007, 63 (52), 12994–12999.
(16) Lightner, D. A.; Heirweigh, K. P. M.; Brown, S. B. Bilirubin Volume 1. Chemistry; 1982.
(17) Huggins, M. T.; Lightner, D. A. Tetrahedron 2001, 57 (12), 2279–2287.
(18) Huggins, M. T.; Lightner, D. A. Tetrahedron 2000, 56 (null), 1797.
(19) Boiadjiev, S. E.; Anstine, D. T.; Lightner, D. A. J. Am. Chem. Soc. 1995, 117 (34), 8727–8736.
(20) Huggins, M. T.; Barber, P. S.; Florian, D.; Howton, W. Synth. Commun. 2008, 38 (23), 4226–
4239.
(21) Knorr, L. Justus Liebig’s Ann. der Chemie 1886, 236 (3), 290–332.
(22) Thyrann, T.; Lightner, D. A. Tetrahedron Lett. 1995, 36 (25), 4345–4348.
(23) Boiadjiev, S. E. ChemInform 2006, 38 (9), 349.
(24) Lorentzen, M.; Kalvet, I.; Sauriol, F.; Rantanen, T.; Jørgensen, K. B.; Snieckus, V. J. Org. Chem.
2017, 82 (14), 7300–7308.
(25) Bragg, R. A.; Clayden, J.; Morris, G. A.; Pink, J. H. Chem. - A Eur. J. 2002, 8 (6), 1279–1289.
19

ACCEPTED MANUSCRIPT
(26) Hammaker, R. M.; Gugler, B. A. J. Mol. Spectrosc. 1965, 17 (2), 356–364.
(27) Brower, J. O.; Huggins, M. T.; Boiadjiev, S. E.; Ã, D. A. L. Monatshefte fur Chemie 2000, No.
131, 1047–1053.
20

ACCEPTED MANUSCRIPT
