SYNTHETIC COMMUNICATIONS, 32(3), 381–385 (2002)
A NEW AND RAPID
N-ALKYLATION OF 3,6-EPOXY-
HEXAHYDROPHTHALIMIDES
Guifa Su,* XinshengLi, and HongjingWan
Department of Chemistry & Chemical Engineering,
Guangxi Normal University, Guilin 541004, P. R. China
ABSTRACT
Rapid N-alkylation of 3,6-epoxyhexahydrophthalimides with
a series of halides were performed under solvent-free
conditions coupled with microwave irradiation. The isolated
yield of N-substituted 3,6-epoxyhexahydrophthalimides
varied from 82 to 98%.
Cantharidin and norcantharidin (3,6-epoxyhexahydrophthalimide)
possess antitumor activity and were used as antitumor drug to cure liver
cancer.1–3 N-substituted 3,6-epoxyhexahydrophthalimides have been shown
to possess anticonvulsant, hypotensive, anthelmintic and antitumour activ-
ity, some of them can be used as insecticide and germicide.4–8
Microwave organic reaction enhancement chemistry (MOREC) is a
new subject developed in recent years,9 various organic reactions have been
investigated10,11 and several papers on its use in alkylations were reported
lately.12–14 Here we would like to describe a new and rapid synthesis of
*Corresponding author.
381
Copyright & 2002 by Marcel Dekker, Inc.
www.dekker.com

ORDER
REPRINTS
382
SU, LI, AND WAN

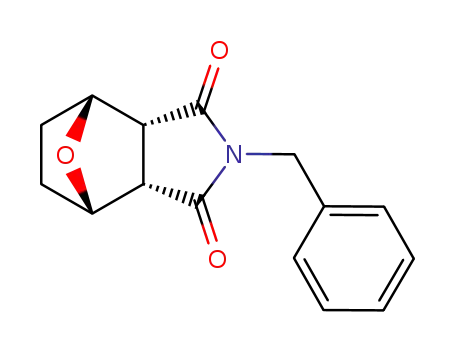

N-alkyl-3,6-epoxyhexahydrophthalimides via alkylation of 3,6-epoxyhexa-
hydrophthalimide in ‘dry media’ under microwave irradiation.
The alkylation of 3,6-epoxyhexahydrophthalimide was simply achi-
eved by microwave irradiation of the mixture of 3,6-epoxyhexahydro-
phthalimides (1), alkyl halides (2), potassium carbonate and a catalytic
amount of tetrabutylammonium bromide (TBAB), followed by extraction
and purification to give the products in 82–98% yield (Tables 1 and 2).
Table 1. N-Alkylation of 3,6-Epoxyhexahydrophthalimide
2/1
(mol)
Irradiation Time
(min)
Irradiation Power
(W)
Yield
(%)
M.P.
(ꢀC)
Entry
3a
3b
3c
3d
3e
3f
1.25 : 1
1.1 : 1
1.1 : 1
1.1 : 1
1.1 : 1
1.1 : 1
1.1 : 1
1.0
1.5
1.5
1.5
1.5
1.5
1.5
240
95
94–95
101–102
24092
24098
400
400
400
40015
82
90
98
94
3g
116–119

ORDER
REPRINTS
N-ALKYLATION OF 3,6-EPOXYHEXAHYDROPHTHALIMIDES
Table 2. Analytical Data of Products 3
383
Elementary Analyses (Calc., %)
Entry IR (cmꢁ1
)
1H NMR (d, CDCl3)
C
H
N
3a
3472, 1770, 4.9 (m, 2H, 3,6-H)
1743, 1714, 4.1–4.3 (q, 2H, -O-CH2-)
1222, 1187 4.2 (s, 2H, -N-CH2)
3.0(s, 2H, 1,2-H)
56.71
(56.91)
6.05
(5.97)
5.40
(5.53)
2.0–1.4 (m, 4H, 4,5-H)
1.3 (t, 3H, -CH3)
3b
3465, 1778, 4.9 (m, 2H, 3,6-H)
1735, 1707, 4.7 (q, 1H, -N-CHCH3)
1250, 1201 4.2 (m, 2H, -OCH2-)
2.9 (s, 2H, 1,2-H)
58.206.53
(58.42)
5.10
(6.41)
(5.24)
2.1–1.6 (m, 4H, 4,5-H)
1.5 (d, 3H, NCH-CH3)
1.2 (t, 3H, -CH2CH3)
3c
3465, 1778, 4.9 (m, 2H, 3,6-H)
1743, 1707, 4.6 (t, 1H, -N-CHCH2-)
1250, 1187 4.2 (m, 2H, -OCH2CH3)
2.9 (s, 2H, 1,2-H)
62.35
(62.12)
7.404.40
(7.49)
(4.53)
2.4–2.0, 1.0–1.6
(m, 6H, (CH2)3)
2.0–1.6 (m, 4H, 4,5-H)
1.2 (t, 3H, -OCH2CH3)
0.9 (t, 3H, -CH2CH3)
3d
3e
3460, 1771, 4.8 (m, 2H, 3,6-H)
1701, 1187 3.4 (t, 2H, -N-CH2)
2.9 (s, 2H, 1,2-H)
68.53
(68.79)
9.23
(9.02)
4.89
(5.01)
2.0–1.5 (m, 4H, 4,5-H)
1.4–0.6 (m, 15H,
N-C-(CH2)6CH3)
3458, 1770, 4.9 (m, 2H, 3,6-H)
1700, 1187 3.4 (t, 2H, -N-CH2-)
2.9 (s, 2H, 1,2-H)
70.58
(70.32)
9.26
(9.51)
4.79
(4.56)
2.0–1.6 (m, 4H, 4,5-H)
1.6–0.6 (m, 19H,
-N-C-(CH2)8CH3)
(continued )

ORDER
REPRINTS
384
SU, LI, AND WAN
Table 2. Continued
Elementary Analyses (Calc., %)
Entry IR (cmꢁ1
)
1H NMR (d, CDCl3)
C
H
N
3f
3458, 1771, 4.9 (m, 2H, 3,6-H)
1700, 1187 3.4 (t, 2H, -N-CH2)
2.9 (s, 2H, 1,2-H)
71.85
(71.60)
9.92
(9.91)
4.02
(4.18)
2.0–1.6 (m, 4H, 4,5-H)
1.6–0.6 (m, 23H,
-N-C-(CH2)10CH3)
3g
3444, 3064, 7.3 (s, 5H, Ar-H)
3029, 1771, 4.9 (m, 2H, 3,6-H)
1693, 11804.6 (s, 2H, -N-CH 2-Ph)
2.9 (s, 2H, 1,2-H)
69.83
(70.02)
5.99
(5.88)
5.35
(5.44)
2.0–1.4 (m, 4H, 4,5-H)
EXPERIMENTAL
General Considerations
IR spectra were recorded on a Nicolet 5DXB-FT infrared spectro-
meter, 1H NMR spectra were recorded on a JEOL FX-90Q spectro-
meter using TMS as internal standard. Microanalyses were carried out
by Perkin-Elmer 2400 CHN elemental analysis instrument. Norcan-
tharidin and norcanthanridinimide were synthesized according to the
Refs 16 and 17.
General Procedure for the Alkylation of
3,6-Epoxyhexahydrophthalimides
A mixture of 3,6-epoxyhexahydrophthalimides (1, 0.48 g, 7.9 mmol),
ethyl chloroacetate (2a, 1.21 g, 9.88 mmol), TBAB (0.05 g, 0.16 mmol) and
potassium carbonate (1.5 g, 11 mmol) were irradiated in a Galanz
WP800BS domestic oven in an open container for 1 min at 240 W. The
cooled mixture was extracted with 50mL methylene chloride, then the solvent
was removed in vacuo and the residue purified by preparative thin layer
chromatography (silica gel: 100–200 mesh, eluent: ethyl acetate/cyclo-
hexane ¼ 1/1, v/v, Rf ¼ 0.47) to give 3a, the yield was 95%.

ORDER
REPRINTS
N-ALKYLATION OF 3,6-EPOXYHEXAHYDROPHTHALIMIDES
385
ACKNOWLEDGMENT
The authors are grateful to Guangxi Government for financial grants.
REFERENCES
1. Guo, J.; Li, G.; Weng, Q.; Wang, G. Xian Yike Da Xue Xue Bao 1994,
3, 227. CA 122 : 23351s.
2. Wang, G. Hua Xue Tong Bao 1980, 11, 654. CA 94: 120481v.
3. Balawant, S.J.; Joy, D.; Dilip, H.G. Indian J. Chem. 1983, 22B, 131.
4. Hagishita, S.; Seno, K. Chem. Pharm. Bull. 1989, 37, 327.
5. Tian, S.; Zhao, S.; Fang, Y.; Wang, Z.; Li, K. Zhongguo Yaowu
Huaxue Zazhi 1993, 3, 157. CA 121: 108562r.
6. USP 3217013.
7. Rice, L.M.; Grogan, C.H.; Reid, E.E. J. Amer. Chem. Soc. 1953, 75,
4911; ibid 1955, 77, 616.
8. Bockstahler, E.R.; Weaver, L.C.; Wkight, D.L. J. Med. Chem. 1968,
11, 603.
9. Gedye, R.N.; Smith, F.E.; Westaway, K.C.; Ali, H.; Baldisera, L.;
Laberge, L.; Rousell, J. Tetrahedron Lett. 1986, 27, 279.
10. Strauss, C.R.; Trainor, R.W. Aust. J. Chem. 1995, 48, 1665.
11. Caddick, S. Tetrahedron 1995, 51, 10403.
12. Wang, Y.; Jiang, Y. Synthetic Commun. 1992, 22, 2287.
13. Ding, J.; Gu, H.; Wen, J.; Lin, C. Synthetic Commun. 1994, 24, 301.
14. Bogdal, D.; Pielichowski, J.; Boron, A. Synlett 1996, 9, 873.
15. If Al2O3 was used as external bath and the microwave power and
microwave irradiation time were 560W and 1.0min respectively, the
yield was 64%, but the product was N-benzylphthalimide instead of 3g.
1
This was confirmed by TLC, IR, H NMR and elemental analysis.
1H NMR (CHCl3) 8.0–7.6 (m, 5H, C6H5), 7.6–7.1 (m, 4H, C6H4),
4.84 (s, 2H, CH2-). Anal. calcd. for C15H11NO2: C, 75.95; H, 4.64;
N, 5.91. Found: C, 75.99; H, 4.81; N, 6.16. Because the bath allows
a fast heating and a much high temperature of the reaction mixture,
N-benzylphthalimide was produced via the degradation of N-benzyl-
norcantharidinimide. See: Bram, G.; Loupy, A.; Majdoub, M.
Tetrahedron 1990, 46, 5167 and Reinhoudt, D.N.; et al. Tetrahedron
1974, 30, 2093, 4777.
16. Otto, Diels; Kurt, Alder. Ber. 1929, 62B, 554.
17. Jolioet, J. Ann. Chim. 1960, 5, 1165.
Received in the USA March 19, 2001
