N-Triphenylboryl- and N,N0-bis(triphenylboryl)benzo-2,1,3-telluradiazolew
Anthony F. Cozzolino, Alex D. Bain, Stephanie Hanhan and Ignacio Vargas-Baca*
Received (in Berkeley, CA, USA) 12th March 2009, Accepted 12th May 2009
First published as an Advance Article on the web 9th June 2009
DOI: 10.1039/b904713a
Being isoelectronic and isostructural analogues of N-alkyl-
substituted telluradiazolyl cations, the adducts of triphenylborane
with benzo-2,1,3-telluradiazole provide an electrically neutral
point of reference with which the properties of the heterocyclic
ions can be compared.
The crystal structure of 2 (Fig. 1) demonstrated attachment
of the triphenylborane moiety to each nitrogen atom of the
benzo-2,1,3-telluradiazole molecule. The structure approxi-
mates a C2 symmetry, although it sits in a general position.
Two of the phenyl rings hinder access to the chalcogen,
preventing association to any Lewis bases. This would be the
first example of a C2N2TeII ring that does not appear to be
associated to another heterocycle molecule, solvent, anion or
donor atom in the solid state. However, the role of the
aromatic ring might not be innocent. The N–B–C bond angle
is significantly smaller for the rings next to the tellurium atom.
These rings exhibit short distances from their centroids to Te
(3.1188(2) and 3.1311(2) A). Similar Te–aryl interactions have
been examined by Zukerman-Schpector and Haiduc,6 but in 2
the distances from Te to the centroids of the rings are
significantly below the value reported for the shortest contact
of this type (3.482 A).7 On closer inspection, the chalcogen is
in contact (2.801(2) A) with an atom of one ring while for the
other ring the shortest distance (2.7925(2) A) is to the centroid
of a C–C bond. All these distances are shorter than the sum of
Te and C van der Waals’ radii (3.76 A).
Mono- and di-cations derived by formal N-alkylation of
1,2,5-chalcogenadiazolyl heterocycles are receiving increasing
attention due to their intriguing structural and chemical
properties. The dialkylated systems are regarded as a family
of structural analogues of the N-heterocyclic carbene (NHC)
imidazol-2-ylidene;1,2 of which the Se member has been
described as a ‘‘chalcogen dication sequestered by a chelating
diimine’’.2 In spite of coulombic repulsion, the monoalkylated
selenium3 and tellurium4 rings can form the dimers that are
characteristic of the crystal structures of the parent hetero-
cyles5 with even shorter secondary-bonding distances. The
existence of such aggregates in solution has been proposed
as an explanation for the singular redox behaviour of the
N-methyl benzotelluradiazolylium cation, as compared to its
lighter congeners, which prevented the observation of the
corresponding neutral free radical by EPR.4
The Te–N bond lengths of 2 are comparable to those
observed in the ribbon polymer of 1 (2.003(7) A)8 and dimers
of 4,7-dibromobenzo-2,1,3-telluradiazole (1.988(8) unsolvated,
2.001(5) A DMSO-solvated).8 The DFT optimized geometry of
2 reproduces all the major structural features.
Compared to the parent neutral heterocycles, the study of
the cations is probably complicated by electrostatic inter-
actions, counterion binding and an enhanced sensitivity
to water and nucleophiles in general. Therefore we chose to

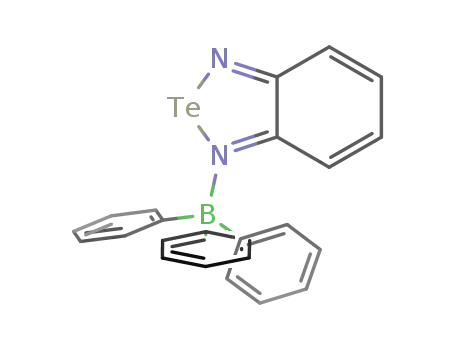

prepare neutral isoelectronic analogues by reacting benzo-
2,1,3-telluradiazole (1) with Lewis acids. Both the 2 : 1 (2)
and 1 : 1 (3) triphenylborane adducts were isolated when using
the appropriate stoichiometry of reactants in toluene. The
products were isolated in micro-crystalline form and fully
characterized.w X-Ray diffraction quality crystals of 2 were
grown from a 1 : 1 mixture of bromobenzene and acetonitrile
while crystals of 3 were grown from toluene.z
The crystal structure of 3 (Fig. 2), modelled with 1.4%
twinning resulting from 1801 rotation about c, confirmed the
binding of one borane molecule to each heterocycle. Because
Department of Chemistry, McMaster University, 1280 Main St. W.,
Hamilton, ON, Canada. E-mail: vargas@chemistry.mcmaster.ca;
Fax: (905) 522-2509; Tel: (905) 525-9140 x23497
w Electronic supplementary information (ESI) available: Details of the
synthetic procedures, the spectroscopic data (including VT NMR),
and the DFT calculations. CCDC 720234 and 720235. For ESI and
crystallographic data in CIF or other electronic format see DOI:
10.1039/b904713a
Fig. 1 ORTEP (50% probability) of the asymmetric unit in the
crystal of 2. Hydrogen atoms and disordered atoms are omitted.
Selected distances (A) and angles (1): Te1–N1 1.996(2), Te1–N2
2.006(2), N1–B1 1.629(3), N2–B2 1.646(3); N1–Te1–N2 81.79(7),
Te1–N1–B1 116.0(1), Te1–N2–B2 115.1(1), N1–B1–C11 100.2(2),
N1–B1–C21 108.8(2), N1–B1–C31 108.0(2), N2–B2–C41 101.2(2),
N2–B2–C51 108.6(2), N2–B2–C61 108.8(2).
ꢀc
This journal is The Royal Society of Chemistry 2009
Chem. Commun., 2009, 4043–4045 | 4043

View Article Online
Fig. 2 ORTEP (50% probability) of the asymmetric unit in the
crystal of 32. Hydrogen atoms are omitted. Selected distances(A)
and angles (1): Te1–N1 1.977(8), Te1–N2 2.056(7), Te2–N3 1.998(9),
Te2–N4 2.048(8), N2–B1 1.65(1), N4–B2 1.62(1); N1–Te1–N2 82.3(3),
N3–Te2–N4 82.5(3), Te1–N2–B1 118.1(6), Te2–N4–B2 119.2(6),
N2–B1–C7 108.6(8), N2–B1–C13 107.9(7), N2–B1–C19 102.1(7),
N4–B2–C31 108.7(8), N4–B2–C37 107.8(8), N4–B2–C43 102.8(8).
Fig. 3 Resonances of the ortho (4,7) protons in the benzo moiety of 32
in d8-toluene solution at different temperatures.
in this 1 : 1 adduct one of the nitrogen atoms and the
chalcogen atom are capable of secondary bonding, the
[Te–N]2 supramolecular synthon renders a dimeric structure.
Although 32 is centrosymmetric, its placement in a general
position duplicates the metrical parameters. In this case the
Te–N supramolecular contacts (2.591(9) and 2.580(8) A)
are ca. 0.1 A shorter than those in the 4,7-dibromobenzo-
2,1,3-telluradiazole dimer8 (2.697(8) A) but almost 0.2 A
longer than in the analogous structure of the N-methylbenzo-
telluradiazolylium cation (2.471(3) A).4 As in those cases,
within each heterocycle, the Te–N bond opposite to the
secondary interaction is significantly longer than the other.
The structure of 32 also displays short distances from the
The net stabilization of the Te–N intermolecular inter-
actions in 32 is therefore primarily the result of the charge
redistribution.
1 + BPh3 - 3; DH = ꢁ125.1 kJ molꢁ1
3 + BPh3 - 2; DH = ꢁ123.5 kJ molꢁ1
12 + 2 BPh3 - 32; DH = ꢁ259.8 kJ molꢁ1
1 + 1 - 12; DH = ꢁ67.5 kJ molꢁ1
(1)
(2)
(3)
(4)
(5)
3 + 3 - 32; DH = ꢁ75.9 kJ molꢁ1
At room temperature, the 1H NMR spectrum of 2 in solution
displayed two resonances for the protons of the benzo-
telluradiazole moiety, as expected. The corresponding bands
in the spectrum of 32 appeared as very broad peaks in
CD3C6D5, C6D6 and CD2Cl2; the presence of a dynamic
exchange process was confirmed by VT experiments in
d8-toluene (Fig. 3).w While two resonances were clearly defined
above 340 K, three bands were resolved below 250 K, the
fourth was obscured by other aromatic resonances. Line shape
analysis for the exchange of the protons in positions 4 and 7 of
benzo-2,1,3-telluradiazole gave a concentration independent
activation energy of 83 ꢂ 9 kJ molꢁ1. Although the magnitude
of this activation barrier is comparable to the supramolecular
association energy calculated for 3, the high-temperature
1H NMR spectrum implies that the dynamic process includes
fast shift of the BPh3 moiety between the two nitrogen atoms.
Such behaviour is observed in the 1 : 1 adduct of pyrazine and
BPh3, for which VT experiments gave an activation barrier of
78 ꢂ 8 kJ molꢁ1 and DFT calculations estimated an associa-
tion energy of 102.1 kJ molꢁ1. These observations suggest that
heavy atoms to the aromatic rings (dTe–centroid(C–C)
=
2.9157(7), 2.9487(7) A; dTe–centroid(Ph) = 3.4108(7), 3.4179(8) A)
and the N–B–C angles are smaller for the phenyl ring that
associates with the Te atom. The DFT optimized geometry of
32 reproduces all the major structural features.
Because the shorter secondary bonding distances suggest
that the supramolecular interactions might be stronger in the
borane adducts than in the parent heterocycles, the association
energies were estimated from the DFT total bonding energies
by considering the reaction enthalpies for eqn (1)–(5); the
numbers include contributions from structural relaxation but
not BSSE or ZPE, which are very small in closely related
systems.8 The average B–N bond energy from eqn (1) to (2)
(126.2 kJ molꢁ1) is within the range of ab initio calculated
binding energies for a number of simple Lewis base-borane
adducts (59.8–230.8 kJ molꢁ1).9,10 The enthalpies of reactions
(4) and (5) indicate that the secondary bonding interactions
are indeed stronger in the borane adduct. This enhancement of
binding energy was analyzed considering three contributions:
the Pauli (steric) repulsive contribution that arises from the
interaction of completely occupied orbitals, the electrostatic
contribution that results from the local dipole moments,
and the interaction of empty and occupied orbitals. The
Pauli repulsion and the electrostatic interaction became more
stabilizing by 57.6 and 25.4 kJ molꢁ1, respectively, while the
1
the VT H NMR spectrum of 32 does not reflect the simple
dissociation of the dimer and that dissociation of the B–N
bond is the most important, if not the only, contribution to the
activation barrier.
The 125Te resonance shifted to lower frequencies upon
attachment of each BPh3 molecule; from 2401 ppm in 1y to
2203 ppm in 32, and 2188 ppm in 2. A similar trend was
orbital interaction became less stabilizing by 74.5 kJ molꢁ1
.
