Observation of Magnetic Bistability in Polymorphs of the [Ni(dmit)2]- Complexes
Shuangquan Zang,†, Xiaoming Ren,† Yang Su,† You Song,† Wenjun Tong,† Zhaoping Ni,† Hanhua Zhao,‡
Song Gao,§ and Qingjin Meng*,†
†State Key Laboratory of Coordination Chemistry, Department of Chemistry, Nanjing University, Nanjing
210093, P. R. China, ‡Department of Chemistry, Texas A&M University, P.O. Box 30012, College Station,
Texas 77842-3012, and §State Key Laboratory of Rare Earth Materials Chemistry and Applications, College of
Chemistry and Molecular Engineering, Peking University, Beijing 100871, P. R. China. Current address:
Department of Chemistry, Zhengzhou University, Zhengzhou 450000, Henan, P. R. China.
Received January 16, 2009
Four ion-pair complexes of [Ni(dmit)2]- with [NO2bzql]þ have been obtained, which belong to two kinds of polymorph
forms, [NO2bzql][Ni(dmit)2] (1r and 1β) and [NO2bzql][Ni(dmit)2] CH3COCH3 (2r and 2β) (where dmit = 2-thioxo-1,3-
3
dithiole-4,5-dithiolate and [NO2bzql]þ = 1-(4-nitrobenzyl)quinolinium). Though 1r, 2r, and 2β all show anionic
dimerization structures at room temperature, they have different anionic and cationic arrangement fashions, which give
rise to different magnetic behaviors for these polymorphs or pseudo-polymorphs. Compounds 1r, 1β, and 2r exhibit
magnetic bistabilities. In particular, 1r has a hysteretic loop at ∼55 K, while 2β does not display a spin transition in the
2-300 K range. On the basis of the crystal structure data of 2rin high- and low-temperature phases, the magnetic coupling
feature within the [Ni(dmit)2]- spin dimer was explored with the broken-symmetry approach at the UBPW91/LANL2DZ
level; combined with the experimental data and theoretical analyses, the relationship between the magnetic coupling nature
and the stacking pattern of [Ni(dmit)2]- anions as well as the origin of the phase interconversion are discussed.
Introduction
information storage, and other molecular electronic devices.1
The most well-known example of these materials is transition
metal spin-crossover (SC) complexes.1-4 Additionally, new
bistability systems, such as charge transfer complexes,5,6
valence ordering compounds,7 and pure organic radical
compounds,8-10 have been developed.
Molecular spin bistability materials have aroused a great
deal of attention owing to their potential applications in
many technical fields, such as magneto-thermal switching,
*To whom correspondence should be addressed. E-mail: mengqj@
nju.edu.cn.
(1) (a) Kahn, J. P.; Launary Chemtronics 1988, 3, 140–151. (b) Kahn, O.
::
Molecular Magnetism; VCH: Weinheim, Germany, 1993. (c) Kahn, O.; Krober,
::
(5) (a) Sato, O.; Iyoda, T.; Fujishima, A.; Hashimoto, K. Science 1996,
272, 704–705. (b) Shimamoto, N.; Ohkoshi, S.; Sato, O.; Hashimoto, K. Inorg.
Chem. 2002, 41, 678–684. (c) Berlinguette, C. P.; Dragulescu-Andrasi, A.; Sieber,
J.; Jay, C. Adv. Mater. 1992, 4, 718–728. (d) Gutlich, P.; Garcia, Y.; Woike, T.
Coord. Chem. Rev. 2001, 219-221, 839–879. (e) Miller, J. S.; Drillon, M.
Magnetism: Molecules to Materials IV; Wiley-VCH: Weinheim, Germany,
::
ꢀ
ꢀ
A.; Galan-Mascaros, J. R.; Gudel, H. U.; Achim, C.; Dunbar, K. R. J. Am. Chem.
Soc. 2004, 126, 6222–6223. (d) Umezono, Y.; Fujita, W.; Awaga, K. J. Am.
Chem. Soc. 2006, 128, 1084–1085. (e) Sato, O.; Tao, J.; Zhang, Y.-Z. Angew.
Chem., Int. Ed. 2007, 46, 2152–2187.
ꢀ
2003. (f) Bousseksou, A.; Molnar, G.; Matouzenko, G. Eur. J. Inorg. Chem.
ꢀ
2004, 4353–4369. (g) Letard, J. F.; Guionneau, P.; Goux-Capes, L. Top. Curr.
Chem. 2004, 235, 221–249.
::
(2) (a) Gutlich, P.; Hauser, A.; Spiering, H. Angew. Chem. 1994, 106,
ꢀ
ꢀ
ꢁ
(6) (a) Li, D.; Clerac, R.; Roubeau, O.; Harte, E.; Mathoniere, C.; Bris, R.
L.; Holmes, S. M. J. Am. Chem. Soc. 2008, 130, 252–258. (b) Kiriya, D.;
Chang, H.; Kitagawa, S. J. Am. Chem. Soc. 2008, 130, 5515–5522. (c) Ohkoshi,
S.-I.; Hamada, Y.; Matsuda, T.; Tsunobuchi, Y.; Tokoro, H. Chem. Mater. 2008,
20, 3048–3054.
::
2109–2141. Gutlich, P.; Hauser, A.; Spiering, H. Angew. Chem., Int. Ed. 1994,
ꢀ
33, 2024–2054. (b) Real, J. A.; Andres, E.; Munoz, M. C.; Julve, M.; Granier, T.;
Bousseksou, A.; Varret, F. Science 1995, 268, 265–267. (c) Kahn, O.; Martinez,
C. J. Science 1998, 279, 44–48. (d) Real, J. A.; Gaspar, A. B.; Niel, V.; Muoz, M.
::
C. Coord. Chem. Rev. 2003, 236, 121–141. (e) Gutlich, P.; Garcia, Y.; Goodwin,
(7) (a) Nakamura, T. J. Phys. Soc. Jpn. 2003, 72, 213–216. (b) Kojima, N.;
Aoki, W.; Itoi, M.; Ono, Y.; Seto, M.; Kobayashi, Y.; Maeda, Y. Solid State
Commun. 2001, 120, 165–170.
(8) (a) Fugita, W.; Awaga, K. Science 1999, 286, 261–262. (b) Fujita, W.;
Awaga, K.; Matsuzaki, H.; Okamoto, H. Phy. Rev. B. 2002, 65, 064434(1-9).
(9) Shultz, D. A.; Fico, R. M.; Boyle, J. P. D.; Kampf, J. W. J. Am. Chem.
Soc. 2001, 123, 10403–10404.
(10) (a) Itkis, M. E.; Chi, X.; Cordes, A. W.; Haddon, R. C. Science 2002,
296, 1443–1445. (b) Brusso, J. L.; Clements, O. P.; Haddon, R. C.; Itkis, M. E.;
Leitch, A. A.; Okaly, R. T.; Reed, R. W.; Richardson, J. F. J. Am. Chem. Soc.
2004, 126, 8256–8265. (c) Brusso, J. L.; Clements, O. P.; Haddon, R. C.; Itkis, M.
E.; Leitch, A. A.; Oakley, R. T.; Reed, R. W.; Richardson, J. F. J. Am. Chem. Soc.
2004, 126, 14692–14693.
H. A. Chem. Soc. Rev. 2000, 29, 419–423.
~
(3) (a) Niel, V.; Thompson, A. L.; Munoz, M. C.; Galet, A.; Goeta, A. E.;
Real, J. A. Angew. Chem., Int. Ed. 2003, 42, 3760–3763. (b) Ksenofontov, V.;
::
Gaspar, A. B.; Niel, V.; Reiman, S.; Real, J. A.; Gutlich, P. Chem.;Eur. J. 2004,
10, 1291–1298. (c) Reger, D. L.; Gardinier, J. R.; Gemmill, W. R.; Smith, M. D.;
Shahin, A. M.; Long, G. J.; Rebbouh, L.; Grandjean, F. J. Am. Chem. Soc. 2005,
127, 2303–2316.
(4) (a) Takahashi, K.; Kawakami, T.; Gu, Z. Z.; Einaga, Y.; Ujishima, A.;
Sato, O. Chem. Commun. 2003, 2374–2375. (b) Dorbes, S.; Valade, L.; Real, J.
A.; Faulmann, C. Chem. Commun. 2005, 69–71. (c) Faulmann, C.; Orbes, S.; de
ꢀ
Bonneval, B. G.; Molnar, G.; Bousseksou, A.; Gomez-Garcia, C. J.; Coronado, E.;
Valade, L. Eur. J. Inorg. Chem. 2005, 3261–3270.
r
2009 American Chemical Society
Published on Web 09/15/2009
pubs.acs.org/IC

9624 Inorganic Chemistry, Vol. 48, No. 20, 2009
Zang et al.
Bis-dithiolate metal ion-pair complexes have been actively
studied for a long time as a wide range of conducting and
magnetic materials as well as nonlinear optical materials.11,12
Experimental and theoretical investigations indicated that
the unusual physical properties in such kinds of ion-pair
complexes originate from the intermolecular interactions of
bis-dithiolate metal anions; as a result, the anionic stacking
pattern strongly influences the physical properties of the
materials. It is notable that the structural features of the
countercation play an important role in tuning the stacking
pattern of bis-dithiolate metal anions.13-15 We have recently
obtained a series of quasi-one-dimensional molecular mate-
rials that are [Ni(mnt)2]--based (where mnt2- = maleonitri-
ledithiolate) with interesting magnetic behaviors, such as
spin-Peierls-like transition, ferromagnetic ordering, and me-
tamagnetic transformation, employing benzylpyridinium
derivatives with λ-shaped and flexible molecular conforma-
tions to adjust the packing pattern of [Ni(mnt)2]- anions in
crystals.13

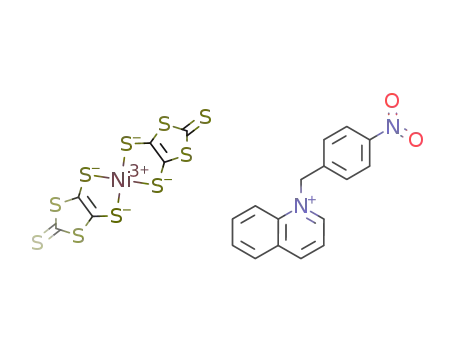

Scheme 1. Molecular Structure of [NO2bzql][Ni(dmit)2]
