We present here some of our results on the implementation
Hemiacetals in Dynamic Covalent Chemistry:
Formation, Exchange, Selection, and Modulation
Processes
of hemiacetals as the functional group of interest for DCC.
Hemiacetals are formed from the reversible condensation of
alcohols with a carbonyl group. Generally, they are rather
unstable species, forming in only very small amounts, except
when they are stabilized by structural effects as in the cyclic
carbohydrates.4,5 On the other hand, they may be expected
to present fast exchange kinetics, thus allowing a rapid
establishment of the equilibrium dynamic library. A major
task is thus to search for means of increasing and controlling
their formation.
ꢀ
Dusan Drahonovsky and Jean-Marie Lehn*
ꢀ
ꢁ
ISIS, Universiteꢁ de Strasbourg, 8 Alleꢁe Gaspard Monge,
67083 Strasbourg, France
lehn@isis.u-strasbg.fr
Received May 24, 2009
Building on the fact that nucleophilic addition to the
carbonyl group increases in the presence of electron-with-
drawing units, we have explored the reactions of alcohols with
aldehydes of nitrogen heterocycles, in particular pyridine and
pyrimidine. Such electron-deficient groups activate the carbo-
nyl function and furthermore may provide a means to increase
hemiacetal formation by protonation or metal cation coordi-
nation at the nitrogen site. In addition, the hemiacetals formed
may also be stabilized by H-bonding between the OH group
and the neighboring nitrogen in the heterocyclic ring. We now
report some of our results on hemiacetal formation between
the heterocyclic aldehydes 1-3 and various alcohols, in the
absence as well as in the presence of added protons or metal
ions. The processes involved are represented in Schemes 1-3.
Some significant results are listed in Tables 1-4. They lead to
the following comments.
A reversible formation of hemiacetals represents a useful
tool in covalent dynamic chemistry. Heterocyclic hemi-
acetals can be stabilized effectively via either protonation
or metal cation coordination. The resulting hemiacetal
systems are highly dynamic, show fast response, and
display component selection.
1. Hemiacetal Formation from Heterocyclic Aldehydes and
Alcohols. We first investigated, by proton NMR, hemiacetal
formation from pyridine-2-carboxaldehyde (1) and various
alcohols in chloroform. Pyridine-2,6-dicarboxaldehyde (2)
and 2-phenylpyrimidine-4,6-dicarboxaldehyde (3) may be ex-
pected to be more reactive than 1. Scheme 1 represents the
different compounds and equilibria involved. Primary alcohols
yield a small amount of hemiacetal, which increases with
equivalents of alcohol added in chloroform solutions (Table 1).
For instance, 1-butanol (6 equiv) produces up to 11%
Chemical entities of molecular or supramolecular nature
may adapt their constitution in response to physical or
chemical effectors by exchange, incorporation, exclusion,
or reorganization of their components via formation or
breaking of reversible covalent bonds or of noncovalent
interactions, respectively. Such behavior defines constitu-
tional dynamic chemistry (CDC) on both the supramolecu-
lar and molecular levels.1 The latter represents a dynamic
covalent chemistry (DCC)2,3 and rests on the introduction
into molecules of bonds formed through reversible chemical
reactions. It has exploited mainly the use of imine and
disulfide functional groups, although some other functions
have also been investigated.2,3 To broaden the scope of DCC,
it is necessary to explore other reversible reactions presenting
controllable formation efficiency and exchange kinetics.
hemiacetal with 1 (0.15 mol dm-3) in chloroform at room
3
temperature. With more reactive difunctional aldehydes
such as 2 and the even more reactive 3, the amount of hemi-
acetals in the equilibrated solutions can reach 43% and 56%
(monohemiacetals) and 1% and 27% (bis-hemiacetals), res-
pectively. The less nucleophilic 2-methoxyethanol affords
just a trace amount of the hemiacetal with 1, and 3% of
the monohemiacetal of 2, whereas 3 yields almost the
same results as with 1-butanol. A mixture of 1-butanol and
2-methoxyethanol (6 equiv of each) with 1 gives 11% of 4a
and 5% of 4b. The sterically more demanding secondary
alcohol 2-propanol forms just a trace amount of hemiacetal
with the tested pyridine aldehydes. No hemiacetals were
observed with the tertiary alcohol t-BuOH or with phenol.
2. Effect of Protonation on Hemiacetal Formation. Addi-
tion of acid enhances markedly the formation of the
hemiacetals. Protonation at nitrogen should increase the
(1) Lehn, J.-M. Chem. Soc. Rev. 2007, 36, 151.
(2) (a) Rowan, S. J.; Canrill, S. J.; Cousins, G. R. L.; Sanders, J. K. M.;
Stoddart, J. F. Angew. Chem., Int. Ed. 2002, 41, 898. (b) Corbett, P. T.;
Leclaire, J.; Vial, L.; West, K. R.; Wietor, J.-L.; Sanders, J. K. M.; Otto, S.
Chem. Rev. 2006, 106, 3652. (c) Ladame, S. Org. Biomol. Chem. 2008, 6, 219.
(3) Lehn, J.-M. Chem.;Eur. J. 1999, 5, 2455.
(4) Acetals undergo acid-catalyzed exchange of carbonyl and alcohol
components and have been used for generation of dynamic combinatorial
libraries; see: (a) Berkovic-Berger, D.; Lemcoff, N. G. Chem. Commun. 2008,
1686. (b) Fuchs, B.; Nelson, A.; Star, A.; Stoddart, J. F.; Vidal, S. Angew.
Chem., Int. Ed. 2003, 42, 4220. (c) Cacciapaglia, R.; Di Stefano, S.;
Mandolini, L. J. Am. Chem. Soc. 2005, 127, 13666. (d) For a very recent
reference on hemiacetals, see: Soutullo, M. D.; O’Brien, R. A.; Gaines, K. E.;
Davis, J. H., Jr. Chem. Commun. 2009, 2529.
(5) Hemiaminals are labile intermediates in imine formation and their use
in DCC has been explored recently. They may be stabilized by a synthetic
receptor; see: Iwasawa, T.; Hooley, R. J.; Rebek, J. Science 2007, 317, 493.
8428 J. Org. Chem. 2009, 74, 8428–8432
Published on Web 10/02/2009
DOI: 10.1021/jo9009886
r
2009 American Chemical Society

JOCNote

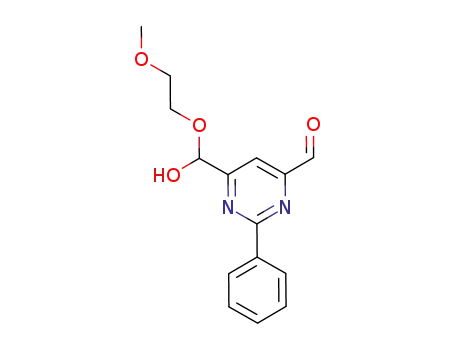

SCHEME 1. Formation of Hemiacetals from Alcohols and Heterocyclic Aldehydesa
a6 and 8 can in principle be a mixture of D, L, and meso forms.
SCHEME 2. Structures of Hemiacetalsa
aPart a: Two plausible structures of the protonated bis-hemiacetal 6b. Part b: Zinc(II) complex of hemiacetal 4a. Part c: Zinc(II) complex of hemiacetal
6a. Part d: Oligo/polymeric zinc(II) complex of hemiacetal 6g.
reactivity of the pyridine aldehydes. Indeed, addition of
trifluoroacetic acid (TFA) to 1:1 mixtures of the aldehyde
1 and alcohols in chloroform results in greatly increased
formation of hemiacetal products (for instance from 3% to
35% for 1 and 1 equiv of 1-butanol in the presence of 1 equiv
of TFA), with similar yields for the different alcohols studied
(Table 2). An excess of the alcohols (3 equiv) shifts the
equilibrium significantly toward hemiacetals (Table S2,
SI), but the trend remains the same.
The less basic 2 is less effectively activated compared to 1.
For dialdehyde/alcohol 1:2 ratios, the maximum yields of
the hemiacetals do not exceed 37% for both 1-butanol and
2-methoxyethanol (Table 2, middle). 2-Propanol gives only
about 8% of bis-hemiacetals. A larger excess of the alcohols
(6 equiv) pushes the equilibrium toward the hemiacetals, but
the activation in not as strong as for 1 (Table S2b, SI). An
interesting effect has been observed in the case of 2-methox-
yethanol. The proton NMR spectra of the hemiacetal region
show only one sharp singlet of the bis-hemiacetal, whereas
the same experiment with 1-butanol gives split signals, in
agreement with the presence of two diastereomeric chiral
centers at the hemiacetal carbon atoms. Unless there is an
accidental overlap, this means that the monohemiacetal of
2-methoxyethanol 5b probably induces chirality at the sec-
ond carbon atom to form the corresponding bis-hemiacetal
species 6b diastereoselectively. A plausible explanation
may lie in the interactions of the proton at nitrogen with
the oxygen atoms of the two 2-methoxyethanol units
(Scheme 2a, 6bHþ). Difunctional alcohols (3 equiv), namely
diethylenglycol, triethylenglycol, and tetraethylenglycol,
form complex mixtures of bis-hemiacetal species with 2.
The yields of the hemiacetals (containing possibly macro-
cyclic as well as oligo and/or polymeric species as well) are
very similar for all the glycols, about 70% in the presence of
8 equiv of TFA. This result points to the possibility of
generating highly dynamic covalent polymers.
Protonic amplification of hemiacetal formation is not
effective in the case of the relatively reactive and nonbasic
aldehyde of 3. Thus, the sequentional addition of TFA to 3
decomposes the hemiacetals formed in favor of the starting
J. Org. Chem. Vol. 74, No. 21, 2009 8429
