A facile iodine-catalyzed glycosylation: Enantiomerically pure β-lactams with the thienamycin side chain

Article abstract of DOI:10.3987/COM-09-11729

A facile iodine-catalyzed glycosylation of the hydroxyethyl side chain as present in thienamycin side chain has been achieved with tri-O-acetyl-D-glucal. This method has produced two separable diasteromeric α-glycosides in excellent yields which on acid-i

Full text of DOI:10.3987/COM-09-11729

HETEROCYCLES, Vol. 78, No. 10, 2009
2443
HETEROCYCLES, Vol. No. 10, 2009, pp. 2443 - 2454. © The Japan Institute of Heterocyclic Chemistry
Received, 8th April, 2009, Accepted, 29th June, 2009, Published online, 30th June, 2009
DOI: 10.3987/COM-09-11729
A
FACILE
IODINE-CATALYZED
GLYCOSYLATION:
ENANTIOMERICALLY PURE -LACTAMS WITH THE THIENAMYCIN
SIDE CHAIN
Bimal K. Banik,*a Oliwia Zegrocka,b Maghar S. Manhas,b and Ajay K. Boseb
a
The University of Texas-Pan American, Department of Chemistry, 1201 West
University Drive, Edinburg, Texas 78539, USA
bDepartment of Chemistry and Chemical Biology, Stevens Institute of Technology,
Hoboken, New Jersey 07030, USA
Phone: 956-380-8741; Fax: 956-384-5006; E-mail: banik@panam.edu

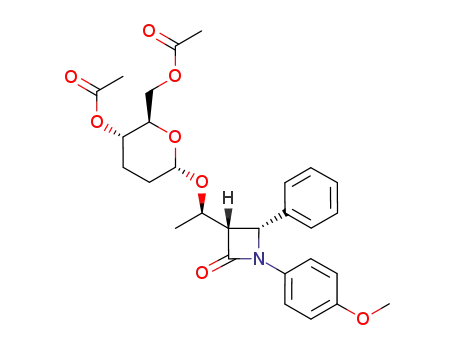

Abstract - A facile iodine-catalyzed glycosylation of the hydroxyethyl side chain
as present in thienamycin side chain has been achieved with tri-O-acetyl-D-glucal.
This method has produced two separable diasteromeric -glycosides in excellent
yields which on acid-induced cleavage have provided two optically pure alcohols.
The absolute stereochemistry of the products has been determined from
physiochemical data.
INTRODUCTION
The glycosylation of alcohols is an interesting and challenging area of research because of the biological
activities of O-glycosides.1 Although discovered many years ago, the Ferrier rearrangement2,3 is still
considered to be one of the most attractive methods for the preparation of glycosides. Many Lewis acids4
and acidic-supports5 have been used to accomplish this transformation. The shortcomings of these
processes are the non-stereoselectivity of the reactions in most of the cases. As a result, mixtures of -
and -glysosides are generally formed in this reaction. Attempts have been made to improve
stereoselectivity; a few successful preparations of - or -isomer have been achieved.6
Our exploration on indium metal-induced reactions has culminated in a convenient method for the
stereoselective synthesis of -glycosides in good yield by the reaction of an alcohol and
acetobromoglucose.7 In addition, a stereospecific glycosylation of alcohol via bismuth nitrate-catalyzed
Ferrier rearrangement has also been reported from our laboratory.8a We present herein an iodine-

2444
HETEROCYCLES, Vol. 78, No. 10, 2009
catalyzed convenient and facile strategy involving reaction with glycal derivatives for obtaining both
enantiomeric forms of racemic β-lactams with the 1-hydroxyethyl side chain of thienamycin types of
antibiotics.
RESULTS AND DISCUSSION
We have reported the use of iodine in organic synthesis.9 In the course of our continuing studies on
antibiotics and anticancer agents, we have synthesized and studied medicinal activities of several -
lactams.10 In an extension of iodine-catalyzed glycosylation of alcohol,6 we have studied chiral resolution
of a racemic alcohol that is present in thienamycin side chain for obtaining both enanatiomers of this
important antibiotic.9a-b The strategy is to prepare two separable diastereomeric O-glycosides by the
Ferrier rearrangement2 as one of the important steps.
OH
OH
H
H H
+
NH3
OAc
S
NH
N
CO2
O
O
2
1
Figure 1
In 1979, the clinical use of the β-lactam antibiotic thienamycin (1, Figure 1) has been initiated.11 PS-5
and carpetimycin also belong to this family of antibiotics.12 Various synthetic methods are appeared for
the preparation of thienamycin.13 Most of these methods require optically pure 3-(1-hydroxyethyl)-4-
acetoxy-2-azetidinone (2) as one of the starting materials.14 Since enantiomers differ in their biological
properties, availability of both enantiomeric forms of this compound is highly desirable.15 One way to
obtain both enantiomers is to perform an easy chrial resolution of a readily available racemic alcohol.
Toward this objective, the starting racemic cis-3-(1-hydroxyethyl)-4-phenyl-N-p-anisyl-2-azetidinone (5)
was prepared in satisfactory yield.16 The reaction of the dianion of (±)-ethyl 3-hydroxy-butyrate (3) and
N-p-anisyl-benzylideneamine (4) in dry THF at -20 °C-room temperature afforded β-lactams as a mixture
of cis- and trans-isomer in 45% yield (9:1). The cis-isomer 5 was separated from this mixture by
crystallization (Scheme 1).
OH
OH
Ph
Ar
H
H
N
H
H
N
Ph
Ph
OH
O
LDA, THF
+
+
-20 oC, 3h
45%
N
OEt
O
Ar
O
Ar
(±) - 3
4
(±) -
- 5a
cis
(±) - tr ans - 5b
Ar = p-anisyl
Scheme 1

HETEROCYCLES, Vol. 78, No. 10, 2009
2445
Next, our glycosylation method was conducted to this racemic β-lactam alcohol 5 with iodine in dry
tetrahydrofuran at room temperature. The reaction was conducted for 40 h by mixing a solution of the β-
lactam 5 and tri-O-acetyl-D-glucal (6) in anhydrous tetrahydrofuran solution in the presence of iodine (5-
10 mol%) as catalyst. Thin layer chromatography of the crude reaction mixture using ethyl acetate-
hexane (20:80) showed the presence of two major spots along with minor amounts of the starting
unreacted material 5. After work-up and column chromatography of the crude reaction mixture, two
products were obtained in 65% yield (Scheme 2). These compounds were characterized as the unsaturated
glycosides 7 and 8. Conducting the reaction for 90 h did not improve the yield of these glycosides 7 and 8,
while a shorter reaction time (approximately 10 h) decreased the yield of the products. Increasing the
percentage of iodine (40 mol%) led to the consumption of glycal 6 in about 10 h, but the yield of the
resulting glycosides 7 and 8 was not improved. The yield of 7 and 8 had decreased significantly when a
higher proportion of iodine was used.
To establish the stereochemistry of the glycosidic bond, both 7 and 8 were reduced by catalytic transfer
hydrogenation method with ammonium formate in the presence of 10% Pd-C catalyst in ethanol at high
temperature.17 A few laboratories employed catalytic transfer hydrogenation as a safe and simple
operation.17 Many other hydrogen donors such as cyclohexene, hydrazine, formic acid, cyclohexadiene
and sodium hypophosphite gave poor results.
OAc
O
OAc
O
OH
H H
OAc
O
Ph
Ar
iodine
+
+
O
O
AcO
AcO
H
N
OAc
H
H H
THF, 40h
65%
Ph
Ar
Ph
Ar
N
O
AcO
N
O
O
5
6
7
8
Ar = p-anisyl
OBn
O
OAc
iodine
THF
iodine
THF
AcO
5
X
5
+
O
OAc
+
OBn
BnO
12
11
Bn = H2C
Scheme 2
Microwave-induced hydrogenation using ethylene glycol as the reaction medium and ammonium formate
as the hydrogen donor in the presence of 10% Pd-C was helpful for obtaining the saturated products 9 and
10 very easily. The reaction was complete within 1 min (Scheme 3).18,19 Similar hydrogenation of the β-
lactam containing a reducible group and an aromatic ring at C4 afforded a propionamide derivative as a

2446
HETEROCYCLES, Vol. 78, No. 10, 2009
result of the N1-C4 bond fission.20 It appeared that the sugar moiety in the glycosides 7 and 8 posed steric
hindrance to the hydrogenolysis of the N1-C4 bond. However, conducting the hydrogenation reaction
longer afforded many other uncharacterized materials. In the complex reaction mixtures several
compounds could be detected, but they were not identified thoroughly; these compounds were formed
due to the cleavage of the N1-C4 bond, reduction of the olefinic group and allylic deacetoxylation of the
carbohydrate group. The 1H NMR spectra of the 2, 3-dideoxy carbohydrate derivatives 9 and 10 showed
only small couplings (1-2 Hz) for the anomeric proton indicating axial stereochemistry of the glycoside
bonds. 9a-b,21 A higher coupling constant (8-10 Hz) was expected with a β-glycoside product.
To test the scope and application of this method, other glycals were also examined. Surprisingly, a similar
reaction with commercially available 3,4,5-tri-O-acetyl D-galactal (11) with the alcohol 5 did not produce
any detectable amounts of the glycosides. In addition, 3,4,5-tri-O-benzyl D-glucose (12) also failed to
yield the desired products. This indicates that the nature of the glycal was crucial for the success of this
reaction (Scheme 2). The protecting group and stereochemistry of the glycals seemed to play a major role
in the iodine-catalyzed glycosylation reaction of the racemic β-lactam alcohol 5. In order to confirm the
role of iodine in the Ferrier rearrangement, a few other reagents were examined. Ferric nitrate, copper
nitrate and zinc nitrate-mediated reactions proceeded very slowly and the products were formed in very
low yield (not isolated). Copper sulfate, sodium nitrate and potassium nitrate proved to be ineffective. In
the past, a variety of other acidic catalysts such as methanolic hydrochloric acid, sulfuric acid,
OAc
OAc
O
OAc
O
OAc
O
O
HCO2NH4 , 10% Pd-C,
EtOH or
HCO2NH4 , 10% Pd-C,
EtOH or
O
AcO
H
N
H
HCO2NH4 , MWI,
CH2OHCH2OH,
10% Pd-C, 90%
O
O
O
AcO
HCO2NH4 , MWI,
CH2OHCH2OH,
10% Pd-C, 90%
AcO
Ph
AcO
H
H
N
H
N
H
H
N
H
Ph
Ar
Ph
Ar
Ph
Ar
O
Ar
O
O
O
7
8
10
9
MWI = microwave irridation
Ar = p-anisyl
Scheme 3
borontrifluoride etherate and stannic chloride were used in the Ferrier rearrangement of several different
types alcohols with varying success.22 Ferrier rearrangement with the neutral catalysts N-iodosuccinimide,
N-bromosuccinimide and iodonium dicollidinium perchlorate was also used for this purpose.23 In some
cases, the products were not unsaturated O-glycosides; instead, halogenated O-glycosides were obtained.
Most importantly, these acid- and neutral catalysts were not tested for the glycosylation of alcohol that is
a part of a β-lactam (e.g. 5) prior to our present study. However, these reagents produced mixtures of
products in very low yield with 5. In contrast to these protocols, our iodine-catalyzed method is
stereoselective and produced products in good yield.

HETEROCYCLES, Vol. 78, No. 10, 2009
2447
The mechanism of the Ferrier rearrangement was investigated earlier. The exclusive formation of -
glycosides in the present study deserved attention. The reaction between 5 and 6 was conducted with
catalytic amounts of hydroiodic acid. However, desired products 7 and 8 could not be isolated. An
aqueous solution of iodine also failed to produce the expected glycosides 7 and 8 in good yields. This
raised the possibility that there might be a complexation role of iodine with the unsaturated bond of the
glycal 6. The proton NMR spectra of a mixture containing glycal 6 and iodine (10 mol%) in CDCl3
showed continuous change, particularly at the olefinic region of the glycal at room temperature. But,
there was no change of the proton NMR spectra of the reaction mixture when glycal 6 was mixed with
iodine (10 mol%) in the presence of potassium carbonate (20 mol%). These observations suggest an
allylic isomerization of glycal 6 to an intermediate 2,3-dehydro sugar and a subsequent SN1 reaction is
involved.2,3 This is supported by the fact that only glycal 6 produced stereoselective diastereromeric
products in good yield. The glycals 11 and 12 derived from D-galactose and D-glucose were not effective
indicating the critical role of the protective groups and their strereochemistries (acetoxy and benzyl ether)
in this type of reaction. The stereochemistry of compounds 6 and 12 is identical, only the protective
groups are different. This result indicated that the presence of an acetoxy functionality at C4 of the sugar
moiety as a suitably oriented leaving group is necessary for effective glycosylation. The glycal 11 derived
from D-galactose has a differently oriented acetoxy functionality at C4 of the sugar unit; it failed to
produce the desired diastereomeric products. Therefore, the stereochemistry of the substituent at C4 of the
sugar moiety is crucial for the success of this reaction.2,3 An anchimeric assistance by the acetoxy group
in C4 of 6 favored the departure of the C3 acetoxy group of the glycal and thereby facilitated the reaction.
The possibility of anchimeric assistance by the 4-acetoxy group in glucose derivatives was first suggested
by Ferrier. This assistance could be prevented using nonparticipating protecting groups at C4.3d
According to the previous literature, galactal derivatives can also undergo Ferrier rearrangement under
special conditions; anomalous behavior is observed under standard conditions.22c In conformity with this
hypothesis, the importance of leaving group properties are also observed in the present study. The glycal
that has a benzyl protecting group 12 proved to be ineffective; this supports earlier observations.
The two diasteromeric glycosides 7 and 8 were separated by column chromatography over silica gel.
Then the sugar group of 7 and 8 was removed by mild aqueous hydrochloric acid treatment to afford the
enantiomeric β-lactams 11 and 12. β-Lactams 11 and 12 were converted to their respective acetates 13
1
and 14 following usual method. β-Lactam 13 was found to be enantiomerically pure as revealed by H
NMR spectroscopy using an optically active shift reagent.24 This NMR study further confirmed that the
compounds 13 and 14 are mirror images of each other (Scheme 4).
While this method provided two enantiomeric forms of β-lactams (11 and 12; 13 and 14), determination
of their absolute stereochemistry was not straight forward. To determine the absolute stereochemistry of
the β-lactams 13 and 14, a highly efficient method was adopted. The hydroxy-β-lactam 11 was converted

2448
HETEROCYCLES, Vol. 78, No. 10, 2009
to the olefin 15 in good yield by a two-step sequence of mesylation and elimination. The formation of
OAc
O
OAc
O
OR
OR
H
H
N
H
H
N
HCl, THF, H2O
90%
HCl, THF, H2O
90%
Ph
Ar
Ph
Ar
O
O
AcO
H
H
N
AcO
H
N
H
Ph
Ar
Ph
Ar
O
O
11 R = H
13 R = Ac
O
12 R = H
14 R = Ac
O
Ac2O/Py
Ac2O/Py
7
8
Ar = p-anisyl
Scheme 4
olefin as depicted in structure 15 established the stereochemistry of the hydroxy group at the side chain
and the hydrogen at the C3 of the β-lactam ring.25 The olefin 15 on osmium-catalyzed dihydoxylation and
subsequent oxidative cleavage of the intermediate diol (with sodium periodate) produced the 3-keto-β-
lactam 16 in 80% yield. The keto β-lactam 16 was then reduced to the cis-hydroxy-β-lactam 17. The
optical rotation of this cis hydroxy β-lactam 17 was compared with the known authentic sample and the
absolute stereochemistry was deduced.9a-b The hydroxy β-lactam 17 was converted to the acetate 18 by a
standard method. The absolute stereochemistry was further confirmed using the acetate 18. Proton NMR
studies of 18 using a chiral shift reagent24 and comparing literature data established the stereostructure of
11 as shown. A similar reaction using 13 afforded 19 (Scheme 5). Furthermore, this sequence of reactions
established the absolute stereochemistry of all the compounds 11, 12, 13 and 14.
OH
H
H
N
H
N
H
N
i) NaBH4,
ii) MeOH
H
H
N
Ph
O
Ph
RO
O
Ph
Ar
i) MeSO2Cl , TEA
i) OsO4 ,NMO
Ph
ii) NaHCO3 ,MeOH
90%
90%
ii) NaIO4
90%
O
Ar
O
Ar
O
Ar
11
15
16
17
18
R = H
Ac2O/Py
R = Ac
H
N
i) MeSO2Cl , TEA
ii) NaHCO3 ,MeOH
Ph
12
O
Ar
Ar = p-anisyl
19
Scheme 5
CONCLUSION
In conclusion, a room temperature reaction of (±)-3-hydroxyethyl-4-p-methoxyphenyl-2-azetidinone (5)
with glycal 6 in the presence of iodine has been developed for producing separable α-glycosides 7 and 8
which can be cleaved to 11 and 12 by acid-induced reactions. The condition of the experiment is very
mild. The absolute stereochemistry of the products 11 and 12 has been confirmed by physicochemical

HETEROCYCLES, Vol. 78, No. 10, 2009
2449
correlation studies with known authentic compound described earlier. Aromatic substituent at the 4-
position of such β-lactams can be oxidized to generate a carboxyl group. The β-lactams 11 and 12 can
therefore, serve as chiral intermediates for thienamycin (1) antibiotic and related compounds. The
glycosylation reaction of alcohol conducted with environmentally benign and simple iodine-catalyzed
reactions can be used for increasing the hydrophilicity of these types of -lactam molecules and for
providing an easy access to additional functional groups by modification of the carbohydrate component.
EXPERIMENTAL PROCEDURE
General Methods. All of the solvents and reagents were obtained from commercial sources and used
without purification. Reactions were monitored by TLC using pre-coated silica gel aluminum plates
1
containing a fluorescence indicator. Chemical shifts of H NMR spectra were given in parts per million
with respect to TMS, and the coupling constant J was measured in Hz. Data are reported as follows:
1
chemical shifts, multiplicity (s = singlet, d = doublet, t = triplet, q = quartet, m = multiplet). H NMR
spectra were recorded in CDCl3 using tetramethylsilane as an internal standard. IR spectra were expressed
as wave numbers (cm-1). For the preparation of the racemic 5, see reference 16.
Glycosylation of racemic alcohol 5:
To a solution of the β-lactam (5) (3 g, 10.1 mmol) and tri-O-acetyl- D-glycal (6) (4.1 g, 15.1 mmol) in dry
THF (40 mL) was added iodine (1.5 mmol). The reaction mixture was stirred at rt for 40 h. The aqueous
mixture was then extracted with EtOAc (3 x 20 mL), washed with aqueous sodium thiosulfate solution,
saturated aqueous NaHCO3 solution (10 mL), brine (2 x 20 mL) and dried over Na2SO4. After
evaporation of the solvent, crude product was chromatographed over silica gel using EtOAc-hexane
(20:80) as the eluant. The pure product 7 was obtained by crystallization from EtOAc-hexane (35%), mp
137-138 °C; IR (CH2Cl2): 1740 cm-1; 1H NMR: 7.5-6.7 (m, 9H), 5.75 (s, 1H), 5.65 (m, 1H), 5.55 (d, J =
5.79 Hz, 1H), 4.55 (s, 1H), 4.10 (m, 4H), 3.75 (m, 1H), 3.74 (s, 3H), 3.60 (m, 1H), 2.05 (s, 3H), 2.0 (s,
3H), 1.10 (d, J = 6.16 Hz, 3H); Anal. Calcd for C28H31NO8: C, 65.99; H, 6.13; N, 2.74. Found: C,
66.21; H, 6.18; N, 2.80. The other diastereomer (8) was isolated as an oil (30%), IR (CH2Cl2): 1740 cm-1;
1H NMR: 7.39-7.21 (m, 7H), 6.84-6.77 (m, 2H), 5.98-5.72 (m, 2H), 5.57-5.51 (m, 1H), 5.2 (d, J = 5.80
Hz, 1H), 5.14 (s, 1H), 4.58-3.99 (m, 3H), 3.76 (s, 3H), 3.65-3.61 (m, 1H), 2.13 (s, 3H), 2.10 (s, 3H), 0.86
(d, J = 6.15 Hz, 3H); Anal. Calcd for C28H31NO8: C, 65.99; H, 6.13; N, 2.74. Found: C, 66.30; H, 6.38;
N, 2.92.
Hydrogenation of Diastereomeric Glycosides 7 and 8.
-Lactam 7 (200 mg, 0.39 mmol) was dissolved in absolute EtOH (5 mL). Ammonium formate (200 mg)
and 10% Pd-C (50 mg) were added to this solution and the mixture was refluxed for 15 min. The catalyst
was then filtered and the EtOH was evaporated.
The oily residue was purified by column

2450
HETEROCYCLES, Vol. 78, No. 10, 2009
chromatography using EtOAc-hexane (1:2) as the eluent to afford 9, 180 mg; IR (CH2Cl2): 1735, 1700
1
cm-1; H NMR: 7.34-7.23 (m, 7H), 6 80 (d, J = 8.98 Hz, 2H), 5.15 (d. J = 5.74 Hz, 1H), 4.65 (m, 1H),
4.40 (brs, 1H), 4.10 (m, 1H), 4.00 (m, 1H), 3.90 (m, 1H), 3.75 (s, 3H), 3.70 (m, 1H), 3.60 (dd, J1 = 6.43
Hz and J2 = 13.44 Hz, 1H), 2.15 (s, 3H), 2.05 (s, 3H), 1.90-1.88 (m, 2H), 1.7-1.62 (m, 2H), 1.10 (d, J =
6.19 Hz, 3H); Anal. Calcd for C28H33NO8: C, 65.73; H, 6.50; N, 2.73. Found: C, 65.62; H, 6.43; N, 2.83.
The above reaction was repeated in a similar way as described for 8 to obtain 10; IR (CH2Cl2): 1740,
1710 cm-1; 1H NMR: 7.36-7.22 (m, 7H), 6.80 (d, J = 8.l1 Hz, 2H), 5.10 (d, J = 5.90 Hz, 1H), 4.85 (s, 1H),
4.65 (m, 1H), 4.30 (m, 1H), 3.95 (m, 2H), 3.80 (m, 4H), 3.78 (s, 3H), 3.65 (dd, J1 = 5.89 Hz and J2 = 9.16
Hz, 1H), 2.15 (s, 3H), 2.05 (s, 3H), 2.00-1.95 (m, 2H), 1.85-1.80 (m, 2H), 0.85 (d, J = 5.94 Hz, 3H); Anal.
Calcd for C28H33NO8: C, 65.73; H, 6.50; N, 2.73. Found: C, 65.90; H, 6.23; N, 2.71.
General Procedure for Catalytic Transfer Hydrogenation Reaction.
We found the following protocol to be safe for conducting catalytic transfer hydrogenation. Caution was
exercised, however, since some of the catalysts are pyrophoric; also mixtures of hydrogen and air can
cause an explosion. An unmodified domestic microwave oven (600-100 W) was placed in a hood. The
reaction vessel was a beaker or an Erlenmeyer flask of fairly large size. A beaker of water was placed
near this reaction vessel to serve as a “heat sink” to provide a finer control on the amount of microwave
energy input into the hydrogenation mixture. The purpose of keeping water was to use microwave energy
very efficiently and thereby reduce the amount of energy absorbed by the reaction mixture. The
approximate amount of water to be used was determined by a trial run involving only the solvent but
without the catalyst.
o
The temperature of the reaction mixture was raised to 110–120 C in about 3 min. The catalyst was
quickly introduced into the reaction vessel and covered with the solvent ethylene glycol (bp 198 oC) and
made into a slurry by gentle swirling motion of the beaker or the conical flask. The compound to be
reduced was mixed with the solvent and then added to the reaction vessel. The hydrogen donor
ammonium formate was added next. Microwave irradiation for the predetermined period of time to reach
a temperature of 110–130 oC was applied. The microwave oven door was opened, and the temperature of
the reaction mixture checked to be in the desired range.
The oven door was then closed and irradiation resumed for another 3–4 min. The reaction vessel was
removed from the oven after the microwave oven was switched off. Careful decantation of the reaction
mixture after cooling followed by the addition of glycol to the reaction vessel would preserve the catalyst
for the next experiment.
It is customary in our laboratory to place a filter funnel on top of the reaction vessel to prevent any
accidental spillage. After the hydrogenation, the reaction mixture was cooled and then filtered. The

HETEROCYCLES, Vol. 78, No. 10, 2009
2451
filtrate was diluted with water and extracted with ethyl acetate, and the organic layer was washed with
water. Evaporation of the solvent from the organic layer (dried over anhydrous Na2SO4) followed by
crystallization gave the pure product in 90% yield. We observed that the optimal ratio of the catalyst
(10% Pd/C) to substrate is 0.3:1 by weight for each reducible group. Five equivalents of ammonium
formate for each reducible group gave good results.
Hydrochloric Acid-Induced Cleavage of the Diastereomeric Glycosides 7 and 8:
To a solution of the glycosides 7 (1.5 g. 2.94 mmol) in THF (20 mL) was added aqueous HCl (1:1, 6 mL).
The mixture was stirred for 8 h at rt, the acid was then neutralized with saturated aqueous NaHCO3
solution and most of the THF was evaporated under reduced pressure. The residue was extracted with
EtOAc (3 x 20 mL), washed with brine (2 x 10 mL), dried with Na2SO4 and evaporated to give crude 13
as a semi solid mass. This was crystallized from EtOAc-hexane, 90% yield, mp 150-151 °C, IR (CH2Cl2):
3650, 1735 cm-1; 1H NMR: 7.75-7.19 (m, 7H), 6.81-6.71 (m, 2H), 5.18 (d, J = 5.82 Hz, 1H), 3.70-3.68 (m,
1H), 3.65 (s, 3H), 3.50 (dd, J1 = 5.84 Hz and J2 = 8.4 Hz, 1H), 2.90 (d, J = 1.85 Hz, 1H), 0.95 (d, J = 6.10
Hz, 3H); Anal. Calcd for C18H19NO3: C, 72.70; H, 6.44; N, 4.71. Found: C, 72.90; H, 6.34; N, 4.83.
The above reaction was repeated with the glycoside 8 (1.5 g). The pure product 14 was isolated through
extraction and crystallization, 90% yield, mp 149-150 ° C; IR (CH2Cl2): 1735 cm-1; 1H NMR: 7.70-7.20
(m, 7H), 6.82-6.73 (m, 2H), 5.15 (d, J = 81 Hz, 1H), 3.80, -3.78 (m, 1H), 3.75 (s, 3H), 3.50 (dd, J1 = 5.87
Hz and J2 = 8.38 Hz, 1H), 2.40 (s, 1 H), 0.90 (d, J = 6.07 Hz, 3H); Anal. Calcd for C18H19NO3: C, 72.70;
H, 6.44; N, 4.71. Found: C, 72.86; H, 6.34; N, 4.92.
Acetylation of the Hydroxy β-lactams 13 and 14.
To a solution of the β-lactam 13 (100 mg, 0.33 mmol) in CH2Cl2 (5 mL) was added pyridine (0.2 mL),
followed by acetic anhydride (0.2 mL) at rt and the mixture was stirred for 3 h. After evaporation of the
solvent and reagent, the crude product was passed through a wide column of florisil (4g) using EtOAc-
1
hexanes (20:80) as eluent to afford 15, 102 mg, 91%; mp 143°C; IR (CH2Cl2): 1730, 1700 cm-1; H
NMR: 7.35-7.19 (m, 7H), 6.78 (d, J = 9.00 Hz, 2H), 5.20 (d, J = 5.99 Hz, 1H), 4.85 (m, 1H), 3.75 (s, 3H),
3.65 (m, 1H), 1.90 (s, 3H), 1.20 (d, J = 6.39 Hz, 3H).
The above reaction was repeated in a similar way with 14. After passing through a column of florisil, pure
product (16) was isolated as a solid, mp 131 °C ; IR (CH2Cl2): 1730, 1700 cm-1; 1H NMR: 7.33-7.21 (m,
7H), 6.77 (d, J = 9.00 Hz, 2H), 5.15 (d, J = 5.99 Hz, 1H), 4.80 (m, 1H), 3.75 (s, 3H), 3.60 (m, 1H), 1.80 (s,
3H), 1.15 (d, J = 6.4 Hz, 3H).
Synthesis of 3-Keto-4-phenyl-N-p-anisyl-2-azetidinone (16)
To a solution of alcohol 11 (2 mmol) in dry CH2Cl2 (40 mL) was added methanesulfonyl chloride (2.3
mmol) and triethylamine (5 mmol) at rt. The reaction mixture was kept at rt overnight. The reaction

2452
HETEROCYCLES, Vol. 78, No. 10, 2009
mixture was then washed with HC1 (5%, 2 x 10 mL), aqueous NaHCO3 solution (5%, 2 x 10 mL), brine
(2 x 10 mL), dried (Na2SO4) and the solvent evaporated. To the crude mesylate thus obtained were added
dry CH3OH (10 mL) and anhydrous NaHCO3 (500 mg) and the reaction mixture was refluxed for 2 h.
The reaction mixture was filtered and MeOH was evaporated. To the residue, EtOAc (30 mL) was added
and the solution washed thoroughly with H2O (3 x 10 mL), dried (Na2SO4) and evaporated.
A solution of the 3-alky1idene-β-lactam 15 (1.5 mmol) in t-BuOH/H2O (7:1, 80 mL), N-methyl-
morpholine-N-oxide (1.5 mmol) and OsO4 (0.08 mmol) was stirred at rt for 16 h. Aqueous NaHSO3
solution (50%, 5 mL) was then added and the mixture was stirred for 30 min. The mixture was extracted
with EtOAc (3 x 10 mL), washed with brine (2 x 10 mL), dried (Na2SO4) and the solvent evaporated. The
crude product was dissolved in MeOH-H2O (4:1, 15 mL) and NaIO4 (2.0 mmol) was added. The reaction
mixture was stirred at rt for 2 h and filtered. Most of the MeOH was evaporated and the residue extracted
with EtOAc (3 х 10 mL), washed with brine (10 mL), dried and solvent evaporated. The crude product on
crystallization afforded the 3-keto β-lactam 16 (70%), mp 131 °C.
Synthesis of α-Hydroxy-4-phenyl-N-p-anisyl-2-azetidinone (17):
To a solution of the keto β-lactam 16 (50 mg) in dry MeOH (10 mL) was added NaBH4 (50 mg) at 0-5 °C
and the mixture was stirred for 1h. Water (5mL) was added to it and most of the MeOH evaporated under
reduced pressure. The residue was extracted with EtOAc (2 x 15 mL), dried, and evaporated. The crude

-179o (c 1.0, MeOH). A portion of this
D
product on crystallization afforded pure 17, mp 214 °C;
compound was acetylated with acetic anhydride in the presence of pyridine to give 18. 1H NMR study in
the presence of chiral shift reagent established the absolute stereochemistry and found to be identical with
1
the compound synthesized ear1ier; mp 134 °C, IR (Nujol): 3400, 1735 cm-1; H NMR (200 MHz,
CDCl3): 7.39 (m, 5H), 7.21 (d, 2H), 6.77 (d, 2 H), 5.10 (d, J = 2.36 Hz, 1H), 4.35 (brs, 1H), 3.73 (s, 3H)
13
3.12 (dd, J = 2.39, 4.83 Hz, 1H), 1.35 (d, J = 6.37 Hz, 3H); C NMR (CDCl3) : 165.2, 155.9, 138.0,
131.0, 129.1, 128.2, 126.0, 118.4, 114.2, 67.0, 64.9, 56.8, 55.3, 21.5; CIMS (CH4 gas) m/z 298 (M+H)+;
Anal. Calcd for C18H19O3N: C, 72.71; H, 6.44; N, 4.71. Found: C, 72.61; H, 6.49; N, 4.87.
E-1-p-Anisyl-3-ethylidene-4-phenylazetidin-2-one-(15) and Z-1-p-Anisyl-3-ethylidene-4-phenyl-
azetidin-2-one (19): To a solution containing the alcohols 11 and 12 (1.68 mmol) and TEA (5 mmol) in
CH2Cl2 (50 mL) was added methanesulfonyl chloride (2.2 m mol) at rt. The reactants were kept overnight
and filtered. The filtrate was washed with dilute HCl (5%, 2 x 10 mL), aqueous NaHCO3 (5%, 2 x 10
mL), brine (2 x 10 mL), dried (Na2SO4) and solvent evaporated. To the crude mesylates, thus obtained,
were added dry MeOH (10 mL) and anhydrous NaHCO3 (500 mg) and the reaction mixture was refluxed
for 2 h. The title compounds were isolated after flash chromatography followed by crystallization from
Et2O. 15: yield 90%, mp 157 °C; IR (CH2Cl2): 1740 cm -1; 1H NMR (CDCl3): 7.5-6.80 (m, 9H), 6.33 (q,
13
d, J = 7.2, 1.42 Hz), 5.44 (s, 1H), 3.77 (s, 3H), 1.62 (d, J = 7.12 Hz, 3H); C NMR (CDCl3) δ: 161.0,

HETEROCYCLES, Vol. 78, No. 10, 2009
2453
155.9, 142.8, 136.8; 131.45, 129.0, 128.6, 127.1, 122.8, 118.1, 114.3, 62.9, 55.4; 13.26; CIMS (CH4 gas)
m/z: 280 (M+H)+; Anal. Calcd for C18H17O2N: C, 77.39; H, 6.13; N, 5.01. Found: C, 77.36; H, 6.00; N,
4.93.
1
19: yield 15%, mp 128 °C; IR (CH2Cl2): 1740 cm-1; H NMR (CDCl3): 7.35-7.23 (7H, m), 6.77 (d, 2H),
5.59 (v, d, J = 7.23, 1.20 Hz),3.74 (s, 3H), 2.07 d, 7.35 Hz, 3H); 13C NMR (CDCl3) : 162.0; 156.6, 142.1,
138.7; 132.0, 128.9, 128.4, 126.5, 126.2, 118.1, 114.3, 62.7, 55.4, 14.6; CIMS (CH4, reagent gas) m/z:
280 (M+H); Anal. Calcd for C18Hl7O2N: C, 77.39, H, 6.13; N, 5.01 Found: C, 77.16; 11, 6.01; N, 4.83.
ACKNOWLEDGEMENTS
BKB gratefully acknowledges the funding support from the NIH-SCORE (Grant # 2S06M008038-37) for
this work. AKB thanks Stevens Institute of Technology.
REFERENCES AND NOTES
1.
(a) R. R. Schmidt, Angew. Chem., 1986, 98, 213. (b) K. Toshima and K. Tatsuta, Chem. Rev., 1993,
93, 1503.
2.
3.
4.
R. J. Ferrier and N. Prasad, J. Chem. Soc., Chem. Commun., 1969, 579.
J. C. Lopez, A. M. Gomez, S. Valverde, and B. Fraser-Reid, J. Org. Chem., 1995, 60, 3851.
(a) G. Descotes and J. C. Martin, Carbohydr. Res., 1979, 68, 33. (b) P. Bhate, D. Horton, and W.
Priebe, Carbohydr. Res., 1985, 144, 331.
5.
6.
K. Toshima, T. Ishizuka, G. Matsuo, and M. Nakata, Synlett, 1995, 306.
(a) B. K. Banik, M. S. Manhas, and A. K. Bose, J. Org. Chem., 1994, 59, 4714. (b) B. Yu and Z.
Yang, Tetrahedron Lett., 2000, 41, 2961.
7.
8.
B. K. Banik, S. Samajdar, I. Banik, O. Zegrocka, and F. F. Becker, Heterocycles, 2001, 55, 227.
(a) B. K. Banik, D. Adler, P. Nguyen, and N. Srivastava, Heterocycles, 2003, 44, 101. (b) B. K.
Banik, I. Banik, M. Renteria, and S. Dasgupta, Tetrahedron Lett., 2005, 46, 2643.
(a) B. K. Banik, M. S. Manhas, and A. K. Bose, J. Org. Chem., 1994, 59, 4714. (b) B. K. Banik, M.
S. Manhas, and A. K. Bose, Tetrahedron Lett., 1997, 38, 5077. (c) S. Samajdar, M. K. Basu, F. F.
Becker, and B. K. Banik, Tetrahedron Lett., 2001, 42, 4425. (d) M. K. Basu, S. Samajdar, F. F.
Becker, and B. K. Banik, Synlett, 2001, 519. (e) B. K. Banik, S. Samajdar, and I. Banik, J. Org.
Chem., 2004, 69, 213. (f) B. K. Banik, M. Chapa, J. Marquez, and M. Cardona, Tetrahedron Lett.,
2005, 46, 2341. (g) B. K. Banik, M. Fernandez, and C. Alvarez, Tetrahedron Lett., 2005, 46, 2479.
9.
10. (a) B. K. Banik and F. F. Becker, Tetrahedron Lett., 2000, 41, 6551. (b) I. Banik, F. F. Becker, and
B. K. Banik, J. Med. Chem., 2003, 46, 12. (c) B. K. Banik, F. F. Becker, and I. Banik, Bioorg. Med.
Chem., 2004, 12, 2523. (d) B. K. Banik, I. Banik, and F. F. Becker, Bioorg. Med. Chem., 2005, 13,
3611.

2454
HETEROCYCLES, Vol. 78, No. 10, 2009
11. (a) T. N. Salzmann, R. W. Ratcliffe, and B. G. Christensen, J. Am. Chem. Soc., 1980, 102, 6161. (b)
S. Hanessian, D. Desilets, and Y. L. Bennani, J. Org. Chem., 1990, 55, 3098.
12. (a) T. Nagahara and T. Kametani, Heterocycles, 1987, 25, 729. (b) T. Kametani, K. Fukumoto, and
M. Ihara, Heterocycles, 1982, 17, 463.
13. (a) F. DiNinno, T. R. Beattie, and B. G. Christensen, J. Org. Chem., 1977, 42, 2960. (b) F. A.
Bouffard and B. G. Christensen, J. Org. Chem., 1981, 46, 2208.
14. T. Kametani, T. Nagahara, and T. Honda, J. Org. Chem., 1985, 50, 2327.
15. E. J. Ariens, In Stereochemistry and Biological Activity of Drugs, Blackwell Scientific Publishers:
Oxford, 1983. For a related example, see: B. K. Banik, Ed.; -Lactams: Synthesis, Stereochemistry,
Synthons and Biological Evaluation. Curr. Med. Chem., Bentham Science Publishers Ltd., 2004.
Volume 11.
16. G. I. Georg, J. Kant, and H. S. Gill J. Am. Chem. Soc., 1987, 109, 1129. For our studies on this
topic including resolution, see: B. K. Banik, O. Zegrocka, M. S. Manhas, and A. K. Bose,
Heterocycles, 1997, 46, 173.
17. S. Rajagopal and A. F. Spatola, J. Org. Chem., 1995, 60, 1347.
18. A. K. Bose, M. S. Manhas, S. N. Ganguly, A. H. Sharma, and B. K. Banik, Synthesis, 2002, 1578.
19. B. K. Banik, K. J. Barakat, D. R. Wagle, M. S. Manhas, and A. K. Bose, J. Org. Chem., 1999.
20. I. Ojima, Acc. Chem. Res., 1995, 28, 383.
21. R. U. Lemieux and J. D. Stevens, Can. J. Chem., 1965, 43, 2059.
22. (a) I. Lundt and C. Pederson, Acta Chem. Scand., 1970, 24, 240. (b) G. Descotes and J. C. Martin,
Carbohydr. Res., 1977, 56, 1680. (c) G. Grynkiewicz, W. Priebe, and A. Zamojski, Carbohydr. Res.,
1979, 68, 33. (d) A. F. Hadfield and A. C. Sartorelli, Carbohydr. Res., 1982, 101, 240. (e) J.
Herscovici, K. Muleka, L. Biumaiza, and K. Antonakis, J. Chem. Soc., Perkin Trans 1, 1990, 1995.
(f) C. B. Borer and D. W. Balogh, Tetrahedron Lett., 1991, 32, 1039.
23. (a) J. Thiem, H. Karl, and J. Schwentner, Synthesis, 1978, 696. (b) J. C. Lopez and B. Fraser-Reid,
J. Chem. Soc., Chem. Commun., 1992, 94.
24. Chiral praseodymium trans-3-(heptafluropropylhydroxymethylene)camphorate was used as shift
reagent in the NMR study.
25. D. B. R. Johnston, S. M. Schmitt, F. A. Bouffard, and B. G. Christensen, J. Am. Chem. Soc., 1978,
100, 313.
