Electronic Communication in Dinuclear C4-Bridged Tungsten
Complexes
Sergey N. Semenov, Olivier Blacque, Thomas Fox, Koushik Venkatesan, and
Heinz Berke*
Department of Inorganic Chemistry, UniVersity of Zu¨rich, Winterthurerstrasse 190,
8057 Zu¨rich, Switzerland
Received November 17, 2009; E-mail: hberke@aci.uzh.ch

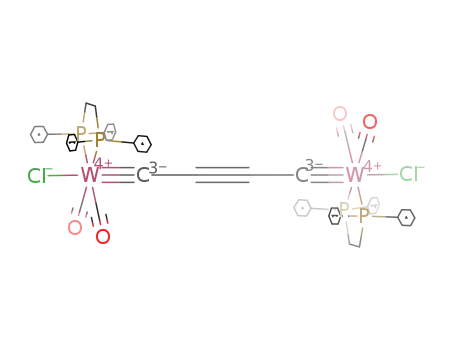

Abstract: The dinuclear tungsten carbyne [X(CO)2(dppe)WC4W(dppe)(CO)2X] (dppe ) 1,2-bis(diphe-
nylphosphino)ethane; X ) I (3), Cl (7)) complexes were prepared from the bisacetylide precursor
Li2[(CO)3(dppe)WC4W(CO)3(dppe)] (2) via oxidative replacement of one CO group at each tungsten center
with a halide substituent. The iodide ligand in 3 could be substituted with isothiocyanate or triflate resulting
in [X(CO)2(dppe)WC4W(dppe)(CO)2X] complexes (X ) NCS (8), OTf (9)). Substitution of two and all four
CO ligands in 3 was achieved via subsequent photolytic or thermal activation with dppe. The “half-substituted”
complex [I(CO)2(dppe)WC4W(dppe)2I] (11) allows reversible one-electron oxidation which results in the
monocationic species [I(CO)2(dppe)WC4W(dppe)2I][PF6] (11[PF6]). The “all-dppe substituted” complex
[I(dppe)2WC4W(dppe)2I] (10) possesses two reversible redox states leading to the stable monocationic
[I(dppe)2WC4W(dppe)2I][PF6] (10[PF6]) and the dicationic [I(dppe)2WC4W(dppe)2I][PF6]2 (10[PF6]2) com-
pounds. The complexes 2, 3, [W(CO)3(dppe)(CtCPh)(I)] (4), [X(CO)2(dppe)WtC-C(Me)dC(Me)-
CtW(dppe)(CO)2X] (X ) I (5), Cl (6)), 7, 8, 10, 11 and 11[PF6] were characterized by single crystal X-ray
diffraction. The electronic properties of complexes 10, 10[PF6], 10[PF6]2, as well as of compounds 11 and
11[PF6], were investigated using cyclic voltammetry (CV), EPR, IR, near-IR spectroscopy, and magnetization
measurements. These studies showed that the [W]tC-CtC-Ct[W] canonical form of the bridged system
with strong tungsten-carbon interaction contributes significantly to the electronic coupling in the mixed-
valent species 10[PF6] (comproportionation constant Kc ) 7.5 × 104) and to the strong antiferromagnetic
coupling in the dicationic complex 10[PF6]2 (exchange integral J ) -167 cm-1). In addition, the rate for
electron transfer between the tungsten centers in 10[PF6] was evaluated by near-IR and IR studies.
Scheme 1. Canonical Forms of a C4 Unit in [M]C4[M] Structures
Introduction
Organometallic dinuclear metal complexes of the type [Ln-
MCxMLn] (M ) metal; L ) ligand) are thought to have great
potential for their application as devices in molecular electronics.
Among other aspects these abilities are based on their basic
function of “single-electron” conductance across the linear,
unsaturated carbon bridge and on their redox-active end groups
lending electrons for through-bridge travel. Such type of
compounds in particular can potentially function as a molecular
wire. Molecular wires constitute the basis for the construction
of field-effect transistors and diodes. In addition to this their
mixed valent states are exceptional models for electron transfer
studies.1-5 The complexes with n ) 4 are the most ubiquitous
of these series of complexes and have been reported for Mn,6
Fe,7,8 Re,9 Ru,10,11 Pt,12 W and Mo centers.13,14 The electronics
and structures of the C4 chain correspond for most complexes
to the acetylenic butadiynediyl canonical form, but for rarer other
cases they correspond to the cumulenic butatrienebisylidene
form (Scheme 1).
propensity for polarization.8 These complexes therefore often
show high degrees of electron delocalization resulting in efficient
stabilization of mixed-valence species. Various such complexes
possess low thermal and air stability, which would limit their
application in molecular electronics and hinder also attempts
for further buildup of oligonuclears based on such systems.
The most common and well-documented end groups are the
