Inorg. Chem. 2010, 49, 2859–2871 2859
DOI: 10.1021/ic902399r
Hybrid Scorpionate/Cyclopentadienyl Magnesium and Zinc Complexes:
Synthesis, Coordination Chemistry, and Ring-Opening Polymerization
Studies on Cyclic Esters
†
,†
†,‡
†
‡
ꢀ
ꢀ
ꢀ
ꢀ
Andres Garces, Luis F. Sanchez-Barba,* Carlos Alonso-Moreno, Mariano Fajardo, Juan Fernandez-Baeza,
,‡
‡
‡
‡
ꢀ
ꢀ
´
´
´
Antonio Otero,* Agustın Lara-Sanchez, Isabel Lopez-Solera, and Ana Marıa Rodrıguez
†
´
ꢀ
´
ꢀ
Departamento de Quımica Inorganica y Analıtica, Universidad Rey Juan Carlos, Mostoles-28933-Madrid,
‡
´
ꢀ
ꢀ
´
Spain, and Departamento de Quımica Inorganica, Organica y Bioquımica, Universidad de Castilla-La Mancha,
Campus Universitario, 13071-Ciudad Real, Spain
Received December 4, 2009
The reaction of the hybrid scorpionate/cyclopentadienyl lithium salt [Li(bpzcp)(THF)] [bpzcp = 2,2-bis(3,5-dimethyl-
pyrazol-1-yl)-1,1-diphenylethylcyclopentadienyl] with 1 equiv of RMgCl proceeds cleanly to give very high yields of the
corresponding monoalkyl κ2-NN-η5-C5H4 magnesium complexes [Mg(R)(κ2-η5-bpzcp)] (R = Me 1, Et 2, nBu 3, tBu 4,
CH2SiMe3 5, CH2Ph 6). Hydrolysis of the hybrid lithium salt [Li(bpzcp)(THF)] with NH4Cl/H2O in ether cleanly affords the
two previously described regioisomers: (bpzcpH) 1-[2,2-bis(3,5-dimethylpyrazol-1-yl)-1,1-diphenylethyl]-1,3-cyclopen-
tadiene (a) and 2-[2,2-bis(3,5-dimethylpyrazol-1-yl)-1,1-diphenylethyl]-1,3-cyclopentadiene (b). Subsequent reaction
of the bpzcpH hybrid ligand with ZnR2 quantitatively yields the monoalkyl κ2-NN-η1(π)-C5H4 zinc complexes [Zn(R)-
{κ2-η1(π)-bpzcp}] (R = Me 7, Et 8, tBu 9, CH2SiMe3 10). Additionally, magnesium alkyls 1, 2, 4, and 5 can act as
excellent cyclopentadienyl and alkyl transfers to the zinc metal center and yield zinc alkyls 7-10 in good yields. The

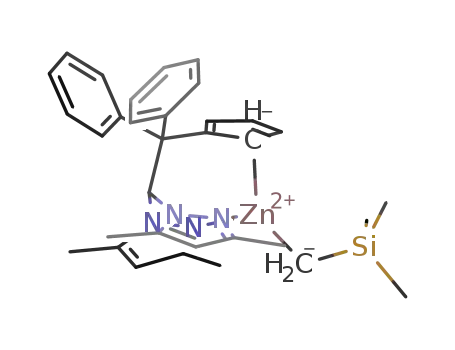

single-crystal X-raystructuresofthe derivatives4, 5, 7, and 10confirma 4-coordinativestructure with the metal centerin a
distorted tetrahedral geometry. Interestingly, whereas alkyl magnesium derivatives 4 and 5 present a η5 coordination
mode for the cyclopentadienyl fragment, zinc derivatives 7 and 10 feature a peripheral η1(π) arrangement in the solid
state. Furthermore, the reaction of the hybrid lithium salt [Li(bpzcp)(THF)] with 1 equiv of ZnCl2 in tetrahydrofuran (THF)
affords very high yields of the chloride complex [ZnCl{κ2-η1(π)-bpzcp}] (11). Compound 11 was used as a convenient
starting material for the synthesis of the aromatic amide zinc compound [Zn(NH-4-MeC6H4){κ2-η1(π)-bpzcp}] (12), by
reactionwith the correspondingaromatic primary amidelithiumsalt. Alternatively, aliphaticamideand alkoxide derivatives
were only accessible by protonolysis of the bis(amide) complexes [M{N(SiMe3)2}2] (M = Mg, Zn) and the mixed ligand
complex [EtZnOAr)] with the hybrid ligand bpzcpH to afford [Zn(R){κ2-η1(π)-bpzcp}] (R = N(SiMe3)2 13, R = 2,4,6-
Me3C6H2O 14) and [Mg{N(SiMe3)2}(κ2-η5-bpzcp)] (15). Finally, alkyl and alkoxide-containing complexes1-10 and 14
can act as highly effective single-component living initiators for the ring-opening polymerization of ε-caprolactone and
lactides over a wide range of temperatures. ε-Caprolactone is polymerized within minutes to give high molecular weight
polymers with medium-broad polydispersities (Mn > 105, Mw/Mn = 1.45). Lactide afforded poly(lactide) materials with
medium molecular weights and polydispersities as narrow as Mw/Mn = 1.02. Additionally, polymerization of L-lactide
occurred without racemization in the propagation process and offered highly crystalline, isotactic poly(L-lactides) with very
high melting temperatures (Tm = 165 °C). Microstructural analysis of poly(rac-lactide) by 1H NMR spectroscopy revealed
that propagations occur without appreciable levels of stereoselectivity. Polymer end group analysis showed that the
polymerization process is initiated by alkyl transfer to the monomer.
Introduction
and improvement of new catalytic processes is crucial in the
search for attractive alternatives to the bioresistant poly-
olefins.1 Lactide, the cyclic dimer of lactic acid, is an in-
expensive and annually renewable natural feedstock2 that is a
byproduct of biomass fermentation (e.g., beets and corn).
In the present era of depleting fossil-based feedstocks
and increasing environmental awareness, the exploration
*To whom correspondence should be addressed. E-mail: luisfernando.
sanchezbarba@urjc.es (L.F.S.-B.),antonio.otero@uclm.es (A.O.).
(1) (a) Allen, S. D.; Byrne, C. M.; Coates, G. W. Feedstocks for the Future;
ACS Symposium Series 921; American Chemical Society: Washington, DC,
2006; Vol. 9, pp 116-129. (b) Goodstein, D. Out of Gas: The End of the Age of
Oil; W. W. Norton & Company: New York, 2004.
(2) (a) Coates, G. W.; Hillmyer, M. A. Macromolecules 2009, 42, 7987–
7989. (b) Biela, T.; Kowalski, A.; Libiszowski, J.; Duda, A.; Penczek, S.
Macromol. Symp. 2006, 47–55.
r
2010 American Chemical Society
Published on Web 02/10/2010
pubs.acs.org/IC

ꢀ
Garces et al.
2860 Inorganic Chemistry, Vol. 49, No. 6, 2010
Ring-opening polymerization (ROP) of lactide2a,3,4 yields
poly(lactides) (PLAs), an important emerging bulk com-
modity material5,6 given its utility in environmentally friendly
and recyclable thermoplastics, which have the added bene-
fit of biodegradability.7,8 Additionally, the biocompatible
nature9 of lactide systems with living tissue and the non-
toxicity of the bioassimilable PLAs has attracted significant
attention in biomedical and pharmaceutical applications, for
example, in resorbable surgical sutures,9,10 drug delivery
vehicles,10 and artificial tissue matrixes.11 These medicinal
applications have promoted the use of biocompatible metals
in the design of new catalysts, such as magnesium12 and
zinc13,14 systems. Furthermore, zinc and magnesium-based
catalysts have been extensively employed in ROP and are
among the most efficient initiators used to date for the well-
controlled polymerization of cyclic esters such as ε-capro-
lactone and lactides.3,4,15-17
In this context, our research group has recently reported
amidinate-based heteroscorpionate ligands,18 related to the
bis(pyrazol-1-yl)methane system,19 with different levels of
steric congestion as convenient ancillary ligands for the
synthesis of well-defined alkyl magnesium20 and alkyl21-
amide22 zinc complexes of the type [M(R)(κ3-NNN)] (M =
Mg, Zn; R = alkyl, amide). Moreover, heteroscorpionate
alkyl magnesium complexes proved to be highly effective
single-component living initiators20 for the well-controlled
ROP of ε-caprolactone and lactides over a wide range of
temperatures. Additionally, the more sterically hindered
alkyl zinc initiators21 offered good control of the polymer
microstructures and promoted the formation of a hetero-
tactic bias in the polymerization of rac-lactide. Furthermore,
heteroscorpionate amide zinc22 derivatives also behaved as
efficient single-component initiators for the ROP of ε-capro-
lactone at room temperature.
The possibility of designing alternative magnesium and
zinc initiators for efficient ROP stimulated our interest in a
new scorpionate/cyclopentadienyl hybrid ligand of the type
NNCp, derived from the bis(3,5-dimethylpyrazol-1-yl)-
methane, to compare their synthetic accessibility, structural
arrangements, and catalytic behavior in the ROP of these
polar monomers with the previously reported amidinate-
based magnesium20 and zinc21,22 analogues. This attrac-
tive scaffold, which was previously prepared in our group
in the form of the lithium salt,23,24b has proven to act as an
excellent ancillary ligand for the synthesis of discrete tita-
nium24 and zirconium24 complexes and in efficient scan-
dium and yttrium initiators for the ROP of cyclic esters25a
