Boronate derivatives of functionally diverse catechols: Stability studies

Article abstract of DOI:10.3390/molecules15042347

Benzeneboronate of catecholic carboxyl methyl esters, N-acetyldopamine, coumarin and catechol estrogens were prepared as crystalline derivatives in high yield. Related catechol compounds with extra polar functional group(s) (OH, NH₂) do not for

Full text of DOI:10.3390/molecules15042347

Molecules 2010, 15, 2347-2356; doi:10.3390/molecules15042347
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Boronate Derivatives of Functionally Diverse Catechols:
Stability Studies
Kamal Aziz Ketuly * and A. Hamid A. Hadi
Chemistry Department, Faculty of Science, University Malaya, 50603 Kuala Lumpur, Malaysia;
E-Mail: ahamid@um.edu.my (A.H.A.H.)
* Author to whom correspondence should be addressed; E-Mail: kketuly@um.edu.my;
Tel.: 006-037-9674-108, Fax: 006-037-9674-193.
Received: 27 January 2010; in revised form: 25 February 2010 / Accepted: 22 March 2010 /
Published: 31 March 2010
Abstract: Benzeneboronate of catecholic carboxyl methyl esters, N-acetyldopamine,
coumarin and catechol estrogens were prepared as crystalline derivatives in high yield.
Related catechol compounds with extra polar functional group(s) (OH, NH2) do not form
or only partially form unstable cyclic boronate derivatives.
Keywords: cyclic benzeneboronate; catechols; boronic acids
1. Introduction
The selective reactions of boronic acids with compounds containing two or more suitably disposed
proximal polar functional groups (OH, NH, SH, COOH) can afford cyclic derivatives of reduced
polarity, of value in analytical characterization and in separation of polyfunctional compounds [1,2].
Crystalline benzeneboronates from the reactions of benzeneboronic acid with polyols [3], sugars [4,5],
other carbohydrates [6–8], macrolide aglycones [9] and steroids [10] have been isolated and
characterized. Depending on the substrates, the condensations could take place in aqueous and
aqueous-methanol solutions [3], organic solventc [6], reactions by fusion techniques, or by reaction in
anhydrous solvents followed by azeotropic removal of water [5]. Boronate derivatives have a wide
range of applications in: separation of isomeric pairs of cis and trans diols [11] and as extracting
probes to capture and enrich cis-diol-containing biomolecules [12]; The differences in the solubility of
the boronates of isomeric carbohydrates greatly facilitate their separation by fractional re-

Molecules 2010, 15
2348
crystallization [13]; Boronate affinity chromatography (BAC) is an important tool for specific capture
and separation of cis-diol-containing compounds such as glycoproteins, RNA and carbohydrates[14].
Systematical investigation on the retention mechanism revealed that multiple intermolecular interactions
occur between the analytes and the boronate affinity monolith, including boronate affinity, reversed-
phase, cation-exchange and hydrogen bonding interactions, depending on the conditions used [15]; A
variety of cyclic boronates that are stable to hydrolysis has been studied by reversed-phase high
pressure liquid chromatography (HPLC) [16]. Gas chromatography-mass spectroscopy (GC-MS), of
cyclic boronates is valuable and thus relatively highly volatile derivatives of a great variety of the less
volatile polar multifunctional compounds, including many of biological importance [17–20], may be
analyzed. Structural information which can be acquired for specific ions, associated with the MS
fragmentation of the new functionality, the identification of these, and of other ions containing boron
was facilitated by the characteristic isotope ratio of boron (B11:B10, 4:1) [21]; Aryl and heteroaryl
boronates are very important intermediates in organic synthesis that have been deployed in many useful
transformations [22–24] and for the determination of absolute configuration [25]. The rigidity of the
cyclic boronate derivatives of corresponding 1,2- or 1,3-diols, requiring relatively fixed conformations,
is used in nuclear magnetic resonance (NMR) studies of carbohydrate concentrations and the position of
their functional groups [26]. The B11-NMR resonance of boron esters is a broad line and its spectra
allow distinction between five, six, seven-member cyclic and acyclic boronates [27–29]. Suitable
boronate single crystals are useful for X-ray diffraction to establish the conformation and the absolute
configuration of the molecule in the crystalline state [22,30–31]. Boronates are used as catalysts, in the
complexes of areneboronic acids with carbohydrates, formed in aqueous solution in a manner similar
to that of borate [32]. The use of boron-containing compounds in the treatment of cancer has revolved
about the unique nuclear property of the non-radioactive B10 isotope with a high cross section to
absorb thermal neutrons with the liberation of much energy selectively destroying or weakening
cancerous cells [33].
In the present work we focused on the formation and stabilities of cyclic boronate esters of various
types of biologically important catechols. Several crystalline cyclic boronate esters of catechols: 3,4-
dihydroxy methyl esters 1–4; N-acetyldopamine (5), estra-1,3,5(10)-triene-3,4-diol (6) and 4-methyl-
7,8-dihydroxycoumarin (7) were obtained (Table 1), Scheme 1.
Scheme 1. Typical reaction of benzeneboronic acid with catechols.

Molecules 2010, 15
2349
Table 1. Preparative benzeneboronate derivative formation from catechol type compounds.
Data corresponding benzeneboronates
Analysis
Amount
recovered
mg a
MS
Amount used Benzeneboronic acid
Compound No
Parent compound
mg
mg
Mol Formula
(Mol. Wt)
m.p. °C
M+ (%) b
(mmol)
(mmol)
Found
Calc.
(% crude
yield)
1
2
3
4
5
831
629.5
(5.15)
1050
C14H11BO4
(254)
C, 65.90
H, 4.23
B, 4.78
C, 67.20
H, 4.95
B, 3.8
C, 66.14
H, 4.33
B, 4.3
254
Methyl 3,4-dihydroxybenzoate c
(4.50)
(84)
109.5-110.5d
82-83 e
(100)
300
203
400
C15H11BO4
(268)
C, 67.16
H, 4.85
B, 4.1
268
Methyl -3,4-dihydroxy-
phenylacetate
(1.65)
(1.67)
(90.4)
(97)
500
317
680
C16H15BO4
(282)
C, 68.24
H, 5.38
B, 3.83
C, 68.7
H, 4.35
B, 4.01
C, 68.0
H, 5.90
B, 4.11
N, 5.06
C, 80.42
H, 7.34
C, 68.09
H, 5.32
B, 3.9
282
Methyl 3,4-dihydroxydihydro-
cinnamate
(2.55)
(2.6)
(95)
61-62 f
(100)
263
170
349
C16H13BO4
(280)
C, 68.57
H, 4.64
B, 4.0
280
Methyl 3,4-dihydroxycinnamate
(1.36)
(1.39)
(92)
131-133 g
159-160 h
(100)
977
612
1405
C16H16BNO3
(281)
C, 68.33
H, 5.69
B, 3.90
N, 4.98
C, 80.45 j
H, 7.54
281
(6)
(5.01)
(5.02)
(99.8)
N-Acetyldopamine
6
7
22
10
28
(96)
370
176-177 j
191-193 l
C24H27BO2
(358)
358
(100)
278
Estra-1,3,5(10)-triene-3,4-dioli
(0.08)
260
(0.08)
165
C16H11BO4
(278)
l
4-Methyl-7,8-dihydroxy-
coumarin k
(1.35)
(1.35)
(98.4)
(100)

Molecules 2010, 15
2350
Notes:
•
a GLC analysis (GC column as in b) of these crude products showed in each case a single peak corresponding to their benzeneboronate derivatives.
Traces of excess benzeneboronic acid (eluted as triphenylboroxine) were also observed.
•
b Mass spectral data were recorded at electron energy 20 eV, using an LKB 9000 GC-MS instrument, fitted with a glass column (2 m × 4 mm, i.d.)
of 1% OV-1 on Gas Chrom Q (100–120 mesh). The flash heater was at 250 °C, the molecular separator at 270 °C, and ion source at 265 °C. The
helium carrier gas flow rate was 30 mL/min. The trap current was 60 mA, filament current 4 A and accelerating voltage 3.5 KV. In Table 1 the
abundances for the ion are shown in brackets ( ).
•
c The isomeric methyl 2,3-dihydroxybenzoate did not react fully with benzeneboronic acid, as judged by GLC. On recrystallisation of the crude
reaction mixture, from acetone-hexane; the recovered material was largely benzeneboronic acid. Vacuum sublimation of the crude product, also
failed to yield any cyclic ester.
•
•
•
•
•
•
d Recrystallisation from acetone-hexane; m.p. 107–108.5 °C; then vacuum sublimation: yield a middle fraction which was collected.
e Vacuum sublimation at 55 °C/0.01 torr.
f Vacuum sublimation at 55 °C/0.01 torr, yielded fine white crystals.
g Recrystallisation from acetone-hexane; m.p. 125–127 °C; then followed by vacuum sublimation; a middle fraction was collected.
h Vacuum sublimation at 130 °C/torr; m.p. 157–160 °C, a second sublimation yielded fine white crystals.
i The isomeric 2-hydroxy-17-deoxoestrone benzeneboronate vacuum sublimation at 140 °C/0.01 torr; yielded a viscous gum, which failed to
crystallize from acetone, EtOAc or hexane. Trituration in hexane at low temperature yielded a semi-solid product, which crystallized on standing
m.p. 244–247 °C. GC showed traces of benzeneboronic acid. GC-MS, M+358 (100%), a satisfactory micro-analysis or HRMS was not adequate for
this compound. This is due to partial hydrolysis on storage. The 1H-NMR showed satisfactory results.
•
•
•
j Recrystallisation from acetone; then vacuum sublimation at 160 °C/0.01 torr. The sublimed material was recrystallised twice from acetone. High
resolution MS, C24H27BO2, requires 358.2810; found 358.2104.
k The isomeric 4-methyl-6,7-dihydroxycoumarin benzeneboronate was formed and showed GC-MS peak with M+ 278 (100%) but attempts to
isolate pure crystals were unsuccessful.
l Two recrystallisation from CHCl3-hexane, then vacuum sublimation at 140 °C/0.01 torr, gave a middle fraction which was recrystallised from
EtOAc-hexane. GLC analysis for this product showed the presence of ca. 0.1% of benzeneboronic acid: the micro-analysis was not satisfactory for
carbon. High resolution MS, C16H11BO4, requires 278.0672; found 278.0750.

Molecules 2010, 15
2351
1

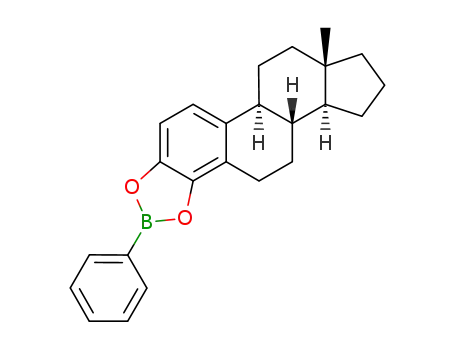

Figure 2. H-NMR, characteristic proton chemical shifts (=ppm), of the catechol-type
benzeneboronate derivatives. Data measured in CDCl3 + 0.4% tetramethylsilane, (400 MHz). *
2. Results and Discussion
The compounds in Figure 2, readily prepared under neutral conditions in EtOAc at 70 °C, resulted
from the spontaneous reactions of 0.1 molar excess of benzeboronic acid with the catechol group
compounds 1–7 in (Table 1).
The recovered crude yields of the cyclic boronates were high (84–99.8%). The esters were stable in
anhydrous non-hydroxylic organic solvents (e.g., EtOAc, pyridine, hexane, toluene) and towards aerial
oxidation and atmospheric moisture to some extent and remained stable under storage. However, they
were unstable on thin-layer chromatography (TLC) or on 'dry column' silica gel chromatography,

Molecules 2010, 15
2352
undergoing disassociation with subsequent partial oxidation. This resulted in hydrolysis of the
boronates to their starting materials (the catechol + boronic acid) followed by the aerial oxidation of
the catechols to their quinine forms.
The gas chromatography-mass spectrometry (GC-MS) of the benezeneboronates of compounds 1–7
were studied. These results (Table 1) showed that the molecular ions are the base peaks for all the
boronate esters, except for compounds (2, 97%) and (5, 6%), [34]. Many of the principal ions in the
mass spectra retain boron in their structure. The high resolution mass spectral (HRMS) direct probe for
the benzeneboronates of compounds 6 and 7, were measured to confirm their molecular formula (Table 1).
The mass spectral fragmentation pattern of the isomeric pairs: 4-methyl-6,7- (and -7,8-)-
dihydroxycoumarin and 2- and 4-hydroxy-17-deoxoestrone (estra-1,3,5(10)-triene-3,4-diol), showed
no significant differences; but GC succeeded in separating these isomers. In our GC and GC-MS
studies of the cyclic boronates, of all the catecholic compounds mentioned in this paper, it has been
established that their ease of displacement by acetylating or trimethylsilylating (TMS) reagents allows
the application of sequential derivatization procedures. These are the useful features for the analysis of
biologically important catechols, which usually exist in low concentrations.
The Infrared spectra of the cyclic boronate derivatives of compounds 1–7 exhibited two
characteristic bands, for B-O and Ph-O absorption in the regions 1,325-1,380 cm−1 and
1,390-1,455 cm−1, respectively. The other bands were characteristic for the remaining functional
groups of the listed compounds [5,8,35].
The cyclic boronate derivatives of the compounds listed in Figure 2 showed characteristic 1H-NMR
chemical shifts for the five aromatic protons of the phenyl group bonded directly to the boron
atoms [36–38]. The two protons ortho to the boron atom are deshielded, and resonated at δ 8.06–8.87;
the two meta protons resonated at higher field, in the region δ 7.47–7.69; whilst the single para proton
resonated at δ. 6.55–7.96. The corresponding protons in the catechol boronate unit appeared in the δ
6.72–7.97 region [38–41], as shown in Figure 2.
The compounds methyl 2,3-dihydroxybenzoate; 2,3-dihydroxybenzaldehyde; 2,3,4-trihydroxy-
acetophenone; dopamine; 3-(3,4-dihydroxyphenyl)-L-alanine methyl ester; α-propyldopacetamide; 3,4-
dihydroxy-(isopropylamino)acetophenone; salsolinol (1-methyl-6,7-dihydroxy-1,2,3,4-tetrahydro-
isoquinoline); 3,4-dihydroxynomifensine; apomorphine; N-n-propylnorapomorphine and 2-hydroxy-
estradiol; all formed the cyclic boronate esters, as judged by GC-MS, but these products were not
stable and could not be isolated or purified, due to hydrolysis followed by aerial oxidation at ambient
temperature. 3,4-Dihydroxy-α-hydroxyphenylacetic acid, tetrahydroxyterephthalic acid diethyl ester,
brazilin and gossypol did not yield cyclic boronate derivatives either on an analytical or preparative
scale. For some of these compounds, the failure to form stable cyclic boronates may reflect either
additional polar functionality or may be due to a reduction in reactivity arising from the strong inter-
molecular hydrogen bonding to the catechol hydroxyl groups. Dopamine-3,4-benzeneboronate proved
to be highly unstable in air and decomposed to a dark oil. This compound when acetylated yields
dopamine triacetate and not compound 13. The benzeneboronate of the isomeric pairs: 2-hydroxy-17-
deoxoestrone and 4-methyl-6,7-dihydroxycoumarin were more susceptible to partial hydrolysis on
storage than their isomers 14 and 15 respectively. The benzeneboronates of the compounds in (Table
1) are fine crystals and were not suitable for X-ray diffraction structural analysis.

Molecules 2010, 15
2353
3. Experimental
General
The reagents were obtained from British Drugs House (BDH), except benzeneboronic acid which
was from Koch-Light Labs, Ltd. The substrates were obtained from Fluka, BDH, Sigma Chemicals
Co., Aldrich Chem. Co., Koch-Light Labs, Ltd. and Makor and the rest were a gift from Professor
C.J.W. Brooks (Chemistry Department - Glasgow University). The Infrared (IR) spectra were
measured on a Perkin-Elmer Grating Infra Red Spectrophotometer Model 257. The Nuclear Magnetic
Resonance (NMR) instrument used was JEOL JNM-LA400, FT NMR System. Spectra were recorded
in CDCl3 containing 0.4% tetramethylsilane as internal standard. The mass spectra (direct insertion
probe) were measured on a VG MICROMASS 2S8 instrument. Melting points (m.p.) were recorded on
a Kofler block.
Methyl esters of acids containing catechol groups 1–4: The substrates were refluxed in methanolic
HCl [prepared by cautious addition of acetyl chloride (10 mL) to dry methanol (60 mL)] for 4 h,
monitored by TLC, and the products were recovered in the normal way.
N-Acetyldopamine (5): This compound was prepared from dopamine by a modification of the
procedure of [40]. Dopamine hydrobromide (2.051 g, 8.8 mmol) was dissolved in water (4 mL) and
ethyl acetate (20 mL) was added to this solution. A solution of acetic anhydride (0.895 mL, 9.5 mmol)
in methanol (20 mL) was added at room temperature. The crude product (1.670 g, 97.7%) was
recovered with high yield. This was purified firstly through a short column silica gel and then by
vacuum sublimation and a colorless gummy oil was recovered (MS, M+ 195). This product could not
be crystallized from different solvent systems and it was sensitive to aerial oxidation. The
corresponding benzeneboronate is crystalline, m.p. 159–160 °C (Table 1).
3,4-Dihydroxyestra-1,3,5(10)-triene (6): Firstly, 3-hydroxyestra-1,3,5(10)-triene was prepared from
estrone according to a procedure by [42] and this was followed by the procedure of [43] to obtain the
isomers: 2,3- and 3,4-dihydroxyestra-1,3,5(10)-triene.
Typical procedure for the preparation of benzeneboronate derivatives: Methyl 3,4-dihydroxy-
dihydrocinnamate 3,4-benzeneboronate (11): Methyl 3,4-dihydroxydihydrocinnamate (3, 0.5 g,
2.5 mmol) was dissolved in EtOAc (5 mL); benzeneboronic acid (0.317 g, 2.6 mmol) in EtOAc (2 mL)
was added, and the reaction mixture heated for 20 min at 70 °C. After removal of the solvent, the
gummy resulting product was dissolved in ether. Evaporation of the solvent with nitrogen yielded a
crystalline material (680 mg, 95%), m.p. 60–62 °C. GLC showed a single well-defined peak. Vacuum
sublimation yielded fine white crystals, m.p. 61–62 °C. For analytical data and mass spectrometer
(MS) are as in Table 1.
4. Conclusions
Stable cyclic benzeneboronate esters of biologically important catechols were formed on a micro-
analytical scale and in preparative scale as crystalline products. Some of the catechols with extra polar

Molecules 2010, 15
2354
functional group(s) (OH, NH2) did form cyclic boronates but these were not stable, while others failed
to form any cyclic derivatives.
Acknowledgements
Thanks are due to C.J.W. Brooks for providing some of the substrates (Table 1), to John Cole for
running the GC-MS and A.L. Ritchie for carrying out the high-resolution MS at the Chemistry
Department-Glasgow University. A research scholarship from Glasgow University is greatly
acknowledged. The 400 MHz NMR spectrometer used for this project was located at the Department
of Chemistry, University of Malaya.
References
1. Denmark, S.E. Organic Reactions; John Wiley and Sons: Hoboken, NJ, USA, 2009; Volume 73.
2. Hall, D.G. Boronic Acids, Preparation and Application in Organic Synthesis and Medicine.
Wiley-VOH Verlag Gmbh & Co. KGaA: Weinheim, German, 2005.
3. Kuivila, H.G.; Keough, A.H.; Obo czenski, E.J. Areneboronates from Diols and Polyols. J. Org.
Chem. 1954, 19, 780–783.
4. Wolfrom, M.L; Solms, J. Phenylboronates of Pentoses and 6-Deoxyhexoses. J. Org. Chem. 1956,
21, 815–816.
5. Ferrier, R.J. The Interaction of Phenylboronic Acid with Hexosides. J. Chem. Soc. 1961,
2325–2330.
6. Ferrier, R.J.; Blattner, R.; Field, R.A.; Furneaux, R.H.; Gardiner, J.M.; Hoberg, J.O.; Kartha,
K.P.R.; Tilbrook, D.M.C.; Tyler, P.C.; Wightman, R.H. Separatory and Analytical Methods for
Sugars. Carbohyd. Chem. 2002, 33, 365–374.
7. Ferrier, R.J.; Prasad, D.; Rudowski, A. Boronic Acid Derivatives as Reagents in Carbohydrate
Chemistry. J. Chem. Soc. 1965, 858–863.
8. Yurkevich, A.M.; Dolodkina, I.I.; Varshavskaya, L.S.; Borodulina-shvetz, V.I.; Rudakova, I.P.;
Preobrazhenski, N.A. The Reaction of Phenylboronic acid with Nucleosides and Mononucleotides.
Tetrahedron 1969, 25, 477–484.
9. Perun, T.J.; Martin, J.R.; Egan, R.S. Cyclic Phenylboronates as Hydroxyl Protecting Groups in the
Synthesis of Monoesters of Macrolide Aglycones. J. Org. Chem. 1974, 39, 1490–1493.
10. Hungerford, N.L.; McKinney, A.R.; Stenhouse,A.M.; McLeod, M.D. Selective Manipulation of
Steroid Hydroxyl Groups with Boronate Esters: Efficient access to Antigenic C-3 linked Steroid-
Protein Conjugates and Steroid Sulfate Standards for Drug Detection. Org. Biomol. Chem. 2006,
4, 3951–3959.
11. Di Luccio, M.; Smith, B.D.; Kida, T.; Borges, C.P.; Alves, T.L.M. Separation of Fructose from a
Mixture of Sugars using supported Liquid Membranes. J. Membr. Sci. 2000, 174, 217–224.
12. Peng, D.; Liang, L.; Jiangang, H.; Zhen, L.; Hong-Yuan, C. Boronate Functionalized Magnetic
Nanoparticles and off-line Hyphenation with Capillary Electrophoresis for Specific Extraction and
Analysis of Biomolecules Containing cis-Diols. J. Chromatogr. A 2009, 1216, 7558–7563.

Molecules 2010, 15
2355
13. Yurkevich, A.M.; Kolodkina, I.I.; Varshavskaya, L.S.; Borodulina-shvetz, V.I.; Rudakova, I.P.;
Preobrazhenski, N.A. The Reaction of Phenylboronic Acid with Nucleosides and Mononucleotides.
Tetrahedron 1969, 25, 477–484.
14. Liu, X.C.; Scouten, W.H. Studies on Oriented and Reversible immobilization of Glycoprotein
using Novel Boronate Affinity Gel. J. Mol. Recognit. 1996, 9, 462–467.
15. Ren, L.; Liu, Z.; Dong, M.; Ye, M.; Zou, H. Synthesis and Characterization of a Newboronate
Affinity Monolithic Capillary for Specific Capture of cis-diol-Containing Compounds. J.
Chromatogr. A 2009, 1216, 4768–4774.
16. Gamoh, K.; Ketuly, K. A.; Cole, W.J.; Brooks, C.J.W. Chromatographic and Mass-Spectrometric
Studies of Cyclic 2-(N,N-Dimethylaminomethyl)ferroceneboronates and Related Esters. Anal. Sci.
1994, 10, 705–711.
17. Kiplinger, J.P.; Crowder, C.A.; Catherine, A.; Sorensen, D.N.; Bartmess, J.E. Gas-Phase Ion-
Molecule Chemistry of Borate and Boronate Esters J. Am. Soc. Mass Spectrom. 1994, 5, 169–176.
18. Smith, A.G.; Brooks, C.J. Gas Chromatography Chemical Ionization Mass Spectrometry of
Prostaglandin F Alpha Cyclic Boronate Derivatives. Biomed. Mass Spectrum. 1977, 4, 258–64.
19. Bullinger, D.; Fux, R.; Nicholson, G.; Plontke, S.; Belka, C.; Laufer, S.; Gleiter, C.H.;
Kammerer, B. Identification of Urinary Modified Nucleosides and Ribosylated Metabolites in
Humans Via Combined ESI-FTICR MS and ESI-IT MS Analysis. J. Am. Soc. Mass Spectrom.
2008, 19, 1500–1513.
20. Longstaff, C.; Rose, M.E. Derivatization and Mass Spectrometric Investigations of Substituted
Benzeneboronic Acids. The use of linked Scanning during Gas Chromatography Mass
Spectrometry. Org. Mass Spectrom. 1982, 17, 508–518.
21. Brooks, C.J.W.; Middleditch, B.S.; Harvey, D.J. The Mass Spectra of some Corticosteroid
Boronates. Org. Mass Specrom. 1971, 5, 1429–1453.
22. Harrisson, P.; Morris, J.; Marder, T.B.; Steel, P.G. Microwave-Accelerated Iridium-Catalyzed
Borylation of Aromatic C−H Bonds. Org. Lett. 2009, 11, 3586–3589.
23. Simov, B.P.; Wuggenig, F.; Mereiter, K.; Andres, H.; France, J.; Schnelli, P.; Hammerschmidt, F.
Direct Chemical Synthesis of Chiral Methanol of 98% ee and Its Conversion to [2H1,3H]Methyl
Tosylate and [2H1,3H-Methyl]Methionine. J. Am. Chem. Soc. 2005, 127, 13934–13940.
24. Inglis, S.R.; Woon, E.C.Y.; Thompson, A.L.; Schofield, C.J. Observations on the Deprotection of
Pinanediol and Pinacol Boronate Esters via Fluorinated Intermediates. J. Org. Chem. 2010, 75,
468–471.
25. Resnick, S. M.; Torok, D. S.; Gibson, D.T. Chemoenzymic Synthesis of Chiral Boronates for the
Determination of the Absolute Configuration and Enantiomeric Excess of Bacterial and Synthetic
cis-Dienediols. J. Org. Chem. 1995, 60, 3546–3549.
26. van den Berg, R.; Peters, J. A.; van Bekkum, H. The structure and local stability constants of
borate esters of mono- and di-sacchrides as studied by 11B and 13C NMR Spectroscopy.
Carbohydr. Res. 1994, 253, 1–12.
27. Ruman, T.; Dlugopolska, K.; Kusnierz, A.; Rode, W. Synthesis and NMR properties of derivatives
of 5,6-dihydroborauracil and 5,6-dihydroborathymine. Bioorg. Chem. 2009, 37, 180–184.
28. Meiland, M.; Heinze, T.; Guenther, W.; Liebert, T. Seven-Membered Ring Boronates at trans-
Diol moieties of Carbohydrates. Tetrahedron Lett. 2009, 50, 469–472.

Molecules 2010, 15
2356
29. Yeste, S.L.; Powell, M.E.; Bull, S.D.; James, T.D. Simple Chiral Derivatization Protocols for 1H
NMR and 19F NMR Spectroscopic Analysis of the Enantiopurity of Chiral Diols. J. Org. Chem.
2009, 74, 427–430.
30. Shimanouchi, H.; Saito, N.; Sasada, Y. Crystal and Molecular Structure of N-(p-bromophenyl)-α-
D-Ribopyranosylamine 2,4-Cyclic Benzeneboronate. Bull. Chem. Soc. Jap. 1969, 42, 1239–1247.
31. Wang, A.H.J.; Paul, I.C. Structure of a Derivative of Streptovaricin C Triacetate. Crystal and
Molecular Structure of the Atropisomer of the Cyclic p-Bromobenzeneboronate Ester of
Streptovaricin C Triacetate: Methylene Dichloride 1:1 Solvate. J. Am. Chem. Soc. 1976, 98,
4612–4619.
32. Barker, S.A.; Hatt, B.W.; Somers, P.J. Effect of Areneboronic Acids on the Alkaline Conversion
of D-glucose into D-fructose. Carbohyd. Res. 1973, 26, 41–53.
33. Soloway, A.H.; Tjarks, W.; Barnum, B. A.; Rong, F.; Barth, R.F.; Codogni, I.M.; Wilson, J. G.
The Chemistry of Neutron Capture Therapy. Chem. Rev. 1998, 98, 1515–1562.
34. Wiecko, J.; Sherman, W. R. Mass Spectral Study of Cyclic Alkaneboronates of Sugar Phosphates.
Org. Mass Spectrom. 2005, 10, 1007–1020.
35. Butcher, F.K.; Gerrard, W.; Howarthy, M.; Mooney, E.F.; Willis, H.A. The Infrared Spectra of
The Aryl Boronate Esters Derived from Catechol and 2:3 Dihydroxynaphthalene. Spectrochimica
Acta 1964, 20, 79–95.
36. Stacey, B.E.; Tierney, B. The use of Boric Acid and Benzeneboronic Acids in the Partial
Acetonation of Monosaccharides. Carbohyd. Res. 1976, 49, 129–140.
37. Gray, C.W.; Walker, B.T.; Foley, R.A.; Houston, T.A. Boronate derivatives of bioactive amines.
Tetrahedron Lett. 2003, 44, 3309–3312.
38. Pouchert, C.J.; Campbell, J.R. The Aldrich Library of NMR Sepctra; Adrich Chemical Co.: St.
Louis, MO, USA; Vol. IV-VII, K.X., 162A.
39. Nakagawa, T.; Mishima, Y. Title. Kyoto Daigaku genshiro Jikkensho (Tech. Rep.) 1980, KURRI-
IR-195, 44–48.
40. Mills, R.R.; Lake, C.R.; Alworth, W.L. Biosynthesis of N-acetyl dopamine by the American
cockroach. J. Insect Physiol. 1967, 13, 1539–1546.
41. Katz, H.E. 18-Anthracenediethynylbis(catechol boronate): A Bidentate Lewis Acid on A Novel
Framework. J. Org. Chem. 1989, 54, 2179–2183.
42. Huang-Minlon, Reaction of Steroid Ketones and other Carbonyl Compounds by Modified Wolff-
Kishner Method. J. Am. Chem. Soc. 1949, 71, 3301–3303.
43. Gelbke, H.P.; Haupt, O.; Knuppen, R. A Simple Chemical Method of the Synthesis of Catechol
Estrogens. Steroids 1972, 21, 205–212.
Sample Availability: Samples of the compounds are available from the authors.
© 2010 by the authors; licensee Molecular Diversity Preservation International, Basel, Switzerland.
This article is an open-access article distributed under the terms and conditions of the Creative
Commons Attribution license (http://creativecommons.org/licenses/by/3.0/).
