136
J. Wu et al. / Journal of Photochemistry and Photobiology A: Chemistry 211 (2010) 135–142
2. Experimental
dure [27,29]. Complexes Re(CO)3Cl(Pybm) (5) and Re(CO)3Cl(Dpya)
(6) were also prepared as reference materials by the same method.
Synthesis of 2-(4-bromophenyl)-5-phenyl-1,3,4-oxadiazole (a): 4-
Bromobenzoyl chloride (21.95 g, 0.1 mol) was added dropwise to a
solution of benzoyl hydrazine (13.62 g, 0.1 mol) and triethylamine
(10.10 g, 0.1 mol) in chloroform (150 mL) at room temperature (RT).
The resulting mixture was stirred for 1 h and then filtered. The col-
lected solid was washed with water and ethanol to give the product
Nꢀ-benzoyl-4-bromobenzohydrazide (30.32 g, yield 95%). A mix-
ture of Nꢀ-benzoyl-4-bromobenzo-hydrazide (20.00 g) and POCl3
(250 mL) in a 500 mL flask was refluxed under nitrogen for 5 h. The
excessive POCl3 was then distilled out, and the residue was poured
into water. The crude solid state product was collected by filtration
and purified by recrystallization from chloroform/hexane to give a
as white needlelike crystals (16.04 g, yield: 85%). M.p.: 164–168 ◦C.
IR (KBr, cm−1): 3060, 1600, 1546, 1474, 1073, 728, 689. 1H NMR
(CDCl3, 500 MHz): ı 8.159 (d, 2H, J = 7 Hz), 8.040 (d, 2H, J = 9 Hz),
7.710 (d, 2H, J = 8.5 Hz), 7.570 (m, 3H). MS (ESI): m/z 301.08 [M]+.
Anal. Calcd. for C14H9N2OBr: C, 55.84; H, 3.01; N, 9.30. Found: C,
55.87; H, 3.11; N, 9.27.
2.1. Materials and instruments
Carbazole was purchased from Yuan Hang Reagent Company
(China). 1,4-Dibromobenzene, 2-(4-bromophenyl)-5-phenyl-
1,3,4-oxadiazole, benzoyl hydrazine, 2-(2-pyridyl)benzimidazole
(Pybm), 2,2ꢀ-dipyridylamine (Dpya), 1,3-dimethyl-3,4,5,6-
terahydro-2(1H)-pyrimidinone
(DMPU)
and
rhenium
pentacarbonyl chloride were brought from Acros, Aldrich and
Alfa Companies. The IR spectra were taken on a Vector22 Bruker
spectrophotometer (400–4000 cm−1) with KBr pellets. NMR spec-
tra were measured on a Bruker AM 500 spectrometer. Mass spectra
were determined with an Autoflex IITM instrument for MALDI-
TOF-MS or on a Varian MAT 311A instrument for ESI-MS. Elemental
analyses for C, H, and N were performed on a PerkinElmer 240C
analyzer. Absorption spectra were measured on a UV-3100 spec-
trophotometer. Photoluminescence measurements were carried
out on Hitachi F4600 luminescence spectrophotometer equipped
with a xenon arc lamp. The photoluminescence lifetime was
measured with an Edinburgh Instruments FLS920P fluorescence
experiments at the MLCT excitation and maximal emission wave-
lengths. The quantum yield was determined using an integrating
sphere (150 mm diameter, BaSO4 coating) from Edinburgh Instru-
ments according to the reported procedure [26]. The spectra were
corrected for variations in the output of the excitation source
and for variations in the detector response. The quantum yield
can be defined as the integrated intensity of the luminescence
signal divided by the integrated intensity of the absorption signal.
Only the intense emission bands of the Re(I) complexes around
550 nm was measured by the integrating sphere being excited at
the MLCT bands, but this intensity value was corrected by taking
into account the relative intensity of the other transitions (as
determined from the steady-state luminescence spectrum). In this
way, an intensity value that corresponds to the total luminescence
output was obtained. The absorption intensity was calculated by
subtracting the integrated intensity of the light source with the
sample in the integrating sphere from the integrated intensity of
the light source with a blank sample in the integrating sphere.
The crystals of L4 and 4 suitable for single-crystal X-ray analy-
sis were obtained by slow evaporation of dichloromethane-hexane
solution. The data were collected on a Bruker Smart Apex CCD
diffractometer equipped with graphitemonochromated Mo K␣
(ꢀ = 0.71073 Å) radiation using a ω–2Â scan mode at 293 K. The
highly redundant data sets were reduced using SAINT and absorp-
tion corrections were applied using SADABS supplied by Bruker.
The structures were solved by direct methods and refined by
full-matrix least-squares methods on F2 using SHELXTL-97. Ther-
mogravimetrical and differential thermal analysis (TGA–DTA) was
performed in N2 atmosphere with a flow rate of 100 mL/min on a
simultaneous SDT 2960 thermal analyzer from 20 to 750 ◦C, with a
ramp rate of 10 ◦C/min.
Synthesis of 1-carbazolyl-4-bromobenzene (b): Similar methods
(see Scheme 1) are used to prepare b, L1, L2, L3 and L4. A mix-
ture of carbazole (16.72 g, 0.1 mol), 1,4-dibromobenzene (23.59 g,
0.1 mol), CuI (1.90 g, 0.01 mol), 18-Crown-6 (0.88 g, 0.0033 mol),
K2CO3 (27.67 g, 0.2 mol) and DMPU (3 mL) was put into reactor,
then keep it heating at 170 ◦C for 13 h under nitrogen. After cooling
to room temperature, the mixture was quenched with 1N HCl, the
precipitate was filtered and washed with NH3·H2O and water. The
brown solid was purified with column chromatography using hex-
ane as eluant (10.95 g, yield: 34%). M.p.: 152–154 ◦C. IR (KBr, cm−1):
3056, 1496, 1452, 1230, 751. 1H NMR (CDCl3, 500 MHz): ı 8.175
(d, 2H, J = 7 Hz), 7.757 (d, 2H, J = 8.5 Hz), 7.495 (d, 2H, J = 8.5 Hz),
7.431 (t, 2H, J = 7 Hz), 7.411 (d, 2H, J = 9 Hz), 7.342 (t, 2H, J = 7.5 Hz).
MS (MALDI-TOF): m/z 321.035 [M]+. Anal. Calcd. for C18H12NBr: C,
67.10; H, 3.75; N, 4.35. Found: C, 66.93; H, 3.71; N, 4.31.
Synthesis
of
1-(4-5ꢀ-phenyl-1,3,4-oxadiazolylphenyl)-2-
pyridinylbenzoimidazole (L1): The procedure is similar to that
of compound b with the materials of a (3.01 g, 0.01 mol) and Pybm
(1.95 g, 0.01 mol) at the temperature of 230 ◦C (2.50 g, yield: 60%).
M.p.: 186–189 ◦C. IR (KBr, cm−1): 3050, 1606, 1500, 1442, 1385,
773, 755, 741, 708, 691. 1H NMR (CDCl3, 500 MHz): ı 8.380 (d,
3H, J = 7.5 Hz), 8.200 (d, 2H, J = 7.5 Hz), 7.987 (t, 1H, J = 7.5 Hz),
7.603–7.577 (m, 7H), 7.525 (t, 2H, J = 7.5 Hz), 7.405 (t, 1H, J = 6 Hz),
7.321(d, 1H, J = 8.5 Hz). MS (MALDI-TOF): m/z 416.232 [M]+. Anal.
Calcd. for C26H17N5O: C, 75.17; H, 4.12; N, 16.86. Found: C, 75.11;
H, 4.21; N, 16.81.
Synthesis of 1-(4-carbazolylphenyl)-2-pyridinylbenzimidazole
(L2): The procedure is similar to that of compound b with the
materials of b (3.22 g, 0.01 mol) and Pybm (1.95 g, 0.01 mol) at the
temperature of 230 ◦C (2.93 g, yield: 67%). M.p.: 225–228 ◦C. IR
(KBr, cm−1): 3044, 1728, 1593, 1514, 1446, 740. 1H NMR (CDCl3,
500 MHz): ı 8.489 (d, 2H, J = 4.5 Hz), 8.203 (d, 2H, J = 7.5 Hz), 8.074
(d, 1H, J = 8 Hz), 7.906 (t, 1H, J = 7.5 Hz), 7.762 (d, 2H, J = 8.5 Hz),
7.614 (d, 2H, J = 9 Hz), 7.550 (d, 2H, J = 7.5 Hz), 7.502 (t, 3H, J = 7 Hz),
7.472 (m, 2H), 7.357 (t, 3H, J = 7 Hz). MS (MALDI-TOF): m/z 437.130
[M]+. Anal. Calcd. for C30H20N4: C, 82.55; H, 4.62; N, 12.84. Found:
C, 82.54; H, 4.69; N, 12.83.
2.2. Synthesis
The chemical structures of the materials used in this work
and the synthetic routes were depicted in Scheme 1. The
ligand precursors 2-(4-bromophenyl)-5-phenyl-1,3,4-oxadiazole
(a) and 1-carbazolyl-4-bromobenzene (b) were synthesized as
described in literature [27,28]. The four ligands of 1-(4-5ꢀ-
phenyl-1,3,4-oxadiazolylphenyl)-2-pyridinylbenzoimidazole (L1),
1-(4-carbazolyl-phenyl)-2-pyridinylbenzimidazole (L2), N-(4-5ꢀ-

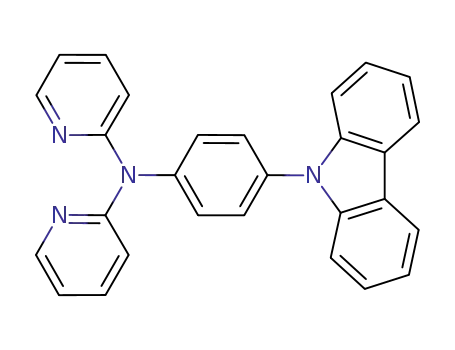

phenyl-1,3,4-oxadiazolyl-phenyl)-2,2ꢀ-dipyridylamine (L3), N-(4-
carbazolylphenyl)-2,2ꢀ-dipyridylamine (L4) and the corresponding
Re(I) complexes of 1–4 were prepared according to modified proce-
Synthesis
of
N-(4-5ꢀ-phenyl-1,3,4-oxadiazolylphenyl)-2,2ꢀ-
dipyridylamine (L3): The procedure is similar to that of compound
b with the materials of a (3.01 g, 0.01 mol) and Dpya (1.71 g,
0.01 mol) at the temperature of 180 ◦C (2.31 g, yield: 59%). M.p.:
136–140 ◦C. IR (KBr, cm−1): 2994, 1588, 1496, 1467, 1332, 772,
740, 708, 685. 1H NMR (CDCl3, 500 MHz): ı 8.573 (m, 2H), 8.217
(d, 2H, J = 8.5 Hz), 8.149 (d, 2H, J = 8 Hz), 7.755 (t, 2H, J = 7.5 Hz),
7.578 (m, 3H), 7.392 (d, 2H, J = 8.5 Hz), 7.158 (m, 2H), 7.021 (d,
2H, J = 8 Hz). MS (MALDI-TOF): m/z 392.169 [M]+. Anal. Calcd. for
