928
GAVRISHOVA et al.
4-Phenyl-2,6-bis(4-azidophenyl)pyridine (IIIa)
tained by the three-stage synthesis from commercially
available compounds.

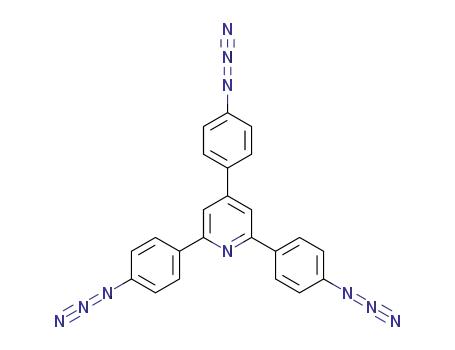

and 2,4,6-tris(4-azidophenyl)pyridine (IIIb). Water,
4 ml, then concentrated hydrochloric acid, 2 ml, were
added to 0.50 mmol of corresponding bis- or trisami-
nophenylpyridine. The resulting solution was cooled to
0°С and diazotized by a NaNO2 solution (1.00 mmol for
bis-aminophenylpyridine and 1.50 mmol for trisami-
nophenylpyridine) in 3 ml of H2O. Within 30 min the
solution was cooled to 1°С, and 0.5 ml of concentrated
hydrochloric acid and 1 ml of water were added to it with
stirring. Then a solution of 1.00 or 1.50 mmol of NaN3
in 3 ml of H2O was added and, within a few minutes of
that, an excess amount of an azide. The precipitate was
filtered off and twice recrystallized from petroleum ether.
White crystals of a corresponding azide were obtained
(darken in the course of time).
This work was financially supported by the Russian
Foundation for Basic Research (project no. 03-03-32116).
REFERENCES
1. Soderberg, B.C.G., Curr. Org. Chem., 2000, vol. 4,
pp. 727–776.
2. Azides and Nitrenes, Reactivity and Utility, Scriven, E.F.V.,
Ed., New York: Acad. Press, 1984.
3. Malkov, G.V., Shastin,A.V., Estrin, Y.I., et al., Propellants,
Explosives, Pyrotechnics, 2008, vol. 336, pp. 431–436.
4. Bouchet, M.J. and Goeldner, M., Photochem. Photobiol.,
1997, vol. 65, p. 195.
5. Chapyshev, S.V., Kuhn,A., Wong, M.H., and Wentrup, C.,
J. Am. Chem. Soc., 2000, vol. 122, pp. 1572–1579.
Yield of IIIa 77%, white crystals, mp 128°С with
decomposition (from petroleum ether). IR spectrum, ν
(cm–1): 2117, 1281 (N3). 1H NMR spectrum (400 MHz,
CDCl3, TMS), δ, ppm (J, Hz): 8.21 (4H, d, J = 8.7,
C6H4), 7.84 (2Н, s, pyridine), 7.73 (2Н, d, J = 8.5, C6H5),
7.44–7.60 (3H, m, C6H5), 7.16 (4H, d, J = 8.7, C6H4).
Found (%): C 71.14, H 3.75, N 24.98; m/z 390.149, [М +
H]+. C23H15N7. Calculated (%): C 70.94, H 3.88, N 25.18,
M = 389.139.
6. Chapyshev, S.V., Walton, R., Sanborn, J.A., and Laht, P.M.,
J. Am. Chem. Soc., 2000, vol. 122, pp. 1580–1588.
7. Gillan, E.G., Chem. Mater., 2000, vol. 12, pp. 3906–3912.
8. Huynh, H.V., Hiskey, M.A., Chavez, D.E., et al., J. Am.
Chem. Soc., 2005, vol. 127, pp. 12537-12543.
9. Budyka, M.F., Usp. Khim., 2008, vol. 77, no. 8, pp. 757–
772.
10. Chapyshev, S.V., Synlett., 2009, pp. 1–8.
11. Marcos, M., Martin-Rapun, R., Omenat, A., and Ser-
rano, J.L., Chem. Soc. Rev., 2007, vol. 36, no. 12,
pp. 1889–1901.
Yield of IIIb 72%, white crystals, mp 145°С with
decomposition (from petroleum ether). IR spectrum, ν
(cm–1): 2127, 1296 (N3). 1H NMR spectrum (400 MHz,
CDCl3, TMS), δ, ppm (J, Hz): 8.19 (4H, d, J = 8.9,
C6H4), 7.78 (2Н, s, pyridine), 7.72 (2Н, d, J = 8.7, C6H4),
7.12–7.24 (6H, m, C6H4). Found (%): C 64.36, H 3.47,
N 32.33; m/z 431.147, [М + H]+. C23H14N10. Calculated
(%): C 64.18, H 3.28, N 32.54; M = 430.140.
12. Chapyshev, S.V., Russ. J. Phys. Chem. A, 2009, vol. 83,
pp. 254–259.
13. Weiss, M.J., J. Am. Chem. Soc., 1952, vol. 74, p. 200.
14. Tamami, B. andYeganeh, H., Polymer, 2001, vol. 42, no. 2,
pp. 415–420.
15. Shujiang, T., Runhong, J., Bo, J., et al., Tetrahedron, 2007,
vol. 63, no. 2, pp. 381–388.
CONCLUSION
16. Dodonov, A.F., Kozlovski, V.I., Soulimenkov, I.V., et al.,
Eur. J. Mass Spectrom., 2000, vol. 6, p. 481.
New di- and triazidophenylpyridines have been ob-
RUSSIAN JOURNAL OF APPLIED CHEMISTRY Vol. 83 No. 5 2010
