978
T. Ma et al. / Chinese Chemical Letters 21 (2010) 976–978
Scheme 2. Synthesis of polybenzimidazole (a) PPA, 120 8C, 3 h; (b) 200 8C, 12 h.
hydrochloric acid to pH 3–4, followed by stirring for 6 h. The product was collected by filtration and recrystallized
from 50% of aqueous acetic acid using activated charcoal. Melting point of 3 is 136–140 8C. The experimental data of

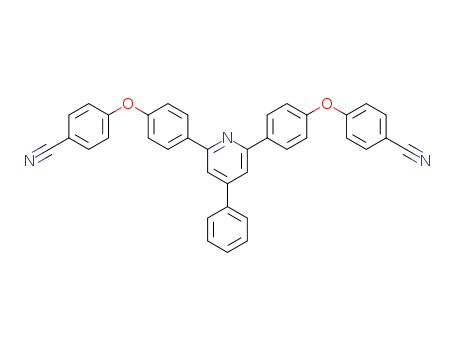

diacid monomer 3 and its intermediates 1, 2 were listed in Table 1, respectively. The FABMS, m/z, shows M+: 579.4
(31%). FT-IR (KBr) peaks of 3 at 2500–3500 cmÀ1 and 1235 cmÀ1 belonged to CO(O)H and C–O–C groups,
respectively. 1H NMR (200 MHz, DMSO-d6): d 8.44 (d, 4H, J = 8.4, Ha), 8.22 (s, 2H, He), 8.05 (d, 4H, J = 6.2, Hd),
7.89 (d, 2H, J = 8.8, Hf), 7.57 (d, 2H, J = 7.2, Hg), 7.32 (d, 1H, J = 8.6, Hh), 7.20 (d, 8H, J = 8.6, Hb, Hc), and 13C NMR
(200 MHz, DMSO-d6): d 166.7, 160.6, 159.7, 156.3, 155.7, 137.6, 135.0, 131.7, 130.7, 129.1,127.4, 126.5, 125.6,
119.9, 118.7, 117.6, respectively. Elemental analysis for C37H25NO6: calcd. C 76.67, H 4.35, N 2.42, found C 76.74, H
4.32, N 2.38. The data agree with the structure of 3.
Related polybenzimidazole was synthesized by polycondensation of 3 and aromatic tetramine TADE via previously
method, as shown in Scheme 2 [7]. Firstly, a 250-mL three-necked flask equipped with a mechanical stirrer, a nitrogen
inlet, and an outlet CaCl2 drying tube was charged with PPA (40 g) and stirred with heating under constant flow of
nitrogen above 120 8C. The system was flushed with nitrogen for 10 min to remove the air then the diacid (1 mmol)
and tetramine (1 mmol) was added, the temperature was slowly raised to 200 8C for 12 h. The hot solution was poured
into water (150 mL) and solid polymer was filtrated and stirred in 5% aqueous sodium bicarbonate solution (5 h). The
polymer was collected by filtration and washed with water until neutral. The inherent viscosity of the resulting
polybenzimidazole in the NMP solution with a 0.5 g dLÀ1concentration at 30 8C was 0.251 g dLÀ1. FT-IR spectra of
the resulting polybenzimidazole revealed strong bands at 3378 cmÀ1 due to N–H group, 1597 cmÀ1 due to C N group
and 1082 cmÀ1 due to benzimidazole. The TGA curve in nitrogen exhibited two-stage degradation processes. The
value of 5% and 10% gravimetric loss in air (T5 and T10) of the resulting polybenzimidazole is 558 and 598 8C, which
showed the polybenzimidazole has good thermal stability. It also exhibited good solubility in common organic
solvents such as DMSO, NMP and m-cresol. According to the experimental results above, the new pyridine-containing
aromatic diacid monomer 3 also holds good polymerizability.
Acknowledgments
The authors are grateful for the research support from the Natural Science Foundation of Gansu Province (No.
096RJZA047) and the State Key Laboratory of Applied Organic Chemistry of People’s Republic of China.
References
[1] H.H. Levine, Encycl. Polym. Sci. Technol. 11 (1988) 88.
[2] T. Brock, D.C. Sherrington, H.G. Tang, Polymer 32 (1991) 353.
[3] H.I.B. Gordon, R.J. Kumpf, P.C. Painter, J. Polym. Sci. Part A: Polym. Chem. 26 (1988) 1689.
[4] J.E. Wolf, Encycl. Polym. Sci. Technol. 11 (1988) 601.
[5] H. Vogel, C.S. Marvel, J. Polym. Sci. A 1 (1963) 1531.
[6] F.I. Hedberg, C.S. Marvel, J. Polym. Sci: Polym. Chem. Ed. 12 (1974) 1823.
[7] M. Uede, M. Sato, A. Mochizuki, Macromolecules 18 (1985) 2723.
