Crystal Structure of the Human Cannabinoid Receptor CB1

Article abstract of DOI:10.1016/j.cell.2016.10.004

Cannabinoid receptor 1 (CB₁) is the principal target of Δ⁹-tetrahydrocannabinol (THC), a psychoactive chemical from Cannabis sativa with a wide range of therapeutic applications and a long history of recreational use. CB₁ is activated by endocannabinoids and is a promising therapeutic target for pain management, inflammation, obesity, and substance abuse disorders. Here, we present the 2.8 ? crystal structure of human CB₁ in complex with AM6538, a stabilizing antagonist, synthesized and characterized for this structural study. The structure of the CB₁-AM6538 complex reveals key features of the receptor and critical interactions for antagonist binding. In combination with functional studies and molecular modeling, the structure provides insight into the binding mode of naturally occurring CB₁ ligands, such as THC, and synthetic cannabinoids. This enhances our understanding of the molecular basis for the physiological functions of CB₁ and provides new opportunities for the design of next-generation CB₁-targeting pharmaceuticals.

Full text of DOI:10.1016/j.cell.2016.10.004

Article
Crystal Structure of the Human Cannabinoid
Receptor CB1
Graphical Abstract
Authors
Tian Hua, Kiran Vemuri, Mengchen Pu, ...,
Alexandros Makriyannis,
Raymond C. Stevens, Zhi-Jie Liu
Correspondence
lbohn@scripps.edu (L.M.B.),
a.makriyannis@northeastern.edu (A.M.),
stevens@shanghaitech.edu.cn (R.C.S.),
liuzhj@shanghaitech.edu.cn (Z.-J.L.)
In Brief
A look at ligand engagement with the
human CB1 receptor opens up avenues
for design of new modulators with
favorable physiological profiles.
Highlights
Data Resources
d
d
d
d

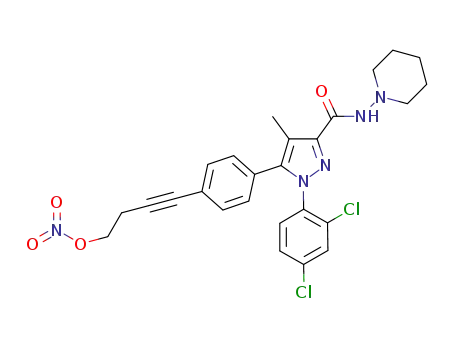

AM6538 is presented as a stabilizing, tight binding
antagonist of CB1
5TGZ
Crystal structure of human CB1 in complex with AM6538 is
determined
Molecular docking predicts CB1 binding modes of THC and
synthetic cannabinoids
Resolution of the binding pocket provides path for rational
CB1 drug design
Hua et al., 2016, Cell 167, 750–762
October 20, 2016 ª 2016 Elsevier Inc.
http://dx.doi.org/10.1016/j.cell.2016.10.004

Article
Crystal Structure of the Human
Cannabinoid Receptor CB1
Tian Hua,1,2 Kiran Vemuri,3 Mengchen Pu,2 Lu Qu,1,2 Gye Won Han,4 Yiran Wu,1 Suwen Zhao,1 Wenqing Shui,1
Shanshan Li,1 Anisha Korde,3 Robert B. Laprairie,5 Edward L. Stahl,5 Jo-Hao Ho,5 Nikolai Zvonok,3 Han Zhou,3
3,
Irina Kufareva,6 Beili Wu,7 Qiang Zhao,7 Michael A. Hanson,8 Laura M. Bohn,5, Alexandros Makriyannis,
*
*
1,2,
Raymond C. Stevens,1,4,9, and Zhi-Jie Liu
*
*
1iHuman Institute, ShanghaiTech University, Shanghai 201210, China
2National Laboratory of Biomacromolecules, Institute of Biophysics, Chinese Academy of Sciences, Beijing 100101, China
3Center for Drug Discovery, Department of Pharmaceutical Sciences and Department of Chemistry and Chemical Biology,
Northeastern University, Boston, MA 02115, USA
4Departments of Biological Sciences and Chemistry, Bridge Institute, University of Southern California, Los Angeles, CA 90089, USA
5Departments of Molecular Therapeutics and Neuroscience, The Scripps Research Institute, Jupiter, FL 33458, USA
6University of California, San Diego, La Jolla, CA 92093, USA
7CAS Key Laboratory of Receptor Research, Shanghai Institute of Materia Medica, Chinese Academy of Sciences, Shanghai 201203, China
8GPCR Consortium, San Marcos, CA 92078, USA
9Lead Contact
*Correspondence: lbohn@scripps.edu (L.M.B.), a.makriyannis@northeastern.edu (A.M.), stevens@shanghaitech.edu.cn (R.C.S.),
liuzhj@shanghaitech.edu.cn (Z.-J.L.)
http://dx.doi.org/10.1016/j.cell.2016.10.004
SUMMARY
terpenoid molecule, was isolated and characterized (Gaoni and
Mechoulam, 1964). This provided an early molecular foundation
Cannabinoid receptor 1 (CB1) is the principal target for medicinal chemists to develop related structural analogs and
of D9-tetrahydrocannabinol (THC), a psychoactive
chemical from Cannabis sativa with a wide range of
therapeutic applications and a long history of recrea-
tional use. CB1 is activated by endocannabinoids
new synthetic ligands (Makriyannis and Rapaka, 1990; Razdan,
1986). Initially, due to their lipophilic nature, it was assumed
that cannabinoids exerted their effects by perturbing the phys-
ical properties of biological membranes (Makriyannis, 2014;
Mavromoustakos et al., 1995). This assumption was challenged
with the discovery, cloning, and expression of the first cannabi-
noid-specific membrane receptor, then designated as the
and is a promising therapeutic target for pain man-
agement, inflammation, obesity, and substance
˚
abuse disorders. Here, we present the 2.8 A crystal
cannabinoid receptor (CB) (Devane et al., 1988; Matsuda et al.,
1990). With the subsequent identification of a second receptor,
the designation evolved to CB1 and CB2 (Munro et al., 1993).
The discovery of the endogenous agonists to the receptors,
structure of human CB1 in complex with AM6538, a
stabilizing antagonist, synthesized and character-
ized for this structural study. The structure of the
CB1-AM6538 complex reveals key features of the the endocannabinoids, anandamide (Devane et al., 1992), and
2-arachidonoyl glycerol (2-AG) (Mechoulam et al., 1995) soon
followed.
receptor and critical interactions for antagonist
binding. In combination with functional studies and
molecular modeling, the structure provides insight
into the binding mode of naturally occurring CB1
ligands, such as THC, and synthetic cannabinoids.
This enhances our understanding of the molecular
basis for the physiological functions of CB1 and pro-
vides new opportunities for the design of next-gener-
Cannabinoid receptors belong to the class A G protein-
coupled receptor (GPCR) family, signal through inhibitory Gai/o
heterotrimeric G proteins (Howlett, 1985), and interact with b-ar-
restins (Jin et al., 1999). CB1 is the most highly expressed GPCR
in the human brain and is expressed throughout the body, with
the highest levels found in the central nervous system (Herken-
ham et al., 1990).
ation CB1-targeting pharmaceuticals.
Cannabis has been used for centuries in many cultures to
treat a wide range of medical conditions. More recently, thera-
peutic considerations have moved beyond the plant extract
to explore and produce more pharmacologically refined com-
INTRODUCTION
Marijuana from Cannabis sativa L. has been used for both thera- pounds. CB1-selective small-molecule agonists have shown
peutic and recreational purposes for many centuries (Lem- therapeutic promise in a wide range of disorders, including
berger, 1980; Li, 1973). In the 1940s, chemistry based on com- pain and inflammation (Cravatt and Lichtman, 2004), multiple
pounds isolated from the plant (Wollner et al., 1942) produced sclerosis (Pertwee, 2002; Pryce and Baker, 2015), and
´
novel biologically active molecules (Adams et al., 1948; Ghosh neurodegenerative disorders (Fernandez-Ruiz et al., 2015).
et al., 1940); however, it was not until the 1960s that the ac- The first CB1-selective antagonist/inverse agonist, rimona-
tive constituent of marijuana, D9-tetrahydrocannabinol (THC), a bant (SR141716, Acomplia [Sanofi-Aventis]) (Rinaldi-Carmona
750 Cell 167, 750–762, October 20, 2016 ª 2016 Elsevier Inc.

Figure 1. Overall Structure of CB1-AM6538 Complex
(A) Side view of the CB1-AM6538 complex. The receptor is shown in gray cartoon representation. The ligand AM6538, shown with green sticks, demarcates the
binding pocket, which is partially occluded by the N-terminal loop (red). The nitrate group is not modeled in the experimental crystal structure, as the electron
density was not observed. The extracellular loops (ECLs) are shown in brown and the intracellular loops (ICLs) are shown in purple.
(B) Top view of the extracellular side. The disulfide bond in ECL2 is shown as yellow sticks.
See also Figures S2 and S3.
et al., 1994), received approval from the European Medical RESULTS
Agency as an adjunct to diet and exercise for treating obesity
(Janero and Makriyannis, 2009). Antagonists of CB1 have Synthesis of CB1 Stabilizing Antagonist AM6538 for
been explored as potential therapeutics for obesity-related Structural Studies
metabolic disorders (Mazier et al., 2015), mental illness (Black One of the key factors facilitating the structure determination
et al., 2011; Rubino et al., 2015), liver fibrosis (Mallat et al., of CB1 (Figure 1) is utilization of the antagonist AM6538, the
2013), and nicotine addiction (Schindler et al., 2016). synthesis of which resulted from the strategic modification of
However, rimonabant and other ligands in its class were not rimonabant to enhance its ability to stabilize the ligand-receptor
approved in the United States due to concerns about adverse complex and promote CB1 crystal formation. In contrast with
events, such as increased anxiety, depression, and suicidal rimonabant, the 5-phenyl ring substituent was modified so as to
ideation.
introduce motifs (ex. alkyne unit) that could favor increased
Numerous studies have investigated how ligands binding affinity for the CB1 receptor (Tam et al., 2010). The rimonabant
CB1 can mediate downstream signaling. While the variety of analog, AM251, (1, Figure 2A) (Lan et al., 1999), a compound that
compounds exhibiting different pharmacological profiles have hasbeenusedextensivelyasapharmacologicalstandardCB1-se-
provided clues regarding CB1 activation, the molecular details lective antagonist, was used as the precursor in the AM6538
defining the binding modes of both endogenous and exogenous syntheticprocess.SynthesisofAM6538involvesthefunctionaliza-
ligands are still largely unknown (Guo et al., 1994; Makriyannis, tion of the iodo substituent at the para position of the 5-phenyl ring
2014; Picone et al., 2005). In order to address this deficit in un- in AM251 with an acetylenic chain system consisting of four car-
derstanding, we have determined the crystal structure of CB1 bons and substituted at the omega carbon. To this end, we initially
in complex with a tight binding antagonist AM6538. In conjunc- focused on targeting cysteine residues within CB1 by introducing
tion with molecular docking, the structure was used to elucidate suitable electrophilic groups (Janero et al., 2015; Li et al., 2005;
the binding modes of a diverse set of antagonists/inverse ago- Mercier et al., 2010; Picone et al., 2005; Szymanski et al., 2011)
nists and agonists of CB1. The structural details of the cannabi- at the fourth carbon of the alkyne unit, capable of forming a cova-
noid receptor reported herein improve our understanding of how lentbondwiththecysteinethiolgroup.ForAM6538, weintroduced
ligands engage to modulate the cannabinoid system and provide at this position a nitrate group (ONO2) whose role was to serve as a
a useful model to facilitate the design of next-generation phar- polar group, which may be displaced by a suitable nucleophile
maceuticals to avoid unwanted side effects. The findings provide (e.g., thiol) (Pattison and Brown, 1956; Yeates et al., 1985) at or
insight into mechanisms of slow dissociation of antagonists, near the binding domain or alternatively bind as an intact group
which may potentially translate into long acting pharmacological so as to obtain a non-covalent, near-irreversible attachment by in-
effects.
teracting with hydrogen bonding amino acid residues, as well as
Cell 167, 750–762, October 20, 2016 751

Figure 2. Synthesis and Characterization of
AM6538
(A) Synthetic procedures for compound AM6538.
(B) Saturation [3H]-CP55,940 binding assays in the
absence (control) or presence of rimonabant
(100 nM) or AM6538 (50 nM) demonstrates that
both antagonists cause displacement of specific
binding of the radioligand when present concur-
rently in the 1 hr binding assay.
(C) Following pretreatment of membranes (37ꢀC,
6 hr) with buffer only (none), rimonabant (100 nM),
or AM6538 (50 nM); membranes were washed
with buffer 33 prior to [3H]-CP55,940 binding as
described for (B).
(D) Percentage of remaining binding (Bmax) de-
tected following the conditions described in (B)
(concurrent) and (C) (pretreat and wash). Both
antagonists decrease the binding of [3H]-
CP55,940 to ꢁ30% when incubated concurrently
during the 1 hr binding assay. Under pretreatment
and washout conditions, rimonabant does not
affect subsequent radioligand binding, while
AM6538 continues to compete despite washing of
the membranes.
See also Figure S1 and Table S1.
ures (Lv et al., 2016) identified Flavo-
doxin (Chun et al., 2012) as a stabilizing
fusion partner when inserted within the
receptor’s third intracellular loop (ICL3)
at Val306 and Pro332. Additionally, the
WT receptor was truncated on both
the N and C termini by 98 and 58 resi-
dues, respectively. Finally, in order to
residues capable of p-p interactions. In the present study, affinity improve the expression and thermostability of the receptor,
mass spectrometry analysis suggests that AM6538 reacts with four computationally predicted mutations (Thr2103.46Ala
CB1 as an intact molecule with no evidence of covalent modifica- [D’Antona et al., 2006], Glu2735.37Lys, Thr2835.47Val, and
tion of relevant cysteine residues.
Arg3406.32Glu) were introduced to the CB1 sequence (Figures
AM6538 was a strong candidate for crystallographic studies S2A–S2C) (superscripts denote amino acid position as
of the receptor based on its high affinity and wash-resistant described by Ballesteros and Weinstein [1995]). The
binding to CB1 as determined by radioligand competition assays modified CB1 construct was inserted into a pTT5 vector for
against the tritiated agonist, [3H]-CP55,940 (Ki = 3.4 1.0 nM) expression in HEK293F cells to generate protein (Figure S2D)
(Figures 2B–2D). This is in contrast to rimonabant, which can that formed crystals in lipidic cubic phase supplemented
˚
be readily washed out of membranes, permitting subsequent with cholesterol (Figure S3E); the crystals diffracted to 2.8 A
radioligand binding (Figures 2B–2D). Importantly, the crystallized (Table 1).
CB1 construct (described below) has comparable affinity for
AM6538 as the wild-type receptor (Ki = 5.1 0.9 nM).
Based on affinity mass spectrometry analysis, intact AM6538
is associated with the CB1 protein (Figure S3F). Electron
In functional assays, AM6538 is a competitive antagonist of the density with three branches was observed near the orthosteric
effects of CP55,940 and THC on CB1-mediated inhibition of ad- binding site and modeled as core AM6538 atoms with the
enylyl cyclase activity and b-arrestin2 recruitment in overexpres- terminal nitrate group omitted (Figures 3D and S3). A molecular
sion systems (Figures S1A and S1B and Table S1). Competitive dynamics (MD) simulation was performed on the CB1-AM6538
antagonism was confirmed by the [35S]-GTPgS binding assays complex with the nitrate group intact and modeled through
performed in mouse cerebellum (Figure S1C). For comparison docking analysis, and the results revealed that the root mean
purposes, competitive antagonism was demonstrated for rimo- square fluctuation (RMSF) values for the nitrate group and
nabant in the same systems (Figure S1 and Table S1).
the hinge carbon atom are higher, suggesting that the
nitrate group is more mobile than other atoms in AM6538 (Fig-
ure S4B). As a modeled ligand with other possibilities to fit the
Structure Determination of CB1-AM6538 Complex
To facilitate crystallization, it was necessary to modify the electron density, further studies on ligand binding are under
wild-type (WT) CB1 sequence. Construct optimization proced- investigation.
752 Cell 167, 750–762, October 20, 2016

part of the N terminus of CB1, residues 99–112, forms a V-shaped
loop, whichinserts into the ligand-binding pocket and functions as
a plug, restricting access to the pocket from the extracellular side
(Figures 1A and 1B). While the influence of crystal packing interac-
tions onthe conformation ofthe N terminus (Figure S3B) cannot be
ruled out, it is interesting to note that the N terminus has been
consistently observed in an ordered form in the structures of the
related lipid receptors LPA1 (lysophosphatidic acid receptor 1)
(Chrencik et al., 2015) and S1P1 (sphingosine 1-phosphate recep-
tor 1) (Hanson et al., 2012) and that the function of CB1 is very
sensitive to the presence of the ordered portion of the N terminus
(Andersson et al., 2003; Fay and Farrens, 2013). ECL2 in CB1
consists of 21 residues folding into an intricate structure that
projects four residues (268–271) into the binding pocket.
Previous work has shown that the four residues are important
for mediating interactions with certain classes of ligands
(Ahn et al., 2009; Bertalovitz et al., 2010) and that the two
cysteines (Cys257 and Cys264) in ECL2 are critical to the function
of CB1 (Fay et al., 2005). In the structure, the conformation of
ECL2 is constrained by the presence of an intraloop disulfide
bond (Cys257-Cys264) (Figure 1B) previously found in the
structures of the closely related LPA1 and S1P1 receptors. The
highly conserved disulfide bond between ECL2 and helix III
(Cys3.25) in most class A GPCRs is lacking in all three lipid receptor
structures.
Table 1. Crystallographic Data Collection and Refinement
Statistics
Data Collection and Refinement Statistics
Ligand
AM6538
29
Number of crystals
Data Collection
Space group
C2
Cell dimensions
˚
a,b,c (A)
116.56, 52.63, 143.63
111.14
b (ꢀ)
Number of reflections measured
Number of unique reflections
160,794
19,837
˚
Resolution (A)
47.30 - 2.80 (2.90-2.80)
0.126 (0.520)
10.1 (2.1)
a
Rmerge
Mean I/s(I)
Completeness (%)
Redundancy
CC1/2
97.4 (94.1)
8.1 (4.6)
0.999 (0.44)
Refinement
˚
Resolution (A)
47.05 - 2.80
19,827 (985)
0.207/0.238
Number of reflections (test set)
Rwork/Rfree
Number of Atoms
CB1
AM6538 Interactions in CB1 Ligand-Binding Pocket
The position of the ligand-binding pocket of CB1 is different from
the previously described orthosteric binding sites of other class
A GPCRs. AM6538 lies quite low in the binding pocket of CB1,
immediately above the conserved Trp3566.48 (Figures 3A and
3B). The ligand adopts an extended conformation with the ligand
strain close to its local minimum as determined by quantum
mechanical calculations (Figure S3D).
2,312
1,103
33
Flavodoxin
AM6538b
Lipid and other
102
2
Average B Factor (A )
˚
Wilson
73.6
87.4
110.6
66.6
119.5
79.7
Overall
AM6538 forms mainly hydrophobic interactions with ECL2
and the N terminus, as well as with all CB1 helices except helix
IV (Figures 3A and 3B). As described above, the ligand has a pyr-
azole ring core with three functional groups. For clarity, we have
termed the 2,4-dichlorophenyl ring ‘‘arm 1,’’ the 4-aliphatic chain
substituted phenyl ring ‘‘arm 2,’’ and the piperidin-1-ylcarbamoyl
‘‘arm 3’’ (Figure 3C). The pyrazole ring core (including the 4-methyl
group) is situated between helices II and VII, forming hydrophobic
interactions with the side chains of Phe1702.57, Phe3797.35, and
Ser3837.39 (Figure 3C) and is capped by the N-terminal loop inter-
actions (Met103N-term). Arm 1 is located in a narrow side pocket
(Figure 3B) formed by helices II, III, VI, and VII and forms edge-
face p-p interactions with the side chain of Phe1702.57 and with
CB1
Flavodoxin
AM6538
Lipid and other
rmsds
˚
Bond lengths (A)
0.004
0.638
Bond angles (ꢀ)
Ramachandran Plot Statistics (%)c
Favored regions
97.7
2.3
0
Allowed regions
Disallowed regions
aData for high-resolution shells are shown in parenthesis.
bNitrate group is excluded due to the absence of electron density.
cAs defined in MolProbity.
the backbone amide bond between Gly1662.53 and Ser1672.54
.
This substituted ring moiety forms hydrophobic interactions with
Val1963.32, Trp3566.48, Cys3867.42, Leu3877.43, and Met103N-term
(Figure 3C). The 2,4-dichlorophenyl ring in arm 1 fits well into the
shape of the narrow side pocket (Figure S3C), which explains
why 2,4-dichloro or 2-chloro substitutions result in optimal binding
Structural Features of CB1 in Complex with AM6538
The overall CB1 structural fold shares a similar architecture with (Lange and Kruse, 2005).
previously solved class A GPCR structures, containing seven
transmembrane (7TM) a-helices (ItoVII) connected bythree extra- (Figure 3B) formed by helices III, V, VI, and ECL2. The phenyl
Arm 2 of the ligand extends toward a long, narrow channel
cellular loops (ECL1–3), three intracellular loops (ICL1–3), and an group in arm 2 establishes p-p interactions with Phe102N-term
,
amphipathic helix VIII (Figures 1A and S3A). The non-truncated Phe268ECL2, and Trp3566.48; hydrophobic interactions with
Cell 167, 750–762, October 20, 2016 753

Figure 3. Analysis of the Ligand Binding
Pocket of CB1
(A) Key residues in CB1 for AM6538 binding.
AM6538 (green carbons) and CB1 residues (teal
carbons) involved in ligand binding are shown in
stick representation. The receptor is shown in gray
cartoon representation.
(B) The shape of the ligand binding pocket.
AM6538 (green carbons) and ML056 (brown car-
bons) are shown in stick representation.
(C) Schematic representation of interactions be-
tween CB1 and AM6538. The 2,4-dichlorophenyl
ring in the red circle is termed as arm 1; the
4-aliphatic chain substituted phenyl ring in the blue
circle is termed as arm 2; the piperidin-1-ylcarba-
moyl in the green circle is termed as arm 3. The
nitrate group, which was not observed in the
electron density, is shown in gray.
(D) Electron density maps calculated from the
refined structure of the CB1-AM6538 complex.
jFoj-jFcj omit map (blue mesh) of the ligand
AM6538 is shown (contoured at 3 s).
See also Figure S3.
˚
helix I by about 7 A, mainly due to interac-
tions with the two bulky residues
Phe1702.57 and Phe1742.61
.
The role of Lys1923.28 in CB1 has been
intensively researched. It was reported
that
Lys192Ala/Lys192Gln/Lys192Glu
mutants decreased the affinities of
Leu1933.29, Val1963.32, and Leu3596.51 are observed. A triple several agonists such as CP55,940, HU-210, and anandamide
bond within the long aliphatic chain in arm 2 forms p-p interac- (Chin et al., 1998; Hurst et al., 2002; Pan et al., 1998; Song and
tions with Phe268ECL2 and Trp3566.48 and forms hydrophobic Bonner, 1996). Previously, it was suggested that Lys1923.28
interactions with several residues, including Leu1933.29
,
has direct interactions with CB1 ligands. However, in our CB1
Val1963.32, Thr1973.33, Leu3596.51, and Met3636.55 (Figure 3C). structure, Lys1923.28 does not interact directly with AM6538.
Interestingly, the binding mode of the long hydrophobic chain Instead, it forms a salt bridge/hydrogen bond network that stabi-
is similar to that of ML056 with the S1P1 receptor (Figure 3B), lizes the conformation of ECL1, the N terminus, and the extracel-
implying that this could be a conserved binding pocket for long lular parts of helices II and III. The side chain of Lys1923.28 points
aliphatic chains in lipid-binding receptors. In regards to the ni- away from the binding pocket and forms salt bridges with
trate group that has not been observed in the crystallographic Asp1762.63 and Asp184ECL1, while Asp184ECL1 further stabilizes
structure, our docking experiments define a domain in which the N terminus by forming a hydrogen bond with the backbone of
the nitrate group is interacting with residues Thr1973.33
,
Phe102N-term (Figure 4C).
Tyr2755.39, and Trp2795.43 through hydrogen bonding and p-p
interactions (Figure S4A).
Structural Comparison of the CB1, LPA1, and S1P1
Finally, arm 3 extends toward a gap constituted by helices I, II, Receptors
VII capped by the N-terminal loop (Figure 3B). It forms interac- CB1, LPA1, and S1P1 receptors all bind lipid-derived endoge-
tions with hydrophobic residues, Met103N-term, Ile105N-term
,
,
nous ligands (anandamide/sn-2-arachidonoylglycerol, sphingo-
sine-1-phosphate, lysophosphatidic acid) (Shimizu, 2009). Early
Ile1191.35
, , , ,
Ser1231.39 Phe1702.57 Phe1742.61 Ala3807.36
Ser3837.39, and Met3847.40 (Figure 3C). Unlike the p-p interac- sequence analysis revealed that CB1 has a moderate sequence
tions formed by the other two arms, the interactions between identity with LPA1 (13% overall, 28% in TM regions) and S1P1
arm 3 and the receptor are non-specific.
(14% overall, 27% in TM regions) (Bramblett et al., 1995; Isberg
Among the interactions between AM6538 and CB1, et al., 2016) (Figure S5). Crystal structures of LPA1 (Chrencik
Phe1702.57 plays an important role by interacting with the pyra- et al., 2015) and S1P1 (Hanson et al., 2012) have been recently
zole ring core, as well as rings in arm 1 and arm 3. Moreover, determined. The main structural difference between the three
Phe1702.57 is pushed by the ligand to move toward helix I, result- lipid receptors occurs in the extracellular portion, with the most
ing in a tilt of the last two turns (residues 170–177) of helix II striking being the unique conformation of the N-terminal loop of
toward helix I, compared to S1P1 and LPA1, the two closest CB1 (Figures 4A and 4B). For all three receptors, the N terminus
homologs (Figures 4A and 4B). This tilted helix II, in turn, pushes has a role in ligand recognition. Comparing the ligand binding
754 Cell 167, 750–762, October 20, 2016

Figure 4. Comparison of CB1, LPA1, and S1P1 Structural Features
(A) Side view of CB1 with structurally divergent regions of LPA1 (PDB: 4Z34) and S1P1 (PDB: 3V2Y) overlaid. LPA1 and S1P1 receptors are shown in gray cartoons.
˚
The CB1 N-terminal loop (red) occupies the polar binding pocket, helix I (red helix) is shifted out 7 A compared with the other two receptors. ECL3 of CB1 shows a
three helical turn extension of helix VII (brown helix).
(B) 90ꢀ rotation of (A) for a top view of CB1 with structurally divergent regions of LPA1 (4Z34) and S1P1 (3V2Y) overlaid. CB1 shows a conserved conformation of
˚
ECL2 (blue) with the other two receptors, helix II is shifted out 2 A (purple helix).
(C–E) The interaction network of position 3.28 of CB1 (K192), LPA1 (R124), and S1P1 (R120). Polar interactions are represented by black dashed lines. (C) CB1 is
shown in gray cartoon, AM6538 is shown in green sticks and the key residues are shown in blue sticks; (D) LPA1 is shown in gray cartoon, ONO-9780307 is shown
in purple-blue sticks and the key residues are shown in cyan sticks; (E) S1P1 is shown in gray cartoon, ML056 is shown in orange sticks and the key residues are
shown in pink sticks.
See also Figure S5.
positions of the three receptors, AM6538 lies more horizontally CB1, allowing access to the re-entrant N-terminal loop, and
than the ligands in LPA1 and S1P1, with arm 1 inserted deeper contribute to the extensive surface area and multiple sub-
into the side pocket (Figure 4A). Consistently, the N-terminal pockets associated with CB1. Finally, the ECL3 region of CB1 dif-
loop in CB1 is positioned deeper into the binding pocket fers from that of its related receptors by a three helical turn exten-
compared to the N-terminal helices of LPA1 and S1P1, which sion of helix VII, which increases the rigidity and presumably
are both positioned as a cap on their respective ligand binding decreases the flexibility of this loop region in CB1 (Figure 4A).
pockets. As a consequence, helix I of CB1 is pushed outward
˚
The arrangement of Lys1923.28 in CB1 is unique when
ꢁ7 A relative to LPA1 and S1P1 by arm 2, opening a wider gap be- compared with its equivalent residue Arg3.28 in LPA1 and S1P1.
tween helices I and VII than what was observed in LPA1 and S1P1 In LPA1 and S1P1, Arg3.28 points into the binding pocket forming
(Figure 4A). Moreover, helix II and ECL1 change their conforma- a strong interaction with the phosphate head group of the ligands
˚
tion in CB1, with helix II shifting 2 A further from the binding pocket (Figures 4D and 4E); it is stabilized by the negatively charged or
compared with LPA1 and S1P1, and ECL1 changing from a short polar residue 3.29 (Gln125 in LPA1 and Glu121 in S1P1). How-
helical region in LPA1 and S1P1 to a loop in CB1 (Figure 4B). These ever, in CB1 the environment near Leu1933.29 and the ligand is
conformational changes effectively enlarge the binding pocket of hydrophobic, thus, it is energetically favorable for the positively
Cell 167, 750–762, October 20, 2016 755

Figure 5. Docking of Different Antagonists in the CB1 Crystal Structure
(A) CB1 binding pocket with rimonabant (blue sticks), otenabant (raspberry sticks), and taranabant (brown sticks) are shown in gray surface representation.
(B) Chemical structures of rimonabant, otenabant, and taranabant. The red/blue/green rectangles highlight previously described ‘‘arms’’ of the molecule termed
arm 1/arm 2/arm 3 (see Figure 3C).
(C) Predicted binding modes of rimonabant (blue sticks), otenabant (raspberry sticks), and taranabant (brown sticks) with CB1. The interacting residues are shown
in yellow sticks, and H178 is shown in green sticks.
See also Figure S4 and Table S2.
charged Lys1923.28 to point away from the binding pocket (Fig- square deviation (RMSD) of 0.55 A. For the three antagonists,
˚
ure 4C). In fact, Lys1923.28 functions as a stabilization anchor their first-ranked docking poses resemble that of AM6538 in
by forming a salt bridge/hydrogen bond network instead of the crystal structure, with three arms that fit into the three
directly interacting with the ligand as Arg3.28 in LPA1 and S1P1. branches of the binding pocket, as described in the AM6538
Another major difference of the endogenous ligands of CB1 binding mode (Figure 5A). As denoted for AM6538, the arms in
(anandamide, 2-AG), LPA1 (LPA) and S1P1 (S1P) is the head the side pocket, long channel, and gap are termed arm 1, arm
group. The heads of LPA1 and S1P1 ligands are negatively 2, and arm 3 (Figure 5B). The scaffolds of arm 1 and arm 2 of
charged phosphate groups, while the heads of CB1 ligands are the three antagonists are very similar to each other, and so are
neutral. In fact, phosphorylation of the head group of CB1 ligands the docking poses. The biggest difference is from arm 3, yet
anandamide and 2-AG would transform them into ligands of they are all quite bulky, which we speculate is the signature for
LPA1 (Chrencik et al., 2015).
CB1 antagonists. Taranabant has the highest affinity with CB1
among the three ligands (Table S2). It does not have a rigid aro-
matic ring at the core, allowing its arm 2 and arm 3 to have more
Binding Modes of Representative Antagonists to CB1
We performed docking of AM6538 and three CB1 antagonists: freedom to form stronger interactions with surrounding residues
rimonabant, otenabant, and taranabant (Figure 5, Table S2), (Figure 5C). Mutagenesis of Phe1702.57Ala or Phe1742.61Ala re-
which represent diverse scaffolds of CB1 antagonists used in sults in dramatically reduced functional affinity for rimonabant
clinical trials. For each compound, the top one ranked pose and AM6538, while neither mutation alters the potency of the
was used for analysis. The docking pose of AM6538 reproduces agonist, CP55,940. More conservative mutations to tryptophan
the crystallographic pose (Figure S4A), with a root mean (Phe1702.57Trp or Phe1742.61Trp) at either site have no
756 Cell 167, 750–762, October 20, 2016

appreciable effect on antagonist binding, further supporting the ure S4J), further supporting the predicted binding pose of
importance of the hydrophobic interactions at this site (Figures CP55,940 (Figure 6G).
S4G and S4H). In addition, we performed 50 ns MD simulations
to visually assess the predicted ligand-receptor interactions, DISCUSSION
starting from the docking poses. The RMSD values of AM6538,
˚
rimonabant, and otenabant are about 1.4 A. For taranabant, the The ligand used in this study, AM6538, was designed with the aim
˚
value is larger (about 3 A), in accordance with its lack of the of stabilizing the ligand-CB1 receptor complex and promoting CB1
core aromatic ring (Figures S4C–S4F). The predicted interactions crystal formation. For this purpose, our approach focused on the
of the ligands are conserved during the short MD simulations. The use of the substituted biarylpyrazole chemotype based on the
central structure of AM6538 in MD simulation is closest to the structure of rimonabant for obtaining highly utilized proprietary
docking pose.
probes. Within this class of compounds, a slight modification of
the chemotype led to AM251, a commonly used CB1 inverse
agonist/antagonist(Lanetal., 1999), andAM281, aCB1 antagonist
Docking Poses of Representative Agonists of CB1
Although the crystal structure we present is in the inactive state, whose radiolabeling produced the first in vivo imaging agent for la-
we are able to investigate how representative agonists likely bind beling CB1 in nonhuman primates and humans (Berding et al.,
to the orthosteric pocket of CB1 by integrating molecular dock- 2004; Gatley et al., 1998). AM6538 acts as a CB1 stabilizing antag-
ing, mutagenesis, and SAR data (Ahn et al., 2009; Aung et al., onist, and the ligand was effective in allowing structural deter-
2000; Bertalovitz et al., 2010). Six CB1 agonists (Table S2)—the mination of CB1. AM6538 reacts as an intact molecule with no
classical cannabinoids, THC and CP55,940; the endogenous ag- crystallographic evidence of covalent binding while at the
onists, anandamide and 2-AG; and indole derivatives, JWH-018 same time not revealing the location of the terminal nitrate group
and WIN 55,212-2—were selected for docking studies. These in the X-ray structure. While radioligand binding studies demon-
agonists mainly interact with ECL2, N-terminal loop, helices III, strate that AM6538 binds tightly to the receptor, the precise
VI, and VII, and they do not interact with helices I and II. Their pre- mode of action for stabilizing the receptor remains to be
dicted binding modes are shown in Figure 6. For THC and determined.
CP55,940, the rings reside between the N-terminal loop and
To date, there remains considerable controversy with re-
ECL2, forming p-p interactions with Phe268ECL2 (Figures 6A gards to CB1 ligands and their diverse medical applications.
and 6B), and the carbon chains extend into the long channel This is likely due in part to the wide availability and illicit nature
and interact with residues from helices III, VI, and VII. of the most famous CB1 pharmaceutical, marijuana. Marijuana
CP55,940 does not interact with helices I and II, which is sup- has been widely used across many cultures to treat multiple
ported by our mutagenesis studies: mutations on Phe170 and conditions, with most of the results relayed via oral tradition,
Phe174 (Phe1702.57Ala/Trp or Phe1742.61Ala/Trp) do not alter anecdote, political position, or with economic interest prevent-
the potency of CP55,940 (Figure S4G). Anandamide and 2-AG ing an objective interpretation of therapeutic efficacy in any
were predicted to adopt a C-shaped conformation and occupy particular disease state (Whiting et al., 2015). The medicinal
a similar space as THC (Figures 6C and 6D). Their hydrophilic marijuana movement continues to gain support, and clinical tri-
heads are sandwiched between the N-terminal loop and ECL2, als with well-defined endpoints will continue to educate the
and their long aliphatic tails extend deeper into the long channel. medical and pharmaceutical communities regarding the relative
JWH-018 and WIN 55,212-2, however, are predicted to bind benefits and drawbacks of targeting this physiological system.
deeper in the pocket than THC (Figures 6E and 6F). Both the The crystal structure of CB1 in complex with AM6538 reveals
indole rings and naphthalene rings form p-p interactions with an expansive and complicated binding pocket network consist-
Phe268ECL2. The N-substituents reach the end of the long chan- ing of multiple sub-pockets and channels to various regions of
nel and interact with helix V. The binding mode of JWH-018 and the receptor. The three-arm ligand structure is common to CB1
WIN 55,212-2 is supported by mutations on helix V (McAllister antagonists and inverse agonists and may be critical for
et al., 2003; Song et al., 1999) and SAR study of N-alkyl chain stabilizing the inherent flexibility of the native receptor in a
length (Aung et al., 2000). Notably, all of the agonists interact non-signaling conformation. Combining the 3D structure of
with Phe268ECL2 and Phe3797.35 in our docking poses, which CB1 and molecular docking of the three representative antago-
is consistent with mutagenesis studies on ECL2 (Ahn et al., nists, which act as inverse agonists, rimonabant, otenabant,
2009) and Phe3797.35 (Figure S4I). Any of the following indivi- and taranabant, the role of each arm is clearly illustrated. Arm
dual mutations—Phe268ECL2Trp, Pro269ECL2Ala, His270ECL2Ala, 1 is crucial for high affinity binding, while arm 2 extends into
Ile271ECL2Ala, or breaking of the disulfide bond Cys257-Cys264 the long channel. An aliphatic or aromatic ring on arm 3 pushes
on ECL2—dramatically decreased the binding of all three on helices I and II, causing them to bend outward, and poten-
different types of agonists, yet had little impact on antagonist tially modulating the pharmacological signaling state of the
binding (Ahn et al., 2009). The prominent role of Phe3797.35 to receptor. Together with structure and modeling data, we spec-
facilitate CP55,940 functional affinity is supported by the loss ulate that a bulky ring on arm 3 is essential for CB1 antagonism.
of CP55,940 potency with the Phe3797.35 Trp mutation and an This observation provides direction for designing more diverse
even greater loss of agonist activity with the Phe3797.35Ala mu- compounds as we have learned that variable chemical groups
tation (Figure S4I). While these mutations dramatically affected are tolerated at the core of arm 3, a long carbon chain can be
CP55,940 agonism, they had no impact on antagonist/inverse added at the para-position of the phenyl ring in arm 2. For
agonist (AM6538 or rimonabant) displacement of agonist (Fig- example, introduction of
a 4-cyanobut-1-ynyl at arm 2
Cell 167, 750–762, October 20, 2016 757

Figure 6. Docking Poses of Different Cannabinoid Receptor Agonists
(A–F) Chemical structures and predicted binding poses of THC (pink sticks) (A), CP55,940 (magenta sticks) (B), Anandamide (cyan sticks) (C), 2-AG (green sticks)
(D), JWH-018 (yellow sticks) (E), and WIN 55,212-2 (blue sticks) (F).
(G) Zoom-in view of predicted CP55,940 binding pose. CP55,940 is shown in magenta sticks, AM6538 is shown in green sticks, and the key residues are shown in
slate sticks.
See also Figure S4 and Table S2.
758 Cell 167, 750–762, October 20, 2016
