Orthogonally protected thiazole and isoxazole diamino acids: An efficient synthetic route

Article abstract of DOI:10.1002/chem.201001492

An efficient strategy has been developed for the synthesis of heteroaromatic amino acids (HAAs). These methods generate mono-or orthogonally protected diamino acids from bamino acids (see scheme). Their synthetic reliability and biological potential was d

Full text of DOI:10.1002/chem.201001492

DOI: 10.1002/chem.201001492
Orthogonally Protected Thiazole and Isoxazole Diamino Acids:
An Efficient Synthetic Route
Jeffrey D. Butler, Keith C. Coffman, Kristin T. Ziebart, Michael D. Toney, and
Mark J. Kurth*[a]
Heterocyclic and heteroaromatic amino acids (HAAs) are
central to the motifs of peptide antibiotics, including micro-
cin B17, nostocyclamide, telomestatin, and thiostrepton.[1] a-
Amino acids undergo cyclization and oxidation to form het-
eroaromatic rings, notably, thiazoles, oxazoles, indoles, and
pyridines, which give rise to well-documented antibiotic ac-
tivity.[1] Few of these targets have succumbed to total synthe-
sis due, in large part, to the demand for orthogonally pro-
tected HAA building blocks.[1b] In contrast, commercial or-
thogonally protected natural amino acids, most commonly
lysine and aspartic acid, are routinely used as the branch
point in the synthesis of branched or cyclic peptide and oli-
gosaccharide mimetics[2–6] (Figure 1a). Similarly, these
agents see action in the ligation of imaging agents (Fig-
ure 1b) and in diversity-oriented syntheses (e.g., I!II, Fig-
ure 1c).[7,8] However, the stringent orthogonal chemistry re-
quirements, especially in solid-phase synthesis, make optimi-
zation at this branch-point region challenging.
Surprisingly, methods to generate new heterocyclic non-
natural amino acids with an additional orthogonally protect-
ed amino group (e.g., diamino acids), are still rare.[6,9d] Non-
natural conformationally restrictive amino acids have poten-
tial in the discovery of new peptidomimetics and in efforts
to improve the pharmacological and protease resistant prop-
erties of bioactive peptides.[1b,9] There is demand for practi-
cal HAA syntheses that deliver orthogonally protected dia-
mino acids compatible with the traditional solid and solution
phase 9-fluorenylmethoxycarbonyl (Fmoc) protection strat-
egy. Thus our focus herein is on the development of short,
high yielding syntheses delivering heteroaromatic mono-
and diamino acids from readily available starting materials.
Herein, we report an efficient synthesis yielding thiazole-
and isoxazole-based HAAs from b-amino acids. This strat-
egy allows for orthogonal carbamate protection that permits
independent synthetic manipulation (Figure 1). Further, the
viability of the synthesized HAAs as branch-point amino
acids is demonstrated in the solid-phase synthesis of an in-
hibitor of two chorismate utilizing enzymes, anthranilate
synthase (AS) and isochorismate synthase (IS). This inhibi-
tor shows two- and threefold better activity than its lysine
predecessor in the inhibition of AS and IS, respectively.
A wide variety of b-amino acids are commercially avail-
able and considerable synthetic effort has been focused on
producing novel optically active b-amino acids.[10] This avail-
ability makes b-amino acids an attractive starting material
for this work. As outlined in Figure 2, our synthetic method
began by carbamate protection (Teoc, Boc, Cbz, and Alloc)
of b-alanine following literature procedures.[11] These pro-
tected acids were subjected to coupling conditions to install
the Meldrum acid moiety in 94–98% yield. Intramolecular
cyclization of 1a–d!2a–d is accomplished quantitatively in
EtOAc at reflux via a presumed ketene intermediate.[12] In a
modification of Suzukiꢀs general method of cyclocondensa-
Figure 1. Common motifs and methods employing an orthogonally pro-
tected diamino acid, which include a) branched peptides, b) ligated imag-
ing agents, and c) diversity-oriented methods.
[a] Dr. J. D. Butler, K. C. Coffman, Dr. K. T. Ziebart, Prof. M. D. Toney,
Prof. M. J. Kurth
Department of Chemistry, University of California, Davis
One Shields Avenue, Davis, CA 95616 (USA)
Fax : (+1)530-752-8995
E-mail: mjkurth@ucdavis.edu
Homepage: http://chemgroups.ucdavis.edu/~kurth/
Supporting information for this article is available on the WWW
under http://dx.doi.org/10.1002/chem.201001492.
9002
ꢁ 2010 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Chem. Eur. J. 2010, 16, 9002 – 9005

COMMUNICATION
To deliver orthogonally protected thiazole HAAs, inter-
mediates 1a–c (Figure 4) were heated in methanol at reflux
to quantitatively deliver methyl esters 18a–c.[12b] These b-
Figure 2. General synthetic method of isoxazole-based amino acids.
Boc=tert-butyloxycarbonyl, Teoc=2-(trimethylsilyl)ethoxycarbonyl,
Cbz=carbobenzyloxy, Alloc=allyloxycarbonyl.
Figure 4. General synthetic method of thiazole-based orthogonally pro-
tected diamino acids.
tion,[13] compounds 2a–d were treated with strong base
(NaH) and a-chlorobenzaldo oximes to generate isoxazole
adducts 3–9 in 83–90% yield. These mixed imides (3–9)
were efficiently hydrolyzed to yield amino acids 3’–9’ in 72–
81% overall yield without carbamate deprotection.
Our approach to diaminoisoxazole and thiazole HAAs
began similarly to the monoamino acids of Figure 2. As de-
lineated in Figure 3, zinc reduction of intermediates 3, 8,
and 9 (when Y=p-NO2) delivered aniline analogues 10–12.
These anilines were carbamate protected with Alloc and
Cbz; subsequent imide hydrolysis delivered a collection of
orthogonally protected bis-carbamate isoxazole-based
HAAs (13–17) in 16–45% overall yield as tabulated in
Figure 3.

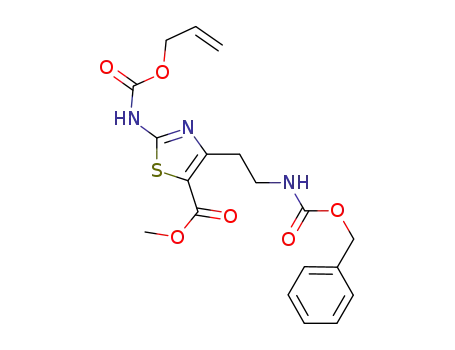

keto esters were a-chlorinated by using sulfuryl chloride
and, without purification, condensed with thiourea to give
thiazoles (19a–c) in two-step yields of 75–79%.[14] These 2-
amino thiazoles were carbamate protected to give orthogo-
nally protected esters that were subsequently saponified to
deliver a collection of thiazole-based orthogonally protected
diamino acids (20–28) as summarized in Figure 4 in an effi-
cient 48–61% overall yield. In addition, these methods have
been successful in preparing >5 g of 25 in comparable over-
all yield.
To explore how efficiently our diamino HAAs perform in
a typical branched synthesis, a solid-phase synthesis of a
staged inhibitor analogue (29) was undertaken, as depicted
in Figure 5. These inhibitors are of particular interest to our
group[8] and are an ideal test case for the employment of
these novel orthogonal diamino acids.
To synthesize 29, Rink amide resin was Fmoc deprotected
and N-Fmoc-3-chloro-l-phenylalanine was coupled by using
standard solid-phase peptide chemistry conditions. After
subsequent Fmoc deprotection, the Teoc/Alloc orthogonal
HAA 25 was coupled by using DIC and HOBt. Treatment
with TBAF in DMF removed the Teoc protecting group[11]
revealing a free amine that was subsequently coupled using
dehydrative conditions with 3-hydroxy-4-methyl-2-nitroben-
zoic acid. The Alloc protecting group was removed under
Pd0 conditions.[11] Finally, DIC- and HOBt-mediated cou-
pling of 3-[(tert-butoxycarbonyl)methoxy]benzoic acid com-
pleted the independent functionalization of both amines.
Resin cleavage and HPLC purification gave 29 in 91%
purity and 39% overall yield, which confirms that these or-
Figure 3. General synthetic method of isoxazole-based orthogonally pro-
tected diamino acids.
Chem. Eur. J. 2010, 16, 9002 – 9005
ꢁ 2010 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.chemeurj.org
9003

M. J. Kurth et al.
starting materials has been realized. Our strategy delivers
orthogonally carbamate protected diamino HAAs that are
of value for diversity-oriented methods and allow for
branched peptide/imaging agent synthesis. Their viability as
branch-point amino acids has been successfully demonstrat-
ed in the solid-phase synthesis of an inhibitor (29) of anthra-
nilate synthase (AS) and isochorismate synthase (IS) with
improved potency over its lysine predecessor.
Acknowledgements
We thank the National Science Foundation (CHE-0910870) for generous
financial support.
Keywords: amino acids · inhibitors · isoxazoles · protecting
groups · thiazoles
[1] a) H.-D. Arndt, S. Schoof, J.-Y. Lu, Angew. Chem. 2009, 121, 6900–
6904; Angew. Chem. Int. Ed. Engl. 2009, 48, 6770–6773; b) R. A.
Hughes, C. J. Moody, Angew. Chem. 2007, 119, 8076–8101; Angew.
Chem. Int. Ed. 2007, 46, 7930–7954; c) G. Videnov, D. Kaiser, C.
Kempter, G. Jung, Angew. Chem. 1996, 108, 1604–1607; Angew.
Chem. Int. Ed. Engl. 1996, 35, 1503–1506.
[2] N. Shepherd, H. Hoang, G. Abbenante, D. Fairlie, J. Am. Chem.
Soc. 2005, 127, 2974–2983.
[3] S. Di Maro, R. C. Pong, J. T. Hsieh, J. M. Ahn, J. Med. Chem. 2008,
51, 6639–6641.
[4] Y. Zheng, K. Balasubramanyam, M. Cebrat, D. Buck, F. Guidez, A.
Zelent, R. Alani, P. Cole, J. Am. Chem. Soc. 2005, 127, 17182–
17183.
[5] S. Pritz, O. Kraetke, A. Klose, J. Klose, S. Rothemund, K. Fechner,
M. Bienert, M. Beyermann, Angew. Chem. 2008, 120, 3698–3701;
Angew. Chem. Int. Ed. 2008, 47, 3642–3645.
[6] F. Sicherl, V. Wittmann, Angew. Chem. 2005, 117, 2133–2136;
Angew. Chem. Int. Ed. 2005, 44, 2096–2099.
[7] a) L. Peng, R. Liu, J. Marik, X. Wang, Y. Takada, K. Lam, Nat.
Chem. Biol. 2006, 2, 381–389; b) R. D. Carpenter, M. Andrei, O. H.
Aina, E. Y. Lau, F. C. Lightstone, R. Liu, K. S. Lam, M. J. Kurth, J.
Med. Chem. 2009, 52, 14–19.
Figure 5. a) Synthetic method of 29 b) IS and AS inhibition data for com-
pounds 29 and 30. DIC=diisopropylcarbodiimide, HOBt=1-hydroxy-
benzotriazole, TBAF=tetrabutylammonium fluoride, HATU=O-(7-aza-
benzotriazol-1-yl)tetramethyluronium hexafluorophosphate, DMAP=4-
dimethylaminopyridine, NMM=N-methylmorpholine, TFA=trifluoro-
acetic acid, TIS=triisopropylsilane.
thogonal diamino HAAs are compatible with standard
Fmoc peptide chemistry conditions.
[8] a) S. M. Dixon, K. T. Ziebart, Z. He, M. Jeddeloh, C. L. Yoo, X.
Wang, A. Lehman, K. S. Lam, M. D. Toney, M. J. Kurth, J. Med.
Chem. 2006, 49, 7413–7426; b) K. T. Ziebart, S. M. Dixon, B. Avila,
M. H. El-Badri, K. G. Guggenheim, M. J. Kurth, M. D. Toney, J.
Med. Chem. 2010, 53, 3718–3729.
[9] a) A. Giannis, T. Kolter, Angew. Chem. 1993, 105, 1303–1326;
Angew. Chem. Int. Ed. Engl. 1993, 32, 1244–1267; b) J. Gante,
Angew. Chem. 1994, 106, 1780–1802; Angew. Chem. Int. Ed. Engl.
1994, 33, 1699–1720; c) V. J. Hruby, G. Li, C. Haskell-Luevano, M.
Shenderovich, Biopolymers 1997, 43, 219–248; d) E. Mann, H. Kess-
ler, Org. Lett. 2003, 5, 4567–4570.
AS and IS are structurally homologous chorismate-utiliz-
ing enzymes, and they are excellent antimicrobial drug tar-
gets due to their absence in humans and their roles in bacte-
rial and apicomplexan parasite cell survival and/or viru-
lence.[15] Compound 29 is a structural analogue of a previ-
ously discovered inhibitor with a lysine scaffold (30).[8] The
inhibition properties of 29 are similar to 30, but, satisfyingly,
the exchange of a-lysine for thiazole HAA gives a signifi-
cant two- and threefold increase in potency against AS and
IS, respectively (Figure 5b). This result represents a step for-
ward in our program to find inhibitors of chorismate-utiliz-
ing enzymes. More importantly, this application underscores
the value of these HAAs in the development and optimiza-
tion of tight-binding biological ligands in other discovery ef-
forts.
[10] a) Y. Kawanaka, E. M. Phillips, K. A. Scheidt, J. Am. Chem. Soc.
2009, 131, 18028–18029; b) A. Chan, K. A. Scheidt, J. Am. Chem.
ˇ
Soc. 2008, 130, 2740–2741; c) M. Nahrwold, A. Stoncius, A. Penner,
B. Neumann, H. G. Stammler, N. Sewald, Beilstein J. Org. Chem.
2009, 5, 43; d) S. Abele, D. Seebach, Eur. J. Org. Chem. 2000, 1–15,
and references therein; e) G. Guichard, S. Able, D. Seebach, Helv.
Chim. Acta 1998, 81, 187–206, and references therein.
[11] See the Supporting Information for synthetic detail and pertinent lit-
erature.
[12] a) V. V. Lipson, N. Y. Gorobets, Mol. Diversity 2009, 13, 399–419;
b) Y. Oikawa, K. Sugano, O. Yonemitsu, J. Org. Chem. 1978, 43,
2087–2088.
The goal of developing high-yielding syntheses of hetero-
aromatic mono- and diamino acids from readily available
9004
www.chemeurj.org
ꢁ 2010 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Chem. Eur. J. 2010, 16, 9002 – 9005

Orthogonally Protected Thiazole and Isoxazole Diamino Acids
COMMUNICATION
[13] a) M. H. El-Badri, M. J. Kurth, J. Comb. Chem. 2009, 11, 228–238;
b) H. Takikawa, K. Hikita, K. Suzuki, Synlett 2007, 2252–2256, and
references therein.
[14] a) G. J. Yu, C. L. Yoo, B. Yang, M. W. Lodewyk, L. Meng, T. T. El-
Idreesy, J. C. Fettinger, D. J. Tantillo, A. S. Verkman, M. J. Kurth, J.
Med. Chem. 2008, 51, 6044–6054; b) C. L. Yoo, G. J. Yu, B. Yang,
L. I. Robins, A. S. Verkman, M. J. Kurth, Bioorg. Med. Chem. Lett.
2008, 18, 2610–2614.
[15] a) F. Dosselaere, J. Vanderleyden, Crit. Rev. Microbiol. 2001, 27, 75–
131; b) F. Roberts, W. C. Roberts, J. J. Johnson, D. E. Kyle, T. Krell,
J. R. Coggins, G. H. Cooms, W. K. Milhous, S. Tzipori, D. J. Fergu-
son, D. Chakrebarti, R. McLeod, Nature 1998, 393, 801–805.
Received: May 28, 2010
Published online: July 9, 2010
Chem. Eur. J. 2010, 16, 9002 – 9005
ꢁ 2010 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
www.chemeurj.org
9005
