Synthesis of an 8-pentafluorosulfanyl analog of the antimalarial agent mefloquine

Article abstract of DOI:10.1016/j.tetlet.2010.07.113

The 8-SF₅ analog of mefloquine was synthesized in nine steps from commercially available starting materials and in five steps from a novel ortho-SF₅-substituted aniline intermediate.

Full text of DOI:10.1016/j.tetlet.2010.07.113

Tetrahedron Letters 51 (2010) 5137–5140
Contents lists available at ScienceDirect
Tetrahedron Letters
journal homepage: www.elsevier.com/locate/tetlet
Synthesis of an 8-pentafluorosulfanyl analog of the antimalarial
agent mefloquine
Tingting Mo a,b, Xueling Mi a,b, Erin E. Milner c, Geoffrey S. Dow c, Peter Wipf a,b,
*
a Department of Chemistry, University of Pittsburgh, Pittsburgh, PA 15260, USA
b Center for Chemical Methodologies and Library Development, University of Pittsburgh, Pittsburgh, PA 15260, USA
c Division of Experimental Therapeutics, Walter Reed Army Institute of Research, 503 Robert Grant Av., Silver Spring, MD 20910, USA
a r t i c l e i n f o
a b s t r a c t
Article history:
The 8-SF5 analog of mefloquine was synthesized in nine steps from commercially available starting mate-
rials and in five steps from a novel ortho-SF5–substituted aniline intermediate.
Ó 2010 Elsevier Ltd. All rights reserved.
Received 29 June 2010
Revised 20 July 2010
Accepted 20 July 2010
Available online 25 July 2010
The geographic extension of Plasmodium falciparum necessitates
the development of new antimalarial drugs that are active against
resistant parasite strains.1 Mefloquine (1) has been shown to have
high efficacy for both treatment and prophylaxis of chloroquine-
resistant malaria (Fig. 1).2 However, its present potential is limited
due to its adverse central nervous system (CNS) effects, including
anxiety, depression, hallucinations, and seizures.3 One explanation
for these undesirable neurological events may be the ability of
mefloquine to cross the blood–brain barrier, accumulate in the
brain, and interact with several CNS targets.4 However, despite
the relatively high incidence of these side effects, mefloquine con-
tinues to be used by virtue of its long half-life, relative safety in
pregnancy, activity against chloroquine-resistant strains, and the
absence of effective alternatives.
In order to ameliorate the neurotoxicity profile of mefloquine,
we set out to develop analogs that are less readily absorbed
through the blood–brain barrier but retain the antimalarial profile
of the quinoline methanol scaffold.5 By replacing the 8-trifluoro-
methyl (CF3) group in mefloquine with 6- and 7-pentafluorosulfa-
nyl (SF5) substituents, respectively, we previously prepared two
SF5-analogs that showed equivalent or improved activities com-
pared to the parent compound 1 (Fig. 1, compounds 2 and 3).5
Interestingly, 2 and 3 also exhibited better activity and selectivity
than their corresponding 6- and 7-CF3-congeners, 4 and 5. These
encouraging results demonstrate the effective biological mimicry
of the CF3–SF5 switch in quinoline containing antimalarial drugs
and prompted us to prepare the synthetically considerably
demanding 8-SF5-congener 6 of mefloquine.
ity, a substantially larger steric effect, and a slightly higher chem-
ical stability.7 However, due to the relative dearth of practical high-
yielding methods for introducing this highly fluorinated functional
group, to date there are still only a few SF5-containing building
blocks accessible.8 For pentafluorosulfanylbenzenes, oxidative
fluorination of aromatic disulfides is still the generally preferred
procedure, despite its origin dating back half a century ago.9 Most
of the recent routes involve the use of expensive silver(II) fluoride
or hazardous fluorine gas, and the yields are generally low
(<40%).10 Furthermore, the disulfide method is only applicable to
a few substituted benzenes.
In contrast to meta- and para-nitro-SF5-benzene, the corre-
sponding ortho-nitro product is not accessible by the disulfide
procedure, presumably because the steric hindrance from the
ortho-nitro group prevents further fluorination of the SF3 interme-
diate to give the SF5 moiety.11 To date, the only substrate contain-
ing an ortho-substituent known to be suitable for direct
fluorination is the bis-ortho-fluorodiphenyl disulfide.12 The ortho-
fluorine substituent can then be converted in moderate yield into
an amino group by nucleophilic aromatic substitution.
HO
HO
N
H
N
H
R3
R2
N
CF3
N
CF3
Introduction of an SF5 group into an organic compound has
been of interest in the design of new materials, pharmaceuticals,
and agrochemicals.6 Compared to CF3, the symmetrical, octahedral
SF5 group demonstrates higher electronegativity and hydrophobic-
CF3
Mefloquine (1)
R1
2: R1 = H, R2 = H, R3 = SF5
3: R1 = H, R2 = SF5, R3 = H
4: R1 = H, R2 = H, R3 = CF3
5: R1 = H, R2 = CF3, R3 = H
6: R1 = SF5, R2 = H, R3 = H
* Corresponding author. Tel.: +1 4126248606; fax: +1 4126240787.
E-mail address: pwipf@pitt.edu (P. Wipf).
Figure 1. Mefloquine and its analogs, including the new analog 6.
0040-4039/$ - see front matter Ó 2010 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tetlet.2010.07.113

5138
T. Mo et al. / Tetrahedron Letters 51 (2010) 5137–5140
acetoacetate (11) in polyphosphoric acid, the somewhat difficult to
purify 8-pentafluorosulfanylquinoline intermediate 12 was ob-
tained in 70% yield and ca. 90% purity. The previously used chlori-
nation conditions with phosphorous oxychloride at 110 °C proved
to be too harsh for this quinoline,5 but the milder thionyl chloride
afforded the product in 86% yield. After nucleophilic aromatic sub-
stitution with 2-pyridylacetonitrile, oxidation of the carbon-nitrile
bond and Pt-catalyzed reduction of the ketone and pyridine moie-
ties in 13 proceeded in moderate to good yields to afford the target
molecule 6.15 This sequence was used to prepare 6 on 200 mg
scale.16–21
HO
N
H
NH2
SF5
N
CF3
SF5
6
ortho-SF5-aniline 7
Figure 2. Retrosynthetic strategy for preparation of 6.
In conclusion, we have developed an efficient synthetic route to
a novel 8-pentafluorosulfanyl analog of mefloquine that utilizes a
new preparation of ortho-SF5 aniline 7. Access to the latter com-
pound is of general utility since it can readily be converted into
other SF5-containing heterocyclic building blocks. The potency
and selectivity of 6 against P. falciparum strains as well as its CNS
effects are currently being evaluated and will be reported in due
course.
An important first objective of the present study was the prep-
aration of the novel ortho-SF5-aniline 7 from commercially avail-
able 3-SF5-phenol 8 en route to the 8-SF5 mefloquine analog 6
(Fig. 2).
We envisioned installing the ortho-amino group by the regiose-
lective nitration of a suitable pentafluorosulfanyl arene, followed
by reduction.13 Accordingly, we chose the commercially available
starting material 8 as the nitration substrate (Scheme 1). However,
the para-regioselectivity of the nitration of the phenol was poor,
since the hydroxyl group is a strong ortho-directing substituent.
To diminish the ortho-effect, 8 was converted into the trifluoro-
methyl sulfonate in 91% yield, and nitration now proceeded in

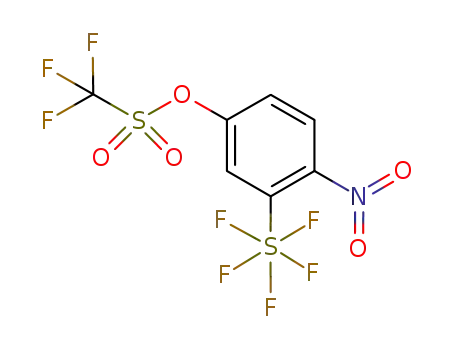

79% yield to give exclusively the desired product 9 with the NO2
group in the para-position to the TfO moiety. Subsequent Pd-cata-
lyzed reduction furnished the ortho-SF5-aniline 10 in 83% yield.
Removal of the triflate in 10 proved not to be trivial. Initial at-
tempts using Pd(II) salts and hydrogen transfer conditions led
either to the reductive cleavage of the SF5 group or to unspecific
decomposition. However, when a Pd(0) catalyst was employed in
the presence of formic acid and triethylamine,14 the desired prod-
uct 7 was formed. In our hands, the free base 7 was surprisingly
unstable in a neat (oily) form. However, we were able to obtain a
crystalline, stable storage form for 7 by converting it into its
corresponding hydrochloride salt. When aniline 7 was immedi-
ately subjected to a Conrad–Limpach reaction with 4,4,4-trifluoro-
Acknowledgments
We thank the Military Infectious Diseases Research Program
(MIDRP) and Medicines for Malaria Venture (MMV) for financial
support. This Letter was reviewed by the Walter Reed Army Insti-
tute of Research and the US Army Medical Research and Materiel
Command, and there is no objection to its publication or dissemi-
nation. The opinions expressed herein are those of the authors and
do not reflect the views or opinions of the Department of the Army
or the Department of Defense.
