Page 3 of 4
Journal Name
Dalton Transactions
DOI: 10.1039/C5DT01322D
amount of substrate increased, the share of product obtained from Since it is important that the shape of the catalyst crystals remains
the interior increased.
unaffected during the reaction, the reactions were carried out by mild
shaking and then the shape of the crystals were re-examined before
and after the reaction. As shown in Figure 3c, the cubic shape of the
crystals persisted even after prolonged shaking, albeit not perfect.
All three forms of crystal promoted the reaction with unremarkable
activity and the difference in reaction rate was not noticeable either;
the reactions were complete in 12 h to provide 8 in 90% yield by
Zn/(R)-KUMOF-1(1), 88% yield by (2), and 90 % by (3),
respectively (Table 3). However, as expected, the optical purity of
the product dramatically increased as the crystal size increased, 70%
ee by (1), 50 %ee by (2), and 0 %ee by (3). In other words, as more
of the reaction takes place internally, where the chiral bias is
isotropic or pseudoisotropic, the optical purity of the overall product
improved considerably.
Although the chiral metal-organic frameworks are considered as a
useful platform of heterogeneous catalyst for the enantioselective
chemical transformation, it seems to be overlooked that the chiral
MOF is merely an ensemble of cavities bearing diverse chiral
environments. Since the chiral environment of cavities is not
uniform and varies according to their location; e.g. that of surface is
anisotropic whereas that of the inside isotropic, the exact location of
the reaction would be critical to the overall optical purity of the
product. The previous catalytic reactions exhibiting high
enantioselectivity might happen to be the very special where even
the cavities on surface have sufficient chiral bias to discriminate
efficiently. In general, the reaction must be manipulated to limit the
reaction sites only on the uniform chiral environment to obtain the
consistent result. However, this task can hardly be done.
Table 3. The carbonyl-ene reaction of 7 with MOF-based reagents
bearing various crystal size.
This work was supported by a National Research Foundation of
Korea (NRF) grant (2011-0016303 and 2009-0053318) funded by
the Korea government (MSIP). Experiments at PAL (beamline 2D)
were supported in part by MEST and POSTECH.

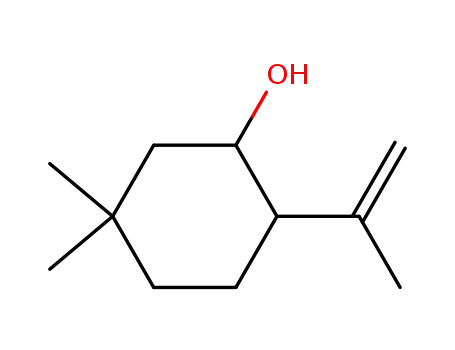

8
t (h)
12
12
yielda (%)
ee (%)
70
50
Zn/(R)-KUMOF-1(1)
Zn/(R)-KUMOF-1(2)
Zn/(R)-KUMOF-1(3)
92
89
91
Notes and references
12
0
a Department of Chemistry, Korea University, Seoul, 136-701, Korea.
E-Mail: njeong@korea.ac.kr; bPacific Northwest National Laboratory,
a.Reaction condition; All the reactions were carried out at 0°C in
dichloromethane using 3 equivalent of Zn/(R)-KUMOF-1. b. Absolute
configuration of the major isomer is (S(C1), R(C2)).
Subsequently, we attempted to examine the influence of the crystal
size. Since the ratio of surface area to total volume is inversely
proportional to the crystal size, the contribution of the product
obtained from the surface to the overall optical purity would become
more substantial as the crystal size decreased. If the reaction was
catalytic and progressed primarily on the surface, it is expected that
the increasing surface area would increase the reaction rate – i.e. a
higher reaction rate would be observed as the surface area increased
by reducing the crystal size. In addition, the products obtained from
the anisotropic environment would be dominant and would
determine the optical purity of overall product.
Electronic Supplementary Information (ESI) available: Materials and
methods and experimental details. See DOI: 10.1039/c000000x/
1. (a) J. Y. Lee, O. K. Farha, J. Roberts, K. A. Scheidt, S. T. Nguyen and
J. T. Hupp, Chem. Soc. Rev., 2009, 38, 1450–1459; (b) M. Banerjee,
S. Das, M. Yoon, H. J. Choi, M. H. Hyun, S. M. Park, G. Seo and K.
Kim, J. Am. Chem. Soc., 2009, 131, 7524–7525; (c) A. Corma, H.
García and F. X. Llabrés i Xamena, Chem. Rev., 2010, 110, 4606–
4655; (d) Y. Liu, W. Xuan and Y. Cui, Adv. Mater., 2010, 22, 4112–
4135; (e) D. Dang, P. Wu, C. He, Z. Xie and C. Duan, J. Am. Chem.
Soc., 2010, 132, 14321–14323; (f) M. Yoon, R. Srirambalaji and K.
Kim, Chem. Rev., 2012, 112, 1196–1231; (g) C. Zhu, G. Yuan, X.
Chen, Z. Yang and Y. Cui, J. Am. Chem. Soc., 2012, 134, 8058–
Three batches of crystals according to the crystal size were prepared
(see supporting information). (R)-KUMOF-1 crystals used in the
previous studies as synthesized from the conventional solvothermal
method, designated as (R)-KUMOF-1(2),† had crystal size ranging
8061; (h) M. Zheng, Y. Liu, C. Wang, S. Liu and W. Lin, Chem. Sci.
2012, , 2623–2627; (i) W. Xuan, C. Ye, M. Zhang, Z. Chen and Y.
Cui, Chem. Sci., 2013, , 3154L 3159; (j) K. Mo, Y. Yang and Y.
,
from 10 µm to a few hundred µm. (R)-KUMOF-1(1), consisted of
crystals larger than 50 µm on side, was collected from (R)-KUMOF-
1(2) by filtration through glass filter (50 µm) (Fig. S1). Meantime,
the micron size crystals, denoted as (R)-KUMOF-1(3), whose size is
uniformly in a few µm range, were synthesized with an aid of
microwave reactor.7 All kinds of crystals were confirmed to be
identical, except the size (Figure S2 - S4 ), by XRD, SEM, TGA etc.
3
4
Cui, J. Am. Chem. Soc., 2014, 136, 1746–1749; (k) L. Liu, X. Zhang,
S. Rang, Y. Yang, X. Dai, J. Gao, C. Xu and J. He, RSC Adv., 2014,
4, 13093–13107; (l) J. M. Falkowski, T. Sawano, T. Zhang, G. Tsun,
This journal is © The Royal Society of Chemistry 2012
J. Name., 2012, 00, 1-3 | 3
