Concise synthesis of artemisinin from a farnesyl diphosphate analogue

Article abstract of DOI:10.1016/j.bmc.2017.03.068

Artemisinin is one of the most potent anti-malaria drugs and many often-lengthy routes have been developed for its synthesis. Amorphadiene synthase, a key enzyme in the biosynthetic pathway of artemisinin, is able to convert an oxygenated farnesyl diphosphate analogue directly to dihydroartemisinic aldehyde, which can be converted to artemisinin in only four chemical steps, resulting in an efficient synthetic route to the anti-malaria drug.

Full text of DOI:10.1016/j.bmc.2017.03.068

Accepted Manuscript
Concise Synthesis of Artemisinin from a Farnesyl Diphosphate Analogue
Xiaoping Tang, Melodi Demiray, Thomas Wirth, Rudolf K. Allemann
PII:
S0968-0896(17)30126-8
DOI:
http://dx.doi.org/10.1016/j.bmc.2017.03.068
BMC 13666
Reference:
Bioorganic & Medicinal Chemistry
To appear in:
Received Date:
Revised Date:
Accepted Date:
20 January 2017
23 March 2017
31 March 2017
Please cite this article as: Tang, X., Demiray, M., Wirth, T., Allemann, R.K., Concise Synthesis of Artemisinin from
a Farnesyl Diphosphate Analogue, Bioorganic & Medicinal Chemistry (2017), doi: http://dx.doi.org/10.1016/j.bmc.
2017.03.068
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to our customers
we are providing this early version of the manuscript. The manuscript will undergo copyediting, typesetting, and
review of the resulting proof before it is published in its final form. Please note that during the production process
errors may be discovered which could affect the content, and all legal disclaimers that apply to the journal pertain.

Concise Synthesis of Artemisinin from a Farnesyl Diphosphate
Analogue
Xiaoping Tang, Melodi Demiray, Thomas Wirth* and Rudolf K. Allemann*
School of chemistry, Cardiff University, Park Place, Main Building, Cardiff, CF10 3AT, UK
* Corresponding authors. E-mail address: wirth@cf.ac.uk, allemannrk@cf.ac.uk
Abstract: Artemisinin is one of the most potent anti-malaria drugs and many
often-lengthy routes have been developed for its synthesis. Amorphadiene
synthase, a key enzyme in the biosynthetic pathway of artemisinin, is able to
convert an oxygenated farnesyl diphosphate analogue directly to
dihydroartemisinic aldehyde, which can be converted to artemisinin in only four
chemical steps, resulting in an efficient synthetic route to the anti-malaria drug.
Keywords: Malaria, artemisinin, amorphadiene synthase, dihydroartemisinic
aldehyde, dihydroartemisinic acid, farnesyl diphosphate
1. Introduction
Malaria affects almost 50% of the world’s population and causes hundreds of
thousands of deaths each year.1 Isolated from the plant Artemisia annua
(qinghaosu), the sesquiterpene artemisinin (1) exhibits excellent anti-malaria
activity and kills the parasite at most of its asexual stages of development in
human blood.2 Artemisinin-based combination treatments (ACTs) are widely
used as the first-line treatment for malaria.3 Although several synthetic routes to
artemisinin (1) have been developed,4 the chemical synthesis is lengthy and low
yielding due to the highly complex structure of the sesquiterpene endoperoxide.
The worldwide supply of artemisinin (1) relies predominantly on the extraction
of the plant Artemisia annua5 and as a consequence the world market price is
highly volatile ranging from US $350 to $1700 per kilogram.6 Most countries
affected by malaria epidemics are in the developing world, therefore a stable and
affordable supply of artemisinin (1) is highly desirable.
Currently the most efficient synthetic route to produce artemisinin is the
combination of a biosynthetic process with several chemical steps (Scheme 1).
The biosynthesis of artemisinin is well understood7 and the key step to this
synthesis involves the class I sesquiterpene cyclase amorphadiene synthase
(ADS). This enzyme catalyses the cyclisation of (E,E)-farnesyl diphosphate (FDP,
2) to amorpha-4-11-diene (3), a bicyclic intermediate with four stereocentres. 3

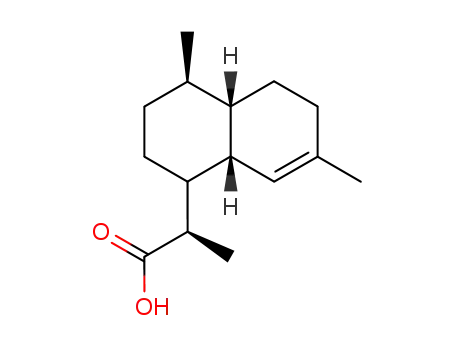

can be converted to the advanced synthetic intermediate dihydroartemisinic
acid (DHAA, 4) either chemically8a or enzymatically using engineered yeast
(Scheme 1).8b-8c The latter method has been developed into a semi-synthetic
production of artemisinin (1). Engineered yeast containing ADS and five other
enzymes produce artemisinic acid (5), which is subsequently reduced to DHAA
(4) by a transition metal-catalysed hydrogenation.8a,9 DHAA (4) can then be
converted to artemisinin (1) in three well-established steps.10 The
pharmaceutical company Sanofi developed
a
commercial route for

biosynthetically produced artemisinin in 2014, but this process has now
discontinued due to strong market forces.11 Alternative routes for the low-cost
production of artemisinin (1) are therefore urgently required.
Scheme 1 Synthesis of artemisinin (1) from farnesyl diphosphate (2).
Here we report a novel synthetic route to artemisinin (1) starting from the
oxygenated farnesyl diphosphate analogue 12-hydroxyfarnesyl diphosphate (6)
(Scheme 2). Amorphadiene synthase (ADS) is able to convert 6 in a single step to
dihydroartemisinic aldehyde (DHAAl, 7), an advanced intermediate of
artemisinin.12 This route does not proceed via amorphadiene (3) and therefore
avoids several redox steps. Increasing the oxidation state at the linear precursor
stage produces a two-step synthesis of 4, which significantly shortens the
synthesis of artemisinin (1).
Scheme 2 Synthesis of artemisinin (1) from 12-hydroxyfarnesyl diphosphate (6).
2. Enzymatic reaction
ADS catalyses the Mg2+-dependent, highly chemo- and stereoselective cyclisation
of FDP (2) to amorphadiene (3) (Scheme 3).13 ADS cleaves the C-O bond in 2 and
generates diphosphate and a carbocation, which rearranges through a series of
ring closures and hydride transfer processes. The last step in the enzymatic
sequence is the deprotonation of amorphyl cation (8) to yield amorphadiene (3)
(Scheme 3).

Scheme 3 Biosynthetic pathway to amorpha-4,11-diene (3).
The enzyme’s remarkable ability to convert a linear precursor to a structurally
and stereochemically complex cyclic product offers a very efficient synthetic
route to terpenes. Sesquiterpene synthases are not only highly effective and
often stereospecific in the reactions they catalyse, many of them also display
some degree of substrate promiscuity and some analogues of FDP (2) can be
converted to modified terpenoids.14 As an example, it has been shown that ADS
catalyses the cyclisation of 12-hydroxy FDP (6) to produce dihydroartemisinic
aldehyde (7) (Scheme 4) with a 34% yield.12 The seemingly moderate yield is
common for sesquiterpene cyclases as the reaction is limited by the release of
the hydrocarbon products from the aqueous incubation media.15 Aldehyde 7 is a
well-established intermediate in the biosynthesis of artemisinin (1).7 In contrast
to the three redox steps required to convert (3) to (7), consisting of an allylic
oxidation of amorphadiene to dihydroartemisinic alcohol, further oxidation to
the corresponding aldehyde and a final reduction to dihydroartemisinic
aldehyde,9c our approach yields aldehyde 7 in a single step starting from a linear
FDP precursor.
Scheme 4 ADS-catalysed cyclisation of 12-hydroxyfarnesyl diphosphate (7).
3. Synthesis of 12-hydroxyfarnesyl diphosphate (7)
12-Hydroxyfarnesyl diphosphate (6) was synthesised in three steps starting
from commercially available (E,E)-farnesol (10) (Scheme 5). Chlorination of 10
gave farnesyl chloride (11) in a quantitative yield, which was carried forward
without purification. The following step was a selenium dioxide-catalysed
oxidation at C12 of 11.16 The reaction conditions for the allylic oxidation were
optimised, but the yield was still moderate due to the instability of the product
12-hydroxy farnesyl chloride (12) and the formation of a by-product resulting
from the allylic oxidation at C8. Compound 12 was finally diphosphorylated17
under standard conditions to afford 6.

Scheme 5 Synthesis of 12-hydroxyfarnesyl diphosphate (6).
4. Synthesis of artemisinin
The single step production of 7 provided a great opportunity to shorten the
synthesis of artemisinin. The key intermediate DHAA (4) is the starting point for
many syntheses developed for artemisinin (1).18 The conversion of 4 to 1 can be
achieved by reaction with singlet oxygen followed by air oxidation.10,11 The
commercial route developed by Sanofi used engineered yeast to produce
artemisinic acid (5),9 which was then hydrogenated with a transition metal
catalyst to yield DHAA (4). Seeberger et al. developed a continuous flow process
to convert DHAA (4) to artemisinin (1) obtaining 4 from the plant Artemisia
annua.10
In our approach, DHAA (4) was obtained from the enzyme-produced aldehyde 7
by a simple oxidation with sodium chlorite4b in 93% yield (Scheme 6). Acid 4
was then converted to dihydroartemisinic methyl ester (13) with
trimethylsilyldiazomethane in 94% yield.19 The final stage for the synthesis of
artemisinin is a singlet oxygen oxidation of 13 by lithium molybdate-catalysed
disproportion of hydrogen peroxide.20,9a The crude product from the singlet
oxygen oxidation step was taken into a hydrocarbon solvent in the presence of
trifluoroacetic acid and pure oxygen.21 After two days, artemisinin (1) was
formed as evidenced by NMR. At this stage, the epimeric mixture can be
separated by standard column chromatography. An isolated yield cannot be
given due to the small scale of this reaction. Work is on going to evaluate
biological activity of the unnatural epimer.

Scheme 6 Synthesis of artemisinin (1) from 12-hydroxyfarnesyl diphosphate (6).
5. Conclusion
A novel concise synthetic route to artemisinin (1) was developed. The process
benefits from a new chemoenzymatic reaction between amorphadiene synthase
and 12-hydroxyfarnesyl diphosphate (6). Due to its relaxed substrate selectivity,
ADS accepts the oxygenated FDP analogue 6 to generate dihydroartemisinic
aldehyde (7), which can be converted to artemisinin (1) in four steps. Different
from any known synthetic route for artemisinin (1), this approach exploits the
promiscuity of terpene synthases. Oxidation of FDP prior to cyclisation allows
the ADS catalysed formation of a much-advanced intermediate on the pathway to
artemisinin. The whole process only utilised one enzyme combined with known
chemistry. This new route may have potential to be developed into a low-cost
supply of this important antimalarial drug.
6. Experimental Section
6.1 General remarks
All chemicals were purchased from Sigma-Aldrich, Acros Chemicals, Fluorochem
or Alfa Aesar and used without further purification unless otherwise stated.
Anhydrous acetonitrile was obtained from a MBraun SPS800 solvent purification
system unless otherwise stated. Flash column chromatography was performed
1
using Biotage Flash Purification system. H-NMR and 13C-NMR spectra were
measured on a Bruker Avance 500 NMR spectrometer and Bruker Avance
1
DPX400 spectrometer. H-NMR and 13C NMR spectra are reported as chemical
shifts in ppm downfield from TMS and J values are given in Hertz. 31P NMR
spectra were recorded on Bruker Avance DPX400 spectrometer or Bruker
Avance 500 NMR spectrometer and are reported in chemical shifts downfield
from 85% H3PO4. Reverse phase HPLC was performed on a system comprising of
a Dionex P680 pump and a Dionex UVD170U detector unit.
6.2 Preparation of ADS

6.2.1 General methods
LB media was prepared by dissolving tryptone (10 g), yeast extract (5 g)
purchased from Fluka and NaCl (10 g) in 1 L of deionised water. Cell lysis buffer
for ADS was prepared by dissolving trizma-HCl (50 mM), NaCl (500 mM), 2-
mercaptoethanol (20 mM) and glycerol (10% v/v) in deionised water. The final
pH was adjusted to 8.0. Dialysis buffer for ADS was prepared by dissolving
HEPES (25 mM), NaCl (100 mM) and dithiothretol (1 mM) in deionised water.
The final pH was adjusted to 7.5.
6.2.2 Transformation of E. coli BL21 with cDNA for wild-type ADS
Cloning of the ADS gene into pET21d plasmid. The gene coding for
amorphadiene synthase (ADS) from Artemisia annua was obtained from gene
bank (JF951730). It was supplied in a pTrc99a vector between the NcoI and
BamHI restriction sites (pTrc-ADS). pET21d and pTrc-ADS were digested with
the endonucleases NcoI and BamHI (0.1 μL of each enzyme, 1 μL of buffer, 10 μL
of plasmid, 1 h, 37 °C) and the fragments ligated using T4 DNA ligase (1:2 molar
ratio of pET: ADS, 0.1 μL enzyme, 2 μL of buffer, H2O to make total volume to 20
μL) to give a new plasmid pET21d-ADS. Supercompetent E. coli XL1-blue cells
were transformed with 5 µL of ligated DNA and stored on ice (30 minutes)
before being heat shocked in a water bath at 40 °C for 40 s and placed on ice for
2 min. LB medium (1 mL) was added and the solution shaken for 60 min (37 °C,
150 rpm). The cells were harvested by centrifugation (3400 g, 1 minute) and
spread on an agar plate containing ampicillin (100 μg/mL) after resuspending in
a minimum amount of buffer. Plates were incubated overnight at 37 °C and then
stored at 4 °C. A single colony from the agar plate was used to inoculate 15 mL of
LB medium containing ampicillin (100 μg/mL). The culture was incubated
overnight (37 °C) and the following day centrifuged (3220 g, 8 min). The pellet
was purified using a QIAprep Spin Miniprep Kit (QIAprep Miniprep Handbook-
2005). The resulting 50 μL DNA solution was stored at -20 °C. The sequence was
confirmed by DNA sequence analysis (Eurofin).
E. coli BL21 competent cells (stored at –80 °C) were slowly defrosted in ice.
Vector containing a cDNA for ADS and resistance for ampicillin (1 μL) was added
to the cells. After leaving on ice for 20 min, the mixture was thermally shocked in
a water bath at 40 °C for 35 s and returned to ice for 2 min. LB media (1 mL,
sterilised) was added to the transformed cells under flame and the solution was
shaken (150 rpm) at 37 °C for 1 h. The cells were separated from the media by
centrifuging the mixture (6000 rpm) for 1 min. The cells were re-suspended in
the minimum amount of LB media and the mixture was spread in an ampicillin-
agar plate under flame. The plate was incubated at 37 °C for 12 h.
6.2.3 Overexpression of ADS
The overnight culture was prepared the same way as AS.15b The resulting
mixture was incubated at 37 °C and the growth of bacteria was monitored by
checking the OD of media at 600 nm until it reached 0.5. The culture was induced
by isopropyl-1-thio-β-D-galactopyranoside (60 mg). The induced culture was
incubated at 20 °C for 6 h. The solutions were centrifuged at 5000 rpm for 20
min, the supernatant was discarded and the pellets were stored at –20 °C.
6.2.4 Purification of ADS
All the buffers for ADS purification were cooled on ice before use. The pellets
were defrosted on ice and re-suspended in cell lysis buffer (40 mL). After adding

lysozyme (20 mg), the mixture was stirred at 4 °C for 30 min. The solution was
sonicated in an ice bath (3 min with 5 s on/10 s off cycles) then centrifuged at
5000 rpm for 10 min. The supernatant was loaded onto a Ni2+ NTA column and
eluted with a gradient of imidazole in cell lysis buffer (5 mM to 300 mM). The
protein eluted at 100 mM imidazole. The presence of protein was confirmed by
SDS-PAGE electrophoresis. All the fractions with protein were combined and
dialyzed in dialysis buffer at 4 °C for 24 h. The resulting protein solution was
concentrated to 10 mL final volume. The concentration of ADS was determined
by Bradford Assay.22
6.3 Synthesis of 12-OH FDP (7)
Farnesyl chloride (11). Farnesol (10) (2.0 mL, 8 mmol) was dissolved in
anhydrous DMF (80 mL) and cooled to 0 °C. Collidine (6.3 mL, 48 mmol) and
MsCl (1.3 mL, 16 mmol) were added to the mixture. After stirring at 0 °C for 15
min, anhydrous LiCl (1.35 g, 32 mmol) was added. The reaction was stirred at 0
°C for 3 h. H2O (80 mL) was added and the mixture was extracted with hexane
(50 mL x 3). The combined organic phases were washed with CuSO4 (sat.),
NaHCO3 (sat.) and brine. The resulting solution was dried over anhydrous
Na2SO4 and concentrated under reduced pressure. Compound 11 was obtained
1
as a yellow oil and used in the next step without purification. H NMR (300 MHz,
CDCl3): δ (ppm) 5.46 (1 H, t, J = 8.0), 5.12-5.08 (2 H, m), 4.12 (2 H, d, J = 8.0),
2.23-1.98 (8 H, m), 1.73 (3 H, s), 1.66 (3 H, s), 1.61 (6 H, s).
12-Hydroxyfarnesyl chloride (12). SeO2 (226 mg, 2.4 mmol), salicylic acid (331
mg, 2.4 mmol) and tBuOOH (70%, 5.5 mL, 40 mmol) were dissolved in CH2Cl2
(40 mL) and stirred for 30 min at room temperature. The reaction mixture was
then cooled to 0 °C and 11 (1.92 g, 8 mmol) in CH2Cl2 (20 mL) was added and
stirred at 0 °C for 17 h. The reaction was quenched with Na2SO3 (sat.) at 0 °C.
The mixture was extracted with Et2O (50 mL x 3). The combined organic phases
were dried over anhydrous Na2SO4 and concentrated under reduced pressure.
The crude oil was purified by flash chromatography on silica gel (CH2Cl2 with 1%
NEt3), the eluent used for the column chromatography was cooled on ice before
use and fractions were kept on ice. Compound 12 was obtained as a yellow oil
(1.02 g, 49% over two steps). 1H NMR (300 MHz, CDCl3): δ (ppm) 5.46-5.40 (1 H,
m), 5.41-5.36 (1 H, m) 5.10 (1 H, m), 4.10 (2 H, d, J = 8.0), 3.99 (2 H, s), 2.16-1.99
(8 H, m), 1.73 (3 H, s), 1.66 (3 H, s), 1.60 (3 H, s); 13C NMR (75 MHz, CDCl3): δ
(ppm) 142.7, 135.3, 134.7, 126.0, 123.7, 120.3, 69.0, 41.2, 39.4, 39.3, 26.2, 26.1,
16.1, 16.0, 13.7. HRMS (ES+): calcd for C15H25OCl[Na]+: 279.1483, found:
279.1492.
12-Hydroxyfarnesyl diphosphate (6). 12 (102 mg, 0.4 mmol) and (Bu4N)3HP2O7
(720 mg, 0.8 mmol) were dissolved in anhydrous MeCN (10 mL). The reaction
was stirred at room temperature for 17 h. After removing solvent under reduced
pressure, the crude oil was loaded onto an ion-exchange resin DOWEX 40-W,
+
which was received from Aldrich in H+ form. The resin was converted into NH4
form by washing with concentrated NH4OH, followed by deionised water until
the pH dropped to 7 and finally equilibrated with ion-exchange buffer (25 mM
NH4HCO3 containing 2% i-PrOH). The fractions were collected and lyophilized
for 18-24 h. the resulting off-yellow solid was purified by reverse phase column
chromatography (Biotage KP-C18-HS 12 g column, CV = 15mL, H2O/MeCN, 0% to

5% MeCN over 10 CV, 10% to 90% MeCN over 5 CV, 90% MeCN for 5 CV, UV
collection 210 nm & 220 nm). The fractions were collected and lyophilized for
18-24 h to give compound 6 as a light white powder (94 mg, 52% yield). M.p.
132-136 °C. 1H NMR (500 MHz, D2O): δ (ppm) 5.41-5.33 (2 H, m), 5.15 (1 H, t, J =
6.5), 4.40 (2 H, t, J = 6.5), 3.88 (2 H, s), 2.16-1.96 (8 H, m), 1.65 (3 H, s), 1.57 (3 H,
s) and 1.56 (3 H, s); 31P NMR (121 MHz, D2O): δ (ppm) –7.93, –7.53. HRMS (ES–):
calculated for C15H25O8P2[H][Na]–: 419.1001, found: 419.0983.
6.4 Synthesis of Artemisinin (1)
Dihydroartemisinic aldehyde (7). Purified ADS (8.8 mL of 90 µM, 2 µM) and 6
(72 mg, 0.4 mM) were added to incubation buffer (400 mL, PH = 9.4,
Glycine/NaOH) containing MgCl2 (190 mg, 5 mM). The mixture was overlaid with
pentane (600 mL). The resulting two phased solution was slowly stirred at 4 °C
for 2 days. The pentane phase was separated, dried over anhydrous Na2SO4 and
concentrated under reduced pressure. The crude was purified by flash
chromatography (Biotage SNAP Ultra 10 g, CV = 15mL, Pet Ether/Et2O, 0% to
10% Et2O over 10 CV, 10% to 90% Et2O over 5 CV, 90% Et2O for 5 CV, UV
collection 210 nm & 220 nm). The fractions were collected and concentrated
under reduced pressure. Pure compound 7 were obtained as colourless oil (12
mg, 34% yield). Compound 7 was isolated as a mixture of epimers at C11. Ratio
of the two epimers were 5:1 with (11S)-7 as the major product. (11S-7): 1H NMR
(500 MHz, CDCl3): δ (ppm) 9.62 (1 H, d, J = 3.5), 5.26 (1 H, bs), 2.48 (1 H, m), 2.39
(1 H, m), 1.91-1.25 (11 H, m), 1.63 (3 H, s), 1.08 (3 H, d, J = 7.0), 0.87 (3 H, d, J =
6.5). (11R-7): 1H NMR (500 MHz, CDCl3): δ (ppm) 9.57 (1 H, d, J = 3.5), 5.12 (1 H,
bs), 2.48 (2H, m), 1.91-1.25 (11 H, m), 1.63 (3 H, s), 1.08 (3 H, d, J = 7.0), 1.06 (3
H, d, J = 7.0), 0.87 (3 H, d, J = 6.5).
Dihydroartemisinic acid (4). Dihydroartemisinic aldehyde (9 mg, 0.04 mmol)
was dissolved in a mixture of t-BuOH (0.4 mL) and 2-methyl-2-butene (0.05 mL)
and cooled down to 0 °C. A solution of NaClO2 (22 mg, 0.24 mmol) and NaH2PO4
(48 mg, 0.40 mmol) in deionised water (0.25 mL) was added and the mixture
was stirred at 0 °C for 45 min. The reaction mixture was diluted with diethyl
ether and extracted with additional diethyl ether (3 x 5 mL). The combined
organic phases were washed with brine, dried over anhydrous Na2SO4 and
concentrated under reduced pressure. The crude mixture was purified by flash
chromatography on silica (diethyl ether/petroleum ether: 1:4 to 1:1) to give
1
dihydroartemisinic acid 4 as colourless oil (9 mg, 93% yield). (11S-4): H NMR
(300 MHz, CDCl3): δ (ppm) 5.29 (1 H, bs), 2.58-2.50 (1 H, m), 2.41 (1 H, bs), 1.91-
1.78 (3 H, m), 1.75-1.54 (3 H, m), 1.42 (1 H, bs), 1.25-1.17 (2 H, m), 1.00-0.92 (2
H, m), 1.63 (3 H, s), 1.23 (3 H, d, J = 8.0), 0.87 (3 H, d, J = 6.5); 13C NMR (125 MHz,
CDCl3): δ (ppm) 182.2, 135.5, 120.6, 45.0, 41.8, 39.4, 35.6, 29.9, 27.8, 26.7, 25.7,
24.9, 24.1, 19.9, 16.4; (11R-4): 1H NMR (500 MHz, CDCl3): δ (ppm) 5.12 (1 H, bs),
2.58-2.50 (2 H, m), 1.91-1.78 (3 H, m), 1.75-1.54 (3 H, m), 1.42 (1 H, bs), 1.25-
1.17 (2 H, m), 1.00-0.92 (2 H, m), 1.63 (3 H, s), 1.21 (3 H, d, J = 7.0), 0.87 (3 H, d, J
= 6.5); 13C NMR (125 MHz, CDCl3): δ (ppm) 183.7, 136.2, 119.5, 43.8, 41.9, 41.6,
36.6, 35.4, 27.9, 27.6, 26.8, 25.9, 24.0, 19.9, 15.3.
Dihydroartemisinic methyl ester (13). Acid 4 (6 mg, 0.025 mmol) was
dissolved in a toluene (0.30 mL) and methanol (0.20 mL) mixture. TMSCHN2

(0.025 mL, 2.0 M in Et2O) was added and the mixture was left to stir at room
temperature for 30 min. The mixture was diluted with diethyl ether, quenched
with AcOH (10%) and extracted with additional Et2O (3 x 5 mL). The combined
organic phases were washed with brine, dried over anhydrous Na2SO4 and
concentrated under reduced pressure. The crude was purified by flash
chromatography on silica (diethyl ether/petroleum ether: 1:9 to 1:4) to give
1
compound 13 as colourless oil (6 mg, 94% yield). (11S-13): H NMR (500 MHz,
CDCl3): δ (ppm) 5.27 (1 H, bs), 3.73 (3 H, s), 2.54-2.49 (1 H, m), 2.24 (1 H, br),
1.89-1.74 (3 H, m), 1.62 (3 H, s), 1.66-1.55 (3 H, m), 1.51-1.43 (3 H, m), 1.16 (3 H,
br), 0.95-0.93 (2 H, m), 0.86 (3 H, br); 13C NMR (125 MHz, CDCl3): δ (ppm) 177.4,
135.0, 120.4, 51.4, 45.1, 41.6, 39.2, 35.4, 30.3, 27.5, 26.5, 25.5, 24.8, 23.8, 19.7,
1
16.2; (11R-13): H NMR (500 MHz, CDCl3): δ 5.12 (1 H, bs), 3.73 (3 H, s), 2.54-
2.49 (2 H, m), 1.89-1.74 (3 H, m), 1.62 (3 H, s), 1.66-1.55 (3 H, m), 1.51-1.43 (3 H,
m), 1.16 (3 H, br), 0.95-0.93 (2 H, m), 0.86 (3 H, br); 13C NMR (125 MHz, CDCl3): δ
(ppm) 178.2, 125.5, 119.4, 51.4, 43.9, 42.1, 41.7, 36.4, 35.2, 27.6, 27.4, 26.6, 25.7,
23.8, 19.7, 15.1.
Artemisinin (1). 13 (25 mg, 0.1 mmol) and Li2MoO4 (10 mg, 0.06 mmol) were
suspended in MeOH (1 mL). H2O2 (50%, 200 µL) was added drop-wise and it was
observed that the solution turned dark brown. The mixture was stirred at room
temperature for 17 h. The mixture was diluted with CH2Cl2 (2 mL) and H2O (2
mL), the organic layer was separated and the aqueous phase was extracted with
CH2Cl2 (3 x 2 mL). Combined organic extracts were passed through a phase
separator and concentrated under reduced pressure. The resulting colourless oil
was dissolved in petroleum ether (1 mL), followed by the addition of TFA (5 µL)
and H2O (10 µL). The solution was purged with O2 and stirred at room
temperature with an O2 balloon for two days. H2O (2 mL) and Et2O (2 mL) were
added and the aqueous layer was extracted with Et2O (3 x 2 mL). The combined
organic phases was dried over anhydrous Na2SO4 and concentrated under
reduced pressure. The crude product was purified by flash chromatography on
silica (ethyl acetate/hexane: 2:8 to 3:7) to give artemisinin (1) (< 1 mg). (11S-1):
1H NMR (500 MHz, CDCl3): δ (ppm) 5.93 (1H, s), 3.70-3.67 (1H, m), 2.43-2.37
(1H, m), 2.29-2.25 (2H, m), 2.17-2.15 (2H, m), 2.08-2.05 (1H, m), 1.97-1.94 (1H,
m), 1.82-1.79 (1H, m), 1.73-1.70 (1H, m), 1.64-1.63 (1H, m), 1.47 (3H, d, J = 8.1
Hz), 1.46 (3H, s) 1.11-1.19 (1H, m), 1.00 (3H, d, J = 5.4 Hz). 13C NMR (125 MHz,
CDCl3): δ (ppm) 172.5, 105.3, 94.0, 77.2, 50.5, 45.5, 39.7, 37.6, 35.9, 34.0, 31.1,
1
25.5, 24.7, 20.5, 19.9. (11R-1): H NMR (500 MHz, CDCl3): δ (ppm) 5.86 (1H, s),
3.38-3.41 (1H, m), 2.44-2.40 (1H, m), 2.07-1.99 (2H, m), 1.89-1.88 (1H, m), 1.78-
1.73 (2H, m), 1.52-1.35 (4H, m), 1.45 (3H, s), 1.21 (3H, d, J = 7.7 Hz), 1.02-1.13
(1H, m), 1.00 (3H, d, J = 5.4 Hz). HRMS calcd for C15H23O5 (M + H+) 283.1545,
found 283.1559.
Acknowledgement
This work was supported by the Engineering and Physical Sciences Research
Council (EPSRC) through grant EP/M013219/1 and the Biotechnology and
Biological Sciences Research Council (BBSRC) through grants (BB/H01683X/1,
BB/M022463/1, BB/N012526/1). Support from the Cardiff School of Chemistry

is gratefully acknowledged. We thank Ms Agata Pacula from Uniwersytet
Mikołaja Kopernika, Poland, for assistance in optimising the SeO2 oxidation of
compound 11. Support from the Cardiff School of Chemistry is gratefully
acknowledged.
References
1
2
"Malaria Fact sheet N°94". WHO. Retrieved 2 February 2016.
Terkuile F, White NJ, Holloway P, Pasvol G, Krishna S. Exp. Parasitol. 1993;
76: 85.
3
a) Klayman DL. Science 1985; 228: 1049; b) White NJ. Trends Parasitol.
2004; 113: 1084; c) Krishna S, Bustamante L, Haynes RK, Staines HM.
Trends Pharmacol. Sci. 2008; 29: 520; d) Kremsner PG, Krishna S. Lancet
(London, England) 2004; 364: 285.
4
5
a) Liu H-J, Yeh W-L, Chew SY. Tetrahedron Lett. 1993; 34: 4435; b) Yadav
JS, Thirupathaiah B, Srihari P. Tetrahedron 2010; 66: 2005; c) Zhu C, Cook
SP. J. Am. Chem. Soc. 2012; 134:13577.
a) Townsend T, Segura V, Chigeza G, Penfield T, Rae A, Harvey D, Bowles
D, Graham IA. PLoS One 2013; 8: e61989; b) Larson TR, Branigan C,
Harvey D, Penfield T, Bowles D, Graham IA. Ind. Crops Prod. 2013; 45: 1;
c) Milhous WK, Weina PJ. Science 2010; 327: 279; d) Graham IA, et al.
Science 2010; 327: 328.
6
7
White NJ. Science 2008; 320: 330-334.
a) Olofsson L, Engstrom A, Lundgren A, Brodeius PE. BMC Plant Biology
2011; 11: 45; b) Martin VJJ, Yoshikuni Y, Keasling JD. Biotechnol. Bioeng.
2001; 75: 497.
8
a) Westfall PJ et al. PNAS 2012; 109: E111; b) Covello PS. Phytochemistry
2008; 69: 2881; c) Haynes RK, Von Willer SC. Acc. Chem. Res. 1997; 30:
73.
9
a) Paddon CJ et al. Nature 2013; 496: 528; b); c) Dietrich JA et al. ACS
Chem. Bio. 2009; 4: 261; d) Ro D-K et al. Nature 2006; 440: 940.
a) Gilmore K, Kopetzki D, Lee JW, Horváth Z, McQuade DT, Seidel-
Morgenstern A, Seeberger PH. Chem. Commun. 2014; 50: 12652; b)
Kopetzki D, Levesque F, Seeberger PH. Chem. Eur. J. 2013; 19: 5450; c)
Levesque F, Seeberger PH. Angew. Chem. Int. Ed. 2012; 51: 1706.
Peplow M. Nature 2016; 530: 389.
10
11
12
Demiray M, Tang X, Wirth T, Faraldos JA, Allemann RA. Angewandte
Chemie, DOI:10.1002/anie.201609557.
13
a) Picaud S, Mercke P, He X, Sterner O, Brodelius M, Cane DE, Brodelius
PE. Arch. Biochem. Biophys. 2006; 448: 150; b) Kim S-H, Heo K, Chang Y-J,
Park S-H, Rhee S-K, Kim S-U. J. Nat. Prod. 2006; 69: 758.
14
a) Cane DE. Chem. Rev. 1990; 90: 1089; b) Touchet S, Chamberlain K,
Woodcock CM, Miller DJ, Birkett MA, Pickett JA, Allemann RK. Chem.
Commun. 2015; 51: 7550; c) Gonzalez V, Touchet S, Grundy DJ, Faraldos
JA, Allemann RK. J. Am. Chem. Soc. 2014; 136: 14505; d) Cascón O,
Touchet S, Miller DJ, Gonzalez V, Faraldos JA, Allemann RK. Chem.
Commun. 2012; 48: 9702; e) Faraldos JA, Miller DJ, Gonzalez V, Yoosuf-Aly
Z, Cascon O, Li A, Allemann RK. J. Am. Chem. Soc. 2012; 134: 5900; f)
Miller DJ, Yu FL, Allemann RK. ChemBioChem 2007; 8: 1819; g) Faraldos

JA, Zhao Y, O’Maille PE, Noel JP, Coates RM. ChemBioChem 2007; 8: 1826;
h) Rising KA, Crenshaw CM, Koo HJ, Subramanian T, Chehade KAH, Starks
C, Allen KD, Andres DA, Spielmann HP, Noel JP, ACS Chem. Biol. 2015; 10:
1729; i) Lauchli R, Rabe KS, Kalbarczyk KZ, Tata A, Heel T, Kitto RK,
Arnold FH. Angew. Chem. Int . Ed. 2013; 52: 5571.
a) Cascon O, Richter G, Allemann RK, Wirth T. ChemPlusChem 2013; 78:
1334; b) Tang X, Allemann RK, Wirth T. Eur. J. Org. Chem. 2017; 2: 414-
418.
15
16
17
Umbreit MA, Sharpless KB. J. Am. Chem. Soc. 1977; 99: 5526.
a) Davisson VJ, Woodside AB, Neal TR, Stremler KE, Muehlbacher M,
Poulter CD. J. Org. Chem. 1986; 51: 4768; b) Woodside AB, Huang Z,
Poulter CD. Org. Synth. 1988; 66: 211.
18
a) Roth RJ. J. Nat. Prod. 1989; 52: 1183; b) Amara Z, Bellamy JFB, Horvath
R, Miller SJ, Beeby A, Burgard A, Rossen K, Poliakoff M, George MW. Nat.
Chem. 2015; 7:489; c) Vonwiller SC, Warner JA, Mann ST, Haynes RK. J.
Am. Chem. Soc. 1995; 117: 11098.
19
20
a) Kuhnel E, Laffan DDP, Lloyd-Jones C, Mart nez del Campo T,
Shepperson IR, Slaughter JL. Angew. Chem. Int. Ed. 2007; 46: 7075; b)
Presser A, Hufner A. Monatsh. Chem. 2004; 135: 1015.
Nardello V, Bogaert S, Alsters L, Aubry J-M. Tetrahedron Lett. 2002; 43:
8731.
21
22
Acton N, Roth RJ. J. Org. Chem. 1992; 57: 3610.
Bradford M. Anal. Biochem. 1976; 72: 248.
TOC Graphic
