Carbohydrate–Porphyrin Conjugates with Two-Photon Absorption Properties
as Potential Photosensitizing Agents for Photodynamic Therapy
Sylvain Achelle,[a,b] Pierre Couleaud,[c] Patrice Baldeck,[d] Marie-Paule Teulade-Fichou,[a,b]
and Philippe Maillard*[a,b]
Keywords: Porphyrinoids / Photodynamic therapy / Two-photon absorption / Carbohydrates / Conjugation
We report the synthesis of a series of conjugated zinc por-
phyrin oligomers designed as photodynamic therapy agents.
These compounds exhibit exceptionally high two-photon ab-
sorption cross-sections, redshifted linear absorption spectra,
and high singlet oxygen quantum yields, making them ideal
for one-photon- and two-photon-excited photodynamic ther-
apy. These products are substituted by three α-mannose units
on each chromophore with the aim to target tumor cells with
over-expressing lectin-type membrane receptors.
either by a redshifted absorbing PS, by exciting the PS using
sequential discrete absorption (up-conversion), or by simul-
taneous two-photon absorption (TPA).[4] In this nonlinear
optical process, two photons of lower excitation energy
whose combined energy is sufficient to induce the transition
are simultaneously absorbed. The real advantage is that the
excitation in the near-infrared (NIR) region avoids tissue
absorbing or scattering and induces a deeper light penetra-
tion in the tissue. Consequently, it is a better treatment for
deep or large-sized tumors. Porphyrin compounds have a
strong one-photon absorption between 400 and 500 nm
(Soret band) corresponding to the combined energy of two
photons in the wavelength range from 800 to 1000 nm. This
is just within the biological optical window. Because por-
phyrin monomers exhibit relatively small TPA values using
femtosecond pulse lasers (less than 50 GM where 1 GM =
10–50 cm4 smolecule–1),[5] dimers and oligomers of conju-
gated porphyrins have been shown to exhibit very strong
TPA with δmax values up to 500 times those of monomeric
analogues.[6] To obtain conjugated porphyrin oligomers,
monomers should be linked with bridges that do not twist
out of plane with the porphyrin macrocycle. Because of
steric hindrance, alkynyl bridges are one of the most effec-
tive ways of making connections to the meso position of a
porphyrin. Indeed, butadiyne,[7] diethynylbenzene,[8] dieth-
ynylthiophene,[9] diethynylanthracene,[10] diethynyltetra-
Introduction
Photodynamic therapy (PDT) is a promising light-acti-
vated treatment that is used clinically to destroy locally dis-
eased tissues.[1] When exposed to light, the photosensitizer
(PS) transfers its excitation energy to ground-state triplet
oxygen to generate highly reactive singlet oxygen and other
cytotoxic reactive oxygen species, inducing oxidative dam-
age to the cell that causes localized cell death and ultimately
tissue apoptosis or necrosis. A major advantage of PDT in
comparison with other treatments such as chemotherapy is
that, in the absence of light, the PS is benign.
The most common photosensitizers used in PDT are
porphyrin compounds thanks to their long triplet excited-
state lifetime.[2] Amongst them, Photofrin currently used in
the clinic has one-photon absorption peaks in the visible
wavelength range. However due to the significant absorp-
tion in this region by biological tissues, this PS cannot be
used to treat deep cancers. Designing a PS excitable in the
near-infrared or infrared region between 700–1100 nm may
reduce this limitation, as the absorption and diffusion of
tissues are much lower in this range currently named the
optical window of biological tissues.[3] This can be achieved
[a] UMR 176 CNRS/Institut Curie, Institut Curie, Bât 110, Univ.
Paris-Sud,
91405 Orsay, France
[b] Institut Curie, Section de Recherches, Centre Universitaire, thiafulvalene,[11] diethynylsquaraine,[12] and triethynylphen-
ylamine[13] π-conjugated cores have been described in the
Univ. Paris-Sud,
91405 Orsay, France
literature. Recently, in vivo experiments have shown that
PDT performed with PS exhibiting high TPA was able to
treat tumors more than 0.8 cm in diameter with a total irra-
diation time of less than 30 min. Excellent regression or to-
tal disappearance of the tumor was observed during the
week following the treatment.[14] TPA PDT should allow
greater precision than is achieved by conventional one-pho-
[c] Laboratoire Réactions et Génie des Procédés, UPR 3349,
Nancy Université,
1 rue Grandville, B. P. 20451, 54001 Nancy, cedex, France
[d] Laboratoire de Spectrométrie Physique, UMR 5588, Université
Joseph Fourier/CNRS,
140 rue de la physique, B.P. 87, 38402 Saint Martin d’Hères,
cedex, France
Supporting information for this article is available on the
WWW under http://dx.doi.org/10.1002/ejoc.201001209.
Eur. J. Org. Chem. 2011, 1271–1279
© 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
1271

S. Achelle, P. Couleaud, P. Baldeck, M.-P. Teulade-Fichou, P. Maillard
FULL PAPER
ton excitation, as a consequence of the quadratic depen-
dence of two-photon excitation on the local light inten-
sity.[15]
Results and Discussion
Porphyrin 5 (Scheme 1) bearing a protected ethynyl
Another limitation of PDT is the low selectivity and group is the key parent molecule for the synthesis of conju-
specificity of the PS for tumor cells. High doses of the drug gated zinc porphyrin oligomers 1–4 (Figure 1). Porphyrin 5
and light are thus required to compensate for this, leading was obtained in five steps starting from trisubstituted por-
to the damage of healthy tissues. Active targeting of mem- phyrin 6 (Scheme 1).[22] The first step involved deprotection
brane receptors represents an obvious improvement.[16] with the removal of the two isopropyloxy groups with BBr3
However, only a few examples of cell-targeted TPA PSs are (85%). The second step was a Williamson reaction with
described in the literature.[14,17] It has been reported that 2-bromoethoxy-O-2Ј,3Ј,4Ј,6Ј-tetraacetyl-α-d-mannose[23]
lectin-type receptors are over-expressed in certain malig- leading to glycoconjugated porphyrin 8 with a moderate
nant cells[18] and that carbohydrates such as α-mannose and yield (58%). Then, monobromination with N-bromosuc-
β-galactose have a specific interaction with these recep- cinimide (NBS) followed by metalation with zinc acetate
tors.[19] For over a decade we have focused our efforts on the quantitatively afforded zinc porphyrin 10. Sonogashira
preparation, as well as, the in vitro and in vivo evaluation of cross-coupling with trimethylsilylacetylene (TMSA), led to
the phototoxicity of glycoconjugated tetrapyrrolic macro- porphyrin 5 in good yield (92%).
cycles. Several of our studies have contributed to establish
Oligomer synthesis started with the deprotection of the
trimethylsilyl group of monomer 5 with tetrabutylammo-
the proof of the concept.[20,21]
The aim of the present article is to describe the synthesis nium fluoride (TBAF)[24] leading to compound 11, which
of new α-mannose-conjugated zinc porphyrin oligomers was not isolated due to its instability, and was immediately
having remarkable TPA as well as singlet oxygen generating engaged in the following reaction (Scheme 2). Butadiyne
properties. Various neutral π-conjugated cores, ethynyl, but- core dimer 1 was obtained by Glaser–Hay oxidative cou-
adiyne, diethynylbenzene, and electron-donor triphenyl- pling in good yield (72%). Dimers 2 and 3 as well as trimer
amine, have been incorporated between porphyrin moieties. 4 were obtained by Heck cross-coupling reactions with the
Using a convergent pathway, this has led to the synthesis of corresponding halogenated derivatives in moderate to good
four linear (dimeric) and octupolar (trimeric) structures yields (31, 42, and 80%, respectively). Deprotection of com-
(i.e., 1–4) from a single parent molecule (i.e., 5).
pounds 1 and 4 (Scheme 3), selected among the four oligo-
Scheme 1. Reagents and conditions: (i) BBr3, CH2Cl2, 15 h, room temp., 85%; (ii) 2-bromoethoxy-O-2Ј,3Ј,4Ј,6Ј-tetraacetyl-α-d-mannose,
Cs2CO3, dimethylformamide (DMF), 60 °C, 15 h, 58%; (iii) NBS, pyridine, CHCl3, 15 min, 0 °C, 97%; (iv) Zn(OAc)2, CHCl3/MeOH,
5 min, Δ, 99%; (v) TMSA, CuI, Pd(PPh3)2Cl2, tetrahydrofuran (THF)/triethylamine (Et3N), 15 h, 78°K Ǟ room temp., 92%.
1272
www.eurjoc.org
© 2011 Wiley-VCH Verlag GmbH & Co. KGaA, Weinheim
Eur. J. Org. Chem. 2011, 1271–1279

Carbohydrate–Porphyrin Conjugates for Photodynamic Therapy

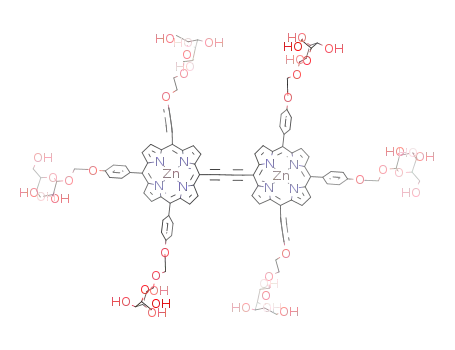

Figure 1. Structures of conjugated zinc porphyrin oligomers.
mers because of their ease of synthesis, was carried out
using Zemplén conditions[25] and led to compounds 12 and
1
13 in 73 and 85% yield, respectively. H NMR, 13C NMR,
and, UV/Vis spectroscopy, MALDI-TOF analyses, and
microanalyses were used to characterize compounds 1–4.
Assignments of the resonance to individual protons were
based on integration and selective homonuclear correlation
(COSY). Heteronuclear multiple coherence (HMQC,
HMBC) spectra were obtained for all compounds and the
carbon resonances were assigned. Due to insolubility, we
were unable to record any interpretable NMR spectra for
compounds 12 and 13.
All photophysical analyses were carried out with pro-
tected compounds due to the low solubility of the depro-
tected derivatives. It was assumed that their optical proper-
ties were similar in the absence of aggregation. Figure 2
shows the one-photon UV/Vis absorption spectra of oligo-
mers 1–4 and corresponding monomer 5 in CH2Cl2. As ex-
pected based upon literature precedence,[6,26] for all oligo-
meric compounds the typical Soret band (around 400–
440 nm) is remarkably broadened in comparison to that of
the monomer with absorption maxima at similar wave-
lengths Ϫ or slightly redshifted. Also as expected for oligo-
Scheme 2. Reagents and conditions: (i) TBAF, THF/CH2Cl2, room
temp., 30 min, not isolated. (ii) CuCl, tetramethylethylenediamine
(TMEDA), CH2Cl2, room temp., 20 min, 72% in two steps. (iii) p-
diiodobenzene, AsPh3, Pd2(dba)3, THF/Et3N, Δ, 15 h, 31%.
(iv) tris(4-iodophenyl)amine, AsPh3, Pd2(dba)3, THF/Et3N, Δ, 15 h,
80%. (v) 10, AsPh3, Pd2(dba)3, THF/Et3N, Δ, 15 h, 42%.
meric structures, the Q-Bands (590–690 nm range) of the nificantly higher (2- to 5-fold) than that of the monomer.
