Ruthenocene 1,2-dicarboxylic acid, carboxylic anhydride, and acid chloride: A facile route to metallocene-fused acenequinones

Article abstract of DOI:10.1021/om2003915

The dehydration of 1′,2′,3′,4′,5′- pentamethylruthenocene-1,2-dicarboxylic acid with acetic anhydride gives 1′,2′,3′,4′,5′-pentamethylruthenocene-1, 2-dicarboxylic anhydride, the first crystallographically characterized, metallocene-fused carboxylic anhyd

Full text of DOI:10.1021/om2003915

COMMUNICATION
pubs.acs.org/Organometallics
Ruthenocene 1,2-Dicarboxylic Acid, Carboxylic Anhydride, and Acid
Chloride: A Facile Route to Metallocene-Fused Acenequinones
Uttam Raj Pokharel, John P. Selegue,* and Sean Parkin
Department of Chemistry, University of Kentucky, Lexington, Kentucky 40506-0055, United States
S Supporting Information
b
ABSTRACT: The dehydration of 10,20,30,40,50-pentamethyl-
ruthenocene-1,2-dicarboxylic acid with acetic anhydride gives
10,20,30,40,50-pentamethylruthenocene-1,2-dicarboxylic anhy-
dride, the first crystallographically characterized, metallocene-
fused carboxylic anhydride. Treatment of the diacid with oxalyl
chloride/DMF produces its 1,2-diacyl chloride, which is an excellent precursor for AlCl3-promoted double FriedelꢀCrafts acylation
reactions with a variety of arenes, including benzene, toluene, o-xylene, p-dimethoxybenzene, and ferrocene. X-ray structural
determinations of an acenequinone and a unique ferrocene/ruthenocene-fused benzoquinone show distortions attributed to strong
electron donation from pentamethylruthenocene.
olycyclic aromatic hydrocarbons are benchmark semiconduct-
with 4 in molten NaCl/AlCl3 resulted in the formation of an
intractable mixture containing a small amount of a monoacyla-
tion product.
P
ing materials for organic field-effect transistors,1 light-emitting
diodes,2 and photovoltaic cells.3,4 Our long-term interest5ꢀ11 in
transition metal complexes of low-band-gap η5-cyclopenta-
[c]thienyl monomers and polymers led us to consider polyacenes
with terminal cyclopentadienyl metal groups, which are unknown
except for simple η5-indenyl complexes and a few benz[f]indenyl
complexes of zirconium12 and ruthenium.13 We report here a
route to metallocene-fused acenequinones, potential precursors
for the desired acenes.
Treatment of 3 with oxalyl chloride/DMF led to its 1,2-diacyl
chloride (5) in 50% isolated yield. Complex 5 is stable under dry
conditions, but is more efficiently generated in situ to acylate
arenes, including benzene, toluene, o-xylene, p-dimethoxyben-
zene, and ferrocene (Scheme 1), giving acenequinone complexes
6aꢀe (42ꢀ58%) and 7 (36%). Complex 7 contains an unusual
μ-[(1,2,3,3a,8a-η:4a,5,6,7,7a-η)-4,8-dihydro-4,8-dioxo-s-inda-
cene-1,4a(1H)-diyl] bridging two different metals, precedented
only by a pair of symmetrical diruthenium compounds.25
1,2-Dicarbophenoxycyclopentadienylsodium (1),14 conveni-
ently prepared by a single-step reaction of cyclopentadienylso-
dium with phenyl chloroformate,11 forms with higher 1,2-
selectivity than alkyl chloroformates, making 1 the preferred
precursor for metallocene-1,2-dicarboxylates. Transmetalation
1
Whereas toluene gives a single product (6b), H NMR shows
that o-xylene gives two isomers (6c,d) in a 1:1 ratio, implying that
the arene undergoes electrophilic substitution first para to an
activating substituent, followed by an indiscriminate second acyla-
tion. Dimethoxyacenequinone 6e undergoes facile demethyla-
tion with anhydrous AlCl3 to give dihydroxyquinone complex 9,
15

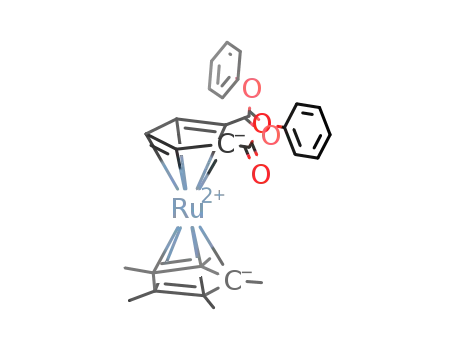

of [Ru(μ3-Cl)(Cp*)]4 with 1 gives diester 2 in 78% yield
(Scheme 1). Saponification of the diester16 gives diacid 3 in 95%
yield. Dehydration of 3 with refluxing acetic anhydride produces
1
10,20,30,40,50-pentamethylruthenocene-1,2-dicarboxylic
anhy-
with a H-bonded phenolic H NMR resonance at 12.93 ppm.
The reduction of 6b with LiAlH4 gave a single (by 1H and 13
C
dride (4) in 84% yield. Two strong carbonyl infrared stretching
frequencies at 1820 and 1764 cmꢀ1 support the formation of a
cyclic anhydride. The anhydride is surprisingly stable to water,
surviving an aqueous workup. The only previous metallocene-
fused carboxylic anhydride is 1,2-ferrocenedicarboxylic anhy-
dride, prepared in very low yields by N,N0-dicyclohexylcarbodii-
mide (DCC) dehydration of 1,2-ferrocenedicarboxylic acid,17,18
but properties (e.g., light sensitivity) reported by two groups are
not entirely consistent. In contrast, DCC treatment of 3 gives a
stable N,N0-dicyclohexyl-N-ruthenocenoylurea rather than the
expected anhydride. Compounds 3 and 4 were characterized by
their spectroscopic properties and X-ray structural determina-
tions (vide infra).
NMR) diol complex (8, 68%), presumably the syn isomer resulting
from nucleophilic hydride addition to the side of the acenequi-
none ligand opposite the large Cp* group.
X-ray crystal structures of 3, 4, 6a, and 7 (Figure 1) all exhibit
typical ruthenocene geometry with nearly linear (Cp centroid)ꢀ
Ruꢀ(Cp* centroid) angles ranging from 177.38(13)° (3) to
175.60(6)° (7). In all structures the Ru atom is situated closer to
the two ring-fusion carbons than to the other three carbons of the
Cp ring, with the RuꢀC shift ranging from 0.026(3) Å in 3 to
0.099(16) Å in 7. Similar asymmetry was observed in [(Ru-
(Cp*)}2{μ-η5:η5-C5H3(CO)2C5H3}],25 [Ru(η5-C5H4COMe)-
(Cp*)],26 and [Ru{η5-1,2-C5H3(COPh)2}(Cp*)].12 Curiously,
Organic carboxylic anhydrides react with electron-rich aromatics
under FriedelꢀCrafts conditions to give acenequinones.19ꢀ24
However, our attempts to diacylate 1,4-dimethoxybenzene
Received: May 11, 2011
Published: May 24, 2011
r
2011 American Chemical Society
3254
dx.doi.org/10.1021/om2003915 Organometallics 2011, 30, 3254–3256
|

Organometallics
COMMUNICATION
Scheme 1. Synthesis of Pentamethylruthenocene-1,2-dicarboxylic Acid and Its Derivatives
Figure 1. Thermal ellipsoid plots of the molecular structures of [Ru{η5-C5H3(CO2H)-1,2}(Cp*)] (3), [Ru{η5-C5H3(CO)2O-1,2}(Cp*)] (4),
[Ru{η5-C5H3(CO)2C6H4}(Cp*)] (6a), and [Ru(Cp*){μ2-η5:η5-1,2-C5H3(CO)2-1,2-C5H3)}Fe(Cp)] (7).
the Fe atom in 7 shows a classic indenyl effect,27ꢀ30 shifting
0.082(16) Å away from the two ring-fusion carbon atoms. In 6a,
the CpꢀCO bonds, C1ꢀC13 and C5ꢀC6, are 0.044(4) Å
shorter than the PhꢀCO bonds, C12ꢀC13 and C6ꢀC7.
Although the disubstituted cyclopentadienyl ligands of 3, 4, 6a,
and 7 are nearly planar, there are some subtle deviations. The two
carboxylic acid moieties of 3 lie in the cyclopentadienyl plane
(interplanar angles 3.2ꢀ4.4°), held together by a network of
intra- and intermolecular hydrogen bonds with carboxylate
OꢀHꢀO distances ranging from 2.532(4) to 2.592(4) Å and a
methanol oxygen atom 2.859(5) Å from O3A. The cyclopentadienyl
Chart 1. Structural Distortions in Compounds 6a and 7
anhydride ring of 4 is essentially planar, with angles of 3.2° and
5.3° between the Cp (C1ꢀC5) and anhydride (C1, C5ꢀC7,
3255
dx.doi.org/10.1021/om2003915 |Organometallics 2011, 30, 3254–3256

Organometallics
COMMUNICATION
Chart 2. Resonance Description of Compound 7
O1ꢀO3) planes in two independent molecules. The bending of
the quinone ligands of 6a and 7 is illustrated in Chart 1. In both
complexes, the quinone portion of the ligand is inclined slightly
toward [Ru(Cp*)], but in 7 the quinone is inclined slightly away
from [Fe(Cp)]. Much of the bending is due to a slight folding of
the quinone ring along the OꢀCꢀCꢀO axis, by 4.1° in 6a and
11.5° in 7.
(7) Selegue, J. P.; Swarat, K. A. J. Am. Chem. Soc. 2002, 115, 6448–
6449.
(8) Snyder, C. A.; Selegue, J. P.; Dosunmu, E.; Tice, N. C.; Parkin, S.
J. Org. Chem. 2003, 68, 7455–7459.
(9) Snyder, C. A.; Selegue, J. P.; Tice, N. C.; Wallace, C. E.;
Blankenbuehler, M. T.; Parkin, S.; Allen, K. D. E.; Beck, R. T. J. Am.
Chem. Soc. 2005, 127, 15010–15011.
(10) Wallace, C. E.; Selegue, J. P.; Carrillo, A. Organometallics 1998,
17, 3390–3393.
(11) Tice, N. C.; Parkin, S.; Selegue, J. P. J. Organomet. Chem. 2007,
We suggest that the structural distortions are due to the
stronger electron-donor character of [Ru(Cp*)] compared to
[Fe(Cp)]. In both 6 and 7, electron-rich [Ru(Cp*)] shifts toward
the electron-withdrawing carbonyl substituents, while in 7
relatively electron-deficient [Fe(Cp)] shifts away from the car-
bonyls. Donation of electron density from [Ru(Cp*)] to the
carbonyls in 6 and 7 results in a decreased carbonyl stretching
frequency from 1660 cmꢀ1 for 9,10-anthraquinone to 1650 cmꢀ1
for 6 and 1643 cmꢀ1 for 7. The lower CdO bond order is
rationalized by the resonance forms 7bꢀd in Chart 2.
692, 791–800.
(12) Kim, D. H.; Lee, J. A.; Lee, B. Y.; Chung, Y. K. J. Organomet.
Chem. 2005, 690, 1822–1828.
(13) Zhao, X.; Luo, X.; Li, B.; Song, H.; Xu, S.; Wang, B. Eur. Polym. J.
2008, 144, 3264–3270.
(14) Busetto, L.; Cassani, M. C.; Zanotti, V.; Albano, V. G.; Sabatino,
P. Organometallics 2001, 20, 282–288.
(15) Fagan, P. J.; Ward, M. D.; Calabrese, J. C. J. Am. Chem. Soc.
1989, 111, 1698–1719.
(16) Khurana, J. M.; Chauhan, S.; Bansal, G. Monatsh. Chem. 2004,
135, 83–87.
(17) Roling, P. V.; Rausch, M. D. J. Org. Chem. 1974, 39, 1420–1424.
(18) Richards, J. H.; Curphey, T. J. Chem. Ind. (London) 1956, 1456.
(19) Kende, A. S.; Tsay, Y.-G.; Mills, J. E. J. Am. Chem. Soc. 1976,
98, 1967–1969.
(20) Paulsen, H.; Luettke, W. Chem. Ber. 1979, 112, 2907–2912.
(21) Ishizumi, K.; Ohashi, N.; Tanno, N. J. Org. Chem. 1987,
52, 4477–4485.
In summary, 10,20,30,40,50-pentamethylruthenocene-1,2-dicar-
boxylic acid and its derived carboxylic anhydride and acid
chloride can be prepared simply in high yield, opening new
avenues in organometallic FriedelꢀCrafts chemistry. The result-
ing benz[f]indenyl quinone complexes are potential precursors
for organometallic polyacenes. Aromatization of the quinone
ligands and extension of this chemistry to longer acene chains
and other transition metals are in progress.
(22) Mitscher, L. A.; Gill, H.; Filippi, J. A.; Wolgemuth, R. L. J. Med.
Chem. 1986, 29, 1277–1281.
’ ASSOCIATED CONTENT
(23) Wong, C. M.; Gordon, P. M.; Chen, A. G.; Lam, H. Y. P. Can. J.
Chem. 1987, 65, 1375–9.
(24) Tang, M. L.; Oh, J. H.; Reichardt, A. D.; Bao, Z. J. Am. Chem.
Soc. 2009, 131, 3733–3740.
(25) Sato, M.; Suzuki, M.; Okoshi, M.; Kurasina, M.; Watanabe, M. J.
Organomet. Chem. 2002, 648, 72–80.
(26) Gassman, P. G.; Winter, C. H. J. Am. Chem. Soc. 1988,
110, 6130–6135.
(27) O’Connor, J. M.; Casey, C. P. Chem. Rev. 1987, 87, 307–318.
(28) Lobanova, I. A.; Zdanovich, V. I. Russ. Chem. Rev. 1988,
57, 967–980.
(29) Basolo, F. New J. Chem. 1994, 18, 19–24.
(30) Calhorda, M. J.; Rom~ao, C. C.; Veiros, L. F. Chem.—Eur. J.
2002, 8, 868–875.
S
Supporting Information. Syntheses and data for 1ꢀ9;
b
tables of crystallographic details, atomic coordinates, displace-
ment parameters, bond distances, and angles; and CIFs for 3, 4,
6a, and 7. This material is available free of charge via the Internet
at http://pubs.acs.org.
’ AUTHOR INFORMATION
Corresponding Author
*E-mail: selegue@uky.edu.
’ ACKNOWLEDGMENT
We thank the Research Corporation for support of this research.
’ REFERENCES
(1) Mas-Torrent, M.; Rovira, C. Chem. Soc. Rev. 2008, 37, 827–838.
(2) Anthony, J. E. Chem. Rev. 2006, 106, 5028–5048.
(3) Hains, A. W.; Liang, Z.; Woodhouse, M. A.; Gregg, B. A. Chem.
Rev. 2010, 110, 6689–6735.
(4) Li, C.; Liu, M.; Pschirer, N. G.; Baumgarten, M.; M€ullen, K.
Chem. Rev. 2010, 110, 6817–6855.
(5) Blankenbuehler, M. T.; Selegue, J. P. J. Organomet. Chem. 2002,
642, 268–274.
(6) Eaton, D. L.; Selegue, J. P.; Anthony, J. E.; Patrick, B. O.
Heterocycles 2002, 57, 2373–2381.
3256
dx.doi.org/10.1021/om2003915 |Organometallics 2011, 30, 3254–3256
