Asymmetric Suzuki–Miyaura cross-coupling of aryl chlorides
with enhancement of reaction time and catalyst turnover
⇑
Toshinori Kamei, Akihiro H. Sato, Tetsuo Iwasawa
Department of Materials Chemistry, Faculty of Science and Technology, Ryukoku University, Otsu, Shiga 520-2194, Japan
a r t i c l e i n f o
a b s t r a c t
Article history:
A series of new chiral phosphonite ligands were evaluated for the palladium-catalyzed asymmetric
Suzuki–Miyaura cross-coupling reactions of aryl chlorides. Ligand 4 gave 91% yield and 78% ee with
0.5 mol % catalyst loading for the coupling of aryl boronic acid and aryl chloride in 5 h. When the catalyst
loading was lowered to 0.1 mol % the same reaction gave 75% yield and 76% ee.
Ó 2011 Elsevier Ltd. All rights reserved.
Received 19 January 2011
Revised 7 March 2011
Accepted 9 March 2011
Available online 16 March 2011
The Suzuki–Miyaura cross-coupling reaction is one of the most
widely used method for preparing biaryl bonds.1 The widespread
availability of aryl chlorides contributes to the utility of this reac-
tion in synthetic organic chemistry.1a–d The asymmetric variant re-
mains an important challenge2 due to the importance of axially
chiral biaryls in synthetic applications,3a–d including pharmaceuti-
cal,3e,f material,3g and supramolecular3h chemistry. So far a few
examples on catalytic enantioselective versions have been re-
ported.4–6
Recently, Lassaletta and Uozumi reported on highly efficient
asymmetric cross-couplings. Lassaletta and co-workers utilized a
novel C2-symmetric bis-hydrazone ligand,7a and Uozumi devel-
oped a polymer-supported catalyst.7b While their procedures
achieved valuable enantioselectivities there is still room for
improvement especially in terms of catalyst loadings and reaction
times. In these prior works a minimum of 5 mol % of catalyst and
24 h of reaction time was necessary, though Uozumi was able to
reuse their catalyst 4 times.
We previously reported on the pentaarylbenzene phosphine
ligand 1 palladium-catalyzed Suzuki–Miyaura coupling of aryl chlo-
rides.8 The well-organized array of aromatic rings was demon-
strated to play an enhancing role in the catalytic cycle.9,10
Phosphine 1 catalyzed the reaction of 2-chloro-3-methoxybenzal-
dehyde with ortho-tolylboronic acid to form the unsymmetrical
tri-ortho-substituted biaryl11 in >99% yield with 0.1 mol % catalyst
loading (Scheme 1).
In this Letter, we describe three new phophonites that promote
the asymmetric cross-coupling of aryl chlorides with low catalyst
loading and short reaction time. The pentatolylbenzene moiety
feature found in 1 was appended with chiral biaryls to give 2, 3,
and 4 (Fig. 1). Phosphonite 4 was found to give the axially chiral
tri-ortho-substituted biaryl12 in 75% yield and 76% ee with a
0.1 mol % catalyst loading (catalyst turnover = 750) and 5 h reac-
tion time.
The chiral phosphonite 2,13 3,14 and 415 were synthesized from
bromide 616 via iodide 510a as shown in Scheme 2. Lithiation of io-
dide 5 smoothly occurred in toluene at ꢀ78 °C, and it was followed
by reaction with 1,2-dibromobenzene, giving 6 in 89% yield.8 Initial
efforts to convert 6 to the desired ligands 2, 3, and 4 proved diffi-
cult presumably due to the sterically hindered carbanion.17 After
several attempts, the use of phosphorous trichloride was found
to give access to desired phophonites. The addition of PCl3 followed
by (R)-1,10-binaphthyl-2,20-diol was conducted in one-pot under
an argon atmosphere. Purification by silica gel column chromatog-
raphy gave 2 in 43% yield. Similarly the reactions of (R)-3,30-di-
methyl-1,10-binaphthyl-2,20-diol14 and (S)-9,100-biphenanthrene-
90,10-diol15 afforded 3 in 69% yield and 4 in 70% yield. These
compounds readily dissolved in CHCl3, CH2Cl2, benzene, toluene,
and THF. Compounds 2, 3, and 4 proved to be stable solids as con-
firmed by the lack of observed phosphorous oxide in 31P NMR after
workup and purification. Presumably the large pentatolylbenzene
moiety provides a degree of robustness to these ligands, protecting
the phosphorous lone-pair from oxidation.18
At the outset of our study the availability of 2 led us to investi-
gate its performance as a chiral ligand in palladium-catalyzed
asymmetric Suzuki–Miyaura reactions. The reactions were carried
out in the presence of [Pd2(dba)3ꢁCHCl3] (dba = dibenzylideneace-

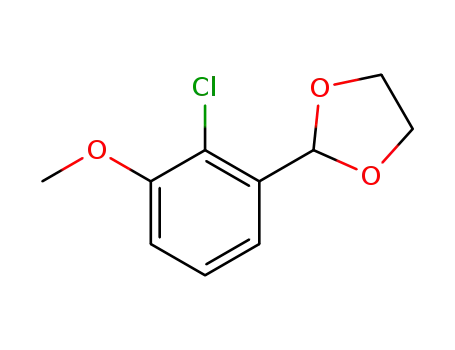

tone) and 2 (Scheme 3). As coupling partners, 2-(2-chloro-3-
methoxyphenyl)-1,3-dioxolane 7 and ortho-tolylboronic acid 8
were chosen because of their availability. The chemical yield and
enantiomeric excess of the axially chiral product (S)-2-(6-meth-
oxy-20-methyl biphenyl-2-yl)-1,3-dioxolane19 were surveyed in
several conditions (Table 1).20
In entries 1 and 2, the catalyst system at 75 °C in THF and KF
smoothly gave the coupling adduct in 96% yield, although the yield
at 50 °C decreased to 44%. In entries 2–4, the ratio of 2 to palladium
(P/Pd ratio) was varied between 1.2, 2.0, and 3.0 to little effect. In
entry 5 the reaction proceeded with 0.1 mol % catalyst loading,
⇑
Corresponding author. Tel.: +81 77 543 7461; fax: +81 77 543 7483.
E-mail address: iwasawa@rins.ryukoku.ac.jp (T. Iwasawa).
0040-4039/$ - see front matter Ó 2011 Elsevier Ltd. All rights reserved.
doi:10.1016/j.tetlet.2011.03.051

T. Kamei et al. / Tetrahedron Letters 52 (2011) 2638–2641
2639
Scheme 1. Synthesis of a biaryl in the presence of 1.
giving 99% yield and 40% ee. Of the bases evaluated in entries 6–11,
the significance of CsF is striking, giving coupling in 96% yield and
46% ee. In entry 14, 92% yield and 45% ee were produced with a
catalyst loading of 0.1 mol %.
within 5 h, and the product was given in 69% ee and 72% ee, respec-
tively (entries 3 and 4). Conducting the reaction in toluene with
CsF the % ee values were 74 with 3 and 78 with 4 (entries 5 and
6). This is slightly better as compared with the % ee using THF
and KF. In entry 7, the catalyst loading of 0.1 mol % with 4 achieved
75% yield and 76% ee, consuming the starting material 7 within 5 h.
The coupling partners of arylboronic acid were changed to o-anis-
ylboronic acid 10 (entries 8 and 9)21 and 1-naphthylboronic acid
11 (entries 10 and 11). Although the starting halide 7 was
consumed within 5 h through entries 8–11, the highest enantiose-
lectivities recorded was 52% ee.22 Asymmetric cross-coupling of
2-chloro-3-methoxy benzonitrile 923 with 1-naphthylboronic acid
11 in entry 12 was carried out with phosphonite 4, and the reaction
proceeded within 3 h in 87% yield and 33% ee.
The configurational stability of (S)-2-(6-methoxy-20-methyl
biphenyl-2-yl)-1,3-dioxolane at the reaction temperature of the
coupling was surveyed. The mixture of (S)/(R) = 66:34 ratio was re-
fluxed in THF for 12 h, to give 68:32. In addition, (S)/(R) = 68:32 was
heated in toluene for 12 h at 90 °C, to give 66:34. There is virtually no
erosion of ee under these conditions thus we presume that the biaryl
has kept its configuration under the reaction conditions.
Next, we evaluated the performance of ligands 2, 3, and 4 (Table
2). In the reaction of halide 7 with boronic acid 8 with THF and KF
under P/Pd = 2, phosphonite 3 gave 65% ee compared to 2 (41% ee)
(entries 1 and 2). When the mol % of ligand 3 and 4 rose to 1.5 (P/
Pd = 3) the starting material 7 disappeared by TLC monitoring
In summary, chiral phosphonite 2, 3, and 4 were developed and
evaluated for the asymmetric Suzuki–Miyaura cross-coupling
Figure 1. Phosphonite 2, 3, and 4.
Scheme 2. Synthetic routes to 2, 3, and 4.
Scheme 3. Asymmetric Suzuki–Miyaura reaction of 7 with 8.
