Communications
prevention of the oxidative decomposition of sub-
strates and products, the complete inversion in reac-
tivity/selectivity in the two metalation steps of the
catalytic cycle to restrain the formation of intractable
homocoupling, and the control of regioselectivity
[Eq. (1)].
Xanthines (e.g., caffeine, theophylline, theobro-
mine, etc.) are important biologically active alkaloids.
8-(Hetero)aryl-substituted xanthines are highly potent
antagonists at human A2B adenosine receptors.[11] As
part of our ongoing effort to synthesize (hetero)aryl-
substituted xanthines,[8,12] we initially focused on the
cross-coupling of caffeine with 1-benzylindole to
optimize the conditions (see Table S1 in the Supporting
Information). After screening several parameters (e.g.,
palladium source, solvent, oxidant, ligand, additive,
temperature, etc.), we found that the addition of extra
X-Phos could greatly prevent the decomposition of N-
alkylindoles, and dramatically improved the yield of
the desired product 3a to up to 70% (Table S1,
entry 9). DMSO played a critical role in the reaction
efficiency, and the absence of DMSO diminished the
yield of 3a (Table S1, entries 5 and 8). We supposed
that DMSO might act as a ligand to prevent the
formation of palladium black.[6f,13] Excitingly, a cata-
lytic amount of CuCl further advanced the catalytic
Scheme 2. Selective cross-coupling of indole derivatives with caffeine. For all
reactions 0.5 mmol caffeine (2a) and 3.0 equiv indole 1 were used under an N2
atmosphere. Yields of the isolated product are based on 2a. [a] Carried out at
1208C. [b] Carried out at 1408C without X-Phos. DMSO=dimethyl sulfoxide,
X-Phos=2-(dicyclohexylphosphino)-2’,4’,6’-tri-iso-propyl-1,1’-biphenyl, Pd-
(dppf)Cl2 =[1,1’-bis(diphenylphosphino)ferrocene]dichloropalladium(II).
efficiency and C3/C2 regioselectivity. Finally, the cross-
coupling reactions proceeded well when 5 mol% of [Pd-
electron-withdrawing or 2-substituted groups required rela-
tively higher reaction temperatures (up to 120–1408C; 3i–k).
Notably, the reaction of 1-benzyl-7-aza-1H-indole proceeded
well and result in an 88% yield (3e).
(dppf)Cl2]
was
employed
in
combination
with
X-Phos (5 mol%), CuCl (0.2 equiv), Cu(OAc)2·H2O
(3.0 equiv), and pyridine (1.0 equiv) in 1,4-dioxane/DMSO
(9:1; Table S1, entry 10). This transformation was highly
regioselective by reacting at C3 of the indole, and other
regioisomeric products were not observed. An X-ray analysis
We subsequently applied this protocol to other xanthines
(e.g., benzylic theobromine, benzylic theophylline, n-butyl
theophylline, etc.) to synthesize xanthine-substituted indoles
3l–n in good to excellent yields (Scheme 3). Simple purine
heterocycles are attractive as “functional” p components in
organic materials with biological relevance.[15] Recently, the
C arylation of purines with aryl boronic acids and aryl halides
has started to attract interest.[12c,16] Our methodology was
suitable for the synthesis of the purine-substituted indoles
3o–p. In addition to these important alkaloids with imidazole
skeletons, the catalytic system could also effectively promote

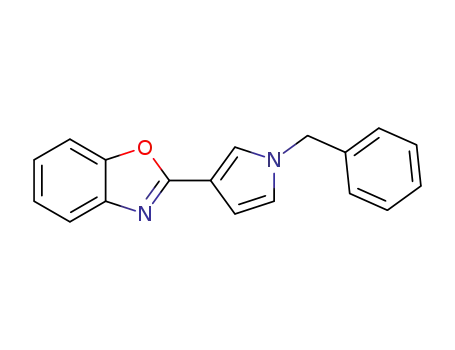

the cross-coupling of N-alkylindoles with other azoles (e.g.,
benzothiazoles, benzoxazoles, oxazoles, etc.) at the C2 site of
azoles in synthetically useful yields (3q–r, t). Interestingly, the
2-substituted thiazole was amenable to the oxidative coupling
reaction at the C5-position of the thiazole in 70% yield (3s).
However, indolizines were limited under the standard reac-
tion conditions, and gave only a trace amount of product.
N-Heteroarene N-oxides are a key intermediate in many
transformations that assemble functionality adjacent to the
nitrogen atom. The N-oxides may also be converted into the
deoxygenated products by hydrogenolysis with Pd/C/H2. The
À
À
of single crystals of 3a confirmed that a direct C H/C H
cross-coupling took place between C3 on the 1-benzylindole
and C8 on caffeine (see Figure S1 in the Supporting Informa-
tion).[14]
With optimized conditions now in hand, we examined the
scope of this methodology with respect to indoles as
summarized in Scheme 2. Gratifyingly, we found that a
relatively broad range of indole derivatives could couple
with caffeine with complete C3 selectivity and good yields.
Indoles having an N-protecting group such as methyl, benzyl,
or MOM group all gave the corresponding N-protected
xanthine-substituted indoles 3a–c, whereas the protection of
the indole with the TIPS (triisopropylsilyl) group afforded the
N-unprotected indole derivative 3d. Interestingly, the N-
unprotected indole could also be oxidatively cross-coupled
with caffeine, albeit in a diminished yield of 39%. Avariety of
substituents on the indole substrates (e.g., alkyl, chloride,
nitro, benzyloxy groups, etc.) were tolerated. Indoles with the
5366
