1 Selective Oxygenation of Ionones and Damascones by
2 Fungal Peroxygenases
3
4
5
6
7
Esteban D. Babot,† Carmen Aranda,† José C. del Río,† René Ullrich,‡ Jan Kiebist,£
Katrin Scheibner,£ Martin Hofrichter, ‡ Angel T. Martínez,§ and Ana Gutiérrez *,†
8
9
10
11
12
*Corresponding author: (Tel: +34 954624711; E-mail: anagu@irnase.csic.es)
13
14
†Instituto de Recursos Naturales y Agrobiología de Sevilla, CSIC, Av. Reina Mercedes
10, E-41012 Seville, Spain.
15
16
‡ TU Dresden, International Institute Zittau, Department of Bio- and Environmental
Sciences, Markt 23, 02763 Zittau, Germany
17
£ JenaBios GmbH, Löbstedter Str. 80, 07749 Jena, Germany
18
19
§ Centro de Investigaciones Biológicas Margarita Salas, CSIC, Ramiro de Maeztu 9, E-
28040 Madrid, Spain
1
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 2 of 34
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
ABSTRACT: Apocarotenoids are among the most highly valued fragrance
constituents, being also appreciated as synthetic building blocks. This work shows the
ability of unspecific peroxygenases (UPOs, EC1.11.2.1) from several fungi, some of
them being described recently, to catalyze the oxyfunctionalization of - and -ionones
and damascones. Enzymatic reactions yielded oxygenated products such as hydroxy-,
oxo-, carboxy- and epoxy-derivatives that are interesting compounds for the flavor and
fragrance and pharmaceutical industries. Although a variable regioselectivity was
observed depending on the substrate and enzyme, oxygenation was preferentially
produced at the allylic position in the ring, being especially evident in the reaction with

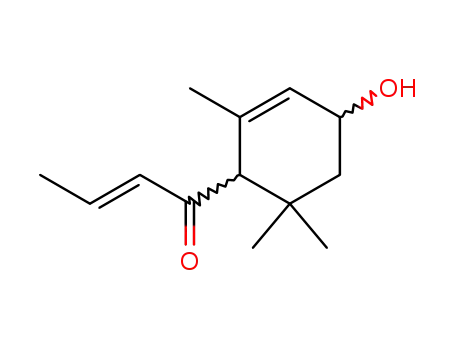

-ionone, forming 3-hydroxy--ionone and/or 3-oxo--ionone. Noteworthy were the
reactions with damascones, in the course of which some UPOs oxygenated the terminal
position of the side chain, forming oxygenated derivatives (i.e. the corresponding
alcohol, aldehyde and carboxylic acid) at C-10, which were predominant in the
Agrocybe aegerita UPO reactions, and first reported here.
KEYWORDS: aromas, apocarotenoids, ionones, damascones, peroxygenases,
biocatalysis, UPO
2
ACS Paragon Plus Environment

Page 3 of 34
Journal of Agricultural and Food Chemistry
38
INTRODUCTION
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
Apocarotenoids or norisoprenoids, which are usually formed by partial oxidative
degradation of carotenoids, include a wide range of compounds with different chemical
structures and biological activities. Among these compounds, those having thirteen
carbon atoms, such as ionones and damascones, are essential constituents of the aroma
of tea, grapes, roses, tobacco and wine, and are also relevant flavors or fragrances that
constitute an important economic resource for chemical industries.1 Moreover,
damascones and their derivatives have also been identified as a novel class of potential
cancer chemopreventive phytochemicals.2
The introduction of hydroxyl or keto functionalities in these compounds reduces
their volatility and increases the long lasting odor.3 Most of these derivatives (3-
hydroxy and 3-oxo--ionone, 4-hydroxy- and 4-oxo--ionone and hydroxy--
damascone isomers) are present in plants but in very small amounts and extraction is
not a viable process for their industrial use. For that reason, they are usually prepared by
chemical synthesis and, therefore, alternative methods for the bioproduction of these
compounds are of high industrial interest.1
Biotransformation of - and -ionones, and their respective - and -damascones
isomers, to a number of hydroxy and keto derivatives has been reported for several
fungi.3-7 However, microbial whole-cell biotransformations require long incubation
times, and often suffer from low conversion rates and substrate partial degradation. On
the other hand, biotransformations with isolated enzymes (enzymatic in vitro
conversion), such as some cytochrome P450 monooxygenases (P450s)8-10 including
engineered P450 BM-3 variants,11,12 have also been reported. Most P450s, however,
have the disadvantages of requiring expensive cofactors and auxiliary enzymes, and
their stability is usually low due to their intracellular nature.
3
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 4 of 34
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
Unspecific peroxygenases (UPOs, EC.1.11.2.1) represent a relatively new and
appealing type of biocatalysts for organic synthesis that, unlike P450s, are extracellular
enzymes (therefore more stable) and only require H2O2 for activation.13 However, in
spite of all recent progresses in our understanding of UPO catalysis and application,14
some difficulties in UPO application are still to be solved. They include, in addition to
inactivation by hydrogen peroxide that affects enzyme reuse, the present limitations to
heterologously express UPOs in bacterial (and even in fungal systems), due to the more
recent discovery of these enzymes and their fungal origin. The latter aspects, to be
overcome in the future, currently limit enzyme engineering to tailor UPOs for specific
substrates and processes, as well as their production scale up. UPOs have been shown to
catalyze a diversity of interesting oxygenation reactions with aromatic substrates,15,16
aliphatic compounds such as fatty acids, alkanes, fatty alcohols,17-21 steroids and
secosteroids,22-24 and other flavor and fragrance compounds, such as isophorone.25 The
first UPO was described in the basidiomycetous fungus Agrocybe aegerita (AaeUPO)26
and since then, several other UPO enzymes have been purified from other
Basidiomycota and Ascomycota species such as Coprinellus radians,27 Marasmius
rotula (MroUPO)28 and Chaetomium globosum (CglUPO),29 which is indicative for
their widespread occurrence in the fungal kingdom. In addition to these wild-type (i.e.
non-recombinant) enzymes, there are other UPOs, e.g. from Coprinopsis cinerea
(rCciUPO)18 and Humicola insolens (rHinUPO),29 which are only known as
recombinant proteins heterologously expressed by Novozymes A/S (Bagsvaerd,
Denmark) in the mold Aspergillus oryzae.30 Very recently, a new UPO from the
ascomycetous mold Daldinia caldariorum has become available from Novozymes, after
gene expression in A. oryzae, being also expressible in Escherichia coli as a soluble and
active enzyme.31
4
ACS Paragon Plus Environment

Page 5 of 34
Journal of Agricultural and Food Chemistry
88
In the present work, the oxygenation of - and -ionones, and their respective
89
90
91
92
93
94
isomers - and -damascones by several UPOs is shown for the first time. These are
new reactions of interest for the biotechnological synthesis of different natural flavors,
pharmaceuticals and synthetic building blocks to be added to the existing portfolio of
reactions catalyzed by these exciting enzymes.14
MATERIALS AND METHODS
95
96
Enzymes. AaeUPO (isoform II), a wild UPO from cultures of A. aegerita TM-A1
(syn. Cyclocybe aegerita, DSM 22459) grown in soybean-peptone medium, was
purified as previously described.26 MroUPO is another wild-type UPO, from cultures of
M. rotula DSM-25031 (German Collection of Microorganisms and Cell Cultures,
Braunschweig), which was purified as described by Gröbe et al.28 CglUPO, the third
wild-type UPO originates from cultures of C. globosum DSM-62110, which was
purified as recently described.29 rCciUPO corresponds to the protein model 7249 from
the sequenced C. cinerea genome available at the JGI
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
(http://genome.jgi.doe.gov/Copci1). The recombinant enzymes rCciUPO (44 kDa),
rHinUPO and rDcaUPO were provided by Novozymes A/S after expression in A.
oryzae.30 All UPO proteins were purified by fast protein liquid chromatography (FPLC)
using a combination of size exclusion chromatography (SEC) and ion exchange
chromatography on different anion and cation exchangers. Purification was confirmed
by sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE) and UV-
vis spectroscopy following the characteristic heme-maximum around 420 nm (Soret
band of resting-state UPOs). Enzyme concentration was estimated according to the
characteristic UV-vis band of the reduced UPO complex (Fe2+-heme) with carbon
monoxide.34
5
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 6 of 34
113
114
115
116
117
118
119
120
121
122
Chemical compounds. Ionones, rac-(3E)-4-(2,6,6-trimethyl-2-cyclohexen-1-yl)-3-
buten-2-one (also known as -ionone) and (3E)-4-(2,6,6-trimethyl-1-cyclohexen-1-yl)-
3-buten-2-one (also known as -ionone), and damascones, rac-(2Z)-1-(2,6,6-trimethyl-
2-cyclohexen-1-yl)-2-buten-1-one (also known as -damascone) and (2E)-1-(2,6,6-
trimethyl-1-cyclohexen-1-yl)-2-buten-1-one (also known as -damascone) were tested
as substrates of the above UPOs. All the compounds were purchased from Sigma-
Aldrich except -ionone that was supplied by Fluka.
Enzymatic reactions. Reactions (1 mL volume) with ionones and damascones (0.5
mM) were performed at 30 C, in 50 mM phosphate buffer, pH 7.0 (pH 5.5 in MroUPO
reaction). The enzyme concentration was 0.5 M and the H2O2 was added every 6 min
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
in doses of 0.5 mol to a final concentration of 2.5 mM.25 In control experiments,
substrates were treated under the same conditions (including H2O2) but without enzyme.
The blank experiments did not give any oxidation product. Samples, at 30 min reaction,
were extracted with ethyl acetate and directly analyzed by GC-MS. On the other hand, a
time course experiment with all substrates and enzymes was performed, and the
corresponding samples within several reaction times (5 min, 10 min, 15 min and 20
min) were analyzed by GC-MS. In addition, samples were dried under N2 to prepare
trimethylsilyl (TMS) derivatives with N,O-bis(trimethylsilyl)trifluoroacetamide
(Supelco) that were also analyzed by GC-MS. Reactions with higher substrate
concentration were also performed using 5 mM of β-ionone, 1 µM of enzyme and by
adding H2O2 with a syringe pump over 6 hours at 3 µmol h-1. Total turnover number
(TTN) (mol product x number of conversions/mol enzyme) as well as total turnover
frequency (TOF) (TTN/time) were calculated in these reactions.
GC-MS analyses. The analyses of samples (with and without silylation) were
performed in a Shimadzu GC-MS QP 2010 Ultra system, using a fused-silica DB-5HT
6
ACS Paragon Plus Environment

Page 7 of 34
Journal of Agricultural and Food Chemistry
138
capillary column (30 m × 0.25 mm internal diameter, 0.1 μm film thickness) from J&W
Scientific. The oven was heated from 50 °C (1.5 min) to 90 °C (2 min) at 30 °C min−1,
and then from 90 °C to 250 °C (15 min) at 8 °C min−1. The injection was performed at
250 °C and the transfer line was kept at 300 °C. Compounds were identified by mass
fragmentography and comparing their mass spectra with those of the Wiley and NIST
libraries, and those previously reported, 3,4,7,9,10,35-37 and relative quantification was
obtained from total-ion peak area, using response factors of the same (in the case of
substrates) or similar compounds. The mass spectra and chemical structures of
substrates and their reaction products (underivatized and as TMS derivatives) are
included in Supporting Information (Table S1).
139
140
141
142
143
144
145
146
147
148
149
RESULTS AND DISCUSSION
150
151
In the present work, several fungal UPOs namely AaeUPO, MroUPO, CglUPO,
rCciUPO, rHinUPO and rDcaUPO were tested for their ability to oxygenate
152
153
154
155
156
157
158
159
160
161
162
apocarotenoids such as -ionone, -ionone, -damascone and -damascone (Figures 1-
4), using H2O2 as co-substrate and O-donor. The performance of enzymatic reactions
were evaluated by GC-MS, and the different activities and selectivities attained by the
UPOs are described and discussed in the following sections.
Reactions with -ionone. All UPOs were capable of completely transforming -
ionone within 30 min reaction time, except rCciUPO that only reached 21% conversion
under these conditions (Table 1). The time course of the reactions showed that
rHinUPO and rDcaUPO completely converted the substrate within 5 min, while
AaeUPO, MroUPO and CglUPO needed 15-30 min (Figure 5A).
GC-MS analyses of enzymatic reactions revealed that all enzymes selectively (86-
98%) oxygenated -ionone at C-3 (allylic position) producing 3-hydroxy--ionone (3-
7
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 8 of 34
163
164
165
OH--I) and 3-oxo--ionone (3-CO--I) (Table 1, Figures 1, S1). In addition to these
derivatives, the tautomer of the keto-derivative, 3-hydroxy-2,3-dedihydro--ionone (3-
OH-2,3-DH--I) (7%), was observed in rHinUPO reactions. Small amounts (1-14%) of
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
4-epoxy--ionone (4-epoxy--I) were also detected in all reactions. The mass spectra of
these compounds (Table S1) were in agreement with those published in the NIST
library and in the literature.7,9,10
Different proportions of both cis-3-OH--I and trans-3-OH--I isomers were
observed in the reactions with the different UPOs, the trans-diastereoisomer being
generally the most abundant, except in AaeUPO reactions where the proportion of both
isomers was similar (Figures 6A, S1) after 30 min. The higher proportion of the trans-
diastereoisomer may be attributed to the faster further oxygenation of the cis-
diastereoisomer by these enzymes via a gem-diol intermediate that is in equilibrium
with the corresponding keto derivative (Figure 1),17 although an enzymatically
preference for hydroxylation of -ionone to the corresponding cis or trans
diastereomers may not be discarded.
Interestingly, all UPOs were able to over-oxygenate the 3-OH--I to form 3-CO--
I (via the gem-diol), except AaeUPO that only formed 5% of the latter compound
(Table 1). Low over-oxygenating activity of AaeUPO for hydroxy-derivatives was also
observed in the hydroxylation of the related -isophorone.25 The contrary was observed
182
183
184
185
186
in rHinUPO reactions, in which 3-CO--I was the predominant product and the OH-
tautomer was also observed. The reason why the enol form was only found in rHinUPO
reactions may be due to the high amount of the keto-form in these reactions. With other
UPOs, the lower amount of the 3-CO--I formed may cause that the OH-tautomer is
below the detection limit.
8
ACS Paragon Plus Environment

Page 9 of 34
Journal of Agricultural and Food Chemistry
187
Similar oxygenated derivatives were reported for fungi-mediated biotransformation
of -ionone, although generally with lower substrate conversion rates3,5,7. On the other
hand, the biotransformation of -ionone catalyzed by P450 CYP109D1 showed the
188
189
190
191
192
193
194
195
196
197
198
199
200
201
regioselective formation of 3-OH--I.9 The selectivity found here for most UPOs is
similar to that reported for cytochrome CYP101B1, where the trans diastereoisomer
was preferentially obtained (66%).10
Reactions with -ionone. All UPOs were able to completely convert β-ionone
under the same conditions within 30 min of reaction, except rCciUPO that only reached
41% conversion (Table 2). Time courses of the reactions show similar conversion
degrees as those observed with -ionone for the different UPOs, with the exception of
AaeUPO, which achieved almost complete substrate conversion within just 5 min
(Figure 5B). On the other hand, different regioselectivities were noticed for the
different UPOs tested, and oxygenation occurred at different positions (Table 2,
Figures 2, S2). CglUPO and rHinUPO were most selective (around 80%
regioselectivity) towards the C-4 position, resulting in the formation of 4-hydroxy--
202
ionone (4-OH--I) and its over-oxygenated (via a gem-diol intermediate) derivative 4-
203
204
205
206
207
208
209
210
211
oxo--ionone (4-CO--I). All UPOs oxygenated, in addition to C-4, other ring positions
(C-2 and C-3) although to lesser extent. These compounds were tentatively identified by
MS, and their mass spectra (Table S1) matched with those published in the NIST
library and literature.9,10,12,37,38 Moreover, other hydroxylated derivatives resulting from
a second and third oxygenation step (di-hydroxy and/or hydroxy-keto derivatives,
Figures S2-S3) were also detected in almost all reactions.
Only in the case of rCciUPO, the oxygenation of the terminal C-10 position in the
side chain (10-hydroxy--ionone, 10-OH--I) was observed (Figure S2C). The position
of the hydroxyl group was determined by the mass spectrum of the TMS derivative that
9
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 10 of 34
212
213
214
215
216
217
218
219
220
221
222
223
showed a major peak at m/z 177 corresponding to the loss of the terminal hydroxyl
group (Figure S4A). This compound was only evidenced in the silylated sample. To our
best knowledge, the occurrence of this oxygenated derivative has not been reported so
far. The terminal oxygenation of side chains of other aliphatic cyclic compounds by
UPOs has been described for steroids, secosteroids and trans--methylstyrene.22,23,39
On the other hand, the presence of 7,11-epoxymegastigma-5(6)-en-9-one (EME)
and its hydroxylated derivative 4-hydroxy-7,11-epoxymegastigma-5(6)-en-9-one (4-
OH-EME) was only observed in the reaction with rDcaUPO (Figures 2, S2F), and to
our best knowledge , not reported so far for P450s or microbial cultures. This unusual
bicyclic ionone derivative would be formed by the oxygenation of the C-13 followed by
ring closure between position 7 and 13 of the ionone framework as reported for the
chemical synthesis of EME (in several steps) starting from racemic -ionone
224
225
226
epoxidation.35 The presence of the hydroxylated derivative of -ionone at C-13
(Figures S2F, S4B) supports this mechanism. Moreover, the absence of the
dihydroxylated derivative of -ionone at C-4 and C-13 suggests that 4-OH-EME is not
227
228
229
230
231
232
233
234
235
236
formed from 4-hydroxy--ionone although this could not be absolutely discarded.
Finally, reactions with higher substrate (5 mM) and enzyme (1 µM) loading were
also performed, in which the co-substrate H2O2 was continuously supplied over 6 hours
with a syringe pump to preserve the enzyme stability (that is decreased by high local
concentrations of peroxide). Under these conditions, nearly complete substrate
conversion (except with rDcaUPO) and slightly increased selectivity were achieved,
taking into account that five times less enzyme/substrate ratio was used. That way, total
turnover numbers of 1,700-6,200 were reached (Table 3).
Reactions with -damascone. All UPOs tested transformed the substrate to high
extents (88-100%) within 30 min, except rCciUPO that only accomplished 11%
10
ACS Paragon Plus Environment

Page 11 of 34
Journal of Agricultural and Food Chemistry
237
238
239
240
conversion under the same conditions (Table 4). The time course of the reaction
showed that rHinUPO and rDcaUPO were more efficient than the other UPOs, since
they completely transformed the substrate within 5 min of the reaction (Figure 5C).
All UPOs (except rCciUPO) oxygenated the C-3 position to produce 3-hydroxy--
241
242
damascone (3-OH--D) (Table 4, Figures 3, S5). In a similar way as in the reactions
with -ionone, the hydroxylation of -damascone by several UPOs yielded both
243
244
245
246
247
diastereoisomers, cis-3-OH--D and trans-3-OH--D, whose mass spectra were in
accordance with those previously reported.4 MroUPO, CglUPO, rDcaUPO and
rHinUPO were more selective giving principally the trans-diastereoisomer, while
AaeUPO mainly produced the cis-diastereoisomer (Figure 6B). In addition, CglUPO,
rHinUPO and rDcaUPO over-oxygenated 3-OH--D to the 3-oxo derivative, and most
248
249
UPOs (MroUPO, CglUPO, rDcaUPO and rHinUPO) formed 4-epoxy--damascone (4-
epoxy--D) as well, although in minor amounts. Again, similar products were obtained
250
251
252
253
254
255
256
257
in fungi-mediated biotransformation of -damascone but with lower conversion rates,
maybe due to the toxicity of these compounds to fungal cells/hyphae.3
Interestingly, in addition to ring oxygenation, AaeUPO, MroUPO and rCciUPO
oxygenated the terminal position of the side chain (Figure 3) being the predominant
reaction (80% of total products) for the former UPO (Table 4, Figure S5). In these
reactions, the formation of the terminal alcohol (10-hydroxy--damascone, 10-OH--
D) was followed by its over-oxygenation producing the corresponding aldehyde (4-oxo-
4-(2,6,6-trimethylcyclohex-2-en-1-yl)but-2-enal, 10-CHO--D) and the carboxylic acid
258
259
260
261
(4-oxo-4-(2,6,6-trimethylcyclohex-2-en-1-yl)but-2-enoic acid, 10-COOH--D). These
compounds were tentatively identified by the mass spectra of their TMS derivatives
(Figure S6). The spectra show the molecular ions at m/z 280 (10-OH-α-D), m/z 206
(10-CHO-α-D) and m/z 294 (10-COOH-α-D) as well as the fragments corresponding to
11
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 12 of 34
262
263
264
265
266
267
268
269
270
the loss of a methyl group [M–CH3]+ at m/z 265, 191 and 279, respectively, and the
fragment at m/z 123 from the intact ring moiety. Additionally, diagnostic fragments at
m/z 157 corresponding to the side chain butenoyl group in the 10-OH-α-D (Figure
S6A), and at m/z 177 due to the loss of the aldehyde group [M-CHO]+ (Figure S6B)
are also observed. To our best knowledge, such damascone derivatives at C-10 have not
been reported so far. This may be due to the fact that most authors analyzed these
compounds without derivatization, and we found that they can only be detected after
derivatization (silylation).
Reactions with -damascone. Among all UPOs tested, only CglUPO and rHinUPO
271
272
273
274
275
276
277
278
279
280
completely converted -damascone within 30 min, while AaeUPO, MroUPO and
rDcaUPO) attained conversions of 81%, 72% and 34%, respectively, under the same
conditions; rCciUPO was practically incapable of oxidizing it (Table 5, Figures 4, S7).
Noteworthy is the low conversion of this compound by rDcaUPO compared to the other
substrates tested. The time course of the reaction showed that rHinUPO was more
efficient than the other UPOs, since it completely transformed the substrate within 5
min (Figure 5D).
In most cases, the hydroxylation at C-4 position was dominant over that at C-3
position with the exception of AaeUPO. On the other hand, rHinUPO, and to minor
extent CglUPO, were the only enzymes that over-oxygenated the 4-OH--D to 4-oxo--
281
damascone (4-CO--D) (Figures S7D-E). The mass spectra of these compounds (Table
282
283
284
285
286
S1) are in agreement with those previously reported.3,36,38 On the other hand, as in -
damascone reactions, oxygenated derivatives (alcohol, aldehyde and carboxylic acid) at
C-10 were also formed (Figure 4), preferentially by AaeUPO and MroUPO (Figure
S7). These compounds were identified by the mass spectra of their TMS derivatives
(Figure S8), which showed similar characteristic fragments to those of α-damascone
12
ACS Paragon Plus Environment

Page 13 of 34
Journal of Agricultural and Food Chemistry
287
288
289
290
291
292
293
294
295
296
297
298
derivatives, as the molecular ions at m/z 280 (10-OH-β-D), m/z 206 (10-CHO-β-D) and
m/z 294 (10-COOH-β-D) and the fragments corresponding to the loss of a methyl group
[M–CH3]+ at m/z 265, 191 and 279, respectively. Likewise, the fragment at m/z 177
originated by the loss of the aldehyde group [M-CHO]+ (Figure S8B) is also observed.
Comparison of oxygenation patterns by different UPOs. Generally, all UPOs
accomplished high conversion rates for all substrates tested, except rCciUPO. rHinUPO
and rDcaUPO were the most efficient ones (that converted more substrate in less time
under the same conditions) in oxidizing all substrates tested (with the exception of -
damascone that was only moderately converted by rDcaUPO) (Figure 5). On the other
hand, AaeUPO showed higher efficiency with -ionone than with any other substrate.
Regarding selectivity of the reactions with ionones, all UPOs showed higher
regioselectivities (up to 99%) with -ionone than with -ionone (Tables 1-2). Although
299
300
301
302
303
- and -ionones differ only in the position of the cyclohexene double bond, UPOs
realized different reactivities towards them. Analyses of the different oxygenation
products formed by the UPOs revealed that the position of the double bond in the
cyclohexenyl ring had seemingly an effect on the regioselectivity of hydroxylation,
directing it towards the allylic position. In this sense, - and -ionone were mainly
304
305
306
307
hydroxylated by most UPOs at C-3 and C-4 to form 3-hydroxy--ionone and 4-
hydroxy--ionone, respectively. However, this effect was more pronounced with -
ionone, since several oxygenated derivatives at other positions (C-2 and C-3) of the ring
(or in the side-chain) were formed with -ionone. The opposite was reported for P450
308
309
310
311
BM-3 mutants that selectively produced 4-OH--I, while they contrarily oxidized -
ionone to a mixture of four products.12 Interestingly, rHinUPO was the UPO that most
pronouncedly oxygenated mono-hydroxyl derivatives further into the corresponding
keto derivatives (that are in equilibrium with the gem-diol counterparts formed first). On
13
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 14 of 34
312
313
the other hand, most of the tested UPOs left unaffected the C-13 methyl group of both
- and -ionone. Only in the reaction with rDcaUPO the hydroxylation of the C-13
314
315
316
317
carbon atom of -ionone was observed, producing the interesting EME and 4-OH-EME
products.
The preference for the hydroxylation of the allylic position in the cyclohexene ring
by UPOs was also observed in the reactions with - and -damascones. A strict
318
regioselectivity for this position was especially evident in the reaction of -damascone
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
with rHinUPO and rDcaUPO, followed by CglUPO, and in the reaction of -damascone
with rHinUPO and CglUPO. Interestingly, in damascones reactions, a different
regioselectivity with respect to that observed with ionones was ascertained. Therefore,
in addition to the cyclohexenyl ring, hydroxylation was produced at the terminal
position of the butenoyl side chain, being predominant in AaeUPO reactions but
completely absent in rHinUPO, rDcaUPO and CglUPO reactions. Thus, the change in
the position of the carbonyl and alkene moieties in the butenoyl side chain caused a
drastic change in regioselectivity of AaeUPO towards damascones compared to ionones.
It can be concluded that the oxyfunctionalization of the ionone and damascone
isomers catalyzed by UPOs reveal clear advantages over P450 catalysis (e.g. engineered
P450 BM-3 variants) due to the higher conversion rates, enzyme stabilities and little
requirements concerning cofactors. These enzymes can therefore be of high interest for
the production of valuable compounds, of interest for the flavor and fragrance, cosmetic
and pharmaceutical industries. However, it is necessary to mention that some current
limitations of UPOs, related to their large-scale production and application, need to be
solved for their efficient industrial implementation.
335
336
ACKNOWLEDGMENTS
14
ACS Paragon Plus Environment

Page 15 of 34
Journal of Agricultural and Food Chemistry
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
We thank Novozymes A/S (Bagsvaerd, Denmark) for providing the recombinant
enzymes (rCciUPO, rHinUPO and rDcaUPO) used in this study and A. González-
Benjumea for helpful discussion.
FUNDING SOURCES
This work was supported by the EnzOx2 (H2020-BBI-PPP-2015-2-1-720297) EU-
project and the CSIC (201740E071) project.
Supporting Information
Chemical structures and mass fragmentations of ionones and damascones and their
oxygenated derivatives from enzymatic reactions with several UPOs (Table S1), GC-
MS analyses of ionones and damascones reactions with several UPOs (Figures S1, S2,
S5 and S7), Chemical structures of the dihydroxy and keto-hydroxy-derivatives from
UPO reactions with -ionone (Figure S3), and mass spectra and
formulae/fragmentations of several oxygenated derivatives of ionones and damascones
from reactions with several UPOs (Figures S4, S6 and S8).
REFERENCES
355
356
357
358
359
360
361
(1) Serra, S. Recent Advances in the Synthesis of Carotenoid-Derived Flavours and
Fragrances. Molecules 2015, 20, 12817-12840.
(2) Gerhäuser, C.; Klimo, K.; Hümmer, W.; Hölzer, J.; Petermann, A.; Garreta-Rufas,
A.; Böhmer, F. D.; Schreier, P. Identification of 3-hydroxy--damascone and
related carotenoid-derived aroma compounds as novel potent inducers of Nrf2-
mediated phase 2 response with concomitant anti-inflammatory activity. Mol.
Nutr. Food Res. 2009, 53, 1237-1244.
15
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 16 of 34
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
(3) Serra, S.; De Simeis, D. Fungi-Mediated Biotransformation of the Isomeric Forms
of the Apocarotenoids Ionone, Damascone and Theaspirane. Molecules 2019, 24,
19.
(4) Schoch, E.; Benda, I.; Schreier, P. Bioconversion of -damascone by Botrytis
cinerea. Appl. Environ. Microbiol. 1991, 57, 15-18.
(5) Lutz-Wahl, S.; Fischer, P.; Schmidt-Dannert, C.; Wohlleben, W.; Hauer, B.;
Schmid, R. D. Stereo- and regioselective hydroxylation of alpha-ionone by
Streptomyces strains. Appl. Environ. Microbiol. 1998, 64, 3878-3881.
(6) Gliszczynska, A.; Gladkowski, W.; Dancewicz, K.; Gabrys, B.; Szczepanik, M.
Transformation of -damascone to (+)-(S)-4-hydroxy--damascone by fungal
strains and its evaluation as a potential insecticide against aphids Myzus persicae
and lesser mealworm Alphitobius diaperinus Panzer. Catal. Commun. 2016, 80,
39-43.
(7) Yamazaki, Y.; Hayashi, Y.; Arita, M.; Hieda, T.; Mikami, Y. Microbial
Conversion of -Ionone, -Methylionone, and -Isomethylionone. Appl. Environ.
Microbiol. 1988, 54, 2354-2360.
(8) Schulz, S.; Girhard, M.; Urlacher, V. B. Biocatalysis: Key to Selective Oxidations.
ChemCatChem 2012, 4, 1889-1895.
(9) Khatri, Y.; Girhard, M.; Romankiewicz, A.; Ringle, M.; Hannemann, F.; Urlacher,
V. B.; Hutter, M. C.; Bernhardt, R. Regioselective hydroxylation of
norisoprenoids by CYP109D1 from Sorangium cellulosum So ce56. Appl.
Microbiol. Biotechnol. 2010, 88, 485-495.
(10) Hall, E. A.; Bell, S. G. The efficient and selective biocatalytic oxidation of
norisoprenoid and aromatic substrates by CYP101B1 from Novosphingobium
aromaticivorans DSM12444. RSC Adv. 2015, 5, 5762-5773.
16
ACS Paragon Plus Environment

Page 17 of 34
Journal of Agricultural and Food Chemistry
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
(11) Appel, D.; Lutz-Wahl, S.; Fischer, P.; Schwaneberg, U.; Schmid, R. D. A P450
BM-3 mutant hydroxylates alkanes, cycloalkanes, arenes and heteroarenes. J.
Biotechnol. 2001, 88, 167-171.
(12) Urlacher, V. B.; Makhsumkhanov, A.; Schmid, R. D. Biotransformation of 
ionone by engineered cytochrome P450 BM-3. Appl. Microbiol. Biotechnol. 2006,
70, 53-59.
(13) Hofrichter, M.; Kellner, H.; Herzog, R.; Karich, A.; Liers, C.; Scheibner, K.;
Wambui, V.; Ullrich, R. Fungal peroxygenases: A phylogenetically old
superfamily of heme enzymes with promiscuity for oxygen transfer reactions. In
Grand challenges in fungal biotechnology; Nevalainen, H., Ed.; Springer: Cham,
Switzerland, 2020.
(14) Wang, Y.; Lan, D.; Durrani, R.; Hollmann, F. Peroxygenases en route to
becoming dream catalysts. What are the opportunities and challenges? Curr. Opin.
Chem. Biol. 2017, 37, 1-9.
(15) Hofrichter, M.; Ullrich, R.; Pecyna, M. J.; Liers, C.; Lundell, T. New and classic
families of secreted fungal heme peroxidases. Appl. Microbiol. Biotechnol. 2010,
87, 871-897.
(16) Aranda, C.; Ullrich, R.; Kiebist, J.; Scheibner, K.; del Río, J. C.; Hofrichter, M.;
Martínez, A. T.; Gutiérrez, A. Selective synthesis of the resveratrol analogue 4,4'-
dihydroxy-trans-stilbene and stilbenoids modification by fungal peroxygenases.
Catal. Sci. Technol. 2018, 8, 2394-2401.
(17) Gutiérrez, A.; Babot, E. D.; Ullrich, R.; Hofrichter, M.; Martínez, A. T.; del Río, J.
C. Regioselective oxygenation of fatty acids, fatty alcohols and other aliphatic
compounds by a basidiomycete heme-thiolate peroxidase. Arch. Biochem.
Biophys. 2011, 514, 33-43.
17
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 18 of 34
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
(18) Babot, E. D.; del Río, J. C.; Kalum, L.; Martínez, A. T.; Gutiérrez, A.
Oxyfunctionalization of aliphatic compounds by a recombinant peroxygenase
from Coprinopsis cinerea. Biotechnol. Bioeng. 2013, 110, 2332.
(19) Aranda, C.; Olmedo, A.; Kiebist, J.; Scheibner, K.; del Río, J. C.; Martínez, A. T.;
Gutiérrez, A. Selective epoxidation of fatty acids and fatty acid methyl esters by
fungal peroxygenases. ChemCatChem 2018, 10, 3964-3968.
(20) Olmedo, A.; Aranda, C.; del Río, J. C.; Kiebist, J.; Scheibner, K.; Martínez, A. T.;
Gutiérrez, A. From alkanes to carboxylic acids: Terminal oxygenation by a fungal
peroxygenase. Angew. Chem. Int. Ed. 2016, 55, 12248-12251.
(21) Peter, S.; Kinne, M.; Wang, X.; Ulrich, R.; Kayser, G.; Groves, J. T.; Hofrichter,
M. Selective hydroxylation of alkanes by an extracellular fungal peroxygenase.
FEBS J. 2011, 278, 3667-3675.
(22) Babot, E. D.; del Río, J. C.; Cañellas, M.; Sancho, F.; Lucas, F.; Guallar, V.;
Kalum, L.; Lund, H.; Gröbe, G.; Scheibner, K.; Ullrich, R.; Hofrichter, M.;
Martínez, A. T.; Gutiérrez, A. Steroid hydroxylation by basidiomycete
peroxygenases: A combined experimental and computational study. Appl.
Environ. Microbiol. 2015, 81, 4130-4142.
(23) Lucas, F.; Babot, E. D.; del Río, J. C.; Kalum, L.; Ullrich, R.; Hofrichter, M.;
Guallar, V.; Martínez, A. T.; Gutiérrez, A. Molecular determinants for selective
C25-hydroxylation of vitamins D2 and D3 by fungal peroxygenases. Catal. Sci.
Technol. 2016, 6, 288-295.
(24) Babot, E. D.; del Río, J. C.; Kalum, L.; Martínez, A. T.; Gutiérrez, A.
Regioselective hydroxylation in the production of 25-hydroxyvitamin D by
Coprinopsis cinerea peroxygenase. ChemCatChem 2015, 7, 283-290.
18
ACS Paragon Plus Environment

Page 19 of 34
Journal of Agricultural and Food Chemistry
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
(25) Aranda, C.; Municoy, M.; Guallar, V.; Kiebist, J.; Scheibner, K.; Ullrich, R.; del
Río, J. C.; Hofrichter, M.; Martínez, A. T.; Gutiérrez, A. Selective synthesis of 4-
hydroxyisophorone and 4-ketoisophorone by fungal peroxygenases. Catal. Sci.
Technol. 2018, 9, 1398-1405.
(26) Ullrich, R.; Nuske, J.; Scheibner, K.; Spantzel, J.; Hofrichter, M. Novel
haloperoxidase from the agaric basidiomycete Agrocybe aegerita oxidizes aryl
alcohols and aldehydes. Appl. Environ. Microbiol. 2004, 70, 4575-4581.
(27) Anh, D. H.; Ullrich, R.; Benndorf, D.; Svatos, A.; Muck, A.; Hofrichter, M. The
coprophilous mushroom Coprinus radians secretes a haloperoxidase that catalyzes
aromatic peroxygenation. Appl. Environ. Microbiol. 2007, 73, 5477-5485.
(28) Gröbe, G.; Ullrich, M.; Pecyna, M.; Kapturska, D.; Friedrich, S.; Hofrichter, M.;
Scheibner, K. High-yield production of aromatic peroxygenase by the agaric
fungus Marasmius rotula. AMB Express 2011, 1, 31-42.
(29) Kiebist, J.; Schmidtke, K. U.; Zimmermann, J.; Kellner, H.; Jehmlich, N.; Ullrich,
R.; Zänder, D.; Hofrichter, M.; Scheibner, K. A peroxygenase from Chaetomium
globosum catalyzes the selective oxygenation of testosterone. ChemBioChem
2017, 18, 563-569.
(30) Landvick, S.; Ostergaard, L. H.; Kalum, L. Polypeptides having peroxygenase
activity. Patent 2016, WO2014056916A3.
(31) Linde, D.; Olmedo, A.; González-Benjumea, A.; Renau, C.; Estévez, M.; Carro,
J.; Fernández-Fueyo, E.; Gutiérrez, A.; Martínez, A. T. Two new unspecific
peroxygenases from heterologous expression of fungal genes in Escherichia coli.
Appl. Environ. Microbiol. 2020, 86 doi:10.1128/AEM.02899-19.
19
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 20 of 34
459
460
461
462
463
464
465
466
467
468
469
470
(32) Pecyna, M. J.; Schnorr, K. M.; Ullrich, R.; Scheibner, K.; Kluge, M. G.;
Hofrichter, M. Fungal peroxygenases and methods of application. Patent
(International) 2008, WO 2008/119780 A2.
(33) Landvick, S.; Ostergaard, L. H.; Kalum, L. Polypeptides having peroxygenase
activity. Patent (International) 2016, WO2014056916A3.
(34) Otey, C. R. High-throughput carbon monoxide binding assay for cytochromes
P450. Methods Mol. Biol. 2003, 230, 137-139.
(35) Brenna, E.; Fuganti, C.; Serra, S. Synthesis and olfactory evaluation of the
enantiomerically enriched forms of 7,11-epoxymegastigma-5(6)-en-9-one and
7,11-epoxymegastigma-5(6)-en-9-ols isomers, identified in Passiflora edulis.
Tetrahedron: Asymmetry 2005, 16, 1699-1704.
(36) Kitahara, T.; Takagi, Y.; Matsui, M. Novel synthesis of 3-hydroxy--damascone,
471
472
473
474
475
476
3-hydroxydihydro--damascone and -damascenone. Agric. Biol. Chem. 1979, 43,
2359-2363.
(37) Mikami, Y.; Fukunaga, Y.; Arita, M.; Kisaki, T. Microbial Transformation of -
Ionone and -Methylionone. Appl. Environ. Microbiol. 1981, 41, 610-617.
(38) More, G. P.; Bhat, S. V. Facile lipase catalysed syntheses of (S)-(+)-4-hydroxy--
ionone and (S)-(+)-4-hydroxy--damascone: chiral flavorants and synthons.
Tetrahedron Lett. 2013, 54, 4148-4149.
477
478
479
480
481
482
(39) Kluge, M.; Ullrich, R.; Scheibner, K.; Hofrichter, M. Stereoselective benzylic
hydroxylation of alkylbenzenes and epoxidation of styrene derivatives catalyzed
by the peroxygenase of Agrocybe aegerita. Green Chem. 2012, 14, 440-446.
20
ACS Paragon Plus Environment

Page 21 of 34
Journal of Agricultural and Food Chemistry
484
485
486
FIGURE LEGENDS
Figure 1. -Ionone (-I) oxygenation by UPOs, showing the 3-hydroxy--ionone (3-
OH--I), 3-oxo--ionone (3-CO--I) formed via a gem-diol intermediate, its tautomer
3-hydroxy-2,3-didehydro--ionone (3-OH-2,3-DH--I) and 4-epoxy--ionone (4-
epoxy--I).
487
488
489
490
491
492
493
Figure 2. -ionone (-I) oxygenation by UPOs showing the different oxygenated
derivatives: 4-hydroxy--ionone (4-OH--I), 3-hydroxy--ionone (3-OH--I), 2-
hydroxy--ionone (2-OH--I), 10-hydroxy--ionone (10-OH--I), 13-hydroxy--
494
495
496
497
498
ionone (13-OH--I), 4-oxo--ionone (4-CO--I), 2-oxo--ionone (2-CO--I), 7,11-
epoxymegastigma-5(6)-en-9-one (EME), and 4-hydroxy-7,11-epoxymegastigma-5(6)-
en-9-one (4-OH-EME).
Figure 3. -damascone (-D) oxygenation by UPOs, showing the, 3-hydroxy--
damascone (3-OH--D), 10-hydroxy--damascone (10-OH--D), 4-epoxy--
damascone (4-epoxy--D), 3-oxo--damascone (3-CO--D), 4-oxo-4-(2,6,6-
trimethylcyclohex-2-en-1-yl)but-2-enal (10-CHO--D), 4-oxo-4-(2,6,6-
trimethylcyclohex-2-en-1-yl)but-2-enoic acid (10-COOH--D) derivatives.
499
500
501
502
503
504
505
506
Figure 4. -damascone (-D) oxygenation by UPOs showing the 3-hydroxy--
damascone (3-OH--D), 4-hydroxy--damascone (4-OH--D), 10-hydroxy--
damascone (10-OH--D) and the over-oxygenated compounds 4-oxo--damascone (4-
21
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 22 of 34
507
508
509
510
CO--D), 4-oxo-4-(2,6,6-trimethylcyclohex-1-en-1-yl)but-2-enal (10-CHO--D) and
4-oxo-4-(2,6,6-trimethylcyclohex-1-en-1-yl)but-2-enoic acid (10-COOH--D).
Figure 5. Time course of the transformation of 0.5 mM -ionone (A), -ionone (B), -
511
512
513
514
515
516
517
518
damascone (C) and -damascone (D) by 0.5 M AaeUPO (purple), MroUPO (yellow),
rCciUPO (light blue), CglUPO (green), rHinUPO (red) and rDcaUPO (blue). The
standard deviations (SD) calculated for duplicates (at 30 min) are indicated.
Figure 6. Abundance (relative percentage) and chemical structures (relative
configuration) of the different diastereoisomers formed in the reactions at 5 min and 30
min of -ionone (A) and -damascone (B) with several UPOs. The standard deviations
(SD) calculated for duplicates (at 30 min) are indicated.
22
ACS Paragon Plus Environment

Page 23 of 34
Journal of Agricultural and Food Chemistry
Table 1. Conversion (percentage of substrate transformed) of -ionone (-I) by several
UPOs (30 min) and abundance (relative percentage) of the reaction products, including
hydroxy (OH), keto (CO) and epoxy derivatives
AaeUPO MroUPO rCciUPO
CglUPO
rHinUPO rDcaUPO
Conversion (%)
Products (%)
3-OH--I
3-CO--I
4-epoxy--I
>99
>99
21
>99
>99
>99
93
5
2
55
31
14
63
35
2
72
22
6
1
98*
1
45
53
2
* including the keto derivative (91%) and its tautomer 3-hydroxy-2,3-didehydro--ionone (7%)
23
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 24 of 34
Table 2. Conversion (percentage of substrate transformed) of -ionone (-I) by several
UPOs (30 min) and abundance (relative percentage) of the reaction products, including
hydroxy (OH) and keto (CO) derivatives, and/or 7,11-epoxymegastigma-5(6)-en-9-one
(EME), and dihydroxy or hydroxy keto derivatives of -I (others)
AaeUPO MroUPO rCciUPO
CglUPO
rHinUPO rDcaUPO
Conversion (%)
Products (%)
4-OH--I
3-OH--I
2-OH--I
10-OH--I
13-OH--I
EME
2-CO--I
4-CO--I
4-OH-EME
Others
>99
>99
41
>99
>99
>99
55
22
13
-
-
-
-
3
-
7
55
-
7
-
-
-
18
1
-
19
61
19
2
14
-
-
-
2
-
64
-
1
-
-
-
-
20
-
21
-
-
-
-
-
-
58
-
21
53
19
3
-
7
11
-
-
5
2
2
15
24
ACS Paragon Plus Environment

Page 25 of 34
Journal of Agricultural and Food Chemistry
Table 3. Conversion (percentage of substrate transformed), abundance (relative percentage) of
reaction products - including hydroxy (OH), keto (CO) and dihydroxy or hydroxy keto
derivatives (others) - total turnover number (TTN) and total turnover frequency (TOF) in the
enzymatic transformation of 5 mM -ionone (-I)
AaeUPO
MroUPO rCciUPO
CglUPO
rHinUPO rDcaUPO
Conversion (%)
Products (%)
4-OH--I
4-CO--I
Others
95
93
22
98
91
52
87
-
13
5200
14
67
13
20
5900
16
83
-
17
1700
5
70
24
6
6200
17
57
24
19
6000
17
54
-
46
2800
8
TTN
TOF (min-1)
25
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 26 of 34
Table 4. Conversion (percentage of substrate transformed) of -damascone (-D) by
several UPOs (30 min) and abundance (relative percentage) of the reaction products,
including hydroxy (OH), aldehyde (CHO), keto (CO), carboxy (COOH) and epoxy
derivatives
AaeUPO MroUPO
rCciUPO
CglUPO
rHinUPO rDcaUPO
Conversion (%)
Products (%)
3-OH--D
4-epoxy--D
10-OH--D
3-CO--D
>99
88
11
>99
>99
>99
18
-
-
-
2
55
6
6
-
14
19
-
-
41
-
52
7
68
16
-
16
-
27
3
-
70
-
-
83
4
-
13
-
-
10-CHO--D
10-COOH--D
80
-
26
ACS Paragon Plus Environment

Page 27 of 34
Journal of Agricultural and Food Chemistry
Table 5. Conversion (percentage of substrate transformed) of -damascone (-D) by
several UPOs (30 min) and abundance (relative percentage) of the reaction products,
including hydroxy (OH), aldehyde (CHO), keto (CO), carboxy (COOH) and epoxy
derivatives
AaeUPO MroUPO rCciUPO CglUPO rHinUPO rDcaUPO
Conversion (%)
Products (%)
3-OH--D
4-OH--D
10-OH--D
4-CO--D
81
72
1
>99
>99
34
32
9
3
-
8
8
46
6
-
17
23
-
-
6
88
-
6
-
5
53
-
42
-
24
71
5
-
-
>99
-
-
-
10-CHO--D
10-COOH--D
48
-
-
-
27
ACS Paragon Plus Environment

Journal of Agricultural and Food Chemistry
Page 28 of 34
Figure 1
11
12
6
O
1
9
7
2
3
10
8
5
13
4
-I
H2O2
H2O
UPO
O
O
+
HO
O
3-OH--I
H2O2
4-epoxy--I
UPO
H2O
O
O
O
H2O
HO
HO
O
HO
H2O
gem-diol
3-CO--I
3-OH-2,3-DH--I
28
ACS Paragon Plus Environment

Page 29 of 34
Journal of Agricultural and Food Chemistry
Figure 2
O
-I
H2O2
H2O
UPO
O
O
O
O
O
OH
HO
+
+
+
+
OH
HO
OH
4-OH--I
3-OH--I
2-OH--I
H2O2
13-OH--I
10-OH--I
H2O2
H2O
UPO
UPO
H2O
O
O
O
O
O
UPO
O
O
H2O2
H2O
OH
O
4-CO--I
2-CO--I
EME
4-OH-EME
29
ACS Paragon Plus Environment
