Thermal Decomposition Kinetics and Mechanism of
In-Situ Prepared Bio-Based Poly(propylene 2,5-furan
dicarboxylate)/Graphene Nanocomposites
Zoi Terzopoulou 1 , Evangelia Tarani 2, Nejib Kasmi 1 , Lazaros Papadopoulos 1
,
Konstantinos Chrissafis 2,*, Dimitrios G. Papageorgiou 3 , George Z. Papageorgiou 4 and
Dimitrios N. Bikiaris 1,
*
1
Laboratory of Polymer Chemistry and Technology, Department of Chemistry,
Aristotle University of Thessaloniki, GR54124 Thessaloniki, Greece; terzoe@gmail.com (Z.T.);
nejibkasmi@gmail.com (N.K.); lazaros.geo.papadopoulos@gmail.com (L.P.)
Solid State Physics Department, School of Physics, Aristotle University of Thessaloniki,
GR54124 Thessaloniki, Greece; etarani@physics.auth.gr
School of Materials and National Graphene Institute, University of Manchester, Oxford Road,
Manchester M13 9PL, UK; dimitrios.papageorgiou@manchester.ac.uk
Chemistry Department, University of Ioannina, P.O. Box 1186, 45110 Ioannina, Greece; gzpap@uoi.gr
Correspondence: hrisafis@physics.auth.gr (K.C.); dbic@chem.auth.gr (D.N.B.);
Tel.: +30-2310-99-8188 (K.C.); +30-2310-99-7812 (D.N.B.)
2
3
4
*
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
ꢀꢁꢂꢃꢄꢅꢆ
Received: 4 April 2019; Accepted: 1 May 2019; Published: 2 May 2019
Abstract: Bio-based polyesters are a new class of materials that are expected to replace their
fossil-based homologues in the near future. In this work, poly(propylene 2,5-furandicarboxylate) (PPF)
nanocomposites with graphene nanoplatelets were prepared via the in-situ melt polycondensation
method. The chemical structure of the resulting polymers was confirmed by 1H-NMR spectroscopy.
Thermal stability, decomposition kinetics and the decomposition mechanism of the PPF nanocomposites
were studied in detail. According to thermogravimetric analysis results, graphene nanoplatelets did
not affect the thermal stability of PPF at levels of 0.5, 1.0 and 2.5 wt.%, but caused a slight increase in
the activation energy values. Pyrolysis combined with gas chromatography and mass spectroscopy
revealed that the decomposition mechanism of the polymer was not altered by the presence of
graphene nanoplatelets but the extent of secondary homolytic degradation reactions was increased.
Keywords: poly(propylene 2,5 furandicarboxylate); graphene nanoplatelets; nanocomposites;
bio-based polymers; thermal stability; decomposition mechanism
1. Introduction
In recent years, polymers have become a necessary part of modern life [
housing, transportation to medicine and electronics, polymeric materials promote, foster and enable a
sustainable society [ ]. Environmental concerns have arisen though, mainly because the vast majority
of these polymers is produced from non-renewable resources [ ], so a growing interest towards
the preparation of materials and chemicals from renewable resources is observed [ ]. Economic
1]. From clothes to
2
3,4
2,5–8
reasons, such as the fluctuation of crude oil prices since fossil fuel resources have been diminishing,
along with environmental ones, such as the limited biodegradability and the significant greenhouse gas
emissions from the production of fossil-based materials, have shifted the attention towards bio-based
raw materials and polymers [6,9–11]. For renewable polymers to enter the marketplace, they must
outperform the traditional ones both in price and in performance. To accomplish this, new routes
for biomass conversion and monomer generation must be used, to discover new, high performance
Molecules 2019, 24, 1717; doi:10.3390/molecules24091717
www.mdpi.com/journal/molecules

Molecules 2019, 24, 1717
2 of 17
materials [
been intensively explored in order to develop a sustainable bio-based economy [12
been promoted legislatively, both in U.S.A. and Europe [ 14]. In parallel, research towards discovering
1
]. Renewable raw materials such as cellulose, lignin, proteins, starch and vegetable oils have
,
13] and their use has
6,
new materials is constant, as shown by numerous papers where plants [15] or bacteria [16] have been
used to produce materials suitable for applications as waste water treatment and drug delivery.
One of the most important biomass derived monomers is 2,5 furandicarboxylic acid (FDCA).
FDCA can be formed by oxidative dehydration of glucose or by oxidation of 5-hydroxy-methylfurfural,
and is considered a bio-derived homologue of terephthalic acid (TPA) [17,18], a monomer widely used
for the production of commodity plastics such as poly(ethylene terephthalate) (PET), poly(propylene
terephthalate) (PPT) and poly(butylene terephthalate) (PBT) that find many applications in today’s
society. In fact, FDCA is a monomer of such importance, that it has been included in the US
Department of Energy list of top priority bio-based chemicals, which was published in 2004 [17]. Since
that, polyesters containing furan moieties in their structure have been widely investigated, bearing
promising results compared to their fossil-based counterparts [19–24]. The combination of FDCA with
bio-based diols leads to fully bio-based polyesters that are already being produced on an industrial
scale. Among them, poly(ethylene 2,5 furandicarboxylate) (PEF) has attracted the greatest interest,
as it considered a viable alternative to PET for packaging applications, thus many parameters of its
synthesis have been examined thoroughly in recent years [25–28].
Aside from PEF, many polyesters based on FDCA have been synthesized using various
diols [21,29–31], one of them being 1,3-propanediol (PDO). Polyesters derived from PDO were not
studied till recently, due to unavailability of the specific monomer in large quantities [32]. With the
development of new processes of production though, the situation has changed and there has been
increased interest towards this family of polyesters [33,34]. Poly(propylene terephthalate) (PPT)
was the first polymer of this category that was available in the market [35]. Its applications were
mainly the production of fibers, hence the odd number of methylene groups in the diol’s structure
provide better resilience and stress recovery properties compared with other terephthalic homologues
from diols with an even number of methylene groups [36]. Poly(propylene furanoate) (PPF) is the
bio-based counterpart of PPT. Industrially, PPF is a polyester that is used in packaging applications
like multilayered materials, since it has good gas barrier properties [37,38].
The necessity to improve the produced materials has led to the use of various types of fillers as
means to enhance the final product’s performance. While traditional composite materials contain a big
quantity of fillers bound to the polymer matrix, in nanocomposites small quantities of fillers can result
in significant changes of the polymer properties, due to the enormous surface area per unit volume
of the nanofillers, among other factors. Carbon nanofillers especially, ones like carbon nanotubes,
graphene, and graphene oxide have been proposed as next-generation multifunctional nanofillers
for the improvement of the thermal, electrical and mechanical properties of diverse matrices [39,40].
In recent publications, several types of carbon nanofillers were used enhance the properties of polymeric
matrices. For example, carbon black was introduced to polyurethane polymers and it resulted in
improved mechanical properties, while also increasing the wear resistance of the resulting materials [41].
The mechanical properties of polymeric materials are also enhanced by the addition of carbon fibers,
especially resins. Due to their prominent strength-weight and stiffness-weight ratios, carbon fibers are
excellent reinforcements for resin composites [42], and drawbacks such as poor interfacial interactions
with the polymer matrix can be overcome by surface modification, resulting in materials with improved
mechanical properties [43,44]. The addition of carbon nanofillers also results in materials with improved
electrical properties, as shown in recent papers. For instance, graphene oxide was used to create
supercapacitors that display excellent cycle stability even after 500 cycles [45]. Also, graphene sheets
were found to enhance the conductivity of carbon-sulfur membranes and increasing their long term
cycling stability [46]. Graphene, one of the more interesting substances in the fields of materials science,
physics, chemistry, and nanotechnology, is a free-standing 2D crystal with one-atom thickness [47].
As an allotrope of carbon comprises layers of six-atom rings in a honeycombed network and can be

Molecules 2019, 24, 1717
3 of 17
wrapped to generate 0D fullerenes, rolled up to form 1D carbon nanotubes, and stacked to produce 3D
graphite [48]. More recently, developments have been made towards the preparation of thinner forms
of graphite, known as graphene nanoplatelets (GNPs). All types of graphitic material are covered by
the definition of GNPs, from 100 nm thick platelets down to single layer graphene [49]. It is, however,
the availability of single- or few-layer graphene that has caused the most excitement in recent times [50].
The addition of GNPs to polymers has been found to lead to substantial improvements in the thermal,
mechanical and electrical properties at lower loadings than are needed with expanded graphite because
of high intrinsic thermal conductivity, large specific surface area, and high two-dimensional sheet
geometry [51–58].
Different types of fillers have been used for the improvement of the properties of furan-based
polyesters, including nanoclays [23
,57], nanocellulose [59–61], nanosized silica and titanium dioxide [28],
graphene [62], graphene oxide and multi wall carbon nanotubes [63]. Recently, Paszkiewicz et al. [62
]
prepared PPF nanocomposites with low concentrations (0.1 and 0.3 wt.%) of few-layer graphene, and
found that the addition of the filler did not change the glass transition temperature or the melting
behavior of the polymer, but resulted in inhibition of the transport of oxygen molecules into and
through the material. However, there is no information published about the effect of GNPs on the
thermal degradation behavior and decomposition mechanism of PPF nanocomposites in the literature.
Thermal stability of polymers and their nanocomposites is a crucial parameter that affects their thermal
processing and their final applications.
In this work, neat PPF and PPF/GNP nanocomposites containing 0.5, 1, and 2.5 wt.% GNPs were
synthesized in-situ by melt polycondensation. Then, the chemical structure of the resulting polymers
was studied by 1H-NMR spectroscopy. The effect of GNPs content on the thermal stability and thermal
degradation of these polyesters along with a decomposition kinetics study was performed using
thermogravimetric analysis (TGA), in order to reveal similarities and differences on their decomposition
mechanism. Furthermore, pyrolysis-gas chromatography/mass spectroscopy (Py-GC/MS) was
employed on the PPF/GNP nanocomposites in order to identify the individual fragments from
each sample and obtain structural information concerning the decomposition mechanism.
2. Results and Discussion
2.1. Synthesis and Molecular Characterization
The PPF nanocomposites were synthesized via the two-step melt polycondensation method.

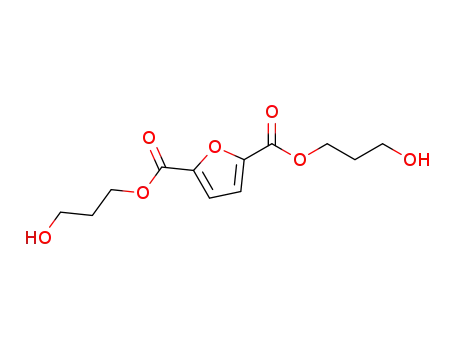

The reaction procedure is presented in Scheme 1. The obtained nanocomposites were black solids.
Scheme 1. Synthesis of PPF.

Molecules 2019, 24, 1717
4 of 17
The intrinsic viscosity values of PPF and PPF/GNP nanocomposites with 0.5, 1, 2.5 wt.% GNPs
were 0.62, 0.51, 0.5 and 0.57, respectively. The structure of the prepared materials was verified by
1H-NMR spectroscopy, presented in Figure 1, along with the peak assignments. In the spectrum of neat
PPF, the propylene glycol protons appear at lower values, at 4.75 ppm for the protons near the oxygen
atoms (b) which are the most deprotected, and at 2.44 ppm for the (c) protons. As for the furan ring
protons (a), they are the most deprotected, due to the
π electron system of the ring and the carbonyl
groups, and they appear at 7.45 ppm. The above results are in accordance with our previous work [23].
The same peaks were recorded for the nanocomposites thus confirming that the addition of GNPs had
no effect on the molecular structure of the prepared polyesters.
a
TFA
b
c
PPF
TFA
TFA
TFA
b
a
cPPF/0.5 GNP
c
a
a
b
b
PPF/1 GNP
c
PPF/2.5 GNP
12
10
8
6
4
2
0
Chemical shift (ppm)
Figure 1. PPF structure, 1H-NMR spectra and peak assignments of PPF and PPF/GNP nanocomposites.
The crystalline structure of the materials was assessed with WAXD analysis. As seen in the
diffractograms of Figure 2, PPF and PPF/GNP nanocomposites were found to be amorphous, as they
present a broad peak at 2
present a peak at 2
= 26.5◦, with d = 3.35 Å. In the nanocomposite materials, the same peak can be
θ
= 22◦. In the second diffractogram (Figure 2b) it is observed that the GNPs
θ
seen in all three polymers, and its intensity is increasing by increasing the loading of the material with
the nanofiller, evidence of an intercalated polymer/GNPs structure. Similar results were shown in
other studies examining graphene nanocomposites [64,65].
GNP
PPF/2.5 GNP
PPF/1 GNP
PPF/0.5 GNP
neat PPF
5
10 15 20 25 30 35 40 45 50 55 60
2theta (degrees)
5
10 15 20 25 30 35 40 45 50 55 60
2 theta (degree)
(a)
(b)
Figure 2. X-ray diffraction patterns of (a) PPF/GNP nanocomposites; (b) GNP.

Molecules 2019, 24, 1717
5 of 17
2.2. Thermal Stability of PPF/GNP Nanocomposites
Thermogravimetric analysis (TGA) was performed with the objective of determining the thermal
stability, as well as the influence of GNP content (0.5–2.5 wt.%) on the thermal properties of PPF.
The TGA thermograms and derivative mass loss (dTG) curves of PPF/GNP nanocomposites with
different filler content at a heating rate of 10 ◦C/min under nitrogen atmosphere are shown in Figure 3.
In Figure 3a, the TGA curve of the GNPs is also presented (dashed curve) for comparative purposes.
Analyzing the TGA results, it can be deduced that no remarkable mass loss has occurred until 325 ◦C,
proving the excellent thermal stability of PPF-based materials. Mass loss curves of all studied samples
are seemingly almost identical up to ~400 ◦C, consisting of a one-step procedure and obtaining the same
curve shape. Above 400 ◦C the neat PPF and PPF/GNP nanocomposites decomposed. The residual
amount of the nanocomposites increased with increasing the content of GNPs, indicating that thermal
decomposition of PPF is retarded in the nanocomposites, due to the decomposition of GNPs that have
◦
initial degradation temperature above 600 C (TGA thermograms of GNPs- dashed curve). From
the dTG curves, it can be concluded that the degradation is carried out as a one-step process for all
the studied samples as only one peak is observed. Concerning the effect of filler’s content on the
thermal properties of PPF, GNPs seem to have little effect on the temperature that the maximum
decomposition rate takes place Td,max, Table 1. A very small enhancement in thermal stability at the
◦
◦
initial stage of degradation, of nearly 3 C, and 6 C appeared for PPF/0.5 GNP, and PPF/2.5GNP
composites, respectively, using the temperature at 2% weight loss as a comparison point. Thermal
stability is very important for polymeric materials as it is often the limiting factor both in processing
and in end-use applications.
100
50
0
0.0
-0.5
-1.0
neat PPF
neat PPF
PPF/0.5 GNP
PPF/1 GNP
PPF/2.5 GNP
GNPs
PPF/0.5 GNP
PPF/1 GNP
PPF/2.5 GNP
300
350
400
450
300
350
400
450
Temperature (°C)
Temperature (°C)
(b)
(a)
Figure 3.
(
a
) TGA thermograms; (
b
) dTG curves of PPF/GNP nanocomposites with different weight
fractions of GNPs recorded with the heating rate of 10 ◦C/min under a nitrogen atmosphere.
Table 1. TGA results of all studied samples.
Sample
Td,max (◦C)
Neat PPF
PPF/0.5 GNP
PPF/1 GNP
PPF/2.5 GNP
393.2
394.2
395.9
396.3
2.3. Thermal Degradation Mechanism of Neat PPF and PPF/2.5GNP Nanocomposite
As was already concluded from the mass loss curves (TGA) and dTG of the PPF/GNP
nanocomposites with 0.5, 1 and 2.5 wt.% of GNPs that the difference between them is very small. In order
to analyze more thoroughly the degradation mechanism of PPF and PPF/2.5 GNP composite, the
composite which presented the highest thermal stability enhancement, kinetic parameters (activation

Molecules 2019, 24, 1717
6 of 17
energy E, pre-exponential factor A) and the conversion function f(
α
) must be evaluated. So, neat PPF
and PPF/2.5GNP nanocomposite was studied using a model fitting method. The relationship between
kinetic parameters and extent of conversion (α) for neat PPF and PPF/2.5 GNP nanocomposite can be
found using the mass curves recorded at four heating rates of 5, 10, 15, and 20 ◦C/min under nitrogen
(Figure 4).
100
80
60
40
20
100
80
60
rate 20
rate 15
rate 10
rate 5
40
PPF/2/5 GNP_r20
PPF/2.5 GNP_r15
PPF/2.5 GNP_r10
PPF/2.5 GNP_r5
20
300
350
400
450
300
350
400
450
Temperature (°C)
Temperature (°C)
(a)
(b)
Figure 4. Mass (%) curves of (
a) neat PPF; (b) PPF/2.5 GNP nanocomposite at heating rates of 5, 10, 15,
and 20 ◦C/min under nitrogen.
For the determination of the activation energy by using multiple heating rates, two iso-conversional
methods were used: (1) the integral method of Ozawa, Flynn and Wall (OFW) [66], and (2) the
isoconversional method of Friedman [67]. The calculated values of activation energy versus the extent
of conversion
α for neat PPF and PPF/2.5 GNP nanocomposite is shown in Figure 5. The differences in
the values of E calculated by the OFW and Friedman methods can be explained by a systematic error
due to improper integration [68]. According to Figure 5, it seems that the calculated activation energy
values of neat PPF and PPF/2.5 GNP nanocomposite slightly increase with increasing the extent of
conversion “α” presenting less variability among the mean value, especially in the case of the OFW plot.
The mean values of neat PPF and PPF/GNP nanocomposites were found to be 193.5 and 195.8 kJ/mol
and 183.5 and 188.5 kJ/mol using Friedman and OFW methods, respectively.
220
neat PPF
PPF/2.5 GNP
210
200
190
180
170
0.0
0.2
0.4
0.6
0.8
1.0
Extent of conversion
(α)
Figure 5. The dependence of activation energy (E) on the extent of conversion (
α
) for the thermal
degradation of neat PPF and PPF/2.5GNP nanocomposite as calculated by Friedman method (filled
symbols), and Ozawa Flynn Wall analysis (open symbols).

Molecules 2019, 24, 1717
7 of 17
Model-fitting was complementary used in the thermal degradation studies of these materials.
This method involves fitting different models to versus temperature curves and simultaneously
α
determining the activation energy E and the pre-exponential factor A. So, the kinetic model and the
parameters for the four heating rates were determined by multivariate non-linear regression method.
For this reason, 16 different reaction models were examined through the comparison of the experimental
and theoretical data for the conversion range of 0 <
α < 1. First, it is considered that the degradation
of the samples can be described only by one mechanism, without presuming the exact mechanism.
If the result of the fitting cannot be considered as accepted, then we must proceed to the fitting of the
experimental data with a combination of two mechanisms.
The form of the conversion function, given by the best fitting for the neat PPF, is the mechanism
of autocatalysis n-order (Cn) described by the equation f(α) = (1 − α)n(1 + KcatX), where Kcat is the
autocatalysis rate constant and X the extent of conversion of the autocatalytic reactions. The results of
the fitting can be seen for neat PPF (continuous black lines) in Figure 6 with a correlation coefficient of
0.9998; small divergences appear in the final stages of degradation. However, there isn’t any further
improvement in the quality of the fitting using two or more reaction mechanisms, since the differences
among the regression coefficient values are rather small.
100
80
60
rate 20
rate 15
rate 10
rate 5
40
20
fitted data
300
350
400
450
Temperature (°C)
Figure 6. Mass (%) curves of neat PPF at heating rates of 5, 10, 15, and 20 ◦C/min in a nitrogen
atmosphere (symbols) and the corresponding fitting curves with the Cn reaction model (continuous
black lines).
Multivariate non-linear regression method also indicated that the Cn model, the mechanism
of autocatalysis n-order, fit better to thermal decomposition of PPF/2.5 GNP nanocomposite with a
correlation coefficient value of 0.9998, Figure 7. This is in consistence with the iso-conversional method
(Figure 5) in which the activation energy of materials slightly increases with increasing the extent of
conversion, suggesting that a single-step reaction mechanism may efficiently describe the degradation.
The calculated values of the activation energy, pre-exponential factor and the reaction order
for PPF and PPF/2.5 GNP nanocomposite using the nth-order with autocatalysis (Cn) model are
summarized in Table 2. It was found that the same model describes the reaction mechanism of both
neat PPF and PPF/2.5 GNP nanocomposite. It is worthwhile noting that that the activation energy
values are close to the ones calculated from OFW analysis, as well as Friedman’s method (Figure 5).
Comparing the activation energies, PPF/2.5 GNP nanocomposite has slightly higher values than neat
PPF. This improvement in thermal stability of nanocomposite is associated with the 2-dimensional
planar structure of GNPs. The mobility of polymer matrix is restricted, and the chemical reactivity

Molecules 2019, 24, 1717
8 of 17
of the corresponding chains is lower increasing activation energy and eventually retarding more the
thermal degradation of the nanocomposites.
100
80
60
rate 20
rate 15
40
rate 10
rate 5
fitted data
20
300
350
400
450
Temperature (°C)
Figure 7. Mass (%) curves of PPF/2.5 GNP nanocomposite at heating rates of 5, 10, 15, and 20 ◦C/min in
a nitrogen atmosphere (symbols) and the corresponding fitting curves with the Cn model (continuous
black lines).
Table 2. Activation energy, pre-exponential factor and reaction order of neat PPF and PPF/2.5
GNP nanocomposite.
Reaction
Order/n
Regression
Coefficient
Activation
Pre-exponential
Sample
Mechanism
Log Kcat
Energy/kJmol−1
Factor/s−1
Neat PPF
PPF/2.5 GNP
Cn
Cn
187.0
191.1
12.2
12.6
1.36
1.43
0.81
0.82
0.9998
0.9998
The degradation mechanism was afterwards studied with Py-GC/MS measurements. The compounds
are pyrolyzed in a pre-selected temperature and followed by the separation of the evolved pyrolysis
products by a GC capillary column and subsequent detection via mass spectroscopy. This method
enables the determination of the exact degradation routes that take place when a polymeric material is
heated in high temperatures in inert atmosphere.
The degradation mechanisms of furan-based polyesters were first studied by our group, including
this of PPF [23
Similarly to all polyesters with
mainly by heterolytic scission reactions of the hydrogen in
,
69]. In general, they follow the degradation paths of their terephthalate homologues.
-hydrogen atoms on their macromolecular chains, they degrade
position to the ester bond [70 73]. This
β
β
–
degradation route leads to the evolution of vinyl-ended and carboxyl-ended products. Additionally,
homolytic scission reactions of the acyl-oxygen and alkyl-oxygen bonds can occur, especially under
higher pyrolysis temperatures [24,31].
Total ion chromatographs of PPF and PPF/2.5 GNP after pyrolysis at 360 ◦C and 400 ◦C are presented
in Figure 8 and the corresponding compounds, identified via their mass spectra, are presented in Table 3.
As expected, the main pyrolysis products are vinyl- and carboxyl- ended molecules that result from
β-scission reactions (Scheme 2). Other classes of products are some hydroxyl-ended, methoxy-ended
molecules as well as some aldehydes. It should be noted that since the mass spectra of the molecular
ions of aldehydes are very weak, we cannot be completely confident about their identification even
though they are known to be released from polyesters during heating. All the possible degradation
routes have been explained in detail in our previous publications [22,24,25,31,69,74].

Molecules 2019, 24, 1717
9 of 17
In both samples, the pyrolysis products identified were identical, meaning that GNP doesn’t affect
the degradation mechanism of PPF. The slight increase in the activation of energy calculated by TGA is
caused by the ability of graphene layers to hinder gas diffusion in the polymeric matrix as they can
reduce chain mobility [75,76]. When comparing the GC patterns of PPF and PPF/2.5 GNP it is observed
that while they don’t have any noteworthy differences at 400 ◦C, there is a significant increase in the
intensity of some peaks, in the presence of GNP at 360 ◦C suggesting their larger relative amount.
Those peaks in Rt = 7.00, 7.35, 11.19, 11.30, 17.76, 20.27, 21.19 and 21.58 min are highlighted in Figure 8a
and the majority was identified as compounds that are produced via secondary degradation routes,
including -OH ended compounds from acyl-oxygen homolysis and aldehydes from α-hydrogen bond
scission. Therefore, the presence of GNP in the PPF matrix resulted in a pronounced occurrence of
homolytic degradation reactions in comparison with neat PPF.
360 o
C
400 o
C
PPF/2.5 GNP
PPF/2.5 GNP
neat PPF
neat PPF
0
5
10
15
20
25
30
0
5
10
15
20
25
30
Retention time (min)
Retention time (min)
(a)
(b)
Figure 8. Total Ion Gas chromatographs of neat PPF and PPF/2.5 GNP after pyrolysis at (
) 400 ◦C. The highlighted peaks correspond to compounds that are evolved via secondary
degradation routes.
a
) 360 ◦C;
(
b
Table 3. Possible pyrolysis products of neat PPF and PPF/2.5 GNP nanocomposite.
PPF
PPF/2.5 GNP
Mw
(amu)
Rt (min)
Rt (min)
Possible Product
360
400
360
400
-
0.24
-
1.36
44
76
44
CO2 or acetaldehyde
1,3-propanediol
CO2 or acetaldehyde
0.55
1.36
0.59
1.37
1.37
1.78
-
1.8
1.79
68
6.74
7.02
7.00
6.93
7.34
112
7.33
7.35
7.35
152
162
11.09 11.09
11.19
11.13

Molecules 2019, 24, 1717
10 of 17
Table 3. Cont.
PPF
PPF/2.5 GNP
Rt (min)
Mw
(amu)
Rt (min)
Possible Product
360
400
360
400
11.51 11.16
12.50 12.51
11.30
12.53
13.88
-
170
190
196
or
12.51
13.82
-
13.88
14.52 14.57
14.61
14.65
14.56
14.62
236
238
-
-
14.62
-
17.76
17.58
254
17.89 17.91
18.05
20.27
21.19
21.58
22.83
17.90
20.23
21.15
21.54
22.70
264
322
256
336
348
20.22
-
21.14 21.15
21.52 21.54
22.69 22.73
24.42 24.50
24.75 24.77
25.18 25.19
24.47
24.84
25.23
24.43
24.76
25.19
388
358
366
unidentified
25.31 25.32
25.38
25.32
350

Molecules 2019, 24, 1717
11 of 17
Table 3. Cont.
PPF
PPF/2.5 GNP
Rt (min)
Mw
(amu)
Rt (min)
Possible Product
360
400
360
400
25.88 25.85
26.38 26.43
27.28 27.25
25.88
26.53
27.14
25.81
392
432
434
26.41
27.00
Scheme 2. Basic degradation routes of PPF.
3. Materials and Methods
3.1. Materials
2,5-Furandicarboxylic acid (purum 97%), propylene glycol anhydrous 99.6% (PG) and
tetrabutyltitanate (TBT) catalyst of analytical grade were purchased from Sigma-Aldrich (Taufkirchen,
Germany). GNPs with the trade name xGnP® - Grade M were supplied by XGSciences (Lansing MI,
USA). According to the manufacturer, the nanoplatelets have an average thickness of 6–8 nm, surface
area 120–150 m2/g and average particle diameter of 5
µm. All other materials and solvents used were
of analytical grade and were purchased from Sigma-Aldrich.
3.2. Synthesis of 2,5-Dimethylfuran-dicarboxylate (DMFD)
2,5-Furandicarboxylic acid (15.6 g), anhydrous methanol (200 mL) and concentrated sulfuric acid
(2 mL) were placed in a round bottom flask (500 mL) and the mixture was refluxed for 5 h. The excess
of the methanol was distilled off, and the solution was filtered through a disposable Teflon membrane
filter. During filtration, dimethylfurandicarboxylate (DMFD) was precipitated as white powder and,
after cooling, distilled water (100 mL) was added. The dispersion was partially neutralized by adding
Na2CO3 5% w/v during stirring, while pH was measured continuously. The white powder was filtered

Molecules 2019, 24, 1717
12 of 17
and the solid was washed several times with distilled water and dried. The isolated white dimethyl
ester was recrystallized with a mixture of 50/50 v/v methanol/water. After cooling, 2,5-DMFD was
precipitated in the form of white needles. The reaction yield was calculated at 75%.
3.3. PPF and Nanocomposites Synthesis
PPF was synthesized through the two-stage melt polycondensation (esterification and
polycondensation) in a glass batch reactor [21]. DMFD and propylene glycol in a molar ratio of
diester/diol = 1/2.2 were charged into the reaction tube of the polyesterification apparatus with 500 ppm
of TBT. The reaction mix◦ture was heated at 160 ◦C under argon flow for 1.5 h, at 170 ◦C for additional
1.5 h and finally at 180 C for 2 h. This first step (transesterification) is considered complete after
the collection of almost all the theoretical amount of CH3OH, which was removed from the reaction
mixture by distillation and collected in a graduate cylinder. In the second step of polycondensation,
vacuum (5.0 Pa) was applied slowly over a time of about 30 min to remove the excess of diol, to avoid
excessive foaming and to minimize oligomer sublimation, which is a potential problem during the
melt polycondensation. The temperature was gradually increased (1.5 h) to 220 ◦C, while stirring
speed was also increased to 720 rpm. The reaction continued at this temperature for 1.5 h. Successively,
the temperature was increased to 235 ◦C for 1.5 h and to 250 ◦C for additional 2 h. PPF-based GNP
nanocomposites containing 0.5, 1 and 2.5 wt.% of GNPs were in-situ prepared using also the two-stage
melt polycondensation method. Nanofillers were added to the propylene glycol and the dispersion
was subjected to sonication for 15 min to obtain a uniform dispersion. Afterwards, the dispersion was
added to the reaction tube together with DMFD and TBT catalyst. The reaction continued, as above
described for the synthesis of neat PPF. After the polycondensation reaction was completed, neat PPF
and PPF/GNP nanocomposites were easily removed, milled and washed with methanol.
3.4. Intrinsic Viscosity Measurements
Intrinsic viscosity [
η
] measurements were performed using a Cannon Ubbelohde viscometer
◦
(State College, PA, USA) at 30 C in a mixture of phenol/1,1◦,2,2-tetrachloroethane (60/40, w/w).
The sample was kept in the above-mentioned mixture at 90 C until complete dissolution was
achieved. The solution was then cooled to room temperature and filtered through a Teflon disposable
membrane filter.
3.5. Nuclear Magnetic Resonance (NMR)
1H-NMR spectra of polyesters were obtained with a Bruker spectrometer (Billerica, MA, USA)
operating at a frequency of 400 MHz. A sample concentration equal to 5% w/v in deuterated
trifluoroacetic acid (d-TFA) was used. The number of scans was 10 and the sweep width was 6 kHz.
3.6. Wide Angle X-Ray Diffraction Patterns (WAXD)
X-ray diffraction measurements of the samples were performed using a MiniFlex II XRD system
from Rigaku Co. (Tokyo, Japan), with CuKα radiation (
to 60◦.
λ = 0.154 nm) in the angle 2θ
range from 5◦
3.7. Thermogravimetric Analysis (TGA)
Thermogravimetric analysis of the PPF and PPF/GNP nanocomposites were carried out using
a SETARAM SETSYS TG-DTA 16/18 instrument (Caluire, France) by heating the samples from 25 to
600 ◦C in a 50 mL/min flow of N2 at a heating rate of 10 ◦C/min. For the kinetic analysis study, neat
PPF and PPF/GNP nanocomposites with 2.5 wt.% filler content (PPF/2.5 GNP) were heated at four
different heating rates, namely 5, 10, 15, and 20 ◦C/min. Samples (4.5
crucibles, while an empty alumina crucible was used as a reference. Continuous recordings of sample
temperature, sample weight, first derivative, and heat flow were taken.
±
0.5 mg) were placed in alumina

Molecules 2019, 24, 1717
13 of 17
3.8. Pyrolysis-Gas Chromatography–Mass Spectroscopy (Py-GC/MS)
For Py-GC/MS analysis of polyesters a very small amount of each material is “dropped” initially
into the “Double-Shot” EGA/PY-3030D Pyrolyzer (Frontier Laboratories Ltd., Fukushima Japan) using
a CGS-1050Ex (Kyoto, Japan) carrier gas selector. For pyrolysis analysis (flash pyrolysis) each sample
was placed into the sample cup which afterwards fell free into the Pyrolyzer furnace. The pre-selected
pyrolysis temperatures were 360 and 400 ◦C and the GC oven temperature was heated from 50 to
300 ◦C at 20 ◦C/min. Those two temperatures were selected based on the EGA pyrogram and represent
the sample prior and after thermal decomposition. Sample vapors generated in the furnace were split
(at a ratio of 1/50), a portion moved to the column at a flow rate of 1 mL/min, pressure 53.6 kPa and the
remaining portion exited the system via the vent. The pyrolyzates were separated using temperature
programmed capillary column of a Shimadzu QP-2010 Ultra Plus (Kyoto, Japan) gas chromatograph
and analysed by a Shimadzu MS-QP2010SE mass spectrometer at 70 eV. Ultra ALLOY® metal capillary
column from Frontier Laboratories Ltd. (Fukushima, Japan) was used containing 5% diphenyl and
95% dimethylpolysiloxane stationary phase, column length 30 m and column ID 0.25 mm. For the
mass spectrometer the following conditions were used: Ion source heater 200 ◦C, interface temperature
300 ◦C, vacuum 10−4–100 Pa, m/z range 10–500 amu and scan speed 10.000. The chromatograph and
spectra retrieved by each experiment were subjected to further interpretation through Shimadzu and
Frontier post-run software (Kyoto, Japan).
4. Conclusions
In this work, PPF/GNP nanocomposites containing 0.5, 1 and 2.5 wt.% GNPs were successfully
synthesized via the in-situ transesterification and polycondensation method. The addition of GNPs
did not affect the intrinsic viscosity, or the chemical structure of the nanocomposites as shown by the
1H-NMR spectra and the viscosity measurements. The crystallinity of the as received materials was
assessed by WAXD measurements. The diffractograms showed that the materials are amorphous.
Thermal properties with focus on thermal stability and degradation mechanism were evaluated.
All samples had strong thermal stability, as no remarkable mass loss was observed until 325 ◦C and
have been decomposed in similar one-step procedures as shown in the dTG curves. The study of
degradation kinetics through thermogravimetry revealed a small increase in the activation energy
value for the nanocomposite with 2.5 wt.% GNP in comparison with neat PPF. The nanofillers did not
alter the degradation pathways of PPF, as both the β-scission and the acyl-oxygen homolysis occur.
Instead, they affected the balance between the primary heterolytic scission reactions and the homolytic
degradation routes. The presence of GNP in the PPF matrix resulted in a pronounced occurrence of
homolytic degradation reactions in comparison with neat PPF as more -OH ended compounds were
detected in the chromatographs.
Author Contributions: Conceptualization, D.N.B. and D.G.P.; methodology, L.P., Z.T. and E.T.; investigation,
Z.T., E.T., L.P. and N.K.; formal analysis, Z.T. and E.T.; writing—original draft preparation, E.T., Z.T. and L.P.;
writing—review and editing, Z.T., G.Z.P. and D.G.P.; supervision, D.N.B. and K.C.
Conflicts of Interest: The authors declare no conflict of interest.
References
1.
2.
Bornscheuer, U.T. Feeding on plastic. Science 2016, 351, 1154–1155. [CrossRef]
Zhu, Y.; Romain, C.; Williams, C.K. Sustainable polymers from renewable resources. Nature 2016, 540,
354–362. [CrossRef]
3.
4.
Schneiderman, D.K.; Hillmyer, M.A. 50th Anniversary Perspective: There Is a Great Future in Sustainable
Polymers. Macromolecules 2017, 50, 3733–3749. [CrossRef]
Gandini, A.; Silvestre, A.J.D.; Neto, C.P.; Sousa, A.F.; Gomes, M. The furan counterpart of poly(ethylene
terephthalate): An alternative material based on renewable resources. J. Polym. Sci. Part A Polym. Chem.
2009, 47, 295–298. [CrossRef]

Molecules 2019, 24, 1717
14 of 17
5.
Haider, T.P.; Völker, C.; Kramm, J.; Landfester, K.; Wurm, F.R. Plastics of the Future? The Impact of
Biodegradable Polymers on the Environment and on Society. Angew. Chem. Int. Ed. 2019, 58, 50–62.
[CrossRef]
6.
7.
Sustainability. Available online: https://ec.europa.eu/epsc/topics/sustainability_en (accessed on 28 March 2019).
Xie, H.; Wu, L.; Li, B.-G.; Dubois, P. Biobased Poly(ethylene-co-hexamethylene 2,5-furandicarboxylate) (PEHF)
Copolyesters with Superior Tensile Properties. Ind. Eng. Chem. Res. 2018, 57, 13094–13102. [CrossRef]
Xie, H.; Wu, L.; Li, B.-G.; Dubois, P. Poly(ethylene 2,5-furandicarboxylate-mb-poly(tetramethylene glycol))
multiblock copolymers: From high tough thermoplastics to elastomers. Polymer (Guildf) 2018, 155, 89–98.
[CrossRef]
8.
9.
Bio-Based Products. Available online: http://ec.europa.eu/growth/sectors/biotechnology/bio-based-products_
is (accessed on 28 March 2019).
10. Legrand, S.; Jacquel, N.; Amedro, H.; Saint-Loup, R.; Pascault, J.-P.; Rousseau, A.; Fenouillot, F. Synthesis
and properties of poly (1,4-cyclohexanedimethylene-co-isosorbide terephthalate), a biobased copolyester
with high performances. Eur. Polym. J. 2019, 115, 22–29. [CrossRef]
11. Blache, H.; Méchin, F.; Rousseau, A.; Fleury, É.; Pascault, J.-P.; Alcouffe, P.; Jacquel, N.; Saint-Loup, R.
New bio-based thermoplastic polyurethane elastomers from isosorbide and rapeseed oil derivatives.
Ind. Crops Prod. 2018, 121, 303–312. [CrossRef]
12. Delidovich, I.; Hausoul, P.J.C.; Deng, L.; Pfu˝tzenreuter, R.; Rose, M.; Palkovits, R. Alternative monomers
based on lignocellulose and their use for polymer production. Chem. Rev. 2015, 116, 1540–1599. [CrossRef]
13. Gandini, A.; Lacerda, T.M.; Carvalho, A.J.F.; Trovatti, E. Progress of Polymers from Renewable Resources:
Furans, Vegetable Oils, and Polysaccharides. Chem. Rev. 2016, 116, 1637–1669. [CrossRef]
14. Agriculture, U.S.D. of WHAT IS BIOPREFERRED? Available online: https://www.biopreferred.gov/
BioPreferred/faces/pages/AboutBioPreferred.xhtml (accessed on 28 March 2019).
15. Shi, Z.; Jia, C.; Wang, D.; Deng, J.; Xu, G.; Wu, C.; Dong, M.; Guo, Z. Synthesis and characterization of porous
tree gum grafted copolymer derived from Prunus cerasifera gum polysaccharide. Int. J. Biol. Macromol. 2019
,
133, 964–970. [CrossRef]
16. Hu, Q.; Zhou, N.; Gong, K.; Liu, H.; Liu, Q.; Sun, D.; Wang, Q.; Shao, Q.; Liu, H.; Qiu, B.; et al. Intracellular
Polymer Substances Induced Conductive Polyaniline for Improved Methane Production from Anaerobic
Wastewater Treatment. ACS Sustain. Chem. Eng. 2019, 7, 5912–5920. [CrossRef]
17. Werpy, T.; Petersen, G.; Aden, A.; Bozell, J.; Holladay, J.; White, J.; Manheim, A.; Eliot, D.; Lasure, L.; Jones, S.
Top Value Added Chemicals from Biomass. Volume 1-Results of Screening for Potential Candidates from Sugars and
Synthesis Gas; Department of Energy: Washington, DC, USA, 2004.
18. Pan, T.; Deng, J.; Xu, Q.; Zuo, Y.; Guo, Q.; Fu, Y. Catalytic Conversion of Furfural into a 2,5-Furandicarboxylic
Acid-Based Polyester with Total Carbon Utilization. ChemSusChem 2013, 6, 47–50. [CrossRef]
19. Papageorgiou, G.Z.; Tsanaktsis, V.; Papageorgiou, D.G.; Chrissafis, K.; Exarhopoulos, S.; Bikiaris, D.N.
Furan-based polyesters from renewable resources: Crystallization and thermal degradation behavior of
poly(hexamethylene 2,5-furan-dicarboxylate). Eur. Polym. J. 2014, 67, 383–396. [CrossRef]
20. Papageorgiou, G.Z.; Tsanaktsis, V.; Papageorgiou, D.G.; Exarhopoulos, S.; Papageorgiou, M.; Bikiaris, D.N.
Evaluation of polyesters from renewable resources as alternatives to the current fossil-based polymers.
Phase transitions of poly(butylene 2,5-furan-dicarboxylate). Polymer (United Kingdom) 2014, 55, 3846–3858.
[CrossRef]
21. Papageorgiou, G.Z.; Papageorgiou, D.G.; Tsanaktsis, V.; Bikiaris, D.N. Synthesis of the bio-based polyester
poly(propylene 2,5-furan dicarboxylate). Comparison of thermal behavior and solid state structure with its
terephthalate and naphthalate homologues. Polymer (United Kingdom) 2015, 62, 28–38. [CrossRef]
22. Tsanaktsis, V.; Terzopoulou, Z.; Exarhopoulos, S.; Bikiaris, D.N.; Achilias, D.S.; Papageorgiou, D.G.;
Papageorgiou, G.Z. Sustainable, eco-friendly polyesters synthesized from renewable resources: Preparation
and thermal characteristics of poly(dimethyl-propylene furanoate). Polym. Chem. 2015, 6, 8284–8296.
[CrossRef]
23. Papadopoulos, L.; Terzopoulou, Z.; Bikiaris, D.N.; Patsiaoura, D.; Chrissafis, K.; Papageorgiou, D.G.;
Papageorgiou, G.Z. Synthesis and Characterization of In-Situ-Prepared Nanocomposites Based on
Poly(Propylene 2,5-Furan Dicarboxylate) and Aluminosilicate Clays. Polymers (Basel) 2018, 10, 937. [CrossRef]

Molecules 2019, 24, 1717
15 of 17
24. Terzopoulou, Z.; Kasmi, N.; Tsanaktsis, V.; Doulakas, N.; Bikiaris, D.N.; Achilias, D.S.; Papageorgiou, G.Z.
Synthesis and characterization of bio-based polyesters: Poly(2-methyl-1,3-propylene-2,5-furanoate),
Poly(isosorbide-2,5-furanoate), Poly(1,4-cyclohexanedimethylene-2,5-furanoate). Materials (Basel) 2017
10, 801. [CrossRef]
,
25. Terzopoulou, Z.; Karakatsianopoulou, E.; Kasmi, N.; Majdoub, M.; Papageorgiou, G.Z.; Bikiaris, D.N. Effect of
catalyst type on recyclability and decomposition mechanism of poly(ethylene furanoate) biobased polyester.
J. Anal. Appl. Pyrolysis 2017, 126, 357–370. [CrossRef]
26. Kasmi, N.; Papageorgiou, G.Z.; Achilias, D.S.; Bikiaris, D.N. Solid-State polymerization of poly(Ethylene
Furanoate) biobased Polyester, II: An efficient and facile method to synthesize high molecular weight
polyester appropriate for food packaging applications. Polymers (Basel) 2018, 10, 471. [CrossRef]
27. Terzopoulou, Z.; Karakatsianopoulou, E.; Kasmi, N.; Tsanaktsis, V.; Nikolaidis, N.; Kostoglou, M.;
Papageorgiou, G.Z.; Lambropoulou, D.A.; Bikiaris, D.N. Effect of catalyst type on molecular weight
increase and coloration of poly(ethylene furanoate) biobased polyester during melt polycondensation.
Polym. Chem. 2017, 8, 6895–6908. [CrossRef]
28. Achilias, D.S.; Chondroyiannis, A.; Nerantzaki, M.; Adam, K.V.; Terzopoulou, Z.; Papageorgiou, G.Z.;
Bikiaris, D.N. Solid State Polymerization of Poly(Ethylene Furanoate) and Its Nanocomposites with SiO2
and TiO2. Macromol. Mater. Eng. 2017, 302, 1–15. [CrossRef]
29. Tsanaktsis, V.; Bikiaris, D.N.; Guigo, N.; Exarhopoulos, S.; Papageorgiou, D.G.; Sbirrazzuoli, N.;
Papageorgiou, G.Z. Synthesis, properties and thermal behavior of poly(decylene-2,5-furanoate): A biobased
polyester from 2,5-furan dicarboxylic acid. RSC Adv. 2015, 5, 74592–74604. [CrossRef]
30. Papageorgiou, G.Z.; Terzopoulou, Z.; Tsanaktsis, V.; Achilias, D.S.; Triantafyllidis, K.; Diamanti, E.K.;
Gournis, D.; Bikiaris, D.N. Effect of graphene oxide and its modification on the microstructure, thermal
properties and enzymatic hydrolysis of poly(ethylene succinate) nanocomposites. Thermochim. Acta 2015
614, 116–128. [CrossRef]
,
31. Terzopoulou, Z.; Tsanaktsis, V.; Nerantzaki, M.; Papageorgiou, G.Z.; Bikiaris, D.N. Decomposition mechanism
of polyesters based on 2,5-furandicarboxylic acid and aliphatic diols with medium and long chain methylene
groups. Polym. Degrad. Stab. 2016, 132, 127–136. [CrossRef]
32. Bikiaris, D.N.; Papageorgiou, G.Z.; Giliopoulos, D.J.; Stergiou, C.A. Correlation between Chemical
and Solid-State Structures and Enzymatic Hydrolysis in Novel Biodegradable Polyesters. The Case
of Poly(propylene alkanedicarboxylate)s. Macromol. Biosci. 2008, 8, 728–740. [CrossRef]
33. Haas, T.; Jaeger, B.; Weber, R.; Mitchell, S.F.; King, C.F. New diol processes: 1,3-propanediol and 1,4-butanediol.
Appl. Catal. A Gen. 2005, 280, 83–88. [CrossRef]
34. Kluge, M.; Pérocheau Arnaud, S.; Robert, T. 1,3-Propanediol and its Application in Bio-Based Polyesters for
Resin Applications. Chem. Africa 2018. [CrossRef]
35. Wang, B.; Li, C.Y.; Hanzlicek, J.; Cheng, S.Z.D.; Geil, P.H.; Grebowicz, J.; Ho, R.-M. Poly(trimethylene
teraphthalate) crystal structure and morphology in different length scales. Polymer (Guildf) 2001, 42,
7171–7180. [CrossRef]
36. Ward, I.M.; Wilding, M.A.; Brody, H. The mechanical properties and structure of poly(m-methylene
terephthalate) fibers. J. Polym. Sci. Polym. Phys. Ed. 1976, 14, 263–274. [CrossRef]
37. Nederberg, F.; Bell, R.L.; Torradas, J.M. Furan-based Polymeric Hydrocarbon Fuel Barrier Structures.
CN105848891A, 10 August 2016.
38. Sustainable Bioplastics. Available online: http://sorona.com/ (accessed on 28 March 2019).
39. Spitalsky, Z.; Tasis, D.; Papagelis, K.; Galiotis, C. Carbon nanotube–polymer composites: Chemistry,
processing, mechanical and electrical properties. Prog. Polym. Sci. 2010, 35, 357–401. [CrossRef]
40. Otaegi, I.; Aramburu, N.; Müller, A.; Guerrica-Echevarría, G. Novel Biobased Polyamide 410/Polyamide
6/CNT Nanocomposites. Polymers (Basel) 2018, 10, 986. [CrossRef] [PubMed]
41. Dong, M.; Li, Q.; Liu, H.; Liu, C.; Wujcik, E.K.; Shao, Q.; Ding, T.; Mai, X.; Shen, C.; Guo, Z. Thermoplastic
polyurethane-carbon black nanocomposite coating: Fabrication and solid particle erosion resistance.
Polymer (Guildf) 2018, 158, 381–390. [CrossRef]
42. Ma, L.; Zhu, Y.; Wang, M.; Yang, X.; Song, G.; Huang, Y. Enhancing interfacial strength of epoxy resin
composites via evolving hyperbranched amino-terminated POSS on carbon fiber surface. Compos. Sci.
Technol. 2019, 170, 148–156. [CrossRef]

Molecules 2019, 24, 1717
16 of 17
43. Ma, L.; Li, N.; Wu, G.; Song, G.; Li, X.; Han, P.; Wang, G.; Huang, Y. Interfacial enhancement of carbon fiber
composites by growing TiO2 nanowires onto amine-based functionalized carbon fiber surface in supercritical
water. Appl. Surf. Sci. 2018, 433, 560–567. [CrossRef]
44. Wu, Z.; Cui, H.; Chen, L.; Jiang, D.; Weng, L.; Ma, Y.; Li, X.; Zhang, X.; Liu, H.; Wang, N.; et al. Interfacially
reinforced unsaturated polyester carbon fiber composites with a vinyl ester-carbon nanotubes sizing agent.
Compos. Sci. Technol. 2018, 164, 195–203. [CrossRef]
45. Zhang, J.; Zhang, Z.; Jiao, Y.; Yang, H.; Li, Y.; Zhang, J.; Gao, P. The graphene/lanthanum oxide nanocomposites
as electrode materials of supercapacitors. J. Power Sources 2019, 419, 99–105. [CrossRef]
46. Liu, M.; Meng, Q.; Yang, Z.; Zhao, X.; Liu, T. Ultra-long-term cycling stability of an integrated carbon-sulfur
membrane with dual shuttle-inhibiting layers of graphene “nets” and a porous carbon skin. Chem. Commun.
2018, 54, 5090–5093. [CrossRef]
47. Wang, Y.; Li, Z.; Wang, J.; Li, J.; Lin, Y. Graphene and graphene oxide: Biofunctionalization and applications
in biotechnology. Trends Biotechnol. 2011, 29, 205–212. [CrossRef]
48. Rao, C.N.R.; Sood, A.K.; Subrahmanyam, K.S.; Govindaraj, A. Graphene: The New Two-Dimensional
Nanomaterial. Angew. Chem. Int. Ed. 2009, 48, 7752–7777. [CrossRef]
49. Jang, B.Z.; Zhamu, A. Processing of nanographene platelets (NGPs) and NGP nanocomposites: A review.
J. Mater. Sci. 2008, 43, 5092–5101. [CrossRef]
50. Novoselov, K.S.; Geim, A.K.; Morozov, S.V.; Jiang, D.; Zhang, Y.; Dubonos, S.V.; Grigorieva, I.V.; Firsov, A.A.
Electric field effect in atomically thin carbon films. Science 2004, 306, 666–669. [CrossRef]
51. Kalaitzidou, K.; Fukushima, H.; Drzal, L.T. A new compounding method for exfoliated graphite–polypropylene
nanocomposites with enhanced flexural properties and lower percolation threshold. Compos. Sci. Technol.
2007, 67, 2045–2051. [CrossRef]
52. Lee, C.; Wei, X.; Kysar, J.W.; Hone, J. Measurement of the elastic properties and intrinsic strength of monolayer
graphene. Science 2008, 321, 385–388. [CrossRef]
53. Young, R.J.; Liu, M.; Kinloch, I.A.; Li, S.; Zhao, X.; Vallés, C.; Papageorgiou, D.G. The mechanics of
reinforcement of polymers by graphene nanoplatelets. Compos. Sci. Technol. 2018, 154, 110–116. [CrossRef]
54. Liu, M.; Papageorgiou, D.G.; Li, S.; Lin, K.; Kinloch, I.A.; Young, R.J. Micromechanics of reinforcement of a
graphene-based thermoplastic elastomer nanocomposite. Compos. Part A Appl. Sci. Manuf. 2018, 110, 84–92.
[CrossRef]
55. Young, R.J.; Kinloch, I.A.; Gong, L.; Novoselov, K.S. The mechanics of graphene nanocomposites: A review.
Compos. Sci. Technol. 2012, 72, 1459–1476. [CrossRef]
56. Marsden, A.J.; Papageorgiou, D.G.; Vallés, C.; Liscio, A.; Palermo, V.; Bissett, M.A.; Young, R.J.; Kinloch, I.A.
Electrical percolation in graphene–polymer composites. 2D Mater. 2018, 5, 32003. [CrossRef]
57. Martino, L.; Guigo, N.; van Berkel, J.G.; Sbirrazzuoli, N. Influence of organically modified montmorillonite
and sepiolite clays on the physical properties of bio-based poly(ethylene 2,5-furandicarboxylate). Compos. Part
B Eng. 2017, 110, 96–105. [CrossRef]
58. Papageorgiou, D.G.; Kinloch, I.A.; Young, R.J. Graphene/elastomer nanocomposites. Carbon 2015, 95, 460–484.
[CrossRef]
59. Codou, A.; Guigo, N.; van Berkel, J.G.; de Jong, E.; Sbirrazzuoli, N. Preparation and characterization of poly
(ethylene 2,5-furandicarboxylate/nanocrystalline cellulose composites via solvent casting. J. Polym. Eng.
2017, 37, 869–878. [CrossRef]
60. Codou, A.; Guigo, N.; van Berkel, J.G.; De Jong, E.; Sbirrazzuoli, N. Preparation and crystallization behavior
of poly (ethylene 2,5-furandicarboxylate)/cellulose composites by twin screw extrusion. Carbohydr. Polym.
2017, 174, 1026–1033. [CrossRef]
61. Matos, M.; Sousa, A.F.; Silva, N.H.C.S.; Freire, C.S.R.; Andrade, M.; Mendes, A.; Silvestre, A.J.D.
Furanoate-based nanocomposites: A case study using poly(butylene 2,5-furanoate) and poly(butylene
2,5-furanoate)-co-(butylene diglycolate) and bacterial cellulose. Polymers (Basel) 2018, 10, 810. [CrossRef]
62. Paszkiewicz, S.; Janowska, I.; Pawlikowska, D.; Szymczyk, A.; Irska, I.; Lisiecki, S.; Stanik, R.; Gude, M.;
Piesowicz, E. New functional nanocomposites based on poly(Trimethylene 2,5-furanoate) and few layer
graphene prepared by in situ polymerization. Express Polym. Lett. 2018, 12, 530–542. [CrossRef]
63. Lotti, N.; Munari, A.; Gigli, M.; Gazzano, M.; Tsanaktsis, V.; Bikiaris, D.N.; Papageorgiou, G.Z. Thermal and
structural response of in situ prepared biobased poly(ethylene 2,5-furan dicarboxylate) nanocomposites.
Polymer (Guildf) 2016, 103, 288–298. [CrossRef]

Molecules 2019, 24, 1717
17 of 17
64. Tarani, E.; Papageorgiou, D.G.; Valles, C.; Wurm, A.; Terzopoulou, Z.; Bikiaris, D.N.; Schick, C.; Chrissafis, K.;
Vourlias, G. Insights into crystallization and melting of high density polyethylene/graphene nanocomposites
studied by fast scanning calorimetry. Polym. Test. 2018, 67, 349–358. [CrossRef]
65. Chieng, B.W.; Ibrahim, N.A.; Yunus, W.M.Z.W.; Hussein, M.Z. Poly(lactic acid)/poly(ethylene glycol) polymer
nanocomposites: Effects of graphene nanoplatelets. Polymers (Basel) 2014, 6, 93–104. [CrossRef]
66. Ozawa, T. A New Method of Analyzing Thermogravimetric Data. Bull. Chem. Soc. Jpn. 1965, 38, 1881–1886.
[CrossRef]
67. Budrugeac, P.; Segal, E.; Perez-Maqueda, L.A.; Criado, J.M. The use of the IKP method for evaluating
the kinetic parameters and the conversion function of the thermal dehydrochlorination of PVC from
non-isothermal data. Polym. Degrad. Stab. 2004, 84, 311–320. [CrossRef]
68. Vyazovkin, S. Modification of the integral isoconversional method to account for variation in the activation
energy. J. Comput. Chem. 2001, 22, 178–183. [CrossRef]
69. Tsanaktsis, V.; Vouvoudi, E.; Papageorgiou, G.Z.; Papageorgiou, D.G.; Chrissafis, K.; Bikiaris, D.N. Thermal
degradation kinetics and decomposition mechanism of polyesters based on 2,5-furandicarboxylic acid and
low molecular weight aliphatic diols. J. Anal. Appl. Pyrolysis 2015, 112, 369–378. [CrossRef]
70. Buxbaum, B. The Degradation of Poly (ethylene terephthalate). Angew. Chem. Int. Ed. 1968, 7, 182–190.
[CrossRef]
71. Montaudo, G.; Puglisi, C.; Samperi, F. Primary thermal degradation mechanisms of PET and PBT.
Polym. Degrad. Stab. 1993, 42, 13–28. [CrossRef]
72. Villain, F.; Coudane, J.; Vert, M. Thermal degradation of polyethylene terephthalate: Study of polymer
stabilization. Polym. Degrad. Stab. 1995, 49, 393–397. [CrossRef]
73. Villain, F.; Coudane, J.; Vert, M. Thermal degradation of poly(ethylene terephthalate) and the estimation of
volatile degradation products. Polym. Degrad. Stab. 1994, 43, 431–440. [CrossRef]
74. Konstantopoulou, M.; Terzopoulou, Z.; Nerantzaki, M.; Tsagkalias, J.; Achilias, D.S.; Bikiaris, D.N.;
Exarhopoulos, S.; Papageorgiou, D.G.; Papageorgiou, G.Z. Poly(ethylene furanoate-co-ethylene terephthalate)
biobased copolymers: Synthesis, thermal properties and cocrystallization behavior. Eur. Polym. J. 2017, 89,
349–366. [CrossRef]
75. Tarani, E.; Terzopoulou, Z.; Bikiaris, D.; Kyratsi, T.; Chrissafis, K.; Vourlias, G. Thermal conductivity and
degradation behavior of HDPE/graphene nanocomposites. J. Therm. Anal. Calorim. 2017, 129, 1715–1726.
[CrossRef]
76. Papageorgiou, D.G.; Terzopoulou, Z.; Fina, A.; Cuttica, F.; Papageorgiou, G.Z.; Bikiaris, D.N.; Chrissafis, K.;
Young, R.J.; Kinloch, I.A. Enhanced thermal and fire retardancy properties of polypropylene reinforced with
a hybrid graphene/glass-fibre filler. Compos. Sci. Technol. 2018, 156, 95–102. [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
©
2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
