Journal of the American Chemical Society
COMMUNICATION
displayed the best thermal stability. A top-contact OFET (Figure
S12) was fabricated by vacuum evaporation of P66-1 onto a
silicon substrate modified with hexamethyldisilazane (HMDS).
The resultant thin film of P66-1 had a thickness of ∼50 nm and
served as a p-type semiconductor; Figure 4 shows a transfer plot
for the OFET device under air. The maximum hole mobility was
calculated to be 5.6 ꢁ 10ꢀ5 cm2 Vꢀ1 sꢀ1 (Figure S13). The
carrier mobility could be enhanced by improving the low crystal-
linity of the P66-1 thin film (Figure S14).
’ REFERENCES
(1) Susumu, K.; Fisher, J. A. N.; Zheng, J.; Beratan, D. N.; Yodh,
A. G.; Therien, M. J. J. Phys. Chem. A 2011, 115, 5525–5539.
(2) (a) Albota, M.; et al. Science 1998, 281, 1653–1656. (b) He,
G. S.; Tan, L.-S.; Zheng, Q.; Prasad, P. N. Chem. Rev. 2008, 108, 1245–
1330. (c) Entwistle, C. D.; et al. J. Mater. Chem. 2009, 19, 7532–7544.
(3) (a) Didier, P.; Ulrich, G.; Mely, Y.; Ziessel, R. Org. Biomol. Chem.
2009, 7, 3639–3642. (b) Andrade, C. D.; Yanez, C. O.; Rodriguez, L.;
Belfield, K. D. J. Org. Chem. 2010, 75, 3975–3982.
(4) Velusamy, M.; Shen, J.-Y.; Lin, J. T.; Lin, Y.-C.; Hsieh, C.-C.; Lai,
C.-H.; Lai, C.-W.; Ho, M.-L.; Chen, Y.-C.; Chou, P.-T.; Hisao, J.-K. Adv.
Funct. Mater. 2009, 19, 2388–2397.

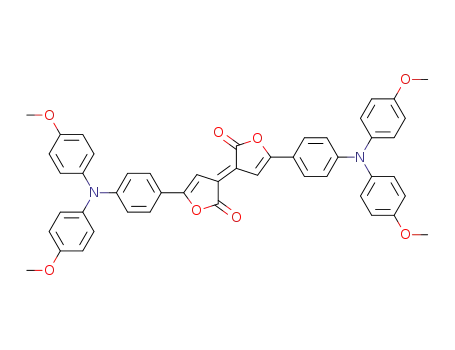

In conclusion, we have found a new one-pot reaction for
constructing the Pechmann dye framework that involves double
lactonization of dimethyl diethynylfumarate under acidic condi-
tions. Here TAA-conjugated E-1 was used as the starting
material, and P56-1 with a novel 5,6-membered fused-ring
structure (one of the missing Pechmann dye isomers) was
obtained along with P66-1 and P55-1 having known 6,6- and
5,5-membered ring structures, respectively. The three resultant
doubly annulated compounds constitute quadrupolar DꢀAꢀD
systems; photochemical and electrochemical analyses disclosed
that they engaged in intense DꢀA interactions that yielded
valuable photoproperties, such as highly intense and red-shifted
visible and NIR absorptions and fluorescence. The cyclized com-
pounds also featured high Φ. The thermal durability of the
cyclized compounds was superior to that of the parent E-1. An
OFET device made of the most thermally stable material, P66-1,
was fabricated by the sublimation method and revealed that P66-1
acted as a p-type semiconductor. This new methodology for pro-
ducing the Pechmann dye frameworks is currently being expanded
in pursuit of the other missing structure (P550 in Scheme 2) as well
as control over the selectivity among the isomers, and the metho-
dology is also being applied to starting materials with other donor
moieties.
(5) (a) Zhou, G.; Wong, W.-Y.; Poon, S.-Y.; Ye, C.; Lin, Z. Adv.
Funct. Mater. 2009, 19, 531–544. (b) Charlot, M.; Izard, N.; Mongin, O.;
Riehl, D.; Blanchard-Desce, M. Chem. Phys. Lett. 2006, 417, 297–302.
(6) (a) Yang, Y.; Farley, R. T.; Steckler, T. T.; Eom, S.-H.; Reynolds,
J. R.; Schanze, K. S.; Xue, J. Appl. Phys. Lett. 2008, 93, No. 163305.
(b) Goudreault, T.; He, Z.; Guo, Y.; Ho, C.-L.; Zhan, H.; Wang, Q.; Ho,
K. Y.-F.; Wong, K.-L.; Fortin, D.; Yao, B.; Xie, Z.; Wang, L.; Kwok, W.-
M.; Harvey, P. D.; Wong, W.-Y. Macromolecules 2010, 43, 7936–7949.
(c) Lincker, F.; Kreher, D.; Attias, A.; Do, J.; Kim, E.; Hapiot, P.;
Lemaitre, N.; Gettroy, B.; Ulrich, G.; Ziessel, R. Inorg. Chem. 2010,
49, 3991–4001.
(7) (a) Huang, F.; Chem, K.; Yip, H.; Hau, S. K.; Acton, O.; Zhang,
Y.; Luo, J.; Jen, A. K.-Y. J. Am. Chem. Soc. 2009, 131, 13886–13887.
(b) Zou, Y.; Najari, A.; Berrouard, P.; Beaupre, S.; Aich, B. R.; Tao, Y.;
Leclerc, M. J. Am. Chem. Soc. 2010, 132, 5330–5331.
(8) (a) Kono, T.; Kumaki, D.; Nishida, J.; Tokito, S.; Yamashita, Y.
Chem. Commun. 2010, 46, 3265–3267. (b) Le, Y.; Nitani, M.; Kawahara,
M.; Tada, H.; Aso, Y. Adv. Funct. Mater. 2010, 20, 907–913.
(9) Sakamoto, R.; Kume, S.; Nishihara, H. Chem.—Eur. J. 2008, 14,
6978–6986.
(10) Sakamoto, R.; Murata, M.; Nishihara, H. Angew. Chem., Int. Ed.
2006, 45, 4793–4795.
(11) (a) Fang, C. S.; Bergmann, W. J. Org. Chem. 1951,
16, 1231–1237. (b) Begley, M. J.; Crombie, L.; Griffiths, G. L.; Jones,
R. C. F.; Rahmani, M. J. Chem. Soc., Chem. Commun. 1981, 823–825.
(c) Bowden, K.; Etemadi, R.; Ranson, R. J. J. Chem. Soc., Perkin Trans. 2
1991, 743–746. (d) Irikawa, H.; Adachi, N. Heterocycles 2000,
53, 135–142. (e) Hashimoto, H.; Shiratori, K.; Kawakita, K.; Tanaka,
T.; Sekine, R.; Irikawa, H. Heterocycles 2005, 65, 1385–1392. (f) Kawabe,
C.; Kawakita, K.; Morinaga, M.; Kondo, M.; Irikawa, H. Heterocycles
2007, 71, 1991–2001. (g) Norsten, T. B.; Kantchev, E. A. B.; Sullivan,
M. B. Org. Lett. 2010, 12, 4816–4819.
’ ASSOCIATED CONTENT
S
Supporting Information. Experimental details; full char-
b
acterization data for P66-1, P55-1, and P56-1 (1H and 13C NMR
spectra and structural analysis of P56-1); thermal stability test
results for all compounds; TDDFT calculation results for P55-1
and P56-1; simulation of cyclic voltammograms of P66-1 and P55-
1; information on the OFET device based on P66-1; complete
refs 2a and 2c; and crystallographic data (CIF). This material is
(12) (a) Yamaguchi, S.; Tamao, K. Chem. Lett. 2005, 34, 2–7.
(b) Yamaguchi, S.; Xu, C.; Okamoto, T. Pure Appl. Chem. 2006, 78,
721–730. (c) Fukazawa, A.; Yamaguchi, S. Chem.—Asian J. 2009, 4,
1386–1400.
(13) Albani, J. R. Structure and Dynamics of Macromolecules: Absorp-
tion and Fluorescence Studies; Elsevier: Amsterdam, 2004.
’ AUTHOR INFORMATION
Corresponding Author
’ ACKNOWLEDGMENT
The authors acknowledge Grants-in-Aid from MEXT of Japan
(20245013 and 21108002, Area 2107, Coordination
Programming) and the Global COE Program for Chemistry
Innovation for financial support. The authors are grateful to Dr.
Murata, Dr. Ishii, and Mr. Hirata (Sony Inc.) for assistance with
the fabrication and performance evaluation of the OFET device.
The authors also thank Dr. Kimiko Hasegawa of Rigaku Cor-
poration for technical support in the X-ray crystallographic
analysis. The authors express gratitude to Hamamatsu Photonics
K.K. for the fluorescence lifetime measurements with a Quan-
taurus-Tau fluorospectrometer.
