Organometallics
Communication
conducting a greener coupling strategy in line with the
principles of green chemistry.
was used for subsequent reactions.
Accordingly, in this communication, we report the effective
application of the L-S cross-coupling reaction under mechan-
ical conditions. Considering the rather good results obtained
when this coupling reaction was applied in the synthesis of
meso-substituted BODIPYs under traditional solution con-
ditions,6 we proceeded to evaluate the mechanochemically
activated process by adequate modification of the previously
reported protocol (Scheme 1).
As has been demonstrated, the nature of the milling jar and
balls plays a crucial role in the efficiency of the
mechanochemical process.17 In the present work, stainless
steel (SS), agate, and Teflon (PTFE) components were
compared in the L-S coupling reaction. It was found that the
mechanochemical process proceeds in a cleaner way when an
SS milling jar and balls are used. In contrast, with Teflon
components a lower yield was obtained (see the Supporting
Information). This effect seems to correlate with the hardness
of the vial and ball materials, reaching the best results when a
denser and harder material, in this case SS (ca. 7.67 g cm−3 and
Rockwell C60, respectively)17a was used. Additional advan-
tages encountered in the use of SS components are convenient
scale-up processes and easier cleaning up of the reaction vessel,
in addition to greater compatibility with the reagents needed
for the coupling process. Therefore, we decided to use a
metallic milling jar and balls during the optimization process.
As was already mentioned, when the L-S cross-coupling
reaction is performed under mechanochemical conditions, it is
not essential to use a dry and deoxygenated solvent. This
practical observation facilitated the evaluation of a great variety
of LAG additives as assistants in the mechanochemical
protocol, providing mobility inside the milling jar in moderate
quantities.15 Surprisingly, polar solvents such as 1,4-dioxane
and tert-butyl methyl ether significantly decrease the reaction
yield (67% and 43%, respectively; see also the Supporting
Information). Lower yields of the desired BODIPYs were also
observed when a nonpolar solvent such as toluene was used
reaction yield in polar media could be associated with excessive
stabilization of the metallic complexes by the LAG
additive.18,19 Notwithstanding, given the minimal amount of
additive used, a direct association of the LAG effect with the
observed yield is not clear at this moment. In this context, the
optimum loads of boronic acid, palladium catalyst, phosphine
adjuvant, and copper carboxylate were also determined in the
mechanically activated L-S reaction. As it turned out, the
original amounts of reagents employed in the solution
reactions were also the most convenient for the mechano-
Optimal L-S cross-coupling reaction conditions (1 equiv of
Biellmann’s BODIPY 2, 3 equiv of boronic acid 4, 2.5% mol of
Pd2(dba)3, 7.5% mol of TFP, 3 equiv of CuTC, 0.2 mL of
THF, SS milling jar and balls, and 25 Hz frequency for 30 min
in an MM200 Mixer Mill (Retsch)) were then used to

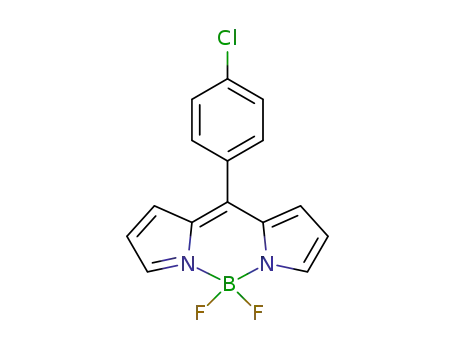

synthesize a variety of meso-substituted aryl BODIPYs by using
different arylboronic acids, as shown in Scheme 2 (see also the
High reaction yields were obtained when unsubstituted 4b
or electron-deficient boronic acids 4c,e were used, providing
BODIPYs 3b,c,e in 95%, 82% and 86% yield, respectively. In
contrast, the electron-rich substituted arylboronic acid 4d
afforded BODIPY 3d in a low 50% yield. Saliently, reaction
yields of compounds 3b,e,f were higher under mechanical
activation relative to the same process in solution (see the
required for the preparation of compounds 3b,f was
significantly shorter (by 25% and more than 200%,
respectively) relative to procedures under the traditional
Scheme 1. L-S Cross-Coupling Reaction under Traditional
Reaction Conditions (Upper Reaction) and under
a
Mechanochemical Activation (Lower Reaction)
a
The three balls on the arrow represent the mechanochemical
method.16
Initially, the L-S cross-coupling reaction was carried out
under the reported conditions using a dry and deoxygenated
solvent (tetrahydrofuran (THF), 2.5 mL) and under an argon
Gratifyingly, after 1 h of continuous stirring at 55 °C BODIPY
3a was obtained in very high yield (96% yield of crude
product), although it was contaminated with traces of several
byproducts. Surprisingly, when the mechanochemical L-S
coupling reaction was conducted without special precautions
(i.e., reagent-grade solvent that had been exposed to air before
use and not under hermetically closed conditions) analytically
clean BODIPY 3a was synthesized in 93% yield. All reagents
were placed in an agate milling jar charged with one agate ball,
in the presence of 0.2 mL of THF as adjuvant to improve the
solubility of the reagents (liquid-assisted grinding, LAG15).
The resulting mixture was milled for 90 min at 25 Hz of
As can be appreciated from Scheme 1, the rather similar
results obtained when the L-S coupling reaction is activated
mechanically clearly demonstrates the applicability of the
mechanochemical protocol, with the additional advantage that
a minimal amount of solvent is required in this case.
With the aim to optimize the mechanochemically activated
L-S reaction, this reaction was subjected to different milling
times and vibration frequencies. Additionally, the constituting
material of the milling jar and balls was evaluated, and the
nature of LAG additives was examined in the mechanochem-
ical procedure. In this regard, the reaction progress was
followed by thin-layer chromatography, confirming that the
reaction was complete after 30 min of milling. At this point, the
desired BODIPYs could be isolated in high yield (ca. 90%).
Nevertheless, additional mechanical activation (i.e., more than
30 min of milling) promotes the production of undesirable
byproducts. Mechanical energy directly associated with the
milling frequency is a determining parameter for the
appropriate conduction of the coupling process.17 Hence,
lower frequencies considerably reduce the reaction yield (see
B
