Xanthenedione derivatives, new promising antioxidant and acetylcholinesterase inhibitor agents

Article abstract of DOI:10.3390/molecules19068317

Natural and synthetic xanthone derivatives are well-known for their ability to act as antioxidants and/or enzyme inhibitors. This paper aims to present a successful synthetic methodology towards xanthenedione derivatives and the study of their aromatizati

Full text of DOI:10.3390/molecules19068317

Molecules 2014, 19, 8317-8333; doi:10.3390/molecules19068317
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Xanthenedione Derivatives, New Promising Antioxidant and
Acetylcholinesterase Inhibitor Agents
Ana M. L. Seca 1,2, Stephanie B. Leal 2, Diana C. G. A. Pinto 2,*, Maria Carmo Barreto 1,3
and Artur M. S. Silva 2,*
1
DCTD, University of Azores, Rua Mãe de Deus, Ponta Delgada 9501-801, Portugal
2
Department of Chemistry & QOPNA, University of Aveiro, Campus de Santiago,
Aveiro 3810-193, Portugal
3
CIRN, University of Azores, Ponta Delgada 9501-801, Portugal
* Authors to whom correspondence should be addressed; E-Mails: diana@ua.pt (D.C.G.A.P.);
artur.silva@ua.pt (A.M.S.S.); Tel.: +351-234-401-407 (D.C.G.A.P.); +351-234-370-714 (A.M.S.S.);
Fax: +351-234-370-084 (D.C.G.A.P. & A.M.S.S.).
Received: 12 May 2014; in revised form: 8 June 2014 / Accepted: 11 June 2014 /
Published: 19 June 2014
Abstract: Natural and synthetic xanthone derivatives are well-known for their ability to act
as antioxidants and/or enzyme inhibitors. This paper aims to present a successful synthetic
methodology towards xanthenedione derivatives and the study of their aromatization to
xanthones. Additionally their ability to reduce Fe(III), to scavenge DPPH radicals and to
inhibit AChE was evaluated. The results demonstrated that xanthenedione derivative 5e,
bearing a catechol unit, showed higher reduction capacity than BHT and similar to
quercetin, strong DPPH scavenging activity (EC50 = 3.79 ± 0.06 µM) and it was also
showed to be a potent AChEI (IC50 = 31.0 ± 0.09 µM) when compared to galantamine
(IC50 = 211.8 ± 9.5 µM).
Keywords: xanthene-1,9(2H)-diones; scavenging activity; reduction power;
acetylcholinesterase inhibitors; xanthones; 3-cinnamoyl-5-hydroxy-2-styrylchromones
1. Introduction
Antioxidants are necessary to control degenerative reactions produced by reactive oxygen and
nitrogen species. These species are involved in several ailments including cancer, heart diseases and

Molecules 2014, 19
8318
apparently Alzheimer’s disease (AD) [1]. Alzheimer’s disease remains a mystery and a source of
several discussions [2], but there is evidence that it is related with oxidative stress [3], as well as with
cholinesterase activity [4]. Although the current therapy used for AD is based on acetylcholinesterase
(AChE) inhibitors [5,6] it seems that other possibilities cannot be rejected. Thus antioxidants that are
considered as a prime target for potential chemoprevention of several pathologies may also become
important phytochemicals against degenerative diseases such as AD.
The alkaloid galantamine (1, Figure 1) is used clinically in early stages of AD, nevertheless
non-alkaloidal AChE inhibitors are being discovered, including xanthone derivatives [6,7]. Variations
in the hydroxylation and methoxylation pattern seem to be important for their activity, as well as extra
rings and a hydrophobic side chain as in 2 (Figure 1) [7]. As far as we are aware there are no reports on
AChE inhibitors bearing a xanthenedione type structure, but we can find in the literature examples of
derivatives that showed DPPH radical scavenging activity [8]. Xanthenedione derivatives are not
widespread in Nature but their synthesis still is a hot topic. Several approaches for the synthesis of
xanthenediones have been reported, although most of them were strategies towards xanthene-1,8-
diones [9]. Xanthene-1,9-diones were less reported [10], but as a part of our ongoing efforts to develop
new biologically active compounds we developed a very interesting and efficient strategy towards
these type of derivatives [11]. Based on this earlier discovery we became interested in the evaluation of
the obtained xanthene-1,9-dione derivatives as antioxidant and acetylcholinesterase inhibitors as well
as on their aromatization to xanthone derivatives.
Figure 1. AChE inhibitors.
2. Results and Discussion
2.1. Chemistry
For the synthesis of xanthene-1,9(2H)-dione derivatives a nice portfolio of suitable reactions was
developed (Scheme 1). The most important approach was the highly efficient Baker-Venkataraman
rearrangement under microwave irradiation of (E,E)-2-acetyl-1,3-phenylenebis(3-phenylacrylate)
derivatives 3 to (E,E)-3-cinnamoyl-5-hydroxy-2-styrylchromones 4. Compounds 3 and 4 were
previously obtained in good overall yields and were also well characterized [12]. However the
application of microwave irradiation is not only a less energetically expensive procedure, but it also
presents a very important beneficial effect, the shortening of the reaction time. The cyclization in the
presence of the Lewis acid boron tribromide as catalyst of (E,E)-3-cinnamoyl-5-hydroxy-2-
styrylchromones 4 to (E)-3-aryl-4-benzylidene-8-hydroxy-3,4 dihydro-1H-xanthene-1,9(2H)-diones 5
was also very efficient and constitutes an extremely simple synthetic procedure. This protocol works
nicely for several derivatives, but its application in the cyclization of (E,E)-3-cinnamoyl-5-hydroxy-2-
styrylchromones 4 bearing electron withdrawing groups is less efficient. The yields in the formation of

Molecules 2014, 19
8319
compounds 5d and 5f were lower and more degradation products were observed. Another interesting
result was the fact that when (E,E)-3-cinnamoyl-5-hydroxy-2-styrylchromone (4g) was used as starting
material, (E)-1,13-dihydroxy-6-(2-hydroxybenzylidene)-6,7-dihydro-7,13-methanobenzo[7,8]oxocino
[4,3-b]chromen-14(13H)-one (6) was obtained as main product and 6,8-dihydroxy-13-(2-hydroxyphenyl)
chromeno[4,3-c]xanthen-7(13H)-one (7) as a by-product (Scheme 1). These results can be explained
by an intramolecular cyclization to a hemiketal compound [Scheme 2, path (a) to compound 6], and
other intramolecular cyclization followed by aromatization to the xanthone 7 [Scheme 2, path (b)].

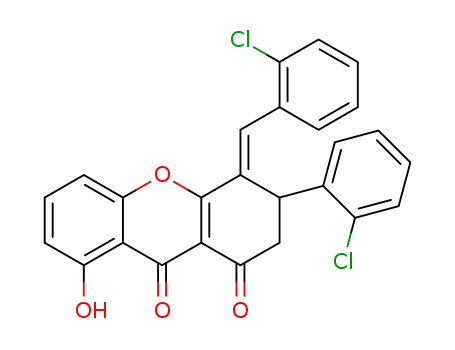

Scheme 1. Synthesis of xanthene-1,9(2H)-diones.
Scheme 2. Proposed mechanism.
The isolation of xanthone 7 and our ongoing interest in the synthesis of new xanthone derivatives,
in particular xanthones bearing aromatic rings attached to the central core [13] prompted us to
study the aromatization of xanthene-1,9(2H)-diones 5. (E)-8-Hydroxy-4-(4-methylbenzylidene)-3-(4-
methylphenyl)-3,4-dihydro-1H-xanthene-1,9(2H)-dione (5b) was used to find the optimal conditions
for the required aromatization. In the first attempts, the reactions with 5b were performed under acidic
conditions to induce the enolization between carbons C-1 and C-2 and the 1,3-shift of H-3 to C-7".
Considering that strong or weak acids, at room temperature or heating using classical heating
conditions or microwave irradiation did not work, the starting material being recovered, it was decided
to attempt basic catalysis. After testing several bases, only DBU and LiHMDS, under the conditions
indicated in Table 1 (entry 1 and 2), were able to aromatize the xanthenedione 5b to the desired
xanthone 8b (Scheme 3). However, as can be understood from Table 1 the results were not good so it
was decided to attempt oxidative conditions. Several oxidizing reagents and/or conditions for the

Molecules 2014, 19
8320
oxidation of xanthenedione 5b were examined, and it was found that although the benzylic carbon is
also very reactive the aromatization can be accomplished, and several new xanthone derivatives were
isolated (Scheme 3). For instance, xanthone 9b was obtained in the oxidation of 5b with DDQ in 1,2,4-
trichlorobenzene (TCB) (Table 1, entry 3), although using dry TCB and molecular sieves an interesting
cyclization to xanthone 10b occurred (Table 1, entry 4). Under the same conditions at lower
temperature the result was also unexpected (Table 1, entry 5), although it is known that under DDQ
oxidation conditions several intramolecular transformations can occur [14]. The oxidation of 5b was
also attempted with the softer oxidizing reagent chloranil, which did not work as well (Table 1, entry 6)
and a new xanthone 12b was obtained (Scheme 3). We tested even milder conditions (Pd/C, Table 1,
entry 7) which gave the desired xanthone 8b in low yields together with xanthones 9b and 11b. The
results, although were not the expected ones, are interesting. One can conclude that xanthenediones 5
can became useful synthons towards new xanthone derivatives.
Table 1. Optimization of the aromatization conditions.
Entry
Catalyst
1.2 equiv DBU
LiHMDS
Experimental conditions a
MW (100 °C, 10 min), DMSO
Classical heating (80 °C), toluene
MW (170 °C, 30 min), TCB
MW (170 °C, 30 min), dry TCB, molecular
sieves
Obtained compounds b (%)
8b (18%)
1
2
3
8b (<5%)
9b (28%)
2 equiv DDQ
4
5
6
7
1.5 equiv DDQ
1.3 equiv DDQ
2 equiv ChA
10b (52%)
MW (100 °C, 30 min), dry TCB,
molecular sieves
MW (170 °C, 30 min), dry TCB,
molecular sieves
9b (15%)
11b (30%)
9b (10%)
12b (34%)
8b (15%); 9b (22%)
Pd/C (1:1 w/w)
Classical heating(reflux toluene)
11b (25%)
a Only the experimental conditions affording new compounds are described and only the best yields are
b
mentioned; Only the major compounds are indicated and starting compound was recovered in all attempts;
TCB = 1,2,4-trichlorobenzene.
Scheme 3. Compounds obtained in the aromatization study of xanthenedione 5b.

Molecules 2014, 19
8321
2.2. Nuclear Magnetic Resonance Spectroscopy
The NMR characterization of bis(3-phenylacrylate) derivatives 3, 3-cinnamoyl-5-hydroxy-2-
styrylchromones 4 and xanthene-1,9(2H)-diones 5 was previously discussed [11,12] therefore here
only the characterization of the new derivatives will be reported.
At the first glances the 1H-NMR spectrum of compound 6 seems to indicate the presence of another
xanthenedione derivative. But a carefully analysis showed that H-2 protons are equivalent and appear
as a doublet at δ 2.56 ppm with a coupling constant (J = 3.1 Hz) due to the coupling with proton H-3,
which appears as a triplet at δ 4.05 ppm. Another interesting feature is the chemical shift of
the H-7'' proton which appears as singlet at δ 7.27 ppm. In the 13C-NMR spectrum instead of two
carbonyl carbons at δ ~191 and ~180 ppm like in the case xanthenediones just one signal due to a
carbonyl carbon resonance is observed at δ 183.2 ppm. These data are considerably different from
those of xanthenediones and suggested a different structure. The connectivities found in the HMBC
spectrum allowed assigning the quaternary carbon resonances and confirming the assignments of some
proton-bearing carbons (Figure 2a). Moreover, the NOESY experiment led to confirm the proposed
structure, namely the NOE effects between the signals of H-7'' and H-3 and of H-6 and H-6''
(Figure 2b).
Figure 2. Main HMBC and NOESY correlations.
The obtained xanthone derivatives 7 and 8b–12b have in common the central nucleus that presents
1
characteristic H and 13C-NMR spectra. Besides these typical protons and carbon resonances the
presence of the aromatic rings A and E can be highlighted by: (i) the singlet due to the H-2 proton
resonance at δ 6.79–7.26 ppm; (ii) the two signals due to hydroxyl group proton, as singlets at δ
11.70–11.90 ppm (9-OH) and at δ 11.78–12.22 ppm (1-OH); (iii) the carbonyl carbon resonance at δ
185.3–186.1 ppm; (iv) the connectivities found in the HMBC spectra confirming this structural motif
(Figure 2c). The rest of the structures present two types of substitution, xanthones 7, 10b and 12b with
an extra ring linking rings B and D and xanthones 8b, 9b and 11b with unlinked substituents at

Molecules 2014, 19
8322
carbons C-3 and C-4. The p-tolyl group at carbon C-3 presents the characteristic 1H-NMR signals of a
para substituted aromatic ring and the most distinguishable signals are: (i) the singlet at δ 4.10 ppm,
due to the resonance of the benzylic CH2 protons of 8b; (ii) the doublet at δ 6.02 ppm, due to the H-7"
proton resonance proton and the broad singlet at δ 2.98 ppm, due to the 7"-hydroxyl group of xanthone
11b. The main feature of the 13C-NMR spectrum of xanthone 9b is the carbonyl carbon resonance at δ
194.0 ppm. The HMBC connectivities allowed assigning and/or confirming all carbon resonances and
confirming the proposed structures as depicted in Scheme 3.
The important signals in the NMR spectra of xanthone 7 are the singlet at δ 7.14 ppm assigned to a
proton linked to a carbon that resonates at δ 70.9 ppm and that in the HMBC spectrum showed
connectivity with the H-7" proton (Figure 2d). In xanthones 10b and 12b the disappearance of an
aromatic proton and the consequently change in the NMR pattern of the D ring it is noticeable. In these
compounds, it consists in three characteristic signals, a broad singlet or doublet with a meta coupling
constant due to the H-3' proton (δ ~7.1 ppm), a doublet due to the H-6' proton (δ ~7.6 ppm) and a
double doublet assigned to H-5' (δ ~7.2 ppm). The confirmation of the five member ring was provided
by the HMBC spectrum (Figure 2e), which showed connectivities between H-3' and C-7" only possible
in the proposed structures.
2.3. Reducing Power and Radical Scavenging Activity
As was raised in the Introduction there are several diseases and symptoms directly related to
oxidative stress, such as: atherosclerosis, Alzheimer’s, cancer, the aging process and central nervous
system degeneration [15]. Antioxidant compounds can become important in preventing and/or treating
these diseases. In order to evaluate the antioxidant activity of xanthenediones 5, we tested their ability
to scavenge DPPH radicals and to reduce iron(III) and the results are presented in Figure 3 and Table 2.
Figure 3. Reducing activity of xanthenediones 5c,e.
Reduction of Fe(III)
1.8
1.6
1.4
1.2
BHT
1.0
Quercetin
0.8
Compound 5a
0.6
Compound 5c
0.4
Compound 5e
0.2
0.0
0
40
80
120
160
200
240
Concentration (µg/mL)

Molecules 2014, 19
Table 2. Radical scavenging activity and acetylcholinesterase inhibitory effect of
8323
xanthenediones (5).
Radical Scavenging Activity
Compounds
Anti-AChE IC50 c (µM ± SD, n = 4)
EC50 a (µM ± SD)
AE b
5a
nd
nd
>381
>355
5b
nd
>552
nd
5c
5d
nd
41.1 ± 6.1
>325
nd
nd
5e
3.79 ± 0.06
nd
0.026
nd
31.0 ± 0.09
>325
5f
Trolox
Quercetin
Galantamine
18.7 ± 0.65
5.97 ± 0.11
-
0.011
0.0042
-
-
-
211.8 ± 9.5
a The required concentration of the compound to reduce the DPPH• concentration to 50%; The antiradical
efficiency (AE = 1/(EC50 × TEC50); TEC50 the time required to reach the steady state for the EC50; c The
required concentration of the compound to inhibit 50% of acetylcholinesterase activity; nd not determined.
b
Reducing power is the manifestation of the electron donating capacity of a compound and can be
associated with its antioxidant activity [16] and also with structural features such as ortho-dihydroxyl
groups or hydroxyl groups that can form a hydrogen bond with a carbonyl group. Thus,
xanthenediones 5a, 5c and 5e were tested using the potassium ferricyanide reduction method [17].
BHT and quercetin were used as references due to their well-known antioxidant properties. Quercetin
has an additional significance, as it is structurally more similar to the tested compounds. The
compounds were tested at four concentrations, and naturally the reducing ability increased with
concentration (Figure 3). Xanthenediones 5a and 5c did not significantly reduce ferric ion.
Xanthenedione 5e was able not only to reduce considerably the ferric ion, but was also more efficient
than BHT and similar to quercetin (Figure 3). These results confirm that a catechol moiety in a
molecule is important for the reducing power activity. Considering the above mentioned conclusions
and the fact that xanthenedione 5c did not violate any of the Lipinski’s ‘rule of five’ (Table 3) we
decided to test also its radical scavenging activity (Table 2). However the solubility of xanthenedione 5c
did not allow an EC50 calculation. At the maximum concentration at which xanthenedione 5c is soluble
(552 µM), the DPPH quenched was just 36%.
2.4. Acetylcholinesterase Inhibitory Activity (Anti-AChE)
Acetylcholinesterase (AChE) plays a very important role in nerve transmission, as an adhesion
protein, as a bone matrix protein, in neurite growth and in the production of amyloid fibrils, found in
the brain cells of patients with Alzheimer’s disease [6]. Inhibition of AChE will, therefore, allow the
stimulatory activity of acetylcholine (ACh), which appears to be associated with cognitive processes,
memory, myasthenia gravis, and glaucoma and as an antidote to various toxins [6]. From the literature [7],
it is known that the xanthone ring itself did not appear to automatically confer activity; in fact the
substitution pattern has a marked influence on the activity level. Since the prepared xanthenediones 5
are structurally related to xanthones they were evaluated for their anti-AChE activity (Table 2). The
results showed that two derivatives are even more active than the control used, the known active

Molecules 2014, 19
8324
compound galantamine (Table 2), which is a pure competitive inhibitor of AChE used clinically in
early stages of Alzheimer’s disease. Both active compounds present more than one hydroxyl group in
their structure, which suggests that the presence of hydroxyl groups in the 3-aryl and 4-benzylidene
moieties is essential for the activity. Although there are a few differences in the AChE inhibition
assays carried out by different authors, it is possible to compare our results with those previously
reported for xanthones. The two active compounds in the present work are much stronger inhibitors
than those isolated from the fungus Amauroderma amoiensis, where the highest inhibition of the
enzyme at 50 µM was only 46.3% [18]. The inhibition potencies of xanthenediones 5c and 5e is higher
or of the same order of magnitude to those reported by a study comparing inhibition potency and
inhibition types of six different xanthones [7]. Furthermore xanthenedione 5c has a mixed type inhibition
of AChE, producing a combination of partially competitive and non-competitive inhibition while
xanthenedione 5e shows an almost pure competitive type inhibition. Compounds with competitive or
mixed inhibition of AChE are of great interest in Alzheimer’s disease therapy. Dual binding site
inhibitors, which interact both with the catalytic and the peripheral anionic sites of the enzyme are
particularly interesting, since they not only alleviate cognitive deficits but also behave as disease-
modifying agents by inhibiting the β-amyloid peptide aggregation [19].
Molecular properties such as the molecular weight, hydrophobicity (LogP), and the total polar
surface area (TPSA) have been used extensively in modern drug discovery because they affect
drug absorption, bioavailability, metabolism, toxicity as well as the hydrophobic drug-receptor
interactions [20]. These and other parameters related with drug-likeness properties of xanthenediones 5
are listed in Table 3 [21].
Table 3. Drug-likeness property/Lipinski’s ‘rule of five’ parameters calculated for
xanthenediones (5) a.
Molecular
Weight
394.426
422.480
426.424
463.316
458.422
463.316
n-ON
n-OHNH
n
Compound
miLogP
n-ROTB
TPSA
Acceptors
Donors
Violations
5a
5b
5c
5d
5e
5f
5.503
6.4
2
2
2
2
2
2
4
4
6
4
8
4
1
1
3
1
5
1
1
1
0
1
0
1
67.51
67.51
107.96
67.51
148.42
67.51
4.544
6.859
3.566
6.11
a log P, octanol-water partition coefficients; n-ROTB, number of rotatable bonds; n-ON, number of hydrogen
acceptors; n-OHNH, number of hydrogen bond donors; n violations, number of violations according to the
Lipinski ‘rule of five’; TPSA, topological polar surface area.
It is interesting to highlight that the xanthenediones 5e and 5c, highly active in the biological
assays, present zero violations of Lipinski’s ‘rule of five’. On the other hand, since the TPSA
parameter can be correlated with human intestinal absorption, the Caco-2 monolayers permeability, and
blood-brain barrier penetration, drugs with TPSA lower than 140 Å2 and lower molecular flexibility
(n-ROTB ≤ 6) contribute to higher intestinal permeability and higher human dose absorption [22,23].
Therefore, we can conclude that xanthenedione 5c combines higher AChE activity with good oral
bioavailability properties.

Molecules 2014, 19
8325
3. Experimental
3.1. General Information
The 1H- and 13C-NMR, HSQC and HMBC spectra were measured in CDCl3 on Bruker Avance 300
1
and 500 spectrometers (300.13 MHz and 500.13 for H and 75.47 and 125.75 MHz for 13C,
respectively), using TMS as internal standard. The low-pass J-filter portion of the HMBC experiment
was optimized for an average of one-bond heteronuclear coupling of 145 Hz; the delay for evolution of
long-range couplings was optimized for 7 and 2 Hz. Chemical shifts were reported in δ units (ppm)
and coupling constants (J) in Hz. The MS spectra were obtained using ESI positive mode with a
Q-TOF 2 mass spectrometer. High resolution mass spectra (HRMS-ESI+) were performed on a
microTOF (focus) mass spectrometer. Ions were generated using an Apollo II (ESI) source. Ionization
was achieved by electrospray, using a voltage of 4500 V applied to the needle, and a counter voltage
between 100 and 150 V applied to the capillary. Reactions were routinely monitored by thin-layer
chromatography (TLC) in silica gel 60 (Merck F245 plates) and the products visualized with ultraviolet
lamp (254 and/or 365 nm). The chromatographic purifications were carried out by CC on silica gel 60
(70–230 mesh) and prep. TLC on silica gel (Merck silica gel 60 F254), being the spots visualized under a
UV lamp (at 254 and/or 366 nm).
3.2. Synthesis
Compounds 3 and 4 were synthesised according to previously reported methodologies and the
obtained NMR data were also identical to the data previously reported in the literature [11,12]. In the
case of xanthenediones 5, although the synthetic methodology was previously reported only the
characterization of derivatives 5c and 5d had been published [11].
(E)-3-Aryl-4-benzylidene-8-hydroxy-3,4-dihydro-1H-xanthene-1,9(2H)-dione (5a). This compound
was obtained by the reaction of (E,E)-3-cinnamoyl-5-hydroxy-2-styrylchromone (4a, 157.8 mg,
0.400 mmol) with BBr3 (2 mL of a 1 mol L−1 solution in CH2Cl2). After the slowly addition of BBr3
the mixture was stirred at room temp. for 3 h, then water (80 mL) was added. The resulting reaction
mixture was stirred for 4 h and extracted with CH2Cl2 (3 × 80 mL). The combined extracts were
evaporated and purified by TLC using CH2Cl2 as eluent. The desired compound 5a was obtained as
yellow crystals (107.3 mg, 68%). M.p. 216–218 °C. 1H-NMR (300 MHz, CDCl3, TMS) δ (ppm): 3.08
(dd, 1H, J = 3.2 and 15.5 Hz, H-2trans); 3.15 (dd, 1H, J = 5.0 and 15.5 Hz, H-2cis); 4.76 (dd, 1H, J = 3.2
and 5.0 Hz, H-3); 6.82 (dd, 1H, J = 0.7 and 8.4 Hz, H-8); 7.02 (dd, 1H, J = 0.7 and 8.4 Hz, H-6);
7.24–7.30 (m, 3H, H-2',6' and H-4'); 7.31–7.36 (m, 2H, H-3',5'); 7.38 (br s, 5H, H-2",6", H-3",5" and
13
H-4"); 7.57 (t, 1H, J = 8.4 Hz, H-7); 8.11 (s, 1H, H-7"); 12.63 (s, 1H, 9-OH). C-NMR (75 MHz,
CDCl3, TMS) δ (ppm): 40.1 (C-3); 45.6 (C-2); 106.8 (C-6); 111.0 (C-9a); 112.7 (C-8); 113.4 (C-10a);
126.9 (C-2' and C-6'); 127.5 (C-4'); 128.9 (C-3" and C-5"); 129.2 (C-3' and C-5'); 129.5 (C-2" and
C-6"); 129.7 (C-4); 129.9 (C-4"); 134.2 (C-1"); 136.0 (C-7); 139.0 (C-7"); 139.9 (C-1'); 154.7 (C-5a);
161.7 (C-9); 169.4 (C-4a); 180.1 (C-10); 191.3 (C-1). ESI-MS m/z 395 [M+H]+; 417 [M+Na]+; 433
[M+K]+. HR-ESIMS (positive ion): m/z calcd. for C26H19O4 [M+H]+, 395.1278; found, 395.1275.

Molecules 2014, 19
8326
(E)-8-Hydroxy-4-(4-methylbenzylidene)-3-(4-methylphenyl)-3,4-dihydro-1H-xanthene-1,9(2H)-dione (5b).
This compound was obtained by the reaction of (E,E)-3-cinnamoyl-5-hydroxy-2-styrylchromone (4b,
172.8 mg, 0.409 mmol) with BBr3 (2 mL of a 1 mol L solution in CH2Cl2) and following the above
described procedure. The desired compound 5b was obtained as yellow crystals (153.8 mg, 89%). M.p.
1
201–202 °C. H-NMR (300 MHz, CDCl3, TMS) δ (ppm): 2.29 (s, 3H, 4'-CH3); 2.37 (s, 3H, 4"-CH3);
3.05 (dd, 1H, J = 3.1 and 15.5 Hz, H-2trans); 3.12 (dd, 1H, J = 5.1 and 15.5 Hz, H-2cis); 4.74–4.76 (m,
1H, H-3); 6.82 (dd, 1H, J = 0.8 and 8.3 Hz, H-8); 7.02 (dd, 1H, J = 0.8 and 8.3 Hz, H-6); 7.10 (d, 2H,
J = 8.0 Hz, H-3',5'); 7.13 (d, 1H, J = 8.0 Hz, H-2',6'); 7.18 (d, 2H, J = 8.1 Hz, H-3",5"); 7.29 (d, 2H,
J = 8.1 Hz, H-2",6"); 7.56 (t, 1H, J = 8.3 Hz, H-7); 8.07 (s, 1H, H-7"); 12.67 (s, 1H, 9-OH). 13C-NMR
(75 MHz, CDCl3, TMS) δ (ppm): 20.9 (4'-CH3); 21.4 (4"-CH3); 39.9 (C-3); 45.6 (C-2); 106.8 (C-6);
111.0 (C-9a); 112.6 (C-8); 113.3 (C-10a); 126.8 (C-2' and C-6'); 129.0 (C-4); 129.6 (C-3" and C-5");
129.7 (C-3' and C-5'); 129.9 (C-2" and C-6"); 131.4 (C-1"); 135.9 (C-7); 136.8 (C-1'); 137.1 (C-4');
139.0 (C-7"); 140.5 (C-4"); 154.7 (C-5a); 161.7 (C-9); 169.7 (C-4a); 180.2 (C-10); 191.5 (C-1). ESI-
MS m/z 423 [M+H]+; 445 [M+Na]+. HR-ESIMS (positive ion): m/z calcd. for C28H22O4 [M]+,
423.1591; found, 423.1587.
(E)-8-Hydroxy-4-(3,4-dihydroxybenzylidene)-3-(3,4-dihydroxyphenyl)-3,4-dihydro-1H-xanthene-1,9-
(2H)-dione (5e). This compound was obtained by the reaction of (E,E)-3-cinnamoyl-5-hydroxy-2-
styrylchromone (4e, 205.8 mg, 0.400 mmol) with BBr3 (2 mL of a 1 mol L−1 solution in CH2Cl2) and
following the above described procedure. The desired compound 5e was filtered off and obtained as
1
orange crystals (183.2 mg, 89%). M.p. 275–281 °C. H-NMR (500 MHz, DMSO-d6, TMS) δ (ppm):
2.68 (dd, 1H, J = 2.7 and 14.8 Hz, H-2trans); 3.16 (dd, 1H, J = 5.7 and 14.8 Hz, H-2cis); 4.60 (dbr, 1H,
J = 2.7 Hz, H-3); 6.57 (dd, 1H, J = 2.3 and 8.2 Hz, H-6'); 6.67 (d, 1H, J = 2.3 Hz, H-2'); 6.67 (d, 1H,
J = 8.2 Hz, H-5');6.77 (d, 1H, J = 8.3 Hz, H-5"); 6.83 (d, 1H, J = 8.3 Hz, H-8); 6.87 (dd, 1H, J = 1.8
and 8.3 Hz, H-6"); 6.97 (d, 1H, J = 1.8 Hz, H-2"); 7.29 (d, 1H, J = 8.3 Hz, H-6); 7.71 (t, 1H, J = 8.3 Hz,
H-7); 8.05 (s, 1H, H-7"); 8.87 (s, 1H, 4'-OH); 8.91 (s, 1H, 3'-OH); 9.19 (s, 1H, 3"-OH); 9.84 (s, 1H,
13
4"-OH); 12.77 (s, 1H, 9-OH). C-NMR (75 MHz, DMSO-d6, TMS) δ (ppm): 39.3 (C-3); 46.2 (C-2);
107.8 (C-6); 110.3 (C-9a); 111.9 (C-8); 112.4 (C-10a); 114.3 (C-2'); 115.8 (C-5'); 116.1 (C-5"); 117.9
(C-6' and C-2"); 123.5 (C-6"); 125.9 (C-4*); 126.0 (C-1"*); 131.4 (C-1'); 136.4 (C-7); 139.4 (C-7");
144.3 (C-3'); 145.4 (C-4'**); 145.5 (C-3"**); 148.3 (C-4"); 154.5 (C-5a); 160.7 (C-9); 169.9 (C-4a);
179.7 (C-10); 191.4 (C-1). *It may be interchanged. **It may be interchanged. ESI-MS m/z 459
[M+H]+; 481 [M+Na]+. HR-ESIMS (positive ion): m/z calcd. for C26H18O8 [M]+, 458.1002;
found, 458.1003.
(E)-4-(2-Chlorobenzylidene)-3-(2-chlorophenyl)-8-hydroxy-3,4-dihydro-1H-xanthene-1,9(2H)-dione
(5f). This compound was obtained by the reaction of (E,E)-3-cinnamoyl-5-hydroxy-2-styrylchromone
4f (185.8 mg, 0.401 mmol) with BBr3 (2 mL of a 1 mol L−1 solution in CH2Cl2) and following the
above described procedure. The desired compound 5f was obtained as yellow crystals (100.3 mg,
1
54%). D.p. 242 °C. H-NMR (300 MHz, CDCl3, TMS) δ (ppm): 2.97 (dd, 1H, J = 2.2 and 15.4 Hz,
H-2trans); 3.11 (dd, 1H, J = 6.6 and 15.4 Hz, H-2cis); 4.91 (dd, 1H, J = 2.2 and 6.6 Hz, H-3); 6.82 (br d,
1H, J = 7.8 Hz, H-6"); 6.89 (br d, 1H, J = 8.2 Hz, H-8); 7.09 (br d, 1H, J = 8.2 Hz, H-6); 7.10–7.14 (m,
2H, H-5' and H-5"); 7.14–7.18 (m, 1H, H-6'); 7.23 (ddd, 1H, J = 2.1, 7.1 and 7.6 Hz, H-4'); 7.32 (ddd,

Molecules 2014, 19
8327
1H, J = 1.3, 7.4 and 8.1 Hz, H-4"); 7.42 (dd, 1H, J = 1.0 and 7.6 Hz, H-3'); 7.48 (dd, 1H, J = 0.6 and
8.1 Hz, H-3"); 7.63 (t, 1H, J = 8.2 Hz, H-7); 8.26 (s, 1H, H-7"); 12.59 (s, 1H, 9-OH). 13C-NMR
(75 MHz, CDCl3, TMS) δ (ppm): 38.3 (C-3); 43.9 (C-2); 107.0 (C-6); 111.2 (C-9a); 113.0 (C-8); 114.1
(C-10a); 126.9 (C-6'); 127.6 (C-5' *); 127.7 (C-5" *); 129.0 (C-6"); 129.1 (C-4'); 130.0 (C-3"); 130.2
(C-4); 130.7 (C-3'); 131.0 (C-4"); 132.5 (C-1"); 132.9 (C-2'); 135.0 (C-2"); 136.3 (C-7); 136.5
(C-7"); 138.7 (C-1'); 154.8 (C-5a); 161.8 (C-9); 168.7 (C-4a); 180.1 (C-10); 191.3 (C-1). * May be
35
35
37
interchanged. ESI-MS m/z 463 ([M+H]+, Cl); 465 ([M+H]+, Cl, Cl); 485 ([M+Na]+, 35Cl); 487
([M+Na]+, Cl, Cl); 489 ([M+Na]+, Cl). HR-ESIMS (positive ion): m/z calcd. for C26H1635Cl2O4
([M]+, 35Cl), 462.0426; found, 462.0406. Calcd. for C26H1635Cl37ClO4 ([M]+, 35Cl37Cl), 464.0396;
found, 464.0374. Calcd. for C26H1637Cl2O4 ([M]+, 37Cl), 466.0367; found, 466.0384.
35
37
37
(E)-1,13-Dihydroxy-6-(2-hydroxybenzylidene)-6,7-dihydro-7,13-methanobenzo[7,8]oxocino[4,3-b]-
chromen-14(13H)-one (6). This compound was obtained by the reaction of (E,E)-3-cinnamoyl-5-
hydroxy-2-styrylchromone (4g, 181.8 mg, 0.400 mmol) with BBr3 (2 mL of a 1 mol L−1 solution in
CH2Cl2). After the slowly addition of BBr3 the mixture was stirred at room temp. for 3 h, then water
(80 mL) was added. The resulting reaction mixture was stirred for 4h and extracted with CH2Cl2
(3 × 80 mL). The combined extracts were evaporated and purified by TLC using CH2Cl2 as eluent. The
1
desired compound 6 was obtained as orange crystals (74.5 mg, 41%). M.p. 195–198 °C. H-NMR
(300 MHz, CDCl3, TMS) δ (ppm): 2.56 (d, 2H, J = 3.1 Hz, H-2); 4.05 (t, 1H, J = 3.1 Hz, H-3); 6.57
(dd, 1H, J = 0.8 and 8.1 Hz, H-6); 6.64 (dd, 1H, J = 0.8 and 8.1 Hz, H-8); 6.79 (br d, 1H, J = 8.0 Hz,
H-3'); 6.85 (ddd, 1H, J = 1.1, 7.5 and 8.1 Hz, H-5'); 7.07–7.11 (m, 1H, H-4'); 7.12 (br d, 1H, J = 7.5 Hz,
H-6'); 7.18–7.23 (m, 1H, H-5"); 7.27 (s, 1H, H-7"); 7.34 (dd, 1H, J = 1.1, 7.6 Hz, H-6"); 7.37 (t, 1H,
J = 8.1 Hz, H-7); 7.37–7.40 (m, H, H-3"); 7.42 (m, 1H, H-4"); 13.00 (s, 1H, 9-OH). 13C-NMR
(75 MHz, CDCl3, TMS) δ (ppm): 31.3 (C-2); 38.3 (C-3); 100.7 (C-1); 104.9 (C-10a); 107.1 (C-6);
108.5 (C-9a); 111.0 (C-8); 116.9 (C-3"); 118.1 (C-3'); 120.2 (C-1"); 121.4 (C-5'); 122.4 (C-1'); 124.9
(C-5"); 127.1 (C-6"); 128.0 (C-6'); 128.7 (C-4'); 129.1 (C-7"); 131.4 (C-4); 132.5 (C-4); 136.5 (C-7);
151.4 (C-2"); 152.1 (C-2'); 156.0 (C-5a); 158.6 (4a); 162.8 (C-9); 183.2 (C-10). ESI-MS m/z 409
[M−H2O+H]+; 431 [M−H2O+Na]+; 447 [M−H2O+Na]+. HR-ESIMS (positive ion): m/z calcd. for
C26H19O6 [M+H]+, 427.1176; found, 427.1181; Calcd. for C26H17O5 [M-H2O+H]+, 409, 1070;
found, 409.1072.
6,8-Dihydroxy-13-(2-hydroxyphenyl)chromeno[4,3-c]xanthen-7(13H)-one (7). This compound was
obtained following the above described procedure for compound 6. The desired compound 7 was
1
obtained as orange crystals (5.5 mg, 3%). D.p. 242 °C. H-NMR (300 MHz, CDCl3, TMS) δ (ppm):
6.43 (d, 1H, J = 1.2 and 7.9 Hz, H-6"); 6.61 (dt, 1H, J = 1.1 and 7.9 Hz, H-5"); 6.82 (dd, 2H, J = 0.8
and 8.3 Hz, H-8 and H-6); 6.94 (dd, 1H, J = 1.0 and 8.1 Hz, H-3"); 7.01 (dd, 1H, J = 1.1 and 8.1 Hz,
H-3'); 7.08 (dt, 1H, J = 1.1 and 7.7 Hz, H-5'); 7.14 (s, 1H, H-7"); 7.14–7.17 (m, 1H, H-4"); 7.26 (s, 1H,
H-2); 7.25–7.30 (m, 1H, H-4'); 7.57 (t, 1H, J = 8.3 Hz, H-7); 7.74 (dd, 1H, J = 1.5 and 7.7 Hz, H-6');
13
11.80 (s, 1H, 9-OH); 12.01 (s, 1H, 1-OH). C-NMR (75 MHz, CDCl3, TMS) δ (ppm): 70.9 (C-7");
104.9 (C-2); 106.7 (C-10a); 107.4 (C-6); 107.9 (C-9a); 108.9 (C-4); 111.4 (C-8); 116.8 (C-3"); 118.0
(C-3'); 120.2 (C-5"); 121.3 (C-1'); 123.3 (C-5' and C-1"); 124.7 (C-6'); 127.8 (C-6"); 130.5 (C-4");

Molecules 2014, 19
8328
132.1 (C-4'); 137.6 (C-7); 139.2 (C-3); 152.0 (C-2'); 152.2 (C-4a); 155.7 (C-2"); 155.9 (C-5a); 161.4
(C-9); 161.7 (C-1); 185.5 (C-10). ESI-MS m/z 425 [M+H]+; 447 [M+Na]+; 463 [M+K]+.
1,8-Dihydroxy-4-(4-methylbenzyl)-3-(4-methylphenyl)-9H-xanthen-9-one (8b). This compound was
obtained by the treatment of a solution of (E)-8-hydroxy-4-(4-methylbenzylidene)-3-(4-methylphenyl)-
3,4-dihydro-1H-xanthene-1,9(2H)-dione (5b, 56.7 mg, 0.13 mmol) in DMSO (10 mL) with DBU
(1.2 equiv, 24 µL, 0.16 mmol). The mixture was then irradiated in an Ethos SYNTH microwave
(Milestone Inc., Sorisole, Italy) at 100 °C for 10 min. After this period the reaction mixture was poured
onto ice (10 g) and the pH was adjusted to 3–4 with diluted HCl and extracted with chloroform. The
desired compound 8b was obtained by TLC purification using a mixture of hexane/CH2Cl2 (3:1) as
eluent, as orange crystals, 18% yield (10.2 mg). M.p. 155–157 °C; 1H-NMR (300 MHz, CDCl3, TMS)
δ (ppm): 2.26 (s, 3H, 4"-CH3); 2.40 (s, 3H, 4'-CH3); 4.10 (s, 2H, H-7"); 6.77 (dd, 1H, J = 0.7 and 8.8 Hz,
H-8); 6.79 (s, 1H, H-2); 6.81 (dd, 1H, J = 0.7 and 8.8 Hz, H-6); 6.90 (d, 2H, J = 8.1 Hz, H-2",6"); 6.99
(d, 2H, J = 8.1 Hz, H-3",5"); 7.17–7.19 (m, 2H, H-2',6'); 7.19–7.21 (m, 2H, H-3',5'); 7.55 (t, 1H,
J = 8.8 Hz, H-7); 11.78 (s, 1H, 1-OH); 11.86 (s, 1H, 9-OH). 13C-NMR (75 MHz, CDCl3, TMS) δ
(ppm): 20.9 (4"-CH3); 21.2 (4'-CH3); 31.7 (C-7"); 107.0 (C-10a); 107.2 (C-6); 107.7 (C-9a); 110.7
(C-8); 112.5 (C-2); 117.1 (C-4*); 127.8 (C-2" and C-6"); 128.6 (C-2' and C-6'); 128.9 (C-3', C-3", C-5'
and C-5"); 135.2 (C-4"); 137.1 (C-1') 137.3 (C-7); 137.4 (C-3*); 137.7 (C-1"); 137.9 (C-4'); 152.3
(C-4a); 156.3 (C-5a); 158.8 (C-1); 161.2 (C-9); 186.1 (C-10). * May be interchanged. ESI-MS m/z 423
[M+H]+; 445 [M+Na]+. HR-ESIMS (positive ion): m/z calcd. for C28H22O4 [M]+, 422.1518;
found, 422.1520.
1,8-Dihydroxy-4-(4-methylbenzoyl)-3-(4-methylphenyl)-9H-xanthen-9-one (9b). This compound was
obtained by the treatment of a solution of (E)-8-hydroxy-4-(4-methylbenzylidene)-3-(4-methylphenyl)-3,4-
dihydro-1H-xanthene-1,9(2H)-dione (5b, 66.9 mg, 0.16 mmol) in 1,2,4-trichlorobenzene (TCB) (10 mL)
with DQQ (2.0 equiv, 72.0 mg, 0.32 mmol). The mixture was then irradiated in an Ethos SYNTH
microwave (Milestone Inc.) at 170 °C for 30 min. After this the TCB was removed by column
chromatography using hexane as eluent and the reaction mixture was eluted with CH2Cl2. The desired
compound 9b was obtained by TLC purification using successively hexane and CH2Cl2 as eluents, as
1
yellow solid, 28% yield (19.1 mg). M.p. 180–183 °C; H-NMR (300 MHz, CDCl3, TMS) δ (ppm):
2.28 (s, 3H, 4'-CH3); 2.36 (s, 3H, 4"-CH3); 2.98 (sb, 1H, 7"-OH); 6.02 (d, 1H, J = 9.0 Hz, H-7"); 6.60
(dd, 1H, J = 0.8 and 8.4 Hz, H-6); 6.77 (dd, 1H, J = 0.8 and 8.4 Hz, H-8); 6.91 (s, 1H, H-2); 7.06 (d,
2H, J = 8.2 Hz, H-3',5'); 7.15 (d, 2H, J = 8.2 Hz, H-3",5"); 7.22 (d, 2H, J = 8.2 Hz, H-2',6'); 7.50 (t,
1H, J = 8.4 Hz, H-7); 7.65 '(d, 2H, J = 8.2 Hz, H-2",6"); 11.71 (s, 1H, 9-OH); 12.06 (s, 1H, 1-OH).
13C-NMR (75 MHz, CDCl3, TMS) δ (ppm): 21.2 (4'-CH3); 21.7 (4"-CH3); 106.1 (C-10a); 107.4 (C-6);
107.7 (C-9a); 111.1 (C-8); 112.3 (C-2); 118.6 (C-4); 128.5 (C-2' and C-6'); 129.2 (C-3', C-5', C-3" and
C-5"); 129.6 (C-2" and C-6"); 135.4 (C-1"); 135.6 (C-1'); 137.6 (C-7); 138.7 (C-4'); 144.4 (C-4");
150.4 (C-3); 153.4 (C-4a); 155.9 (C-5a); 161.2 (C-9); 161.4 (C-1); 185.7 (C-10); 194.0 (C-7");. ESI-
MS m/z 437 [M+H]+, 459 [M+Na]+, 475 [M+K]+. HR-ESIMS (positive ion): m/z calcd. for C28H20O5
[M]+, 436,1311; found, 436.1319.

Molecules 2014, 19
8329
6,8-Dihydroxy-2-methyl-13-(4-methylphenyl)indeno[1,2-c]xanthen-7(13H)-one (10b). This compound
was obtained by the treatment of a solution of (E)-8-hydroxy-4-(4-methylbenzylidene)-3-(4-
methylphenyl)-3,4-dihydro-1H-xanthene-1,9(2H)-dione (5b, 50.5 mg, 0.12 mmol) in dry 1,2,4-
trichlorobenzene (TCB) (10 mL) and in the presence of 100 mg molecular sieves with DQQ (1.5 equiv,
40.6 mg, 0.18 mmol). The mixture was then irradiated in an Ethos SYNTH microwave (Milestone Inc.)
at 170 °C for 30 min. After this the TCB was removed by column chromatography using hexane as
eluent and the reaction mixture was eluted with CH2Cl2. The desired compound 10b was obtained by
TLC purification using a mixture of hexane/CH2Cl2 (3:2) as eluent, as yellow crystals, 52% yield
(26.0 mg). D.p. 195 °C; 1H-NMR (300 MHz, CDCl3, TMS) δ (ppm): 2.28 (s, 3H, 4"-CH3); 2.36 (s, 3H,
4'-CH3); 5.14 (s, 1H, H-7"); 6.64 (dd, 1H, J = 0.7 and 8.3 Hz, H-6); 6.70 (dd, 1H, J = 0.7 and 8.3 Hz,
H-8); 7.01 (d, 2H, J = 8.2 Hz, H-2",6"); 7.06 (d, 2H, J = 8.2 Hz, H-3",5"); 7.13 (br s, 1H, H-3'); 7.14
(s, 1H, H-2); 7.20 (br d, 1H, J = 7.9 Hz, H-5'); 7.47 (t, 1H, J = 8.3 Hz, H-7); 7.67 (d, 1H, J = 7.9 Hz,
13
H-6'); 11.90 (s, 1H, 9-OH); 12.05 (s, 1H, 1-OH). C-NMR (75 MHz, CDCl3, TMS) δ (ppm): 21.1
(4"-CH3); 21.8 (4'-CH3); 51.5 (C-7"); 102.1 (C-2); 106.4 (C-10a); 106.9 (C-6); 107.8 (C-9a); 110.7
(C-8); 121.1 (C-6'); 123.3 (C-4); 126.1 (C-3'); 128.0 (C-2" and C-6"); 128.6 (C- 5'); 129.2 (C-3" and
C-5"); 136.4 (C-4"); 136.8 (C-1"*); 136.9 (C-7); 137.0 (C-1'*); 140.3 (C-4'); 150.7 (C-2'); 151.4
(C-4a); 152.0 (C-3); 155.9 (C-5a); 161.3 (C-9); 162.2 (C-1); 185.5 (C-10) * May be interchanged.
ESI-MS m/z 421 [M+H]+; 443 [M+Na]+, 459 [M+K]+. HR-ESIMS (positive ion): m/z calcd. for
C28H20O4 [M]+, 420.1362; found, 420.1364.
1,8-Dihydroxy-4-[(4-methylphenyl)hydroxymethyl]-3-(4-methylphenyl)-9H-xanthen-9-one (11b). This
compound was obtained by the treatment of a solution of (E)-8-hydroxy-4-(4-methylbenzylidene)-3-
(4-methylphenyl)-3,4-dihydro-1H-xanthene-1,9(2H)-dione (5b, 58.8 mg, 0.14 mmol) in dried 1,2,4-
trichlorobenzene (TCB) (10 mL) and in the presence of 100 mg molecular sieves with DQQ (1.3 equiv,
42.0 mg, 0.18 mmol). The mixture was then irradiated in an Ethos SYNTH microwave (Milestone Inc.)
at 100 °C for 30 min. After this the TCB was removed by column chromatography using hexane as
eluent and the reaction mixture was eluted with CH2Cl2. The desired compound 11b was obtained by
TLC purification using a mixture of hexane/CH2Cl2 (3:2) as eluent, as yellow crystals, 30% yield
1
(18.6 mg). M.p. 134–136 °C; H-NMR (300 MHz, CDCl3, TMS) δ (ppm): 2.29 (s, 3H, 4"-CH3); 2.39
(s, 3H, 4'-CH3); 6.02 (d, 1H, J = 9.0 Hz, H-7"); 6.55 (br d, 1H, J = 8.2 Hz, H-6); 6.74 (dd, 1H, J = 0.7 and
8.2 Hz, H-8); 6.79 (s, 1H, H-2); 7.07 (d, 2H, J = 8.0 Hz, H-3",5"); 7.17 (d, 2H, J = 8.0 Hz, H-2",6");
7.22 (d, 2H, J = 8.1 Hz, H-3',5'); 7.28 (d, 2H, J = 8.1 Hz, H-2',6'); 7.48 (t, 1H, J = 8.2 Hz, H-7); 11.70
13
(s, 1H, 9-OH); 11.84 (s, 1H, 1-OH). C-NMR (75 MHz, CDCl3, TMS) δ (ppm): 21.0 (4"-CH3); 21.2
(4'-CH3); 70.8 (C-7"); 106.7 (C-6); 107.4 (C-10a); 107.6 (C-9a); 111.1 (C-8); 112.6 (C-2); 119.5 (C-4);
125.1 (C-2" and C-6"); 128.6 (C-2' and C-6'); 128.8 (C-3" and C-5"); 129.2 (C-3' and C-5'); 136.4 (C-1'
and C-4"); 137.4 (C-7); 138.3 (C-4'); 140.8 (C-1"); 151.9 (C-3); 154.6 (C-4a); 155.5 (C-5a); 159.8 (C-1);
161.2 (C-9); 185.8 (C-10). ESI-MS m/z 421 [M−18+H]+, 443 [M−18+Na]+, 459 [M−18+K]+. HR-ESIMS
(positive ion): m/z calcd. for C28H20O5 [M]+, 438,1467; found, 438.1477.
6,8,13-Trihydroxy-2-methyl-13-(4-methyphenyl)indeno[1,2-c]xanthen-7(13H)-one
(12b).
This
compound was obtained by the treatment of a solution of (E)-8-hydroxy-4-(4-methylbenzylidene)-3-
(4-methylphenyl)-3,4-dihydro-1H-xanthene-1,9(2H)-dione (5b, 57.6 mg, 0.14 mmol) in dried 1,24-

Molecules 2014, 19
8330
trichlorobenzene (TCB) (10 mL) and in the presence of 100 mg molecular sieves with chloranil
(2.0 equiv, 68.0 mg, 0.28 mmol). The mixture was then irradiated in an Ethos SYNTH microwave
(Milestone Inc.) at 170 °C for 30 min. After this the TCB was removed by column chromatography
using hexane as eluent and a semi-purified fraction was eluted with CH2Cl2. The desired compound
12b was obtained by TLC purification using a mixture of hexane/CH2Cl2 (3:2) as eluent, as yellow
1
crystals, 34% yield (20.7 mg). D.p. 145 °C; H-NMR (300 MHz, CDCl3, TMS) δ (ppm): 2.29 (s, 3H,
4"-CH3); 2.35 (s, 3H, 4'-CH3); 6.70 (dd, 1H, J = 0.8 and 8.3 Hz, H-6); 6.73 (dd, 1H, J = 0.8 and 8.3 Hz,
H-8); 7.07 (s, 1H, H-2); 7.08 (d, 2H, J = 8.4 Hz, H-3",5"); 7.18 (d, 1H, J = 0.9 Hz, H-3'); 7.20–7.23
(m, 1H, H-5'); 7.33 (d, 2H, J = 8.4 Hz, H-2",6"); 7.50 (t, 1H, J = 8.3 Hz, H-7); 7.58 (d, 1H, J = 7.7 Hz,
13
H-6'); 11.81 (s, 1H, 9-OH); 12.22 (s, 1H, 1-OH). C-NMR (75 MHz, CDCl3, TMS) δ (ppm): 21.1
(4"-CH3); 21.8 (4'-CH3); 83.1 (C-7"); 102.5 (C-2); 106.7 (C-10a); 107.2 (C-6); 107.6 (C-9a); 111.0
(C-8); 121.3 (C-6'); 125.1 (C-3', C-2" and C-6"); 128.9 (C-3" and C-5"); 130.1 (C-5'); 134.9 (C-1');
137.0 (C-4"); 137.1 (C-7); 139.0 (C-4 and C-1"); 141.5 (C-4'); 150.2 (C-3 *); 151.5 (C-4a); 152.8 (C-2' *);
155.8 (C-5a); 161.2 (C-9); 163.7 (C-1); 185.3 (C-10) *May be interchanged. ESI-MS m/z 459 [M+Na]+.
HR-ESIMS (positive ion): m/z calcd. for C28H21O5 [M+H]+, 437.1384; found, 437.1380.
3.3. Determination of the Reducing Power
The reductive potential of the compounds and standard was determined according to a previously
described method [17]. An aliquot of the sample or standard (1.0 mL) at various concentrations
(20–80 μg/mL in DMSO) was mixed with phosphate buffer (0.2 mol L−1, pH 6.6, 1.25 mL) and 1%
potassium ferricyanide (1.25 mL). The mixture was incubated at 50 °C for 20 min. After cooling,
1.25 mL of 10% trichloroacetic acid was added and the mixture incubated at 50 °C for 10 min.
1.25 mL of this solution was mixed with distilled water (1.25 mL) and 0.1% iron(III) chloride
(0.25 mL) and the absorbance measured at 700 nm using an appropriate blank. Assays were carried out
in triplicate.
3.4. DPPH Radical Scavenging Assay
Antioxidant activity was assayed by the DPPH (1,1-diphenyl-2-picrylhydrazyl) radical scavenging
assay using the Blois method modified [24]. Briefly, different volumes of the ethanolic solutions of
each compound or standard (1–100 µM) were added fixed volume of DPPH ethanolic solution (400 µL
of the solution 0.6 mM) and solvent (ethanol) to obtain, in each case, a fixed total volume. In each
assay, a control was prepared, in which the compound or standard (quercetin and BHT) was substituted
by the same amount of solvent. The mixture was shaken vigorously and left to stand for 30 min in the
dark, and the absorbance was then measured at 517 nm. The capability to scavenge the DPPH radical
was calculated using the following equation:
DPPH scavenging activity (%) = [(Ac − As)/Ac] × 100
(1)
where, Ac is the absorbance of the control and As is the absorbance of the compound or standard. All
assays were carried out in triplicate and results expressed as EC50, i.e., as the concentration yielding
50% scavenging of DPPH, calculated by interpolation from the % vs. concentration curve.

Molecules 2014, 19
8331
3.5. Microplate Assay for AChE Activity
The AChE activity was evaluated using the method described by Ellman et al. [25] and
Ingkaninan et al. [26], modified. Briefly, 10 μL of 0.25 U/mL AChE from Electrophorus electricus
(Sigma-Aldrich® Chemical Company, St. Louis, MO, USA) was added to the wells containing sample
in different concentrations, and allowed to incubate for 5 min. Reaction was started by the addition
5 μL of 3 mM 5,5'-dithiobis[2-nitrobenzoic acid] (DTNB,) and 5 μL of 75 mM acetylthiocholine
iodide (ATCI; Fluka Chemicals, Buchs, Switzerland). The absorbance was then read at 415 nm
every 2.5 min for 7.5 min in a Bio Rad Model 680 Microplate Reader (Bio-Rad Laboratories, Inc.,
Hercules, CA, USA). Percentage of enzymatic inhibition was calculated relatively to the control
without inhibitor. Every experiment was done in quadruplicate. To determine IC50 values, EPA
PROBIT ANALYSIS PROGRAM Version 1.4 was used.
4. Conclusions
In conclusion, (E)-3-aryl-4-benzylidene-8-hydroxy-3,4-dihydro-1H-xanthene-1,9(2H)-diones 5 can
be successfully obtained by simple and efficient methodologies from (E,E)-3-cinnamoyl-5-hydroxy-2-
styrylchromones 4. These compounds seem to be good synthons towards new interesting xanthone
derivatives and, with the appropriate substitution patterns, powerful antioxidants and AChEI.
The combination of these activities and the inhibition type displayed by these compounds suggest
that they may be the excellent templates for drugs to be used in the prevention and treatment of
neurodegenerative diseases.
Acknowledgments
We would like to thank University of Aveiro, University of Azores, FRC for funding CIRN,
Fundação para a Ciência e a Tecnologia (FCT, Portugal), the European Union, QREN, FEDER,
COMPETE, for funding the Organic Chemistry Research Unit (QOPNA) (project PEst-C/QUI/
UI0062/2013; FCOMP-01-0124-FEDER-037296) and the Portuguese National NMR Network (RNRMN).
Author Contributions
D.C.G.A.P. and A.M.S.S. designed research; A.M.L.S., S.B.L. and D.C.G.A.P. performed the
synthesis and the reducing power and radical scavenging activity assays; M.C.B. performed the
Anti-AChE assay; D.C.G.A.P., A.M.L.S. and A.M.S.S. analyzed the data and wrote the paper. All
authors read and approved the final manuscript.
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Pohanka, M. Role of oxidative stress in infectious diseases. A review. Folia Microbiol. 2013, 58,
503–513.

Molecules 2014, 19
8332
2. Swerdlow, R.S. Alzheimer’s disease pathologic cascades: Who comes first, what drives what.
Neurotox. Res. 2012, 22, 182–194.
3. Pohanka, M. Alzheimer’s disease and oxidative stress: A review. Curr. Med. Chem. 2014, 21,
356–364.
4. Pohanka, M. Cholinesterases, a target of pharmacology and toxicology. Biomed. Pap. Med. Fac.
Univ. Palacky Olomouc Czech Repub. 2011, 155, 219–230.
5. Parsons, C.G.; Danysz, W.; Dekundy, A.; Pulte, I. Memantine and cholinesterase inhibitors:
Complementary mechanisms in the treatment of Alzheimer’s disease. Neurotox. Res. 2013, 24,
358–369.
6. Houghton, P.J.; Ren, Y.; Howes, M.-J. Acetylcholinesterase inhibitors from plants and fungi.
Nat. Prod. Rep. 2006, 23, 181–199.
7. Brühlmann, C.; Marston, A.; Hostettmann, K.; Carrupt, P.-A.; Testa, B. Screening of non-alkaloidal
natural compounds as acetylcholinesterase inhibitors. Chem. Biodiver. 2004, 1, 819–829.
8. Kumar, G.S.S.; Prabhu, A.A.M.; Seethalashmi, P.G.; Bhuvanesh, N.; Kumaresan, S.
Self-catalyzed syntheses, structural characterization, DPPH radical scavenging-, cytotoxicity-, and
DFT studies of phenoxyaliphatic acids of 1,8-dioxo-octahydroxanthene derivatives. J. Mol. Struct.
2014, 1059, 51–60.
9. Verma, G.K.; Raghuvanshi, K.; Verma, R.K.; Dwivedi, P.; Singh, M.S. An efficient one-pot
solvent-free synthesis and photophysical properties of 9-aryl/alkyl-octahydroxanthene-1,8-diones.
Tetrahedron 2011, 67, 3698–3704.
10. Gabbutt, C.D.; Hepworth, J.D.; Urquhart, M.W.J.; de Miguel, L.M.V. Synthesis and conjugate
additions of 2,3,4,9-tetrahydro-1H-xanthene-1,9-diones. J. Chem. Soc. Perkin Trans. 1 1997, 12,
1819–1824.
11. Pinto, D.C.G.A.; Seca, A.M.L.; Leal, S.B.; Silva, A.M.S.; Cavaleiro, J.A.S. A novel short-step
synthesis of new xanthenedione derivatives from the cyclization of 3-cinnamoyl-2-styrylchromones.
Synlett 2011, 2011, 2005–2008.
12. Pinto, D.C.G.A.; Silva, A.M.S.; Cavaleiro, J.A.S. A convenient synthesis of new (E)-5-hydroxy-
2-styrylchromones by modifications of the Baker-Venkataraman method. New J. Chem. 2000, 24,
85–92.
13. Morlière, P.; Patterson, L.K.; Santos, C.M.M.; Silva, A.M.S.; Mazière, J.-C.; Filipe, P.; Gomes, A.;
Fernandes, E.; Garcia, M.B.Q.; Santus, R. The dependence of α-tocopheroxyl radical reduction by
hydroxy-2,3-diarylxanthones on structure and microenvironment. Org. Biomol. Chem. 2012, 10,
2068–2076.
14. Brito, C.M.; Pinto, D.C.G.A.; Silva, A.M.S.; Silva, A.M.G.; Tomé, A.C.; Cavaleiro, J.A.S.
Diels-Alder reactions of 2'-hydroxychalcones with ortho-benzoquinodimethane: A new synthesis
of 3-aryl-2-naphthyl 2-hydroxyphenyl ketones. Eur. J. Org. Chem. 2006, 2558–2569.
15. Shahidi, F.; Naczk, M. Food Phenolics: Sources, Chemistry, Effects and Applications; Technomic
Publishing Company, Inc.: Lancaster, UK, 1995.
16. Vladimir-Knežević, S.; Blažeković, B.; Štefan, M.B.; Alegro, A.; Kőszegi, T.; Petrik, J.
Antioxidant activities and polyphenolic contents of three selected Micromeria species from Croatia.
Molecules 2011, 16, 1454–1470.

Molecules 2014, 19
8333
17. Oyaizu, M. Studies on products of browning reaction. Antioxidative activities of products of
browning reaction prepared from glucosamine. Jpn. J. Nutr. 1986, 44, 307–315.
18. Zhang, S.S.; Ma, Q.Y.; Zou, X.S.; Dai, H.F.; Huang, S.Z.; Luo, Y.; Yu, Z.F.; Luo, H.R.;
Zhao, Y.X. Chemical constituents from the fungus Amauroderma amoiensis and their in vitro
acetylcholinesterase inhibitory activities. Planta Med. 2013, 79, 87–91.
19. Muñoz-Ruiz, P.; Rubio, L.; García-Palomero, E.; Dorronsoro, I.; Monte-Millán, M.; Valenzuela, R.;
Usán, P.; Austria, C.; Bartolini, M.; Andrisano, V.; et al. Design, Synthesis, and biological
evaluation of dual binding site acetylcholinesterase inhibitors: New disease-modifying agents for
Alzheimer’s disease. J. Med. Chem. 2005, 48, 7223–7233.
20. Zhong, H.A.; Mashinson, V.; Woolman, T.A.; Zha, M. Understanding the molecular properties
and metabolism of top prescribed drugs. Curr. Top. Med. Chem. 2013, 13, 1290–1307.
21. The Parameters for Drug-Likeness were Evaluated According to the Lipinski’s ‘Rule-of-Five’,
Using the Molinspiration WebME Editor 3.81. Available online: http://www.molinspiration.com/
cgi-bin/properties (accessed on 20 April 2014).
22. Veber, D.F.; Johnson, S.R.; Cheng, H.Y.; Smith, B.R.; Ward, K.W.; Kopple, K.D. Molecular
properties that influence the oral bioavailability of drugs candidates. J. Med. Chem. 2002; 45,
2615–2623.
23. Zakeri-Milani, P.; Tajerzadeh, H.; Islambolchilar, Z.; Barzegar, S.; Valizadeh, H. The relation
between molecular properties of drugs and their transport across the intestinal membrane. DARU
2006, 14, 164–171.
24. Blois, M.S. Antioxidant determinations by the use of a stable free radical. Nature 1958, 181,
1199–1200.
25. Ellman, G.L.; Courtney, K.D.; Andres, V.; Featherstone, R.M. A new and rapid colorimetric
determination of acetylcholinesterase activity. Biochem. Pharmacol. 1961, 7, 88–95.
26. Ingkaninan, K.P.; Temkitthawon, P.; Chuenchom, K.; Yuyaem, T.; Thongnoi, W. Screening for
acetylcholinesterase inhibitory activity in plants used in Thai traditional rejuvenating and
neurotonic remedies. J. Ethnopharmacol. 2003, 89, 261–264.
Sample Availability: Not available.
© 2014 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
