spectra of 1 in CHCl3 in the presence of incremental amounts
of C60, exhibiting a substantial decrease of the Soret band as
well as an increase of a band at 450 nm. Since the van der Waals
diameter of C60 is about 1 nm,13 p–p stacking (sandwich
formation) between the bisporphyrins in 1 and fullerene is
likely (Fig. 4b). While these results are preliminary, they do
show that alternatingly functionalized celluloses are expected
to become a novel type of synthetic molecular receptors owing
to their inherent scaffolding properties.
Fig. 3 Schematic drawing of a cellulose helix that is left-handed, with
exactly three anhydroglucopyronose (AHG) residues per turn of the
helix. Two turns are shown, so that the first, fourth and seventh AHG
residue all have the same orientation. Each O6 is labeled, and every
other O6 has a circle around it to represent a porphyrin substituent.
Also shown are two ‘‘helical threads’’ that connect the O6 atoms.5
(A similar thread could connect any particular type of atom, as long as
the molecule is a helix.) One of the threads connects all of the O6
atoms, and it is left-handed. The other helix only connects the circled
O6 atoms, and it is right-handed. Since the CD measurements detect
only the chromophoric porphyrin rings at every second AHG unit, a
right-handed helix is reported, even though the helical thread through
all of the O6 (in every AHG unit) is left-handed.
In conclusion, we have demonstrated for the first time the
right-handedness of an alternatingly porphyrinated cellotriose.
This finding provides an excellent argument in favor of the high
application potential of alternatingly functionalized celluloses,
and a good strategy for the preparation of the corresponding
model compounds.
The authors thank Dr C. Obinger and Dr P. Furtmueller
(BOKU) for support for CD measurement and Dr A. Hofinger
(BOKU) for support for NMR measurement. The financial
support by the Austrian BMLFUW Ministry (Project
‘‘Multifunctional celluloses’’) is gratefully acknowledged.
K.S. acknowledges the Foundation of Yoshida Science and
Technologies.
Notes and references
1 (a) D. Klemm, B. Heublein, H.-P. Fink and A. Bohn, Angew.
Chem., Int. Ed., 2005, 44, 3358; (b) Y. Nishio, Adv. Polym. Sci.,
2006, 205, 97.
2 H. Wondraczek, A. Kotiaho, P. Fardim and T. Heinze, Carbohydr.
Polym., 2011, 83, 1048.
Fig. 4 (a) UV–VIS absorption changes of 1 (c = 2.5 mM) upon
addition of C60 (1, 2, 3, 4, and 5 eq.) in CHCl3. The absorbance
of fullerene had been subtracted from the spectra. (b) Schematic
representation of the C60 assembly with 1.
3 (a) K. Sakakibara, Y. Ogawa and F. Nakatsubo, Macromol. Rapid
Commun., 2007, 28, 1270; (b) K. Sakakibara and F. Nakatsubo,
Macromol. Chem. Phys., 2008, 209, 1274; (c) K. Sakakibara and
F. Nakatsubo, Macromol. Chem. Phys., 2010, 211, 2429.
4 (a) B. R. Harkness and D. G. Gray, Macromolecules, 1990,
23, 1452; (b) B. R. Harkness and D. G. Gray, Macromolecules,
1991, 24, 1800; (c) Y. Nishio, Y. Tani, N. Kimura, H. Suzuki,
S. Ito, M. Yamamoto, B. R. Harkness and D. G. Gray, Macro-
molecules, 1995, 28, 3818; (d) E. Yashima, J. Noguchi and
Y. Okamoto, Macromolecules, 1995, 28, 8368; (e) R. Aburatani,
Y. Okamoto and K. Hatada, Bull. Chem. Soc. Jpn., 1990, 63, 3606;
(f) F. X. Redl, M. Lutz and J. Daub, Chem.–Eur. J., 2001, 7, 5350.
5 A. D. French and G. P. Johnson, Cellulose, 2004, 11, 5.
6 (a) A. R. Engle, N. Purdie and J. A. Hyatt, Carbohydr. Res., 1994,
265, 181; (b) A. M. Ritcey and D. G. Gray, Biopolymers, 1988,
27, 479.
alternatingly functionalized celluloses has not been recognized
so far because of the weak intensity, and the right-handedness
derived from alternatingly substituted porphyrins on the
cellotriose backbone is revealed for the first time.

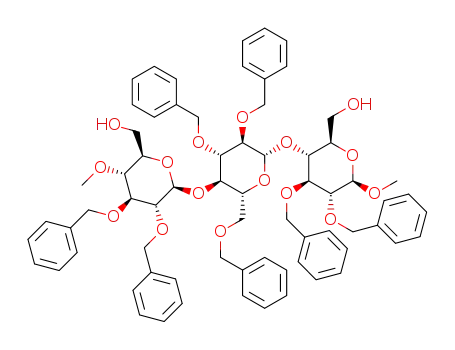

Analogous to cellulose, the backbone of the cellotriose
segment would take a left-handed twist, which was confirmed
by QM minimizations of 1. The values of the interglycosidic
torsion angles f and c were within the observed range for
crystal structures.5 At the same time, the porphyrin groups, as
demonstrated herein, have a right-handed helical character,
which puts the question how a left-handed cellulose helix can
give rise to a right-handed chromophore helix? The reason for
the opposite handedness is the placement of the porphyrins on
every second anhydroglucopyranose unit. Consider a 3-fold
cellulose helix with perfect 3-fold screw-axis symmetry (Fig. 3):
a left-handed helix is generated when the glucose residues are
each rotated ꢀ1201 and advanced 5 A along the helix axis
from their predecessor’s positions. The porphyrin residues are
rotated ꢀ2401 since they are on every second residue only.
At the same time, by the rules of helix definition, one would
define this helix by rotating instead +1201, giving a right-
handed helix of chromophores (Fig. 3). These theoretical
considerations explain and confirm the above experimental
observations.
7 Y. Okamoto, J. Polym. Sci., Part A-1: Polym. Chem., 2008,
47, 1731.
8 M. Hirota, K. Furihata, T. Saito, T. Kawada and A. Isogai,
Angew. Chem., Int. Ed., 2010, 49, 7670.
9 (a) I. D. Mackie, J. Rohrling, R. O. Could, J. Pauli, C. Jager,
¨
¨
M. Walkinshaw, A. Potthast, T. Rosenau and P. Kosma,
Carbohydr. Res., 2002, 337, 161; (b) M. del Carmen Ruiz Ruiz,
J. Querner, I. Adorjan, P. Kosma and T. Rosenau, Macromol.
Symp., 2006, 232, 68.
10 (a) S. Matile, N. Berova, K. Nakanishi, S. Novkova, I. Philipova
and B. Blagoev, J. Am. Chem. Soc., 1995, 117, 7021; (b) X. Li and
B. Borhan, J. Am. Chem. Soc., 2008, 130, 16126.
11 (a) K. Tashiro, T. Aida, J.-Y. Zheng, K. Kinbara, K. Saigo,
S. Sakamoto and K. Yamaguchi, J. Am. Chem. Soc., 1999,
121, 9477; (b) Z.-Q. Wu, X.-B. Shao, C. Li, J.-L. Hou, K. Wang,
X.-K. Jiang and Z.-T. Li, J. Am. Chem. Soc., 2005, 127, 17460;
(c) N. Berova, G. Pescitelli, A. G. Petrovic and G. Proni, Chem.
Commun., 2009, 5958.
To demonstrate the receptor ability of 1, supramolecular
complexes formed between the porphyrin tweezers host and
fullerene (C60) were analyzed. Fig. 4a presents the UV–Vis
12 Y. Qiu, P. Chen and M. Liu, J. Am. Chem. Soc., 2010, 132, 9644.
¨
13 W. Kratschmer, L. D. Lamb, K. Fostiropoulos and D. R. Huffman,
Nature, 1990, 347, 354.
