Synthesis, characterisation and catalytic activity of 4, 5-imidazoledicarboxylate ligated Co(II) and Cd(II) metal-organic coordination complexes

Article abstract of DOI:10.1016/j.molstruc.2017.04.083

Two mono nuclear coordination complexes, namely, [Co(4,5-Imdc)₂ (H₂O)₂] (1) and [Cd(4,5-Imdc)₂(H₂O)₃]·H₂O (2) were constructed using Co(II) and Cd(II) metal salts with 4,5-Imidazoledicarboxylic acid (4,5-Imdc) as organic ligand. Both 1, 2 were structurally characterized by single crystal XRD and the results reveal that 1 belongs to P21/n space group with unit cell parameters [a?=?5.0514(3) ?, b?=?22.5786(9) ?, c?=?6.5377(3) ?, β?=?111.5°] whereas, 2 belongs to P21/c space group with unit cell parameters [a?=?6.9116(1) ?, b?=?17.4579(2) ?, c?=?13.8941(2) ?, β?=?97.7°]. While Co(II) in 1 exhibited a six coordination geometry with 4,5-Imdc and water molecules, Cd(II) ion in 2 showed a seven coordination with the same ligand and solvent. In both 1 and 2, the hydrogen bond interactions with mononuclear unit generated 3D-supramolecular structures. Both complexes exhibit solid state fluorescent emission at room temperature. The efficacy of both the complexes as heterogeneous catalysts was examined in the green synthesis of six pyrano[2,3,c]pyrazole derivatives with ethanol as solvent via one-pot reaction between four components, a mixture of aromatic aldehyde, malononitrile, hydrazine hydrate and dimethyl acetylenedicarboxylate. Both 1 and 2 have produced pyrano [2,3,c]pyrazoles in impressive yields (92–98%) at room temperature in short interval of times (<20?min), with no need for any chromatographic separations. With good stability, ease of preparation and recovery plus reusability up to six cycles, both 1 and 2 prove to be excellent environmental friendly catalysts for the value-added organic transformations using green principles.

Full text of DOI:10.1016/j.molstruc.2017.04.083

Accepted Manuscript
Synthesis, characterisation and catalytic activity of 4, 5-imidazoledicarboxylate ligated
Co(II) and Cd(II) metal-organic coordination complexes
Kranthi Kumar Gangu, Suresh Maddila, Saratchandra Babu Mukkamala, Sreekantha
B. Jonnalagadda
PII:
S0022-2860(17)30537-9
10.1016/j.molstruc.2017.04.083
MOLSTR 23706
DOI:
Reference:
To appear in: Journal of Molecular Structure
Received Date: 6 March 2017
Revised Date: 20 April 2017
Accepted Date: 21 April 2017
Please cite this article as: K.K. Gangu, S. Maddila, S.B. Mukkamala, S.B. Jonnalagadda, Synthesis,
characterisation and catalytic activity of 4, 5-imidazoledicarboxylate ligated Co(II) and Cd(II)
metal-organic coordination complexes, Journal of Molecular Structure (2017), doi: 10.1016/
j.molstruc.2017.04.083.
This is a PDF file of an unedited manuscript that has been accepted for publication. As a service to
our customers we are providing this early version of the manuscript. The manuscript will undergo
copyediting, typesetting, and review of the resulting proof before it is published in its final form. Please
note that during the production process errors may be discovered which could affect the content, and all
legal disclaimers that apply to the journal pertain.

ACCEPTED MANUSCRIPT
Synthesis, characterisation and catalytic activity of 4, 5-
imidazoledicarboxylate ligated Co(II) and Cd(II) metal-organic
coordination complexes
Kranthi Kumar Gangu a, Suresh Maddila a, Saratchandra Babu Mukkamala b, Sreekantha B
Jonnalagadda a,*
a,* School of Chemistry & Physics, University of KwaZulu-Natal, Westville Campus, Private
Bag X54001, Durban 4000, South Africa
b Department of Chemistry, GITAM Institute of Science, GITAM University, Visakhapatnam
– 530045, Andhra Pradesh, India.
*Corresponding Author: Sreekantha B. Jonnalagadda
School of Chemistry & Physics,
University of KwaZulu-Natal,
Durban 4000, South Africa
Tel.: +27 31 2607325,
Fax: +27 31 2603091
E-mail address: jonnalagaddas@ukzn.ac.za
Graphical Abstract:

ACCEPTED MANUSCRIPT
Synthesis, characterisation and catalytic activity of 4, 5-
imidazoledicarboxylate ligated Co(II) and Cd(II) metal-organic
coordination complexes
Kranthi Kumar Gangu a, Suresh Maddila a, Saratchandra Babu Mukkamala b, Sreekantha B
Jonnalagadda a,*
a,* School of Chemistry & Physics, University of KwaZulu-Natal, Westville Campus, Private
Bag X54001, Durban 4000, South Africa
b Department of Chemistry, GITAM Institute of Science, GITAM University, Visakhapatnam
– 530045, Andhra Pradesh, India.
*Corresponding Author: Sreekantha B. Jonnalagadda
School of Chemistry & Physics,
University of KwaZulu-Natal,
Durban 4000, South Africa
Tel.: +27 31 2607325,
Fax: +27 31 2603091
E-mail address: jonnalagaddas@ukzn.ac.za
Abstract:
Two mono nuclear coordination complexes, namely, [Co(4,5-Imdc)2 (H2O)2] (1) and [Cd(4,5-
Imdc)2(H2O)3].H2O (2) were constructed using Co(II) and Cd(II) metal salts with 4,5-
Imidazoledicarboxylic acid (4,5-Imdc) as organic ligand. Both 1, 2 were structurally
characterized by single crystal XRD and the results reveal that 1 belongs to P21/n space
group with unit cell parameters [a = 5.0514(3) Å, b = 22.5786(9) Å, c = 6.5377(3) Å, β =
111.5o] whereas, 2 belongs to P21/c space group with unit cell parameters [a = 6.9116(1) Å,
b = 17.4579(2) Å, c = 13.8941(2) Å, β = 97.7o]. While Co(II) in 1 exhibited a six
coordination geometry with 4,5-Imdc and water molecules, Cd(II) ion in 2 showed a seven
coordination with the same ligand and solvent. In both 1 and 2, the hydrogen bond
interactions with mononuclear unit generated 3D-supramolecular structures. Both complexes
exhibit solid state fluorescent emission at room temperature. The efficacy of both the
complexes as heterogeneous catalysts was examined in the green synthesis of six

ACCEPTED MANUSCRIPT
pyrano[2,3,c]pyrazole derivatives with ethanol as solvent via one-pot reaction between four
components, a mixture of aromatic aldehyde, malononitrile, hydrazine hydrate and dimethyl
acetylenedicarboxylate. Both 1 and 2 have produced pyrano[2,3,c]pyrazoles in impressive
yields (92-98%) at room temperature in short interval of times (< 20 min), with no need for
any chromatographic separations. With good stability, ease of preparation and recovery plus
reusability up to six cycles, both 1 and 2 prove to be excellent environmental friendly
catalysts for the value-added organic transformations using green principles.
Keywords: Metal-organic coordination compound; 4,5-imidazoledicarboxylic acid;
Hydrothermal
synthesis;
Heterogeneous
catalysis;
Multi-component
reaction;
Pyranopyrazoles.
1. Introduction
Metal-organic coordination compounds form important division of advanced materials which
generally possess both the organic and inorganic characteristics [1-4]. The construction of
coordination compounds involves the combination of metal ions/clusters and organic linkers,
which cause the unique characteristics to their structures [5-7]. The high surface area, tunable
pore apertures and low density etc., of compounds provide prospective scope in the catalysis,
gas storage, drug delivery, magnetism and optical fields [8-11]. The Coordination compounds
are preferred as finest choice for many value-added applications due to their permanent
porous nature which can be utilized for a cause and then regained without any damage to the
framework [12-15]. The structural integrity of coordination compounds mainly depends upon
the nature of metal ion and ligand, while pH, solvent, temperature and metal/ligand ratios
have significant influence [16-19]. Appropriate selection of ligands is of main priority for a
well-designed compound with unique properties [20-23]. N-heterocyclic aromatic

ACCEPTED MANUSCRIPT
carboxylates, especially 4,5-imidazoledicarboxylic acid (4,5-Imdc) is a well-known
polycarboxylate ligand with versatile coordination modes, with two nitrogen and four oxygen
atoms that can form coordination bonds in the preparation of adaptable coordination
compounds [24, 25]. In addition to the six donor atoms, 4,5-Imdc can also induce non-
covalent interactions like hydrogen bonding, which tend to develop a new supramolecular
topology and higher dimensionality compounds. More than thirteen coordination modes are
possibly exhibited with six donor atoms of 4,5-Imdc ligand and in a supramolecular
assembly, probable connections between the units can be achieved only through de-
protonation of carboxylic groups of ligand [26-30].
One of the distinct advantages of metal-organic coordination compounds is in heterogeneous
catalysis, as they possess active sites in both the metal centre and organic linker which can
possibly contribute to their enhanced activity [31, 32]. The flexibility in their synthesis and
effective control over their pore sizes, place the compounds in the frontier ahead of activated
carbon and zeolites. For the last one decade, the utilization of coordination compounds has
increased as alternative catalysts due to their simple separation, reusability and lesser
leaching tendencies [33, 34]. As of now, variety of coordination compounds have been
employed as solid catalysts or catalyst supports for a various organic transformations viz.
Knoevenagel condensation [35], oxidation [36], aldol condensation [37], Friedel–Crafts
reactions [38], hydrogenation [39], Biginelli reaction [40] etc. Most of the catalysed organic
reactions occur due to the development of unsaturated metal sites in complex structure and
their Lewis or Brønsted acidic character [41]. To build chemically and thermally stable
coordination complexes, in addition to the use of modern synthetic techniques, high valence
metal ions and N, O containing ligands are employed [42].
Multi-component reaction (MCR) is an attractive synthetic option for various organic
reactions relative to the traditional multi-step procedure, where all reactants (more than two)

ACCEPTED MANUSCRIPT
are placed in a single container for producing the desired products with no need for
separation and purification of intermediates [43, 44]. The use of MCR approach has rapidly
expanded in the synthetic chemistry in developing novel multi-substituted heterocyclic
molecules. Heterocyclic compounds, especially pyranopyrazoles have been extensively
explored for their pharmacological and physiological active characteristics. Pyranopyrazole
derivatives are widely utilised in the manufacturing of active compounds containing the
anticancer, antimalarial, antiulcer and anti-depressant activities [45]. Hence, the methods for
synthesis of pyranopyrazoles in an environmentally benign manner are of importance.
Various researchers have reported synthesis of pyranaopyrazoles derivatives by using
different methods and catalysts with different magnitude of limitations and successes [46,
47]. Literature shows that Moosavi et al. [48] have prepared pyrano[2,3-c]pyrazole
derivatives through one-pot, four-component condensation of mixture of aromatic aldehyde,
o
malononitrile, hydrazine hydrate and ethyl acetoacetate under no solvent condition at 80 C
by using heterogeneous ionic liquid catalyst as disulfonic acid imidazolium chloroaluminate
{[Dsim]AlCl4}. Zolfigol et al. [49] have synthesised varied pyrano[2,3-c]pyrazoles using
o
isonicotinic acid as catalyst under solvent free conditions at 85 C by employing aromatic
aldehydes, malononitrile, hydrazine hydrate and ethyl acetoacetate. Tamaddon and Alizadeh
[50] have reported the preparation of pyrano[2,3-c]pyrazoles and the reaction comprised of
o
aryl aldehyde, malononitrile, hydrazine hydrate and ethyl acetoacetate in water at 50-60 C
and biodegradable surfactant Cocamidopropyl betaine (CAPB) as catalyst giving 88-96 %
yields. In most cases, those reactions demanded refluxing or higher temperature conditions
plus and needed longer reaction times. In earlier studies, we have reported the synthesis of
varied heterogeneous catalysts and their catalytic performance in the preparation of different
heterocyclic moieties of interest with excellent yields [51-53].

ACCEPTED MANUSCRIPT
In this communication we report the preparation of two coordination complexes, namely
[Co(4,5-Imdc)2 (H2O)2] (1) and [Cd(4,5-Imdc)2(H2O)3].H2O (2) by hydrothermal technique
and elucidation of their structures. The efficacy of the two complexes as heterogeneous
catalysts was examined for selective synthesis of pyrano[2,3,c]pyrazole derivatives involving
four components and one-pot reaction.
2. Experimental
2.1 Materials and methods
Reagent grade chemicals and solvents were used as supplied with no further purification.
Cadmium nitrate tetrahydrate, Cd(NO3)2⋅4H2O (Acros Organics); Cobalt nitrate hexahydrate,
Co(NO3)3.6H2O (Merck, Germany); 4,5-Imidazole dicarboxylic acid (Sigma-Aldrich); N,N'
dimethylformamide, Ethanol, Methanol (Merck, Germany); All aromatic aldehydes,
hydrazine hydrate, malononitrile, and dimethyl acetylene dicarboxylate were purchased from
Sigma Aldrich. De-ionised water was used throughout the experiment. Perkin Elmer
“Spectrum Two” FT-IR spectrophotometer was used to obtain the infrared spectra. “Mettler
Toledo TGA/DSC-1” apparatus was used for thermogravimetric analysis under N2 in the
o
o
temperature range 25 and 800 C, with a heating rate of 10 C min-1. The C, H, and N
microanalyses were performed with the Thermo Scientific FLASH-2000 elemental analyzer.
Luminescence spectrum of the solid sample was recorded at room temperature using a Perkin
15
Elmer LS-55 Fluorescence Spectrometer.1H-NMR, N and 13C spectra of organic products
were obtained using Bruker advance 400 spectrometer at ambient temperature conditions.
2.2 Preparation of [Co(4,5-Imdc)2(H2O)2] (1)
Co(NO3)2⋅6H2O (0.0582 g, 0.2 mmol), 4,5-Imidazoledicarboxylic acid (0.0312 g, 0.2 mmol)
and NaOH (0.008 g, 0.2 mmol) in H2O (10.0 mL) was placed in a Teflon-lined stainless steel

ACCEPTED MANUSCRIPT
(23 mL) container and the sealed container was heated for 48 h at 140 °C. Then, at a cooling
rate of 6 °C/h the mixture was cooled to room temperature. The reddish color crystals suitable
for diffraction studies were recovered by filtration followed by subsequent washings with
water. Elemental analysis found: C 29.60%, H 2.46% and N 13.71%. Calculated for
C10H10CoN4O10: C 29.65%, H 2.48% and N 13.83%
2.3 Preparation of [Cd(4,5-Imdc)2(H2O)3].H2O (2)
A similar procedure described for Co(II) was also used for the Cd(II) containing complex,
using Cd(NO3)2⋅4H2O (0.0616 g, 0.2 mmol), 4,5-Imidazoledicarboxylic acid (0.0312 g, 0.2
mmol) and NaOH (0.008 g, 0.2 mmol). In complex 2 preparation, a mixture of water (8.0
mL) and methanol (2.0 mL) was used in place of pure water. White color crystals of pure
compound were collected by filtration followed by washings with water. Elemental analysis
found: C 24.20%, H 2.83% and N 11.43%. Calculated for C10H14CdN4O12: C 24.28%, H
2.85% and N 11.32%
2.4 X-ray crystal structure determination
A CCD Agilent Technologies (Oxford Diffraction) SUPER NOVA diffractometer was
employed to generate the single-crystal X-ray diffraction data for both the complexes.
Graphite-monochromoated MoKα radiation (λα = 0.71073 Å) at 150(2) K was used for
collection of data. The crystal data was analysed using the CrysAlisPro CCD software and
standard phi-omega scan techniques for scaling and reducing were done by CrysAlisPro RED
software. While SHELXS-97 [54] by direct methods was used for solving the structures,
SHELXL-97 software with full matrix least-squares [55] was employed for further refining
the structures. All the hydrogen atom locations were identified based on differences in

ACCEPTED MANUSCRIPT
electron density map and were forced to ride on the respective non-hydrogens.
Anisotropically, all non-hydrogen atoms were refined.
3. Results and Discussion
3.1 Crystal structure of [Co(4,5-Imdc)2(H2O)2] (1)
Single crystal X-ray indicates that the asymmetric unit contains one crystallographically
unique Co(II) ion, one unit of ligand, and two coordinated water molecules. The organic
linker 4,5-Imdc in this complex exhibits single kind of coordination mode.
Scheme 1. Bonding modes of 4,5-Imdc in (a) 1 and (b) 2
As shown in the scheme 1a, the nitrogen and oxygen atoms chelate the central metal atom,
whereas the second carboxylate group is involved in hydrogen bonding. Table 1 summarised
the details of crystal data and refinement details.
Table 1: Crystal data, Data collection and Refinement details of 1 and 2
Complex
Empirical formula
Formula weight
Wavelength (Å)
Space group
T(K)
1
2
C10 H10 Co N4 O10 C10 H14 Cd N4 O12
405.15 g/mol
0.71073
P21/n
494.65 g/mol
0.71073
P21/c
150
150
a (Å)
b(Å)
5.0514(3)
22.5786(9)
6.5377(3)
90.0
6.9116(1)
17.4579(2)
13.8941(2)
90.000(0)
c(Å)
α(o)

ACCEPTED MANUSCRIPT
β(o)
111.50(1)
90.0
693.75(17)
2
1.93938
410
10.389
3.92- 70.54
-4 ≤ h ≤ 6,
-27 ≤ k ≤ 16,
-7 ≤ l ≤ 5
97.76(0)
γ(o)
90.000(0)
1661.14(45)
4
1.97776
984
V (Å3)
Z
ρcal (g/cm3)
F(000)
µ(MoKα) (mm-1)
θ range, deg
Index range
1.390
2.96-25.0
-8 ≤ h ≤ 7,
-20 ≤ k ≤ 20,
-16 ≤ l ≤ 16
2930/9/284
0.020
0.052
0.23*0.18*0.14
1.061
Data/restraints/parameter 1286/0/121
R1 [on F0 , I > 2σ(I)]
2
0.0518
0.1282
0.21*0.18*0.16
1.095
2
wR2 [on F0 , I > 2σ(I)]
Crystal size (mm3)
GOOF
As illustrated in Fig. 1, the central Co1 is coordinated by six atoms i.e., two nitrogen atoms
(N1, N1i ) from two different 4,5-Imdc ligands, two oxygen atoms (O2,O2i) from carboxylate
groups and two oxygen atoms (O1,O1i) from two coordinated water molecules and
consequently adopts an octahedral geometry (Fig. 2a). For the central metal atom (Co2+), the
positioning of donor atoms from 4,5-imdc and water molecules perpendicular to each other,
further confirms its octahedral geometry.
Fig. 1. Coordination environment of Co(II) metal ion of complex 1 in ortep view with 50%
probability (hydrogen atoms omitted for clarity)

ACCEPTED MANUSCRIPT
Fig. 2. Geometries (a) complex 1 and (b) complex 2
All atoms are arranged in the same plane with respect to metal centre, which is confirmed by
bond angles N1-Co1-N1i = 180.00(5)o, O1i-Co1-O1= 180.00(5)o, O2i-Co1-O2= 180.00(5)o.
The ligand, 4,5-Imdc and coordinated water molecules are almost perpendicular to each other
is indicated by the fact that the angle O1-Co1-O2, N1-Co1-O1i are 89.56(8)o and 93.35(9)o,
respectively. In this complex the bond distance of imidazole nitrogen to Co(II) is 2.119(2) Å
(Co-O), while the ortho carboxylate oxygen of the ligand to Co is 2.096 Å (Co-N). The
hydrogen bonding interactions between the ligand and water molecules possess bond
distances of 2.729, 2.886, 3.121 and 2.525 Å (O1-H4A---O2, N2-H10----O4, N2-H10----O5,
O4-H12----O3 respectively) (Table 2) connect the adjacent molecules together and form a
three dimensional supramolecular architecture.
Table 2: H-bonds list (Å, °) for 1
D-H---A
D-H
0.86
0.92
0.92
0.82
H---A
1.94
1.99
2.57
1.71
D----A
2.729
2.886
3.121
2.525
D-H---A
152
166
119
176
O1-H4A---O2
N2-H10---O4
N2-H10---O5
O4-H12---O3
Symmetry codes: 1-x, -y, 1-z; ½+x, ½-y, -1/2+z

ACCEPTED MANUSCRIPT
While Fig. 3, depicts the hydrogen bonding pattern, Fig. 4 shows the polyhedral view of
supramolecular network of the complex. The respective bond lengths and bond angles are
summarised in Table S1.
Fig. 3. Hydrogen bonding pattern in 1
Fig. 4. (a) Prospective polyhedral view of 1
The FT-IR spectrum of 1 is illustrated in Fig. 5. The absorption bands at 1500 cm-1 and 1442
cm-1 indicate the C═C stretching vibrations of aromatic 4,5-Imdc. The bands at 1583 cm-1
and 1385 cm-1 are due to asymmetric and symmetric vibrational frequencies of COO- group,

ACCEPTED MANUSCRIPT
respectively. A weak absorption at 3317 cm-1 indicates the N-H stretching vibrations of
imidazole ring. The appearance of a band at 3022 cm-1 represents the O-H stretching
vibrations of free carboxylic group. The absorption band around 1725 cm-1 shows the
vibrations of un-protonated carboxylic groups in the structure. A strong stretching vibrational
frequency at 1134 cm-1 is attributed to the C-O group of carboxylate. The appearance of band
at 1240 cm-1 represents the C-O stretching frequency of deprotonated carboxylic group.
Moreover, the absorption bands at 453 and 632 cm-1 represent the Co-O and Co-N stretching
vibrations [56].
Fig. 5. FT-IR spectrum of 1
3.2 Crystal structure of [Cd(4,5-Imdc)2(H2O)3].H2O (2)
The asymmetric unit of complex contains one crystallographically unique Cd(II) ion, two 4,5-
Imdc ligands, three coordinated water molecules and one uncoordinated water molecule. The
crystal data and refinement details are summarised in Table 1. In this complex, the central
metal atom binds with nitrogen and oxygen atoms of ligand to form a five membered ring as

ACCEPTED MANUSCRIPT
shown in the scheme 1b. As depicted in the Fig. 6, the central metal Cd1 ion is hepta
coordinated by two nitrogen atoms (N1, N3) and two oxygen atoms (O4, O8) from two
different 4,5-Imdc ligands and three oxygen atoms (O1,O2,O3) from coordinated water
molecules. It exhibits a distorted pentagonal bipyramidal geometry (Fig. 2b), which is
confirmed by the O1-Cd1-O3 and other bond angles recorded. The bond distances of Cd-N
are 2.265 Å whereas Cd-O bond distance is between 2.277 to 2.375 Å. The coordinated
nitrogen atoms occupied the axial positions with bond angles of N1-Cd1-O1:92.59(6)o and
N3-Cd1-O1:90.02(6)o, while coordinated water molecules sit in the equatorial positions. The
hydrogen bond interactions occur between imidazole (N, O atoms) and water molecules. The
bond distance of O─H----O is around 2.450 to 3.084 Å and N─H----O is around 2.815 to
3.005 Å (Table 3). These hydrogen bonds between the mononuclear units make the molecule
extend into a three dimensional supramolecular architecture. Fig. 7 shows the hydrogen
bonding pattern in the complex and Fig. 8 illustrates the extended polyhedral view. The
details of bond lengths and bond angles are summarised in Table S1.
Fig. 6. Coordination environment of Cd(II) metal ion of complex 2 in ortep view with 50%
probability (hydrogen atoms omitted for clarity)

ACCEPTED MANUSCRIPT
Fig. 7. Hydrogen bonding between mononuclear units in complex 2
Table 3: H-bonds list (Å, °) for 2
D-H---A
N2-H2---O7
N2-H4---O4
D-H
0.88
0.88
H---A
1.96
2.15
D----A
D-H---A
163
164
2.815(2)
3.005(2)
2.835(2)
2.939(3)
3.084(3)
2.810(3)
2.707(3)
2.760(2)
2.730(2)
2.853(2)
2.450(2)
2.459(2)
3.218(3)
2.909(3)
2.935(3)
O101-H101---O10 0.82(3)
2.02(3)
2.14(3)
2.53(3)
2.02(3)
1.90(2)
2.00(2)
1.96(3)
2.07(3)
1.31(3)
1.44(2)
2.54
177(17)
175(3)
128(3)
178(3)
174(3)
163(2)
164(4)
169(4)
172(3)
175(2)
128
O101-H102---O9
O2-H103---O11
O2-H104---O101
O1-H105---O101
O1-H106---O7
O3-H107---O11
O3-H108---O6
O5-H111---O6
O9-H222---O10
C1-H1---O1
0.80(3)
0.79(3)
0.80(3)
0.81(2)
0.78(2)
0.79(3)
0.79(3)
1.14(3)
1.03(2)
0.95
C1-H1---O8
C6-H6---O5
0.95
0.95
2.29
2.34
122
120
Symmetry codes: 1-x, 1-y,-z; x,1/2-y,-1/2+z; 2-x,1/2+y,1/2-z; 1-x,1/2+y,1/2-z; -x,1-y,-z; 2-
x, -1/2+y,1/2-z; -1+x,y,z; 1+x, 1/2-y,1/2+z

ACCEPTED MANUSCRIPT
Fig. 8. Polyhedral view of complex 2 and arrangement of mononuclear species
along (a) a- axis (b) b-axis
Fig. 9 reveals the FT-IR spectrum of complex 2. The broad absorption band at 3111 cm-1 is
indicative of the presence of coordinated and lattice water molecules in the crystal structure.
Fig. 9. FT-IR spectrum of 2

ACCEPTED MANUSCRIPT
The absorption band at 3451 cm-1 represents the N-H stretching frequency of imidazole ring.
The characteristic bands at 1444 and 1581 cm-1 represent C═C stretching vibrations and
aromatic character of ligand in the crystal structure. The appearance of band at 1255 cm-1
indicates the C-O stretching frequency of deprotonated carboxylic group. Moreover, the band
at 648 and 434 cm-1 represent the formation of bond between cadmium to nitrogen and
oxygen, respectively. The FT-IR spectra of both the complexes indicate the successful
coordination of 4,5- Imdc with corresponding metal ions. The varied stretching vibrations of
C=C and N-H in 4,5-Imdc and vibrational frequencies of M-O and M-N in complexes 1 and
2 are attributed to involvement of 4,5-Imdc in bonding with different coordination number of
metal ions.
3.3 Thermogravimetric analysis of 1 and 2
An examination of the TG analysis curve for 1 suggests that foremost weight loss is initiated
o
o
at 230 C and continued till 300 C, which indicates the removal of coordinated water
molecules from the structure and weight loss was 9.5% (Cald. 8.9%). The subsequent
o
decomposition is noticed beyond 450 C with weight loss of 82% (Cald. 84.5%), which
corresponds to the decomposition of two 4,5-Imdc molecules (Fig. 10 a). For complex 2, TG
o
analysis reveals that complex is stable up to 120 C. As shown in the Fig. 10 b, the first
o
decomposition step around 120 C indicates the removal of lattice water molecule in the
crystal structure with weight loss of 3.50% (Cald. 3.63%), the subsequent decomposition
between 150 to 250oC indicates the loss of three coordinated water molecules with weight
loss of 12.50% (Cald. 11.32%). Loss of two molecule of 4,5-Imidazoledicarboxylate with
o
weight loss of 73.50% (Cald. 73.35%) on heating the complex at 400 C. Finally the
o
structural integrity is lost, when temperature reaches more than 500 C. Lesser stability of
complex 2 over complex 1 confirmed by TGA, was ascribed to the coordination of Cd2+ in

ACCEPTED MANUSCRIPT
complex 2, which was partially accomplished with more water molecules than in complex 1,
which renders the decomposition of complex 2 earlier than complex 1.
Fig. 10. TGA curve of (a) [Co(4,5-Imdc)2(H2O)2] (b) [Cd(4,5-Imdc)2(H2O)3].H2O
3.4 Fluorescent properties of 1 and 2
Complexes constructed with the ligands containing N-donor atoms are promising photoactive
materials in chemical sensors, electroluminescent display and photochemistry [57, 58]. The
solid state fluorescence property of this complex in addition to free ligand was examined at
room temperature. Upon excitation at 365 nm, pure ligand, 4,5-Imdc exhibits maximum
emission at 575 nm, which can probably be assigned to the π to π* transitions [59]. The
maximum fluorescence emission (yellowish green) for the complex takes place at 521 nm
upon excitation at 365 nm. It was observed that the emission peak undergoes blue shift (54
nm) on compared to the free ligand. Ren et al. [60] reported that metal complexes constructed
with N-donor ligand exhibit fluorescence due to ligand to metal charge transfer (LMCT).
Varying degree of blue-shift observed in 1 was probably due to different coordination
environments of N-containing ligand and the enhancement in the energy gaps between the

ACCEPTED MANUSCRIPT
HOMO and LUMO of the ligand, when coordinating to the metal ions [61, 62]. Fig. 11 (a &
c) depicts the emission spectrum of 1 and free ligand.
It is well known that metal organic coordination complexes have the ability to influence the
emission wavelength and intensity of the organic materials through coordination. The fact
that the d10 metal centres and conjugates organic ligands exhibit florescent properties has also
been well documented [63]. As depicted in the Fig. 11 (b & c), both complex 2 and the free
ligand display similar emission spectrum at the same excitation wavelength of 365 nm. The
maximum yellowish emission of complex and the ligand 4,5-Imdc were observed at 573 and
575 nm, respectively. Furthermore, in addition to a slight blue shift observed in the emission
band of 2, a marginal increase in intensity of emission was also observed. The emissions
band of 2 may be attributed to the ligand-to-ligand charge transfer [64].
Fig 11. Flourescent spectra of (a) [Co(4,5-Imdc)2(H2O)2] (b) [Cd(4,5-Imdc)2(H2O)3].H2O (c)
free ligand (4,5-Imdc).

ACCEPTED MANUSCRIPT
The nature of bonding of 4,5-Imdc with metal ions (Co2+, Cd2+) in complex 1 and 2 with
different coordination numbers would influence their emission spectra. Both the complexes
exist in different coordination environments. Co2+ with octahedral geometry in complex 1,
emitted light due to availability of vacant orbital for the charge transfer from ligand to metal,
while in the case of complex 2, the higher coordination of Cd2+ provide no flexible orbital for
charge transfer from ligand. Hence, the emission in complex 2 is attributed to ligand to ligand
charge transfer.
3.5 Catalytic activities of 1 and 2
The catalytic performance of 1 and 2 was tested for the synthesis of methyl 6-amino-5-cyano-
4-(3-chlorophenyl)-2,4-dihydropyrano[2,3-c]pyrazole-3-carboxylate in an one-pot reaction
using four-component namely, 3-chloro benzaladehyde, malononitrile, hydrazine hydrate and
dimethyl acetylenedicarboxylate as precursors. An equimolar mixture of each 1.0 mmol of
the four substrates was made in ethanol at room temperature under stirring. An amount of 20
mg of catalyst (1 or 2) was added to the reaction mixture to accelerate the reaction (Scheme
2). After the TLC examination for the completion of the reaction, the solid catalyst was
filtered off from the reaction mixture and thereby the final product was recovered through
extraction with ethyl acetate. In order to estimate the need of catalyst, the reaction was
carried out in the absence of catalyst under otherwise similar reaction conditions. The
uncatalysed reaction took 2.5 h to get the desired product with a yield of 65%. The
introduction of either 1 or 2 to the reaction mixture as catalyst, positively influenced the
reaction time as well as yields. With complex 1, the reaction finished in 10 min with
excellent yield (98%), whereas with 2, the reaction took 15 min and yield was 92%. The
significant improvement in the product yield and reaction time suggest that the complex 1
possibly possess more accessible coordination sites in metal centre over 2, which is the

ACCEPTED MANUSCRIPT
prerequisite for the metal centre to act as active catalytic site. The introduction of unsaturated
coordination environment in metal centres upon de-solvation makes the catalyst to gain more
Lewis-acidic character, which accelerate the subsequent transformation of substrate
molecules [65-67]. Relatively soft Lewis-acidic nature of Cd2+ metal nodes typically make
the weak coordinating bond, which ultimately reduce the complex resistance towards the
attack of reactive substrates [68, 69].
The structure and purity of the organic product was confirmed and finalised by the
1
1
spectroscopic analysis using H, 15N, and 13C- NMR spectra (Fig.S1-S3). The H-NMR
signals observed at δ 3.77, 7.07 and 12.46 ppm respectively corresponding to the methoxy (-
OCH3), amino (-NH2) and secondary amine (-NH) protons and the 15N spectrum further
confirmed the presence of amino group in the structure of the final organic compound.
Scheme 2. Typical reaction
Spectral data of methyl 6-amino-5-cyano-4-(3-chlorophenyl)-2,4-dihydropyrano[2,3-
c]pyrazole-3-carboxylate;-. 1H NMR (400 MHz, DMSO-d6) 3.77 (s, 3H, OCH3), 4.79 (s, 1H,
13
CH), 7.07 (s, 2H, NH2), 7.09 – 7.27 (m, 4H, ArH), 12.46 (s, 1H, NH); C NMR (100 MHz,
DMSO-d6): 15.09, 36.58, 50.67, 51.72, 57.09, 79.10, 103.31, 120.06, 126.18, 126.70, 127.27,
128.89, 130.18, 132.04, 132.69, 147.24, 155.20, 158.24, 160.24; 15N NMR (40.55 MHz,
DMSO-d6) δ 7.07 (s, 2H, NH2).
After selecting complex 1 as an efficient catalyst, the amount of catalyst required for
optimum conditions were investigated. The reaction was conducted with varied amounts of 1

ACCEPTED MANUSCRIPT
from 10 to 50 mg and the results summarised in Table S2, establish that 20 mg of 1 was
sufficient to afford the good yields of product in short interval of time. No additional
advantage was observed with respect to reaction time or yield, when catalyst amount was
increased from 20 to 40 mg, use 50 mg marginally, but negatively impacted on the yield and
reaction time. Hence, the 20 mg of 1 was taken as a preferred amount to initialize the
reaction.
Further to establish, ideal choice of solvent for effective synthesis, reactions were conducted
in presence of 1 at RT, with different polar and non-polar solvents. When non-polar solvents
toluene and n-hexane were employed, the reaction does not occur, but with acetonitrile and
DMF, the moderate yields were observed. The reaction gave impressive yields with the polar
solvents viz. methanol, ethanol and water. Relatively, ethanol proved to be outstanding in
terms of yield and reaction time, hence confirmed as optimum solvent for the protocol (Table
S3).
To assess the efficiency of 1 as multipurpose catalyst, the successive reactions were repeated
with five differently substituted aromatic aldehydes. In all the reactions, the product yields
(92- 98%) and reaction times (10 to 20 min) were good to excellent (Table 4).
Based on the experimental results and products, a plausible reaction mechanism is proposed
in Scheme 3. On the catalyst surface, the unsaturated metal centres of Co(II) or Cd(II) initiate
the crucial Knoevenagel condensation between malononitrile (1) and aldehyde (2), resulting
in formation of benzylidine malononitrile intermediate (3), while hydrazine hydrate (4) and
dimethyl acetylenedicarboxylate (5) combine to produce a pyrazolone intermediate (6). In the
subsequent step, both the intermediates (3) and (6) undergo Michael addition, followed with
cyclization on the catalytic surface selectively yielding the final product of
pyrano[2,3,c]pyrazole moiety.

ACCEPTED MANUSCRIPT

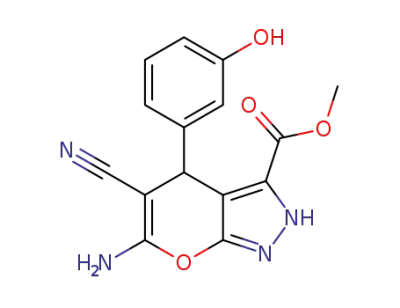

Table 4: List of synthesis of pyrano[2,3-c]pyrazole moiety with different substituted
aromatic aldehydes with [Co(4,5-Imdc)2 (H2O)2] as catalyst*,a
Entry
1
aldehyde
Product
Yield (%) Time(min)
94 10
2
96
10
3
4
92
95
15
20
5
92
15
*Reaction conditions: substituted benzaldehyde (1.0 mmol), malononitrile (1.0
mmol), hydrazine hydrate (1.0 mmol), dimethyl acetylenedicarboxylate (1.0 mmol),
[Co(4,5-Imdc)2 (H2O)2] and ethanol (5.0 mL) at RT
a isolated yields

ACCEPTED MANUSCRIPT
Scheme 3: Plausible mechanism
These inspiring results endorse the usefulness of the protocol using the complexes first time
as reusable heterogeneous catalysts in synthesis of pyrano[2,3,c]pyrazole derivatives.
Moreover of the total six pyrano[2,3,c]pyrazoles synthesised in the current study, the moiety
synthesised in the title reaction reports a new molecule.

ACCEPTED MANUSCRIPT
3.6 Reusability of the catalyst
The ease of catalyst preparation, simple recovery, and reusability are paramount of its
utilization for the development of catalysed organic processes. One of the attractions of
coordination complexes as heterogeneous catalysts is their easy post reaction separation. The
recovery and reusability of complex 1 was examined with the title reaction. The separated
catalyst material was washed with acetone few times and dried in a vacuum oven at 80 oC for
2 h. The efficiency of successive reactions up to six cycles were investigated using recovered
catalyst by assessing the product yield and reaction time. No significant changes in yield or
reaction time was observed up to six cycles except for the marginal loss of catalyst material
in each cycle of recovery (< 2%), but after sixth cycle about 12% depletion in the catalytic
performance was noticed. The observed results suggest catalyst remained stable during the
repetitive use and no leaching of metal occurred.
4. Conclusions
In summary, two varied structural architectures of complexes, [Co(4,5-Imdc)2 (H2O)2] (1) and
[Cd(4,5-Imdc)2(H2O)3].H2O (2) were synthesized by hydrothermal process. The Co(II) and
Cd(II) metallic nodes respectively adopted octahedral and pentagonal bipyramidal geometries
with N and O coordination points of 4,5-imidazolecarboxylic acid. The chelating five-
membered rings were observed in both the structures of complexes with Co(II) and Cd(II)
metal nodes. The mononuclear units were further interconnected with hydrogen bonds
existing between nitrogen and carboxylate oxygen atoms building impressive 3D
supramolecular networks. The unsaturated metal centres generated by activation of water
molecules acted as Lewis acid sites, which effectively catalysed the value added production
of pyrano[2,3,c]pyrazole moieties. Both 1 and 2 complexes showed activity under benign
reaction conditions (ethanol, RT). Among 1 and 2, the catalyst 1 proved to be superior in

ACCEPTED MANUSCRIPT
giving impressive yields of product (92-98%) selectively in short interval time (< 20 min)the
yields. The flexibility in the synthesis, thermal stability, simple separation with reusability,
mild reaction conditions prompt these complexes to catalyse the MCRs yielding valued
organic molecules selectively.
Acknowledgements
The authors thank National Research Foundation, Pretoria, South Africa and University of
KwaZulu-Natal, South Africa for financial assistance and research facilities.
Supplementary Information
The CCDC numbers 998828, 998827 contain the information regarding the supplementary
crystallographic data. These data can be obtained free of charge via
www.ccdc.cam.ac.uk/conts/retrieving.html or [from the Cambridge Crystallographic Data
Center (CCDC), 12 Union Road, Cambridge CB21 EZ, UK; Fax: +44(0)1223-336,003; E-
mail:deposit@ccdc.cam.ac.uk]. Structure factor table is available from the authors. The bond
length, bond angle of two complexes and spectral data of all organic products are presented.
References
[1]
[2]
K. Yamamoto, Y. Sakata, Y. Nohara, Y. Takahashi, T. Tatsumi, Science 300 (2003)
470-472.
K.K. Gangu, S. Maddila, S.B. Mukkamala, S.B. Jonnalagadda, Inorg. Chim. Acta 446
(2016) 61-74.
[3]
[4]
[5]
H. Cai, J. Zhou, S. Kitagawa, Chem. Soc. Rev. 43 (2014) 5415-5418.
A. Betard, R.A. Fischer, Chem. Rev. 112 (2012) 1055-1083.
S. Zhang, Q. Yang, X. Liu, X. Qu, Q. Wei, G. Xie, S. Chen, S. Gao, Coord. Chem.
Rev. 307 (2016) 292-312.
[6]
[7]
O.M. Yaghi, M. O’Keeffe, N.W. Ockwig, H.K. Chae, M.J. Eddaoudi, Kim, Nature
423 (2003) 705-714.
P. Falcaroa, R. Riccoa, A. Yazdib, I. Imazb, S. Furukawac, D. Maspoch, R.
Ameloote, J. D. Evansf, C. J. Doonanf, Coord. Chem. Rev. 307 (2016) 237-254.
R.M. Christopher, C.H. Brianna, L. Zheng, M.J. David, Coord. Chem. Rev. 258
(2014) 119-136.
P.J. Beldon, F. Bia, R.S. Stein, A. Thirumurugan, A. Cheetham, T. Friscic, Angew.
Chem. Int. Ed. 49 (2010) 9640-9643.
[8]
[9]

ACCEPTED MANUSCRIPT
[10] Z. Fangcai, Y. Zhichen, X. Shihao, Z. Yuanguang, Mater. Lett. 182 (2016) 214-217.
[11] N. Stock, S. Biswas, Chem. Rev. 112 (2012) 933-969.
[12] H. Furukawa, K.E. Cordova, M. O'Keeffe, O.M. Yaghi, Science 341 (2013) 1230444-
12.
[13] R. Banerjee, A. Phan, B. Wang, C. Knobler, H. Furukawa, M. O’Keeffe, O.M. Yaghi,
Science 319 (2008) 939-943.
[14] B. Hasan, W. Christophe, Phys. Rev. Lett. 116 (2016) 025902-025902.
[15] B. Chen, C. Liang, J. Yang, D.S. Contreras, Y.L. Clancy, E.B. Lobkovsky, O.M.
Yaghi, S. Dai, Angew. Chem. Int. Ed. 45 (2006) 1390-1393.
[16] A.K. Cheetham, C.N.R. Rao, R.K. Feller, Chem. Commun. (2006) 4780-4795.
[17] B. V. Voorde, B. Bueken, J. Denayer, D. De Vos, Chem. Soc. Rev. 43 (2014) 5766-
5788.
[18] Abbasia, M. Soleimania, M. Najafia, S. Geranmayeh, J. Mol. Struct. 1133 (2017) 458-
463
[19] K. Susumu, U. Kazuhiro, Chem Soc Rev. 34 (2005) 109-119.
[20] S. Chaemchuen, N. A. Kabir, K. Zhou and F. Verpoort, Chem. Soc. Rev. 42 (2013)
9304-9332.
[21] A. Fracaroli, P. Siman, D. Nagib, M. Suzuki, H. Furukawa, F. D. Toste, O. M. Yaghi,
J. Am. Chem. Soc. 138 (2016) 8352-8355.
[22] G. Liu, Y. Chen, X. Wang, B. Chen, H. Lin, J. Solid State Chem. 182 (2009) 566-573.
[23] I.H. Choi, Y. Kim, D. N. Lee, S. Huh, Polyhedron 105 (2016) 96-103.
[24] Z.P. Deng, Z.Y. Zhang, L.H. Huo, S.W. Ng, H. Zhao, S. Gao, CrystEngComm. 14
(2012) 6548-6558.
[25] L. Gou, T. Qin, H.M. Hu, X.L. Chen, B.C. Wang, Q.R. Wu, B. Zhang, Z.X. Tang, J.
Coord. Chem. 61(2008) 3943-3952.
[26] W.X. Xu, J. Li, R.P. Liu, W.X. Zhou, W.Y. Ma, F.X. Zhang, Inorg. Chem.
Commun. 28 (2013) 12-15.
[27] Z. Xiong, B. Shi, L. Li, Y. Zhu, G. Li, CrystEngComm. 15 (2013) 4885-4899.
[28] X. Li, B. Wu, R. Wang, H. Zhang, C. Niu, Y. Niu, H. Hou, Inorg. Chem. 49 (2010)
2600-2613.
[29] X. Feng, J.L. Chen, R. F. Bai, L.Y. Wang, J.T. Wei, X.X. Chen, Inorg. Chem.
Commun. 66 (2016) 41-46.
[30] H. Zhou, M. Yu, G.X. Liu, Inorg. Chim. Acta 439 (2016) 130-137.
[31] I.H. Choi, Y. Kim, D.N. Lee, S. Huh, Polyhedron 105 (2016) 96-103.
[32] J. Liu, L. Chen, H. Cui, J. Zhang, L. Zhang, C.Y. Su, Chem. Soc. Rev. 43 (2014)
6011-6061.
[33] M. Opanasenko, A. Dhakshinamoorthy, J. Cejka, H. Garcia, Chem. Cat. Chem. 5
(2013) 1553-1561.
[34] Z. Wang, G. Chen, K.L. Ding, Self-Supported Catalysts, Chem. Rev. 109 (2009) 322-
359.
[35] F. L. Xamena, F. Cirujano, A. Corma, Microporous Mesoporous Mater.157 (2012)
112–117.

ACCEPTED MANUSCRIPT
[36] C. Li, W. Qiu, W. Long, F. Deng, G. Bai, G. Zhang, X. Zi, H. He, J. Mol. Catal. A:
Chem. 393 (2014) 166–170.
[37] W. Zhu, C. He, X. Wu, C. Duan, Inorg. Chem. Commun. 39 (2014) 83-85.
[38] J. M. Roberts, B. M. Fini, A. A. Sarjeant, O. K. Farha, J. T. Hupp, K. A. Scheidt, J.
Am. Chem. Soc. 134 (2012) 3334-3337.
[39] J. Hermannsdorfer, R. Kempe, Chem. – Eur. J. 17 (2011) 8071–8077.
[40] P. Li, S. Regati, R. J. Butcher, H. D. Arman, Z. Chen, S. Xiang, B. Chen, C.G. Zhao,
Tetrahedron Lett., 52 (2011) 6220-6222.
[41] L. Alaerts, E. Seguin, H. Poelman, F. Thibault-Starzyk, P. A. Jacobs, D. E. De Vos,
Chem. – Eur. J., 12 (2006) 7353–7363.
[42] M.B. Lalonde, O.K. Farha, K.A. Scheidt, J.T. Hupp, N-heterocyclic carbene-like
catalysis by a metal–organic framework material. ACS Catal. 2 (2012) 1550-1554.
[43] N. Isamberta, M. M. S. Duquek, J.C. Plaquevent, Y. Genisson, J. Rodriguez, T.
Constantieuxl, Chem. Soc. Rev. 2011, 40, 1347-1357.
[44] A. Domling, W. Wang and K. Wang, Chem. Rev. 2012, 112, 3083-3135.
[45] V. Bhardwaj, D. Gumber, V. Abbot, S. Dhiman and P. Sharma, RSC Adv. 5 (2015)
15233-15266.
[46] A. M. Zonouz, I. Eskandari, H. R. Khavasi, Tetrahedron Lett. 53 (2012) 5519-5522.
[47] Y. Zou, H. Wub, Y. Hua, H. Liu, X. Zhao, H. Ji, D. Shi, Ultrason. Sonochem. 18
(2011) 708-712.
[48] A. R. Moosavi-Zare, M. A. Zolfigol, E. Noroozizadeh, M. Tavasoli, V. Khakyzadeh
and A. Zare, New J. Chem. 37 (2013) 4089-4094.
[49] M. A. Zolfigol, M. Tavasoli, A. R. Moosavi-Zare, P. Moosavi, H. G. Kruger, M.
Shirid and V. Khakyzadeh, RSC Adv. 3 (2013) 25681-25685.
[50] F. Tamaddon, M. Alizadeh, Tetrahedron Lett. 55 (2014) 3588-3591.
[51] S. Maddila, S. Rana, R. Pagadala, S. Kankala, S. N. Maddila, S.B. Jonnalagadda,
Catal. Commun. 61 (2015) 26-30.
[52] K.K. Gangu, S. Maddila, S. N. Maddila, S.B. Jonnalagadda, RSC Adv. 6 (2016)
58226-58235.
[53] R. Pagadala, S. Maddila, S. B. Jonnalagadda, Ultrason. Sonochem. 21 (2014) 472-
477.
[54] G.M. Sheldrick, SHELXS 97: Program for the Solution of Crystal Structure;
University of Gottingen: Germany, 1997.
[55] G.M. Sheldrick, SHELXS 97: Program for the Refinement of Crystal Structure;
University of Gottingen: Germany, 1997.
[56] D.C. Bradley, M.H. Gitlitz, Nature, 218 (1968) 353-354.
[57] Y.Q. Lan, H.L. Jiang, S.L. Li, Xu, Q, Inorg. Chem. 51 (2012) 7484-7491.
[58] D. Niu, J. Yang, J. Guo, W.Q. Kan, S.Y. Song, P. Du, J.F. Ma, Cryst. Growth Des. 12
(2012) 2397-2410.
[59] H.Y. Bai, J. Yang, B. Liu, J.F. Ma, W.Q. Kan, Y.Y. Liu, CrystEngComm. 13 (2011)
5877-5884.
[60] H. Ren, T.Y. Song, J.N. Xu, S.B. Jing, Y. Yu, P. Zhang, L.R Zhang, Cryst. Growth
Des. 9 (2009) 105-112.
[61] L. Qin, Y.H. Li, P.J. Ma, G.H. Cui, J. Mol. Struct. 1051(2013) 215-220.

ACCEPTED MANUSCRIPT
[62] X.L. Wang, J.X. Zhang, G.C. Liu, H.Y. Lin, Y.Q. Chen, Z.H. Kang, Inorg. Chim.
Acta, 368 (2011) 207-215.
[63] R. Xin, X.Y. Yu, W.P. Gao, N. Wang, J.J. Yang, X.S. Qu, X. Zhangu, Inorg. Chem.
Commun. 35 (2013) 38-41.
[64] S.R. Zheng, S.L. Cai, J. Fan, T.T. Xiao, W.G. Zhang, Inorg. Chem. Commun. 14
(2011)1097-1101.
[65] S. S. Chui, S. M.-F. Lo, J. P. Charmant, A. G. Orpen, I. D. Williams, Science, 283
(1999) 1148-1150.
[66] D. Feng, H.L. Jiang, Y.P. Chen, Z.Y. Gu, Z. Wei, H.C. Zhou, Inorg. Chem. 52 (2013)
12661-12667.
[67] A.D. Burrows, C.G. Frost, M.F. Mahon, M. Winsper, C.Richardson, J.P. Attfield, J.A.
Dalton Trans. (2008) 6788-6795.
[68] A.H. Chughtai, N. Ahmad, H. A. Younus, A. Laypkovc, F. Verpoort, Chem. Soc.
Rev. 44 (2015) 6804-6849.
[69] A.D. Burrows, C.G. Frost, M.F. Mahon, C. Richardson, Angew. Chem. Int. Ed. 47
(2008) 8482-8486.
Figure Captions
Scheme 1. Bonding modes of 4,5-Imdc in (a) 1 and (b) 2
Scheme 2. Typical reaction
Scheme 3: Plausible mechanism
Table 1: Crystal data, Data collection and Refinement details of 1 and 2
Table 2: H-bonds list (Å, °) for 1
Symmetry codes: 1-x, -y, 1-z; ½+x, ½-y, -1/2+z
Table 3: H-bonds list (Å, °) for 2
Symmetry codes: 1-x, 1-y,-z; x,1/2-y,-1/2+z; 2-x,1/2+y,1/2-z; 1-x,1/2+y,1/2-z; -x,1-y,-z; 2-
x, -1/2+y,1/2-z; -1+x,y,z; 1+x, 1/2-y,1/2+z
Table 4: List of synthesis of pyrano[2,3-c]pyrazole moiety with different substituted
aromatic aldehydes with [Co(4,5-Imdc)2 (H2O)2] as catalyst*,a
*Reaction conditions: substituted benzaldehyde (1.0 mmol), malononitrile (1.0 mmol),
hydrazine hydrate (1.0 mmol), dimethyl acetylenedicarboxylate (1.0 mmol), [Co(4,5-Imdc)2
(H2O)2] and ethanol (5.0 mL) at RT
a isolated yields
Fig. 1. Coordination environment of Co(II) metal ion of complex 1 in ortep view with 50%
probability (hydrogen atoms omitted for clarity)
Fig. 2. Geometries (a) complex 1 and (b) complex 2

ACCEPTED MANUSCRIPT
Fig. 3. Hydrogen bonding pattern in 1
Fig. 4. Prospective polyhedral view of 1
Fig. 5. FT-IR spectrum of 1
Fig. 6. Coordination environment of Cd(II) metal ion of complex 2 in ortep view with 50%
probability (hydrogen atoms omitted for clarity)
Fig. 7. Hydrogen bonding between mononuclear units in 2
Fig. 8. Polyhedral view of 2 and arrangement of mononuclear species along (a) a- axis (b) b-
axis
Fig. 9. FT-IR spectrum of 2
Fig. 10. TGA curve of (a) [Co(4,5-Imdc)2(H2O)2] (b) [Cd(4,5-Imdc)2(H2O)3].H2O
Fig. 11. Fluorescent spectra of (a) [Co(4,5-Imdc)2(H2O)2] (b) [Cd(4,5-Imdc)2(H2O)3].H2O (c)
free ligand (4,5-Imdc).
