Synthesis and antiplasmodial activity of novel fosmidomycin derivatives and conjugates with artemisinin and aminochloroquinoline

Article abstract of DOI:10.3390/molecules25204858

Malaria, despite many efforts, remains among the most problematic infectious diseases worldwide, mainly due to the development of drug resistance by Plasmodium falciparum. The antibiotic fosmidomycin (FSM) is also known for its antimalarial activity by targeting the nonmevalonate isoprenoid synthesis pathway, which is essential for the malaria parasites but is absent in mammalians. In this study, we synthesized and evaluated against the chloroquine-resistant P. falciparum FcB1/Colombia strain, a series of FSM analogs, derivatives, and conjugates with other antimalarial agents, such as artemisinin (ART) and aminochloroquinoline (ACQ). The biological evaluation revealed four new compounds with higher antimalarial activity than FSM: two FSM-ACQ derivatives and two FSM-ART conjugates, with 3.5–5.4 and 41.5–23.1 times more potent activities than FSM, respectively.

Full text of DOI:10.3390/molecules25204858

molecules
Article
Synthesis and Antiplasmodial Activity of Novel
Fosmidomycin Derivatives and Conjugates with
Artemisinin and Aminochloroquinoline
Despina Palla 1, Antonia I. Antoniou 1, Michel Baltas 2,3, Christophe Menendez 2,3
Philippe Grellier 4 , Elisabeth Mouray 4 and Constantinos M. Athanassopoulos 1,
,
*
1
Synthetic Organic Chemistry Laboratory, Department of Chemistry, University of Patras,
GR-26504 Patras, Greece; despina.pal.5@gmail.com (D.P.); tonadoniou@upatras.gr (A.I.A.)
LSPCMIB, UMR-CNRS 5068, Université Paul Sabatier-Toulouse III, CEDEX 9, 31062 Toulouse, France;
baltas@chimie.ups-tlse.fr or michel.baltas@lcc-toulouse.fr (M.B.); menendez@chimie.ups-tlse.fr (C.M.)
CNRS, LCC (Laboratoire de Chimie, de Coordination), Université de Tolouse, UPS, INPT,
205 Route de Narbonne, BP 44099, CEDEX 4 F-31077 Toulouse, France
2
3
4
MCAM, UMR 7245, Muséum National d’Histoire Naturelle, CNRS, CP52, 63 rue Buffon, 75005 Paris, France;
grellier@mnhn.fr (P.G.); mouray@mnhn.fr (E.M.)
*
Correspondence: kath@chemistry.upatras.gr; Tel.: +30-2610-997909
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editors: Halina Ekiert and Agnieszka Szopa
Received: 26 September 2020; Accepted: 16 October 2020; Published: 21 October 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: Malaria, despite many efforts, remains among the most problematic infectious diseases
worldwide, mainly due to the development of drug resistance by Plasmodium falciparum. The antibiotic
fosmidomycin (FSM) is also known for its antimalarial activity by targeting the non-mevalonate
isoprenoid synthesis pathway, which is essential for the malaria parasites but is absent in
mammalians. In this study, we synthesized and evaluated against the chloroquine-resistant P. falciparum
FcB1/Colombia strain, a series of FSM analogs, derivatives, and conjugates with other antimalarial agents,
such as artemisinin (ART) and aminochloroquinoline (ACQ). The biological evaluation revealed four
new compounds with higher antimalarial activity than FSM: two FSM-ACQ derivatives and two
FSM-ART conjugates, with 3.5–5.4 and 41.5–23.1 times more potent activities than FSM, respectively.
Keywords: fosmidomycin; chloroquine; artemisinin; hybrid; conjugates; antimalarial activity
1. Introduction
Despite worldwide efforts, malaria remains among the most dangerous infectious diseases.
Malaria incidence has decreased significantly since 2010, but, unfortunately, after 2014, the number of
malaria cases is increasing again, according to the World Health Organization [1]. The main reason is
the elevated resistance to artemisinin combination therapy (ACT) [ ]. In that respect, there is an urgent
2
need for antimalarial agents with a novel mechanism of action (MOA).
During the last decade of the 20th century, the discovery of the non-mevalonate isoprenoid
biosynthesis pathway as an essential target raised hope for potential therapeutic opportunities [
The pathway is proved to be essential for malaria parasites, while it is absent in mammalian hosts who
generate isoprenoids exclusively via the mevalonate pathway [ ]. The enzymes of the non-mevalonate
pathway are located in the apicoplast organelle of malaria parasites, which only host small numbers of
proteins, thus becoming attractive drug targets [ ]. In this respect, the seminal work of Jomaa et al. [
3].
4,5
6
–8
9]
set the basis of an intense research work on compounds targeting the non-mevalonate pathway of the
Plasmodium. These authors reported in 1999 that the antibiotic fosmidomycin (FSM, 1, Figure 1) inhibits
the IspC (see Figure 1), which catalyzes the first committed step of the non-mevalonate pathway and
is believed to be rate limiting. FSM, which was initially isolated from Streptomyces lavendulae [10,11],
Molecules 2020, 25, 4858; doi:10.3390/molecules25204858
www.mdpi.com/journal/molecules

Molecules 2020, 25, 4858
2 of 22
is a phosphonate structural analogue of the IspC substrate DOXP (4), which furthermore bears
a hydroxamic acid moiety in replacement of the alpha hydroxy ketone of and thus is not subject to
4
hydrolysis by cellular phosphatases [12]. FSM may act as a transition state intermediate, with the
hydroxamic acid group chelating the metal ion and the phosphono moiety resembling the phosphate
group of
pharmacokinetics [10
4
[
13]. FSM was first developed as an antibacterial agent, but due to its less than ideal
11 14], it was abandoned and later repositioned as a potential antimalarial,
,
,
inhibiting a new different target compared to artemisinin (ART). The shortcomings of FSM have
prompted attempts by several research groups to improve its activity by performing several chemical
modifications, suitable for structure–activity relationship studies [15–22]. One of the most studied
FSM’s analogues is FR900098 (2), a phosphonic acid antibiotic, where the formyl group of FSM is
replaced by an acetyl one. Although it is structurally very close to FSM, it is about twice as active as
FSM in vitro and in a mouse model [9,23,24].
Figure 1. Structures of FSM, FR9000098, and various FSM derivatives.
In brief, structural modifications of FSM have focused on four main areas: (i) replacement of
the phosphonate motif by (bio)isosteres (3, 7, 8, 11), synthesis of phosphonate prodrugs (6, 9)
(ii) replacement or modification of the hydroxamate moiety that chelates the catalytically essential
divalent cation, e.g., compounds 10 14 26 27]; (iii) modulation of the aliphatic linker between the
anionic anchor group and the chelating head group, e.g., compounds 14 15 28]; and (iv) modification
of the aliphatic chain by introduction of (typically aromatic) substituents, e.g., compounds 15 22]. As an
example, FR900098-prodrugs, where an acetyl group replaced the formyl one of the FSM, displayed
improved in vitro and enhanced in vivo activity [ ]. Furthermore, lipophilic phosphonate prodrug
[25];
–
[ ,
–
[
[
9
derivatives of FSM have previously been reported to display significantly enhanced antiplasmodial [29
and antimicrobial activities [30].
]
Recent studies have shown that the combination of two antimalarial drugs with different molecular
targets in one single entity either as a hybrid or a conjugate proved to be more efficient against diseases,

Molecules 2020, 25, 4858
3 of 22
such as malaria and cancer [31]. Hybrid molecules are rather promising since they have less possibilities
of developing drug resistance [32].
In this work, a synthesis and antiplasmodial evaluation along with the cytotoxicity of three
focused families of compounds possessing the propyl phosphonate frame (ester or acid form) of FSM
are reported. The first family contains five compounds: FSM, FR900098, and their phosphonate diesters
(16, 17), along with a dimeric form of FSM (18). The second family was constructed by attaching active
antimalarial pharmacophores like ACQ (19
of the hydroxamate thus preparing five new compounds (hybrids or conjugates). The third family
(10 compounds, 26 33) possesses various amines connected to the hydroxamic function. For the last
–20) [33] or ART (21–23) [34,35] next to the carbonyl group
–
two compounds (34, 35), the hydroxamate moiety was replaced by o-phenylenediamine, thus changing
the nature of the groups that might intervene in the chelation process (Figure 2).
Figure 2. Structures of the FSM derivatives synthesized in this work (16–35).
2. Results and Discussion
2.1. Synthesis of the Key Intermediate 39, FSM, FR9000098, and Dimer 18
The first family includes the known compounds FSM and FR9000098 and their corresponding
esters (compounds 16 and 17, Scheme 1), along with the tetraethylphosphonate dimer 18. Synthesis of
FSM and FR900098 was conducted as reported in the literature by Suresh et al. [36] and Uh et al. [37].
tert-Butyl N-(benzyloxy)carbamate 36 and the bromophosphonic diester 37 were synthesized in an 89%

Molecules 2020, 25, 4858
4 of 22
and 50% total yield, respectively, according to literature procedures [21
,

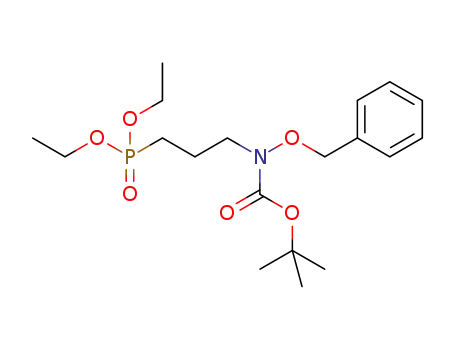

25]. Coupling of compounds 36
and 37 followed by TFA-mediated cleavage of the Boc protective group, yielded the key-intermediate
synthon 39 in a 94% yield (two steps).
Scheme 1. Synthesis of key intermediate 39, FSM and FR9000098 monosodium salts, and FSM dimer
18; Reagents and conditions: (a) NaH, NaI, DMF, rt to 60 ◦C, 17 h, 96%; (b) TFA, CH2Cl2, 0 ◦C to rt,
1.5 h, 98%; (c) for 40: HCOOH, (CH3CO)O2,
5 ◦C to rt, overnight, 91% and for 41: CH3COCl, Et3N,
−
DCM, 0 ◦C to rt, overnight, 98%; (d) H2, 10% Pd/C, MeOH, rt (3 h, 91% for 16 and 4 h, 99% for 17);
(e) (i) TMSBr, CH2Cl2, 0 ◦C to rt, 8 h (ii) 6N aq. NaOH/MeOH (87% for FSM and 90% for FR900098 over
2 steps); (f) succinic anhydride, DIPEA, DMAP, THF, rt, 3 h, 88%; (g) 39, HBTU, Et3N, CHCl3, rt, 3.5 h,
61% (h) H2, 10% Pd/C, MeOH, rt, 3 h, 50%.
FSM was obtained in three steps and 72% total yield through formylation of the secondary amine of
compound 39, hydrogenolysis of the benzyl protective group affording compound 16, and deprotection
of the ethyl ester functions followed by a basic work-up.
Compounds 17 and FR900098 were obtained through a similar sequence of reactions involving
acetylation of 39, hydrogenolysis, and ethyl ester groups’ elimination. This sequence afforded
better yields concerning acetylation and hydrogenolysis; thus compound 17 and FR900098 were
obtained in a 68% and 83% yield, respectively. Based on this procedure, the FSM dimer 18 was
synthesized (Scheme 1) by introducing a succinic acid spacer between the two fragments. Thus,
compound 39 was allowed to react with succinic anhydride in the presence of a catalytic amount of
4-(dimethylamino)pyridine (DMAP), providing the acid 42 in an 88% yield. Then, coupling of 42
with the amine 39 was performed using the system HBTU/Et3N in chloroform to give the protected
fosmidomycin dimer 43 in a 61% yield. Cleavage of the benzyl groups by cat. hydrogenolysis led to
the tetraethyl phosphonate 18 in moderate yield (50%, Scheme 1).
2.2. Synthesis of FSM-ACQ 19–20 and FSM-ART Conjugates 21–23
Concerning the second family of compounds, namely the FSM conjugates, the FSM core is
attached through a linker to either 4-amino-7chloro-quinoline (ACQ) or artemisinin frames. In this
respect, five compounds were synthesized, two of them bearing the ACQ and three the ART moiety
(compounds 19–20 (Scheme 2) and 21–23, respectively, Schemes 3 and 4). For the FSM-ACQ conjugates,
two different ACQ amine derivatives (44 and 45), bearing a piperazine or an ethylenediamine linker
attached in position 4 of the 4,7-dichloroquinoline [38], were prepared. While coupling of O-benzyl
compound 42 with the piperazino chloroquinoline 44 worked well, the following cleavage of the benzyl
group proved to be harsh, affording a mixture of compounds, where hydrogenolysis of the quinoline

Molecules 2020, 25, 4858
5 of 22
group was also observed. By reversing the sequence of reactions, thus first performing hydrogenolysis
and then coupling of the hydroxamic acid 47 with piperazine 44, the desired hybrid 19 was obtained in
a 58% yield over two steps.
Scheme 2. Synthesis FSM-ACQ conjugates 19 and 20; Reagents and conditions: (a) 44, HBTU, Et3N,
CHCl3, rt, 3.5 h, 61% (b) H2, 10% Pd/C, MeOH, rt, 3 h; (c) H2, 10% Pd/C, MeOH, rt, 5 h, 97%; (d) 44
,
HBTU, DIPEA, CHCl3, rt, 2 h, 60%; (e) Boc2O, Et3N, DMAP, CH2Cl2, rt, overnight, 30%; (f) 45, HBTU,
Et3N, CHCl3, DMF, 4 h, 50%; (g) TFA, CH2Cl2, overnight, 60%.
Scheme 3. Synthesis of FSM-ART conjugate 21; Reagents and conditions: (a) 39, HBTU, Et3N, CH2Cl2,
overnight, 50%; (b) H2, 10% Pd/C, MeOH, rt, 4 h, 90%.
For the second hybrid, possessing an ethylene diamine linker, this sequence of reactions could not
be applied. A complex mixture of compounds was obtained that was difficult to purify. In this respect,
the Boc group was used as alternative protection for the hydroxamic function; treatment of 47 with the
system Boc2O/Et3N/DMAP afforded acid 48 and then followed a coupling reaction with the primary
amino group of compound 45 to give the desired compound 49 in a 50% yield, after FCC purification.
Boc-deprotection, by TFA-mediated acidolysis, yielded the FSM-ACQ hybrid 20 in a 60% yield.

Molecules 2020, 25, 4858
6 of 22
Scheme 4. Synthesis of the FSM-ART conjugates 22–23 and FSM derivatives 24–25; Reagents and
conditions: (a) 42, HBTU, DIPEA, CHCl3, rt, 7 h (72% for 54 and 96% for 55) (b) TFA, TFE, CH2Cl2, 5 h
(90% for 56 and 98% for 57); (c) H2, 10% Pd/C, MeOH, rt, 6.5 h (91% for 24 and 95% for 25); (d) 2× 50
,
HBTU, DIPEA, CH2Cl2, overnight, 50%; (e) H2, 10% Pd/C, MeOH, rt, 4 h (60% for 22 and 80% for 23).
For FSM-ART conjugates, one artemisinin fragment was first introduced through the acid
derivative 50 (Scheme 3), which was prepared as previously described [35]. Reaction of compound
50 with benzyloxyamine 39 under peptide coupling conditions afforded derivative 51, which upon
hydrogenolysis reaction led to FSM-ART hybrid 21 in a 45% yield over 2 steps, after FCC purification.
Moreover, based on our recent work, where hybrids possessing two artemisinin moieties linked
with polyamine spacers, such as spermidine or homospermidine, present very good activities
against Plasmodium falciparum [28], compounds 22 and
2, possessing a FSM moiety attached
through a spermidine or homospermidine linkers to two artemisinin moieties, were synthesized.
Protected spermidine and homospermidine derivatives 52 and 53, respectively, were prepared according
to the procedure described in our previous work [35]. Reaction of 52 and 53 with the acid 42 under
different and optimal coupling conditions afforded compounds 54 and 55 in 72% and 96% yields,
respectively. One-pot deprotection of both benzyl and trityl groups under catalytic hydrogenation
conditions unfortunately afforded a mixture of compounds. We thus proceeded in two steps: first with
TFA-mediated acidolysis of the trityl groups, followed by hydrogenation for the benzyl group cleavage.
The two-step procedure afforded the valuable intermediates 24 and 25 in 91% and 95% yields,
respectively (Scheme 4).
Attempts to couple compounds 24 or 25 with the artemisinin acid derivative 50 as for the ACQ
derivatives failed to proceed in a clean manner; a mixture of derivatives bearing two and three
artemisinin moieties appeared in the mass spectrum, also indicating coupling on the N-OH function.
So, precursors 56 and 57 were allowed to react with artemisinin acid 50 (Scheme 4) using HBTU as
the coupling agent, in order to afford the benzylated derivatives 58 and 59 in a 50% yield. The latter
were then hydrogenated, leading to the final FSM-ART hybrids 22 and 23 in 60% and 80% yields,
respectively, after flash column chromatography (FCC) purification.

Molecules 2020, 25, 4858
7 of 22
2.3. Synthesis of FSM Derivatives 26–35
The third family of FSM derivatives synthesized is based on the functionalization of the acid
42. This compound can be an interesting platform, where the main functions of FSM are present,
and a propyl carboxylic acid is attached as a linker. In this respect, the two first compounds of this
family (56 and 57, Scheme 4) have already been synthesized as valuable intermediates in the synthesis
of FSM-ART conjugates with spermidine and homospermidine linkages. By using analogous peptide
coupling conditions, eight new compounds were synthesized possessing various amino and/or amido
frameworks connected to the hydroxamic function (Scheme 5).
Scheme 5. Synthesis of FSM-amido derivatives 26–
33; Reagents and conditions: (a) R1H, HBTU,
DIPEA, CH2Cl2, rt, 3–6 h, 62%–84%; (b) H2, 10% Pd/C, MeOH, rt, 3–5 h, 80%–90%; (c) R1H, HBTU,
DIPEA, CH2Cl2, rt, 2 h, 70% for 66 and 6 h, 84% for 68; (d) TFA, TFE, CH2Cl2, 0 ◦C to rt, 1 h, 70%;
(e) H2, 10% Pd/C, MeOH, rt, 2 h, 90% for 32 and 4 h, 60% for 33.
Among the different amine reagents, Boc-monoprotected dianiline (used for derivative 29) and
Trt-piperazine (used for derivative 66) were synthesized according to known procedures [39,40],
while all other amines were commercially available.
Finally, two more compounds were synthesized, where the hydroxamic part was replaced
by a fragment that potentially can interact with metal ions as is the case and the role of the
hydroxamic function of FSM. In this respect, o-phenylenediamine (a known pharmacophore) was
chosen due to its chelating capacity [41]. Synthesis of the two final compounds 34 and 35 was
straightforward. Alkylation of o-phenylenediamine under sonicating conditions using the already
available bromophosphonate 37 afforded in fair yield compound 34, which upon ethyl ester deprotection,
followed by basic work-up, led to compound 35 (Scheme 6).
Scheme 6. Synthesis of phosphonate derivatives 34 and 35; Reagents and conditions: (a) DBU, DMF,
1 h, ultrasound, rt, 33%; (b) (i) TMSBr, DCM, 0 ◦C to rt, 8 h (ii) 6N aq. NaOH/MeOH 75% over 2 steps.

Molecules 2020, 25, 4858
8 of 22
The synthesized compounds were evaluated for their antiplasmodial activity against the
CQ-resistant P. falciparum FcB1/Colombia strain [42 43], using as control drugs FSM, FR900098,
,
ART, and CQ (see Figure 3). Moreover, their cytotoxicity was measured, as previously reported,
upon the primary human fibroblast cell line AB943, which allowed the calculation of their selectivity
index (SI) [35].
Figure 3. Structures of the control drugs (FSM, FR900098, ART, CQ).
Specifically, IC50
independent experiments as the mean values
activities were determined from two independent experiments as the mean values
IC50, SIs (ratio between IC50 M) of cytotoxicity/IC50 M) of the antiplasmodial activity), and XLogGP3
(
µ
M) values for the antiplasmodial activities were determined from four
standard deviations. IC50 M) values for the cytotoxicity
standard deviations.
±
(µ
±
(µ
(µ
values for the FSM derivatives, hybrid, and conjugates are reported in Table 1. The IC50 values of ART,
FSM, FR900098, and CQ were also measured and are provided as controls.
Table 1. Evaluation of antiplasmodial activities of synthesized compounds with CQ-resistant
P. falciparum FcB1/Colombia strain and selectivity indexes (SI).
Compound
MW
ClogP 1
IC50 (µM)
SI 2
FSM
17
FR900098
18
205.08
253.23
219.11
504.45
540.98
628.97
533.60
1083.31
1097.33
667.56
680.58
425.42
401.40
490.54
591.64
400.41
476.51
393.42
493.42
286.31
230.20
282.34
318.89
−2.22
−0.43
−2.24
−1.22
1.42
2.24
3.22
4.97
5.33
−4.62
−4.26
−0.35
−0.37
1.92
2.80
0.25
1.94
15.0 ± 1.7
>6.6
-
>14.2
-
23.9
23.7
-
94.1
34.0
-
-
-
-
-
1.7
>100
7.0 ± 0.0
>100
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
2.7 ± 0.5
4.2 ± 0.9
28.0 ± 11.6
0.36 ± 0.09
0.65 ± 0.26
>100
46.2 ± 8.0
86.0 ± 1.4
81.0 ± 2.8
38.7 ± 10.0
22.7 ± 1.9
>100
-
-
-
-
3.7
-
44.2 ± 9.5
−1.25
−3.09
1.56
>100
>100
8.2 ± 2.7
35
ART
CQ
−0.24
>100
2.90
55.0
72.0 ± 7.4 (nM)
±
13.6 (nM)
>4545
347
5.70
1
2
XLogGP3 values calculated with the web tool SwissADME [44]. SI = IC50 (AB943)/IC50 (P.f. FcB1)
Concerning the first family of compounds (FSM, 17, FR900098, 18), it was noticed that phosphonate
esters are inactive. For example, FR9000980s diethyl phosphonate analogue 17 and the dimer 18
,
which possesses two diethylphosphonate ester FSM frames linked together with a succinic acid
spacer, have IC50 values >100 µM. FSM appears 2-fold less active than FR900098, with IC50 values

Molecules 2020, 25, 4858
9 of 22
of 15.0 and 7.0 µM respectively, while their selectivity indexes also follow the same trends (>6.6 vs.
>14.2 µM respectively).
The second family, constructed by introducing next to the carbonyl group of the FSM hydroxamate
group active antimalarial pharmacophores like aminochloroquinoline or artemisinin, presents very
interesting results. The hybrid compounds with aminochloroquinoline 19 and 20 showed strong
and comparable activities of 2.7 and 4.2 µM, respectively. Compound 19 possesses the structure of
piperazine linked through an amide chain to the FSM diester fragment. The 19 and 20 compounds are
3.5–5.5 times more active than FSM itself and more than 25–40-fold more active in comparison to the
diester compound 17. Their activities are lower but closer to the CQ, indicating a major influence of
the ACQ fragment, largely compensating the absence of acid functionality on the FSM. In addition,
they showed higher selectivity indexes in comparison to FSM but much lower in comparison to CQ.
Concerning the hybrid compounds containing artemisinin, we observed a weaker activity
for compound 21, where one artemisinin moiety is linked directly to the FSM diester fragment
(IC50 = 28.0
fragment through a spermidine and to a lesser extent to an homospermidine linker (22
most active molecules of our series with IC50 values of 0.36 and 0.65 M; and the best selectivity among
µM). On the contrary, the conjugation of the two ART frames with one FSM diester
,
23) afforded the
µ
all new compounds, with SI values of 94 and 34, respectively. Here, again, it is observed that the IC50
values are 6.5–12 times higher than ART itself but much lower than FSM’s (23–41 fold). These values
indicate a stronger influence of the ART fragment to the conjugates. It is noteworthy that all molecules
of this family, which exhibit strong antimalarial activities, possess the diethyl phosphonate group.
According to our recently reported work on other antimalarial hybrid compounds [35], the presence
of two artemisinin moieties linked through spermidine or homospermidine to an amide chain bearing
a third endoperoxide (GMeP) gave IC50 values of the order of 10 nM. In the case of compounds 22 and
23, the presence of FSM diester (in the place of GMeP) was observed again, even if the activities were
lower in this case, probably confirming that hybrid compounds with two different potential targets of
Plasmodium can be an interesting option in the search for new antimalarial compounds.
Compounds possessing only the spermidine or homospermidine fragments attached through an
amido linker to FSM diester (24
for compound 25 bearing the homospermidine frame. Among the other compounds of this third
family, those bearing two aromatic rings attached to the amido function (28 29 31) present activities
in the range between 22 and 44 M, while compounds 26 27, and 30 are inactive. Nevertheless,
the second-best compound of this family series (29) is cytotoxic since it has an SI value of only 1.7.
Finally, the two compounds possessing a piperazine or N-methyl piperazine fragment (32 33) are
inactive, indicating that piperazine alone (as spermidine and homospermidine alone) lacks activity
like the diester 17. For the last two compounds of the third family (34 35), where the hydroxamic
fragment was replaced by an ortho-benzenediamine fragment, we observed good activity for the diester
34 (IC50 = 8.2 M), while the mono sodium salt of the corresponding diacid (35) is inactive. However,
, 25) are much less active; however, a better IC50 value was observed
,
,
µ
,
,
,
µ
despite the good antimalarial activity of 34, it seems to be cytotoxic, with an SI value of only 3.7.
In Table 1, the MWs, IC50 values, and the evaluation of the XLogGP3 SwissADME values according
to the online calculation [44] are also reported. The software can combine physicochemical properties
along with pharmacokinetics predictions for the drug likeness of the examined compounds. Since the
families of the synthesized and tested compounds are quite different, we first examined and compared
the values for each family. The active and known compounds FSM and FR900098 show the most
negative values (
−
2.22 and
−
2.24, respectively) in comparison to values of
−
0.43 and 1.22 for diester
−
17 and the dimer 18. For the second and most promising family of compounds, values vary between
+1.42 and +5.33, with the two most active compounds having the highest ones. Concerning the third
family of compounds, the most active show values between +1.92 and +2.80, while the inactive ones
have negative values. In summary, apart from the first family, where all compounds possess negative
XLOGP3 ADME values, the others show positive values for the active ones, the highest being for
the most actives. Even if the calculation of the XLOGP3 values takes into consideration a number of

Molecules 2020, 25, 4858
10 of 22
different parameters, including the molecular weight, we feel that XLOGP3 could be one of many
valuable tools to include when searching to optimize structures of the same family.
Results concerning comparative activities and the XLogGP3 SwissADME for all compounds tested
indicated that different factors intervene for the activities of the compounds. Most important of them
are related to the fragment-attached FSM derivative and to the linker next to that. The influence of
the acid group of the FSM has to be more extensively studied, as its rol is not apparent in regard to
some of the results obtained. Moreover, it is noteworthy to observe that compounds with a potential
protonation site on the fragment adjacent to the FSM core (compounds 19
,
20
,
34) can be very active,
along with those possessing two highly active pharmacophores (compounds 22
, 23) connected through
a polyamino linker to the FSM core.
In conclusion, a series of FSM analogs, derivatives, and conjugates with ART and ACQ were
synthesized and evaluated against P. falciparum. The most active compounds, which in addition to
possessing a good SI, are those that combine two ART frames with the one of FSM diester, through
a spermidine or homospermidine linker and exhibit IC50 values of 0.36 and 0.65 µM, respectively
(compounds 22 and 23). Interestingly, the hybrid compounds with one ACQ frame (compounds 19 and
20) are 3.5–5.5 times more active than FSM itself with fairly good SIs. While for FSM and FR900098 the
monosodium salt 17 is the most active form, for the hybrid compounds mentioned above, the diethyl
phosphonates 19 and 20 show the best activity.
Further work is in progress to examine whether for the most active compounds, (i) the diester
forms are better than the acidic ones and (ii) if they are active against strains of P. falciparum showing
a different resistance status. Finally, according to our recent findings on hybrid compounds possessing
the endoperoxide GMeP [35], we are now engaged in incorporating this frame in a series of FSM
analogues and evaluating them.
3. Materials and Methods
3.1. General Methods
1
Melting points were determined with a Buchi SMP-20 apparatus and are uncorrected. H NMR
spectra were obtained at 600.13 MHz and 13C NMR spectra at 150.90 MHz on a Bruker AVANCEIII HD
spectrometer. Chemical shifts (δ) are indicated in parts per million (ppm) downfield from TMS and
coupling constants (J) are reported in hertz (Copies of NMR spectra are available in the Supplementary
Materials. ESI-HRMS spectra were recorded on a Waters Q-TOF UPLC Xevo G2 and ESI mass spectra
were recorded at 30 V, on a Micromass-Platform LC spectrometer using MeOH as solvent. All solvents
were dried and/or purified according to standard procedures prior to use. Anhydrous Na2SO4 was used
for drying solutions, and the solvents were then routinely removed at ca. 40 ◦C under reduced pressure
using a rotary vacuum evaporator. All reagents employed in the present work were commercially
available and used without further purification. When required, reactions were carried out under dry
argon atmosphere in preflamed glassware. Flash column chromatography (FCC) was performed on
Merck silica gel 60 (230–400 mesh) and analytical thin layer chromatography (TLC) was performed on
Merck silica gel 60F254 (0.2 mm) precoated on aluminum foil. Spots on the TLC plates were visualized
with UV light at 254 nm and ninhydrine solution or charring agents.
3.2. Experimental Procedures
3.2.1. Synthesis of FSM Dimer 18
4-((Benzyloxy)(3-(diethoxyphosphoryl)propyl)amino)-4-oxobutanoic acid (42): To an ice-cold
solution of protected amine 39 (1 mmol) and 4-dimethylaminopyridine (DMAP) (0.1 mmol) in freshly
distilled tetrahydrofuran (THF) (2 mL), N,N-diisopropylethylamine (DIPEA) (1.5 mmol) was added.
Then, the addition of succinic anhydride (1.1 mmol) was followed in small portions over 30 min and
the reaction mixture was stirred at ambient temperature for 3h. Upon completion of the reaction,

Molecules 2020, 25, 4858
11 of 22
THF was removed under reduced pressure and the residue thus obtained was diluted with CH2Cl2
and washed with 5% aqueous citric acid, water, and brine. The organic layer was dried over Na2SO4
and evaporated to dryness under vacuum. The residue was subjected to FCC to give acid 42 as yellow
oil (283 mg, 88%); Rf (CHCl3/MeOH 95:5): 0.15; 1H NMR (CDCl3):
δ
7.37 (5H, s), 4.84 (2H, s), 4.16–3.98
(4H, m), 3.71 (2H, t, J = 6.2 Hz), 2.71 (2H, t, J = 6.4 Hz), 2.62 (2H, t, J = 6.4 Hz), 1.98–1.86 (2H, m),
1.79–1.68 (2H, m), 1.29 (6H, t, J = 7.1 Hz); 13C NMR (CDCl3):
δ
175.9, 134.3, 129.3, 129.1, 128.8, 76.5, 61.9,
29.0, 28.7, 27.3, 23.2, 22.3, 20.2, 16.4; 31P NMR (CDCl3):
δ
34.18; ESI-MS (30eV): m/z 825.04 [2M + Na]+,
440.16 [M + K]+, 424.16 [M + Na]+, 402.12 [M + H]+.
Tetraethyl ((4,7-dioxo-1,10-diphenyl-2,9-dioxa-3,8-diazadecane-3,8-diyl) bis(propane-3,1-diyl))
bis(phosphonate) (43): To a solution of acid 42 (60 mg, 0.15 mmol) and HBTU (63 mg, 0.165 mmol) in
CHCl3 (1.4 mL), amine 39 (45 mg, 0.15 mmol), and Et3N (32 µL, 0.225 mmol) were added. After 3.5 h,
the reaction mixture was diluted with CHCl3, washed with 5% aqueous citric acid, water, 5% aqueous
NaHCO3, water, and brine. The organic layer was dried over Na2SO4, filtered, and evaporated to
dryness under reduced pressure. The residue thus obtained was subjected to FCC, affording the
corresponding pure conjugate; Yellow oil (72 mg, 70%); Rf (CHCl3/MeOH 95:5): 0.37; 1H NMR (CDCl3)
δ
7.41–7.34 (m, 10H), 4.90 (s, 4H), 4.12–4.02 (m, 8H), 3.71 (t, J = 6.4 Hz, 4H), 2.77 (s, 4H), 1.99–1.89 (m,
4H), 1.75–1.69 (m, 4H), 1.29 (t, J = 7.1 Hz, 12H); 13C NMR (CDCl3)
δ 175.5, 134.5, 129.2, 128.9, 128.7,
76.5, 61.6, 26.9, 23.5, 22.5, 20.3, 16.5; ESI-MS (30eV): m/z 723.42 [M + K]+, 707.54 [M + Na]+, 685.54
[M + H]+, 384.64 [M−C14H23NO4P]+.
Tetraethyl-((succinylbis(hydroxyazanediyl))bis (propane-3,1-diyl))bis(phosphonate) (18): A solution
of 43 (50 mg, 0.073 mmol) in methanol (3 mL) was subjected to hydrogenolysis over 10% Pd/C
(15 mg) at ambient temperature for 3 h. Thus, the reaction mixture was filtered through Celite and
the filter cake was washed several times with methanol. After evaporation of the solvent to dryness
under reduced pressure, the residue was subjected to FCC, affording the corresponding the dimer
18; Yellow oil (18 mg, 50%); Rf (CHCl3/MeOH 95:5): 0.12; 1H NMR (CDCl3)
(m, 8H), 3.75–3.59 (m, 4H), 2.82 (s, 4H), 1.97–1.85 (m, 4H), 1.82–1.71 (m, 4H), 1.30 (t, J = 7.0 Hz, 12H);
δ 9.92 (s, 1H), 4.11–4.01
13C NMR (CDCl3)
δ 170.7, 62.0, 49.0 27.8, 22.9, 21.9, 19.5, 16.4; HRMS (ESI/Q-TOF): m/z 527.1907
[M + Na]+ for the compound C18H38N2O10P2 requires 527.1894.
3.2.2. Synthesis of FSM-ACQ Derivatives 19 and 20
4-((3-(Diethoxyphosphoryl)propyl)(hydroxy)amino)-4-oxobutanoic acid (47): A solution of 42
(80 mg, 0.2 mmol) in methanol (3 mL) was subjected to hydrogenolysis over 10% Pd/C (12 mg) at
ambient temperature for 5 h. Thus, the reaction mixture was filtered through Celite and the filter
cake was washed several times with methanol. After evaporation of the solvent to dryness under
reduced pressure, the residue was subjected to FCC, affording pure 47; Orange oil (60.4 mg, 97%);
1
Rf (CHCl3/MeOH 9:1): 0.23; H NMR (CDCl3)
δ 4.14–4.02 (m, 4H), 3.73 (t, J = 6.2 Hz, 2H), 2.86
(t, J = 6.2 Hz, 2H), 2.66 (t, J = 7.3 Hz, 2H), 2.00–1.90 (m, 2H), 1.83 & 1.80 (dt, J = 18.3, 7.1 Hz, 2H), 1.32
(t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ
177.2, 173.7, 62.4, 47.9, 29.4, 27.4, 22.9, 22.7, 21.9, 19.1, 16.4;
ESI-MS (30eV): m/z 661.14 [2M + K]+, 645.14 [2M + Na]+, 350.37 [M + K]+, 334.43 [M + Na]+.
Diethyl (3-(4-(4-(7-chloroquinolin-4-yl)piperazin-1-yl)-N-hydroxy-4-oxobutanamido) propyl)
phosphonate (19): To a solution of acid 47 (32 mg, 0,1 mmol) and 2-(1Hbenzotriazol-1-yl)-1,
1,3,3-tetramethyluronium hexafluorophosphate (HBTU) (42 mg, 0.1 mmol) in CHCl3 (0.2 mL), amine 44
(25 mg, 0.1 mmol) and DIPEA (30
the mixture was evaporated under reduced pressure and the residue thus obtained subjected to FCC
providing the conjugate 19; Orange oil (32 mg, 60%); Rf (CHCl3/MeOH 95:5): 0.12; 1H NMR (CDCl3)
µL, 0.15 mmol) were added at ambient temperature. After 2 h,
δ
9.82 (s, 1H), 8.75 (d, J = 5.0 Hz, 1H), 8.07 (d, J = 2.2 Hz, 1H), 7.95 (d, J = 9.0 Hz, 1H), 7.47 (dd, J = 9.0,
2.1 Hz, 1H), 6.85 (d, J = 5.0 Hz, 1H), 4.14–4.05 (m, 4H), 3.90 (s, 2H), 3.83–3.78 (m, 2H), 3.75 (t, J = 6.1 Hz,
2H), 3.25–3.16 (m, 4H), 2.88 (t, J = 6.4 Hz, 1H), 2.77 (t, J = 6.4 Hz, 1H), 2.03–1.90 (m, 2H), 1.80 (dt, J = 18.4,
7.0 Hz, 4H), 1.32 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ 173.2, 171.3, 156.4, 151.9, 150.1, 135.2, 129.0,

Molecules 2020, 25, 4858
12 of 22
126.7, 124.7, 121.8, 109.4, 62.0, 52.1, 47.6, 45.5, 41.8, 29.0, 27.2, 22.8, 21.9, 19.3, 16.4; HRMS (ESI/Q-TOF):
m/z 541.1997 [M + H]+; for the compound C24H34ClN4O6P requires 541.1977.
4-(((Tert-butoxycarbonyl)oxy)(3-(diethoxy-phosphoryl)propyl)amino)-4-oxobutanoic acid (48):
To a solution of 47 (55 mg, 0.176 mmol) in CH2Cl2 (5.5 mL), catalytic amount of DMAP, Et3N (25 µL,
0.176 mmol), and di-tert-butyl-dicarbonate (38 mg, 0.176 mmol) were added and the reaction mixture
was stirred overnight at ambient temperature. It was then diluted with DCM and washed with
pre-cooled 5% aqueous citric acid, water, and brine. The organic layer was dried over Na2SO4, filtered,
and evaporated to dryness under reduced pressure. The residue thus obtained was subjected to FCC,
affording 48 as yellow oil (21.7 mg, 30%); Rf (CHCl3/MeOH 95:5): 0.15; 1H NMR (CDCl3)
δ 4.15–4.02
(m, 4H), 3.79 (t, J = 6.3 Hz, 2H), 2.67 (d, J = 6.2 Hz, 2H), 2.62 (d, J = 4.1 Hz, 2H), 1.90–1.84 (m, 2H),
1.83–1.75 (m, 2H), 1.54 (s, 9H), 1.31 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
16.4; 31P NMR (CDCl3) δ 34.18.
δ 175.1, 61.8, 61.7, 28.4, 27.6,
Diethyl (3-(N-((tert-butoxycarbonyl)oxy)-4-((2-((7-chloroquinolin-4-yl)amino)ethyl) amino)-4-
oxobutanamido)propyl)phosphonate (49): To a solution of acid 48 (13 mg, 0.03 mmol) and HBTU
(13 mg, 0.033 mmol) in CHCl3/DMF 5:1 (0.3 mL), amine 45 (7 mg, 0.03 mmol), and Et3N (7 µL,
0.045 mmol) were added. After 4h, the reaction mixture was diluted with DCM, washed with
pre-cooled 5% aqueous citric acid, water, 5% aqueous NaHCO3, water, and brine. The organic layer
was dried over Na2SO4, filtered, and evaporated to dryness under reduced pressure. The residue thus
obtained was subjected to FCC, affording the corresponding pure conjugate 49 as yellow oil (9.2 mg,
50%); Rf (CHCl3/MeOH 95:5): 0.18; 1H NMR (CDCl3)
δ 8.41 (d, J = 5.6 Hz, 1H), 7.93 (d, J = 2.0 Hz, 1H),
7.91 (s, 1H), 7.39 (dd, J = 8.9, 2.0 Hz, 1H), 7.16 (s, 1H), 7.05 (s, 1H), 6.28 (d, J = 5.7 Hz, 1H), 4.13–4.01 (m,
4H), 3.67 (s, 4H), 3.44–3.38 (m, 2H), 2.69 (s, 2H), 2.56 (s, 2H), 1.83–1.75 (m, 2H), 1.74 (d, J = 13.1 Hz, 2H),
1.51 (s, 9H), 1.30 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ 174.7, 151.3, 149.9, 135.8, 126.5, 125.8, 122.8,
117.0, 98.0, 61.7, 45.1, 38.6, 27.5, 20.2, 16.4; ESI-MS (30eV): m/z 1251.76 [2M + Na]+, 653.26[M + K]+,
637.49[M + Na]+, 615.52[M + H]+.
7-Chloro-N-(2-(4-((3-(diethoxyphosphoryl)propyl)(hydroxy)amino)-4oxobutanamido) ethyl)
quinolin-4-aminium 2,2,2-trifluoroacetate (20): To an ice-cold solution of 49 (6 mg, 0.01 mmol)
in CH2Cl2 (0.4 mL), trifluoroacetic acid (TFA) (12 µL) was added and the reaction mixture was stirred
overnight at ambient temperature. Then, volatile components were evaporated under vacuum and the
oily residue thus obtained was subjected to FCC, affording pure conjugate 20. Colorless oil (3.8 mg,
60%); Rf (CHCl3/MeOH 85:15): 0.3; 1H NMR (CDCl3)
δ 9.15 (s, 1H), 8.28 (d, J = 6.6 Hz, 1H), 8.15 (d,
J = 9.0 Hz, 1H), 7.93 (s, 2H), 7.45 (d, J = 8.9 Hz, 1H), 6.40 (d, J = 6.8 Hz, 1H), 4.13–4.02 (m, 4H), 3.69–3.61
(m, 4H), 3.53 (s, 2H), 2.89 (t, J = 6.4 Hz, 2H), 2.59 (t, J = 6.1 Hz, 2H), 1.97–1.88 (m, 2H), 1,81–1.75 (m,23H),
1.32 (t, J = 7.0 Hz, 6H); 13C NMR (CDCl3)
δ 176.0, 173.5, 155.6, 142.7, 139.8, 138.7, 127.9, 124.4, 120.0,
115.3, 97.5, 62.3, 47.9, 45.4, 38.1, 31.2, 29.7, 28.3, 22,6 21.8, 19.2, 16.4; HRMS (ESI/Q-TOF): m/z 537.1649
[M + Na]+; for the compound C22H32ClN4O6P requires 537.1640.
3.2.3. Synthesis of FSM-ART Conjugates 21–23
Diethyl (3-(N-(benzyloxy)-3-((3S,5aS,6R,8aS, 9R,10R,12R)-3,6,9-trimethyldecahydro-12H-3,12
epoxy [
of artemisinin derivative 50 (25 mg, 0.07 mmol) in DCM (0.47 mL), HBTU (29 mg, 0.077 mmol)
and Et3N (15 L, 0.105 mmol) were added. The reaction mixture was stirred overnight at ambient
1,2] dioxepino [4,3-i]isochromen-10-yl)propanamido) propyl) phosphonate (51): To a solution
µ
temperature. Subsequently, it was diluted with CH2Cl2, washed with pre-cooled 5% aqueous citric
acid, water, 5% aqueous NaHCO3, water, and brine. The organic layer was dried over Na2SO4, filtered,
and evaporated to dryness under reduced pressure. The residue thus obtained was subjected to FCC,
affording conjugate 51 as yellow oil (22 mg, 50%); Rf (AcOEt): 0.17; 1H NMR (CDCl3)
δ 7.44–7.39 (m,
2H), 7.38–7.33 (m, 3H), 5.29 (s, 1H), 4.85 (s, 2H), 4.12–4.03 (m, 4H), 3.78–3.65 (m, 2H), 2.80 (s, 1H),
2.76–2.71 (m, 1H), 2.55–2.47 (m, 1H), 2.33 (td, J = 14.0, 3.9 Hz, 1H), 2.04–1.99 (m, 1H), 1.98–1.91 (m, 2H),
1.91–1.86 (m, 1H), 1.83–1.78 (m, 1H), 1.77–1.69 (m, 3H), 1.68–1.62 (m, 4H), 1.59–1.53 (m, 1H), 1.50–1.40
(m, 2H), 1.39 (s, 3H), 1.30 (t, J = 7.1 Hz, 6H), 1.27–1.20 (m, 2H), 0.94 (d, J = 6.1 Hz, 3H), 0.88 (d, J = 7.5 Hz,

Molecules 2020, 25, 4858
13 of 22
3H); 13C NMR (CDCl3)
δ
129.4, 128.9, 128.7, 103.4, 88.6, 81.2, 75.9, 61.6, 52.5, 44.6, 37.4, 36.6, 34.5, 30.2,
26.2, 24.9, 24.7, 24.0, 20.2, 16.5, 13.3; ESI-MS (30eV): m/z 1285.61 [2M + K]+, 1269.36 [2M + Na]+, 662.46
[M + K]+, 646.46 [M + Na]+.
Diethyl (3-(N-hydroxy-3-((3S,5aS,6R,8aS,9R,10R,12R)-3,6,9-trimethyldecahydro-12H-3, 12-epoxy
[1,2]dioxepino[4,3-i]isochromen-10-yl)propanamido)propyl)phosphonate (21): A solution of conjugate
51 (20 mg, 0.032 mmol) in methanol (3 mL) was subjected to hydrogenolysis over 10% Pd/C (5 mg)
at ambient temperature for 4 h. Thus, the reaction mixture was filtered through Celite and the filter
cake was washed several times with methanol. After evaporation of the solvent to dryness under
reduced pressure, the residue was subjected to FCC, affording pure 21; Orange oil (15 mg, 90%);
Rf (DCM/MeOH 95:5): 0.35; 1H NMR (CDCl3)
δ 8.52 (br s, 1H), 8.08 (s, 1H), 5.28 (s, 1H), 4.10–4.01 (m,
4H), 3.87 (dt, J = 13.5, 6.6 Hz, 1H), 3.74–3.69 (m, 1H), 3.57–3.50 (m, 1H), 2.69–2.63 (m, 1H), 2.57–2.47 (m,
2H), 2.11 (s, 2H) 1.99–1.89 (m, 4H), 1.85–1.74 (m, 7H), 1.51 (s, 3H), 1.431–1.28 (m, 7H), 1.05 (d, J = 6.3 Hz,
3H), 0.96 (d, J = 6.7 Hz, 3H); 13C NMR (CDCl3)
δ 175.0, 161.0, 107.6, 97.2, 82.6, 69.3, 61.7, 57.4, 54.3,
48.0, 45.2, 41.4, 40.0, 35.5, 34.5, 27.8, 25.1, 23.4, 22.0, 20.5, 19.7, 18.8, 16.4, 12.5, 11.9; HRMS (ESI/Q-TOF):
m/z 556.2650 [M + Na]+; for the compound C25H44NO9P requires 556.2646.
General procedure for the synthesis of FSD-polyamine conjugates. To a solution of 42 (60 mg,
0.15 mmol) and HBTU (62 mg, 0.165 mmol) in CHCl3 (300
µL), the suitable protected spermidine 52
(94 mg, 0.15 mmol) or homospermidine 53 (96 mg, 0.15 mmol) and Et3N (32
µL, 0.225 mmol) were
added. After 7–12 h, the mixture was diluted with CHCl3 and washed with pre-cooled 5% aqueous
citric acid, water, 5% aqueous NaHCO3, water, and brine. The organic layer was dried over Na2SO4,
filtered and evaporated to dryness under reduced pressure. The residues thus obtained were subjected
to FCC, affording the corresponding conjugates 54 and 55.
Diethyl (3-(N-(benzyloxy)-4-oxo-4-((4-(tritylamino)butyl)(3-(tritylamino)propyl)amino)butanamido) propyl)
phosphonate (54): Reaction time: 7h; White foam (109 mg, 72%); Rf (AcOEt): 0.2; 1H NMR (CDCl3)
δ
7.50–7.42 (m, 12H), 7.42–7.32 (m, 5H), 7.31–7.21 (m, 12H), 7.20–7.12 (m, 6H), 4.91 (s, 1H), 4.88 (s, 1H),
4.10–4.02 (m, 4H), 3.73–3.64 (m, 2H), 3.38 (t, J = 7.1 Hz, 1H), 3.33 (t, J = 7.7 Hz 1H), 3.25 (t, J = 7.1 Hz,
1H), 3.14 (t, J = 7.6 Hz, 1H), 2.76 (s, 1H), 2.60 (t, J = 6.0 Hz, 1H), 2.51 (t, J = 5.9 Hz, 1H), 2.18–2.10 (m, 3H),
2.08–2.05 (m, 1H), 1.97–1.87 (m, 2H), 1.74 (s, 3H), 1.72–1.65 (m, 2H), 1.60–1.55 (m, 1H), 1.53–1.42 (m, 3H),
1.30–1.25 (m, 6H); 13C NMR (CDCl3)
δ 171.2, 146.2, 146.1, 145.9, 134.5, 129.1, 128.8, 128.6, 128.5, 127.8,
127.7, 126.3, 126.2, 126.1, 76.4, 70.8, 61.5, 60.4, 47.5, 46.2, 43.7, 43.5, 43.3, 41.3, 40.9, 38.6, 30.3, 28.7, 28.4,
28.1, 27.6, 27.3, 26.7, 25.8, 23.5, 22.5, 21.0, 20.2, 16.4, 14.2; ESI-MS (30eV): m/z 1035.75 [M + Na]+, 1013.39
[M + H]+, 301.48 [M−C49H50H3O2]+, 243.28 [Trt]+.
Diethyl (3-(N-(benzyloxy)-4-(bis(4-(tritylamino)butyl)amino)-4-oxobutanamido) propyl) phosphonate (55):
1
Yellow pale foam (148 mg, 96%); Rf (AcOEt/Et3N 1%): 0.18; H NMR (CDCl3)
δ 7.49–7.41 (m, 9H),
7.40–7.32 (m, 6H), 7.30–7.21 (m, 12H), 7.19–7.12 (m, 5H), 4.90 (s, 1H), 4.87 (s, 1H), 4.15–4.05 (m, 6H),
3.70 (dt, J = 14.0, 7.0 Hz, 2H), 3.22 (dt, J = 15.0, 7.1 Hz, 2H), 3.22–3.17 (m, 1H), 2.82–2.72 (m, 2H), 2.55
(t, J = 6.4 Hz, 1H), 2.12 (dt, J = 14.3, 7.0 Hz, 2H), 1.97–1.78 (m, 4H), 1.74–1.64 (m, 4H), 1.60–1.41 (m, 7H),
1.34–1.24 (m, 10H); 13C NMR (CDCl3)
δ 171.2, 146.2, 146.1, 129.2, 128.6, 127.8, 127.7, 126.2, 70.2, 61.5,
60.6, 59.2, 47.7, 46.0, 43.4, 28.7, 28.4, 28.2, 27.7, 27.4, 26.7, 25.7, 24.0, 23.5, 23.1, 22.5, 20.3, 16.4, 14.2.
Trityl-deprotection of conjugates 54 and 55. To an ice-cold solution of 54 or 55 (0.12 mmol) in DCM
(1.0 mL), TFE (50 µL, 0.65 mmol) and TFA (50 µL, 0.65 mmol) were added. The reaction mixture was
stirred at ambient temperature for 6h. Volatile components were evaporated under vacuo, and the oily
residue was triturated with Et2O/Hex and refrigerated overnight. The corresponding trifluoroacetate
salts 56 and 57 were received after decanting of the solvents.
4-(N-(3-ammoniopropyl)-4-((benzyloxy)(3-(diethoxyphosphoryl)propyl)amino)-4-oxobutanamido)butan-1-
1
aminium 2,2,2-trifluoroacetate (56): Yellow oil (82 mg, 90%); H NMR (MeOD):
δ 7.49–7.45 (m, 2H),
7.44–7.39 (m, 3H), 4.97 (br s, 2H), 4.13–4.05 (m, 4H), 3.78 (t, J = 6.5 Hz, 2H), 3.52–3.47 (m, 3H), 3.45
(t, J = 7.4 Hz, 1H), 3.03–2.97 (m, 2H), 2.90 (t, J = 7.0 Hz, 2H), 2.82 (br s, 2H), 2.71–2.65 (m, 2H), 1.94–1.86

Molecules 2020, 25, 4858
14 of 22
(m, 4H), 1.85–1.68 (m, 6H), 1.65–1.61 (m, 1H), 1.31 (t, J = 7.1 Hz, 6H); 13C NMR (MeOD)
δ
174.0, 172.8,
134.7, 129.2, 128.7, 128.3, 75.9, 65.5, 61.9, 44.4, 41.9, 39.0, 36.8, 36.5, 30.9, 27.1, 26.8, 26.3, 25.4, 25.2, 24.4,
24.2, 24.0, 22.2, 21.3, 19.7, 15.3, 15.3, 14.0, 12.9; HRMS (ESI/Q-TOF): m/z 461.2503 [M + Na]+; for the
compound C25H45N4O6P requires 461.2499.
4,40-((4-((Benzyloxy)(3-(diethoxyphosphoryl)propyl)amino)-4-oxobutanoyl)azanediyl) bis(butan-1-aminium)
1
2,2,2-trifluoroacetate (57): Yellow oil (83 mg, 90%); H NMR (MeOD):
δ 7.48–7.44 (m, 2H), 7.42–7.36
(m, 3H), 4.96 (s, 2H), 4.11–4.04 (m, 4H), 3.76 (t, J = 6.6 Hz, 2H), 3.41 (t, J = 6.9 Hz, 2H), 3.37 (br s, 2H),
3.31–3.28 (m, 2H), 2.98 (t, J = 6.9 Hz, 2H), 2.94 (br s, 2H), 2.80 (s, 1H), 2.79 (br s, 1H), 2.67–2.63 (m, 2H),
1.93–1.86 (m, 2H), 1.83–1.76 (m, 2H), 1.75–1.66 (m, 4H), 1.62 (br s, 4H), 1.30 (t, J = 7.1 Hz, 6H); 13C NMR
(MeOD) δ 172.7, 161.2, 160.9, 160.7, 160.5, 134.7, 129.2, 128.6, 128.3, 127.9, 127.2, 126.6, 119.0, 117.4, 115.5,
112.5, 75.9, 61.9, 46.8, 44.6, 39.0, 27.0, 25.2, 24.4, 24.3, 24.0, 22.2, 21.3, 19.7, 15.3; HRMS (ESI/Q-TOF): m/z
453.2848 [M + H]+; for the compound C26H47N4O6P requires 453.2836.
General procedure for the synthesis of ART-FSD conjugates 58
0.06 mmol) and HBTU (25 mg, 0.066 mmol) in CHCl3 (300 L), compound 56 (22 mg, 0.03 mmol)
or 57 (21 mg, 0.03 mmol), and Et3N (20 L, 0.135 mmol) were added. After 12 h, the mixture was
& 59. To a solution of 50 (20 mg,
µ
µ
diluted with CHCl3 and washed with pre-cooled 5% aqueous citric acid, water, 5% aqueous NaHCO3,
water, and brine. The organic layer was dried over Na2SO4, filtered, and evaporated to dryness under
reduced pressure. The residues thus obtained were subjected to FCC, affording the corresponding
conjugates 58 and 59.
Diethyl(3-(N-(benzyloxy)-4-oxo-4-((4-(3-((3S,5aS,6R,8aS,9R,10R,12R)-3,6,9-trimethyldecahydro-12H-3,
12-epoxy[1,2]dioxepino[4,3-i]isochromen-10-yl)propanamido)butyl)(3-(3-((3S,5aS,6R,8aS,9R,10R,12R)-3,6,
9-trimethyldecahydro-12H-3,12-epoxy[1,2]dioxepino[4,3-i]isochromen-10-yl)propanamido)propyl)amino)
1
butanamido)propyl)phosphonate (58): Yellow oil (18 mg, 50%); Rf (CHCl3/MeOH 95:5): 0.3; H NMR
(CDCl3)
δ 7.43–7.35 (m, 5H), 5.29 (s, 2H), 4.92 (s, 2H), 4.12–3.98 (m, 6H), 3.70 (s, 2H), 3.44–3.35 (m, 2H),
3.33–3.23 (m, 5H), 3.20–3.13 (m, 2H), 2.81 (s, 2H), 2.74–2.68 (m, 2H), 2.66–2.57 (m, 2H), 2.51–2.38 (m, 2H),
2.36–2.24 (m, 4H), 2.05–1.98 (m, 3H), 1.96–1.85 (m, 6H), 1.77 (s, 8H), 1.70–1.60 (m, 7H), 1.58–1.51 (m,
4H), 1.48–1.43 (m, 3H), 1.41–1.35 (m, 7H), 1.29 (t, J = 7.0 Hz, 6H), 1.26–1.20 (m, 3H), 0.94 (t, J = 5.8 Hz,
6H), 0.87 (t, J = 7.3 Hz, 6H); 13C NMR (CDCl3)
δ 173.1, 173.0, 172.2, 129.2, 128.9, 128.7, 103.4, 88.7, 81.2,
61.6, 52.5, 47.3, 44.6, 44.5, 43.0, 38.9, 37.3, 36.5, 36.2, 34.6, 34.4, 30.2, 27.4, 27.0, 26.2, 24.9, 24.6, 20.2, 16.5,
13.2; ESI-MS (30eV): m/z 1211.62 [M + K]+, 1195.80 [M + Na]+.
Diethyl(3-(N-(benzyloxy)-4-(bis(4-(3-((3S,5aS,6R,8aS,9R,10R,12R)-3,6,9-trimethyldecahydro-12H-3,12-epoxy
[1,2]dioxepino[4,3-i]isochromen-10-yl)propanamido)butyl)amino)-4-oxobutanamido)propyl)phosphonate (59):
White foam (18 mg, 50%), Rf (CHCl3/MeOH 95:5): 0.3; 1H NMR (CDCl3)
δ 7.44–7.32 (m, 5H), 6.32 (s,
1H), 6.21 (s, 1H), 5.28 (s, 2H), 4.91 (s, 2H), 4.13–3.98 (m, 6H), 3.69 (s, 2H), 3.36–3.19 (m, 8H), 2.80 (s, 4H),
2.74–2.67 (m, 2H), 2.60 (s, 2H), 2.47–2.40 (m, 2H), 2.35–2.24 (m, 4H), 2.04–1.97 (m, 2H), 1.95–1.85 (m,
8H), 1.83–1.77 (m, 4H), 1.75–1.70 (m, 2H), 1.67–1.60 (m, 4H), 1.58–1.51 (m, 7H), 1.49–1.42 (m, 4H), 1.37
(d, J = 3.4 Hz, 6H), 1.29 (t, J = 7.0 Hz, 6H), 1.25–1.21 (m, 3H), 0.96–0.91 (m, 6H), 0.89–0.83 (m, 6H);
13C NMR (CDCl3)
δ 173.1, 171.4, 134.5, 129.2, 128.9, 128.7, 103.4, 88.7, 81.2, 61.6, 52.5, 47.5, 45.6, 44.5,
38.8, 38.6, 37.4, 36.5, 34.5, 34.4, 30.2, 27.6, 27.4, 27.0, 26.7, 26.1, 25.0, 24.8, 24.8, 24.6, 23.4, 22.5, 20.2, 16.5,
13.2; ESI-MS (30eV): m/z 1225.82 [M + K]+, 1210.29 [M + Na]+.
General procedure for the hydrogenolysis of 56–59. A solution of 56 or 57 or 58 or 59 (0.01 mmol)
in methanol (3 mL) was subjected to hydrogenolysis over 10% Pd/C (5 mg) at ambient temperature
and pressure for 4 h–6.5 h. Thus, the reaction mixture was filtered through Celite and the filter cake
was washed several times with methanol. After evaporation of the solvent to dryness under reduced
pressure, the residues were subjected to FCC, affording the corresponding pure deprotected molecules
24, 25, 22, and 23, respectively.
Diethyl(3-(N-hydroxy-4-oxo-4-((4-(3-((3S,5aS,6R,8aS,9R,10R,12R)-3,6,9-trimethyldecahydro-12H-3,12-epoxy
[1,2]dioxepino[4,3-i]isochromen-10-yl)propanamido)butyl)(3-(3-((3S,5aS,6R,8aS,9R,10R,12R)-3,6,9-

Molecules 2020, 25, 4858
15 of 22
trimethyldecahydro-12H-3,12-epoxy[1,2]dioxepino[4,3-i]isochromen-10-yl)propanamido)propyl)amino)
butanamido)propyl)phosphonate (22): Yellow oil (6.5 mg, 60%), Rf (CHCl3/MeOH 97:3): 0.35; 1H NMR
(CDCl3) δ 9.94 (br s, 1H), 8.18 (br s, 1H) 5.33 (s, 2H), 4.23–4.07 (m, 6H), 3.79 (s, 2H), 3.49–3.33 (m, 7H),
3.24–3.19 (s, 3H), 2.89 (br s, 2H), 2.79 (br s, 2H), 2.45–2.37 (m, 3H), 2.36–2.27 (m, 4H), 2.21 (s, 2H),
2.03–1.96 (m, 5H), 1.95–1.90 (m, 4H), 1.88–1.83 (m, 5H), 1.78–1.72 (m, 8H), 1.55 (s, 5H), 1.49 (t, J = 7.4 Hz,
3H), 1.40 (t, J = 6.9 Hz, 8H), 1.34 (s, 4H), 1.58–1.13 (m, 2H), 1.06–1.02 (m, 3H), 0.99–0.94 (m, 9H);
13C NMR (CDCl3)
δ 213.4, 209.3, 173.7, 160.5, 107.3, 97.4, 82.7, 68.3, 62.2, 54.6, 47.9, 46.3, 45.6, 41.8,
40.8, 39.0, 35.9, 34.9, 34.1, 30.2, 29.9, 27.6, 25.5, 24.1, 24.0, 22.5, 20.8, 20.6, 19.1, 16.8, 12.9, 12.4, 8.9;
HRMS (ESI/Q-TOF): m/z 1083.6273 [M + H]+; for the compound C54H91N4O16P requires 1083.6240.
Diethyl(3-(4-(bis(4-(3-((3S,5aS,6R,8aS,9R,10R,12R)-3,6,9-trimethyldecahydro-12H-3,12-epoxy[1,2]dioxepino
[4,3-i]isochromen-10-yl)propanamido)butyl)amino)-N-hydroxy-4-oxobutanamido)propyl)phosphonate (23):
Yellow oil (6.6 mg, 60%), Rf (CHCl3/MeOH 97:3): 0.35; 1H NMR (CDCl3)
δ 9.97 (br s, 1H), 8.09 (s, 1H)
5.24 (s, 2H), 4.12–4.04 (m, 6H), 3.70 (br s, 2H), 3.31–3.22 (m, 7H), 3.15–3.08 (m, 2H), 2.78–2.69 (m,
4H), 2.35–2.29 (m, 3H), 2.24–2.18 (m, 4H), 2.12 (s, 2H), 2.08–1.99 (m, 4H), 1.94–1.88 (m, 7H), 1.78–1.74
(m, 4H), 1.67–1.64 (m, 4H), 1.62–1.57 (m, 5H), 1.54–1.48 (m, 5H), 1.46 (s, 7H), 1.31 (t, J = 6.9 Hz, 6H),
1.26–1.14 (m, 6H), 1.05 (d, J = 5.8 Hz, 2H), 0.96 (d, J = 6.7 Hz, 3H), 0.90–0.85 (m, 9H); 13C NMR (CDCl3)
δ
213.3, 209.1, 173.6, 161.2, 107.0, 97.1, 82.4, 67.9, 61.8, 57.4, 54.3, 47.5, 45.3, 41.4, 40.4, 35.6, 34.5, 33.7,
29.9, 29.6, 27.3, 25.8, 25.1, 23.7, 22.2, 20.5, 20.3, 18.8, 16.4, 12.6, 12.1; HRMS (ESI/Q-TOF): m/z 1119.6185
[M + Na]+; for the compound C55H93N4O16P requires 1119.6216.
4-(N-(3-ammoniopropyl)-4-((3-(diethoxyphosphoryl)propyl)(hydroxy)amino)-4-oxobutanamido)butan-1-
aminium 2,2,2-bis(trifluoroacetate) (24): Yellow oil (61 mg, 91%); HRMS (ESI/Q-TOF): m/z 439.2687
[M + H]+; for the compound C18H39N4O6P requires 439.2680.
4,40-((4-((3-(diethoxyphosphoryl)propyl)(hydroxy)amino)-4-oxobutanoyl)azanediyl)bis(butan-1-aminium)
2,2,2-bis(trifluoroacetate) (25): Yellow oil (65 mg, 95%); HRMS (ESI/Q-TOF): m/z 453.2848 [M + H]+;
for the compound C19H41N4O6P requires 453.2836.
3.2.4. Synthesis of FSM-Amino and/or Amido Derivatives 26–33
General procedure for the synthesis of Fosmidomycin conjugates with amines. To a solution of
42 (1 mmol) in CH2Cl2 (1.4 mL), the corresponding amines (1 mmol), HBTU (1.1 mmol), and DIPEA
(1.5 mmol) were added. The reaction mixture was stirred at ambient temperature to complete the
reaction (monitored by TLC) and then diluted with CH2Cl2, washed with 5% aqueous NaHCO3,
pre-cooled 5% aqueous citric acid, water, and brine. The organic layer was dried over Na2SO4, filtered,
and evaporated to dryness under reduced pressure. The residues thus obtained were subjected to FCC,
affording the corresponding pure conjugates 60–67.
Tert-butyl 2-(4-((benzyloxy)(3-(diethoxyphosphoryl)propyl)amino)-4-oxobutanoyl) hydrazine-1-carboxylate (60):
Reaction time: 5 h; Yellow oil (320 mg, 62%); Rf (CHCl3/MeOH 97:3): 0.28; 1H NMR (CDCl3)
δ
7.76 (br s,
1H), 7.37 (s, 5H), 4.85 (s, 2H), 4.12–4.03 (m, 4H), 3.74–3.68 (m, 2H), 2.83–2.78 (m, 2H), 2.55–2.50 (m, 2H),
1.96–1.88 (m, 2H), 1.69 (br s, 2H), 1.48 (s, 1H), 1.46 (s, 8H), 1.30 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ
155.3, 129.3, 129.0, 128.8, 81.5, 76.6, 61.7, 61.6, 28.6, 28.2, 28.1, 27.7, 23.4, 22.5, 20.2, 16.4; ESI-MS (30eV):
m/z 554.32 [M + K]+, 538.45 [M + Na]+, 516.4 [M + H]+, 384.6 [M−C5H11N2O2]+.
Diethyl(3-(4-((2-aminophenyl)amino)-N-(benzyloxy)-4-oxobutanamido) propyl) phosphonate (61): Reaction
time: 4 h; Yellow oil (388 mg, 79%); Rf (CHCl3/MeOH 98:2): 0.15; 1H NMR (CDCl3)
δ 7.77 (br s, 1H),
7.38 (s, 5H), 7.21 (dd, J = 8.2, 1.3 Hz, 1H), 7.02 (td, J = 7.7, 1.4 Hz, 1H), 6.76–6.72 (m, 2H), 4.86 (s, 2H),
4.11–4.01 (m, 4H), 3.72 (t, J = 6.2 Hz, 2H), 2.89 (t, J = 6.0 Hz, 2H), 2.65 (t, J = 6.6 Hz, 2H), 1.97–1.89 (m,
2H), 1.74–1.67 (m, 2H), 1.28 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ 171.2, 141.2, 129.2, 129.1, 128.8,
127.1, 125.8, 123.7, 118.8, 117.2, 76.5, 61.7, 61.6, 31.3, 28.5, 23.4, 22.3, 19.6, 16.5, 16.4; ESI-MS (30eV): m/z
983.25 [2M + H]+, 530.35 [M + K]+, 514.29 [M + Na]+, 492.37 [M + H]+, 384.3 [M−C6H7N2]+.

Molecules 2020, 25, 4858
16 of 22
Diethyl(3-(N-(benzyloxy)-4-(dibenzylamino)-4-oxobutanamido)propyl)phosphonate (62): Reaction time: 5 h;
Pale yellow (441 mg, 76%); Rf (AcOEt): 0.16; 1H NMR (CDCl3)
7.43–7.40 (m, 2H), 7.39–7.34 (m, 5H),
δ
7.33–7.27 (m, 4H), 7.22–7.19 (m, 4H), 4.94 (s, 2H), 4.61 (s, 2H), 4.51 (s, 2H), 4.12–4.02 (m, 4H), 3.74
(t, J = 6.7 Hz, 2H), 2.91–2.86 (m, 2H), 2.76 (t, J = 6.4 Hz, 2H), 1.99–1.90 (m, 2H), 1.79–1.70 (m, 2H),
1.28 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ 172.4, 137.3, 136.5, 129.2, 128.9, 128.9, 128.7, 128.6, 128.1,
127.6, 127.3, 126.6, 76.5, 61.5, 49.9, 48.2, 27.8, 27.6, 23.5, 22.5, 20.3, 16.5, 16.4; ESI-MS (30eV): m/z 1183.64
[2M + Na]+, 619.25 [M + K]+, 603.22 [M + Na]+, 581.38 [M + H]+, 280.52 [M−C14H23NO4P]+.
Tert-butyl(4-(4-(4-((benzyloxy)(3-(diethoxyphosphoryl)propyl)amino)-4-oxobutanamido)benzyl)phenyl)
carbamate (63): Reaction time: 3 h; Yellow oil (573 mg, 84%); Rf (CHCl3/MeOH 98:2): 0.25; 1H NMR
(CDCl3) δ 8.04 (s, 1H), 7.39 (t, J = 6.9 Hz, 2H), 7.36 (s, 4H), 7.25 (s, 2H), 7.24 (s, 1H), 7.07 (t, J = 8.7 Hz,
4H), 6.42 (s, 1H), 4.85 (s, 2H), 4.12–3.97 (m, 4H), 3.86 (s, 2H), 3.72 (s, 2H), 2.83 (s, 2H), 2.64–2.59 (m, 2H),
1.96–1.88 (m, 2H), 1.75–1.67 (m, 2H), 1.49 (s, 9H), 1.27 (t, J = 7.1 Hz, 6H); ESI-MS (30eV): m/z 1401.75 [2M
+ K]+, 1385.75 [2M + Na]+, 1363.84 [2M + 2H]+, 720.36 [M + K]+, 704.49 [M + Na]+, 682.39 [M + H]+.
Diethyl (3-(4-(benzylamino)-N-(benzyloxy)-4-oxobutanamido)propyl) phosphonate (64): Reaction time: 6 h;
Yellow oil (363 mg 74%); Rf (CHCl3/MeOH 95:5): 0.29; 1H NMR (CDCl3)
δ 7.41–7.35 (m, 5H), 7.34–7.29
(m, 2H), 7.28–7.23 (m, 3H), 6.27 (s, 1H), 4.85 (s, 2H), 4.43 (d, J = 5.7 Hz, 2H), 4.11–4.01 (m, 4H), 3.70 (t,
J = 6.6 Hz, 2H), 2.81 (t, J = 6.0 Hz, 2H), 2.52 (t, J = 6.5 Hz, 2H), 1.96–1.87 (m, 2H), 1.75–1.66 (m, 2H),
1.29 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ 173.8, 172.0, 138.4, 134.3, 129.2, 129.0, 128.7, 128.6, 127.7,
127.4, 76.5, 61.6, 45.8, 43.6, 30.8, 28.1, 23.5, 22.5, 20.3, 16.5; ESI-MS (30eV): m/z 529.34 [M + K]+, 513.41
[M + Na]+, 491.49 [M + H]+, 384.36 [M−C7H8N]+.
Diethyl (3-(N-(benzyloxy)-4-oxo-4-(4-tritylpiperazin-1-yl)butanamido)propyl) phosphonate (66): Reaction
time: 3 h; Yellow oil (60 mg, 70%); Rf (CHCl3/MeOH 99:1): 0.18; 1H NMR (CDCl3)
δ 7.47 (br s, 5H),
7.39–7.32 (m, 5H), 7.30–7.24 (m, 7H), 7.19–7.14 (m, 3H), 4.88 (s, 2H), 4.10–4.02 (m, 4H), 3.68 (t, J = 6.5 Hz,
2H), 3.62 (s, 2H), 2.73 (s, 2H), 2.54 (t, J = 6.2 Hz, 2H), 2.17 (s, 4H), 1.96–1.87 (m, 2H), 1.75–1.65 (m, 4H),
1.28 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ 170.2, 134.4, 129.2, 128.8, 128.6, 127.7, 126.3, 70.4, 61.6, 48.2,
47.7, 45.8, 42.2, 38.6, 30.9, 27.4, 23.5, 22.5, 20.3, 16.4; ESI-MS (30eV): m/z 1445.58 [2M + Na]+, 734.41
[M + Na]+, 243.41 [Trt]+.
Diethyl (3-(N-(benzyloxy)-4-(4-methylpiperazin-1-yl)-4-oxobutanamido)propyl) phosphonate (67): Reaction
time: 2 h; Yellow oil (338 mg 70%); Rf (CHCl3/MeOH 9:1): 0.16; 1H NMR (CDCl3)
δ 7.41–7.32 (m, 5H),
4.91 (s, 2H), 4.11–4.01 (m, 4H), 3.70 (t, J = 6.8 Hz, 2H), 3.67–3.62 (m, 2H), 3.56–3.52 (m, 2H), 2.79 (s, 2H),
2.62 (t, J = 6.5 Hz, 2H), 2.44 (br s, 2H), 2.40 (br s, 2H), 2.32 (s, 3H), 1.96–1.88 (m, 2H), 1.76–1.67 (m,
2H), 1.28 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ 137.1, 128.8, 128.4, 128.0, 76.3, 61.5, 59.2, 59.1, 29.7,
24.0, 23.1, 20.3, 16.5; ESI-MS (30eV): m/z 522.33 [M + K]+, 506.39 [M + Na]+, 484.41 [M + H]+, 384.35
[M−C5H11N2]+.
Trityl-deprotection of 4-(4-((benzyloxy)(3-(diethoxyphosphoryl) propyl)amino)-4-oxobutanoyl)piperazin-
1-ium2,2,2-trifluoroacetate (68): To an ice-cold solution of 66 (0.18 mmol) in CH2Cl2 (0.56 mL),
trifluroethanol (TFE) (0.36 mmol) and TFA (0.36 mmol) were added. The reaction mixture was
stirred at ambient temperature for 1h. Volatile components were evaporated under vacuo, and the oily
residue was triturated with Et2O and refrigerated overnight. The white precipitate was filtered under
vacuum and dried to afford the trifluoroacetate salt 68. White solid (74 mg, 70%); Rf (CHCl3/MeOH
9:1): 0.16; 1H NMR (MeOD):
δ 7.50–7.45 (m, 2H), 7.44–7.38 (m, 3H), 4.98 (s, 2H), 4.13–4.02 (m, 4H),
3.86–3.75 (m, 6H), 3.21 (br s, 2H), 2.82 (br s, 2H), 2.72–2.67 (m, 2H), 1.95–1.87 (m, 2H), 1.84–1.78 (m, 2H),
1.31 (t, J = 7.1 Hz, 6H).
Deprotection of intermediates 60−65
,
67, and 68. A solution of 60−65
, 67, and 68 (0.1 mmol) in
methanol (3 mL) was subjected to hydrogenolysis over 10% Pd/C at ambient temperature and pressure
until completion of the reaction. Thus, the reaction mixture was filtered through Celite and the filter
cake was washed several times with methanol. After evaporation of the solvent to dryness under

Molecules 2020, 25, 4858
17 of 22
reduced pressure, the residues were subjected to FCC, affording the corresponding pure deprotected
molecules 26–33.
Tert-butyl 2-(4-((3-(diethoxyphosphoryl)propyl)(hydroxy)amino)-4-oxobutanoyl) hydrazine-1-carboxylate (26):
Reaction time: 5 h; Orange oil (38 mg 90%); Rf (CHCl3/MeOH 95:): 0.19; 1H NMR (CDCl3)
δ 9.58 (s,
1H), 8.52 (s, 1H), 7.05 (s, 1H), 4.13–4.03 (m, 4H), 3.70 (t, J = 6.0 Hz, 2H), 2.86 (t, J = 6.3 Hz, 2H), 2.58–2.52
(m, 2H), 1.96–1.87 (m, 2H), 1.78 (m, 2H), 1.47 (s, 1H), 1.45 (s, 8H), 1.31 (t, J = 7.0 Hz, 6H); 13C NMR
(CDCl3)
δ 173.3, 155.6, 81.5, 62.1, 47.9, 29.3, 28.2, 27.7, 22.8, 21.8, 19.4, 16.4; HRMS (ESI/Q-TOF): m/z
426.2000 [M + H]+; for the compound C16H32N3O8P requires 426.2005.
Diethyl(3-(4-((2-aminophenyl)amino)-N-hydroxy-4-oxobutanamido) propyl) phosphonate (27): Reaction time:
3 h; Yellow oil (54 mg, 89%); Rf (CHCl3/MeOH 95:5): 0.11; 1H NMR (CDCl3)
δ 9.76 (br s, 1H), 8.20 (s,
1H), 7.20 (d, J = 7.9 Hz, 1H), 7.02–6.99 (m, 1H), 6.74–6.71 (m, 1H), 4.04–3.99 (m, 4H), 3.72 (t, J = 6.1 Hz,
2H), 2.96–2.92 (m, 2H), 2.70–2.66 (m, 2H), 1.97–1.89 (m, 2H), 1.78 (dt, J = 18.5, 6.9 Hz, 2H), 1.26 (t,
J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ 173.9, 172.0, 141.0, 127.0, 125.7, 123.8, 118.8, 117.1, 62.3, 62.2,
47.9, 31.9, 28.6, 22.8, 21.8, 19.2, 16.3; HRMS (ESI/Q-TOF): m/z 424.1615 [M + Na]+; for the compound
C17H28N3O6P requires 424.1608.
Diethyl (3-(4-(dibenzylamino)-N-hydroxy-4-oxobutanamido) propyl)phosphonate (28): Reaction time: 4 h;
Yellow oil (39 mg, 80%); Rf (CHCl3/MeOH 98:2): 0.21; 1H NMR (CDCl3)
δ
9.86 (s, 1H), 7.39–7.34 (m,
2H), 7.33–7.27 (m, 4H), 7.21–7.13 (m, 4H), 4.59 (s, 2H), 4.49 (s, 2H), 4.14–4.02 (m, 4H), 3.75 (t, J = 6.0 Hz,
2H), 2.91–2.81 (m, 4H), 2.01–1.92 (m, 2H), 1.81 (dt, J = 18.2, 7.1 Hz, 2H), 1.28 (t, J = 7.0 Hz, 6H); 13
C
NMR (CDCl3)
δ 173.3, 173.2, 136.9, 136.0, 129.0, 128.6, 128.1, 127.7, 127.4, 126.5, 61.9, 50.0, 48.5, 47.6,
47.5, 29.2, 27.3, 22.8, 21.9, 19.3, 16.4; HRMS (ESI/Q-TOF): m/z 491.2311 [M + H]+; for the compound
C25H35N2O6P requires 491.2305.
Tert-butyl(4-(4-(4-((3-(diethoxyphosphoryl)propyl)(hydroxy)amino)-4-oxobutanamido)benzyl)phenyl) carbamate
(
29): Reaction time: 3 h; light yellow oil (53 mg, 90%); Rf (CHCl3/MeOH 97:3): 0.09; 1H NMR (CDCl3)
δ
9.78 (br s, 1H), 8.70 (s, 1H), 7.40 (d, J = 8.3 Hz, 2H), 7.24 (d, J = 7.8 Hz, 2H), 7.07–7.03 (m, 4H), 6.48 (s,
1H), 4.00 (quint, J = 14.4, 7.0 Hz, 4H), 3.85 (s, 2H), 3.74 (t, J = 6.0 Hz, 2H), 2.94–2.88 (m, 2H), 2.70–2.62
(m, 2H), 1.99–1.90 (m, 3H), 1.82–1.74 (m, 2H), 1.50 (s, 9H), 1.23 (t, J = 7.1 Hz, 6H); 13C NMR (CDCl3)
δ
173.9, 171.3, 152.9, 136.9, 136.4, 135.9, 129.3, 129.2, 129.0, 128.2, 125.3, 119.9, 118.8, 62.3, 47.9, 40.6, 32.6,
28.4, 22.7, 21.8, 19.1, 16.3; HRMS (ESI/Q-TOF): m/z 592.2787 [M + H]+; for the compound C29H42N3O8P
requires 592.2782.
Diethyl (3-(4-(benzylamino)-N-hydroxy-4-oxobutanamido)propyl) phosphonate (30): Reaction time: 3 h;
Reddish oil (36 mg, 90%); Rf (CHCl3/MeOH 95:5): 0.09; 1H NMR (CDCl3)
δ
9.83 (br s, 1H), 7.32–7.27
(m, 2H), 7.25–7.21 (m, 3H), 6.78 (s, 1H), 4.38 (s, 2H), 4.09–4.00 (m, 4H), 3.71–3.65 (m, 2H), 2.84 (s, 2H),
2.56 (s, 2H), 1.97–1.87 (m, 2H), 1.81–1.71 (m, 2H), 1.29 (t, J = 7.0 Hz, 6H); 13C NMR (CDCl3)
173.5,
δ
172.9, 138.3, 128.6, 127.6, 127.3, 62.1, 47.8, 47.7, 43.6, 31.4, 27.9, 22.8, 21.9, 19.4, 16.4; HRMS (ESI/Q-TOF):
m/z 423.1657 [M + Na]+; for the compound C18H29N2O6P requires 423.1655.
Diethyl(3-(4-(benzhydrylamino)-N-hydroxy-4-oxobutanamido)propyl)phosphonate (31): Reaction time: 3 h;
Reddish oil (40 mg, 85%); Rf (PhMe/AcOEt 4:6): 0.1; 1H NMR (CDCl3)
δ
7.40–7.09 (m, 10), 6.25–6.11
(m, 1H), 4.17–3.95 (m, 4H), 3.76–3.61 (m, 2H), 2.84 (s, 2H), 2.59 (s, 2H), 2.07–1.85 (m, 2H), 1.84–1.65
(m, 2H), 1.34–1.21 (m, 6H); 13C NMR (CDCl3)
δ 173.7, 172.2, 141.7, 128.6, 127.4, 127.3, 62.1, 56.0, 50.8,
47.3, 31.5, 28.8, 28.0, 21.5, 19.3, 16.4; HRMS (ESI/Q-TOF): m/z 499.1979 [M + Na]+; for the compound
C24H33N2O6P requires 499.1968.
Diethyl (3-(N-hydroxy-4-(4-methylpiperazin-1-yl)-4-oxobutanamido) propyl) phosphonate (32): Reaction time:
2 h; Orange oil (35 mg, 90%); Rf (CHCl3/MeOH 8:2): 0.29; 1H NMR (CDCl3)
δ 4.16–4.01 (m, 7H), 3.70
(t, J = 6.9 Hz, 1H), 3.62 (br s, 2H), 3.52 (t, J = 5.2 Hz, 2H), 2.79 (t, J = 6.8 Hz, 1H), 2.70 (t, J = 7.0 Hz,
1H), 2.65 (quint, J = 10.8, 4.5 Hz, 1H), 2.45 (br s, 1H), 2.40 (br s, 1H), 2.32 (s, 3H), 1.97–1.90 (m, 2H),
1.80–1.73 (m, 2H), 1.31 (t, J = 7.0 Hz, 6H); 13C NMR (CDCl3)
δ 173.7, 173.2, 62.2, 51.7, 47.8, 29.0, 28.7, 27.5,

Molecules 2020, 25, 4858
18 of 22
22.5, 21.6, 19.0, 16.4; HRMS (ESI/Q-TOF): m/z 416.1848 [M + Na]+; for the compound C16H32N3O6P
requires 416.1921.
4-(4-((3-(Diethoxyphosphoryl)propyl)(hydroxy)amino)-4-oxobutanoyl)piperazin-1-ium 2,2,2-trifluoroacetate
1
(
33): Reaction time: 4 h; Yellow oil (30 mg, 60%); Rf (CHCl3/MeOH 8:2): 0.22; H NMR (CDCl3)
δ
9.84 (br s, 1H), 4.13–4.02 (m, 4H), 3.82 (br s, 2H), 3.74–3.66 (m, 2H), 3.24–3.10 (m, 2H), 2.84 (s, 2H),
2.68–2.62 (m, 2H), 2.55 (s, 1H), 1.98–1.88 (m, 2H), 1.78 (dt, J = 18.0, 6.9 Hz, 2H), 1.34–1.29 (m, 6H);
13C NMR (CDCl3)
δ 173.2, 171.3, 62.1, 53.7, 48.5, 43.4, 29.7, 27.4, 22.7, 21.7, 19.4, 16.4; HRMS (ESI/Q-TOF):
m/z 380.1948 [M + H]+; for the compound C15H30N3O6P requires 380.1945.
Diethyl (3-((2-aminophenyl)amino)propyl)phosphonate (34): To a solution of bromide 37 (90 mg,
0.35 mmol) and ortho-benzenediamine (35 mg, 0.35 mmol) in dimethylformamide (DMF) (0.46 mL),
1,8-diazabicyclo[5.4.0]undec-7-ene (DBU) (106 mg, 0.7 mmol) was added and the reaction mixture was
subjected to ultrasonic radiation at 40 ◦C for 1 h. Upon completion of the reaction, the mixture was
diluted CH2Cl2, and washed three times with water and once with brine. The organic layer was dried
over Na2SO4 and evaporated to dryness under pressure. The residue was purified by FCC, affording
1
compound 34; orange oil (33 mg, 33%); Rf (CHCl3/MeOH 97:3): 0.3; H NMR (CDCl3):
δ 6.79 (dt,
J = 7.5, 1.6 Hz, 1H), 6.70 (dd, J = 7.7, 1.9 Hz, 1H), 6.68–6.60 (m, 2H), 4.15–4.04 (m, 4H), 3.20 (t, J = 6.6 Hz,
2H), 2.01–1.92 (m, 2H), 1.921–1.84 (m, 2H), 1.31 (t, J = 7.0 Hz, 6H); 13C NMR (CDCl3)
δ
137.4, 134.3,
120.5, 118.6, 116.4, 111.6, 61.6, 44.4, 44.3, 23.9, 23.0, 22.5, 22.5, 16.5; HRMS (ESI/Q-TOF): m/z 287.1525
[M + H]+; for the compound C13H23N2O3P requires 287.1519.
(3-((2-Aminophenyl)amino)propyl)phosphonic acid (35): To an ice-cold solution of 34 (30 mg,
0.1 mmol) in CH2Cl2 (0.33 mL), bromotrimethylsilane (TMSBr) (0.16 mL, 1.2 mmol) was added
dropwise and the reaction mixture was stirred at room temperature for 8 h. Then, it was concentrated
under vacuum and treated with a solution of NaOH (0.41 mg, 0.1 mmol) in MeOH/H2O 9:1 (1 mL) at
room temperature for 40 min The monosodium salt 35 was received after evaporation of the solvents
to dryness under reduced pressure as an orange oil (19 mg, 75%); 1H NMR (H2D):
δ
7.18–7.09 (m, 3H),
131.8,
7.08–7.04 (m, 1H), 3.32 (t, J = 7.4 Hz, 2H), 1.92–1.84 (m, 2H), 1.82–1.75 (m, 2H); 13C NMR (H2D)
δ
126.7, 125.4, 122.9, 119.8, 47.7, 24.3, 23.4, 20.5; ESI-MS (30eV): m/z 499.34 [2M + K]+, 483.42 [2M + Na]+,
461.45 [2M + H]+, 269.48 [M + K]+, 253.5 [M + Na]+, 231.53 [M + H]+.
3.3. Biological Evaluation
3.3.1. Biological Assays
Cytotoxicity evaluation was performed upon human primary fibroblasts (cell line AB943) [35].
Assays were realized in 96-well plates in DMEM + Glutamax without phenol red medium (Gibc◦o)
containing 25 mM HEPES, pH 7.3, 10% fetal calf serum under a 5% CO2 atmosphere, at 37 C.
After trypsin treatment, AB943 cells were seeded at 2000 cells per well in 100
µL. After 24 h of
incubation, drugs diluted in culture medium were added (100 L per well). Drug stock solutions were
µ
prepared in dimethyl sulfoxide (DMSO). The final DMSO concentration in the cultures remained below
1%. Control cultures were constituted of cultures treated with DMSO instead of drug. The cytotoxicity
assay was based on the conversion of a redo-sensitive dye (resazurin) to a fluorescent product by viable
cells. After 72 h of incubation, resazurin solution was added in each well at a final concentration of
45 µM. Fluorescence was measured at 530 nm excitation and 590 nm emission wavelengths after 4 h of
incubation. The percentage of inhibition of cell growth was calculated by comparing the fluorescence of
cells maintained in the presence of drug to that in the absence of drug. The concentration causing 50%
growth inhibition (IC50) was obtained from the drug concentration–response curve and the results were
expressed as the mean values
±
standard deviations determined from several independent experiments.

Molecules 2020, 25, 4858
19 of 22
3.3.2. In Vitro Growth Inhibition of P. falciparum
The chloroquine-resistant FcB1/Colombia strain of Plasmodium falciparum was maintained in vitro
on human erythrocytes in RPMI 1640 medium supplemented by 8% (v/v) heat-inactivated human
serum, at 37 ◦C, under an atmosphere of 3% CO2, 6% O2, and 91% N2 [45]. In vitro drug susceptibility
assays were measured by [3H]-hypoxanthine incorporation. Drug stock solutions were prepared in
DMSO. Compounds were serially diluted two-fold with 100
Asynchronous parasite cultures (100 L, 1% parasitaemia and 1% final hematocrite) were then added
to each well and incubated for 24 h at 37 C prior to the addition of 0.5
(GE Healthcare, France, 1 to 5Ci mmol/mL) per well [42]. After a further incubation of 24 h, plates were
µL of culture medium in 96-well plates.
µ
◦
µ
Ci of [3H]-hypoxanthine
·
frozen and thawed. Cell lysates were then collected onto fiberglass filters and counted in a liquid
scintillation spectrometer. The growth inhibition for each drug concentration was determined by
comparison of the radioactivity incorporated in the treated culture with that in the control culture
maintained on the same plate. The IC50 value was obtained from the drug concentration–response
curve and the results were expressed as the mean values
independent experiments. Chloroquine and artemisinin were used as antimalarial drug controls.
±
standard deviations determined from several
1
Supplementary Materials: The following are available online, Figure S1: H-NMR spectrum of compound 42,
Figure S2: 13C-NMR spectrum of compound 42, Figure S3: 31P-NMR spectrum of compound 42, Figure S4:
1H-NMR spectrum of compound 43, Figure S5: 13C-NMR spectrum of compound 43, Figure S6: 1H-NMR spectrum
1
of compound 18, Figure S7: 13C-NMR spectrum of compound 18, Figure S8: H-NMR spectrum of compound
47, Figure S9: 13C-NMR spectrum of compound 47, Figure S10: 1H-NMR spectrum of compound 19, Figure S11:
13C-NMR spectrum of compound 19, Figure S12: 1H-NMR spectrum of compound 20, Figure S13: 13C-NMR
1
spectrum of compound 20, Figure S14: H-NMR spectrum of compound 21, Figure S15: 13C-NMR spectrum of
compound 21, Figure S16: 1H-NMR spectrum of compound 54, Figure S17: 13C-NMR spectrum of compound 54,
1
Figure S18: H-NMR spectrum of compound 55, Figure S19: 13C-NMR spectrum of compound 55, Figure S20:
1H-NMR spectrum of compound 56, Figure S21: 13C-NMR spectrum of compound 56, Figure S22: 1H-NMR
1
spectrum of compound 57, Figure S23: 13C-NMR spectrum of compound 57, Figure S24: H-NMR spectrum of
compound 22, Figure S25: 13C-NMR spectrum of compound 22, Figure S26: 1H-NMR spectrum of compound 23,
1
Figure S27: 13C-NMR spectrum of compound 23, Figure S28: H-NMR spectrum of compound 60, Figure S29:
13C-NMR spectrum of compound 60, Figure S30: 1H-NMR spectrum of compound 61, Figure S31: 13C-NMR
1
spectrum of compound 61, Figure S32: H-NMR spectrum of compound 62, Figure S33: 13C-NMR spectrum of
compound 62, Figure S34: 1H-NMR spectrum of compound 63, Figure S35: 1H-NMR spectrum of compound 64,
1
Figure S36: 13C-NMR spectrum of compound 64, Figure S37: H-NMR spectrum of compound 66, Figure S38:
13C-NMR spectrum of compound 66, Figure S39: 1H-NMR spectrum of compound 67, Figure S40: 13C-NMR
1
1
spectrum of compound 67, Figure S41: H-NMR spectrum of compound 68, Figure S42: H-NMR spectrum of
compound 26, Figure S43: 13C-NMR spectrum of compound 26, Figure S44: 1H-NMR spectrum of compound 27,
Figure S45: 13C-NMR spectrum of compound 27, Figure S46: H-NMR spectrum of compound 28, Figure S47:
1
13C-NMR spectrum of compound 28, Figure S48: 1H-NMR spectrum of compound 29, Figure S49: 13C-NMR
1
spectrum of compound 29, Figure S50: H-NMR spectrum of compound 30, Figure S51: 13C-NMR spectrum of
compound 30, Figure S52: 1H-NMR spectrum of compound 31, Figure S53: 13C-NMR spectrum of compound 31,
Figure S54: 13C-NMR spectrum of compound 32, Figure S55: 13C-NMR spectrum of compound 32, Figure S56:
1H-NMR spectrum of compound 33, Figure S57: 1H-NMR spectrum of compound 33, Figure S58: 1H-NMR
spectrum of compound 34, Figure S59: 13C-NMR spectrum of compound 34, Figure S60: H-NMR spectrum of
1
compound 35, Figure S61: 13C-NMR spectrum of compound 35.
Author Contributions: Conceptualization, C.M.A.; methodology, C.M.A., M.B., P.G. and E.M.; NMR and MS
analysis, C.M.A., D.P. and A.I.A.; investigation, D.P., A.I.A., P.G., and E.M.; and C.M. for several purifications;
writing—original draft preparation, C.M.A. and M.B.; writing—review and editing, C.M.A., M.B., P.G., E.M.,
A.I.A., D.P.; supervision, C.M.A.; project administration, C.M.A. All authors have read and agreed to the published
version of the manuscript.
Funding: This research received no external funding.
Acknowledgments: We would like to thank the CNRS, the University of Patras and the University Paul Sabatier
for financial support. The authors would also like to acknowledge the Instrumental Analysis Laboratory (EEA,
School of Natural Sciences, University of Patras) for carrying out the NMR analyses and the ICT Mass Spectrometry
facility (http://ict.ups-tlse.fr/?HPLC-102) for the recording of HRMS spectra.
Conflicts of Interest: The authors declare no conflict of interest.

Molecules 2020, 25, 4858
20 of 22
References
1.
2.
3.
4.
5.
WHO World Malaria Report. 2019. Available online: https://www.who.int/malaria/publications/world-
malaria-report-2019/en/ (accessed on 4 December 2019).
Dondorp, A.M.; Yeung, S.; White, L.; Nguon, C.; Day, N.P.J.; Socheat, D.; von Seidlein, L. Artemisinin resistance:
Current status and scenarios for containment. Nat. Rev. Microbiol. 2010, 8, 272–280. [CrossRef] [PubMed]
Rohmer, M.; Knani, M.; Simonin, P.; Sutter, B.; Sahm, H. Isoprenoid biosynthesis in bacteria: A novel pathway
for the early steps leading to isopentenyl diphosphate. Biochem. J. 1993, 295, 517–524. [CrossRef] [PubMed]
Rodriguez-Concepcion, M. The MEP Pathway: A New Target for the Development of Herbicides, Antibiotics
and Antimalarial Drugs. Curr. Pharm. Des. 2004, 10, 2391–2400. [CrossRef] [PubMed]
Rohdich, F.; Bacher, A.; Eisenreich, W. Isoprenoid biosynthetic pathways as anti-infective drug targets.
Biochem. Soc. Trans. 2005, 33, 785–791. [CrossRef] [PubMed]
6.
7.
McFadden, G.I. The apicoplast. Protoplasma 2011, 248, 641–650. [CrossRef] [PubMed]
Ralph, S.A.; D’Ombrain, M.C.; McFadden, G.I. The apicoplast as an antimalarial drug target.
Drug Resist. Updates 2001, 4, 145–151. [CrossRef] [PubMed]
8.
9.
Sato, S. The apicomplexan plastid and its evolution. Cell. Mol. Life Sci. 2011, 68, 1285–1296. [CrossRef]
Jomaa, H.; Wiesner, J.; Sanderbrand, S.; Altincicek, B.; Weidemeyer, C.; Hintz, M.; Turbachova, I.; Eberl, M.;
Zeidler, J.; Lichtenthaler, H.K.; et al. Inhibitors of the nonmevalonate pathway of isoprenoid biosynthesis as
antimalarial drugs. Science 1999, 285, 1573–1576. [CrossRef]
10. Okuhara, M.; Kuroda, Y.; Goto, T.; Okamoto, M.; Terano, H.; Kohsaka, M.; Aoki, H.; Imanaka, H. Studies on
new phosphonic acid antibiotics. III. Isolation and characterization of FR-31564, FR-32863 and FR-33289.
J. Antibiot. (Tokyo) 1980, 33, 24–28. [CrossRef]
11. Kuroda, Y.; Okuhara, M.; Goto, T.; Okamoto, M.; Terano, H.; Kohsaka, M.; Aoki, H.; Imanaka, H. Studies
on new phosphonic acid antibiotics. IV. Structure determination of FR-33289, FR-31564 and FR-32863.
J. Antibiot. (Tokyo) 1980, 33, 29–35. [CrossRef]
12. Hirsch, A.K.; Fischer, F.R.; Diederich, F. Phosphate recognition in structural biology. Angew. Chem. Int.
Ed. Engl. 2007, 46, 338–352. [CrossRef] [PubMed]
13. Wiesner, J.; Borrmann, S.; Jomaa, H. Fosmidomycin for the treatment of malaria. Parasitol. Res. 2003
90, S71–S76. [CrossRef] [PubMed]
,
14. Mine, Y.; Kamimura, T.; Nonoyama, S.; Nishida, M.; Goto, S.; Kuwahara, S. In vitro and in vivo antibacterial
activities of FR-31564, a new phosphonic acid antibiotic. J. Antibiot. (Tokyo) 1980, 33, 36–43. [CrossRef]
15. Kurz, T.; Geffken, D.; Kaula, U. Organophosphoric Compounds and Use Thereof. Patent WO2005048715-A2,
2 June 2005.
16. Kurz, T.; Schlüter, K.; Kaula, U.; Bergmann, B.; Walter, R.D.; Geffken, D. Synthesis and antimalarial activity
of chain substituted pivaloyloxymethyl ester analogues of Fosmidomycin and FR900098. Bioorg. Med. Chem.
2006, 14, 5121–5135. [CrossRef] [PubMed]
17. Haemers, T.; Wiesner, J.; Van Poecke, S.; Goeman, J.; Henschker, D.; Beck, E.; Jomaa, H.; Van Calenbergh, S.
Synthesis of alpha-substituted fosmidomycin analogues as highly potent Plasmodium falciparum growth
inhibitors. Bioorg. Med. Chem. Lett. 2006, 16, 1888–1891. [CrossRef]
18. Schlüter, K.; Walter, R.D.; Bergmann, B.; Kurz, T. Arylmethyl substituted derivatives of Fosmidomycin:
Synthesis and antimalarial activity. Eur. J. Med. Chem. 2006, 41, 1385–1397. [CrossRef]
19. Verbrugghen, T.; Cos, P.; Maes, L.; Van Calenbergh, S. Synthesis and Evaluation of α-Halogenated Analogues
of 3-(Acetylhydroxyamino)propylphosphonic Acid (FR900098) as Antimalarials. J. Med. Chem. 2010
53, 5342–5346. [CrossRef]
,
20. Behrendt, C.T.; Kunfermann, A.; Illarionova, V.; Matheeussen, A.; Pein, M.K.; Gräwert, T.; Kaiser, J.; Bacher, A.;
Eisenreich, W.; Illarionov, B.; et al. Reverse Fosmidomycin Derivatives against the Antimalarial Drug Target
IspC (Dxr). J. Med. Chem. 2011, 54, 6796–6802. [CrossRef]
21. Woo, Y.H.; Fernandes, R.P.; Proteau, P.J. Evaluation of fosmidomycin analogs as inhibitors of the Synechocystis
sp. PCC6803 1-deoxy-D-xylulose 5-phosphate reductoisomerase. Bioorg. Med. Chem. 2006, 14, 2375–2385.
[CrossRef]

Molecules 2020, 25, 4858
21 of 22
22. San Jose, G.; Jackson, E.R.; Haymond, A.; Johny, C.; Edwards, R.L.; Wang, X.; Brothers, R.C.; Edelstein, E.K.;
Odom, A.R.; Boshoff, H.I.; et al. Structure–Activity Relationships of the MEPicides: N-Acyl and O-Linked
Analogs of FR900098 as Inhibitors of Dxr from Mycobacterium tuberculosis and Yersinia pestis. ACS Infect. Dis.
2016, 2, 923–935. [CrossRef]
23. Fokin, A.A.; Yurchenko, A.G.; Rodionov, V.N.; Gunchenko, P.A.; Yurchenko, R.I.; Reichenberg, A.; Wiesner, J.;
Hintz, M.; Jomaa, H.; Schreiner, P.R. Synthesis of the Antimalarial Drug FR900098 Utilizing the Nitroso-Ene
Reaction. Org. Lett. 2007, 9, 4379–4382. [CrossRef] [PubMed]
24. Perruchon, J.; Ortmann, R.; Schlitzer, M. A Novel Short and Efficient Synthetic Route to the Antimalarial
Agent FR900098 and Derivatives. Synthesis 2007, 2007, 3553–3557.
25. Courtens, C.; Risseeuw, M.; Caljon, G.; Cos, P.; Van Calenbergh, S. Acyloxybenzyl and Alkoxyalkyl
Prodrugs of a Fosmidomycin Surrogate as Antimalarial and Antitubercular Agents. ACS Med. Chem. Lett.
2018, 9, 986–989. [CrossRef] [PubMed]
26. Masini, T.; Hirsch, A.K.H. Development of Inhibitors of the 2C-Methyl-d-erythritol 4-Phosphate (MEP)
Pathway Enzymes as Potential Anti-Infective Agents. J. Med. Chem. 2014, 57, 9740–9763. [CrossRef]
[PubMed]
27. San Jose, G.; Jackson, E.R.; Uh, E.; Johny, C.; Haymond, A.; Lundberg, L.; Pinkham, C.; Kehn-Hall, K.;
Boshoff, H.I.; Couch, R.D.; et al. Design of potential bisubstrate inhibitors against Mycobacterium
tuberculosis (Mtb) 1-deoxy-d-xylulose 5-phosphate reductoisomerase (Dxr)-Evidence of a novel binding
mode. Med. Chem. Comm. 2013, 4, 1099–1104. [CrossRef]
28. Nguyen-Trung, A.T.; Tritsch, D.; Grosdemange-Billiard, C.; Rohmer, M. Synthesis of tetrazole analogues of
phosphonohydroxamic acids: An attempt to improve the inhibitory activity against the DXR. Bioorg. Med.
Chem. Lett. 2013, 23, 1643–1647. [CrossRef]
29. Edwards, R.L.; Brothers, R.C.; Wang, X.; Maron, M.I.; Ziniel, P.D.; Tsang, P.S.; Kraft, T.E.; Hruz, P.W.;
Williamson, K.C.; Dowd, C.S.; et al. MEPicides: Potent antimalarial prodrugs targeting isoprenoid
biosynthesis. Sci. Rep. 2017, 7, 8400. [CrossRef]
30. McKenney, E.S.; Sargent, M.; Khan, H.; Uh, E.; Jackson, E.R.; San Jose, G.; Couch, R.D.; Dowd, C.S.;
van Hoek, M.L. Lipophilic prodrugs of FR900098 are antimicrobial against Francisella novicida in vivo and
in vitro and show GlpT independent efficacy. PLoS ONE 2012, 7, e38167. [CrossRef]
31. Magoulas, G.E.; Tsigkou, T.; Skondra, L.; Lamprou, M.; Tsoukala, P.; Kokkinogouli, V.; Pantazaka, E.;
Papaioannou, D.; Athanassopoulos, C.M.; Papadimitriou, E. Synthesis of novel artemisinin dimers with
polyamine linkers and evaluation of their potential as anticancer agents. Bioorg. Med. Chem. 2017
25, 3756–3767. [CrossRef]
,
32. Capci, A.; Lorion, M.M.; Wang, H.; Simon, N.; Leidenberger, M.; Borges Silva, M.C.; Moreira, D.R.M.; Zhu, Y.;
Meng, Y.; Chen, J.Y.; et al. Artemisinin-(Iso)quinoline Hybrids by C-H Activation and Click Chemistry:
Combating Multidrug-Resistant Malaria. Angew. Chem. Int. Ed. Engl. 2019, 58, 13066–13079. [CrossRef]
33. Sinha, M.; Dola, V.R.; Agarwal, P.; Srivastava, K.; Haq, W.; Puri, S.K.; Katti, S.B. Antiplasmodial activity of new
4-aminoquinoline derivatives against chloroquine resistant strain. Bioorg. Med. Chem. 2014, 22, 3573–3586.
[CrossRef] [PubMed]
34. Miller, M.J.; Walz, A.J.; Zhu, H.; Wu, C.; Moraski, G.; Möllmann, U.; Tristani, E.M.; Crumbliss, A.L.;
Ferdig, M.T.; Checkley, L.; et al. Design, Synthesis, and Study of a Mycobactin Artemisinin Conjugate That
−
Has Selective and Potent Activity against Tuberculosis and Malaria. J. Am. Chem. Soc. 2011, 133, 2076–2079.
[CrossRef] [PubMed]
35. Pepe, D.A.; Toumpa, D.; Andre-Barres, C.; Menendez, C.; Mouray, E.; Baltas, M.; Grellier, P.; Papaioannou, D.;
Athanassopoulos, C.M. Synthesis of Novel G Factor or Chloroquine-Artemisinin Hybrids and Conjugates
with Potent Antiplasmodial Activity. ACS Med. Chem. Lett. 2020, 11, 921–927. [CrossRef] [PubMed]
36. Suresh, S.; Shyamraj, D.; Larhed, M. Synthesis of antimalarial compounds fosmidomycin and FR900098
through N- or P-alkylation reactions. Tetrahedron 2013, 69, 1183–1188. [CrossRef]
37. Uh, E.; Jackson, E.R.; San Jose, G.; Maddox, M.; Lee, R.E.; Lee, R.E.; Boshoff, H.I.; Dowd, C.S. Antibacterial
and antitubercular activity of fosmidomycin, FR900098, and their lipophilic analogs. Bioorg. Med. Chem. Lett.
2011, 21, 6973–6976. [CrossRef]
38. Ruiz, J.; Azema, J.; Payrastre, C.; Baltas, M.; Tuccio, B.; Vial, H.; Andre-Barres, C. Antimalarial bicyclic
peroxides belonging to the G-factor family: Mechanistic aspects of their formation and iron (II) induced
reduction. Curr. Top. Med. Chem. 2014, 14, 1668–1683. [CrossRef]

Molecules 2020, 25, 4858
22 of 22
39. Stoica, S.; Magoulas, G.E.; Antoniou, A.I.; Suleiman, S.; Cassar, A.; Gatt, L.; Papaioannou, D.;
Athanassopoulos, C.M.; Schembri-Wismayer, P. Synthesis of minoxidil conjugates and their evaluation as
HL-60 differentiation agents. Bioorg. Med. Chem. Lett. 2016, 26, 1145–1150. [CrossRef]
40. Kumar, M.; Singh, K.; Ngwane, A.H.; Hamzabegovic, F.; Abate, G.; Baker, B.; Wiid, I.; Hoft, D.F.; Ruminski, P.;
Chibale, K. Reversed isoniazids: Design, synthesis and evaluation against Mycobacterium tuberculosis.
Bioorg. Med. Chem. 2018, 26, 833–844. [CrossRef]
41. Zhao, C.; Jiang, Z.; Mu, R.; Li, Y. A novel sensor for dopamine based on the turn-on fluorescence of Fe-MIL-88
metal-organic frameworks-hydrogen peroxide-o-phenylenediamine system. Talanta 2016, 159, 365–370.
[CrossRef]
42. Maroziene, A.; Lesanavicius, M.; Davioud-Charvet, E.; Aliverti, A.; Grellier, P.; Sarlauskas, J.; Cenas, N.
Antiplasmodial Activity of Nitroaromatic Compounds: Correlation with Their Reduction Potential and
Inhibitory Action on Plasmodium falciparum Glutathione Reductase. Molecules 2019, 24, 4509. [CrossRef]
43. Mwande Maguene, G.; Lekana-Douki, J.-B.; Mouray, E.; Bousquet, T.; Grellier, P.; Pellegrini, S.;
Toure Ndouo, F.S.; Lebibi, J.; Pélinski, L. Synthesis and in vitro antiplasmodial activity of ferrocenyl
aminoquinoline derivatives. Eur. J. Med. Chem. 2015, 90, 519–525. [CrossRef]
44. Daina, A.; Michielin, O.; Zoete, V. SwissADME: A free web tool to evaluate pharmacokinetics, drug-likeness
and medicinal chemistry friendliness of small molecules. Sci. Rep. 2017, 7, 42717. [CrossRef] [PubMed]
45. Trager, W.; Jensen, J. Human malaria parasites in continuous culture. Science 1976, 193, 673–675. [CrossRef]
Sample Availability: Samples of the compounds are available from the authors.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional
affiliations.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
