PAPER
Effect of intramolecular charge transfer on fluorescence and singlet oxygen
production of phthalocyanine analogues†
Lenka Vachova,a Veronika Novakova,b Kamil Kopecky,a Miroslav Miletina and Petr Zimcik*a
Received 28th June 2012, Accepted 12th July 2012
DOI: 10.1039/c2dt31403g
Intramolecular charge transfer (ICT) was studied on a series of magnesium, metal-free and zinc
complexes of unsymmetrical tetrapyrazinoporphyrazines and tribenzopyrazinoporphyrazines bearing two
dialkylamino substituents (donors) and six alkylsulfanyl or aryloxy substituents (non-donors). The
dialkylamino substituents were responsible for ICT that deactivated excited states and led to considerable
decrease of fluorescence and singlet oxygen quantum yields. Photophysical and photochemical properties
were compared to corresponding macrocycles that do not bear any donor centers. The data showed high
feasibility of ICT in the tetrapyrazinoporphyrazine macrocycle and significantly lower efficiency of this
deactivation process in the tribenzopyrazinoporphyrazine type molecules. Considerable effect of
non-donor peripheral substituents on ICT was also described. The results imply that
tetrapyrazinoporphyrazines may be more suitable for development of new molecules investigated in
applications based on ICT.
Presented work is focused on synthesis and investigation of
photophysical and photochemical properties of compounds
Introduction
Phthalocyanines (Pcs) and their aza-analogues azaphthalocya-
nines are synthetic dyes that have been extensively studied due
to their unique optical, physical, electronic, spectral and struc-
tural properties.1 Recently, they attracted also great attention in
the field of dye-sensitized solar cells,2 fluorescent probes3,4 and
photodynamic therapy.5 A long-lived excited state and high
quantum yield of fluorescence or singlet oxygen are, in general,
advantageous in these applications. On the other hand, an inter-
esting phenomenon of ultrafast intramolecular charge transfer
(ICT) was recently shown to be responsible for quenching of the
excited states in tetrapyrazinoporphyrazines (TPyzPz), a type of
azaphthalocyanines.6 This discovery opened a door for new
applications of these macrocyclic dyes in quenching of fluor-
escence in DNA-hybridization probes7 or as molecular sensors
(e.g. pH-sensitive8). The effect of ICT was studied in detail
for TPyzPz but similar processes were recently described also
for Pc.9,10
bearing donor centers for ICT and containing different macro-
cycle ring and peripheral substituents. The aim is to compare the
efficiency of ICT in these compounds and to discuss their poten-
tial to be further investigated as efficient quenchers of fluor-
escence or sensors.
Results and discussion
Design of the compounds
The structures of the compounds (Scheme 1) were designed to
contain two donor centers (aminosubstituents) in order to allow
high feasibility of ICT. ICT in compounds with only one donor
center is highly sensitive to properties of environment6 (e.g.
polarity, acidity) that may interfere with proper interpretation of
the results. The substituents on the studied derivatives were
chosen to be bulky to limit aggregation of planar molecules that
could lead to misinterpretation of the data. One carboxy group
was introduced to the molecule in order to allow simple binding
of prospective derivatives to biomolecules or other suitable
modifiers in future.7
The porphyrazine ring was fused with three benzene and one
pyrazine rings (5 and 6) or contains only pyrazine rings (i.e.
TPyzPz) in the case of 7. Compounds 6 and 7 contained the
same substituents and differed only in the macrocyclic core. This
series allows comparison between macrocycle types without the
influence of peripheral substitution (compounds 6 and 7) and
between peripheral substituents without influence of the macro-
cycle ring (5 and 6). Symmetrical compounds 8–10 without any
aDepartment of Pharmaceutical Chemistry and Drug Control, Faculty of
Pharmacy in Hradec Kralove, Charles University in Prague,
Heyrovskeho 1203, 50005, Hradec Kralove, Czech Republic.
E-mail: petr.zimcik@faf.cuni.cz; Fax: +420 495067167;
Tel: +420 495067257
bDepartment of Biophysics and Physical Chemistry, Faculty of
Pharmacy in Hradec Kralove, Charles University in Prague,
Heyrovskeho 1203, 50005 Hradec Kralove, Czech Republic
†Electronic supplementary information (ESI) available: NMR spectra,
MS (MALDI-TOF) spectra, absorption, emission and excitation spectra.
See DOI: 10.1039/c2dt31403g
This journal is © The Royal Society of Chemistry 2012
Dalton Trans., 2012, 41, 11651–11656 | 11651

View Article Online

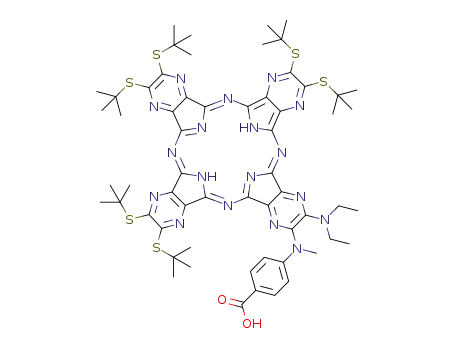

Scheme 1 Synthesis of the investigated compounds. Reaction conditions: (i) Mg, I2, butanol, reflux, (ii) TFA or pTSA, chloroform, rt,
(iii) Zn(CH3COO)2, pyridine, reflux.
donor center were used as negative controls where no ICT can
occur.
Synthesis
Mixed cyclotetramerization (also known as statistical conden-
sation11) is the simplest method for the synthesis and isolation of
unsymmetrical Pc and TPyzPz of the AAAB type despite the
fact that several selective approaches were developed.12 Thus,
treatment of a mixture of precursors A (1, 2, or 3) and B (com-
pound 4) with magnesium butoxide in butanol gave a mixture of
six congeners, from which congeners of ABBB type were separ-
ated on silica to afford 5Mg–7Mg in reasonable yields of 7–15%
(Scheme 1). In order to increase the amount of the AAAB con-
gener in the statistical mixture, the ratio of starting material was
set to 3 : 1 (A : B) and the precursor A was added in three por-
Fig. 1 Normalized absorption spectra of 5Zn (black, dotted), 6Zn
(red, full) and 7Zn (blue, dashed) in THF.
tions due to the lower reactivity of compound 4. The isolation
was facilitated by the presence of a polar substituent (carboxy
group) that led to a good separation of the congeners on TLC
Absorption spectra
Absorption spectra in THF were consistent with the structures
and contained high energy B-band (in area 350–390 nm) and
low energy Q-band (in area 650–695 nm) with clearly marked
vibrational bands (Fig. 1). The shape of the spectra was typical
for monomeric species in solution, no aggregates were detected
during all photophysical and photochemical measurements. In
general, unsymmetrical composition of the macrocycle is indi-
cated by splitting of the Q-band. The metal-free derivatives 5H,
6H and 7H were characterized by strong splitting between the
Qx- and Qy-bands due to lowered symmetry because of the pres-
ence of central hydrogens (see ESI, Fig. S16†). The symmetry of
the porphyrazine ring was lowered also in metal complexes
5Mg–7Mg and 5Zn–7Zn due to the presence of different iso-
indole units. However, only the absorption spectra of compounds
5Mg and 5Zn showed hardly-noticeable splitting of the Q-band
with distinct retention factors. Despite this, purification on the
silica column had to be repeated several times to obtain pure
product. Magnesium complexes were demetalated using strong
organic acid and the metal free derivatives 5H–7H were con-
verted to zinc complexes using zinc acetate in pyridine to afford
5Zn–7Zn. The synthesis of metal complexes of compounds
8–10 was described elsewhere.4 All analyses confirmed unequi-
vocally the structure of the isolated congeners (see ESI, Fig. S1–
S15†). Interestingly, compounds 5Mg, 5H and 5Zn were extre-
mely light sensitive and decomposed rapidly in solution or on
TLC. For this reason, the solutions and silica columns were
strictly protected from light by aluminum foil. In agreement with
this observation, extensive photodecomposition was recently
found for structurally similar 8Mg and 8Zn with high photo-
bleaching quantum yields.4
