Molecules 2012, 17, 13989-14001; doi:10.3390/molecules171213989
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Synthesis and Insecticidal Activity of an Oxabicyclolactone and
Novel Pyrethroids
Elson S. de Alvarenga 1,*, Vânia M. T. Carneiro 2, Gabriela C. Resende 2, Marcelo C. Picanço 2,
Elizeu de Sá Farias 2 and Mayara Cristina Lopes 2
1
Department of Chemistry, Federal University of Vicosa, Av. P. H. Rolfs, s/n, 36570-000, Vicosa,
MG, Brazil
2
Department of Animal Biology, Federal University of Vicosa, Av. P. H. Rolfs, s/n, 36570-000,
Vicosa, MG, Brazil
* Author to whom correspondence should be addressed; E-Mail: elson@ufv.br;
Tel.: +55-31-3899-2304.
Received: 18 October 2012; in revised form: 13 November 2012 / Accepted: 16 November 2012 /
Published: 26 November 2012
Abstract: Deltamethrin, a member of the pyrethroids, one of the safest classes of
pesticides, is among some of the most popular and widely used insecticides in the World.
Our objective was to synthesize an oxabicyclolactone 6 and five novel pyrethroids 8–12
from readily available furfural and D-mannitol, respectively, and evaluate their biological
activity against four insect species of economic importance namely A. obtectus, S. zeamais,
A. monuste orseis, and P. americana. A concise and novel synthesis of 6,6-dimethyl-3-
oxabicyclo[3.1.0]hexan-2-one (6) from furfural is described. Photochemical addition of
isopropyl alcohol to furan-2(5H)-one afforded 4-(1'-hydroxy-1'-methylethyl)tetrahydro-
furan-2-one (3). The alcohol 3 was directly converted into 4-(1'-bromo-1'-methylethyl)-
tetrahydrofuran-2-one (5) in 50% yield by reaction with PBr3 and SiO2. The final step was
performed by cyclization of 5 with potassium tert-butoxide in 40% yield. The novel
pyrethroids 8–12 were prepared from methyl (1S,3S)-3-formyl-2,2-dimethylcyclopropane-
1-carboxylate (7a) by reaction with five different aromatic phosphorous ylides.
Compounds 6–12 presented high insecticidal activity, with 6 and 11 being the most active.
Compound 6 killed 90% of S. zeamais and 100% of all the other insects evaluated.
Compound 11 killed 100% of all insects tested.
Keywords: oxabicyclo; photochemistry; furfural; insecticide; pyrethroid

Molecules 2012, 17
13990
1. Introduction
The term pyrethroid is used to designate synthetic insecticides derived structurally from the
pyrethrins. Decades of research done by the agrochemical industry, government, and academic
laboratories have resulted in a wide range of new pyrethroids and in a multiplicity of uses in agriculture,
veterinary medicine and control of domestic pests. Few classes of biologically active compounds have
such great potential for structural variation with retention or enhancement of potency [1,2].
Deltamethrin, a member of one of the safest classes of pesticides, is among some of the most popular
and widely used insecticides in the World. This pyrethroid, which is derived from (1R, 3S)-cis-
chrysanthemic acid (Figure 1), was first prepared by Elliott and Janes [3].
Figure 1. Structure of the (1R, 3S)-cis-chrysanthemic acid.
Pyrethroid insecticides have been used for more than 40 years and are sold as mixtures containing a
combination of two or more compounds. Most of the pyrethroids registered for use in the World in a
large variety of agricultural products are derived from cis-chrysanthemic acid. The toxicity of DDT
urged the development of pyrethroids which rapidly knock down flying insects and have negligible
persistence in the environment. Moreover, an important feature of the pyrethroids is that they present
low toxicity to mammals and birds [4–9].
Because of the utility of the oxabicyclo moiety as a building block for the construction of
cis-chrysanthemic acid as well as other natural products and biologically active compounds, there has
been much interest in the synthesis of 6,6-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one [10–21].
The insecticidal activity of eight pyrethroids were evaluated against four insect species of economic
importance namely Acanthoscelides obtectus (Say) (Coleoptera: Bruchidae), Sitophilus zeamais Mots.
(Coleoptera: Curculionidae), Ascia monuste orseis Latr. (Lepidoptera: Pyralidae), and Periplaneta
americana (L.) (Dictyoptera: Blattidae). A. obtectus and S. zeamais are cosmopolitan grain store pests
mainly found in bean and maize, respectively. S. zeamais has been causing great damages in several
fruit cultures, such as apple, peach trees, and grapevines in the South of Brazil [22,23]. The kale leaf
worm, A. monuste orseis, is a key pest of Brassicaceae (kale, cabbage, cauliflower, broccolis, mustard
and radish), mainly in subtropical and tropical regions [24]. The cockroach, P. americana, is a
domestic pest in tropical countries. Cockroaches are urban pests of major importance because of their
appearance in household products and the transmission of diseases. They are a common pest of
restaurants, bakeries, grocery stores, etc. In this paper we describe a novel synthetic route to the
6,6-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one from the readily available furfural in four steps. Five
novel pyrethroids have been prepared also from D-mannitol and biological assays of the synthesized

Molecules 2012, 17
13991
compounds were conducted with A. obtectus, adults of S. zeamais, second-instar larvae of A. monuste
orseis, and second-instar nymph of P. americana.
2. Results and Discussion
2.1. Synthesis
The butenolide furan-2(5H)-one (2) was obtained by performic acid oxidation of furfural (1) in the
presence of N,N-diethylethanolamine [25]. Irradiation of furan-2(5H)-one in isopropyl alcohol with
four low pressure mercury lamps of 15 W each (LPML) afforded the adduct 3 in quantitative yield
(Scheme 1). The excited butenolide 2 abstracts a hydrogen from the isopropyl alcohol and the alcohol
radical adds to the double bond β to the carbonyl of the butenolide (1,4-addition) to afford the alcohol
3 [26].
Scheme 1. Synthesis of 6,6-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one (6).
Reagents and conditions: (a) H2O2/HCO2H, N,N-diethylethanolamine, 40%; (b) i-PrOH/ hv, 100%;
(c) PCl5/DCM, 70% of 4a and 20% of 4b; (d) PBr3/DCM/pyridine; (e) SiO2, 50%;
(f) PBr3/SiO2/DCM, 39%; (g) tert-BuOK/THF, 40%.
Dehydration of the alcohol 3 with PCl5 in anhydrous DCM was carried out in 90% yield. The
isomeric alkenes 4a and 4b were not fully separated from each other by flash column chromatography.
Only a small fraction of each isomer was obtained for the spectrometric identification and insecticidal
1
evaluation. The mixture of the alkenes containing the major isomer 4a (as estimated by H-NMR
spectroscopy) was used in the next step of the synthesis.

Molecules 2012, 17
13992
Addition of HBr to the double bond of alkenes 4a and 4b afforded only 4-(1'-bromo-1'-
methylethyl)tetrahydrofuran-2-one (5) in 39% yield. The reaction was carried out with PBr3/SiO2 in
DCM, which was adapted from the methodology described for other compounds by Sanseverino and
Mattos [27]. This methodology has the advantage of avoiding the need of drying chemicals, rigorous
exclusion of moisture, light, and oxygen from the reaction media, and generation of dry HBr.
Trying to optimize the synthesis we envisaged a direct conversion of the alcohol 3 into the bromide
withough having to prepare the alkenes, therefore avoiding one step. The alcohol 3 was thus treated
with PBr3 and SiO2 in DCM to afford 4-(1'-bromo-1'-methylethyl)tetrahydrofuran-2-one (5a) in 50%
yield. In addition to saving one step, the yield was increased by 15% in comparison with the
dehydration followed by addition of HBr (35% yield for the two steps).
Treatment of compound 5 with potassium tert-butoxide in anhydrous THF gave 6,6-dimethyl-3-
oxabicyclo[3.1.0]hexan-2-one (6), in 40% yield. The strong base removed the α-proton to the carbonyl
group to form a stabilized carbanion. The positively charged carbon (formed after displacement of the
bromine) is attacked by the negative carbon (stabilized carbanion) to afford the oxabicyclo compound
6. The mechanism of nucleophilic substitution unimolecular is favored in this reaction by formation of
the relatively stable tertiary carbocation.
The carbonyl from the lactone is characterized by the intense band in 1774 cm−1 in the infra-red and
13
by the signal in 175.3 ppm in the C-NMR spectrum. The complete assignment of the signals in the
NMR spectra was carried out with the aid of COSY and HETCOR. All the other data from infra-red, mass
and NMR spectroscopies add up confirming the structure of the oxabicyclo.

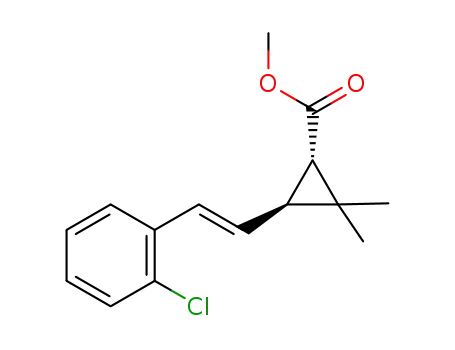

The preparation of novel pyrethroid methyl esters from the readily available D-mannitol is depicted
in Scheme 2. The convertion of D-mannitol to aldehyde (7) is described in the literature [4].
Scheme 2. Synthesis of pyrethroids 8–12 from D-mannitol.
Reagents and conditions: (a) Reference [4]; (b) Wittig Salt, n-BuLi, THF.
Five different phosphorus ylides were employed to prepare ten novel pyrethroids 8–12 from
aldehyde 7 in yields which varied from 45 to 65% (Table 1).

Molecules 2012, 17
Table 1. Synthesis of the pyrethroids 8–12 from 7: reaction conditions and yields.
13993
Proportion
Yield
Pyrethroids
Wittig salt
R1
R2
Z : E
(%)
o-MeOPhCH2PPh3 Cl−
1 : 1
1 : 1
2 : 1
1 : 1
1 : 1
46
+
8a
8b
-H
o-CH3OPh
o-CH3OPh
-H
m-MeOPhCH2PPh3 Cl−
45
64
50
65
+
9a
-H
m-CH3OPh
9b
m-CH3OPh
-H
o-ClPhCH2PPh3 Br−
+
10a
10b
11a
11b
12a
12b
-H
o-ClPh
o-ClPh
-H
F5PhCH2PPh3 Br−
+
-H
F5Ph
F5Ph
-H
p-(CH3CH2O)Ph
-H
* p-EtOPhCH2PPh3 Cl−
+
-H
p-(CH3CH2O)Ph
* (4-Ethoxybenzyl)triphenylphosphonium chloride 9g was acquired from Sigma-Aldrich.
The close retention factors of the diastereomeric pyrethroids hampered their separation by flash
column chromatography. The alkenes were characterized by FTIR, NMR, and mass spectrometry as a
mixture of isomers. Microanalytical data of oils are usually unsatisfactory thus the assessments of the
purity of the oily pyrethroids were carried out by TLC and high field NMR.
2.2. Bioassay
Table 2 presents the biological assays of compounds 6–12, permethrin and the control sample
(acetone) for A. obtectus, S. zeamais, A. monuste orseis, and P. americana. All evaluated substances
showed insecticidal activity against the four species of pests since they caused significant mortality
(p < 0.05), higher than the control (acetone). When the substances are compared with the standard of
efficiency (permethrin) we found that all substances caused high mortality to A. obtectus (mean 97.5%
24 h after application).
Substances 6 and 8–12 presented high mortality to S. zeamais (mean 95.42% 24 h after application)
and larvae of A. monuste (mean 97.08% 24 h after application). Moderate activity for substances 7a
(45.00% mortality) and 7b (42.50% mortality) and high activity for all the other substances were
observed after 12 h of treatment against S. zeamais. Mortality reached 100% after 24 h for compounds
11 and 12.
Compounds 6, 10 and 11 caused 100% mortality after 12 h against A. monuste orseis. After 24 h,
compounds 8, 9 and 12 also presented similar activity (92.50% and 95.00%) to the commercial
pyrethroid. Compounds 6, 8, 9 and 11 presented high toxicity 12 h after application against
P. Americana (mean 95.42% 24 h after application), pointing to a rapid mechanism of action similar to
that of permethrin. Only compounds 7a and 7b presented an increase in toxicity from 12 h (79.33%
and 67.00%) to 24 h (96.00% and 71.00%) respectively.
Compounds 6 and 11 were the most active against the insect species evaluated and presented almost
complete mortality even after 12 hours of application. We observed that all the substances, except 8, 9
and 12, showed fast insecticidal action, as the highest amount of insects deaths occurred 12 h after
application. Substances 8, 9 and 12 presented the highest activity against A. monuste only after 24 h.

Molecules 2012, 17
13994
Table 2. Contact toxicity of the synthetic compounds at concentration of 5 μg (P. americana), 10 µg (A. monuste) and 50 μg (A. obtectus and
S. zeamais) of compound per mg of insect.
Mean percent mortality *
A. monuste orseis
Treatment
A. obtectus
(compound)
S. zeamais
P. americana
12 h
24 h
12 h
24 h
12 h
24 h
12 h
24 h
Permethrin #
100.0 aA
100.0 aA
100.0 aA
90.00 aA
87.50 aA
82.50 aA
97.50 aA
100.0 aA
97.50 aA
0.00 aB
100.0 aA
100.0 aA
100.0 aA
97.50 aA
95.00 aA
92.50 aA
97.50 aA
100.0 aA
97.50 aA
3.33 aB
85.5 bA
85.00 aA
45.00 bB
42.50 cB
95.00 aA
92.50 aA
82.50 aA
97.50 aA
97.50 aA
0.00 aC
90.0 aA
100.0 aA
100.00 aA
27.50 cD
50.00 cC
62.50 bBC
75.00 aB
100.00 aA
100.00 aA
75.00 aB
11.67 aD
100.0 aA
100.00 aA
47.50 bC
67.50 bB
95.00 aA
95.00 aA
100.00 aA
100.00 aA
92.50 aA
13.33 aD
87.5 bA
100.00 aA
79.33 aABC
67.00 bC
97.5 aA
6
90.00 aA
47.50 bB
45.00 cB
95.00 aA
97.50 aA
90.00 aA
100.00 aA
100.00 aA
3.33 aC
100.00 aA
96.00 aAB
71.00 aCD
100.00 aA
92.00 aABC
67.00 bD
100.00 aA
75.00 aBCD
6.00 aE
7a
7b
8
100.00 aA
92.00 aAB
67.00 bC
9
10
11
100.00 aA
75.00 aBC
4.00 aD
12
Control §
* Means followed by the same lower-case letter in a row or by the same upper-case letter in a column are not significantly different by the Tukey test at p > 0.05.
§ Only ketone was used in the control. # Commercial insecticide.

Molecules 2012, 17
13995
Therefore, the substances 6, 8, 9 and 11 have a potential use in controlling pests of stored products
(A. obtectus and Sitophilus zeamais), caterpillars (A. monuste) and cockroaches (P. americana). These
results are promising since the discovery of new substances with insecticidal action is an alternative to
be used in pest management to avoid selection of resistant populations to insecticides as with
P. americana [28] and S. zeamais [29].
Moreover, as these substances present fast insecticide action they present potential use in pest
control when infestations are high. Herbivores such as A. obtectus, A. monuste, and S. zeamais could
be controlled before they cause damage to plants, or household pests (cockroaches) before they
transmit diseases to humans [30,31].
3. Experimental
3.1. General Procedures
DCM and THF were dried as described in the literature [32]. The melting points were determined
on an Electrothermal digital (MQAPF-301) apparatus without correction. Infrared spectra were
recorded on a Perkin Elmer Paragon 1000 FTIR grating spectrophotometer using potassium bromide
disks and scanning from 4000 to 625 cm−1. 1H- and 13C-NMR spectra were recorded in a Varian Mercury
(300 MHz) spectrometer. Tetramethylsilane (SiMe4) was used as internal standard ( = 0). GC-MS was
conducted with a Shimadzu QP5050A spectrometer, using a glass capillary column (25 m × 0.25 mm)
DB-1. The elementary analysis was carried out in a Perkin Elmer 2400 instument. The reactions
were monitored by thin layer chromatography (TLC) using plates coated with 60GF254 silica-gel
(POLYGRAM-UV254 0.25 mm MACHEREY—NAGEL).
3.2. Synthetic Procedures
4-(1'-Hydroxy-1'-methylethyl)tetrahydrofuran-2-one (3). A solution of furan-2(5H)-one (4.5 g;
53.52 mmol) in isopropyl alcohol (100 mL) was degassed in a quartz tube by a steady flow of nitrogen
for 1 h. The tube was stoppered and irradiated for 12 h under four low pressure mercury lamps
(4 × 15 W). The solvent was removed under reduced pressure and the residue purified by column
chromatography (hexane-ethyl acetate, 1:2 v/v) to afford 3 (7.7 g; 53.52 mmol) in 100% yield as a
yellowish oil. TLC: Rf = 0.52 (hexane-ethyl acetate, 1:2 v/v); IR ( , cm−1): 3426, 2978, 2928, 1774,
1378, 1186, 1016, 956, 850. 1H-NMR (CDCl3) δ (m, l, J (Hz), atrib.): 1.28 (m, 6H, 2 × CH3), 2.61 (m,
3H, H3, H3' and H4), 2.8 (s, 1H, OH), 4.4 (m, 2H, H5 and H5'); 13C-NMR (CDCl3):  27.9 (CH3), 28.3
(CH ), 30.1 (C3), 46.1 (C4), 69.7 (C5), 70.0 (C-OH), 178.0 (C=O); MS, m/z (100%): [  ] 144 (1.43),
M 
3
126 (3.40), 111 (3.60), 85 (56.39), 59 (100.00).
4-Isopropenyltetrahydrofuran-2-one (4a) and 4-(1-methylethylidene)tetrahydrofuran-2-one (4b). A
suspension of PCl5 (20 g; 95.92 mmol) in anhydrous DCM (25 mL) was added to an ice cooled
solution of 3 (7 g; 48.61 mmol) in anhydrous DCM (40 mL). The reaction mixture was stirred for
5 min, quenched with distilled water (150 mL), the organic phase separated, and the aqueous layer
extracted with DCM (3 × 50 mL). The combined organic phases was washed with brine (3 × 25 mL),
dried with anhydrous magnesium sulfate, filtered, and concentrated under reduced pressure. Flash

Molecules 2012, 17
13996
column chromatography (hexane:ethyl acetate, 1:1 v/v) of the residue gave a mixture of the isomers
(4a) and (4b) in 90% yield (5.5 g). Compound 4a: TLC: Rf = 0.65 (hexane-ethyl acetate, 1:1 v/v); IR
1
(KBr,  , cm−1): 3083, 2975, 2916, 1794, 1650, 1179, 1021, 900; H-NMR (CDCl3) δ (m, l, J(Hz),
atrib.): 1.73 (s, 3H, CH3), 2.43 (dd, 1H, Jgem = 17.1, J3–4 = 8.5, H3), 2.62 (dd, 1H, Jgem = 17.1 and
J3'-4 = 8.5, H3), 3.15 (m, 1H, H4), 4.07 (dd, 1H, Jgem = 8.8 and J5–4 = 7.8, H5), 4.42 (dd, 1H, Jgem = 8.8
and J5'-4 = 7.8, H5'), 4.85 (m, 2H, =CH2); 13C-NMR (CDCl3):  20.5 (CH3), 33.2 (C3), 42.5 (C4), 71.9
(C5), 112.4 (=CH ), 176.9 (C=O); MS, m/z (100%): [  ] 126 (12.36), 125 (28.86), 95 (22.98),
M 
2
68 (88.19), 67 (100.00), 59 (34.65). Compound 4b: TLC: Rf = 0.68 (hexane-ethyl acetate, 1:1 v/v); IR
1
( , cm−1): 2974, 2912, 1784, 1650, 1362, 1180, 1025, 847, 558; H-NMR (CDCl3) δ (m, l, J(Hz),
atrib.): 1.60 (m, 3H, CH3), 1.68 (m, 3H, CH3'), 3.13 (m, 2H, H3 e H3'), 4.83 (m, 2H, H5 and H5');
13C-NMR (CDCl3):  19.6 (CH3), 21.6 (CH3'), 32.4 (C3), 71.6 (C5), 121.8 (C4), 126.8 (C6), 176.7 (C=O).
4-(1'-Bromo-1'-methylethyl)tetrahydrofuran-2-one (5) from the mixture of 4a and 4b. A solution of
PBr3 (1.6 mL, 17.02 mmol) in DCM (10 mL) was added dropwise to a suspension of SiO2 (15 g) in
DCM (50 mL) containing the isomers 4a and 4b (5.5 g; 43.65 mmol). The mixture was stirred for 1 h,
filtered under vacuum and the SiO2 washed with DCM (30 mL). The filtrate was washed with
NaHCO3 10% (2 × 20 mL) and brine (2 × 20 mL). The organic phase was dried with MgSO4, filtered,
concentrated under reduced pressure and the residue purified by flash column chromatography
(hexane:ethyl acetate, 1:1 v/v) to afford 5 (3.5 g; 17.02 mmol) in 39% yield as a white solid. TLC:
Rf = 0.52 (hexane-ethyl acetate, 1:1 v/v); IR ( , cm−1): 2973, 2917, 1779, 1373, 1175, 1115, 1027,
1
629; H-NMR (CDCl3)  (m, l, J(Hz), atrib.): 1.75 (m, 6H, 2 × CH3), 2.64 (m, 3H, H3, H3' and H4),
13
4.29 (m, 1H, H5), 4.45 (m, 1H, H5'); C-NMR (CDCl3):  31.9 (C3), 32.1 (CH3), 32.4 (CH3), 48.3

(C4), 66.6 (C-Br), 70.6 (C5), 175.8 (C=O); MS, m/z (100%): [
+ 2] 209 (1.63), [  ] 207 (1.67),
M 
M 
126 (17.59), 111 (60.31), 83 (100.00), 68 (54.27).
4-(1'-Bromo-1'-methylethyl)tetrahydrofuran-2-one (5) from 4-(1′-hydroxy-1′-methylethyl)tetrahydrofuran-
2-one (3). A solution of PBr3 (2.0 mL; 21.28 mmol) in DCM (10 mL) was added dropwise to a solution
of 3 (7.00 g; 48.61 mmol), and pyridine (4.0 mmL; 49.56 mmol) in DCM (25 mL). The reaction
mixture was stirred for 1 h, and a further dropwise addition of PBr3 (2.0 mL; 21.28) in DCM (10 mL)
was performed. After addition of SiO2 (15 g), the mixture was stirred for a further 40 min. The reaction
mixture was filtered under vacuum and the silica was washed with DCM (30 mL). The filtrate was
washed with NaHCO3 10% (2 × 20 mL) and brine (2 × 20 mL). The organic phase was dried with
MgSO4, filtered, concentrated under reduced pressure and the residue purified by flash column
chromatography (hexane:ethyl acetate, 1:1 v/v) to afford 5 (5.03 g; 24.3 mmol) in 50% yield as a white
solid. TLC: Rf = 0.52 (hexane-ethyl acetate, 1:1 v/v); IR ( , cm−1): 2973, 2917, 1779, 1373, 1175,
1115, 1027, 629; 1H-NMR (CDCl3)  (m, l, J(Hz), atrib.): 1.75 (m, 6H, 2 × CH3), 2.64 (m, 3H, H3, H3'
e H4), 4.29 (m, 1H, H5), 4.45 (m, 1H, H5'); 13C-NMR (CDCl3):  31.8 (C3), 32.0 (CH3), 32.3 (CH3),
48.2 (C4), 66.5 (C-Br), 70.5 (C5), 175.7 (C=O); MS, m/z (100%): [  + 2] 209 (1.63), [  ] 207
M 
M 
(1.67), 126 (17.59), 111 (60.31), 83(100.00), 68 (54.27).
6,6-Dimethyl-3-oxabicyclo[3.1.0]hexan-2-one (6). A solution of 5 (2.00 g; 9.66 mmol) in anhydrous
THF (20 mL) was added dropwise to an ice cooled suspension of potassium tert-butoxide (2.20 g;

Molecules 2012, 17
13997
19.64 mmol) in anhydrous THF (30 mL). The reaction mixture was stirred for 5 min, quenched with
NH4Cl (30 mL) and extracted with DCM (3 × 50 mL). The combined organic phases was dried with
anhydrous MgSO4, filtered and concentrated under reduced pressure. The residue was purified by flash
column chromatography (hexane:ethyl acetate, 1:1 v/v) to afford 6 (0.4870 g; 3.87 mmol) in 40% yield
as a colorless oil. TLC: Rf = 0.52 (hexane-ethyl acetate , 1:1 v/v); IR ( , cm−1): 3068, 2961, 2909,
1774, 1368, 1186, 1046, 975, 892; 1H-NMR (CDCl3)  (m, l, J(Hz), atrib.): 1.10 (s, 6H, 2 × CH3), 1.88
(dd, 1H, J3-4 = 6.3 e J3–5’ = 0.9, H3), 2.01 (ddd, 1H, J3–4 = 6.3, J4-5 = 5.2 e J4–5' = 1.2, H4), 4.10 (dt, 1H,
Jgem = 9.9, J3–5' = 0.9 e J4–5' = 1.2, H5’), 4.31 (dd, 1H, Jgem = 9.9 and J4–5 = 5.2, H5); 13C-NMR
(CDCl3):  14.6 (CH3), 23.3 [C(CH3)2], 25.4 (CH3), 30.3 (C4), 30.7 (C3), 66.8 (C5), 175.3 (C=O). MS,
m/z (100%): [  ] 126 (3.67), 125 (9.74), 111 (18.33), 97 (25.60), 85 (28.50), 83 (31.98), 71 (53.30),
M 
69 (47.64), 57 (100.00), 55 (67.45).
3.3. General Method to Preparation of Alkenes 8 to 12
To a suspension of the Wittig salt (3.53 mmol) in dry THF (5 mL) under nitrogen at 0 °C n-butyl
lithium was added (2.0 M in hexane, 1,8 mL ; 3.60 mmol). The reaction mixture was stirred for 20 min,
and the aldehyde (7) (0.50 g; 3.20 mmol) in dry THF (5 mL) was added. After 30 min at 0 °C, the
cooling bath was removed and the mixture was stirred for 3 h. The reaction was quenched with
saturated aqueous ammonium chloride (10 mL), the THF was evaporated under reduced pressure and
the aqueous residue was extracted with diethyl ether (5 × 10 mL). The combined organic layers was
dried with anhydrous magnesium sulfate, filtered and concentrated in the rotary evaporator to give a
yellow oil. The oil was purified by flash column chromatography (hexane:ethyl ether, 9:1 v/v). This
procedure was used for the preparation of the compounds 8 to 12. The quantity of Wittig salts and
yield for each reaction are shown in Table 1.
Mixture of isomers (Z)-(8a) and (E)-(8b) of methyl (1S,3S)-3-[2-(2-methoxyphenyl)ethen-1-yl]-2,2-
dimethylcyclopropane-1-carboxylate. TLC: Rf = 0.45 (hexane-diethyl ether, 9:1 v/v); Specific
= −84.4° (c = 1.60, acetone); IR ( , cm−1): 2950, 1724, 1598, 1438, 1244, 1167,
20
rotation:
[ ]D
1
1029, 752; H-NMR (CDCl3)  (m, l, J(Hz), atrib.): 1.20 (s, 6H, 2 × CH3), 1.25 (s, 3H, CH3), 1.30
(s, 3H, CH3), 1.57 (d, 1H, J1-3cis = 5.4, H1cis), 1.69 (d, 1H, J1-3trans = 5.4, H1trans), 2.26 (dd, 1H,
J1-3trans = 5.4 e J3-4trans = 8.7, H3trans), 2.34 (dd, 1H, J1-3 cis = 5.4 e J3-4 cis = 9.0, H3cis), 3.65 (s, 3H,
OCH3), 3.70 (s, 3H, OCH3), 3.83 (s, 3H, CH3O-Ar), 3.83 (s, 6H, CH3O-Ar), 5.45 (dd, 1H, J3-4cis = 9.0
e J4-5cis = 11.5, H4cis), 5.96 (dd, 1H, J3-4trans = 8.7 e J4-5trans = 15.9, H4trans), 6.68 (d, 1H, J4-5cis = 11.5,
H5cis), 6.92 (m, 5H, H5trans, H3' e H5'), 7.30 (m, 4H, H4' e H6'); 13C-NMR (CDCl3):  20.4 (CH3), 20.7
(CH3), 22.4 (CH3), 22.5 (CH3), 29.7 [C(CH3)2], 28.8 [C(CH3)2], 33.7 (C3cis), 34.6 (C1trans), 35.7
(C1cis), 37.6 (C3trans), 51.7 (OCH3), 51.8 (OCH3), 55.7 (CH3OAr), 55.8 (CH3OAr), 110.5–130.2 (C4,
C5 e Ar), 156.5 (C2'), 157.1 (C2'), 172.5 (C=O), 172.7 (C=O); MS, m/z (100%): [  ] 260 (35.02),
M 
201 (100.00), 185 (46.55), 121 (56.32), 91 (95.16), 77 (57.62), 41 (73.00).
Mixture of isomers (Z)-(9a) and (E)-(9b) of methyl (1S,3S)-3-[2-(3-methoxyphenyl)ethen-1-yl]-2,2-
dimethylcyclopropane-1-carboxylate. TLC: Rf = 0.45 (hexane-diethyl ether, 9:1 v/v); Specific rotation:
= −80.9° (c = 1.10, acetone); IR ( , cm−1): 2948, 1728, 1438, 1219, 767, 751; 1H-NMR (CDCl3)
[ ]2D0
 (m, l, J (Hz), atrib.): 1.24 (s, 6H, CH3 cis), 1.26 (s, 3H, CH3 trans), 1.28 (s, 6H, CH3 cis), 1.34 (s, 3H,

Molecules 2012, 17
13998
CH3 trans), 1.60 (d, 2H, J1-3cis = 5.7, H1cis), 1.73 (d, 1H, J1-3trans = 5.7, H1trans), 2.27 (m, 3H, H3cis
e
H3trans), 3.67 (s, 6H, OCH3 cis), 3.71 (s, 3H, OCH3 trans), 5.55 (dd, 2H, J3-4cis = 9.0 e J4-5cis = 11.4, H4cis),
5.97 (dd, 1H, J3-4trans = 9.0 e J4-5trans= 15.9, H4trans), 6.67 (d, 2H, J4-5cis = 11,4, H5cis), 6.95 (d, 1H,
J4-5trans = 15.9, H5trans), 7.25 (m, 12H, Arcis e Artrans)*; 13C-NMR (CDCl3):  20.4 (2 × CH3), 20.6
(CH3), 22.4 (CH3), 29.7 [2 × C(CH3)2], 33.2 (C3cis), 34.8 (C1trans), 35.7 (C1cis), 37.0 (C3trans), 51.8
(2 × OCH ), 126.5–135.3 (C4, C5 e Ar), 172.4 (2 × C=O); MS, m/z (100%): [  ] 260 (26.10), 201
M 
3
(61.42), 185 (58.24), 159 (60.84), 115 (77.52), 102 (100.00), 91 (67.98), 77 (68.16), 41 (72.87).
Mixture of isomers (Z)-(10a) and (E)-(10b) of methyl (1S,3S)-3-[2-(2-chlorophenyl)ethen-1-yl]-2,2-
dimethylcyclopropane-1-carboxylate. TLC: Rf = 0.55 (hexane-diethyl ether, 9:1 v/v); Specific
= −80.6° (c= 1.32, acetone); IR ( , cm−1): 2956, 2752, 1738, 1714, 1434, 1237, 1173,
20
rotation:
[ ]D
1112, 975; 1H-NMR (CDCl3)  (m, l, J(Hz), atrib.): 1.20 (s, 6H, 2 × CH3), 1.25 (s, 6H, 2 × CH3) 1.57
(d, 1H, J1-3cis = 5.4, H1cis), 1.67 (d, 1H, J1-3trans = 5.7, H1trans), 2.22 (dd, 1H, J1-3trans = 5.7 e J3-4trans = 8.4,
H3trans), 2.45 (dd, 1H, J1-3cis = 5.4 e J3-4cis = 8.7, H3cis), 3.67 (s, 3H, OCH3), 3.69 (s, 3H, OCH3), 3.80 (s,
6H, 2 × CH3O-Ar), 5.40 (dd, 1H, J3-4cis = 8.7 e J4-5cis = 11.7, H4cis), 5.95 (dd, 1H, J3-4trans = 8.4 e
J4-5trans = 15.9, H4trans), 6.54 (m, 2H, H5trans e H5cis), 6.90 (m, 6H, H2', H4' e H6'), 7.23 (m, 2H, H5’);
13C-NMR (CDCl3):  20.8 (CH3), 21.1 (CH3), 33.4 (C2), 34.3 (C1), 42.2 (C3), 52.2 (OCH3), 170.4
(COOCH ), 199.0 (HC=O); MS, m/z (100%): [  +2] 266 (6.29), [  ] 264 (19.09), 207 (28.14),
M 
M 
3
205 (100.00), 139 (43.93), 125 (84.02), 115 (31.50), 77 (25.86).
Mixture of isomers (Z)-(11a) and (E)-(11b) of methyl (1S,3S)-3-[2-(pentafluorophenyl)ethen-1-yl]-2,2-
dimethylcyclopropane-1-carboxylate. TLC: Rf = 0.63 (hexane-diethyl ether, 9:1 v/v); Specific
= −74.6° (c = 2.60, acetone); IR ( , cm−1): 2952, 1734, 1651, 1521, 1495, 1219, 1171,
20
rotation:
[ ]D
1002, 869; 1H-NMR (CDCl3)  (m, l, J(Hz), atrib.): 1.23 (s, 6H, 2 × CH3), 1.34 (s, 6H, 2 × CH3) 1.65
(d, 1H, J1-3cis = 5.4, H1cis), 1.75 (d, 1H, J1-3trans = 5.4, H1trans), 2.16 (m, 1H, H3cis), 2.23 (m, 1H,
H3trans), 3.65 (s, 3H, OCH3), 3.67 (s, 3H, OCH3), 5.75 (dd, 1H, J3-4cis = 9.6 e J4-5cis = 11.1, H4cis), 6.14
(d, 1H, J4-5cis = 11.1, H5cis), 6.27 (dd, 1H, J3-4trans = 9.0 e J4-5trans = 16.2, H4trans), 6.46 (d, 1H, J4-5trans = 16.2,
H5trans); 13C-NMR (CDCl3):  20.5 (2 × CH3), 22.3 (CH3), 22.5 (CH3), 29.8 [C(CH3)2], 30.0 [C(CH3)2],
34.1 (C3cis), 34.2 (C1trans), 35.7 (C1cis), 37.7 (C3trans), 51.9 (OCH3), 52.0 (OCH3), 114.7 (C5cis), 115.8
(C5trans), 137.4 (C4cis e C4trans), 172.0 (2 × C=O); MS, m/z (100%): [  ] 320 (8.37), 261 (100.00),
M 
195 (24.67), 181 (98.29), 139 (38.03), 59 (38.77), 41 (57.36).
Mixture of isomers (Z)-(12a) and (E)-(12b) of methyl (1S,3S)-3-[2-(4-ethoxyphenyl)ethen-1-yl]-2,2-
dimethylcyclopropane-1-carboxylate. TLC: Rf = 0.52 (hexane-diethyl ether, 9:1 v/v); Specific
= −71.4° (c= 2.80, acetone); IR ( , cm−1): 2979, 2949, 1725, 1607, 1510, 1245, 1167,
20
rotation:
[ ]D
1048, 841, 732; 1H-NMR (CDCl3)  (m, l, J(Hz), atrib.): 1.20 (s, 3H, CH3), 1.21 (s, 3H, CH3), 1.30 (s,
3H, CH3), 1.32 (s, 3H, CH3), 1.54 (d, 1H, J1-3cis = 5.4, H1cis), 1.64 (d, 1H, J1-3trans = 5.4, H1trans), 2.18
(m, 1H, H3trans), 2.40 (m, 1H, H3cis), 3.67 (s, 3H, OCH3), 3.69 (s, 3H, OCH3), 4.03 (m, 4H, 2 × OCH2),
5.30 (dd, 1H, J3-4cis = 8.4 e J4-5cis = 11.5, H4cis), 5.82 (dd, 1H, J3-4trans = 8.7 e J4-5trans = 15.6, H4trans),
6.46 (m, 2H, H5trans e H5cis), 6.85 ( m, 4H, H3'), 7.25 (m, 4H, H2'); 13C-NMR (CDCl3):  15.1
(2 × OCH2CH3), 20.4 (2 × CH3), 22.4 (2 × CH3), 29.5 [C(CH3)2], 39.8 [C(CH3)2], 33.4 (C3cis), 34.5
(C1trans), 35.7 (C1cis), 37.1 (C3trans), 51.8 (2 × OCH3), 63.36 (2 × OCH2), 114.4 (C3'), 114.7 (C3'),

Molecules 2012, 17
13999
125.0 (C4trans), 126.7 (C4cis), 127.2 (2 × C1'), 129.8 (C2'), 130.2 (C2'), 131.5 (C5), 131.6 (C5), 158.1
(C4'), 158.5 (C4'), 172.7 (2 × C=O); MS, m/z (100%): [  ] 274 (51.44), 215 (100.00), 199 (35.28),
M 
107 (50.20), 77 (44.56), 29 (62.83).
3.4. Bioassays
To evaluate the insecticidal activity of the synthesized compounds, biological assays were
conducted with A. obtectus, adults of S. zeamais, second-instar larvae of A. monuste orseis, and
second-instar nymph of P. americana.
The experimental design was completely randomized with four replicates. Each experimental unit
consisted of a glass Petri dish (9.5 cm × 2.0 cm) containing ten insects. The average weight of each
insect species was obtained by measuring, on an analytical balance, the mass of ten groups containing
10 insects each. Bioassays were conducted by topical application. For each individual insect was
applied on the thoracic tergite, via a 10 µL Hamilton micro syringe, 0.5 µL of a solution of the test
compound, dissolved in acetone, corresponding to dose of 5 (for P. americana), 10 (for A. monuste orseis)
and 50 µg of compound per mg of the insect (for A. obtectus e S. zeamais). In a control experiment,
carried out under the same conditions, 0.5 µL of acetone was applied on each insect. After application,
the insects were kept in individual Petri dishes and A. monuste orseis and P. americana were supplied
with appropriate food. No food was supplied to A. obtectus e S. zeamais.
In all cases the Petri dishes were placed in an incubator at 25 ± 0.5 °C, 75 ± 5% relative humidity,
with a photoperiod of 12 h. The mortality counts were made after 12 h after treatment. Mortality
included dead individuals and those without movements. Mortality data were analyzed using Tukey
test at 0.05 probability level.
4. Conclusions
In conclusion, we have successfully synthezed 6,6-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one (6)
from the readily available furfural and of five novel pyrethroids 8–12 from D-mannitol. These
compounds were evaluated for their biological activity against some key pests common in Brazil:
A. obtectus, S. zeamais, A. monuste orseis, and P. americana. The results indicate that all compounds
show insecticidal activity, and compounds 6 and 11 presented insecticidal activity statistically not
different from the commercial insecticide for all species tested.
Acknowledgments
We thank the Brazilian agencies FAPEMIG for financial support, and CNPq for student’s grants.
Thanks also to Daniel Pattoni and William Howell (British students) for the manuscript proofreading.
References
1. Elliott, M.; Farnham, A.W.; Janes, N.F.; Needham, P.H.; Pulman, D.A. Synthetic insecticide with
a new order of activity. Nature 1974, 248, 710–711.

Molecules 2012, 17
14000
2. Soderlund, D.M.; Clark, J.M.; Sheets, L.P.; Mullin, L.S.; Piccirillo, V.J.; Sargent, D.; Stevens, J.T.;
Weiner, M.L. Mechanisms of pyrethroid neurotoxicity: Implications for cumulative risk
assessment. Toxicology 2002, 171, 3–59.
3. Elliott, M.; Janes, N.F. Synthetic pyrethroids - a new class of insecticide. Chem. Soc. Rev. 1978,
7, 473–505.
4. Silvério, F.O.; de Alvarenga, E.S.; Moreno, S.C.; Picanço, M.C. Synthesis and insecticidal
activity of new pyrethroids. Pest Manag. Sci. 2009, 65, 900–905.
5. Krief, A. Bicyclohexane derivatives and their use in preparing cyclopropane carboxylic acid.
UK Pat. 2,246,129A, 22 January 1992.
6. Funk, R.L.; Munger, J.D. The stereospecific total synthesis of (±) cis-chrysanthemic acid via the
alicyclic Claisen rearrangement. J. Org. Chem. 1978, 50, 707–709.
7. Krief, A.; Swinne, D. Novel synthesis of vinylcyclopropanecarboxylic acids: application to the
synthesis of (d,l)- and (d)-cis-chrysanthemic acid. Tetrahedron Lett. 1996, 37, 7123–7126.
8. Zhang, Q.; Zhang, W.; Wang, X.; Li, P. Immunoassay Development for the Class-Specific Assay
for Types I and II Pyrethroid Insecticides in Water Samples. Molecules 2010, 15, 164–177.
9. Moreno, S.C.; Picanço, M.C.; Silvério, F.O.; de Alvarenga, E.S.; Carvalho, G.A. Toxicity of new
pyrethroids to the social insects Protonectarina sylveirae, Solenopsis saevissima and Tetragonisca
angustula. Sociobiology 2009, 54, 893–906.
10. Jakovac, I.J.; Goodbrand, H.B.; Lok, K.P.; Jones, J.B. Enzymes in organic synthesis. 24.
Preparations of enantiomerically pure chiral lactones via stereospecific horse liver alcohol
dehydrogenase catalyzed oxidations of monocyclic meso diols. J. Am. Chem. Soc. 1982, 104,
4659–4665.
11. Doyle, M.P.; Pieters, R.J. High enantioselectivity in the intramolecular cyclopropanation of allyl
diazoacetates using a novel rhodium(II) catalyst. J. Am. Chem. Soc. 1991, 113, 1423–1424.
12. Doyle, M.P.; Austin, R.E.; Bailey, A.S.; Dwyer, M.P.; Dyatkin, A.B.; Kalinin, A.V.;
Kwan, M.M.Y.; Liras, S. Oalmann, C.J.; Pieters, R.J.; et al. Enantioselective intramolecular
cyclopropanations of allylic and homoallylic diazoacetates and diazoacetamides using chiral
dirhodium(II) carboxamide catalysts. J. Am. Chem. Soc. 1995, 117, 5763–5775.
13. Doyle, M.P.; Hu, W.; Chapman, B.; Marnett, A.B.; Peterson, C.S.; Vitale, J.P.; Stanley, S.A.
Enantiocontrolled macrocycle formation by catalytic intramolecular cyclopropanation. J. Am.
Chem. Soc. 2000, 122, 5718–5728.
14. Che, C.M.; Huang, J.S.; Lee, F.W.; Li, Y.; Lai, T.S.; Kwong, H.L.; Teng, P.F.; Lee, W.S.; Lo, W.C.;
Peng, S.M.; et al. Asymmetric inter- and intramolecular cyclopropanation of alkenes catalyzed by
chiral ruthenium porphyrins. Synthesis and crystal structure of a chiral metalloporphyrin carbene
complex. J. Am. Chem. Soc. 2001, 123, 4119–4129.
15. Sabbioni, G.; Jones, J.B. Enzymes in organic synthesis. 39. Preparations of chiral cyclic acid-esters
and bicyclic lactones via stereoselective pig liver esterase catalyzed hydrolyses of cyclic meso
diesters. J. Org. Chem. 1987, 52, 4565–4570.
16. Milewska, M.J.; Gdaniec, M.; Poloński, T. Synthesis, Stereochemistry, and chiroptical spectra of
cyclopropyl lactones and thionolactones. Tetrahedron: Asymmetry 1996, 7, 3169–3180.
17. Teng, P.F.; Lai, T.S.; Kwonga, H.L.; Cheb, C.M. Asymmetric inter- and intramolecular
cyclopropanations of alkenes catalyzed by rhodium D4-porphyrin: A comparison of rhodium- and
ruthenium-centered catalysts. Tetrahedron: Asymmetry. 2003, 14, 837–844.

Molecules 2012, 17
14001
18. Sato, H.; Kim, Y.S.; Shibasaki, M. A catalytic asymmetric synthesis of a versatile intermediate for
phorbol derivatives. Tetrahedron Lett. 1999, 40, 2973–2976.
19. Bosone, E.; Caprara, G.; Corda, F.; Gozzo, F.; Menconi, A.; Piccardi, P.; Caprioli, V. Pyrethroids.
U.S. Patent US4,599,358, 8 July 1986.
20. Hirata, N.; Uemura, T. Process for producing 6,6-dimethyl-3-oxabicyclo[3.1.0]hexan-2-one.
WO Patent Appl. 2007,052,383, 10 May 2007.
21. Li, G.Y.; Zhang, J.; Chan, P.W.H.; Xu, Z.J.; Zhu, N.; Che, C.M. Enantioselective intramolecular
cyclopropanation of cis-alkenes by chiral Ruthenium(II) Schiff base catalysts and crystal
structures of (Schiff base)ruthenium complexes containing carbene, PPh3, and CO ligands.
Organometallics 2006, 25, 1676–1688.
22. Botton, M.; Lorini, I.; Afonso, A.P.S. Ocorrência de Sitophilus zeamais Mots.
(Coleoptera: Curculionidae) danificando a cultura da videira no Rio Grande do Sul
(in Portuguese). Neotrop. Entomol. 2005, 34, 355–356.
23. Chu, S.-S.; Liu, Z.-L.; Du, S.-S.; Deng, Z.-W. Chemical Composition and Insecticidal Activity
Against Sitophilus zeamais of the Essential Oils Derived from Artemisia giraldii and Artemisia
subdigitata. Molecules 2012, 17, 7255–7265.
24. Liu, T.X. Biology and Life History of Ascia monuste monuste (Lepidoptera: Pieridae), a Potential
Pest of Cruciferous Vegetables. Ann. Entomol. Soc. Am. 2005, 98, 726–731.
25. Näsman, J.H. 3-Methyl-2(5H)-furanone-(2(5H)-furanone, 3-methyl). Org. Synt. 1998, 68, 162–174.
26. Ohga, K.; Matsuo, T. Photoinduced addition of isopropyl alcohol to , -unsaturated lactones.
J. Org. Chem. 1974, 39, 106–108.
27. Sanseverino, A.M.; Mattos, M.C.S. Hydrobromination of alkenes with PBr3/SiO2: a simple and
efficient regiospecific preparation of alkyl bromides. J. Braz. Chem. Soc. 2001, 12, 685–687.
28. Ahmed, A.S.E.; Bashir, N.H.H.; Assad, Y.O.H. Susceptibility of Periplaneta americana L.
(Orthoptera: Blattidae) population from Wad Medani (Sudan Gezira) to three public health
insecticides. Resist. Pest Manag. Newsl. 2010, 19, 8–14.
29. Pereira, C.J.; Pereira, E.J.G.; Cordeiro; E.M.G.; Della Lucia, T.M.C.; Totola, M.R.; Guedes, R.N.C.
Organophosphate resistance in the maize weevil Sitophilus zeamais: magnitude and behavior.
Crop Prot. 2009, 28, 168–173.
30. Silva, G.A.; Picanço, M.C.; Bacci, L.; Crespo, A.L.B.; Rosado, J.F.; Guedes, R.N.C. Control failure
likelihood and spatial dependence of insecticide resistance in the tomato pinworm, Tuta absoluta. Pest
Manag. Sci. 2011, 67, 913–920.
31. Gomez-Dantes, H.; San Martin, J.L.; Danis-Lozano, R.; Manrique-Saide, P. Estrategias de prevencion
y control de salud publica en Mesoamerica: un enfoque basado en evidencia. Salud Publica Mex.
2011, 53, 349–357.
32. Perrin, D.D.; Armarego, W.L.F. Purification of Laboratory Chemicals, 3rd ed.;
Butterworths-Heinemann: Oxford, UK, 1997.
Sample Availability: Samples are available from the authors.
© 2012 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
