hydrogenation of a variety of reluctant substrates, such as
CO2, carbonates, carbamates, and amides.[9] In addition,
ruthenium is less expensive than iridium ($75 per oz vs.
$830 per oz in 2013). The disproportionation of formic acid
was thus investigated, utilizing ruthenium(II) complexes
supported by external phosphine ligands (Scheme 1, Table 1,
and Table S1). To our delight, we observed that heating
a THF solution of FA in a sealed vessel at 1508C, in the
presence of 0.6 mol% [Ru(COD)(methylallyl)2] and
0.6 mol% CH3C(CH2PPh2)3 (triphos), resulted in the com-
plete conversion of FA to produce methanol in 5.0% yield,
after 1 h (entry 1, Table 1). This result corresponds to a 5.0%
selectivity for the formation of methanol, meaning that 5.0%
ꢀ
of the reacted C H bonds in FA are efficiently converted to
ꢀ
methanol. The remaining 95.0% of the C H bonds are
transformed to H2 via dehydrogenation [Eq. (4)] and H2
evolution was indeed confirmed by H NMR spectroscopy.
1
When H13CO2H was utilized, 13CH3OH was formed and 13CO2
was identified as the only organic by-product in this trans-
formation and no trace of carbon monoxide, formaldehyde, or
methylformate could be observed by 13C NMR spectroscopy.
The absence of CO was further confirmed by GC analysis of
the gas mixture at the end of the reaction (see the Supporting
Information (SI)). Interestingly, the reaction proceeds well in
the absence of any additive or buffer, while pH < 2 must be
maintained with HBF4 when catalyst [(C5Me5)Ir(bpy)(H2O)]-
(OTf)2 is utilized.[8]
Different supporting ligands and ruthenium precursors
were then screened so as to improve the catalytic activity and
selectivity (Table 1 and Table S1). With PPh3, 1,2-bis(diphe-
nylphosphino)ethane (dppe), P(CH2CH2PPh2)3 (PP3), and
2,6-bis(diisopropylphosphinomethyl)pyridine as ligands,
dehydrogenation of FA was observed with no formation of
methanol (entries 2 and 3 in Table 1; experiments with the
latter two ligands described in Table S1). However, replacing
the triphos ligand with the triphosphinite CH3C(CH2OPPh2)3
(OP)3 ligand led to the conversion of FA to methanol in 0.5%
yield (entry 4, Table 1).

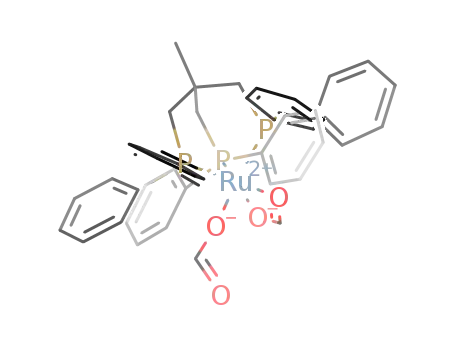

Scheme 1. Precursor 1, deactivated complexes 2 and 3, and reaction
intermediates 4 and 5 characterized from the ruthenium-catalyzed
disproportionation of HCOOH to CH3OH.
Importantly, the reaction temperature and the initial
concentration of FA strongly influence the catalytic activity
(entries 1 and 6–12, Table 1). Decreasing the initial quantity
of FA from 2.4 to 0.8 mmol is accompanied by a decrease in
MeOH yield from 11.9 to 0.5% (entries 8, 11, and 12).
Noticeably, [Ru(COD)(methylallyl)2] is known to react with
triphos to afford complex 1 (Scheme 1), which was structur-
ally characterized (Figure S14).[5b] The catalytic activity of 1 is
similar to that of [Ru(COD)(methylallyl)2] + triphos and
MeOH was obtained in 9.7% yield (vs. 11.9% yield) with
the isolated complex 1 (entries 5 and 8). Although the
disproportionation reaction is efficient at 1508C, it also
proceeds well at 808C and is significantly slowed down only
at temperatures below 408C. For example, the transformation
of 2.4 mmol FA affords MeOH in 11.9 and 7.6% yield at 150
and 808C, respectively, while the yield drops to 1.0% at 408C
(entries 6–8, Table 1). The nature of the solvent was also
found to impact the outcome of the reaction. While the
formation of MeOH proceeds equally well in toluene and
benzene, it is considerably slower in CHCl3 where MeOH is
formed in a low 1.2% yield (entries 13–15, Table 1). In fact,
the catalytic system was found to degrade in CHCl3 at 1508C,
and yellow crystals of 2 deposited from the crude mixture
within 24 h. X-ray analysis reveals that 2 is a ruthenium(II)
hydrido chloride complex that coordinates one triphos ligand
and one molecule of CO (Figure 1). The extra chloride ligand
likely results from the abstraction of a Cl atom from the
solvent by a Ru–H species.[10]
Table 1: Catalytic disproportionation of formic acid to methanol.
Entry FA
[mmol]
L
Additive
Solv.
T
t[a] CH3OH
(1.5 mol%) (0.3 mL) [8C] [h] yield [%]
1
2
3
4
5
6
7
0.6
triphos
3 PPh3
2 dppe
(OP)3
–
–
–
–
–
–
–
–
–
–
–
–
–
–
–
THF
THF
THF
THF
THF
THF
THF
THF
THF
THF
THF
THF
CHCl3
C7H8
C6H6
THF
THF
THF
THF
150
150
150
150
150
80 17 7.6
40 72 1.0
150
1
1
1
1
1
5.0
2.4
2.4
2.4
2.4
2.4
2.4
2.4
4.8
<0.1
<0.1
0.5
1[b]
9.7[b]
triphos
triphos
triphos
triphos
triphos
triphos
triphos
triphos
triphos
triphos
8
1
11.9
9[c]
40 72 1.0
80 17 26.7
10[c] 4.8
11[d] 0.8
12[e] 1.6
150
150
150
150
150
150
150
150
150
1
1
1
1
1
1
1
1
1
0.5
7.5
1.2
5.8
7.4
6.8
11.6
11.9
50.2
13
14
15
16
17
18
19
2.4
2.4
2.4
2.4
2.4
2.4
2.4
triphos NEt3
triphos H2O
triphos EtOH
triphos MSA
Another decomposition pathway of the Ru catalyst was
also identified when the disproportionation of FA was carried
out in benzene and toluene; after 24 h at 1508C, crystals of
[Ru(k3-triphos)(CO)(H)2] (3) were obtained.[11] Although 3
proves inactive in the disproportionation of FA, it catalyzes
Reaction conditions: cat. [Ru(COD)(methylallyl)2] (0.6 mol%); yields
determined by H NMR spectroscopy in deuterated solvents, using
mesitylene as an internal standard. [a] Reaction time required to achieve
100% conversion. [b] cat.: [Ru(triphos)(tmm)](0.6 mol%) (tmm=tri-
methylene methane). [c] 0.3 mol% cat. [d] 1 mol% cat. [e] 2 mol% cat.
