Structure-based discovery of cellular-active allosteric inhibitors of
FAK
a
a
b
a
Naoki Tomita a, , Yoko Hayashi , Shinkichi Suzuki , Yoshimasa Oomori , Yoshio Aramaki ,
Yoshihiro Matsushita a, Misa Iwatani a, Hidehisa Iwata a, Atsutoshi Okabe a, Yoshiko Awazu a,
Osamu Isono a, Robert J. Skene c, David J. Hosfield c, , Hiroshi Miki a, Tomohiro Kawamoto a,
Akira Hori a, Atsuo Baba a
⇑
a Pharmaceutical Research Division, Takeda Pharmaceutical Company Ltd, 26-1 Muraoka-Higashi 2-Chome, Fujisawa, Kanagawa 251-8555, Japan
b CMC Center, Takeda Pharmaceutical Company Ltd, 2-17-85 Jusohonmachi, Yodogawa-ku, Osaka 532-8686, Japan
c Takeda California, 10410 Science Center Drive, San Diego, CA 92121, United States
a r t i c l e i n f o
a b s t r a c t
Article history:
In order to develop potent and selective focal adhesion kinase (FAK) inhibitors, synthetic studies on pyr-
azolo[4,3-c][2,1]benzothiazines targeted for the FAK allosteric site were carried out. Based on the X-ray
structural analysis of the co-crystal of the lead compound, 8-(4-ethylphenyl)-5-methyl-1,5-dihydropy-
razolo[4,3-c][2,1]benzothiazine 4,4-dioxide 1 with FAK, we designed and prepared 1,5-dimethyl-1,5-
dihydropyrazolo[4,3-c][2,1]benzothiazin derivatives which selectively inhibited kinase activity of FAK
without affecting seven other kinases. The optimized compound, N-(4-tert-butylbenzyl)-1,5-dimethyl-
1,5-dihydropyrazolo[4,3-c][2,1]benzothiazin-8-amine 4,4-dioxide 30 possessed significant FAK kinase
Received 22 September 2012
Revised 8 January 2013
Accepted 15 January 2013
Available online 26 January 2013
Keywords:
FAK
Kinase
Inhibitors
Allosteric
Type III
Cancer
SBDD
inhibitory activities both in cell-free (IC50 = 0.64
lM) and in cellular assays (IC50 = 7.1 lM). These results
clearly demonstrated a potential of FAK allosteric inhibitors as antitumor agents.
Ó 2013 Elsevier Ltd. All rights reserved.
Focal adhesion kinase (FAK) is a non-receptor tyrosine kinase
and plays a key role in cell proliferation, resistance to apoptosis
and anoikis, migration, and invasion.1 Over expression of FAK is ob-
served in a variety of tumors, and levels of FAK expression are cor-
related with grade of malignancy and poor prognosis.1,2 Studies
demonstrating suppression of FAK by using dominant-negative
FAK or siRNA have shown both in vitro and in vivo tumor growth
inhibitory activity.3 A small molecule FAK inhibitor is potentially
an effective anticancer agent for a broad range of tumors either
administered alone or in combination with existing chemothera-
pies. Several inhibitors of FAK have been reported4 and two of
them were extensively examined in preclinical or clinical studies:
PF-562271 from Pfizer is a dual inhibitor of FAK and Pyk2,5 and
NVP-TAE-226 from Novartis is a dual inhibitor of FAK and IGF1R
(Fig. 1).6 Both compounds were reported as Type I inhibitors
(bound to ATP site) based on the X-ray co-crystal analyses.5,6c
These inhibitors display remarkable inhibition of cancer cell
growth in vitro and in vivo,5–7 suggesting an FAK inhibitor with
improved selectivity would be a desirable option for an anticancer
therapy.
With the aim of developing novel FAK inhibitors that provide an
inhibition profile differentiated from known FAK inhibitors, we
Cl
N
CF3
SO2Me
N
N
MeN
HN
N
NH NHMe
O
HN
HN
N
O
N
H
MeO
N
O
⇑
Corresponding author. Tel.: +81 466 32 1167; fax: +81 466 29 4448.
PF-562271
FAK/Pyk2 dual inhibitor
NVP-TAE-226
FAK/IGF1R dual inhibitor
E-mail address: naoki.tomita@takeda.com (N. Tomita).
Present address: Molecular Tagging Systems Inc., 1425 Russ Boulevard, San Diego,
CA 92101, United States.
Figure 1. ATP-competitive inhibitors of FAK.
0960-894X/$ - see front matter Ó 2013 Elsevier Ltd. All rights reserved.
http://dx.doi.org/10.1016/j.bmcl.2013.01.047

1780
N. Tomita et al. / Bioorg. Med. Chem. Lett. 23 (2013) 1779–1785
Synthesis of pyrazolo[4,3-c][2,1]benzothiazine scaffold is de-
FAK IC50 [µM]

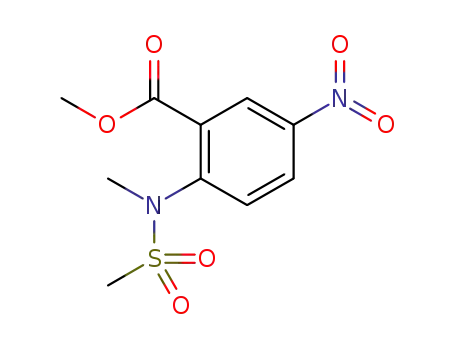

scribed in Scheme 1. N-Methanesulfonylanthranilic acid esters 6–
8 were prepared from commercially available methyl anthranilates
3 and 4, and methyl 2-fluoro-4-nitrobenzoate 5 in 31–78% yield.
Treatment of esters 6–8 with sodium hydride provided cyclized
products 9–11 in 83–96% yield. Biphenyl derivative 12 was ob-
tained from bromide 9 under typical Suzuki-coupling condition
in 71% yield.16 Subsequent treatment of the ketosultams 9–12 with
N,N-dimethylformamide dimethylacetal followed by cycloconden-
sation with hydrazines afforded desired pyrazolo[4,3-c][2,1]benzo-
thiazines 13–17 in a regioselective manner (80–96% yield). The
regiochemistry of 17 was confirmed by X-ray crystallographic
analysis.17
Terminal carboxamides 20–22 were prepared as described in
Scheme 2. Bromide 13 was treated with 3,4-dihydro-2H-pyran
(DHP) in the presence of TFA to give tetrahydropyran (THP)-pro-
tected pyrazolo[4,3-c][2,1]benzothiazine 18 (THP position was
not determined) in 97% yield. Subsequent palladium-catalyzed cou-
pling of 18 with 4-methoxycarbonylphenylboronic acid afforded a
coupled product, which was converted to carboxylic acid 19 by
saponification in 66% yield. Condensation of 19 with several amines
followed by deprotection of THP group provided terminal carbox-
amides 20–22 in 40–55% yield.
N
NH
pre-incubation
5 min 60 min
O
O
ATP conc.
S
N
Et
Me
0.5 µM
1000 µM
1.2
6.4
0.96
2.9
1
Figure 2. HTS hit compound 1.
carried out a systematic and exhaustive search to identify ATP-
noncompetitive compounds.8 High-throughput screening (HTS) of
our internal compound library provided more than 10 hit com-
pounds of different chemical classes. These hit compounds were
evaluated using time-dependent assay (pre-incubation time:
5 min and 60 min) under high and low concentration of ATP
(1000 and 0.5 lM). As a result, we found 1,5-dihydropyrazol-
o[4,3-c][2,1]benzothiazine 1, which inhibited FAK kinase activity
under the high concentration of ATP (Fig. 2).9 The inhibitory activ-
ity at 1000 lM of ATP was slightly increased after 60-min preincu-
bation.10 Subsequent co-crystallization and X-ray structure
determination of compound 1 in the FAK kinase domain revealed
a novel binding mode in which compound 1 bound in a newly
formed FAK allosteric site.8,11 Since several Type III kinase inhibi-
tors, such as allosteric inhibitors of MEK1/212 and Akt1/2,13 pos-
sessed remarkable selectivity against other kinases,14,15 we
decided to develop FAK allosteric inhibitors starting from the lead
compound 1. We report herein our medicinal chemistry efforts on
the discovery of novel allosteric FAK inhibitors by utilizing struc-
ture-based drug design.
Starting from intermediate 8-bromo-pyrazolo[4,3-c][2,1]benzo-
thiazine 14, nitrogen-linked pyrazolo[4,3-c][2,1]benzothiazines 23
and 24 were prepared by transition-metal mediated coupling reac-
tions assisted with microwave irradiation (Scheme 3). Copper-
mediated C–N coupling18 of 14 with 4-fluorobenzamide provided
carboxamide 23 in 46% yield, whereas palladium-catalyzed C–N
coupling19 with 4-fluoroaniline afforded phenylamine 24 in 22%
yield.
X-ray crystallographic analysis of the co-crystal of compound 1
and FAK kinase domain revealed several polar and hydrophobic
interactions (Fig. 3 PDB ID: 4EBV). The fused pyrazole ring interacts
The ester 15 was transformed into carbon-tethered analogues
25 and 26 (Scheme 4). Basic hydrolysis of 15 followed by conden-
sation with 4-fluoroaniline provided amide 25 in 66% yield. Reduc-
tion of 15 with lithium aluminum hydride gave a corresponding
carbinol, which was converted to amine 26 by mesylation and
nucleophilic substitution in 13% yield.
8-Aminopyrazolo[4,3-c][2,1]benzothiazine derivatives 28–30
were prepared from corresponding 8-nitro intermediate 16
(Scheme 5). Compound 16 was reduced by hydrogenation to give
aniline 27 in 96% yield. Reductive alkylation of 27 with 4-substituted
benzaldehydes afforded benzylamines 28–30 in 35–77% yield.
with the cationic side chain of Arg550 via cation–
p interaction.
