on a Shimadzu FT-IR 8201 PC spectrophotometer. 1H NMR spectra
were recorded in CDCl3 and (CD3)2SO solutions on a Varian Gemini
300 MHz spectrometer and chemical shifts are expressed in d units
sulfoxide-d6): 6.98e7.43 (m, 24H, ArHs) ppm; m/z (%)¼644
(Mþ, 56) Anal. Calcd for C40H24N10 (644.22): C, 74.52; H, 3.75; N,
21.73. Found: C, 74.60; H, 3.79; N, 21.65%.
using TMS as an internal reference. Mass spectra were recorded on
a GCeMS QP 1000 EX Shimadzu. Elemental analyses were carried
out at the Microanalytical Canter of the Cairo University.
The starting reagents 1,34 5,35 7,36 15a,37 15bc,38 15d39 and 2040
were prepared as previously described.
4.1.5. General procedure for the preparation of bis{[1,2,4]triazolo[4,3-
a]-5(1H)-pyrimidinone} (17aec) and bis{[1,2,4]triazolo[4,5-a]benz-
imidazole} (17d). A mixture of the thioxo or 2-methylthio de-
rivatives (10 mmol) 15aed and 4-[N,N0-diphenyl(bis-hydrazonoyl
dichlorides)]benzene (1.92 g, 5 mmol) 1 were refluxed in DMF/
pyridine till hydrogen sulfide or methanthiol ceased to evolve
(12e14 h) and cooled. The cold reaction mixture was then poured
onto ice-cold hydrochloric acid with stirring. The solid that pre-
cipitated was collected, washed with water several times; dried and
recrystallized from DMF/EtOH to give final products 17aed as
shown in Scheme 4.
4.1.1. 1,4-Bis-(3-phenyl-3H-[1,3,4]thiadiazol-2-imino)benzene (3). A
mixture of 4-[N,N0-diphenyl(bis-hydrazonoyl dichlorides)]benzene
(1.92 g, 5 mmol) 1 and the appropriate of thiourea (0.76 g, 10 mmol)
2 in DMF(20 mL) was boiled under reflux for 5 h. The cold reaction
mixture was then poured onto ice-cold hydrochloric acid with
stirring. The solid that precipitated was collected. The resulting
solids filtered, washed with water several times, and crystallized
from DMF/EtOH; Yellow brown solid; Yield (69%); mp 320 ꢀC; IR:
4.1.6. Ethyl 3-(4-(6-(ethoxycarbonyl)-1,7-dihydro-5-methyl-1,7-
diphenyl-[1,2,4]triazolo[4,3-a]pyrimidin-3-yl)phenyl)-1,5-dihydro-7-
methyl-1,5-diphenyl-[1,2,4]triazolo[4,3-a]pyrimidine-6-carboxylate
(17a). Brown solid from DMF/EtOH; Yield (43%); mp 248 ꢀC; IR:
695 (CeSeC), 1612 (C]N), 3316 (NH) cmꢁ1 1H NMR (dimethyl
;
sulfoxide-d6): 7.01e8.13 (m, 16H, ArHs and ]NH). 13C NMR (di-
methyl sulfoxide-d6): at 122.7, 126.9, 129.7, 132.1, 133.9, 140.1, 147.9
and 156.2 ppm. m/z (%)¼428 (Mþ, 15). Anal. Calcd for C22H16N6S2
(428.53): C, 61.66; H, 3.76; N, 19.61. Found: C, 61.49; H, 3.87; N,
19.57%.
1733 (C]O), 1611 (C]N) cmꢁ1 1H NMR (dimethyl sulfoxide-d6):
;
1.23 (t, 6H, 2OCH2CH3), 2.37 (s, J¼7 Hz, 6H, 2CH3), 4.12 (q, J¼7 Hz,
4H, 2OCH2CH3); 5.36 (s, 2H, two pyrimidineeH) and 6.96e8.18
(m, 24H, ArHs) ppm. 13C NMR (dimethyl sulfoxide-d6): 13.9, 25.05,
57.95, 59.97, 99.54, 113.06, 119.98, 126.09, 128.06, 128.97, 129.54,
130.12, 133.45, 138.32, 142.01, 143.99, 150.01, 160.11, 167.59 ppm.
m/z (%)¼794 (Mþ, 14) Anal. Calcd for C48H42N8O4 (794.9); C, 72.53;
H, 5.33; N, 14.10. Found: C, 72.41; H, 5.26; N, 13.89%.
4.1.2. 1,4-Bis-(methyl hydrazonecarbodithioate)benzene (6). Benzene-
1,4-dicarbaldehyde (0.67 g, 5 mmol) 4 and methyl hydrazinecarbo-
dithioate (1.22 g,10 mmol) 5 in 2-propanol (40 mL) were refluxed for
30 min. The reaction mixture was cooled and solid formed was
collected and recrystallized from DMF/EtOH; Yellow; Yield (85%);
mp 226 ꢀC; IR: 3098 (]NH), 1595 (C]N), 1316 (CH3) cmꢁ1. 1H NMR
(dimethyl sulfoxide-d6): 2.55 (s, 6H, 2CH3); 7.81 (d, J¼8 Hz, 4H,
ArHs); 8.26 (s, 2H, ]CH) and 10.05 (s, 2H, NH) ppm. 13C NMR (di-
methyl sulfoxide-d6): at 18.0, 130.1, 138.1, 146.1 and 199.6 ppm. m/z
(%)¼342 (Mþ, 68); Anal. Calcd for C12H14N4S4 (342.01): C, 42.08; H,
4.12; N, 16.36. Found: C, 42.11; H, 4.30; N, 16.23%.
4.1.7. 3-(4-(1,7-Dihydro-5-methyl-7-oxo-1-phenyl-[1,2,4]triazolo
[4,3-a]pyrimidin-3-yl)phenyl)-7-methyl-1-phenyl-[1,2,4]triazolo[4,3-
a]pyrimidin-5(1H)-one (17b). Pale yellow solid from DMF/EtOH;
Yield 25%; mp >300 ꢀC; IR: 1693 (C]O), 1605 (C]N) cmꢁ1 1H
;
NMR (dimethyl sulfoxide-d6): 2.31 (s, 6H, 2CH3); 6.18 (s, 2H, two
pyrimidineeH); 7.01e8.43 (m, 14H, ArHs) ppm. m/z (%)¼526
(Mþ, 61) Anal. Calcd for C30H22N8O2(526.55); C, 68.43; H, 4.21; N,
21.28. Found: C, 68.39; H, 4.19; N, 21.31%.
4.1.3. 1,4-Bis-{1-benzylidene-2-(3,5-diphenyl-1,3,4-thiadiazol-
2(3H)-ylidene)hydrazine} (10). Method A. The appropriate of
C-phenyl-N-phenylhydrazonoyl chlorides (2.31 g, 10 mmol) 7 and
dihydrazone (1.71 g, 5 mmol) 6 in DMF (40 mL) was refluxed till no
odour of methanthiol was detected by lead acetate (methanthiol is
toxic by inhalation). The reaction mixture was cooled and solid
formed was collected and recrystallized from DMF/EtOH to give 10.
Method B. A mixture of benzene-1,4-dicarbaldehyde (0.67 g,
5 mmol) 4 and 2-hydrazino-3,5-diphenyl-1,3,4-thiadiazoline 11
(2.68 g, 10 mmol) 2 in DMF(20 mL) was boiled under reflux for 5 h.
The solid that precipitated was collected. The resulting solids
filtered, washed with water several times and crystallized from
DMF/EtOH to give 10.
4.1.8. 3-(4-(1,7-Dihydro-7-oxo-1,5-diphenyl-[1,2,4]triazolo[4,3-a]
pyrimidin-3-yl)phenyl)-1,7-diphenyl-[1,2,4]triazolo[4,3-a]pyrimidin-
5(1H)-one(17c). Brown solid from DMF/EtOH; Yield 36%; mp
>300 ꢀC; IR: 1698 (C]O), 1611 (C]N) cmꢁ1 1H NMR (dimethyl
;
sulfoxide-d6): 6.58 (s, 2H, two pyrimidineeH); 7.13e8.69 (m, 24H,
ArHs) ppm. m/z (%)¼650 (Mþ, 42) Anal. Calcd for C40H26N8O2
(650.69); C, 73.83; H, 4.03; N, 17.22. Found: C, 73.79; H, 4.10; N,
17.19%.

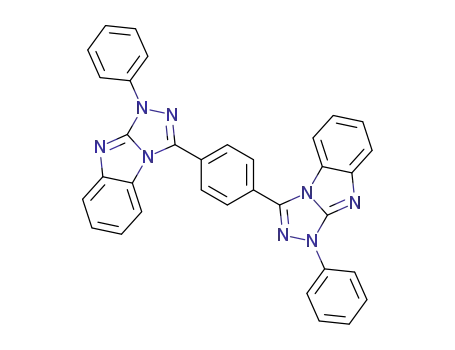

4.1.9. 1,4-Bis{1-phenyl-[1,2,4]triazolo[4,5-a]benzimidazole}benzene
(17d). Brown from DMF/EtOH; Yield 68%; mp >300 ꢀC; IR: 1608
(C]N) cmꢁ1; 1H NMR (dimethyl sulfoxide-d6): 7.19e8.23 (m, 22H,
ArHs) ppm. m/z (%)¼542 (Mþ, 74) Anal. Calcd for C34H22N8
(542.59); C, 75.26; H, 4.09; N, 20.65. Found: C, 75.21; H, 4.13; N,
21.01%.
Yellow brown solid; Yield (56%); mp 176 ꢀC; IR: 1632 (C]N),
1587 (C]C) cmꢁ1 1H NMR (dimethyl sulfoxide-d6): 6.72e7.83
.
(m, 24H, ArHs) and 8.43 (s, 2H, ]CH) ppm. 13C NMR (dimethyl
sulfoxide-d6): at 113.0, 119.2, 126.1, 129.1, 129.6, 130.2, 131.7, 132.1,
133.1, 134.2, 136.0, 137.6, 146.3 and 162.6 ppm. m/z (%)¼634
(Mþ, 34); Anal. Calcd for C36H26N8S2 (634.17): C, 68.12; H, 4.13; N,
17.65. Found: C, 68.24; H, 4.02; N, 17.71%.
4.1.10. Synthesis of poly{1-phenyl-3-phenylpyrazoline-1,4-benzoqui-
none} (21). To an oven-dried round bottom flask were added
p-benzoquinone (0.54 g, 5 mmol) 19 and bis-hydrazonoyl dichlor-
ides (1.54 g, 5 mmol) 20 and 20 mL dry chloroform and 4 mL DMF in
the presence of excess triethylamine (1.52 g, 15 mmol). The round
bottom flask was attached to a reflux condenser. The reaction
mixture solution was heated to reflux for 12 h. The cold reaction
mixture was then poured onto ice-cold hydrochloric acid with
stirring. The solid that precipitated was collected, washed with
water several times to give final product 21, dried to open air. The
structure of the polypyrazole 21 was elucidated on the basis of
spectral data. Polymer molecular weights approached 22,000 g/mol
4.1.4. Synthesis 1,4-di[(10,40-diphenyl)-50-dicyanomethylene-10,20,40-
triazole]benzene (14). To a mixture ketene N,S-acetal (2.15 g,
10 mmol) 12 and bis-hydrazonoyl dichlorides 1 (1.92 g, 5 mmol) in
ethanol (30 mL) and DMF (10 mL) was added triethylamine
(5 mmol) and the mixture was refluxed till methanethiol ceased to
evolve (4e6 h). The precipitate that was formed was filtered off and
crystallized from DMF/EtOH mixture to give, respectively, yielded
3,30-bis(1,2,4-triazole) derivative 14. Brown solid; Yield (42%); mp
>300 ꢀC. IR: 2221 (CN), 2199 (CN) cmꢁ1 1H NMR (dimethyl
;
