Periphery-palladated carbosilane dendrimers: Synthesis and reactivity of organopalladium(II) and -(IV) dendritic complexes. Crystal structure of [PdMe(C6H4(OCH2Ph)-4)(bpy)] (bpy = 2,2′-bipyridine)

Article abstract of DOI:10.1021/om9901269

A carbosilane dendrimer with 12 peripheral iodoarene groups, [Si{(CH₂)₃Si((CH₂)₃-SiMe ₂(C₆H₄CH₂OC₆H ₄I-4))₃}₄] (G₁-ArI, 9), and the corresponding G₀ model compound [Si-{(CH₂)₃SiMe₂(C₆H ₄CH₂OC₆H₄I-4)}₄] (G₀-ArI, 8) have been prepared from [Si{(CH₂)₃Si((CH₂)₃-SiMe ₂(C₆H₄CH₂Br))₃} ₄] (G₁-Br, 7) and the corresponding G₀ model compound [Si{(CH₂)₃SiMe₂-(C₆H ₄CH₂Br)}₄] (G₀-Br, 6). These dendritic species react with [Pd₂(dba)₃·dba/tmeda] (dba = dibenzylideneacetone, tmeda = N,N,N′,N′-tetramethylethylenediamine) to yield the periphery-palladated complexes [Si{(CH₂)₃SiMe₂(C₆H ₄CH₂O(C₆H₄-4)PdI(tmeda))} ₄] (G₀-ArPdI(tmeda), 10) and [Si{(CH₂)₃Si((CH₂)₃SiMe ₂(C₆H₄CH₂O(C₆H ₄-4)PdI(tmeda))3}4] (G₁-ArPdI(tmeda), 11). Complexes 10 and 11 react with LiMe and 2,2′-bipyridine (bpy) to yield the air-stable [Si-{(CH₂)₃SiMe₂(C₆H ₄CH₂OC₆H₄PdMe(bpy))}₄] (G₀-PdMe(bpy), 12) and [Si{(CH₂)₃Si((CH₂)₃-SiMe ₂(C₆H₄CH₂OC₆H ₄PdMe(bpy)))₃}₄] (G₁-ArPdMe(bpy), 13). Complexes 12 and 13 undergo oxidative addition with benzyl bromide to form species containing Pd(IV) centers. These complexes can undergo subsequent reductive elimination at ambient temperature involving both Me-Ar and Me-CH₂Ph coupling on decomposition. Iodoarenes that model the arms of carbosilane-based dendrimers have been synthesized, and procedures have been developed for maximizing yields of organopalladium(II) and -(IV) derivatives of the iodoarenes as part of a program directed toward the isolation and study of organopalladium functionalized dendrimers. The iodoarenes RC₆H₄(CH₂OC₆H ₄I-4′)-4 (R = H (1a), SiMe₃ (1b)) were obtained and found to undergo facile oxidative addition to [Pd₂(dba)₃·dba/tmeda] to form [PdI(Ar)-(tmeda)] (2a,b), which react with LiMe to form [PdMe(Ar)(tmeda)] (3a,b). Bpy displaces tmeda to form [PdMe(Ar)(bpy)] (4a,b), and the latter complexes undergo oxidative addition with benzyl bromide to form the complexes [PdBrMeAr(CH₂Ph)(bpy)] (5a,b). The palladium-(IV) complex 5a undergoes facile and clean reductive elimination at ambient temperature in CDCl₃ to form the coupling products Me-C₆H₄(OCH₂Ph)-4 (89%), PhCH₂-C₆H₄(OCH₂Ph)-4 (9%), and Me-CH₂Ph (2%). However, 5b undergoes more complex behavior to form Me-C₆H₄-(OCH₂C₆H ₄(SiMe₃)-4′)-4 (87%), Me-CH₂Ph (6%), and PhCH₂-CH₂Ph (7%) together with [PdBr₂(bpy)]. The complex [PdMe(C₆H₄(OCH₂Ph)-4)(bpy)] (4a) has been characterized by X-ray diffraction. The asymmetric unit contains two similar but crystallographically independent molecules. Each molecule has square-planar geometry for palladium with the aryl ring tilted by 76.2(4) and 67.1(3)° to the coordination plane, respectively. The crystal examined by X-ray diffraction exhibits significant substitutional disorder at one site: [PdX-(C₆H₄(OCH₂Ph)-4)(bpy)] (X = Me (71%), Cl (29%)).

Full text of DOI:10.1021/om9901269

2970
Organometallics 1999, 18, 2970-2980
P er ip h er y-P a lla d a ted Ca r bosila n e Den d r im er s:
Syn th esis a n d Rea ctivity of Or ga n op a lla d iu m (II) a n d
-(IV) Den d r itic Com p lexes. Cr ysta l Str u ctu r e of
[P d Me(C6H4(OCH2P h )-4)(bp y)] (bp y ) 2,2′-Bip yr id in e)
Neldes J . Hovestad,† J ason L. Hoare,‡ J ohann T. B. H. J astrzebski,†
Allan J . Canty,‡ Wilberth J . J . Smeets,§ Anthony L. Spek,§,| and
Gerard van Koten*,†
Debye Institute, Department of Metal-Mediated Synthesis, Utrecht University, Padualaan 8,
3584 CH Utrecht, The Netherlands, School of Chemistry, University of Tasmania, Hobart,
Tasmania, 7001 Australia, and Bijvoet Center for Biomolecular Research, Department of
Crystal and Structural Chemistry, Utrecht University, Padualaan 8,
3584 CH Utrecht, The Netherlands
Received February 22, 1999
A carbosilane dendrimer with 12 peripheral iodoarene groups, [Si{(CH2)3Si((CH2)3-
SiMe2(C6H4CH2OC6H4I-4))3}4] (G1-ArI, 9), and the corresponding G0 model compound [Si-
{(CH2)3SiMe2(C6H4CH2OC6H4I-4)}4] (G0-ArI, 8) have been prepared from [Si{(CH2)3Si((CH2)3-
SiMe2(C6H4CH2Br))3}4] (G1-Br, 7) and the corresponding G0 model compound [Si{(CH2)3SiMe2-
(C6H4CH2Br)}4] (G0-Br, 6). These dendritic species react with [Pd2(dba)3‚dba/tmeda] (dba )
dibenzylideneacetone, tmeda ) N,N,N′,N′-tetramethylethylenediamine) to yield the periphery-
palladated complexes [Si{(CH2)3SiMe2(C6H4CH2O(C6H4-4)PdI(tmeda))}4] (G0-ArPdI(tmeda),
10) and [Si{(CH2)3Si((CH2)3SiMe2(C6H4CH2O(C6H4-4)PdI(tmeda))3}4] (G1-ArPdI(tmeda), 11).
Complexes 10 and 11 react with LiMe and 2,2′-bipyridine (bpy) to yield the air-stable [Si-
{(CH2)3SiMe2(C6H4CH2OC6H4PdMe(bpy))}4] (G0-PdMe(bpy), 12) and [Si{(CH2)3Si((CH2)3-
SiMe2(C6H4CH2OC6H4PdMe(bpy)))3}4] (G1-ArPdMe(bpy), 13). Complexes 12 and 13 undergo
oxidative addition with benzyl bromide to form species containing Pd(IV) centers. These
complexes can undergo subsequent reductive elimination at ambient temperature involving
both Me-Ar and Me-CH2Ph coupling on decomposition. Iodoarenes that model the arms of
carbosilane-based dendrimers have been synthesized, and procedures have been developed
for maximizing yields of organopalladium(II) and -(IV) derivatives of the iodoarenes as part
of a program directed toward the isolation and study of organopalladium functionalized
dendrimers. The iodoarenes RC6H4(CH2OC6H4I-4′)-4 (R ) H (1a ), SiMe3 (1b)) were obtained
and found to undergo facile oxidative addition to [Pd2(dba)3‚dba/tmeda] to form [PdI(Ar)-
(tmeda)] (2a ,b), which react with LiMe to form [PdMe(Ar)(tmeda)] (3a ,b). Bpy displaces
tmeda to form [PdMe(Ar)(bpy)] (4a ,b), and the latter complexes undergo oxidative addition
with benzyl bromide to form the complexes [PdBrMeAr(CH2Ph)(bpy)] (5a ,b). The palladium-
(IV) complex 5a undergoes facile and clean reductive elimination at ambient temperature
in CDCl3 to form the coupling products Me-C6H4(OCH2Ph)-4 (89%), PhCH2-C6H4(OCH2Ph)-4
(9%), and Me-CH2Ph (2%). However, 5b undergoes more complex behavior to form Me-C6H4-
(OCH2C6H4(SiMe3)-4′)-4 (87%), Me-CH2Ph (6%), and PhCH2-CH2Ph (7%) together with

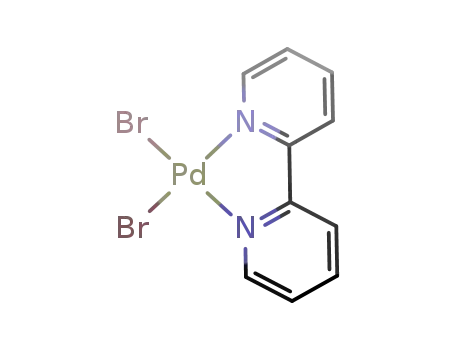

[PdBr2(bpy)]. The complex [PdMe(C6H4(OCH2Ph)-4)(bpy)] (4a ) has been characterized by
X-ray diffraction. The asymmetric unit contains two similar but crystallographically
independent molecules. Each molecule has square-planar geometry for palladium with the
aryl ring tilted by 76.2(4) and 67.1(3)° to the coordination plane, respectively. The crystal
examined by X-ray diffraction exhibits significant substitutional disorder at one site: [PdX-
(C6H4(OCH2Ph)-4)(bpy)] (X ) Me (71%), Cl (29%)).
In tr od u ction
their precisely defined nanoscale, often globular, mo-
lecular structure. For example, exciting potential ap-
plications are being developed in areas such as micelle
mimicry, magnetic resonance imaging, immunodiag-
nostics, and targeted gene delivery.1-13 There also has
Dendrimers are currently generating enormous inter-
est in diverse areas of science and technology due to
* To whom correspondence should be addressed. Tel: +3130
2533120. Fax: +31302523615. E-mail: g.vankoten@chem.uu.nl.
† Debye Institute, Utrecht University.
(1) Tomalia, D. A.; Naylor, A. M.; Goddard, W. A., III. Angew. Chem.,
Int. Ed. Engl. 1990, 29, 138.
(2) Mekelburger, H.-B.; J aworek, W.; Vo¨gtle, F. Angew. Chem., Int.
Ed. Engl. 1992, 31, 1571.
‡ University of Tasmania.
§ Bijvoet Center for Biomolecular Research, Utrecht University.
| Address correspondence pertaining to crystallographic studies to
this author. E-mail: A.L.Spek@chem.uu.nl.
(3) Tomalia, D. A.; Hurst, H. D. Top. Curr. Chem. 1993, 165, 193.
10.1021/om9901269 CCC: $18.00 © 1999 American Chemical Society
Publication on Web 07/08/1999

Periphery-Palladated Carbosilane Dendrimers
Organometallics, Vol. 18, No. 16, 1999 2971
been an explosive interest in the chemistry of dendrim-
ers incorporating transition metals into their structure,
as part of the dendrimeric skeleton14-26 and/or as
peripheral functionalization.27-42 Periphery-functional-
ized dendrimers have immense potential in areas such
as organic synthesis and homogeneous catalysis, where
well-defined and easily accessible reaction sites (or their
precursors) are essential. Furthermore, their nanoscale
macromolecular architecture should allow simple re-
moval of the catalytic species from product streams.
Recently an organonickel dendrimer containing 12
nickel atoms σ-bonded to the peripheral carbon atoms
of a carbosilane dendrimer was shown to be catalytically
F igu r e 1.
active for the Kharasch addition of polyhalogenoalkanes
to carbon-carbon double bonds.29
The development of organopalladium(IV) chemistry
is also a relatively recent phenomenon,43,44 and the
observed or suspected intermediacy of Pd(IV) complexes
in various stoichiometric and catalytic organic trans-
formations has generated numerous studies aimed at
elucidating mechanisms and reactivity trends in related
reactions. Interesting examples of selectivity in C-C
bond formation in reductive elimination from triorga-
nopalladium(IV) complexes have been documented.43-54
For complexes containing structurally simple organic
groups, [PdIVMeAr(CH2Ph)(N∼N)], exclusive Ar-Me
bond formation has been observed when the bidentate
nitrogen donor is 2,2′-bipyridine (bpy) with less selectiv-
ity observed for the more rigid 1,10-phenanthroline
(phen).52,54 This has been ascribed to the increased
rigidity of phen, hindering the necessary rearrange-
ment(s) of organic groups at the Pd(IV) center and/or
the formation of other transition states.
Recently, we have prepared carbosilane dendrimers
with terminal iodoarene functionality, derived from
polyols, and incorporating an ester group.55 These
dendrimers were functionalized with organopalladium
groups at their periphery, via the oxidative addition of
the C-I bond to Pd(0). However, as determined by
studies on a model compound, the ester function in the
molecule appeared to prevent the transmetalation of the
complex to a diorganopalladium(II) complex. The emerg-
ing importance of organopalladium(IV) complexes has
prompted us to attempt the synthesis of dendrimers
containing organo groups that are expected to be both
ideal for palladium functionalization and transmetala-
tion and suitable for incorporation as part of the
dendrimer synthesis prior to palladium functionaliza-
tion. In view of recent work showing that transmeta-
lation is possible when there is a methoxy substituent
on the aryl group of [PdI(Ar)(tmeda)],54 we report here
the synthesis of a carbosilane dendrimer with peripheral
functionality identical with those of 1a ,b (see Figure 1)
