Pd0-catalyzed methyl transfer on nucleosides and oligonucleotides, envisaged as a PET tracer

Article abstract of DOI:10.3390/molecules181113654

The methyl transfer reaction from activated monomethyltin, via a modified Stille coupling reaction, was studied under ligandless conditions on fully deprotected 5'-modified nucleosides and one dinucleotide. The reaction was optimized to proceed in a few minutes and quantitative yield, even under dilute conditions, thus affording a rapid and efficient new method for oligonucleotide labelling with carbon-11.

Full text of DOI:10.3390/molecules181113654

Molecules 2013, 18, 13654-13665; doi:10.3390/molecules181113654
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Pd0-Catalyzed Methyl Transfer on Nucleosides and
Oligonucleotides, Envisaged as a PET Tracer
Damien James 1, Jean-Marc Escudier 2, Magali Szlosek-Pinaud 1,* and Eric Fouquet 1,*
1
Institut des Sciences Moléculaires, Université de Bordeaux, UMR5255, 351 Cours de la Libération,
Talence 33405, France; E-Mail: d.james@u-bordeaux1.fr
2
Laboratoire de Synthèse et Physicochimie- de Molécules d’Intérêt Biologique,
Université Paul Sabatier, UMR5068, 118 route de Narbonne, Toulouse 31062, France;
E-Mail: escudier@chimie.ups-tlse.fr
* Authors to whom correspondence should be addressed; E-Mails: m.szlosek@ism.u-bordeaux1.fr
(M.S.-P.); e.fouquet@ism.ubordeaux1.fr (E.F.); Tel.: +33-540-002-829 (E.F.);
Fax: +33-540-006-386 (M.S.-P. & E.F.).
Received: 26 August 2013; in revised form: 14 October 2013 / Accepted: 23 October 2013 /
Published: 5 November 2013
Abstract: The methyl transfer reaction from activated monomethyltin, via a modified
Stille coupling reaction, was studied under “ligandless” conditions on fully deprotected
5'-modified nucleosides and one dinucleotide. The reaction was optimized to proceed in a
few minutes and quantitative yield, even under dilute conditions, thus affording a rapid and
efficient new method for oligonucleotide labelling with carbon-11.
Keywords: Stille coupling; nucleosides; oligonucleotides; methyl transfer; Positron
Emission Tomography
1. Introduction
Coupling reactions mediated by transition metal catalysis are particularly powerful methods for the
creation of carbon-carbon bonds. These reactions are especially recognized for combination of the
mildness of the reaction conditions and their high efficiency and selectivity. Among them, palladium is
undoubtedly the metal of choice and has been extensively used in the past decades in applications
ranging from organic methodology development to total synthesis of complex structures. In recent
years the field of applications has extended to the functionalization of biomolecules, mainly due to the

Molecules 2013, 18
13655
ability of these coupling reactions to procede without any protection/deprotection sequences. In that
context Positron Emission Tomography (PET) represents a field of choice for the application of the
original palladium-catalysed coupling reactions. Indeed, PET is a powerful imaging technique for
clinical, medical and biological investigations in various areas such as oncology, cardiology, and
neurosciences, as well as for drug development. Due to the increasing need of this technique in in vivo
biochemistry and medicine, the development of new tracers and radiolabelling strategies is always in
demand [1–3], as outlined in recent reviews for the two most commonly used short half-life
radioisotopes, e.g., carbon-11 (t1/2 = 20.4 min) [4] and fluorine-18 (t1/2 = 109.6 min) [5,6]. As a
consequence, simple and rapid synthetic processes including organic transformations and purifications
are required. Importantly, such a strategy becomes even more challenging when the biomolecule used
as substrate is available in very low quantity, as the coupling reaction has to meet four mandatory
constraints: (i) the selectivity of the reaction which is imposed by the presence of several
functionalities and the absence of protecting groups, (ii) the mildness of the conditions required by the
fragility of most of the substrates, (iii) the rapidity of the reaction which is directly related to the short
half-live of the isotopes, especially for carbon-11, and finally (iv) the efficiency of the reaction which
may have to occur under extremely dilute conditions either of the radiotracer and/or the biomolecule to
be labeled.
In recent years, an increase of the use of palladium-mediated reactions for labeling purposes was
observed [7]. Among these reactions, the palladium-mediated Stille reaction has proved to be an
important route for the synthesis of PET radiotracers [8–10]. At this point, it is essential to note that
most of the restrictions encountered in pharmaceutical industry, when using organotins for the
synthesis of bioactive molecules, are not a problem anymore when applied to radiochemistry. Thus the
palladium-catalysed Stille coupling still remains a topical reaction for the synthesis of radiotracers. It
usually involves the reaction of [11C]-methyliodide with an aryl triorganostannane leading to a
11C-carbon-carbon coupled product. However, the preparation of an organostannyl precursor is not
always straightforward, and in the case of functionalized organostannanes, nucleophilic groups have to
be protected in order to prevent methylation as a side reaction [11]. Finally, difficulties might be
encountered in separating the tracer from triorganotin residues.
11
Recently, we have described a new C-labeling methodology based on the transfer reaction of the
[11C]methyl group, from the 11C-labeled hypervalent methylstannate, first onto simple aryl halides [12]
and then onto polyfunctional and heteroaromatic tracers for central nervous system [13]. Although the
preparation of the labeled methyltin reagent is made from [11C]-methyl iodide, this new approach
offers several advantages such as the ligand-free conditions and the formation of a nontoxic and easily
removable inorganic tin by-product [14]. Our next interest was to investigate the applicability of this
methodology for the labelling of important biomolecules such as nucleosides and oligonucleotides [15]
which present an additional challenge in terms of available quantities (which are often tiny due to the
costly and time consuming process for their synthesis), limiting until now the usefulness and
expansion of such radiotracer. As a first approach, the study of the feasibility of the cross-coupling
reaction under rapid and dilute conditions, on unprotected nucleosidic and dinucleotidic substrates bearing
an iodoaryl moiety at the 5' position, with unlabelled methyl iodide is described herein (Scheme 1).

Molecules 2013, 18
13656
Scheme 1. Methyl transfer reaction.
”Modified” Stille coupling
T
T
Sn[N(TMS)2]2
O
O
I
Ar
Me Ar
CH3I,TBAF
[Pd]
OH
T = Thymine
OH
2. Results and Discussion
Starting from thymidine aldehyde, we have synthesized 5'C-substituted thymidine derivatives either
with alkyne or azide groups and then engaged them into a conjugation reaction with iodoaryl moieties
by “click chemistry’’ leading to compounds 1a–c (Figure 1) [16]. They were then used as substrates
for the methyl transfer study. The monomethyltin reagent was prepared from iodomethane and
Lappert’s stannylene [17,18] (Sn[N(TMS)2]2) and activated in situ with TBAF (tetrabutylammonium
fluoride) giving the corresponding methylstannate, according to the previously described procedure [12].
Figure 1. Substrates for the methyl transfer study.
OH
OH
OH
N
N
T
T
T
O
N
O
O
O
OH
OH
1a
I
I
N
N
N
1b
N
N
O
N
O
1c
OH
I
Previous results led us run the reaction at 100 °C, using tris-(dibenzylideneacetone)dipalladium as
catalyst (Pd2dba3, 10 mol%) under so-called “ligand free” conditions. Furthermore, due to the
solubility properties of the substrates, the palladium-catalysed cross-coupling reaction was studied first
in DMF instead of dioxane. In order to minimize reaction times and optimize the reaction yields, the
concentration of the substrate was varied and the addition of CuI was studied (Table 1). Initially, the
reaction was done using 1a (0.2 M) as substrate without CuI (entry 1). In this case, a total conversion
was observed in 5 min leading to the desired product 2a, along with some degradation estimated to be
about 20% and the formation of the corresponding hydrogenated by-product 3a, resulting of the
dehalogenation reaction of 1a, in a 72/28 ratio in favour of 2a. Interestingly, the addition of 20 mol%
of CuI inhibited the degradation, but diminished the rate of the reaction, so that a total conversion was
only attained in 50 min, and the formation of 3a was still observed in a 63/37 ratio in favour of 2a
(entry 2). Under the same conditions, the increase of the concentration of 1a (0.5 M) allowed us to get
total conversion in 20 min and dramatically diminished the formation of 3a (entry 3). Finally the use of
40 mol% of CuI impressively decreased the reaction time to only 5 min, with a good 2a/3a ratio

Molecules 2013, 18
13657
(92/8, entry 4). Those optimized conditions were then applied to 1b, allowing also a total conversion in 5
min, but still with some amount of the corresponding hydrogenated product 3b (entry 5).
Table 1. Methyl transfer reactions onto 1a‒c.
OH
T
O
R2
OH
Sn[N(TMS)2]2
CH3I,TBAF
T
O
OH
R1
2a, 2b, 2c (Me)
Pd2dba3 (10 mol%)
DMF, 100°C
OH
1a, 1b, 1c
OH
T
O
R3
OH
3a, 3b, 3c (H)
Entry
Compd.[mol.L−1]
1a (0.2)
CuI [mol%]
Time [a] [min]
2/3 [b]
1
2
3
4
5
6
7
0
20
20
40
40
40
140
5
50
20
5
2a/3a: 72/28 [c]
2a/3a: 63/37
2a/3a: 97/3
2a/3a: 92/8
2b/3b: 80/20
2c/3c: 100/0
2c/3c: 100/0
1a (0.2)
1a (0.5)
1a (0.5)
1b (0.5)
5
1c (0.5)
50
1c (0.5)
5
[a] For total conversion. [b] Estimated by HPLC. [c] With degradation estimated to 20%.
Finally, when the optimized conditions of 1a were applied to 1c, a total conversion was observed
after 50 min, but in this case, the sole methylated compound 2c was formed (entry 6). In order to
explain the increase of the reaction time, we could envisage that the copper is coordinated by the
oxygen atoms of the ethylene glycol arm keeping it unavailable for the catalytic cycle of the Stille
coupling. Indeed, the use of 140 mol% of CuI allowed us to recover a total conversion in 5 min again with
the sole formation of the desired compound 2c (entry 7). Interestingly, the use of only 5 mol% of Pd2dba3
with 20 mol% of CuI led to total conversion in 5 min with a better 2b/3b ratio of 93/7 under classical
heating conditions (to be compared to entry 5), and in 2 min with a 2b/3b ratio of 96/4 under
microwave activation.
Thus, having in hand conditions allowing a few minutes reaction time, compatible with the half-life
of carbon-11 and unprotected nucleosides, we wanted to extend this methodology to oligonucleotides
(ODNs). The first difficulty was related to the concentration of the substrate and the palladium charge.
Indeed, ODNs are produced in such small quantities that running a methyl transfer reaction using an
ODN concentration of 0.5 M and 10 mol% of Pd2dba3 was not possible. The second point was the low
solubility of ODNs in DMF. Finally, the third question concerned the compatibility of our conditions
with the phosphodiester linkage of ODNs. In order to address those three questions, we studied first
the methyl tranfer on 1b at 5 × 10−3 M, with 100 mol% of Pd2dba3, at 100 °C in various solvents under
classical or microwave heating conditions (Table 2). The direct transposition of the previous
conditions using a Pd/Cu ratio of 1/2 (entry 1) led to a strong decrease of the reaction rate, as the total
conversion was only observed after 60 min with a similar ratio 2b/3b. Furthermore, the increase of the
amount of CuI totally inhibited the reaction (entry 2). On the contrary, the absence of CuI allowed to
recover a total conversion in 5min with a better 2b/3b ratio of 90/10 (entry 3). Under the same

Molecules 2013, 18
13658
conditions, the use of microwave irradiation instead of classical heating did not result in any
improvements (entry 4).
Table 2. Methyl transfer onto 1b under dilute conditions (5 × 10−3 M).
Entry
Solvent
DMF
CuI [mol%]
MW
no
Time [min] [a]
2/3 [b]
81/19 [c]
-
1
2
3
4
400
2000
0
60
-
DMF
no
DMF
no
5
90/10
89/11
DMF
0
yes
5
DMF/DMSO
9/1
5
6
0
0
0
0
0
0
no
yes
yes
no
5
5
66/34 [c]
DMF/DMSO
9/1
96/4
DMF/DMSO
3/1
7
5
91/9
DMF/H2O
9.5/0.5
8
40
5
54/46 [c]
85/15
60/40
DMF/H2O
9.5/0.5
9
yes
yes
DMF/H2O
10
5
9/1
[a] For total conversion. [b] Estimated by HPLC. [c] With impurities estimated to less than 10%.
However, addition of 10% DMSO in DMF, under classical heating led to an increased formation of
the hydrogenated product 3b (34%) together with apparition of side products (entry 5), while
microwave heating, under the same conditions (entry 6), allowed us to get a clean reaction with a 96/4
2b/3b ratio. The increase of the proportion of DMSO under microwaves (entry 7), led to an almost
similar 2b/3b ratio. The use of H2O instead of DMSO, even in a very small quantity, under classical
heating, seriously disturbed the rate of the reaction and the formation of the methylated compound
(entry 8). The use of microwaves in the same conditions allowed us to recover a total conversion in 5 min
with quite a good 2b/3b ratio (entry 9). Finally, even a slight increase of the proportion of H2O was not
appropriate at all (entry 10). After the achievement of the procedure optimization on the monomeric

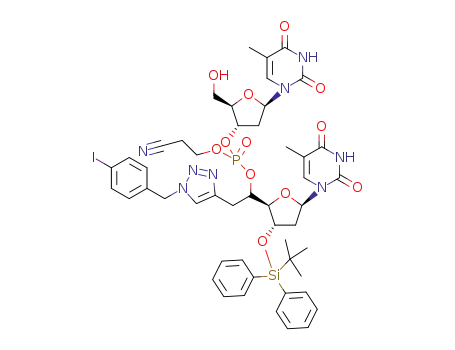

substrates, the last step was to test our best conditions on the dinucleotide 4 synthesized as a 70/30 mixture
of diastereomers according to the standard phosphoramidite method from the 5'C-substituted nucleoside
from 1b [19,20].
Thus, 4 was used at a 5 × 10−3 M concentration in a mixture of DMF/DMSO (9/1), with 100 mol%
of Pd2dba3 (Scheme 2). The reaction was run at 100 °C, under microwave heating, leading to a total
conversion into the single desired methylated compound 5 in 5 min. Noteworthily, the increase of the
DMSO/DMF ratio up to 1/1 only slightly perturbed the reaction, as the total conversion was still
obtained in 5 min, but we could observe the formation of the corresponding hydrogenated compound
in a 87/13 ratio in favour of 5.

Molecules 2013, 18
13659
Scheme 2. Methyl transfer study onto dinucleotide 4.
T
HO
O
O
Et3NH+
-O
P
O
I
O
N
N
T
N
O
4
OH
(5.10-3M)
Pd2dba3 (100 mol%)
Sn[N(TMS)2]2
CH3I,TBAF
DMF/DMSO (9/1), 100°C
MW, 5min
T
HO
O
O
Et3NH+
-O
P
O
Me
O
N
N
T
O
N
OH
5
3. Experimental
3.1. General
All water-sensitive reactions were carried out under a nitrogen atmosphere with dry solvents under
anhydrous conditions. Yields refer to chromatographically and spectroscopically (1H NMR)
homogeneous materials. Macherey Nagel silica gel 60M (230–400 mesh ASTM) was used for flash
chromatography. CH2Cl2 and (i-Pr)2NH were distilled over CaH2. THF and Et2O were distilled from
sodium and benzophenone. Ethanol and methanol were dried over magnesium turnings activated by
iodine. Micro-wave assisted reaction were carried out on a Biotage Initiator. HPLC was performed on
a Waters 600 system equipped with a Waters 996 photodiode array detector. Analytical and
semi-preparative HPLC were performed with a reversed-phase column (Phenomenex Luna C18, 5 µm,
250 × 4.6 mm and Kromasil C18, 5 µm, 250 × 20 mm) using the following solvent systems at
1 mL/min and 4 mL/min: Acetonitrile (solvent A) and H2O MilliQ (solvent C) for reactions on
modified thymidines, Acetonitrile (solvent A) and TEAAaq (triethylammonium acetate) 50 mM at
1
13
pH = 7 (solvent B) for reactions on modified dinucleotide. H-NMR and C-NMR were recorded on
Bruker DPX-200 FT (1H: 200 MHz, 13C: 50.2 MHz), Bruker AC-250 FT (1H: 250 MHz, 13C: 62.9 MHz),
13
Bruker AVANCE-300 FT (1H: 300 MHz, C: 75.5 MHz) and Bruker DPX-400 FT (1H: 400 MHz,
13C: 100.2 MHz) apparatus using indicated internal reference. The chemical shifts (δ) and coupling
constants (J) are expressed in ppm and Hz respectively. Mass spectra were recorded on a Nermag
R10-10C. High resolution mass spectra were performed by the CESAMO (Talence, France) and were
recorded on a FT-IRC mass spectrometer Bruker 4.7T BioApex II. MALDI-MS spectra were
performed by the CESAMO (Talence, France) on a Voyager mass spectrometer (Applied Biosystems).

Molecules 2013, 18
13660
3.2. Preparation of 4
Dinucleotide 4 was prepared in four steps from the 3'-O-TBDPS derivative of 1b, as follows:
3.2.1. Coupling (4DCT)
The 3'-O-TBDPS derivative of 1b (1.24 g, 1.6 mmol), the commercially available 3'-O-(2-
cyanoethyl diisopropylphosphoramidite)-5'-O-DMTr-thymidine (4 g, 5.33 mmol, 3.3 eq.) and a
solution of tetrazole (0.45 M in CH3CN, 47 mL, 210 mmol, 13 eq.) were stirred 30 min at room
temperature. Then collidine (2.75 mL, 20.8 mmol, 13 equiv.) and an excess of a solution of I2
[0.1 M in THF/H2O (2:1)] were added. Then a solution of Na2S2O3 was added until the reaction
mixture remained colorless. The mixture was diluted with 200 mL of ethyl acetate, washed with H2O
(2 × 100 mL) and brine (100 mL). The organic layer was dried over MgSO4 and evaporated to dryness
under vacuum. The crude product was purified by flash chromatography by flash purification (ethyl
acetate/CH2Cl2 : 1/1  8/2  1/0) affording the all protected dinucleotide 4DCT (1.78 g, 78% yield) as a
white foam. 1H-NMR (400 MHz, CDCl3), δppm: 1.03 (s, 9H, CH3 tBu), 1.35–1.39 (m, 3H, CH3 thymine),
1.82–1.93 (m, 4H, H2' and CH3 thymine), 2.31–2.42 (m, 5H, H2', H2″ and CH2CN), 2.51–2.54
(m, 1H, CH2CN CEO), 2.72–2.98 (m, 2H, H6'), 3.28–3.49 (m, 2H, CH2-O), 3.76–3.89 (m, 7H, H5″ and
CH3 DMTr), 3.93–4.06 (m, 3H, H5″, H4' and H4″), 4.21–4.32 (m, 1H, H3″), 4.40 (s, 1H, H5'), 5.01–5.04
(m, 1H, H3'), 5.41 (s, 2H, H9'), 6.23–6.30 (m, 1H, H1″), 6.45–6.55 (m, 1H, H1'), 6.83 (d, 4H, J = 5.9 Hz,
CH DMTr), 6.98 and 7.03 (2d, 2H, J = 10.0 Hz, H11' and H15'), 7.21–7.36 (m, 16H, H8', CH phenyl
and CH DMTr), 7.53–7.69 (m, 8H, H12', H14', CH thymine and CH phenyl), 8.81 (s, 2H, NH thymine).
13C-NMR (100.2 MHz, CDCl3), δppm: 11.8 and 12.8 (CH3 thymine), 19.3 (C tBu), 19.53 and 19.81
(CH2CN), 27.1 (CH3 tBu), 29.0 (C6'), 38.9 and 39.0 (C2″), 40.1 and 40.1 (C2'), 53.6 and 53.7 (C9'), 55.5
(CH3 DMTr), 62.4 and 62.7 (C5″), 63.4 and 63.6 (CH2O), 74.6 (C5'), 79.2 and 80.1 (C3' and C3″), 84.2 and
85.2 (C1', C1″ and C4″), 87.5 (C4'), 94.7 and 94.8 (C13'), 111.6 and 112.2 (C thymine), 113.6 (CH
DMTr), 116.4 and 116.9 (CN), 122.3 and 123.0 (CH DMTr), 127.5 (CH phenyl), 128.3 and 128.4 (CH
DMTr), 129.4 (C8'), 130.1 and 130.2 (C11' and C15'), 130.4 (CH phenyl), 132.7 and 133.1 (C phenyl and
C10'), 134.6 and 135.5 (C DMTr), 135.9 (CH thymine and CH phenyl), 138.4 and 138.5 (C12' and C14'),
142.6 (C DMTr), 144.2 (C7'), 150.8 and 151.1 (C DMTr and C=O thymine), 159.1 (C-OMe DMTr),
164.1 (C=O thymine). 31P-NMR (121.6 MHz, CDCl3), δppm: −3.63 and −3.06. MALDI-TOF, m/z:
1459.3 ([M+Na+]+), 1475.2 ([M+K+]+).
3.2.2. Cleavage of DMTr Group (4CT)
To a solution of 4DCT (450 mg, 0.31 mmol.) in CH2Cl2 (3 mL) was added TFA (90 µL, 1.2 mmol,
3.9 equiv.). The clearly red solution was stirred 30 min at room temperature. The solvent was
evaporated under vacuum and the crude product was purified by flash chromatography (ethyl
1
acetate/methanol: 100/0  95/5) affording 4CT (350 mg, 98% yield) as a white foam. H-NMR
(400 MHz, CDCl3), δppm: 1.03 (s, 9H, CH3 tBu), 1.24 (m, 1H, H6'), 1.83 (s, 3H, CH3 thymine), 2.27–2.75
(m, 7H, H6', H2', H2″ and CH2CN), 3.74–4.01 (m, 7H, H5', H5″,H4', OH and CH2O), 4.40 (s, 2H, H4″ and
H3″), 4.97 (m, 1H, H3'), 5.42 (s, 2H, H9'), 6.01–6.39 (m, 2H, H1' and H1″), 7.01 (2d, 2H, J = 8.0 Hz, H11'
and H15'), 7.35–7.42 (m, 9H, H8' and CH phenyl), 7.58–7.62 (m, 4H, CH phenyl and CH thymine), 7.68

Molecules 2013, 18
13661
13
(2d, 2H, J = 8.0 Hz, H12' and H14'), 9.73 (s, 2H, NH thymine). C-NMR (100.2 MHz, CDCl3), δppm
:
12.4 (CH3 thymine), 19.00 (CH2CN and C tBu), 26.9 (CH3 tBu), 29.8 (C6'), 38.3 (C2' and C2″), 53.4
(C9'), 60.5 (C5' and C5″), 62.7 (CH2O), 74.5 (C4″), 79.4 and 79.6 (C3'), 85.7 (C1' and C1″), 87.7 (C4'),
94.8 (C13'), 111.8 (CN), 115.1 and 117.9 (C thymine), 123.3 (C8'), 128.3 (CH phenyl), 130.1 and 130.3
(C11' and C15'), 132.8–133.1 (C phenyl), 134.6–134.7 (C10'), 135.9 (CH thymine), 138.4 (C12' and C14'),
142.6 (C7'), 151.0 (C=O thymine), 164.5–164.7 (C=O thymine). 31P-NMR (121.6 MHz, CDCl3),
δ
ppm: −3.26. MALDI-TOF, m/z: 1157.4 ([M+Na+]+).
3.2.3. Cleavage of Cyanoethyl Group (4T)
To a solution of 4CT (190 mg, 0.17 mmol) in CH3CN (3.4 mL) was added Et3N (350 µL, 2.49 mmol,
15 equiv.). The reaction mixture was stirred 1h at 60 °C. The solvents were evaporated under vacuum
1
affording 4T under the triethylammonium salt form (170 mg, 86% yield) as a white foam. H-NMR
(400 MHz, MeOD), δppm: 1.01 (CH3 tBu), 1.28 (t, 9H, J = 8.0 Hz, CH3 Et3NH+), 1.88 and 1.89 (2s, 6H,
CH3 thymidine), 2.07–2.23 (m, 4H, H2' and H2″), 3.05 (t, 1H, J = 8.0 Hz, H6'), 3.17 (q, 7H, J = 8.0 Hz ,
H6' and CH2 Et3NH+), 3.70 (s, 2H, H5'), 3.85 (s, 2H, H4' and H4″), 4.01–4.09 (m, 1H, H5'), 4.61 (s, 1H, H3'),
4.77 (s, 1H, H3″), 5.51 (s, 2H, H9'), 6.11 (t, 1H, J = 4.0 Hz, H1″), 6.58 (t, 1H, J = 8.0 Hz, H1'), 7.08 (2d,
2H, J = 12.0 Hz, H11' and H15'), 7.24–7.42 (m, 8H, CH phenyl), 7.56 (d, 2H, J = 8.0 Hz, CH phenyl),
7.64 (d, 2H, J = 8 Hz, H12' and H14'), 7.77 (2s, 2H, H8' and CH thymine), 7.89 (s, 1H, CH thymine).
+
13C-NMR (100.2 MHz, MeOD), δppm: 9.35 (CH3 HNEt3 ), 12.7 and 12.9 (CH3 thymine), 27.6 (CH3 tBu),
29.7 (C6'), 40.1 (C2') 41.1 (C2″), 46.9 (CH2 Et3NH+), 54.4 (C9'), 62.6 (C5″), 76.5 (C3″), 76.6 (C5'), 77.3
(C3'), 86.0 (C1' and C1″), 86.8 (C4'), 87.5 (C4″), 95.1 (C13'), 111.6 and 112.3 (C thymine), 124.9 (C8'),
129.2 (C11', C15' and CH phenyl), 131.3 (C10' and C phenyl), 136.8 (CH phenyl), 137.1 (CH phenyl),
138.3 (CH thymine), 139.4 (C12' and C14'), 144.7 (C7'), 152.3 and 152.7 (C=O thymine), 166.4 (C=O
thymine). 31P-NMR (121.6 MHz, MeOD) δppm: −2.14. MALDI-TOF, m/z: 1078.8 ([M–Et3NH+]−).
3.2.4. Cleavage of TBDPS p: Preparation of Compound 4
To a solution of 4T (170 mg, 0.14 mmol, 1 eq.) in CH3CN (2 mL, HPLC grade) was added a
solution of TBAF [(1 M in THF), 170 µL, 0.17 mmol, 1.2 equiv.]. The reaction mixture was stirred
overnight at room temperature. The solvent was evaporated under vacuum and the crude product was
purified by precipitation in Et2O affording 4, under the triethylammonium salt form, (105 mg, 77%
1
yield) as white foam. H-NMR (300 MHz, MeOD), δppm: 1.30 (t, 9H, J = 7.1 Hz, CH3 Et3NH+),
1.59–1.72 (m, 2H, H6'), 1.86 (s, 3H, CH3 thymine), 1.93 (s, 3H, CH3 thymine), 2.20–2.51 (m, 4H, H2'
and H2″), 3.15–3.27 (m, 7H, H5' and CH2 Et3NH+), 3.79–3.83 (m, 3H, H4' and H5″), 4.11–4.16 (m, 1H, 4″),
4.57–4.72 (m, 2H, H3' and H3″), 5.54 (s, 2H, H9'), 6.19–6.43 (m, 2H, H1' and H1″), 7.07 (d, 2H, J = 8.3 Hz,
H11' and H15'), 7.67 (d, 2H, J = 7.9 Hz, H12' and H14'), 7.85 (d, 1H, J = 5.6 Hz, CH thymine), 7.93–7.96
13
(m, 2H, H8’ and CH thymine). C-NMR (75.5 MHz, MeOD), δppm: 9.2 (CH3 Et3NH+), 12.6 and 12.9
(CH3 thymine), 24.7 (C6'), 40.0 and 40.6 (C2' and C2'), 47.6 (CH2 Et3NH+), 54.1 (C9'), 59.4 (C5'), 62.8
(C5″), 72.1 and 77.1 (C3' and C3″), 85.5 and 86.0 (C1' and C1″), 87.6 and 88.0 (C4' and C4″), 94.8 (C13'),
111.5 and 112.1 (C thymine), 125.7 (C8'), 131.1 (C11' and C15'), 136.7 and 138 (C7', C10' and CH
thymine), 139.1 (C12' and C14'), 152.17 and 152.3 (C=O thymine), 166.2 (C=O thymine).
31P-NMR (81.2 MHz, MeOD), δppm: −0.63. MALDI-TOF, m/z: 843.9 ([M+2H+–Et3NH+]+),

Molecules 2013, 18
13662
865.9 ([M+H+ + Na+–Et3NH+]+). HPLC: rt = 17.15 and 17.81 min (A/B: from 20/80 to 30/70 in 15 min
then to 50/50 in 2 min then to 50/50 during 2 min then to 20/80 in 1 min).
3.3. General Procedure for Methylation (0.2 and 0.5 M)
According to the previously described procedure [12] the monomethylstannane was prepared from
Lappert’s stannylene and iodomethane. To a solution of monomethylstannane (2 equiv.) in THF (0.5 M),
was added a commercial solution of TBAF 1M in THF (6 equiv.). The colourless resulting solution
was stirred for 5 min and the solvent was removed under reduced pressure. The residue was dissolved in
DMF (0.2 or 0.5 M). Pd2dba3 (10 mol%), CuI (0–140 mol%) and the electrophile (1a, 1b or 1c, 1 equiv.)
were added. The reaction mixture was stirred at 100 °C until total consumption of the starting material
followed by HPLC (Phenomenex Luna C18, 5 mm, 250 × 4.6 mm). After cooling, the reaction mixture
was diluted with methanol and the precipitate was filtrated. Solvents were evaporated under vacuum
and the crude product was purified by semi-preparative HPLC (Kromasil C18, 5 mm, 250 × 20 mm).
(5'S)-C-(1-(Pent-3-enyl)-(4-(4-methylphenoxy)-methyl)-1H-1,2,3-triazol-1-yl)-thymidine (2a). HRMS
(ESI), m/z calculated for C25H31N5O6Na ([M+Na+]+) 520.2166, found 520.2174. HPLC: rt = 9.94
(A/C: from 30/70 to 70/30 in 15 min then to 90/10 in 1 min then to 40/60 in 1 min).
5'-C-(1-(4-Methyl-benzyl)-4-methyl-1H-1,2,3-triazol-4-yl)-thymidine (2b). 1H-NMR (300 MHz,
MeOD), δppm: 1.85 (s, 3H, CH3 thymine), 2.19–2.22 (m, 2H, H2'), 2.29 (s, 3H, CH3), 2.81–3.04 (m, 2H,
H6'), 3.76–3.81 (m, 1H, H4'), 4.00–4.10 (m, 1H, H5'), 4.40–4.56 (m, 1H, H3'), 5.48 (s, 2H, H9'), 6.22–6.32
(m, 1H, H1'), 7.13–7.21 (m, 4H, H11', H12', H14' and H15'), 7.67 (s, 0.3H, CH thymine), 7.75–7.76 (m,
13
1H, H8'), 7.96 (s, 0.7H, CH thymine). C-NMR (75.5 MHz, MeOD), δppm: 12.5 (CH3 thymine), 21.2
(CH3), 31.5 (C6'), 41.0 (C2'), 54.7 (C9'), 71.5 (C5'), 73.2 (C3'), 86.2 (C1'), 89.6 and 90.5 (C4'), 111.6 (C
thymine), 124.4 (C8'), 129.1 (C11' and C15'), 130.6 (C12' and C14'), 133.8 (C13'), 138.5 (CH thymine), 139.5
(C10'), 146.0 (C7'), 152.4 (C=O thymine), 166.4 (C=O thymine). HRMS (ESI) m/z calculated for
C21H26N5O5 428.1928, found 428.1934. HPLC: rt = 5.75 min (A/C: from 30/70 to 70/30 in 15 min then
to 90/10 in 1 min then to 40/60 in 1 min).
5'-C-(1-(2-(2-(4-Methylphenoxy)ethoxy)ethyl)-4-methyl-1H-1,2,3-triazol-4-yl)-thymidine (2c). MS:
502.23 ([M+H+]+), 524.22 ([M+Na+]+). HPLC: rt = 8.09 min (A/C: from 40/60 to 70/30 in 10 min then to
90/10 in 3 min then to 40/60 in 1 min).
(5'S)-C-(1-(Pent-3-enyl)-(4-phenoxy)-methyl)-1H-1,2,3-triazol-1-yl)-thymidine (3a). MS (ESI): 483.24
([M+H+]+), 506.20 ([M+Na+]+). HPLC: rt = 7.04 min (A/C: from 30/70 to 70/30 in 15 min then to 90/10
in 1 min then to 40/60 in 1 min).
1
5'-C-(1-Benzyl-4-methyl-1H-1,2,3-triazol-4-yl)-thymidine (3b). H-NMR (300 MHz, DMSO d6), δppm
:
1.77 (s, 3H, CH3 thymine), 2.05–2.10 (m, 2H, H2'), 2.68–2.92 (m, 2H, H6'), 3.36 (s, 2H, OH), 3.66–3.69 (m,
1H, H4'), 3.82–3.95 (m, 1H, H5'), 4.28 (major 0.7) and 4.41 (minor 0.3) (2s, 1H, H3'), 5.19–5.30 (m, 2H,
OH), 5.55 (s, 2H, H9'), 6.19–6.22 (m, 1H, H1'), 7.29–7.38 (m, 5H, H phenyl), 7.64 (s, 1H, H8'), 7.93
13
(s, 1H, CH thymine), 11.28 (s, 1H, NH thymine). C-NMR (75.5 MHz, DMSO d6), δppm: 12.4 (CH3
thymine), 30.3 (C6'), 40.6 (C2'), 52.6 (C9'), 69.7 (C5'), 71.3 (C3') 83.7 (C1'), 87.9 (C4'), 89.0 (C4'), 109.3

Molecules 2013, 18
13663
(C thymine), 123.1 (C8'), 127.8 and 128.7 (CH phenyl), 136.3 (C phenyl and C thymine), 144.2 (C7'),
150.4 (C=O thymine), 163.7 (C=O thymine). HRMS (ESI) m/z calculated for C20H24N5O5 ([M+H+]+)
414.1771, found 414.1777. HPLC: rt = 4.01 min (A/C: from 30/70 to 70/30 in 15 min then to 90/10 in
1 min then to 40/60 in 1 min).
3.4. Methylation under Dilute Conditions (5 × 10−3 M)
According to the previously described procedure [12] the monomethylstannane was prepared from
Lappert’s stannylene and iodomethane. To a solution of monomethylstannane (18.0 mg, 0.032 mmol,
2 equiv.) in THF (300 µL) was added a commercial 1 M solution of TBAF in THF (96 µL, 6 equiv.).
The colourless solution was stirred for 5 min and the solvent was removed under reduced pressure. The
residue was solubilized in 3.2 mL of a DMF/DMSO 9/1 mixture, then 15 mg of Pd2dba3 (100 mol%) and
15 mg of 4 (0.016 mmol, 1 equiv.) were added. The reaction mixture was stirred for 5 min at 100 °C
under microwave conditions. The total conversion, was confirmed by analytical HPLC (Phenomenex
Luna C18, 5 mm, 250 × 4.6mm). After cooling, the reaction mixture was diluted with methanol and
the precipitate was filtrated. Solvents were evaporated under vacuum and the crude product 5 was
purified as a mixture of diastereomers by semi-preparative HPLC (Kromasil C18, 5 mm, 250 × 20 mm).
MALDI-TOF: 732.1 ([M–Et3NH+ + 2H+]+), 754.1 ([M–Et3NH+ + H+ + Na+]+). HPLC:
rt = 12.52 and 12.98 min (A/B: from 20/80 to 30/70 in 15 min then to 50/50 in 2 min then to 50/50
during 2 min then to 20/80 in 2 min).
4. Conclusions
In summary, we have demonstrated that our palladium-catalysed methyl transfer reaction could be a
very fast and efficient way for the direct carbon-11 labeling of unprotected nucleosidic and
oligonucleotidic substrates, even under dilute conditions. Furthermore, we are currently investigating
the use of [11C]-monomethylstannate, prepared according to our previous work [12] under the new
coupling conditions herein developed for labelling 1b and 4, as well as for modified monomers 1a, 1b
and 1c incorporated into model oligonucleotide sequences [21,22].
Acknowledgments
This present work was supported by the CNRS (Centre National de la Recherche Scientifique, BDI
fellowship, and by a public grant from the French “Agence Nationale de la Recherche” within the
context of the Investments for the Future Program, referenced ANR-10-LABX-57 named TRAIL.
Conflicts of Interest
The authors declare no conflict of interest.
References
1. Phelps, M.E.; Mazziotta, J.C.; Schelbert, H.R. Positron Emission Tomography and Autoradiography;
Raven Press: New York, NY, USA, 1986; Chapter 9–11.

Molecules 2013, 18
13664
2. Långström, B.; Dannals, R.F. Principles of Nuclear Medicine; W.B. Saunders: Philadelphia, PA,
USA, 1995.
3. Fowler, J.S.; Wolf, A.P. Working against time: Rapid radiotracer synthesis and imaging the
human brain. Acc. Chem. Res. 1997, 30, 181–188.
4. Allard, M.; Fouquet, E.; James, D.; Szlosek-Pinaud, M. State of the art in 11C labelled radiotracers
synthesis. Curr. Med. Chem. 2008, 15, 235–277.
5. Cai, L.; Lu, S.; Pike, V.W. Chemistry with [F-18]fluoride ion. Eur. J. Org. Chem. 2008, 2008,
2853–2873.
6. Littich, R.; Scott, P.J.H. Novel Strategies for Fluorine-18 Radiochemistry. Angew. Chem. Int. Ed.
2012, 51, 1106–1109.
7. Pretze, M.; Große-Gehling, P.; Mamat, C. Cross-coupling Reactions as valuable tool for the
preparation of PET Radiotracers. Molecules 2011, 16, 1129–1165.
8. Langer, O.; Forngren, T.; Sandell, J.; Dollé, F.; Långström, B.; Någren, K.; Halldin, C.
Preparation of4-[C-11]methylmetaraminol, a potential PET tracer for assessment of myocardial
sympathetic innervation. J. Labelled Compd. Radiopharm. 2003, 46, 55–65.
9. Sandell, J.; Yu, M.; Edmon, P.; Garreau, L.; Chalon, S.; Någren, K.; Guilloteau, D.; Halldin, C.
Synthesis, Radiolabelling and preliminary biological evaluation of radiolabeled 5-methyl-6-
nitroquipazine, a potential radioligand fort he serotonin transporter. Bioorg. Med. Chem. Lett.
2002, 12, 3611–3613.
10. Madsen, J.; Merachtsaki, P.; Davoodpour, P.; Bergström, M.; Andersen, K.; Thomsen, C.;
Guilloteau, D.; Halldin, C. Synthesis and biological evaluation of novel carbon-11 labelled
analogues of citalopram as potential radioligands fort he serotonin transporter. Bioorg. Med. Chem.
2003, 11, 3447–3456.
11. Ferrieri, R.A.; Antoni, G.; Khilberg, T.; Långström, B. Handbook of Radiopharmaceuticals.
Radiochemistry and Applications; Welch, M.J., Redvanly, C.S., Eds.; Wiley: Chichester, UK,
2003; pp. 229–282.
12. Huiban, M.; Huet, A.; Barré, L.; Sobrio, F.; Fouquet, E.; Perrio, C. Methyl transfer reaction from
methyliodide through modified tin reagent: A versatile method for labelling with carbon-11.
Chem. Commun. 2006, 97–99.
13. Bourdier, T.; Huiban, M.; Huet, A.; Sobrio, F.; Fouquet, E.; Perrio, C.; Barré, L. Tetra- and
monoorganotin reagents in palladium-mediated cross-coupling reactions for the labeling with
carbon-11 of PET tracers. Synthesis 2008, 6, 978–984.
14. Herve, A.; Rodriguez, A.L.; Fouquet, E. Stille cross-coupling of activated alkyltin reagents under
ligandless conditions. J. Org. Chem. 2005, 70, 1953–1956.
15. Hosoya, T.; Wakao, M.; Kondo, Y.; Doi, H.; Suzuki, M. Rapid methylation of terminal acetylenes
by the Stille coupling of methyl iodide with alkynyltributylstannanes: A general protocol
potentially useful fort he synthesis of short-lived (CH3)-C-11-labeled PET tracers with a
1-propynyl group. Org. Biomol. Chem. 2004, 2, 24–27.
16. James, D.; Escudier, J.-M.; Amigues, E.; Schulz, J.; Vitry, C.; Bordenave, T.; Szlosek-Pinaud, M.;
Fouquet, E. A ‘click-chemistry’ approach to the efficient synthesis of modified nucleosides and
oligonucleotides for PET imaging. Tetrahedron Lett. 2010, 51, 1230–1232.

Molecules 2013, 18
13665
17. Harris, D.H.; Lappert, M.F. Monomeric, volatile bivalent amides of group-IVB elements,
M(NR12)2 and M(NR12)2 (M=Ge, Sn or Pb-R1=Me3Si, R2=Me3C). J. Chem. Soc. Chem. Commun.
1974, 895–896.
18. Schaeffer, C.D.; Zuckerman, J.J. Tin(II)organosilylamines. J. Am. Chem. Soc. 1974, 96, 7160–7162.
19. Banuls,V.; Escudier, J.-M.; Zedde, C.; Claparols, C.; Donnadieu, B.; Plaisancié, H.
Stereoselective synthesis of (5'S)-5'C-(5-bromo-2-penten-1-yl)-2'-deoxyribofuranosyl thymine,
a new convertible nucleoside. Eur. J. Org. Chem. 2001, 4693–4700.
20. Escudier, J.-M.; Dupouy, C.; Fountain, M.A.; del Mundo, I.M.A.; Jacklin, E.M.; Morrow, J.R.
Synthesis and luminescence properties of a trinucleotide-europium(III) complex conjugate.
Org. Biomol. Chem. 2009, 7, 3251–3257.
21. Omuni, A.; Beach, D.G.; Baker, M.; Gabryelski, W.; Manderville, R.A. Postsynthetic guanine
arylation of DNA by Suzuki-Miyaura cross-coupling. J. Am. Chem. Soc. 2011, 133, 42–50.
22. Wicke L.; Engels, J.W. Postsynthetic on column RNA labelling via Stille coupling. Bioconjugate
Chem. 2012, 23, 627–642.
Sample Availability: Samples of materials, analytical procedures, characterization data of 2a–c, 3a–b,
4 and 5 are available from the author.
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
