Synthesis of a versatile building block combining cyclen-derivative DO3A with a polyamine via a rigid spacer

Article abstract of DOI:10.3390/molecules181113940

The five-step synthesis of a polydentate building block combining a cyclen-based macrocycle (DO3A) with N-(2-aminoethyl)propane-1,3-diamine, which are linked through the xylylen moiety as a rigid C-spacer is described. These two molecular parts were coupled by subsequent bromine atom substitution in 1,4-bis(bromomethyl)benzene. First, N-(2-aminoethyl)propane-1,3-diamine was protected by phthaloyl moieties and then it was reacted with 1,4-bis(bromomethyl)benzene to form (2-phthalimidoethyl)(3-phthalimidoprop- 1-yl)(4-bromomethylbenzyl)amine (2). This compound underwent a substitution reaction with DO3A in the form of its tert-butyl esters leading to the intermediate 1-{4-[(2- phthalimidoethyl)(3-phthalimidoprop-1-yl)aminomethyl] phenylmethyl}-4,7,10-tris(t-butoxycarbonylmethyl)- 1,4,7,10- tetraazacyclododecane (3). The phthaloyl as well as the t-butyl protecting groups were removed in the next two reaction steps to form the final product 1-{4-[(2-aminoethyl)(3-aminoprop-1-yl)aminomethyl]phenylmethyl}-4,7, 10-tris(carboxymethyl)- 1,4,7,10-tetraazacyclododecane (5). The intermediates 1-4 as well as the final product 5 were characterized by elemental analysis, mass spectrometry, and multinuclear (1H and 13C) and two-dimensional NMR spectroscopy. The final product 5 could serve as a potential building block in subsequent syntheses of binuclear complexes of lanthanides and/or transition metals.

Full text of DOI:10.3390/molecules181113940

Molecules 2013, 18, 13940-13956; doi:10.3390/molecules181113940
OPEN ACCESS
molecules
ISSN 1420-3049
www.mdpi.com/journal/molecules
Article
Synthesis of a Versatile Building Block Combining
Cyclen-derivative DO3A with a Polyamine via a Rigid Spacer
Bohuslav Drahoš and Zdeněk Trávníček *
Department of Inorganic Chemistry & Regional Centre of Advanced Technologies and Materials,
Faculty of Science, Palacký University, 17. listopadu 12, Olomouc CZ-77146, Czech Republic;
E-Mail: bohuslav.drahos@upol.cz
* Author to whom correspondence should be addressed; E-Mail: zdenek.travnicek@upol.cz;
Tel.: +420-585-634-352; Fax: +420-585-634-954.
Received: 8 October 2013; in revised form: 5 November 2013 / Accepted: 6 November 2013 /
Published: 12 November 2013
Abstract: The five-step synthesis of a polydentate building block combining a cyclen-based
macrocycle (DO3A) with N-(2-aminoethyl)propane-1,3-diamine, which are linked through
the xylylen moiety as a rigid C-spacer is described. These two molecular parts were
coupled by subsequent bromine atom substitution in 1,4-bis(bromomethyl)benzene. First,
N-(2-aminoethyl)propane-1,3-diamine was protected by phthaloyl moieties and then it was
reacted with 1,4-bis(bromomethyl)benzene to form (2-phthalimidoethyl)(3-phthalimido-
prop-1-yl)(4-bromomethylbenzyl)amine (2). This compound underwent a substitution
reaction with DO3A in the form of its tert-butyl esters leading to the intermediate 1-{4-[(2-
phthalimidoethyl)(3-phthalimidoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris(t-butoxy-
carbonylmethyl)-1,4,7,10-tetraazacyclododecane (3). The phthaloyl as well as the t-butyl
protecting groups were removed in the next two reaction steps to form the final product
1-{4-[(2-aminoethyl)(3-aminoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris(carboxy-
methyl)-1,4,7,10-tetraazacyclododecane (5). The intermediates 1–4 as well as the final
product 5 were characterized by elemental analysis, mass spectrometry, and multinuclear
(1H and 13C) and two-dimensional NMR spectroscopy. The final product 5 could serve as a
potential building block in subsequent syntheses of binuclear complexes of lanthanides
and/or transition metals.
Keywords: synthesis; DO3A macrocycle; building block; NMR spectroscopy; mass
spectrometry

Molecules 2013, 18
13941
1. Introduction
Polyazamacrocycles have become a large and variable group of important organic substances
because they represent irreplaceable ligands in complexes with transition metals, lanthanides, actinides
or they are chemical and structural bases of different anion receptors. One group of the most common
examples involves tetraazamacrocycles, namely cyclen (1,4,7,10-tetraazacyclododecane) and cyclam
(1,5,8,11-tetraazacyclotetradecane), which have found many applications as contrast agents for Magnetic
Resonance Imaging (MRI) [1], in optical imaging [2], Positron Emission Tomography (PET) [3],
Single-Photon Emission Computed Tomography (SPECT) [3] and as radiotherapeutics [4] as well.
Many structurally modified analogues have been prepared (representative examples are shown in
Figure 1), such as the well-known N-substituted derivatives with a different number of pendant arms
containing carboxylic acids (H4dota 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetraacetic acid, H3do3a
1,4,7,10-tetraazacyclododecane-1,4,7-triacetic acid, H2do2a 1,4,7,10-tetraazacyclododecane-1,4- or
-1,7-dicarboxylic acid, H4teta 1,4,8,11-tetraazacyclotetradecane-1,4,8,11-tetraacetic acid, and many others),
phosphonic acid (H8dotP 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetrakis(methylphosphonic acid) etc.) or
phosphinic acid (H4dotPH 1,4,7,10-tetraazacyclododecane-1,4,7,10-tetra-kis(methylphosphinic acid)) [1].
Gd(III) complexes with these compounds have found a unique application as contrast agents for MRI,
([Gd(dota)H2O]− is one of the most stable and inert gadolinium complexes known under the trade
name DOTAREM®), and complexes of other lanthanides are employed in luminescence imaging and
assay, or their complexes with 64/67Cu serve as PET agents.
Figure 1. Structural representations and abbreviations of selected macrocycles derived
from cyclen (left) and cyclam (right).
R1
R4
R1
R2
N
N
N
N
N
N
N
N
R3
R4
R2
R3
R1 = R2 = R3 = R4 = H
cyclam
R1 = R2 = R3 = R4 = H
cyclen
R1 = R2 = R3 = R4 = CH2CO2H H4teta
R1 = R3 = H, R2 = R4 = CH2py 1,7-(py)2cyclam
R1 = R2 = R3 = R4 = CH2CO2H
R1 = H, R2 = R3 = R4 = CH2CO2H
R1 = R3 = H, R2 = R4 = CH2CO2H
R1 = R2 = H, R3 = R4 = CH2CO2H
R1 = R2 = R3 = R4 = CH2PO(OH)2
H4dota
H3do3a
1,7-H2do2a
1,4-H2do2a
H8dotP
R1 = R2 = R3 = R4 = CH2PO(H)(OH) H4dotPH
R1 = R3 = H, R2 = R4 = CH2py
1,7-(py)2cyclen
Surprisingly, not much attention has been devoted to the characterization of the magnetic properties
of solid metal complexes with this type of macrocyclic ligands, except for a series of Fe(II) complexes
with cyclen/cyclam modified on nitrogen atoms with different alkyls or pyridine-containing pendant
arms (1,7-(py)2cyclen or 1,7-(py)2cyclam), e.g., [Fe(1,7-(py)2cyclam)](BF4)2·H2O showed spin-crossover
behavior [5]. Additional progress in cyclen/cyclam-based chemistry was achieved by connecting the
macrocycles, usually by a rigid linker, to produce receptors for different anions (e.g., phosphates
recognized by a Zn(II) complex of cyclen anchored onto a polymer, Figure 2a) [6], cations (Cu(II) or
Zn(II) receptors having cyclen attached to a chromophore—dansyl (5-(dimethyl-amino)naphthalene-1-
sulfonyl), or anthryl group, Figure 2b) or neutral molecules (riboflavin, creatinine or thymine) [7].

Molecules 2013, 18
13942
Figure 2. Examples of structures combining macrocycles with each other or with other
molecules of interest. (a) Zn(II)-cyclen part connected to a polymer (represented as a
sphere). (b) Cyclen modified with anthrylmethylamino group. (c) DO3A moiety connected
by the amide bridge to G0–G5 poly(amidoamine) (PAMAM) dendrimers (represented as a
sphere). (d) Thiourea bridge between the macrocycle and G2 PAMAM dendrimer
(represented as a sphere). (e) Example of two macrocycles connected via “click chemistry”
reaction (copper catalyzed [3+2] cycloaddition between alkyne and organic azide) and the
mode of lanthanide coordination.
O
H
HOOC
N
N
N
Zn2+
N
N
N
N
HN
N
HOOC
COOH
H
H
a)
c)
O
P
H
H
NH
N
N
N
N
HOOC
HOOC
N
N
N
N
OH
S
N
H
N
H
COOH
d)
H
b)
O
O
O
O
O
N
N
O
Ln
N
N
N
N
N
N
N
N
N
N
N
Ln
O
N
O
O
e)
O
O
O
Further improvement, especially in the field of MRI contrast agents and radiotherapeutics, was
achieved by linking the macrocycles with another molecule of interest. Gd(III) complexes of
macrocycles linked to the macromolecules (dendrimers, cyclodextrins, proteins, nanotubes, etc.) showed
improved efficiency as MRI contrast agents (slowing down molecular rotation and tumbling) [1]. The
second group of molecules, which were linked to the macrocycle, could be considered as biological
targets and provided specific delivery or metabolic pathway of the molecule in living organisms [8].
The third group is comprised of molecules which showed a specific function and/or property, and
when they were combined with the macrocycle, new classes of multimodal/multifunctional compounds
were obtained (MRI and near-infrared (NIR) contrast agents, MRI and PET agents, “theranostic”
agents combining contrast agent and therapeutics into one molecule, etc.) [9].
The DO3A moiety has been widely used for the above-mentioned linking because it contains only
one site for possible substitution. Many different spacers between the macrocycle and the other
molecule of interest have been used and they are mostly based on the amide bond (Figure 2c) [10],
thiourea bridge (Figure 2d) [11] and different types of “click chemistry” bonding (e.g., particularly
copper catalyzed [3+2] cycloaddition reactions between alkynes and organic azides, Figure 2e) [12].

Molecules 2013, 18
13943
Here it should be stated that only representative examples of each group of compounds are mentioned
because their complete lists are well beyond the scope of this Introduction and they can be found in
many monographs and reviews [1,13].
The rigid xylylen (1,4-dimethylbenzene-1,4-diyl) bridge has already been employed as a linker
between the macrocyle and polyamine, but not exactly in the way described in this work. Two cyclen
or cyclam molecules were linked by the xylylen bridge in the synthesis of selective anti-HIV-1 agents
(as Zn(II) complexes or free amines, Figure 3a,b) [7] and previously discussed anion receptors [6]. Two
DO3A macrocycles were already connected into one molecule by the xylylen bridge (Figure 3c) [14]
and its lanthanide complexes showed enhanced luminescence due to the presence of the benzene ring
(xylylen) which acted as a sensitizing chromophore and caused efficient energy transfer (an antenna
effect) [14].
Figure 3. Schematic representations of compounds in which cyclen/cyclam (or its
derivatives) were connected to polyamine via the xylylen bridge. For (d) R1 = H or Me,
R2 = 2-, 3- or 4-pyridine or 2-aminophenyl, 4-aminophenyl, 5-methylpiperazine.
H
H
R1
NH
N
N
N
Zn2+
N
N
Zn2+
N
N
N
N
N
R2
NH HN
d)
a)
H
H
H
H
N
HN
NH
N
NH
N
N
NH2
NH HN
NH HN
NH HN
b)
e)
NH2
H
H
N
N
N
N
HOOC
HOOC
COOH
COOH
N
N
N
N
N
N
N
N
N
N
H
N
HOOC
COOH
f)
c)
Structurally similar compounds to that studied in this paper were prepared by connection of cyclen
or cyclam with linear polyamines. The anti-HIV-1 activity was described for monosubstituted cyclam
containing different monoamines modified by pyridine or aminophenyl groups (Figure 3d) [15] as well
as cyclam substituted with N-(2-aminoethyl)propane-1,3-diamine (Figure 3e) [16,17]. The synthesis of
the latter used phthaoyl protecting groups, but in comparison with our work, the further modification
of the macrocycle with acetate pendant arms was not persued.
The synthetic approach used for the preparation of the above-mentioned ligands was based on the
reaction of protected cyclen/cyclams with 1,4-bis(bromomethyl)benzene (one bromine atom is
substituted) and the obtained monobrominated intermediate reacted with differently protected
molecules (other cyclen/cyclam, linear polyamines, etc.). The terpyridine moiety was connected to
DO3A via a structurally similar rigid phenylmethyl bridge (Figure 3f) to obtain a self-assembly
heterotrinuclear gadolinium(III)–iron(II) complex which belongs to a new class of MRI contrast agents
called metallostars [18,19].

Molecules 2013, 18
13944

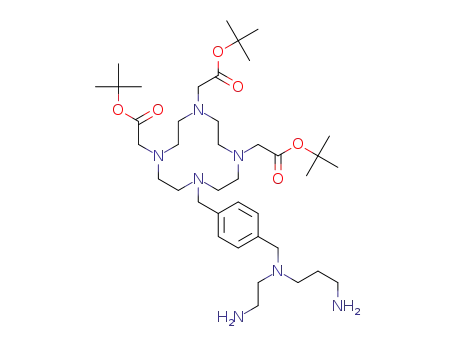

In this paper, the synthesis of a polydentate polyamino-polyacetate 1-{4-[(2-aminoethyl)(3-
aminoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris(carboxymethyl)-1,4,7,10-tetraazacyclododecane
(5) combining DO3A with N-(2-aminoethyl)propane-1,3-diamine connected with the rigid xylylen
bridge is described. All synthetic steps are described in detail and compared with similar previously
published procedures. This type of molecule has been chosen because it provides a good starting point
for the synthesis of more sophisticated ligands belonging to the above-mentioned group of
multimodal/multifunctional compounds. The synthetically readily available DO3A cavity is a selective
chelator of lanthanides (providing e.g., luminescence) and the polyamine part can complex different
transition metals (providing e.g., spin-crossover behavior). Additionally, the polyamine part of the
molecule is simply modifiable in a way necessary for required complexation properties. The xylylen
linker has been chosen because it is relatively rigid and short enough, and moreover, it involves a
delocalized electron density, which all together may be a good condition for the preparation of
complexes showing interesting magnetic properties in the case of incorporation of two suitable
transition metals into the structure of 5. Moreover, despite a large number of structurally similar
compounds, to the best of our knowledge, no such motif of the rigid C-bonded (xylylen) bridge
between DO3A and a linear polyamine can be found in the literature so far.
2. Results and Discussion
The synthesis of the desired polydentate molecule 5 was done in five steps which are outlined in
Scheme 1 and the corresponding electrospray ionization (ESI) mass spectra are depicted in Figure 4.
The well-known phthalimide protection was employed in the first step of the synthesis. The
intermediate 1 was prepared in a good yield of 69% according to the procedure described in [20,21]
with a little modification. Glacial acetic acid was used as a solvent and in this case, the product,
which precipitated from the ethanolic (EtOH) solution, was slightly contaminated with
diphthalimidodiethylammonium hydrogen phthalate (1a, see Experimental section) [21]. The
deprotonation of 1a, leading to 1, and additional removal of the hydrogen phthalate anion were done
by treatment with 10% aqueous solution of Na2CO3. This step was necessary for the removal of the
prevailing traces of acetic acid as well. The similar reaction using acetonitrile (MeCN) as a solvent,
described in [22] was unsuccessful, probably due to the low solubility of phthalic acid anhydride in
MeCN. In the second step, the (4-bromomethyl)benzyl group was incorporated into the molecule of 1
to produce the intermediate 2. The treatment of 1 with an excess of 1,4-bis(bromomethyl)benzene in
refluxing MeCN with K2CO3 gave 2 in a moderate yield of 51%. The reaction was monitored by thin
layer chromatography (TLC) and was completed in 30 min after dropwise addition of 1 to the
refluxing mixture of 1,4-bis(bromomethyl)benzene and K2CO3. The main intermediate 2 was separated
from the unreacted 1,4-bis(bromomethyl)benzene and unwanted by-product 2a (Figure 5) by means of
silica gel column chromatography (dichloromethane (DCHM): diethylether from 10:0 to 10:1). To
eliminate the formation of the by-product 2a, the reactants, i.e., 1 and 1,4-bis(bromomethyl)benzene,
should be mixed in the molar ratio of 1:2. Additionally, the mass spectra analysis revealed the presence
of polymeric substances 2b and 2c depicted in Figure 5, which could be related to the utilization of
non-dried solvents.

Molecules 2013, 18
13945
Scheme 1. The synthetic pathway leading to the final product 5.
1
2
O
O
O
O
i
ii
N
O
H2N
N
O
N
H
N
N
NH2
N
N
H
O
O
1a
O
O
H
N+
N
O
N
Br
H
O
O
O
O
H
O
iii
O
O
H2N
H2N
N
O
N
NH2
N
NH2
N
N
O
v
iv
HOOC
HOOC
t-BuOOC
t-BuOOC
t-BuOOC
t-BuOOC
N
N
N
N
N
N
N
N
N
N
N
N
COOH
COOt-Bu
COOt-Bu
5
3
4
Reagents and Conditions: (i) phthalic acid anhydride, CH3COOH, reflux 1 h; (ii) 1,4-bis(bromomethyl)benzene,
K2CO3, MeCN, reflux 0.5 h; (iii) DO3A-tris(t-butyl ester), K2CO3, MeCN, reflux 4 h; (iv) hydrazine, EtOH,
25 °C, 12 h; (v) trifluoroacetic acid, dichloromethane, 25 °C, 12 h.
In the next step, the intermediate 2 was coupled with DO3A in the protected form of t-butyl esters.
The reaction conditions were similar as for the synthesis of 2, but the reactants were mixed almost
immediately. The bromine atom substitution was completed after four hours of reflux resulting in the
desired product 3 (see Scheme 1). The crude product was purified by silica gel column
chromatography (CHCl3–MeOH ≈ 25:1).
Further reaction steps involved the deprotection of the amino and carboxylate groups. Firstly, the
elimination of the phthaloyl protection group was performed by the reaction with an excess of
hydrazine in EtOH according to the literature procedure [23]. After stirring of this solution at room
temperature for 12 h, precipitated phthalhydrazide was filtered off and the intermediate 4 was obtained
after the evaporation of the solvent in vacuo. The rest of the phthalhydrazide present was removed by
precipitation and filtration from the CHCl3 solution of the residue.
To deprotect the carboxylic groups on the macrocycle, a familiar reaction with trifluoroacetic acid
(TFA) in DCHM was used [24]. Overnight stirring at room temperature was satisfactory, because no
1
signal of t-butyl groups was observed in the H-NMR spectrum of the product obtained after the
evaporation of all solvents. In the end, the free amino-carboxylate was purified by cation-exchange and
then anion-exchange chromatography. The presence of the carboxylic groups was confirmed by the
fragmentation pattern of the molecular ion m/z 566.50 in the MS2 spectrum (Figure 4) which consists
of peaks with the m/z = 18 difference which corresponds to the elimination of one, two or three water
molecules from one, two or three carboxylates, respectively, in the molecule.

Molecules 2013, 18
13946
Figure 4. ESI mass spectra of intermediates 1–4 and the final product 5 showing the
molecular peaks (adducts with H+, Na+ or K+) together with MS2 pattern of the molecular
ion m/z 566.50 (A).
(1)
(3)
(5)
(2)
(4)
(A)

Molecules 2013, 18
13947
Figure 5. Suggested structures of species identified in the mass spectrum of the reaction
mixture during the preparation of 2. m/z values for 2a: 856.25 [M+H]+, 2b: 681.17 [M+H]+
and 2c: 977.17 [M+H]+.
O
O
O
O
N
O
N
O
N
N
N
N
O
O
O
O
N
O
N
N
O
O
O
O
O
N
N
O
N
O
O
Br
O
N
N
N
O
O
2a
2b
2c
With the aim to ambiguously characterize the composition and structure of the final product 5,
many attempts to prepare single-crystals suitable for single-crystal X-ray analysis were done, however,
all without success. That is why we decided to optimize the geometry of 5 by means of theoretical
calculations. Thus, the geometry of 5 was optimized at the density functional level of theory (DFT),
using the B3LYB functional with the 6-311G * basis set. The optimized structure of 5 is depicted
in Figure 6. The macrocyclic part of 5 has a cage-like structure with four nitrogen atoms, N1–N4,
forming the basal plane (in blue colour in Figure 6) and three oxygen atoms forming the capping plane
(in red colour in Figure 6). These two planes are nearly coplanar, forming a dihedral angle of 4.7°. The
xylylen spacer with the polyamine part (N5–N7) is situated along the three acetic acid pendant arms
and the dihedral angle between the plane formed by its benzene ring (in yellow colour in Figure 6) and
basal, and capping plane is 57.7°, and 69.2°, respectively. As for the optimized geometry structure of
5, the bond lengths and angles of the main individual parts are in good agreement with those
determined for DOTA by single-crystal X-ray analysis [25], but only the macrocyclic cavity is slightly
expanded (interatomic distances for N1–N3 and N2–N4 are 5.092 Å, and 4.634 Å, respectively).
However, we are aware of the fact that the calculations were performed in vacuum and thus, the
influence of non-covalent contacts on the molecular structure, playing also a significant role within the
real crystal structure, were not taken into account. Nevertheless, the calculated geometry is typical for
DOTA-like compounds, which is highly suitable for a lanthanide complexation [1].
To better illustrate the progress of the whole synthetic pathway, a comparison of 13C-NMR spectra
of the precursor N-(2-aminoethyl)propane-1,3-diamine and all the described compounds 1–5 is shown
in Figure 7. Based on the analysis of two-dimensional NMR spectra (selected spectra can be found in
13
the Supplementary Materials Figures S1–S7), all signals in C-NMR spectra were assigned to the
corresponding atoms, whose numbering is displayed in each spectrum in Figure 7, except for the
macrocyclic carbon atoms (in the spectra labeled as do3a), which were not sufficiently resolved even
at higher temperature. But such signal broadening is typical for this type of cyclen-based compounds
1
and it usually complicates especially H-NMR spectra interpretation. Nevertheless, this 13C-NMR

Molecules 2013, 18
13948
spectra comparison sufficiently documents each synthetic step because the presence of new signals
corresponding to the new-bounded molecular parts (compounds 1–3, synthetic steps i–iii in Scheme 1)
and the absence of signals of the removed protecting groups (compounds 4 and 5, synthetic steps iv
and v in Scheme 1) are evident.
Figure 6. Geometry of 5 optimized at the B3LYB/6-311G * level of theory (left, a),
showing selected least-square planes (right, b) going through the macrocyclic nitrogen
atoms N1–N4 (blue), the carboxylic oxygen atoms O1–O3 (red) and the benzene ring
(yellow). Hydrogen atoms are omitted for clarity (b).
(a)
(b)
The described synthetic approach is relatively rapid, facile and provides pure products in good to
moderate yields. The traces of acetic acid after the phthaloyl protection have to be removed otherwise
undesired side-products are formed during the synthesis of 1. Unfortunately, this operation
significantly reduces the reaction yield. Especially, the yield of the synthesis of the intermediate 2
could be improved by increasing the excess of 1,4-bis(bromomethyl)benzene. Both phthaloyl and
t-butyl protecting groups are easily and almost quantitatively removed providing the desired
compounds, i.e., 4, and 5, respectively. The prepared compound 5 itself may serve as a polydentate
ligand involving the DO3A cavity suitable for complexation of lanthanide ions and a linear
non-symmetrical triamine part for complexation of transition metal ions. Such a binuclear bimetallic
system promises an interesting study of influence of the two metals and could provide combinations of
different properties coming from different metals incorporated into a concrete complex (e.g., magnetic
properties, spin-transition and luminescence). The xylylen spacer is not so common for linking DO3A
with other molecules and it was proven that the xylylen substituent on the DO3A macrocycle has a
positive effect on the lanthanide luminescence in the complex [14]. Moreover, the prepared compound
scaffold is a versatile platform suitable for further structural modifications on the secondary amino
groups. These secondary nitrogen atoms can be substituted with different pendant arms (acetate,
methylphosphonate or methylenepyridine). This triamine part is also available for cyclization to
produce a second macrocycle (possible different substituents) or a preparation of different types
of Schiff bases can be taken into account as well. The described synthetic procedure is also applicable
to N-(2-aminoethyl)ethane-1,3-diamine or N-(2-aminopropyl)propane-1,3-diamine instead of
N-(2-aminoethyl)propane-1,3-diamine which would lead to more symmetrical species.

Molecules 2013, 18
13949
Figure 7. Comparison of 13C-NMR spectra of the precursor N-(2-aminoethyl)propane-1,3-
diamine (A), intermediates 1–4 and the final product 5, together with signals assignment
(do3a represents unnumbered carbon atoms of the macrocycle).

Molecules 2013, 18
13950
3. Experimental
3.1. General
Phthalic acid anhydride, N-(2-aminoethyl)propane-1,3-diamine, 1,4-bis(bromomethyl)benzene,
hydrazine monohydrate, trifloroacetic acid and all solvents were purchased from commercial sources
(Sigma–Aldrich, St. Louis, MO, USA; Penta, Prague, Czech Republic) and they were used as received.
DO3A-tris(tert-butyl ester) hydrobromide was a gift from Dr. V. Kubíček from Charles University
in Prague.
1H- and 13C-NMR spectra were recorded on a 400 MHz NMR Varian spectrometer (Varian,
1
Santa Clara, CA, USA) at 25 °C and 85 °C (1H-NMR spectra of compound 3–5): H 399.95 MHz,
dimethyl sulfoxide-d6 (DMSO, residual solvent peak) δ = 2.50 ppm, 13C 100.60 MHz, DMSO (residual
solvent peak) δ = 39.51 ppm. Multiplicity of the signals is indicated as follows: s—singlet, d—doublet,
t—triplet, qr—quartet, q—quintet, m—multiplet, br—broad. The deuterated solvent DMSO-d6 from
Sigma Aldrich was used as received. The atom numbering scheme used for NMR data interpretation of
all described compounds is shown in Figure 8.
Figure 8. Schematic representation of the intermediate 3, together with the atom
numbering used for the interpretation of NMR spectra of all intermediates as well as the
final product 5.
O
8
O
10
7
6
12
2
3
5
11
9
N
13
N
N
O
4
1
14
15 16
O
17
O
18
O
19
N
N
N
O
N
O
20
21
O
25
24
26 O
27
22
23
The carbon as well as hydrogen atoms were assigned according to the spectra obtained from
1
1
1
two-dimensional correlation experiments H–1H gs-COSY, H–13C gs-HMQC and H–13C gs-HMBS
(gs = gradient selected, COSY = correlation spectroscopy, HMQC = heteronuclear multiple quantum
coherence and HMBC = heteronuclear multiple bond coherence). Examples of two-dimensional NMR
spectra can be found in Supplementary Materials (Figures S1–S7). Mass spectra were measured on an
LCQ Fleet Ion Mass Trap mass spectrometer (Thermo Scientific, Waltham, MA, USA) equipped with
an electrospray ion source and 3D ion-trap detector in the positive mode. Elemental analyses (C, H, N)
were performed on a Flash 2000 CHNS-O Elemental Analyzer (Thermo Scientific). Elemental analysis
for compounds 4 and 5 was not done due to its hydroscopic character. Merck (Darmstadt, Germany)
aluminum foils with silica gel 60 F254 impregnated with a fluorescent dye were used for thin
layer chromatography.

Molecules 2013, 18
13951
Theoretical calculations at the DFT level were used to optimize the geometry of the final product 5.
The calculations were performed with a Gaussian 03 program [26] based on the B3LYP functional
with the 6-311G * basis set.
3.2. (2-Phthalimidoethyl)(3-phthalimidoprop-1-yl)amine (1)
Compound 1 was synthesized according to a slightly modified literature procedure [20,21]. The
solid obtained after crystallization from EtOH (22.6 g) was dissolved in CHCl3 (200 mL) and extracted
twice with 10% aqueous solution of Na2CO3, once with water and dried over anhydrous Na2SO4. The
desired product was obtained after the evaporation of the solvent in a form of a pale yellow crystalline
solid (15.1 g; 69% yield based on 7.04 g of N-(2-aminoethyl)propane-1,3-diamine). The compound 1a
was obtained after the evaporation of EtOH mother liquor and crystallization from MeOH (1.20 g).
1
3
(1a): NMR (DMSO): H δ 1.91 (H4, 2H, m); 2.99 (H3, 2H, m); 3.19 (H2, 2H, t, JHH = 5.7 Hz);
3.63 (H5, 2H, t, 3JHH = 6.7 Hz); 3.85 (H1, 2H, t, 3JHH = 5.7 Hz); 7.49 (CH phthalate, 2H, m); 7.81–7.87
(H8, H9, H12, H13, 8H, m); 8.12 (CH phthalate, 2H, m); 13C{1H} δ 25.12 (C4, 1C, s); 34.44 (C5, 1C, s);
34.83 (C1, 1C, s); 44.74 (C3, 1C, s); 45.28 (C2, 1C, s); 123.03 (C12, 2C, s); 123.10 (C8, 2C, s);
130.30 (CH phthalate, 2C, s); 131.71 (C11, 2C, s); 131.85 (C6, 2C, s); 132.38 (C phthalate, 2C, s);
134.39 (C13, 2C, s); 134.43 (C9, 2C, s); 134.82 (CH phthalate, 2C, s); 167.93 (C10, 2C, s);
168.00 (C6, 2C, s); 168.15 (CO phthalate, 2C, s).
1
3
(1): NMR (DMSO): H δ 1.65 (H4, 2H, t, JHH = 7.0 Hz); 1.86 (NH, 1H, bs); 2.52 (H3, 2H, t,
3JHH = 7.0 Hz); 2.71 (H2, 2H, t, JHH = 6.5 Hz); 3.57 (H5, 2H, t, JHH = 7.0 Hz); 3.61 (H1, 2H, t,
3JHH = 6.5 Hz); 7.80–7.85 (H8, H9, H12, H13, 8H, m); 13C{1H} δ 28.43 (C4, 1C, s); 35.78 (C5, 1C, s);
37.30 (C1, 1C, s); 46.00 (C3, 1C, s); 46.84 (C2, 1C, s); 122.85 (C12, 2C, s); 122.90 (C8, 2C, s);
131.62 (C11, 2C, s); 131.73 (C7, 2C, s); 134.19 (C13, 2C, s); 134.26 (C9, 2C, s); 167.90 (C10, 2C, s);
167.96 (C6, 2C, s); MS(+): m/z 378.25 [M+H]+, 400.25 [M+Na]+, 755.25 [2M+H]+; elemental analysis
for C21H19N3O4, Mr = 377.39, found (calculated): C 66.93 (66.83); H 5.12 (5.07); N 11.09 (11.13).
3
3
3.3. (2-Phthalimidoethyl)(3-phthalimidoprop-1-yl)(4-bromomethylbenzyl)amine (2)
1,4-bis(Bromomethyl)benzene (4.5 g, 17.0 mmol, 2.2 eqv.) and anhydrous K2CO3 (6.10 g,
44.2 mmol, 5.6 eqv.) were placed in the two-neck 250 mL round bottom flask and MeCN (100 mL)
was added. One neck was equipped with a spiral condenser and the second neck with a dropping
funnel containing the solution of 1 (3.0 g, 7.9 mmol) in CHCl3 (20 mL). The mixture in the flask was
heated to reflux under stirring and the solution was added dropwise during 30 min. The reaction was
monitored by TLC (SiO2, ethyl acetate-heptane 1:1, Rf = 0.5). For completion of the reaction, the
mixture was refluxed for additional 30 min and then it was cooled down to room temperature. The
solution was filtered through an S4 glass frit and the solvents were removed under reduced pressure.
The crude product was purified by silica gel chromatography (DCHM–diethylether from 10:0 to 10:1).
The desired compound was obtained after the evaporation of all solvents as a colorless solid (2.28 g,
51% yield). NMR (DMSO): 1H δ 1.72 (H4, 2H, q, 3JHH = 7.0 Hz); 2.49 (H3, 2H, m); 2.58 (H2, 2H, t,
3
3
3JHH = 5.7 Hz); 3.49 (H14, 2H, s); 3.55 (H5, 2H, t, JHH = 7.0 Hz ); 3.62 (H1, 2H, t, JHH = 5.9 Hz);

Molecules 2013, 18
13952
13
4.53 (H19, 2H, s); 7.05 (H16–H17, 4H, AA’BB’); 7.82 (H8,H9,H12,H13, 8H, m); C{1H} δ 25.45
(C4, 1C, s ); 34.36 (C19, 1C, s); 35.47 (C1, 1C, s); 35.60 (C5, 1C, s); 50.60 (C3, 1C, s); 50.77 (C2, 1C, s);
56.81 (C14, 1C, s); 122.89 (C8, C12, 4C, s); 128.68 (C17, 2C, s); 128.77 (C16, 2C, s); 131.57 (C7,
C11, 4C, m); 134.25 (C9, C13, 4C, m); 136.16 (C15, 1C, s); 139.41 (C18, 1C, s); 167.65 (C6, 2C, s);
167.82 (C10, 2C, s); MS (+): m/z 560.18 [M+H]+, 584.08 [M+Na]+, 598.17 [M+K]+; elemental
analysis for C29H26BrN3O4, Mr = 560.44, found (calculated): C 61.63 (62.15); H 4.72 (4.68); N 7.15
(7.50), Br 15.20 (14.26).
3.4. 1-{4-[(2-Phthalimidoethyl)(3-phthalimidoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris(t-
butoxycarbonylmethyl)-1,4,7,10-tetraazacyclododecane (3)
Compound 3 was synthesized according to the modified literature procedure [27]. DO3A-tris(t-butyl
ester) hydrobromide (1.59 g, 2.67 mmol) and anhydrous K2CO3 (1.94 g, 14.05 mmol, 5 eqv.) were
placed into a 250 mL round bottom flask and MeCN (150 mL) was added. The mixture was heated to
reflux under stirring. The solution of 2 (1.57 g, 2.81 mmol, 1.05 eqv.) in MeCN (20 mL) in a syringe
was added dropwise in 5 min. The reaction mixture was refluxed for other 4 h and then it was cooled
down to room temperature. The inorganic salts were filtered off on an S4 glass frit and the filtrate was
evaporated under reduced pressure. The crude product was purified by silica gel column
chromatography (CHCl3–MeOH = 25:1). The desired compound was obtained after the evaporation of
the solvents as a light yellow solid foam (2.55 g, 96% yield). NMR (DMSO): 1H δ 1.42 (H23, 18H, s);
3
1.43 (H27, 9H, s); 1.74 (H4, 2H, q, JHH = 7.2 Hz); 2.45 (CH2-do3a, 12H, bs); 2.52 (H3, 2H, t,
3
3JHH = 7.2 Hz); 2.62 (H2, 2H, t, JHH = 6.3 Hz); 3.01 (CH2-do3a, 4H, bs); 3.08 (H20, H24, 6H, m);
3
3.51 (H14, H19, 4H, bs); 3.55 (H5, 2H, t,3JHH = 7.2 Hz); 3.63 (H1, 2H, t, JHH = 6.3 Hz); 7.07 (H16,
H17, 4H, bs); 7.73–7.82 (H8, H9, H12, H13, 8H, m); 13C{1H} δ 25.47 (C4, 1C, s ); 27.53 (C27, 3C, s);
27.63 (C23, 6C, s); 35.43 (C1, 1C, s); 35.67 (C5, 1C, s); 48.76 (CH2-do3a, 8C, bs); 50.73 (C3, 1C, s);
50.86 (C2, 1C, s); 55.36 (C24, 1C, s); 55.64 (C20, 2C, s); 56.98 (C14, 1C, s); 57.67 (C19, 1C, s);
81.55 (C26, 1C, s); 81.86 (C22, 2C, s); 122.88 (C12, 2C, s); 122.95 (C8, 2C, s); 128.35 (C16, 2C, s);
129.71 (C17, 2C, s); 132.57 (C11, 2C, s); 131.67 (C7, 2C, s); 134.34 (C13, 2C, s); 134.36 (C9, 2C, s);
135.04 (C18, 1C, s); 138.34 (C15, 1C, s); 167.66 (C6, 2C, s); 167.86 (C10, 2C, s); 172.55 (C25, 1C, s);
173.14 (C21, 2C, s); MS(+): m/z 994.58 [M+H]+, 1016.58 [M+Na]+; elemental analysis for
C55H75N7O10·1.6CHCl3, Mr = 1173.29, found (calculated): C 57.25(57.36); H 6.68 (6.51); N 8.30 (8.27).
3.5. 1-{4-[(2-Aminoethyl)(3-aminoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris(t-butoxycarbonyl-
methyl)-1,4,7,10-tetraazacyclododecane (4)
The synthesis of 4 was done according to the literature procedure [23] with minor modifications.
Absolute EtOH was not used. The rest of phthalhydrazide present in the residue was removed by
filtration of the CHCl3 solution (the residue dissolved in 20 mL of CHCl3) through an S4 glass frit. The
desired product was obtained as yellow oil (0.70 g, 95% yield based on 1.00 g of 3). NMR (DMSO):
3
1H δ 1.46 (H23, H27, 27H, m); 1.55 (H4, 2H, q, JHH = 6.8 Hz); 2.46 (H2, H3, 4H, m); 2.55
(CH2-do3a, 12H, bm); 2.60 (H1, H5, 4H, m); 3.08 (CH2-do3a, 4H, bs); 3.13 (H20, H24, 6H, bs); 3.53
13
(H14, 2H, s), 3.62 (H19, 2H, s); 7.27 (H16–17, 4H, AA’BB’); C{1H} δ 27.53 (C27, 3C, s); 27.64
(C23, 6C, s); 29.39 (C4, 1C, s); 39.26 (C1, 1C, s); 39.84 (C5, 1C, s); 48.58 (CH2-do3a, 4C, bs); 51.26

Molecules 2013, 18
13953
(C3, 1C, s); 51.60 (CH2-do3a, 4C, bs); 55.41 (C24, 1C, s); 55.65 (C20, 2C, s); 56.32 (C2, 1C, s); 57.43
(C19, 1C, s); 58.00 (C14, 1C, s); 81.52 (C26, 1C, s); 81.87 (C22, 2C, s); 128.50 (C16, 2C, s); 129.93
(C17, 2C, s); 134.63 (C18, 1C, s); 138.93 (C15, 1C, s); 172.56 (C25, 1C, s); 173.01 (C21, 2C, s); MS
(+): m/z 734.58 [M+H]+, 756.58 [M+Na]+, 772.42 [M+K]+.
3.6. 1-{4-[(2-Aminoethyl)(3-aminoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris(carboxymethyl)-
1,4,7,10-tetraazacyclododecane (5)
The deprotection of the t-butyl ester groups was done according to the literature procedure using
TFA in DCHM [24]. The reactant 4 (0.70 g, 0.95 mmol) was dissolved in DCHM (5 mL) in a 50 mL
round bottom flask and TFA (5 mL) was added dropwise under cooling to 0 °C in a water/ice bath. A
slightly yellow solution was formed and additionally stirred at room temperature for 12 h. The solvents
were removed in vacuo. The residue was purified on a cation-exchange column (Dowex 50, H+-form,
50 mL, elution with water and 15% aq. HCl) and an anion-exchange column (Dowex 1 × 8, OH−-form,
100 mL, elution with water and 15% aq. HCl). The solvent was removed under reduced pressure, and
the residue was dissolved in MeOH. The desired compound was obtained after the evaporation of the
MeOH solution as a yellow solid in the form of the corresponding hydrochloride (0.644 g, 90% yield).
NMR (DMSO): 1H δ 1.90 (H4, 2H, q, 3JHH = 7.2 Hz); 2.76 (H3, 2H, t, 3JHH = 7.2 Hz); 2.87 (H5, 2H, t,
3JHH = 7.2 Hz); 2.93 (H2, 2H, t, 3JHH = 6.8 Hz); 3.05 (H1, 2H, t, 3JHH = 6.8 Hz); 3.10 (CH2-do3a, 4H,
bs); 3.20 (CH2-do3a, 8H, m); 3.28 (CH2-do3a, 4H, bs); 3.44 (H20, 4H, bs); 3.87 (H14,H24, 4H, bs);
4.34 (H19, 2H, s); 7.38–7.56 (H16–17, 4H, AA’BB’); 13C{1H} δ 23.51 (C4, 1C, s); 35.82 (C1, 1C, s);
37.08 (C5, 1C, s); 48.70 (CH2-do3a, 2C, bs); 49.30 (CH2-do3a, 4C, bs); 50.08 (C2, 1C, s);
50.35 (C3, 1C, s); 50.87 (CH2-do3a, 2C, bs); 53.72 (C20, 2C, s); 54.47 (C24, 1C, s); 56.71 (C19, 1C, s);
56.93 (C14, 1C, s); 130.08 (C16, 2C, s); 130.70 (C18, 2C, s); 131.19 (C17, 2C, s); 136.83 (C15, 1C, s);
169.44 (C25, 1C, s); 171.22 (C21, 2C, s); MS (+): m/z 566.50 [M+H]+; MS2 (+): m/z 548.22 [M+H–H2O]+,
530.42 [M+H–2H2O]+, 512.42 [M+H–3H2O]+.
4. Conclusions
The compound 1-{4-[(2-aminoethyl)(3-aminoprop-1-yl)aminomethyl]phenylmethyl}-4,7,10-tris-
(carboxymethyl)-1,4,7,10-tetraazacyclododecane (5) was prepared and characterized with the aim to
design a molecule which could be usable as a versatile polydentate ligand in the field of coordination
chemistry. The molecule combines a macrocyclic part which could be suitable for the complexation of
lanthanides and linear amine part usable for the complexation of other (transition) metal ions. All the
intermediates as well as final product were thoroughly characterized. The reaction conditions for the
preparation of the intermediate 2 were investigated and optimized, while the other synthetic steps
proceeded according to the slightly modified previously described literature procedures. The xylylen
linker was chosen for the connection of the polyamino and DO3A parts due to its rigidity and short
length providing a possible interaction between the two metal centers in a bimetallic complex, good
synthetic availability. Surprisingly, such a motif is not so common in the literature. Altogether, the
prepared compound 5 represents a versatile ligand with at least two sites of possible coordination of a
lanthanide and transition metal. Further structural modifications on secondary amino groups are
straightforward and could provide an additional possibility of the system transformation/tuning.

Molecules 2013, 18
13954
Supplementary Materials
Supplementary materials, containing 2D NMR spectra of 1–5 (Figures S1–S7), can be accessed at:
http://www.mdpi.com/1420-3049/18/11/13940/s1.
Acknowledgments
The authors gratefully thank the Operational Program Research and Development for
Innovations-European Regional Development Fund (CZ.1.05/2.1.00/03.0058), Operational Program
Education for Competitiveness-European Social Fund (CZ.1.07/2.3.00/20.0017) of the Ministry of
Education, Youth and Sports of the Czech Republic.
Conflicts of Interest
The authors declare no conflict of interest.
References
1. The Chemistry of Contrast Agents in Medicinal Magnetic Resonance Imaging; Merbach, A.,
Helm, L., Tóth, É., Eds.; John Wiley & Sons: Chichester, UK, 2013.
2. Montgomery, G.P.; Murray, B.S.; New, E.J.; Pal, R.; Parker, D. Cell-penetrating metal complex
optical probes: Targeted and responsive systems based on lanthanide luminescence. Acc. Chem. Res.
2009, 42, 925–937.
3. Contrast Agents III, Radiopharmaceuticals—From Diagnosticts to Therapeutics; Krause, W., Ed.;
Springer: Heidelberg, Germany, 2005.
4. Tweedle, M.F. Peptide-targeted diagnostics and radiotherapeutics. Acc. Chem. Res. 2009, 42,
958–968.
5. Atmani, C.; El Hajj, F.; Benmansour, S.; Marchivie, M.; Triki, S.; Conan, F.; Patinec, V.;
Handel, H.; Dupouy, G.; Gómez-García, C.J. Guidelines to design new spin crossover materials.
Coord. Chem. Rev. 2010, 254, 1559–1569.
6. Develay, S.; Tripier, R.; Bernier, N.; Le Baccon, M.; Patinec, V.; Serratrice, G.; Handel, H.
Cyclen based bis-macrocyclic ligands as phosphates receptors. A potentiometric and NMR study.
Dalton Trans. 2005, doi:10.1039/B507819A.
7. König, B.; Svoboda, J. Azamacrocyclic systems with different supramolecular function. In
Macrocyclic Chemistry: Current Trends and Future Perspectives; Gloe, K., Ed.; Springer:
Dordrecht, The Netherlands, 2005; pp. 87–103.
8. Caravan, P. Protein-targeted gadolinium-based Magnetic Resonance Imaging (MRI) contrast
agents: Design and mechanism of action. Acc. Chem. Res. 2009, 42, 851–862.
9. Bonnet, C.S.; Buron, F.; Caillé, F.; Shade, Ch.M.; Drahoš, B.; Pellegatti, L.; Zhang, J.; Villette, S.;
Helm, L.; Pichon, Ch.; et al. Pyridine-based lanthanide complexes combining MRI and NIR
luminescence activities. Chem. Eur. J. 2012, 18, 1419–1431.
10. Wängler, C.; Wängler, B.; Eisenhut, M.; Haberkorn, U.; Mier, W. Improved syntheses
and applicability of different DOTA building blocks for multiply derivatized scaffolds.
Bioorg. Med. Chem. 2008, 16, 2606–2616.

Molecules 2013, 18
13955
11. Rudovsky, J.; Botta, M.; Hermann, P.; Hardcastle, K.I.; Lukeš, I.; Aime, S. PAMAM dendrimeric
conjugates with a Gd-DOTA phosphinate derivative and their adducts with polyaminoacids: The
Interplay of global motion, internal rotation, and fast water exchange. Bioconjug. Chem. 2006, 17,
975–987.
12. Jauregui, M.; Perry, W.S.; Allain, C.; Vidler, L.R.; Willis, M.C.; Kenwright, A.M.; Snaith, J.S.;
Stasiuk, G.J.; Lowe, M.P.; Faulkner, S. Changing the local coordination environment in
mono- and bi-nuclear lanthanide complexes through “click” chemistry. Dalton Trans. 2009,
doi:10.1039/B911588A.
13. Botta, M.; Tei, L. Relaxivity enhancement in macromolecular and nanosized GdIII-based MRI
contrast agents. Eur. J. Inorg. Chem. 2012, 12, 1945–1960.
14. Pope, S.J.A.; Kenwright, A.M.; Boote, V.A.; Faulkner, S. Synthesis and luminescence properties
of dinuclear lanthanide complexes derived from covalently linked macrocyclic ligands.
Dalton Trans. 2003, doi:10.1039/B309115E.
15. Bridger, G.J.; Skerlj, R.T.; Hernandez-Abad, P.E.; Bogucki, D.E.; Wang, Z.; Zhou, Y.; Nan, S.;
Boehringer, E.M.; Wilson, T.; Crawford, J.; et al. Synthesis and structure-activity relationships of
Azamacrocyclic C-X-C chemokine receptor 4 antagonists: Analogues containing a single
azamacrocyclic ring are potent inhibitors of T-Cell tropic (X4) HIV-1 replication. J. Med. Chem.
2010, 53, 1250–1260.
16. Gupta, S.K. Method for inducing chemotaxis in endothelial cells by administering stromal cell
derived factor-1alpha. U.S. Patent 2002/0107195 A1, 8 August 2002.
17. Luengo, J.I.; Price, A.T.; Shaw, A.; Wiggall, K. CXCR-4 receptor antagonists and thrombopoietin
mimetics. WIPO Patent WO/2000/066112, 9 November 2000.
18. Livramento, J.B.; Sour, A.; Borel, A.; Merbach, A.E.; Tóth, É. A starburst-shaped heterometallic
compound incorporating six densely packed Gd3+ ions. Chem. Eur. J. 2006, 12, 989–1003.
19. Li, W.S.; Luo, J.; Chen, Z.N. A self-assembly heterotrinuclear gadolinium(III)–iron(II) complex
as a MRI contrast agent. Inorg. Chem. Commun. 2011, 14, 1898–1900.
20. Ng, C.Y.; Motekaitis, R.J.; Martell, A.E. New multidentate ligands. 18. Synthesis of 1,4-
Bis(bis(2-aminoethy1)aminomethyl)benzene: Binuclear chelating tendencies and mixed-ligand
binuclear chelate formation. Inorg. Chem. 1979, 18, 2982–2986.
21. Barrett, D.M.Y.; Kahwa, I.A.; Mague, J.T.; McPherson, G.L. Preparations, crystal structures,
and unusual proton NMR characteristics of some phthalimides. J. Org. Chem. 1995, 60,
5946–5953.
22. Kang, S.O.; Powell, D.; Day, V.W.; Bowman-James, K. Trapped Bifluoride. Angew. Chem. Int. Ed.
2006, 45, 1921–1925.
23. Gali, H.; Prabhu, K.R.; Karra, S.R.; Katti, K.V. Facile Ring-opening reactions of Phthalimides as
a new strategy to synthesize amide-functionalized phosphonates, primary phosphines, and
bisphosphines. J. Org. Chem. 2000, 65, 676–680.
24. Drahoš, B.; Kotek, J.; Císařová, I.; Hermann, P.; Helm, L.; Lukeš, I.; Tóth, É. Mn2+ complexes
with 12-membered pyridine based macrocycles bearing carboxylate or phosphonate pendant arm:
1
Crystallographic, thermodynamic, kinetic, redox, and H/17O relaxation studies. Inorg. Chem.
2011, 50, 12785–12801.

Molecules 2013, 18
13956
25. Aime, S.; Barge, A.; Bruce, J.I.; Botta, M.; Howard, J.A.K.; Moloney, J.M.; Parker, D.;
de Sousa, A.S.; Woods, M. NMR, relaxometric, and structural studies of the hydration and
exchange dynamics of cationic lanthanide complexes of macrocyclic tetraamide ligands. J. Am.
Chem. Soc. 1999, 121, 5762–5771.
26. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.;
Montgomery, J.A., Jr.; Vreven, T.; Kudin, K.N.; Burant, J.C.; et al. Gaussian 03, Revision C.02;
Gaussian, Inc.: Wallingford, CT, USA, 2004.
27. Aime, S.; Gianolio, E.; Terreno, E.; Giovenzana, G.B.; Pagliarin, R.; Sisti, M.; Palmisano, G.;
Botta, M.; Lowe, M.P.; Parker, D. Ternary Gd(III)L-HSA adducts: Evidence for the replacement
of inner-sphere water molecules by coordinating groups of the protein. Implications for the design
of contrast agents for MRI. J. Biol. Inorg. Chem. 2000, 5, 488–497.
Sample Availability: Samples of the compounds 1–5 are available from the authors.
© 2013 by the authors; licensee MDPI, Basel, Switzerland. This article is an open access article
distributed under the terms and conditions of the Creative Commons Attribution license
(http://creativecommons.org/licenses/by/3.0/).
