Synthesis of N,N-dialkyl-5(or 10)-oxobenzo[B][1,8 or 1,7(or 1,6)]naphthyridine-10(5H)(or 5(10H))-carbothioamides based on the reaction of the respective (chloropyridinyl)(2-isothiocyanatophenyl)methanones with secondary amines

Article abstract of DOI:10.3987/COM-14-13016

The addition of secondary amines to (2-chloropyridin-3-yl)(2- isothiocyanatophenyl)methanone, derived from 2-chloropyridine and N-(2- formylphenyl)formamide, followed by treatment of the resulting thiourea intermediates with sodium hydride has proven to provide a method for the synthesis of N,N-dialkyl-5-oxobenzo[b][1,8]naphthyridine-10(5H)- carbothioamides. Similarly, N,N-dialkyl-5-oxobenzo[b][1,7]naphthyridine- 10(5H)-carbothioamides and N,N-dialkyl-10-oxobenzo[b][1,6]naphthyridine- 5(10H)-carbothioamides can be prepared from the respective (chloropyridinyl)(2- isothiocyanatophenyl)methanones.

Full text of DOI:10.3987/COM-14-13016

HETEROCYCLES, Vol. 89, No. 7, 2014
1687
HETEROCYCLES, Vol. 89, No. 7, 2014, pp. 1687 - 1695. © 2014 The Japan Institute of Heterocyclic Chemistry
Received, 28th April, 2014, Accepted, 29th May, 2014, Published online 3rd June, 2014ꢀ
DOI: 10.3987/COM-14-13016
SYNTHESIS OF N,
ꢀ
N-DIALKYL-5(or 10)-OXOBENZO[b][1,8 or 1,7(or
1,6)]NAPHTHYRIDINE-10(5H)(or 5(10H))-CARBOTHIOAMIDES BASED
ON THE REACTION OF THE RESPECTIVE
(CHLOROPYRIDINYL)(2-ISOTHIOCYANATOPHENYL)METHANONES
WITH SECONDARY AMINES
Kazuhiro Kobayashi,* Kazuhiro Nakagawa, and Hiroki Inouchi
Division of Applied Chemistry, Department of Chemistry and Biotechnology,
Graduate School of Engineering, Tottori University, 4-101 Koyama-minami,
Tottori 680-8552, Japan; E-mail: kkoba@chem.tottori-u.ac.jp
Abstract – The addition of secondary amines to (2-chloropyridin-3-yl)(2-
isothiocyanatophenyl)methanone, derived from 2-chloropyridine and N-(2-
formylphenyl)formamide, followed by treatment of the resulting thiourea
intermediates with sodium hydride has proven to provide a method for the
synthesis
of
N,N-dialkyl-5-oxobenzo[b][1,8]naphthyridine-10(5H)-
Similarly, N,N-dialkyl-5-oxobenzo[b][1,7]naphthyridine-
carbothioamides.
10(5H)-carbothioamides and N,N-dialkyl-10-oxobenzo[b][1,6]naphthyridine-
5(10H)-carbothioamides can be prepared from the respective (chloropyridinyl)(2-
isothiocyanatophenyl)methanones.
Previous work from our laboratory has established that the addition of secondary amines to
(2-halophenyl)(2-isothiocyanatophenyl)methanones, followed by treatment of the resulting thiourea
intermediates with sodium hydride, leads to a general approach to the synthesis of N,N-disubstituted
9-oxo-10H-acridine-10-carbothioamides.1 We envisaged that
a
similar sequence using
(chloropyridinyl)(2-isothiocyanatophenyl)methanones could provide access to aza-analogues of these
derivatives. In this paper, we wish to describe the results of an extensive study of this methodology,
which offer the first entry to N,N-dialkyl-5(or 10)-oxobenzo[b][1,8 or 1,7(or 1,6)]naphthyridine-10(5H)
(or 5(10H))-carbothioamides. Several methods for the synthesis of benzo[b]naphthyridinone derivatives
have been reported,2 because they are interesting from a biological point of view.3 However, there have

1688
HETEROCYCLES, Vol. 89, No. 7, 2014
been so far no reports on methods for the synthesis of these oxobenzo[b]naphthyridinecarbothioamide
derivatives, which are of potential biological interest as well.
The synthesis of N,N-disubstituted oxobenzo[b]naphthyridinecarbothioamides (8) from chloropyridines
(1) was conducted according to the sequence illustrated in Scheme 1. Thus, the reaction of lithiated
chloropyridines4 with N-(2-formylphenyl)formamide, followed by the PCC oxidation of the resulting
alcohols (3) led to the formation of N-{[2-(chloropyridinyl)carbonyl]phenyl}formamides (4). These
formamides (4) were dehydrated with phosphorous oxychloride in the presence of triethylamine to afford
the corresponding isocyanides (5), which, without any purification, were subjected to the treatment with
sulfur in the presence of a catalytic amount of selenium under the Fujiwara’s conditions5 to afford
(chloropyridinyl)(2-isothiocyanatophenyl)methanones (6) in satisfactory yields from 4. It should be noted
that compounds (4c) and (6c), derived from 4-chloropyridine, were rather unstable. So, it must be used
immediately after purification in the next steps.
OH
O
#
#
#
PCC, CH2Cl2, rt
1. LDA, –78 ˚C, THF
2. 2 , –78 ˚C
CHO
N
N
N
"
"
"
Cl
!
!
Cl
NHCHO
! Cl
NHCHO
4a N = ! 74%
4b N = " 66%
4c N = # 47%
3a N = ! 76%
3b N = " 77%
3c N = # 73%
1a N = !
1b N = "
1c N = #
NHCHO
2
O
O
#
#
POCl3, Et3N, THF, 0 ˚C
S8, cat. Se, Et3N, THF, rt
N
N
"
"
!
Cl
NCS
!
Cl
NC
5
6a N = ! 74% from 4a
6b N = " 79% from 4b
6c N = # 52% from 4c
O
O
#
#
R2NH, DMF, rt
NaH, 0 ˚C to temp.
N
N
"
"
N
! Cl HN
S
!
S
NR2
NR2
7
8
Scheme 1
First, N,N-dialkyl-5-oxobenzo[b][1,8]naphthyridine-10(5H)-carbothioamides (8a-c) were prepared in
one-pot from (2-chloropyridin-3-yl)(2-isothiocyanatophenyl)methanone (6a). Thus, 6a was allowed to

HETEROCYCLES, Vol. 89, No. 7, 2014
1689
react with secondary amines in DMF at room temperature to resulted in the immediate formation of the
corresponding thiourea derivatives (7) (N = ! position), which on treatment with sodium hydride at the
same temperature underwent smooth ring closure to give the desired products in good yields (Table 1,
Entries 1–3).
Table 1. Preparation of oxobenzo[b]naphthyridinecarbothioamides (8)
Entry
6
6a (N = !)
6a
6a
6b (N = ")
6b
6b
6c (N = #)
R2NH
Et2NH
pyrrolidine
piperidine
Et2NH
pyrrolidine
morpholine
Et2NH
pyrrolidine
morpholine
Temp
8
Yield/%a
78
83
1
2
3
4
5
6
7
8
9
rt
rt
rt
8a
8b
8c
8d
8e
8f
8g
8h
8i
85
65
62
58
49
35
44
80 ˚C
80 ˚C
100 ˚C
rt
6c
6c
rt
rt
a Yields of isolated products.
Next, N,N-dialkyl-5-oxobenzo[b][1,7]naphthyridine-10(5H)-carbothioamides (8d-f) could similarly be
synthesized from (3-chloropyridin-4-yl)(2-isothiocyanatophenyl)methanone (6b). The addition of
secondary amines to 6b also completed immediately. However, the cyclization of the resulting thiourea
intermediates (7) (N = "-position) with sodium hydride was very reluctant at room temperature and the
higher temperatures (80 to 100 ˚C) were needed for satisfactory progress. Therefore, the yields of the
desired products were somewhat lower than those of 8a-c (Entries 4–6).
Subsequently, the successive treatment of (4-chloropyridin-3-yl)(2-isothiocyanatophenyl)methanone (6c)
with secondary amines and sodium hydride was carried out to obtain the corresponding
N,N-dialkyl-10-oxobenzo[b][1,6]naphthyridine-5(10H)-carbothioamides (8g-i). When 6c was treated with
secondary amines under the same conditions, a few spots, resulted from other than the expected thiourea
derivative, were observed by TLC analyses in each case. After addition of sodium hydride, the
intermediates were consumed smoothly at room temperature. However, these reactions resulted in the
formation of rather complicated mixtures of products, from which only low-to-moderate yields of the
desired products could be isolated (Entries 7–9). This may presumably be due to the instability of 6c as
stated above.
In conclusion, the method described here enables us to synthesize three types of oxobenzo[b]
naphthyridinecarbothioamides from the respective chloropyridines by essentially same operations. As
these derivatives are hard to prepare by previous methods and of potentially biological interest, the
present method may be of value in organic synthesis.

1690
HETEROCYCLES, Vol. 89, No. 7, 2014
EXPERIMENTAL
All melting points were obtained on a Laboratory Devices MEL-TEMP II melting apparatus and are
1
uncorrected. IR spectra were recorded with a Perkin–Elmer Spectrum65 FTIR spectrophotometer. H
NMR spectra were recorded in CDCl3 using TMS as an internal reference with a JEOL ECP500 FT NMR
13
spectrometer operating at 500 MHz or a JEOL LA400FT NMR spectrometer operating at 400 MHz. C
NMR spectra were recorded in CDCl3 using TMS as an internal reference with a JEOL ECP500 FT NMR
spectrometer operating at 125 MHz. High-resolution MS spectra (DART, positive) were measured by a
Thermo Scientific Exactive spectrometer. TLC was carried out on Merck Kieselgel 60 PF254. Column
chromatography was performed using WAKO GEL C-200E. All of the organic solvents used in this study
were dried over appropriate drying agents and distilled prior to use.
Starting Materials. n-BuLi was supplied by Asia Lithium Corporation. All other chemicals used in this
study were commercially available.
N-[2-(Hydroxymethyl)phenyl]formamide. A solution of (2-aminophenyl)methanol (11 g, 86 mmol) in
HCO2Et (70 mL) was heated at reflux temperature for 45 h. After evaporation of excess HCO2Et, the
residue was purified by column chromatography on silica gel (AcOEt/hexane 1:2) to give the desired
1
product (9.7 g, 75%); a white solid; mp 76–79 ˚C (hexane/CH2Cl2) (lit.,6 79–80 ˚C). Spectral (IR and H
NMR) data for this compound were identical to those reported previously.6
N-(2-Formylphenyl)formamide (2). A mixture of the above alcohol (0.91 g, 6.0 mmol) and PCC (2.6 g,
12 mmol) in CH2Cl2 (65 mL) containing Celite 545 (12 g) was stirred at rt for 30 min. The mixture was
filtered under reduced pressure, and the filtrate was concentrated by evaporation and subjected to
purification by column chromatography on silica gel (THF/hexane 1:4) to give 2 (0.65 g, 73%); a white
solid; mp 75–76 ˚C (hexane–CH2Cl2) (lit.,7 75–77 ˚C). Spectral (IR and 1H NMR) data for this compound
were identical to those reported previously.7
Typical Procedure for the Preparation of N-{[2-(Chloropyridinyl)hydroxymethyl]-
phenyl}formamides (3). N-{[2-(2-Chloropyridin-3- yl)hydroxymethyl]phenyl}formamide (3a). To a
stirred solution of LDA (5.0 mmol), generated by the standard conditions from n-BuLi and i-Pr2NH, in
THF (5 mL) at –78 ˚C was added a solution of 2-chloropyridine (0.23 g, 2.0 mmol) dropwise.4 After 1.5 h,
a solution of 2 (0.15 g, 1.0 mmol) in THF (2 mL) was added and stirring was continue at the same
temperature for an additional 15 min before saturated aqueous NH4Cl (10 mL) was added. The mixture
was warned to rt and extracted with AcOEt (3 $ 10 mL). The combined extracts were washed with brine
(15 mL), dried (Na2SO4), and concentrated by evaporation. The residue was purified by column
chromatography on silica gel to give 3a (0.20 g, 76%); an orange oil; Rf 0.30 (AcOEt/hexane 1:4); IR
1
(neat) 3320, 1677 cm–1; H NMR (400 MHz) % 2.23 and 2.73 (2s, combined 1H), 6.14 and 6.23
(combined 1H), 6.70–9.41 (m, 9H); 13C NMR % 69.38, 69.67, 121.26, 122.83, 124.39, 125.83, 126.03,

HETEROCYCLES, Vol. 89, No. 7, 2014
1691
128.25, 128.79, 128.85, 129.35, 132.04, 132.51, 134.79, 135.61, 136.33, 136.40, 137.47, 137.53, 148.33,
148.33, 148.47, 149.16, 149.38, 160.56, 163.24. Anal. Calcd for C13H11ClN2O2: C, 59.44; H, 4.22; N,
10.66. Found: C, 59.39; H, 4.29; N, 10.37.
N-{[2-(3-Chloropyridin-4-yl)hydroxymethyl]phenyl}formamide (3b):
a
yellow oil; Rf 0.36
1
(AcOEt/hexane 1:2); IR (neat) 3300, 1682 cm–1; H NMR (400 MHz) % 3.81 and 4.19 (2d, J = 4.6 Hz
each, combined 1H), 6.11 and 6.22 (2d, J = 4.6 Hz each, combined 1H), 6.92–8.79 (m, 9H). Anal. Calcd
for C13H11ClN2O2: C, 59.44; H, 4.22; N, 10.66. Found: C, 59.30; H, 4.38; N, 10.64.

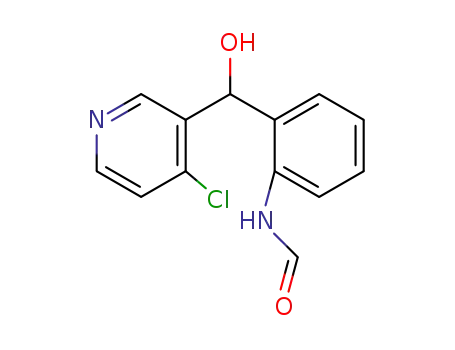

N-{[2-(4-Chloropyridin-3-yl)hydroxymethyl]phenyl}formamide (3c):
a
yellow oil; Rf 0.23
1
(AcOEt/hexane 1:2); IR (neat) 3306, 1679 cm–1; H NMR (400 MHz) % 3.9–4.5 (br, 1H), 6.22 and 6.30
(2s, combined 1H), 6.90–8.83 (m, 9H). Anal. Calcd for C13H11ClN2O2: C, 59.44; H, 4.22; N, 10.66.
Found: C, 59.25; H, 4.20; N, 10.68.
Typical Procedure for the Preparation of N-{[2-(Chloropyridinyl)carbonyl]phenyl}formamides (4).
N-{[2-(2-Chloropyridin-3-yl)carbonyl]phenyl}formamide (4a). Compound (3a) (0.15 g, 0.56 mmol)
was oxidized with PCC (0.24 g, 1.1 mmol) in CH2Cl2 (6 mL) containing Celite 545 (1.1 g) as described
for the preparation of 2 to give 4a (86 mg, 59%); a white solid; mp 149–151 ˚C (hexane/CH2Cl2); IR
1
(KBr) 3277, 1695, 1638 cm–1; H NMR (500 MHz) % 7.10–11.36 (m, 9H);13C NMR % 120.94, 121.61,
122.24, 123.10. 134.16, 134.85, 136.35, 137.34. 140.78. 147.19, 150.91, 159.86, 196.86. Anal. Calcd for
C13H9ClN2O2: C, 59.90; H, 3.48; N, 10.75. Found: C, 59.70; H, 3.52; N, 10.43.
N-{[2-(3-Chloropyridin-4-yl)carbonyl]phenyl}formamide (4b): a white solid; mp 146–147 ˚C
1
(hexane/CH2Cl2); IR (KBr) 3288, 1694, 1644 cm–1; H NMR (500 MHz) % 7.09–11.31 (m, 9H). Anal.
Calcd for C13H9ClN2O2: C, 59.90; H, 3.48; N, 10.75. Found: C, 59.61; H, 3.53; N, 10.70.
N-{[2-(4-Chloropyridin-2-yl)carbonyl]phenyl}formamide (4c): a white solid; mp 109–110 ˚C
(hexane/CH2Cl2); IR (KBr) 3287, 1702, 1644, 1604 cm–1; 1H NMR (500 MHz) % 7.10–11.32 (m, 9H). HR
MS. Calcd for C13H10ClN2O2 (M+H): 261.0431. Found: m/z 261.0427.
Typical Procedure for the Preparation of (Chloropyridinyl)(2-isothiocyanatophenyl)methanones (6).
(2-Chloropyridin-3-yl)(2-isothiocyanatophenyl)methanone (6a). To a stirred solution of 4a (86 mg,
0.33 mmol) in THF (2 mL) containing Et3N (0.23 g, 2.3 mmol) at 0 ˚C was added POCl3 (76 mg, 0.50
mmol) dropwise.8 After 15 min, saturated aqueous NaHCO3 (10 mL) was added and the mixture was
extracted with AcOEt (3 $ 10 mL). The combined extracts were washed with brine (15 mL), dried
(Na2SO4), and concentrated by evaporation. The residual crude isocyanide (5aꢀꢀ was dissolved in THF (2
mL), and Et3N (0.11 mL), S8 (11 mg, 0.33 mmol), and Se (2.6 mg, 0.033 mmol) were added.5 The mixture
was stirred overnight at rt and the precipitate was filtered off. The filtrate was concentrated by
evaporation and the residue was purified by column chromatography on silica gel to give 6a (67 mg,
1
74%); a brown oil; Rf 0.33 (AcOEt/hexane 1:2); IR (neat) 2106, 1674 cm–1; H NMR (400 MHz) %

1692
HETEROCYCLES, Vol. 89, No. 7, 2014
7.36–7.40 (m, 2H), 7.44 (dd, J = 7.8, 4.9 Hz, 1H), 7.59 (t, J = 7.8 Hz, 1H), 7.66 (dd, J = 7.8, 2.0 Hz, 1H),
7.88 (dd, J = 7.8, 2.0 Hz, 1H), 8.56 (dd, J = 4.9, 2.0 Hz, 1H). Anal. Calcd for C13H7ClN2OS: C, 56.83; H,
2.57; N, 10.20. Found: C, 56.75; H, 2.64; N, 10.05.
(3-Chloropyridin-4-yl)(2-isothiocyanatophenyl)methanone (6b): a brown oil; Rf 0.44 (AcOEt/hexane
1:2); IR (neat) 2106, 1678 cm–1; 1H NMR (400 MHz) % 7.35 (d, J = 4.6 Hz, 1H), 7.37–7.41 (m, 2H), 7.61
(td, J = 7.4, 1.1 Hz, 1H), 7.67 (dd, J = 7.4, 1.1 Hz, 1H), 8.68 (d, J =4.6 Hz, 1H), 8.74 (s. 1H). Anal. Calcd
for C13H7ClN2OS: C, 56.83; H, 2.57; N, 10.20. Found: C, 56.70; H, 2.43; N, 10.10.
(4-Chloropyridin-3-yl)(2-isothiocyanatophenyl)methanone (6c): a brown oil; Rf 0.26 (AcOEt/hexane
1:2); IR (neat) 2104, 1670 cm–1; 1H NMR (400 MHz) % 7.35–7.40 (m, 2H), 7.45 (d, J = 5.9 Hz, 1H), 7.59
(td, J = 7.8, 2.0 Hz, 1H), 7.65 (d, J = 7.8 Hz, 1H), 8.64 (d, J = 5.9 Hz, 1H), 8.69 (s, 1H). HR MS. Calcd
for C13H8ClN2OS (M+H): 275.0046. Found: m/z 275.0419.
Typical Procedure for the Preparation of N,N-Disubstituted Oxobenzonaphthyridine-
carbothioamides (8). N,N-Diethyl-5-oxobenzo[b][1,8]naphthyridine-10(5H)- carbothioamide (8a).
To a stirred solution of 6a (62 mg, 0.22 mmol) in DMF (2 mL) was added Et2NH (16 mg, 0.22 mmol)
dropwise. After 15 min, the mixture was cooled to 0 ˚C and NaH (60% in mineral oil; 9.0 mg, 0.22
mmol) was added. The mixture was warmed to rt and stirring was continued for 1 h before water (10 mL)
was added. The resulting mixture was extracted with AcOEt (3 $ 10 mL), and the combined extracts were
washed with brine (15 mL) and dried (Na2SO4). After evaporation of the solvent, the residual solid was
recrystallized from hexane/Et2O to give 8a (0.47 g, 68%): a pale-yellow solid; mp 190–191 ˚C; IR (KBr)
1
1650, 1606, 1263 cm–1; H NMR (500 MHz) % 1.04 (t, J = 7.4 Hz, 3H), 1.61 (t, J = 7.4 Hz, 3H),
3.33–3.38 (m, 2H), 4.15–4.22 (m, 1H), 4.33–4.40 (m, 1H), 7.31 (dd, J = 8.0, 4.6 Hz, 1H, 7-H), 7.38 (dd, J
= 8.0, 7.4 Hz, 1H, 3-H), 7.49 (d, J = 8.6 Hz, 1H, 1-H), 7.74 (ddd, J = 8.6, 7.4, 1.1 Hz, 1H, 2-H), 8.50 (dd,
J = 8.0, 1.7 Hz, 1H, 6-H), 8.75–8.78 (m, 2H, 4- and 8-H); 13C NMR % 10.50, 13.08, 47.16, 47.79, 116.62,
116.80, 118.77, 122.28, 123.09, 127.47, 134.45, 136.67, 139.49, 149.39, 153.98, 178.28, 180.35. HR MS.
Calcd for C17H18N3OS (M+H): 312.1170. Found: m/z 312.1148. Anal. Calcd for C17H17N3OS: C, 65.57; H,
5.50; N, 13.49. Found: C, 65.70; H, 5.57; N, 13.40.
10-(Pyrrolidin-1-ylcarbonothioyl)benzo[b][1,8]naphthyridin-5(10H)-one (8b): a yellow solid; mp
1
182–184 ˚C (hexane/Et2O); IR (KBr) 1645, 1607, 1265 cm–1; H NMR (500 MHz) % 1.94–2.05 (m, 2H),
2.16–2.21 (m, 2H), 3.29–3.32 (m, 2H), 4.08–4.14 (m, 1H), 4.23–4.29 (m, 1H), 7.32 (dd, J = 7.4, 4.6 Hz,
1H), 7.39 (dd, J = 8.0, 6.9 Hz, 1H), 7.49 (d, J = 8.0 Hz, 1H), 7.75 (ddd, J = 8.6, 6.9, 1.1 Hz, 1H), 8.51 (dd,
J = 8.0, 1.1 Hz, 1H), 8.76–8.79 (m, 2H);13C NMR % 24.82, 25.84, 51.41, 53.74, 116.21, 116.78, 118.65,
122.24, 123.09, 127.56, 134.65, 136.83, 138.61, 148.79, 154.14, 177.56, 178.22. HR MS. Calcd for
C17H16N3OS (M+H): 310.1014. Found: m/z 310.1000. Anal. Calcd for C17H15N3OS: C, 66.00; H, 4.89; N,
13.58. Found: C, 65.90; H, 4.98; N, 13.28.

HETEROCYCLES, Vol. 89, No. 7, 2014
1693
10-(Piperidin-1-ylcarbonothioyl)benzo[b][1,8]naphthyridin-5(10H)-one (8c): a yellow solid; mp
175–177 ˚C (hexane/CH2Cl2); IR (KBr) 1648, 1606, 1263 cm–1; 1H NMR (500 MHz) % 1.39–1.45 (m, 1H),
1.58–1.65 (m, 1H), 1.67–1.79 (m, 2H), 1.88–1.96 (m, 1H), 2.03–2.09 (m, 1H), 3.31–3.36 (m, 1H),
3.43–3.47 (m, 1H), 4.33–4.38 (m, 1H), 4.69–4.74 (m, 1H), 7.32 (dd, J = 7.4, 4.6 Hz, 1H), 7.39 (d, J = 8.0,
7.4 Hz, 1H), 7.54 (d, J = 8.6 Hz, 1H), 7.75 (ddd, J = 8.6, 7.4, 1.1 Hz, 1H), 8.50 (dd, J = 8.0, 1.1 Hz, 1H),
8.76–8.79 (m, 2H); 13C NMR % 23.76, 25.29, 26.25, 51.11, 51.81, 116.62, 116.67, 118.73, 122.20, 123.08,
127.43, 134.52, 136.71, 139.04, 149.10, 154.05, 178.19, 179.26. HR MS. Calcd for C18H18N3OS (M+H):
324.1170. Found: m/z 324.1167. Anal. Calcd for C18H17N3OS: C, 66.85; H, 5.30; N, 12.99. Found: C,
66.77; H, 5.19; N, 12.72.
N,N-Diethyl-5-oxobenzo[b][1,7]naphthyridine-10(5H)-carbothioamide (8d): a yellow solid; mp
137–139 ˚C (hexane/CH2Cl2); IR (KBr) 1650, 1605, 1263 cm–1; 1H NMR (400 MHz) % 1.02 (t, J = 7.8 Hz,
3H), 1.63 (t, J = 6.9 Hz, 3H), 3.33 (q, J = 6.9 Hz, 2H), 4.20–4.31 (m, 2H), 7.38–7.44 (m, 2H, 1- and 3-H),
7.76 (dd, J = 8.8, 6.9 Hz, 1H, 2-H), 8.26 (d, J = 4.9 Hz, 1H, 6-H), 8.51 (dd, J = 8.8, 2.0 Hz, 1H, 4-H),
8.59 (d, J = 4.9 Hz, 1H, 7-H), 8.95 (s, 1H, 9-H); 13C NMR % 10.43, 13.59, 47.30, 47.99, 115.94, 118.69,
122.13, 123.31, 125.53, 127.62, 133.96, 134.93, 139.04, 139.98, 142.30, 177.20, 178.62. HR MS. Calcd
for C17H18N3OS (M+H): 312.1170. Found: m/z 312.1153. Anal. Calcd for C17H17N3OS: C, 65.57; H, 5.50;
N, 13.49. Found: C, 65.41; H, 5.48; N, 13.20.
10-(Pyrrolidin-1-ylcarbonothioyl)benzo[b][1,7]naphthyridin-5(10H)-one (8e): a yellow solid; mp
185–186 ˚C (hexane/CH2Cl2); IR (KBr) 1647, 1607, 1265 cm–1; 1H NMR (400 MHz) % 1.98–2.03 (m, 2H),
2.17–2.23 (m, 2H), 3.26 (t, J = 6.9 Hz, 2H), 4.16 (t, J = 6.9 Hz, 2H), 7.39–7.42 (m, 2H), 7.78 (ddd, J =
8.6, 6.9, 1.7 Hz, 1H), 8.27 (d, J = 5.2 Hz, 1H), 8.52 (dd, J = 8.6, 1.7 Hz, 1H), 8.60 (d, J = 5.2 Hz, 1H),
8.94 (s, 1H); 13C NMR % 24.77, 25.91, 51.39, 53.97, 115.44, 118.87, 122.16, 123.27, 125.60, 127.80,
133.17, 135.19, 138.23, 139.63, 142.33, 175.84, 177.18. HR MS. Calcd for C17H16N3OS (M+H):
310.1014. Found: m/z 310.1006. Anal. Calcd for C17H15N3OS: C, 66.00; H, 4.89; N, 13.58. Found: C,
65.94; H, 4.97; N, 13.54.
10-(Morpholin-4-ylcarbonothioyl)benzo[b][1,7]naphthyridin-5(10H)-one (8f): a yellow solid; mp
233–235 ˚C (hexane/CH2Cl2); IR (KBr) 1652, 1605, 1273 cm–1; 1H NMR (400 MHz) % 3.38–3.41 (m, 2H),
3.56 (t, J = 4.9 Hz, 2H), 4.04 (t, J = 4.9 Hz, 2H), 4.50–4.63 (m, 2H), 7.41–7.44 (m, 2H), 7.80 (ddd, J =
8.7, 6.9, 2.0 Hz, 1H), 8.27 (d, J = 4.9 Hz, 1H), 8.52 (dd, J = 8.7, 2.0 Hz, 1H), 8.61 (d, J = 4.9 Hz, 1H),
13
8.97 (s, 1H); C NMR% 50.11, 50.50, 66.05, 66.32, 115.58, 118.88, 122.52, 123.52, 125.60, 127.86,
133.61, 135.21, 138.65, 139.65, 142.58, 176.99, 178.51. HR MS. Calcd for C17H16N3O2S (M+H):
326.0963. Found: m/z 326.0949. Anal. Calcd for C17H15N3O2S: C, 62.75; H, 4.65; N, 12.91. Found: C,
62.71; H, 4.66; N, 12.70.

1694
HETEROCYCLES, Vol. 89, No. 7, 2014
N,N-Diethyl-10-oxobenzo[b][1,6]naphthyridine-5(10H)-carbothioamide (8g): a pale-yellow solid; mp
212–214 ˚C (hexane/CH2Cl2); IR (KBr) 1655, 1609, 1258 cm–1; 1H NMR (500 MHz) % 1.01 (t, J = 7.4 Hz,
3H), 1.61 (t, J = 7.4 Hz, 3H), 3.25–3.34 (m, 2H), 4.19–4.27 (m, 2H), 7.22 (d, J = 5.7 Hz, 1H, 4-H), 7.39
(d, J = 8.0 Hz, 1H, 6-H), 7.42 (ddd, J = 8.0, 7.4, 1.1 Hz, 1H, 8-H), 7.75 (ddd, J = 8.0, 7.4, 1.7 Hz, 1H,
13
7-H), 8.53 (dd, J = 8.0, 1.7 Hz, 1H, 9-H), 8.69 (d, J = 5.7 Hz, 1H, 3-H), 9.63 (s, 1H, 1-H); C NMR %
10.38, 13.42, 47.28, 47.95, 109.64, 116.03, 116.59, 123.57, 123.80, 127.53, 134.71, 139.10, 143.55,
151.17, 152.11, 177.32, 178.35. HR MS. Calcd for C17H18N3OS (M+H): 312.1170. Found: m/z 312.1164.
Anal. Calcd for C17H17N3OS: C, 65.57; H, 5.50; N, 13.49. Found: C, 65.51; H, 5.56; N, 13.40.
5-(Pyrrolidin-1-ylcarbonothioyl)benzo[b][1,6]naphthyridin-10(5H)-one (8h): a white solid; mp
177–178 ˚C (hexane/CH2Cl2); IR (KBr) 1652, 1607, 1262 cm–1; 1H NMR (500 MHz) % 1.97–2.02 (m, 2H),
2.16–2.22 (m, 2H), 3.20–3.23 (m, 2H), 4.13 (t, J = 6.9 Hz, 2H), 7.20 (d, J = 5.7 Hz, 1H), 7.37 (d, J = 8.6
Hz, 1H), 7.42 (t, J = 7.4 Hz, 1H), 7.75 (ddd, J = 8.6, 7.4, 1.1 Hz, 1H), 8.53 (dd, J = 7.4, 1.1 Hz, 1H), 8.70
(d, J = 5.7 Hz, 1H), 9.63 (s, 1H); 13C NMR % 24.74, 25.89, 51.34, 53.95, 109.21, 115.58, 116.66, 123.64,
123.76, 127.73, 134.95, 138.30, 142.80, 151.26, 152.33, 175.66, 177.29. HR MS. Calcd for C17H16N3OS
(M+H): 310.1014. Found: m/z 310.0998. Anal. Calcd for C17H15N3OS: C, 66.00; H, 4.89; N, 13.58.
Found: C, 65.83; H, 5.07; N, 13.46.
5-(Morpholin-4-ylcarbonothioyl)benzo[b][1,6]naphthyridin-10(5H)-one (8i): a white solid; mp
231–232 ˚C (hexane/CH2Cl2); IR (KBr) 1652, 1274 cm–1; 1H NMR (500 MHz) % 3.35 (t, J = 4.9 Hz, 2H),
3.54 (t, J = 4.9 Hz, 2H), 4.02 (t, J = 4.9 Hz, 2H), 4.54 (t, J = 4.9 Hz, 2H), 7.22 (d, J = 5.7 Hz, 1H), 7.39 (d,
J = 8.6 Hz, 1H), 7.44 (dd, J = 8.0, 7.4 Hz, 1H), 7.78 (ddd, J = 8.6, 7.4, 1.1 Hz, 1H), 8.54 (dd, J = 8.0, 1.1
13
Hz, 1H), 8.72 (d, J = 5.7 Hz, 1H), 9.63 (s, 1H); C NMR % 50.07, 50.44, 66.00, 66.26, 109.30, 115.74,
116.56, 123.54, 123.98, 127.74, 134.94, 138.72, 143.19, 151.29, 152.41, 177.06, 178.27. HR MS. Calcd
for C17H16N3O2S (M+H): 326.0963. Found: m/z 326.0956. Anal. Calcd for C17H15N3O2S: C, 62.75; H,
4.65; N, 12.91. Found: C, 62.50; H, 4.63; N, 12.76.
ACKNOWLEDGEMENTS
This work was supported in part by JSPS KAKENHI Grant Number 22550035. We would like to thank
Mrs. Miyuki Tanmatsu of our University for recording mass spectra and performing combustion analyses.
