Stereodivergent synthesis of camphor-derived diamines and their application as thiourea organocatalysts

Article abstract of DOI:10.3390/molecules25132978

A series of 18 regio- and stereo-chemically diverse chiral non-racemic 1,2-, 1,3-, and 1,4-diamines have been synthesized from commercial (1S)-(+)-ketopinic acid and (1S)-(+)-10-camphorsulfonic acid. The structures of the diamines are all based on the D-(

Full text of DOI:10.3390/molecules25132978

molecules
Article
Stereodivergent Synthesis of Camphor-Derived
Diamines and Their Application as
Thiourea Organocatalysts
Sebastijan Ricˇko , Franc Požgan , Bogdan Štefane , Jurij Svete , Amalija Golobicˇ and
Uroš Grošelj *
Faculty of Chemistry and Chemical Technology, University of Ljubljana, Vecˇna pot 113, 1000 Ljubljana, Slovenia;
sebastijan.ricko@fkkt.uni-lj.si (S.R.); franc.pozgan@fkkt.uni-lj.si (F.P.); bogdan.stefane@fkkt.uni-lj.si (B.Š.);
jurij.svete@fkkt.uni-lj.si (J.S.); amalija.golobic@fkkt.uni-lj.si (A.G.)
* Correspondence: uros.groselj@fkkt.uni-lj.si; Tel.: +38-61-479-8565
ꢀꢁꢂꢀꢃꢄꢅꢆꢇ
Academic Editors: M. Graça P. M. S. Neves and Gianfranco Favi
Received: 5 June 2020; Accepted: 27 June 2020; Published: 29 June 2020
ꢀꢁꢂꢃꢄꢅꢆ
Abstract: A series of 18 regio- and stereo-chemically diverse chiral non-racemic 1,2-, 1,3-, and
1,4-diamines have been synthesized from commercial (1S)-(+)-ketopinic acid and (1S)-(+)-10-
camphorsulfonic acid. The structures of the diamines are all based on the d-(+)-camphor
scaffold and feature isomeric diversity in terms of regioisomeric attachment of the primary and
the tertiary amine function and the exo/endo-isomerism. Diamines were transformed into the
corresponding noncovalent bifunctional thiourea organocatalysts, which have been evaluated for
catalytic activity in the conjugative addition of 1,3-dicarbonyl nucleophiles (dimethyl malonate,
acetylacetone, and dibenzoylmethane) to trans-
achieved in the reaction with acetylacetone as nucleophile using endo-1,3-diamine derived catalyst 52
(91.5:8.5 er). All new organocatalysts 48 63 have been fully characterized. The structures and the
β-nitrostyrene. The highest enantioselectivity was
–
absolute configurations of eight intermediates and thiourea derivative 52 were also determined by
X-ray diffraction.
Keywords: (+)-camphor; diamines; thiourea; bifunctional organocatalysts; asymmetric synthesis
1. Introduction
Camphor is a privileged chiral pool building block available in both enantiomeric forms.
More importantly, camphor undergoes a wide array of different chemical transformations
including fragmentation reactions and sigmatropic rearrangements such as the Wagner-Meerwein
rearrangement [1,2], which functionalizes, at first glance, inactivated positions (Figure 1), thus enabling
the preparation of structurally and functionally very diverse products [3,4], including natural product
paclitaxel (Taxol) [5,6].
In the field of asymmetric synthesis and catalysis, camphor derivatives have found their
application as efficient chiral auxiliaries i.e. camphorsultam [ ] and as ligands in metal-catalyzed
reactions, as exemplified by DAIB [ ] and MIB [10] used for the addition of organozinc reagents to
aldehydes. In the field of asymmetric organocatalysis [11 12], camphor-derived organocatalysts [13 14
7,8
9
,
,
]
appeared in 2005 [15], shortly after the first seminal works at the turn of the millennium reported
by List, Barbas, and Lerner (for enamine catalysis) [16], MacMillan (for iminium catalysis) [17],
Jacobsen [18,19] and Takemoto [20] (for noncovalent bifunctional thiourea organocatalysis), and Enders
and Kallfass (for N-heterocyclic carbene organocatalysis) [21]. With respect to the structure of
camphor-derived organocatalysts, they can be divided into two groups (Figure 1) [13]. The largest
group of camphor-derived organocatalysts are mostly covalent bifunctional catalysts characterized
Molecules 2020, 25, 2978; doi:10.3390/molecules25132978
www.mdpi.com/journal/molecules

Molecules 2020, 25, 2978
2 of 22
by the two chiral fragments, i.e. the camphor framework, which is covalently connected through a
suitable spacer (amide, sulfonamide, sulfonate, sulfide, sulfone, or amine linker) to a chiral pyrrolidine
i.e. proline derivative or other chiral α-amino acid derivative as generalized by catalyst Q [22–29].
The minor group consists of catalysts with the camphor skeleton as the exclusive chiral framework.
The typical representatives thereof are camphor-derived N-heterocyclic carbene precursors Y [30–32]
and camphor-hydrazide derived organocatalysts Z [33–39] (Figure 1).
Figure 1. Selected examples of successful camphor-derivatives applied in asymmetric synthesis
and catalysis.
Within our continuing study on camphor-based diamines as potential organocatalyst scaffolds
with camphor as the exclusive chiral framework, we previously reported on camphor C2-, C3-,
and C8-derived 1,2-, 1,3-, and 1,4-diamines [40
organocatalysts have been evaluated for the 1,4-addition of dimethyl malonate to trans-
–
42]. The corresponding noncovalent thiourea
-nitrostyrene.
β
Reaction with 1,2- and 1,4-diamine-derived catalysts resulted in low enantioselectivity (er up to
61.5:38.5) [40], while reaction with 2-endo-3-endo-1,3-diamine-derived catalyst gave the addition product
with moderate enantioselectivity (80:20 er) [42]. On the other hand, the camphor-1,3-diamine-derived
squaramide organocatalyst was highly effective in conjugative additions of 1,3-dicarbonyls to
trans-β-nitrostyrenes [43,44]. These preliminary results prompted us to further investigate the
structure-activity relationship of camphor-derived bifunctional organocatalysts in order to expand the
regio- and stereochemical space allocated to camphor-based 1,2-, 1,3-, and 1,4-diamines and to probe,
if the activities of the respective thiourea organocatalyst can match those of the established thiourea
and squaramide noncovalent bifunctional organocatalysts [20,45–54]. Thus, synthetic access to the
desired nonracemic diamines has to be provided in the first place. Herein, we report a stereodivergent
synthesis of novel types of camphor-based 1,2-, 1,3-, and 1,4-diamines and the application of their
thiourea derivatives as noncovalent bifunctional organocatalysts in Michael additions of dimethyl
malonate and 1,3-diketones to trans-β-nitrostyrene, a typical model reaction for the evaluation of novel
organocatalysts [20,45].
2. Results and Discussion
2.1. Synthesis of Camphor-Derived 1,2-Diamines
Commercially available (1S)-(+)-ketopinic acid (1) was the common precursor for the synthesis
of 1,2-diamines (Schemes 1 and 2) [55,56]. First, epimeric 1,2-diamines 10 and 11 with the primary

Molecules 2020, 25, 2978
3 of 22
amino function attached at position 2 and the tertiary amino function attached at position 1 were
prepared. Curtius rearrangement of the acid with diphenylphosphoryl azide (DPPA) followed by
treatment with t-BuOH gave the Boc-protected amino ketone 57], followed by removal of the Boc
group to give the free amine 58]. SN2-type cyclization of primary amine with 1,4-dibromobutane

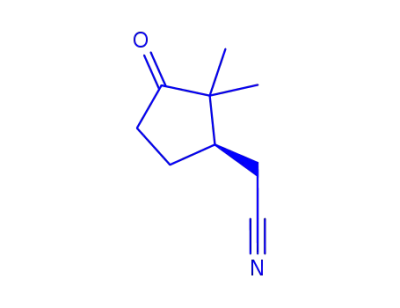

gave pyrrolidino-ketone 59]. Surprisingly, subsequent oximation of with hydroxylamine failed to
; instead, Grob fragmentation [60] to nitrile 61] took place. Retracting to
and effecting the oximation furnished the desired oxime , which, upon
with 1,4-dibromobutane in acetonitrile under
thermal conditions furnished in the desired pyrrolidino-oxime . Interestingly, cyclization of under
microwave conditions in water gave the Grob fragmentation product 62]. Finally, reduction of oxime
with sodium in isopropanol furnished the endo-amine 10 63], while catalytic hydrogenation in the
presence of Raney-Ni gave the exo-amine 11 (Scheme 1).
1
2
[
3
[
3
4
[
4
give the desired oxime
5
6 [
Boc-protected amino ketone
2
7
amine deprotection and cyclization of amino-oxime
8
5
8
9
[
5
[
Scheme 1. Synthesis of 1,2-diamines 10 and 11. Reaction conditions: (
i
) DPPA, Et3N, toluene, reflux;
ii) t-BuOH, toluene, reflux; (iii) TFA, CH2Cl2, r.t.; (iv) 1,4-dibromobutane, K2CO3, MeCN, reflux;
) NH2OH HCl, pyridine, EtOH, reflux; (vi) 1,4-dibromobutane, K2CO3, H2O,
-waves, 20 min, 125 ◦C,
(
(
v
·
µ
100 W; (vii) Na, n-PrOH, reflux; (viii) Raney-Ni, H2, MeOH, r.t.
For the preparation of regioisomeric 1,2-diamines with the primary amino function attached
at position 1 and the tertiary amine at position 2, Boc-amino-oxime was reduced by applying
catalytic hydrogenation in the presence of Raney-Ni, which furnished a chromatographically separable
major endo-amine 12 in 75% yield and the minor exo-amine 13 64] in 17% yield. Cyclization with
1,4-dibromobutane gave the corresponding pyrrolidine derivatives 14 and 15 64], followed by
concomitant Boc-deprotection into respective free diamines 16 [63] and 17 [63] (Scheme 2).
7
[
[

Molecules 2020, 25, 2978
4 of 22
Scheme 2. Synthesis of 1,2-diamines 16 and 17. Reaction conditions: (
chromatographic separation; (ii) 1,4-dibromobutane, K2CO3, H2O,
(iii) TFA, CH2Cl2, r.t.
i
µ
) Raney-Ni, H2, MeOH, r.t., then
-waves, 20 min, 125 ◦C, 100 W;
2.2. Synthesis of Camphor Derived 1,3-Diamines
In this part of the study, we also first aimed to synthesize epimeric 1,3-diamines 22 and 23
with the primary amino function attached at position 2 and the tertiary amino function attached
at position 10. In this context, Mart
of 10-(triflyloxy)camphor [65 66] to access 10-N-substituted camphor-derivatives. On the other
hand, 10-iodocamphor (18) [43 67], available from commercial (1S)-(+)-10-camphorsulfonic acid
ínez et al. have previously developed a multistep synthesis
,
,
in one step, turned out as a viable alternative in terms of large scale preparation and further
transformations. 10-Iodocamphor (18) was used as a common precursor for the synthesis of
camphor-based 1,3-diamines and the 1,4-diamines. In our hands, nucleophilic substitution of
10-iodocamphor (18) with secondary amines 19a
were, upon treatment with hydroxylamine, routinely transformed into oximes 21a
reduction of the oxime functionality with sodium in isopropanol gave epimeric mixtures of the
endo-diamines 22a and the exo-diamines 23a , which were chromatographically separable only
in the case of a mixture of epimeric pyrrolidine derivatives 22a and 23a 43] (Scheme 3). Mixtures of
epimers 22b–d and 23b–d were used in further transformations into thiourea derivatives.
–d
resulted in amino-ketones 20a
–
d
[65
,
68,69], which
–
d. Subsequent
–
d
–d
[
Scheme 3. Synthesis of 1,3-diamines 22 and 23. Reaction conditions: (
i
) secondary amine 19a
–d,
K2CO3, DMSO, 110 ◦C; (ii) NH2OH
·
HCl, pyridine, EtOH, reflux; (iii) Na, n-PrOH, reflux, then
chromatographic separation.
The regioisomeric 1,3-diamines with the primary amino function attached at position 10 and
the tertiary amine at position 2 were prepared in seven steps starting from 10-iodocamphor (18) [43],
which was initially transformed into iodo-oxime 24 [67], followed by the formation of azido-oxime 25

Molecules 2020, 25, 2978
5 of 22
with sodium azide in DMSO. The route via phthalimide as a source of the amino group failed to give
the desired primary amine [70]. Reduction of azide 25 with PPh3 gave amino-oxime 26, which upon
treatment with Boc2O furnished a chromatographically separable mixture of the minor N,O-diprotected
product 27 and the major N-mono protected oxime 28. Catalytic hydrogenation of either oxime 27 or
28, or a mixture of oximes 27/28 with Raney-Ni furnished a chromatographically separable mixture of
the minor exo-epimer 29 and the major endo-epimer 30. Subsequent alkylation of amines 29 and 30
with 1,4-dibromobutane furnished pyrrolidines 31 and 32, respectively, and the final TFA mediated
N-Boc deprotection gave the respective diamines 33 and 34 (Scheme 4).
Scheme 4. Synthesis of 1,3-diamines 33 and 34. Reaction conditions: (
i
) NH2OH HCl, pyridine, EtOH,
·
reflux; (ii) NaN3, DMSO, 75 ◦C (iii) PPh3,THF, reflux, then H2O, reflux; (iv) Boc2O, Et3N, CH2Cl2, r.t.;
(v) Raney-Ni, H2, MeOH, r.t., then chromatographic separation; (vi) 1,4-dibromobutane, K2CO3, H2O,
µ-waves, 20 min, 125 ◦C, 100 W; (vii) TFA, CH2Cl2, r.t.
2.3. Synthesis of Camphor Derived 1,4-Diamines
To prepare the desired 1,4-diamines, we followed the idea to introduce an additional methylene
group at position 10 in 10-iodocamphor derivatives via cyanation followed by reduction. However,
our attempt to prepare 10-cyanocamphor by treatment of 10-iodocamphor (18) with potassium cyanide
◦
in DMSO at 75 C failed and gave only the Groß fragmentation products. On the other hand,
treatment of 10-iodocamphor oxime (24) under the same conditions resulted in the desired nucleophilic
displacement reaction to yield the corresponding nitrile 35. For the following selective reduction
of the cyano group of 35, several reagents were tested i.e. various catalytic hydrogenations and
hydride reducing agents. In most cases, mixtures of products were formed, while reduction with
LiAlH4 furnished the desired amino oxime 36 as the central intermediate for the preparation of
isomeric 1,4-diamines. Following previous examples, epimeric 1,4-diamines 38 and 39 with the primary
amino function attached at position 2 were prepared first. Microwave promoted cyclization with

Molecules 2020, 25, 2978
6 of 22
1,4-dibromobutane yielded pyrrolidino-oxime 37, which upon catalytic hydrogenation with Raney-Ni
furnished a chromatographically separable major exo-epimer 38 and minor endo-epimer 39 (Scheme 5).
◦
Scheme 5. Synthesis of 1,4-diamines 38 and 39. Reaction conditions: (
ii) LiAlH4, Et2O, r.t.; (iii) 1,4-dibromobutane, K2CO3, H2O,
Raney-Ni, H2, MeOH, r.t., then chromatographic separation.
i
) KCN, DMS◦O, 75 C, 16 h;
(
µ
-waves, 20 min, 125 C, 100 W; (iv
)
The synthesis of epimeric 1,4-diamines with the tertiary amino function at position 2 also
commenced from amino-oxime 36. Boc protection of amino-oxime 36 gave a mixture of N-mono and
N,O-diprotected oximes 40 and 41, which could be separated by column chromatography. Catalytic
hydrogenation of either oxime 40 or 41, or a mixture of oximes 40
chromatographically separable major exo-epimer 42 and the minor endo-epimer 43. The ensuing
microwave mediated cyclization with 1,4-dibromobutane gave amino-pyrrolidines 44 64] and 45
/41 with Raney-Ni furnished a
[
,
respectively, while the final TFA mediated N-Boc deprotection furnished the corresponding diamines
46 [63] and 47 [63] (Scheme 6).
Scheme 6. Synthesis of 1,4-diamines 47 and 48. Reaction conditions: (i) Boc2O, Et3N, CH2Cl2, r.t.,
then chromatographic separation; (ii) Raney-Ni, H2, MeOH, r.t., then chromatographic separation;
(iii) 1,4-dibromobutane, K2CO3, H2O, µ-waves, 20 min, 125 ◦C, 100 W; (iv) TFA, CH2Cl2, r.t.

Molecules 2020, 25, 2978
7 of 22
2.4. Synthesis of Noncovalent Thiourea Organocatalysts 48–63
Noncovalent thiourea organocatalysts 48
–63 have been prepared in 23–96% yields by treatment
of primary amines 10 11 16 17 22a 23a
,
,
,
,
–
d
,
,
33 34 38 39 46, and 47 with the corresponding
,
,
,
,
isothiocyanate (1-adamantyl isothiocyanate, tert-butyl isothiocyanate, and 3,5-bis(trifluoromethyl)
phenyl isothiocyanate) (Figure 2).
Figure 2. Thiourea derivatives 48–63 (Ar = 3,5-bis(trifluoromethyl)phenyl) prepared by treatment of
respective primary amine with respective isothiocyanate in Et2O at r.t.
2.5. Structure Determination
Novel compounds were characterized by spectroscopic methods (1H and 13C-NMR, HRMS, IR)
and by elemental analyses for C, H, and N. Compounds 10
were not isolated pure form and were used for further transformations without purification. The
structures of compounds 18 21a 22a 24 28 29 37, and 52 were also determined by single crystal
, 13, 15, 16, 17, 22b/23b, 41, 44, 46, and 47
8
,
,
,
,
,
,
,
X-ray analysis (Figures S3–S11) [71]. X-ray structures of the representative diamines 22a and 29 are
shown in Figure 3.

Molecules 2020, 25, 2978
8 of 22
Figure 3. Single-crystal X-ray structures of exo-diamine 29 (left) and endo-diamine·22a·HClO4 (right).
The configuration of the newly formed stereocenter at C-2 for the endo-isomers 10 12 14 16 32, 38,
,
,
,
,
45
,
49 51 54 59 61, and 63 was also determined by 2D NOESY spectroscopy. NOE between the 2-H and
the 8-Me group were in agreement with the (2S)-configuration (Figure 4) [71]. The (2S)-configuration
of the endo-isomers 10 12 22a 30 38, and 43 was additionally confirmed on the basis of chemical
,
,
–
,
,
,
–d
,
,
shift correlations of the highly up-field shifted endo-proton at position 3, which appears in the range of
0.61 ppm to 0.84 ppm (Figure 3). Interestingly, in all successful cases of chromatographic separation
of the epimeric mixtures of primary amines, the exo-amine eluted first, followed by elution of the
endo-amine.
R1 = NHR', NR2, (CH2)mNHR',
NOE
or (CH2)mNR2
R2 = NHR' or NR2
Hexo
0.61-0.84 ppm
in CDCl3
H
R = H, alkyl
R' = Boc, NHC(S)NHC6H3(CF3)2
Hendo
NH2
(S)
(S)
R2
R
R1
Compounds 10, 12, 14, 16, 32, 38, 45,
49 51 54-59 61 63
Compounds 10, 12, 22a-d, 30, 38, 43
,
,
,
,
Figure 4. Determination of the absolute configuration at C-2 based on the observed NOE correlation
spectroscopy cross peaks and chemical shift correlations in the series of primary endo-amines.
2.6. Performance of Noncovalent Thiourea Organocatalysts 48–63 in 1,4-Addition of 1,3-Dicarbonyl
Compounds to trans-β-Nitrostyrene
The model reaction for the evaluation of catalyst 48
malonate to trans-
-nitrostyrene performed in anhydrous toluene at 25 ◦C and
(Table 1, cf. Figure 2). The full conversion at 25 ◦C was achieved with the endo-1,3-diamine-based
–
63 efficiency was the 1,4-addition of dimethyl
β
−
25 ◦C for 2–3 days
catalysts 52
,
56, and 59 (Table 1, Entries 9, 16, and 20) and 1,4-◦diamine-based catalysts 62 and 63
(Table 1, Entries 25 and 27). At the lower temperature ( 25 C) only catalysts 56 and 63 gave
−
full conversion (Entries 17 and 28), while all other catalysts displayed diminished conversion.
Generally, the endo-catalysts achieved better conversions than the exo-epimers, except in the case of
1,2-diamine-based catalysts 50 and 51 (Entries 5 and 7). This was not surprising, since better performance
of the endo-isomers in these 1,4-additions has also been observed previously with related camphor-based
organocatalysts [42–44]. In terms of enantioselectivity, decreasing the reaction temperature resulted
in either retention or diminished selectivity, except with catalysts 60 and 62 (Entries 22/23 and 25/26).
As expected [43], the best enantioselectivity was achieved with the endo-1,3-diamine catalyst 52
(78.5:21.5 er (R), 100% conversion, Entry 9) followed by the exo-epimer 53 (77.5:22.5 er (S), Entry 11)
though incomplete conversion (69%). In the endo-1,3-diamine type catalyst series 52
–56, catalyst 52
with the pyrrolidine functionality displayed the best performance (Entry 9), while catalyst 55 with

Molecules 2020, 25, 2978
9 of 22
the morpholine functionality performed the worst both in terms of conversion (10%) and selectivity
(54.5:45.5 er) (Entry 15) (Table 1).
Table 1.
Catalytic activity of camphor-diamine derived noncovalent bifunctional thiourea
organocatalysts 48–63 in 1,4-additions of dimethyl malonate to trans-β-nitrostyrene 1.
Entry
Catalyst
Temperature (◦C)
Conversion (%)
Er
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20 2
21
22 2
23
24
25
26
27
28
48
48
49
49
50
50
51
51
52
52
53
53
54
54
55
56
56
57
58
59
59
60
60
61
62
62
63
63
25
−25
25
38
30
61
16
20
6
68.5:31.5; (S)
66.5:33.5; (S)
61:39; (R)
53:47; (R)
66.5:33.5; (R)
61:39; (R)
−25
25
−25
25
5
2
57:43; (S)
59:41; (S)
−25
25
>99
90
69
15
80
64
10
>99
>99
79
85
99
61
9
78.5:21.5; (R)
78.5:21.5; (R)
77.5:22.5; (S)
66.5:33.5; (S)
61.5:38:5; (R)
55:45; (R)
−25
25
−25
25
−25
25
25
54.5:45.5; (R)
63:37; (R)
−25
61.5:38.5; (R)
50.5:49.5 (R)
50.5:49.5 (S)
66.5:33.5; (S)
64:36; (S)
56:44; (S)
67:33; (S)
55:45; (R)
57.5:42.5; (S)
62.5:37.5; (S)
54.5:45.5; (S)
50.5:49.5; (S)
25
25
25
−25
25
−25
−25
25
6
93
>99
74
>99
>99
−25
25
−25
1
Unless otherwise noted, the following conditions were applied: trans-
malonate (92
toluene (1 mL),
HPLC (chiral column: Chiralpak AD-H; mobile phase: n-Hexane/i-PrOH = 90:10; flow rate 1.0 mL/min;
product: tR = 9.2 minutes and 13.3 min). Reaction time was 48 h.
β
-Nitrostyrene (60 mg, 0.4 mmol), dimethyl
–63 (10 mol%, relative to trans-β-nitrostyrene), anhydrous
µ
L, 0.8 mmol), thiourea organocatalyst 48
−
25 ◦C or 25 ◦C, 72 h; conversion was determined by 1H-NMR (CDCl3); er was determined by
λ = 210 nm;
2
Finally, the 1,2-diamine-based catalysts 48 and 49 and the 1,3-diamine-based catalysts 52 and 53
were evaluated for the Michael addition of acetylacetone and dibenzoylmethane to trans- -nitrostyrene
in anhydrous toluene (Table 2). Surprisingly, the performance of endo-1,2-diamine derived catalyst
49 for the addition of acetylacetone to trans- -nitrostyrene gave the product in full conversion and
80.5:19.5 er (R) (Entry 2). Expectedly, all reactions resulted in higher conversion and selectivity when
catalyzed with endo-52, furnishing the corresponding acetylacetone adduct quantitatively at
25 ◦C
β
β
−
with 91.5:8.5 er (S) (Entry 4), flanked by the epimer exo-53 at the same temperature with complementary
82:18 er (R) though 63% conversion (Entry 9). Changing the solvent to CH2Cl2 or THF in the same
reaction catalyzed with 52 resulted in diminished selectivity (Entries 5 and 6) (Table 2).

Molecules 2020, 25, 2978
10 of 22
Table 2. Catalytic activity of selected camphor-diamine derived noncovalent bifunctional thiourea
organocatalysts 48, 49, 52, and 53 in 1,4-additions of 1,3-diketones to trans-β-nitrostyrene 1.
Entry
Catalyst
R
Temperature (◦C)
Conversion (%)
Er
1
2
3
48
49
52
52
52
52
52
53
53
53
Me
Me
Me
Me
Me
Me
Ph
Me
Me
Ph
25
25
25
96
69:31; (S)
80.5:19.5; (R)
87:13; (S)
91.5:8.5; (S)
74.5:25.5; (S)
81:19; (S)
87:13; (S)
79.5:20.5; (R)
82:18; (R)
>99
>99
>99
>99
>99
>99
96
4
−25
5 2
6 3
7
25
25
25
25
8
9
10
−25
63
>99
25
81:19; (R)
1
Unless otherwise noted, the following conditions were applied: trans-
β
-Nitrostyrene (60 mg, 0.4 mmol),
L, 0.8 mmol) or dibenzoylmethane (180 mg, 0.8 mmol), thiourea organocatalyst (10 mol%,
-nitrostyrene), anhydrous toluene (1 mL),
25 ◦C or 25 ◦C, 72 h; conversion was determined by
1H-NMR (CDCl3); er was determined by HPLC (1. for the reaction with acetylacetone: chiral column: Chiralpak
AD-H; mobile phase: n-Hexane/i-PrOH = 90:10; flow rate 1.0 mL/min; = 210 nm; product: tR = 8.8 minutes and
acetylacetone (82
relative to trans-
µ
β
−
λ
11.4 min; 2. for the reaction with dibenzoylmethane: chiral column: Chiracel OD-H; mobile phase: n-Hexane/i-PrOH
2
= 80:20; flow rate 1.0 mL/min;
CH2Cl2. Reaction was performed in THF.
λ
= 210 nm; product: tR = 9.6 minutes and 22.4 min). Reaction was performed in
3
3. Materials and Methods
3.1. Materials and General Methods
Solvents for extractions and chromatography were of technical grade and were distilled prior to
use. Extracts were dried over technical grade Na2SO4. Melting points were determined on a Kofler
micro hot stage and on SRS OptiMelt MPA100–Automated Melting Point System (Stanford Research
Systems, Sunnyvale, CA, USA). The NMR spectra were obtained on a Bruker UltraShield 500 plus
(Bruker, Billerica, MA, USA) at 500 MHz for 1H and 126 MHz for 13C nucleus, using DMSO-d6 and
CDCl3 with TMS as the internal standard, as solvents. Mass spectra were recorded on an Agilent
6224 Accurate Mass TOF LC/MS (Agilent Technologies, Santa Clara, CA, USA), IR spectra on a
Perkin-Elmer Spectrum BX FTIR spectrophotometer (PerkinElmer, Waltham, MA, USA). Microanalyses
were performed on a Perkin-Elmer CHN Analyzer 2400 II (PerkinElmer). Column chromatography
(CC) was performed on silica gel (Silica gel 60, particle size: 0.035–0.070 mm (Sigma-Aldrich, St. Louis,
MO, USA). HPLC analyses were performed on an Agilent 1260 Infinity LC (Agilent Technologies, Santa
Clara, CA, USA) using CHIRALPAK AD-H (0.46 cm ø
×
25 cm) and CHIRALCEL OD-H (0.46 cm ø
×
25 cm) as chiral columns (Chiral Technologies, Inc., West Chester, PA, USA). Organocatalyzed reactions
were performed on EasyMax 102 Advanced synthesis workstation (Mettler-Toledo, LLC., Columbus,
OH, USA). Catalytic hydrogenation was performed on a Parr Pressure Reaction Hydrogenation
Apparatus (Moline, IL, USA). The optical rotation of optical active substances was measured on a
Perkin Elmer 241 MC Polarimeter (PerkinElmer, Waltham, MA, USA) equipped with a Na lamp
(sodium emission lines at 589.0 nm) at 20 ◦C.
The compounds (1S,4R)-7,7-dimethyl-1-(pyrrolidin-1-ylmethyl)bicyclo[2.2.1]heptan-2-one (20a),
(1S,4R,2E)-7,7-dimethyl-1-(pyrrolidin-1-ylmethyl)bicyclo[2.2.1]heptan-2-one oxime (21a), (1S,2S,4R)-7,7-
dimethyl-1-(pyrrolidin-1-ylmethyl)bicyclo[2.2.1]heptan-2-amine (22a), and (1S,2R,4R)-7,7-dimethyl-1-
(pyrrolidin-1-ylmethyl)bicyclo[2.2.1]heptan-2-amine (23a) [43] were prepared following the referenced
literature procedures. Racemic products of 1,4-addition of trans-β-nitrostyrene to dimethyl

Molecules 2020, 25, 2978
11 of 22
malonate [40,42], acetylacetone [43], and dibenzoylmethane [43], used as standards for determination
of er by HPLC, were prepared following the corresponding literature procedures.
3.2. General Procedures
3.2.1. General Procedure 1. Synthesis of Free Diamines by Deprotection of N-Boc-Amines
To a solution of Boc-protected amine in anhydrous CH2Cl2 at room temperature was, under
stirring, slowly added the same volume of anhydrous trifluoroacetic acid. The resulting reaction
mixture was stirred at room temperature for 16 h. Volatile components were evaporated in vacuo.
The residue was dissolved in Et2O and washed with NaOH (1 M in H2O, 1/5 of the volume of Et2O) and
NaCl (aq. sat., 1/5 of the volume of Et2O). The organic phase was dried over anhydrous Na2SO4, filtered,
and volatile components evaporated in vacuo. If necessary, the so obtained product was purified by
CC. Fractions containing the pure product were combined and volatile components evaporated in
vacuo to give the corresponding amine [71].
3.2.2. General Procedure 2. Synthesis of Oximes
For the oxime synthesis, a modified procedure from the literature was applied [72]. To a solution
of ketone (1 equiv.) in anhydrous EtOH, NH2OH HCl (2 equiv.) and pyridine (1.5 equiv.) were added,
·
and the resulting reaction mixture was stirred under reflux for 6–16 h. Volatile components were
evaporated in vacuo, the residue was suspended in H2O (15 mL) followed by the addition of finely
powdered NaOH till pH
≈
10–12. The resulting mixture was extracted with Et2O (3
×
50 mL). The
combined organic phase was washed with H2O (1/5 of the volume of Et2O) and NaCl (aq. sat., 1/5 of
the volume of Et2O). The organic phase was dried over anhydrous Na2SO4, filtered, and volatile
components evaporated in vacuo. If necessary, the so obtained oxime was purified by CC. Fractions
containing the pure product were combined and volatile components evaporated in vacuo to give the
corresponding oxime [71].
3.2.3. General Procedure 3. Synthesis of Tertiary Amines (Pyrrolidines) by Cyclative Bis-Alkylation of
Primary Amines
For the alkylation of primary amines, a modified procedure from the literature was applied [73].
To a suspension of amine (1 equiv.) in H2O (2 mL), K2CO3 (1.1 equiv.) and 1,4-dibromobutane
(1.1 equiv.) were added, and the resulting reaction mixture was stirred under microwave irradiation
(MW) for 20 min (100 W, 125 ◦C, ~5 bar). The reaction mixture was extracted with EtOAc (3 × 25 mL).
The combined organic phase was washed with NaCl (aq. sat., 1/5 of the volume of EtOAc). The
organic phase was dried over anhydrous Na2SO4, filtered, and volatile components evaporated in
vacuo. If necessary, the so obtained tertiary amine was purified by CC. Fractions containing the pure
product were combined and volatile components evaporated in vacuo to give the corresponding
tertiary amine [71].
3.2.4. General Procedure 4. Synthesis of Primary Amines by Reduction of Oximes with Sodium
To a solution of oxime in anhydrous n-PrOH under argon at 95 ◦C, sodium (ca. 100–200 mg) was
added. Before all the added sodium reacted, another chunk of sodium (ca. 100–200 mg) was added,
followed by addition of further sodium to ensure a continuous evolution of hydrogen for 1 h. After
all the sodium reacted, volatile components were evaporated in vacuo, and to the residue, H2O was
added followed by extraction with Et2O (5
×
25 mL). The combined organic phase was washed with
H2O (1/5 of the volume of Et2O) and NaCl (aq. sat., 1/5 of the volume of Et2O). The organic phase was
dried over anhydrous Na2SO4, filtered, and volatile components evaporated in vacuo. If necessary,
the so obtained amine was purified/separated by CC. Fractions containing the pure product were
combined and volatile components evaporated in vacuo to give the corresponding amine [71].

Molecules 2020, 25, 2978
12 of 22
3.2.5. General Procedure 5. Synthesis of Primary Amines by Hydrogenation of Oximes in the Presence
of Raney-Ni Catalyst
Raney-Ni (ca. 100–200 mg) was added to a solution of oxime and triethylamine in MeOH under
Argon. The reaction vessel was thoroughly flushed with hydrogen and the reaction mixture was
hydrogenated in a Parr shaker hydrogenation apparatus in the atmosphere of hydrogen (60 psi) at
room temperature for 6 h. The reaction mixture was filtered through a plague of Celite® and washed
with MeOH. Volatile components were evaporated in vacuo. The residue was dissolved in Et2O
(100 mL) and washed with H2O (1/10 of the volume of Et2O) and NaCl (aq. sat., 1/10 of the volume of
Et2O). If the residue after filtration through a plague of Celite® was of green color, due to the presence
of nickel species, the residue was dissolved in Et2O (100 mL) and washed consecutive with NH4OH
(25% aq., 1/10 of the volume of Et2O) till the disappearance of the green color (the aqueous phase
turns violet) and finally NaCl (aq. sat., 1/10 of the volume of Et2O). The organic phase was dried
over anhydrous Na2SO4, filtered, and volatile components evaporated in vacuo. If necessary, the so
obtained amine was purified/separated by CC. Fractions containing the pure product were combined
and volatile components evaporated in vacuo to give the corresponding amine [71].
3.2.6. General Procedure 6. Synthesis of Thiourea Derivatives
To a solution of amine (1 equiv.) in anhydrous Et2O under Argon at 0 ◦C isothiocyanate (0.95 equiv.)
was added. The resulting reaction mixture was stirred at 0 ◦C for 30 min and at room temperature for
24 h. Volatile components were evaporated in vacuo and the residue was purified by CC. Fractions
containing the pure product were combined and volatile components evaporated in vacuo to give the
corresponding thiourea derivative [71].
3.2.7. General Procedure 7. Synthesis of N-Boc Protected Primary Amines
To a solution of amine (1 equiv.) in anhydrous CH2Cl2 under Argon at room temperature
Boc2O (1.5 equiv.) and Et3N (2 equiv.) were added. The resulting reaction mixture was stirred
at room temperature for 16 h. Volatile components were evaporated in vacuo and the residue
was purified/separated by CC. Fractions containing the pure product were combined and volatile
components evaporated in vacuo to give the corresponding N-Boc protected amine [71].
3.2.8. General Procedure 8. Synthesis of Tertiary Amines by Amination of 10-Iodocamphor (18)
To a suspension of 10-iodocamphor (18) (1 equiv.) and K2CO3 (1.5 equiv.) in anhydrous DMSO
under Argon secondary amine (15 equiv.) was added, and the resulting reaction mixture was stirred
◦
at 110 C for 16 h. The addition of the secondary amine is accompanied with an intense blue or
violet coloration, which eventually fades away. The cooled reaction mixture was diluted with H2O
(ca. 10 mL of H2O per 1 mL DMSO) and extracted with EtOAc (ca. 3
×
(15 mL EtOAc per 10 mL
H2O)). The combined organic phase was washed with H2O (1/5 of the volume of EtOAc) and NaCl
(aq. sat., 1/5 of the volume of EtOAc). The organic phase was dried over anhydrous Na2SO4, filtered,
and volatile components evaporated in vacuo. If necessary, the so obtained tertiary amino-ketone
was purified/separated by CC. Fractions containing the pure product were combined and volatile
components evaporated in vacuo to give the corresponding tertiary amine [71].
3.2.9. General Procedure 10. Testing the Catalytic Activity of Thiourea Derivatives in 1,4-Additions of
1,3-Dicarbonyl Compounds to trans-β-Nitrostyrene
Dimethyl malonate (92
(180 mg, 0.8 mmol) was added to a solution of trans-
organocatalyst 48 63 (10 mol%, relative to trans- -nitrostyrene) in anhydrous toluene, CH2Cl2, or THF
(1 mL) under argon at 25 or
25 ◦C. The resulting reaction mixture was stirred at 25 or 25 ◦C for
48–72 h. The reaction mixture was then quickly passed through a short column filled with Silica gel 60
µL, 0.8 mmol) or acetylacetone (82
µL, 0.8 mmol) or dibenzoylmethane
β-nitrostyrene (60 mg, 0.4 mmol) and thiourea
–
β
−
−

Molecules 2020, 25, 2978
13 of 22
(1 cm diameter, 5 cm length) using a mixture of EtOAc and petroleum ether in a 1:1 ratio as a mobile
phase to remove the tested organocatalyst 48–63. Volatile components were evaporated in vacuo and
the residue was used to determine the conversion by 1H-NMR and enantioselectivity by HPLC.
3.3. General Procedures
3.3.1. Synthesis of 1-[3,5-Bis(trifluoromethyl)phenyl]-3-[(1S,2R,4R)-7,7-dimethyl-1-(pyrrolidin-1-yl)-
bicyclo[2.2.1]heptan-2-yl]thiourea (48)
Following General Procedure 6 the title compound was prepared from diamine 11 (96 mg,
0.461 mmol), Et2O (3 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (82 µL, 0.44 mmol, 98%);
purified by CC (Et3N:EtOAc:petroleum ether = 1:1:20). Yield: 164 mg (0.341 mmol, 74%) of colorless
solid; mp = 171–176 C. [α]D20
= 7.7 (c = 0.34, CH2Cl2). CHN analysis for C22H27F6N3S requires:
−
◦
C, 55.10; H, 5.68; N, 8.76 and found: C, 55.07; H, 5.73; N, 8.57. EI-HRMS: m/z = 480.1899 (MH+);
C22H28F6N3S requires: m/z = 480.1903 (MH+). νmax 3133, 2965, 2876, 1620, 1503, 1462, 1371, 1273, 1175,
1
1139, 1108, 947, 876, 847, 808, 797, 735, 704, 681, 645, 624 cm−1. H-NMR (500 MHz, DMSO-d6):
δ 1.05
(s, 3H, Me); 1.07 (s, 3H, Me); 1.16–1.30 (m, 2H); 1.50–1.58 (m, 1H); 1.60–1.70 (m, 4H); 1.72–1.92 (m, 3H);
1.94–2.02 (m, 1H); 2.44–2.60 (m, 4H); 3.87–3.98 (m, 1H); 7.72 (s, 1H, 1H of Ar); 7.99 (d, J = 4.1 Hz, 1H,
NH); 8.40 (s, 2H, 2H of Ar); 10.67 (br s, 1H, NH). 13C-NMR (126 MHz, DMSO-d6):
δ 20.0, 21.5, 23.0,
23.1, 25.8, 39.3, 45.1, 46.9, 47.4, 60.5, 69.4, 115.7, 120.9, 123.3 (q, J = 272.8 Hz), 130.2 (q, J = 32.7 Hz),
142.0, 178.2.
3.3.2. Synthesis of 1-(3,5-Bis(trifluoromethyl)phenyl)-3-((1S,2S,4R)-7,7-dimethyl-1-(pyrrolidin-1-yl)-
bicyclo[2.2.1]heptan-2-yl)thiourea (49)
Following General Procedure 6 compound 49 was prepared from diamine 10 (95 mg, 0.456
mmol), Et2O (5 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (80
µL, 0.43 mmol, 98%);
purified by CC (1. Et3N:EtOAc:petroleum ether = 1:1:10 for the elution of nonpolar impurities; 2.
Et3N:EtOAc:petroleum ether = 1:1:1 for the elution of product 49). Yield: 164 mg (0.342 mmol, 75%)
of colorless solid; mp = 59–64 ◦C. [α]2D0 = –35.5 (c = 0.25, CH2Cl2). CHN analysis for C22H27F6N3S
requires: C, 55.10; H, 5.68; N, 8.76 and found: C, 54.34; H, 5.78; N, 8.53. EI-HRMS: m/z = 480.1898
(MH+); C22H28F6N3S requires: m/z = 480.1903 (MH+). νmax 3251, 2960, 2879, 1610, 1537, 1512, 1470,
1380, 1348, 1274, 1170, 1125, 993, 964, 884, 847, 809, 755, 725, 701, 680 cm−1
.
1H-NMR (500 MHz,
DMSO-d6): 0.95–1.01 (m, 1H); 0.98 (s, 3H, Me); 1.10 (s, 3H, Me); 1.29–1.36 (m, 1H); 1.43–1.49 (m, 1H);
δ
1.54–1.61 (m, 4H); 1.79–2.02 (m, 3H); 2.31–2.42 (m, 1H); 2.72–2.85 (m, 4H); 5.18–5.27 (m, 1H); 7.70 (s, 1H,
1H of Ar); 8.28 (d, J = 9.1 Hz, 1H, NH); 8.34 (s, 2H, 2H of Ar); 10.03 (br s, 1H, NH). 13C-NMR (126 MHz,
DMSO-d6):
δ 20.8, 21.4, 23.7, 26.1, 27.1, 36.5, 39.9, 43.9, 47.6, 48.9, 51.6, 70.5, 115.6, 123.29 (q, J = 273 Hz),
130.15 (q, J = 33 Hz), 142.1, 179.0.
3.3.3. Synthesis of 1-(3,5-Bis(trifluoromethyl)phenyl)-3-((1S,2R,4R)-7,7-dimethyl-2-(pyrrolidin-1-yl)-
bicyclo[2.2.1]heptan-1-yl)thiourea (50)
Prepared from diamine 17 (55 mg, 0.264 mmol), Et2O (2.5 mL), 1-isothiocyanato-3,5-bis
(trifluoromethyl)benzene (63
µL, 0.340 mmol, 98%) following General Procedure 6. Purified by
CC (Et3N:EtOAc:petroleum ether = 1:1:30). Yield: 98 mg (0.203 mmol, 77%) of colorless solid; mp =
123–126 ◦C. [α]2D0
=
13.3 (c = 0.32, CH2Cl2). EI-HRMS: m/z = 480.1898 (MH+); C22H28F6N3S requires:
−
m/z = 480.1903 (MH+). νmax 2963, 1671, 1542, 1474, 1385, 1335, 1274, 1201, 1167, 1119, 1000, 973, 916,
880, 831, 799, 720, 698, 676 cm−1. H-NMR (500 MHz, DMSO-d6):
δ 0.93 (s, 3H, Me); 1.16–1.22 (m, 1H);
1
1.30 (s, 3H, Me); 1.49–1.67 (m, 6H); 1.70–1.83 (m, 2H); 1.92–2.03 (m, 1H); 2.43–2.80 (m, 5H); 2.88–2.99
m, 1H); 7.55 (br s, 1H, NH); 7.72 (s, 1H, 1H of Ar); 8.37 (s, 2H, 2H of Ar); 10.36 (br s, 1H). 13C-NMR
(126 MHz, DMSO-d6): 19.2, 20.4, 23.0, 27.3, 33.7, 36.8, 41.4, 48.7, 51.8, 68.7, 69.2, 115.8, 121.2, 123.3
(q, J = 273 Hz), 130.1 (q, J = 33 Hz), 142.0, 180.9.
(
δ

Molecules 2020, 25, 2978
14 of 22
3.3.4. Synthesis of 1-(3,5-Bis(trifluoromethyl)phenyl)-3-((1S,2S,4R)-7,7-dimethyl-2-(pyrrolidin-1-yl)-
bicyclo[2.2.1]heptan-1-yl)thiourea (51)
Prepared following General Procedure 6 from diamine 16 (122 mg, 0.586 mmol), Et2O
(2.5 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (106 µL, 0.570 mmol, 98%); purified by CC
(1. Et3N:Et2O:petroleum ether = 1:6:25 for the elution of nonpolar impurities; 2. Et3N:Et2O = 1:5 for
the elution of product 51). Yield: 211 mg (0.440 mmol, 75%) of colorless solid; mp = 89–99 ◦C. [α]D20
=
22.7 (c = 0.41, CH2Cl2). EI-HRMS: m/z = 480.1899 (MH+); C22H28F6N3S requires: m/z = 480.1903
−
(MH+). νmax 3409, 2963, 2884, 2838, 1659, 1612, 1564, 1488, 1472, 1381, 1273, 1256, 1167, 1122, 979, 881,
1
847, 808, 774, 723, 700, 679 cm−1. H-NMR (500 MHz, DMSO-d6):
δ 1.03 (s, 3H, Me); 1.12 (s, 3H, Me);
1.37–1.46 (m, 1H); 1.47–1.74 (m, 7H); 1.84–1.97 (m, 1H); 2.01–2.11 (m, 1H); 2.48–2.53 (m, 1H); 2.74–2.86
(m, 2H); 2.89–3.05 (m, 2H); 3.49–3.60 (m, 1H); 7.22 (br s, 1H, NH); 7.79 (s, 1H, 1H of Ar); 8.11 (s, 2H, 2H
of Ar); 14.28 (br s, 1H, NH). 13C-NMR (126 MHz, DMSO-d6):
δ 17.9, 18.5, 23.5, 25.8, 26.4, 27.2, 41.8, 49.1,
51.4, 66.3, 71.2, 116.8, 124.1, 123.27 (q, J = 272.8 Hz), 130.02 (q, J = 32.8 Hz), 143.0, 183.0.
3.3.5. Synthesis of 1-(3,5-Bis(trifluoromethyl)phenyl)-3-((1R,2S,4R)-7,7-dimethyl-1-
(pyrrolidin-1-yl-methyl)bicyclo[2.2.1]heptan-2-yl)thiourea (52)
Using General Procedure 6 this substance was prepared from diamine 22a (157 mg, 0.706 mmol),
Et2O (3 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (125 µL, 0.670 mmol, 98%); purified by
CC (Et3N:Et2O:petroleum ether = 1:25:4). Yield: 296 mg (0.600 mmol, 85%) of colorless solid; mp =
87–92 ◦C. [α]D20 = –79.3 (c = 0.16, CH2Cl2). CHN analysis for C23H29F6N3S requires: C, 55.97; H, 5.92;
N, 8.51 and found: C, 56.23; H, 6.20; N, 8.26. EI-HRMS: m/z = 494.2060 (MH+); C23H30F6N3S requires:
m/z = 508.2216 (MH+). νmax 3147, 2034, 2990, 2958, 2885, 2678, 2605, 2504, 1633, 1601, 1556, 1473, 1461,
1
1386, 1329, 1316, 1271, 1224, 1207, 1173, 1120, 965, 876, 782, 678 cm−1. H-NMR (500 MHz, DMSO-d6):
δ
0.90 (s, 3H, Me); 0.96 (s, 3H, Me); 0.98 (br s, 1H, Me); 1.26 (br s, 1H); 1.39–1.87 (m, 8H); 2.07–2.76
(m, 6H); 3.35 (s, 1H); 4.50 (br s, 1H); 7.71 (s, 1H); 8.01–8.67 (m, 3H), 10.21 (br s, 1H). 13C-NMR (126 MHz,
DMSO-d6): 19.22, 19.98, 23.50, 25.97, 27.57, 37.11, 39.52, 44.61, 47.74, 51.52, 55.98, 56.90, 58.53, 115.69,
δ
121.19, 123.26 (q, J = 272.7 Hz), 130.27 (m), 141.87, 180.64.
3.3.6. Synthesis of 1-(3,5-Bis(trifluoromethyl)phenyl)-3-((1R,2R,4R)-7,7-dimethyl-1-
(pyrrolidin-1-yl-methyl)bicyclo[2.2.1]heptan-2-yl)thiourea (53)
Compound 53 Prepared from diamine 23a (177 mg, 0.796 mmol), Et2O (2.5 mL), 1-isothiocyanato-
3,5-bis(trifluoromethyl)benzene (142 µL, 0.760 mmol, 98%) using General Procedure 6 and purified by
CC (Et3N:Et2O:petroleum ether = 1:35:25). Yield: 353 mg (0.716 mmol, 90%) of colorless solid; mp =
57–58 ◦C. [α]D20 = +80.5 (c = 0.65, CH2Cl2). CHN analysis for C23H29F6N3S requires: C, 55.97; H, 5.92;
N, 8.51 and found: C, 56.10; H, 6.13; N, 8.43. EI-HRMS: m/z = 494.2057 (MH+); C23H30F6N3S requires:
m/z = 494.2059 (MH+). νmax 3415, 3220, 2958, 2881, 2821, 1597, 1508, 1470, 1378, 1274, 1252, 1215, 1169,
1
1126, 1106, 1076, 1001, 985, 936, 880, 847, 799, 721, 700, 681, 619 cm−1. H-NMR (500 MHz, DMSO-d6):
δ
0.88 (s, 3H, Me); 1.04 (s, 3H); 1.10–1.19 (m, 1H); 1.28–2.26 (m, 10H); 2.47 (br s, 4H); 2.56–3.00 (m, 2H); 4.27
(s, 1H), 7.71 (s, 1H); 8.25 (s, 1H); 8.34 (s, 2H); 10.29 (s, 1H). 13C-NMR (126 MHz, DMSO-d6):
δ
20.51, 20.68,
23.42, 26.69, 33.88, 39.52, 45.04, 47.62, 51.11, 54.07, 55.46, 60.40, 115.61, 120.93, 123.27 (q, J = 272.5 Hz)
,
130.14 (m), 142.04, 178.81.
3.3.7. Synthesis of 1-(3,5-Bis(trifluoromethyl)phenyl)-3-((1R,2S,4R)-7,7-
dimethyl-1-(piperidin-1-yl-methyl)bicyclo[2.2.1]heptan-2-yl)thiourea (54)
Following General Procedure 6 this compound was prepared from diamine 22b
/
23b (54 mg,
L,
0.228 mmol, 22b 23b = 4.8:1), Et2O (2.5 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (41
:
µ
0.220 mmol, 98%); purified by CC (1. Et3N:Et2O:petroleum ether = 1:6:25 for the elution of nonpolar
impurities; 2. Et3N:Et2O = 1◦:5 for the elution of product 54). Yield: 111 mg (0.219 mmol, 96%) of
yellow solid; mp = 131–134 C. [α]D20
requires: C, 56.79; H, 6.16; N, 8.28 and found: C, 57.03; H, 6.23; N, 8.09. EI-HRMS: m/z = 508.2226
= 51.2 (c = 0.40, CH2Cl2). CHN analysis for C24H31F6N3S
−

Molecules 2020, 25, 2978
15 of 22
(MH+); C24H32F6N3S requires: m/z = 508.2216 (MH+). νmax 3130, 2939, 1618, 1539, 1506, 1468, 1374,
1352, 1272, 1242, 1172, 1129, 1096, 1050, 1036, 982, 944, 884, 784, 701, 681, 651, 617 cm−1 1H-NMR
(500 MHz, DMSO-d6): 0.90 (s, 3H, Me); 0.95 (s, 3H, Me); 0.92–1.01 (m, 1H); 1.14–1.35 (m, 7H); 1.54–1.64
(m, 2H); 1.68–1.82 (m, 2H); 2.22–2.43 (m, 7H); 4.44 (br s, 1H); 7.74 (s, 1H); 8.15–8.33 (m, 3H, 3H of Ar);
10.24 (br s, 1H). 13C-NMR (126 MHz, DMSO-d6):
19.2, 20.0, 23.3, 25.5, 25.8, 27.5, 37.3, 44.7, 47.6, 51.4,
.
δ
δ
56.3, 57.8, 59.5, 115.9, 121.4, 123.22 (q, J = 273 Hz), 130.47 (q, J = 33 Hz), 141.9, 180.5.
3.3.8. Synthesis of 1-(3,5-Bis(trifluoromethyl)phenyl)-3-((1R,2S,4R)-7,7-dimethyl-1-
(morpholino-methyl)bicyclo[2.2.1]heptan-2-yl)thiourea (55)
Following General Procedure 6 compound 55 was prepared from diamine 22c
1.93 mmol, 22c:23c = 4.6:1), Et2O (5 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (335 µ
/
23c (460 mg,
L, 1.80
mmol, 98%); purified by CC (Et2O:Et3N = 50:1). Yield: 207 mg (0.405 mmol, 21%) of yellow solid; mp =
52–55 ◦C. [α]2D0
= 39.5 (c = 0.44, CH2Cl2). CHN analysis for C23H29F6N3OS requires: C, 54.21; H, 5.74;
−
N, 8.25 and found: C, 53.95; H, 5.75; N, 7.95. EI-HRMS: m/z = 510.2010 (MH+); C23H30F6N3OS requires:
m/z = 510.2008 (MH+). νmax 3194, 2959, 2882, 2854, 2818, 1619, 1507, 1469, 1375, 1349, 1318, 1276, 1171,
1118, 1068, 1051, 1034, 1006, 993, 977, 964, 944, 931, 910, 885, 864, 802, 730, 701, 681, 653, 619 cm−1
.
1H-NMR (500 MHz, DMSO-d6):
1.55–1.66 (m, 2H); 1.70–1.83 (m, 2H); 2.27–2.45 (m, 7H); 3.39–3.50 (m, 4H); 4.62 (br s, 1H); 7.73 (s, 1H, 1H
of Ar); 8.16 (br s, 1H); 8.31 (s, 2H, 2H of Ar); 10.25 (br s, 1H). 13C-NMR (126 MHz, DMSO-d6):
19.3,
δ 0.91 (s, 3H, Me); 0.89–0.94 (m, 1H); 0.98 (s, 3H, Me); 1.19–1.32 (m, 1H);
δ
20.0, 25.5, 27.6, 37.2, 44.6, 47.9, 51.6, 55.4, 57.2, 59.2, 66.4, 115.8, 121.1, 123.26 (q, J = 273 Hz), 130.28 (q, J
= 32 Hz), 142.0, 180.2.
3.3.9. Synthesis of 1-(3,5-Bis(trifluoromethyl)phenyl)-3-((1R,2S,4R)-1-((dimethylamino)methyl)-7,7-
dimethylbicyclo[2.2.1]heptan-2-yl)thiourea (56)
Prepared from diamine 22d
3,5-bis(trifluoromethyl)benzene (274
CC (1. Et3N:Et2O:petroleum ether = 1:6:25 for the elution of nonpolar impurities; 2. Et3N:Et2O = 1:5
for the elution of product 56). Yield: 538 mg (1.15 mmol, 73%) of yellow solid; mp = 61–68 ◦C. [α]D20
/
23d (310 mg, 1.58 mmol, 22d:23d = 2.8:1), Et2O (3 mL), 1-isothiocyanato-
µL, 1.47 mmol, 98%) following General Procedure 6. Purified by
=
−
70.8 (c = 0.37, CH2Cl2). CHN analysis for C21H27F6N3S requires: C, 53.95; H, 5.82; N, 8.99 and found:
C, 54.00; H, 5.91; N, 8.79. EI-HRMS: m/z = 468.1903 (MH+); C21H28F6N3S requires: m/z = 468.1903
(MH+). νmax 3412, 3205, 2954, 2882, 2830, 2783, 1600, 1516, 1470, 1375, 1322, 1274, 1216, 1169, 1124,
1034, 1016, 1001, 980, 942, 880, 846, 833, 726, 699, 681, 620 cm−1. H-NMR (500 MHz, DMSO-d6):
1
δ 0.89
(s, 3H, Me); 0.95 (s, 3H, Me); 1.03 (br s, 1H); 1.11–1.39 (m, 1H); 1.52–1.84 (m, 4H); 2.00–2.43 (m, 9H); 4.51
(s, 1H); 7.71 (s, 1H); 7.89–8.89 (m, 3H); 10.29 (s, 1H). 13C-NMR (126 MHz, DMSO-d6):
δ
19.18, 20.02,
25.19, 27.46, 33.41, 37.16, 44.49, 47.83, 51.66, 57.84, 60.25, 115.67, 121.26, 123.22 (q, J = 272.8 Hz), 130.22
(m), 141.85, 180.39.
3.3.10. Synthesis of 1-(tert-butyl)-3-((1R,2S,4R)-7,7-dimethyl-1-(pyrrolidin-1-ylmethyl)bicyclo-
[2.2.1]heptan-2-yl)thiourea (57)
Using General Procedure 6 this substance was prepared from diamine 22a (50 mg, 0.225 mmol),
Et2O (1 mL), 2-isothiocyanato-2-methylpropane (28 µL, 0.214 mmol); purified by CC (Et2O:MeOH:Et3N
= 100:1:1). Yield: 56 mg (0.1665 mmol, 74%) of colorless solid; mp = 40–42 ◦C. [α]D20
= 167.0 (c = 0.12,
−
CH2Cl2). EI-HRMS: m/z = 338.2626 (MH+); C19H36N3S requires: m/z = 338.2624 (MH+). νmax 3274,
2956, 2876, 2803, 1517, 1477, 1459, 1390, 1336, 1309, 1274, 1251, 1225, 1197, 1110, 1069, 1034, 1000, 966,
1
940, 921, 908, 873, 780, 763, 701, 657, 609 cm−1. H-NMR (500 MHz, DMSO-d6):
δ 0.70–0.78 (m, 1H); 0.89
(s, 3H, Me); 0.93 (s, 3H, Me); 1.10–1.21 (m, 1H); 1.40 (s, 9H, Boc); 1.47–1.58 (m, 2H); 1.58–1.67 (m, 4H);
1.66–1.75 (m, 2H); 2.22–2.32 (m, 1H); 2.33–2.54 (m, 6H); 4.48 (br s, 1H); 7.17 (br s, 1H); 7.25 (s, 1H).
13C-NMR (126 MHz, DMSO-d6):
δ 19.3, 20.1, 23.7, 25.6, 27.7, 29.0, 38.1, 44.7, 48.0, 51.7, 51.9, 55.9, 56.3,
56.4, 181.7.

Molecules 2020, 25, 2978
16 of 22
3.3.11. Synthesis of 1-(Adamantan-1-yl)-3-((1R,2S,4R)-7,7-dimethyl-1-(pyrrolidin-1-ylmethyl)-
bicyclo[2.2.1]heptan-2-yl)thiourea (58)
Following General Procedure 6 this compound was prepared from diamine 22a (47 mg, 0.211 mmol),
Et2O (2 mL), 1-isothiocyanatoadamantane (39 mg, 0.200 mmol); purified by CC (Et2O:MeOH:Et3N =
100:1:1). Yield: 57 mg (0.137 mmol, 65%) of colorless solid; mp = 144–145 ◦C. [α]D20
= 58.7 (c = 0.2,
−
CH2Cl2). EI-HRMS: m/z = 416.3095 (MH+); C25H42N3S requires: m/z = 416.3094 (MH+). νmax 3234,
2904, 2850, 2788, 1505, 1453, 1358, 1339, 1305, 1278, 1224, 1189, 1115, 1092, 1068, 1051, 1038, 939, 875, 841,
1
775, 624 cm−1. H-NMR (500 MHz, DMSO-d6):
δ 0.68–0.78 (m, 1H); 0.88 (s, 3H, Me); 0.93 (s, 3H, Me);
1.11–1.21 (m, 1H); 1.53 (q, J = 5.6, 4.3 Hz, 2H); 1.58–1.66 (m, 11H); 1.66–1.74 (m, 2H); 1.98–2.05 (m, 3H);
2.09–2.17 (m, 6H); 2.21–2.31 (m, 1H); 2.35–2.49 (m, 5H); 4.47 (br s, 1H); 7.09–7.21 (m, 2H). 13C-NMR
(126 MHz, DMSO-d6):
δ 19.3, 20.2, 23.8, 25.7, 27.8, 29.0, 36.1, 38.1, 41.3, 44.7, 45.7, 48.0, 51.8, 52.5, 56.0,
56.5, 64.9, 181.0.
3.3.12. Synthesis of 1-(3,5-bis(trifluoromethyl)phenyl)-3-(((1R,2S,4R)-7,7-dimethyl-2-(pyrrolidin-1-yl)
bicyclo[2.2.1]heptan-1-yl)methyl)thiourea (59)
Prepared from diamine 34 (248 mg, 1.115 mmol), Et2O (2.5 mL), 1-isothiocyanato-3,5-
bis(trifluoromethyl)benzene (186
µL, 1.00 mmol, 98%) following General Procedure 6. Purified
by CC (Et3N:EtOAc:petroleum ether = 1:1:20). Yield: 396 mg (0.803 mmol, 72%) of yellow solid; mp =
53–57 ◦C. [α]2D0
=
21.1 (c = 0.25, CH2Cl2). EI-HRMS: m/z = 494.2063 (MH+); C23H30F6N3S requires:
−
m/z = 494.2059 (MH+). νmax 3141, 2953, 2880, 2819, 1667, 1619, 1521, 1466, 1374, 1274, 1171, 1128, 1106,
947, 884, 849, 701, 680, 650 cm−1. H-NMR (600 MHz, DMSO-d6):
δ 0.95 (s, 3H, Me); 0.98 (s, 3H, Me);
1
1.14–1.23 (m, 2H); 1.33–1.41 (m, 1H); 1.48–1.54 (m, 1H); 1.56–1.67 (m, 4H); 1.68–1.76 (m, 1H); 1.92–2.05
(m, 2H); 2.42–2.61 (m, 4H); 2.73–2.78 (m, 1H); 3.51 (dd, J = 3.5; 14.4 Hz, 1H); 3.93 (dd, J = 5.1; 15.0 Hz,
1H); 7.73 (s, 1H, 1H of Ar); 7.87 (br s, 1H, NH); 8.32 (s, 2H, 2H of Ar); 10.29 (br s, 1H, NH). 13C-NMR
(151 MHz, DMSO-d6):
δ 19.6, 20.5, 22.9, 24.9, 27.9, 34.9, 45.0, 45.3, 48.8, 51.6, 53.0, 65.4, 115.9, 121.3,
123.23 (q, J = 273 Hz), 130.25 (q, J = 33 Hz), 141.9, 180.0.
3.3.13. Synthesis of 1-(3,5-bis(trifluoromethyl)phenyl)-3-(((1R,2R,4R)-7,7-dimethyl-2-(pyrrolidin-1-yl)
bicyclo[2.2.1]heptan-1-yl)methyl)thiourea (60)
Following General Procedure 6 the title compound was prepared from diamine 33 (143 mg, 0.643
mmol), Et2O (2.5 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (108
µL, 0.580 mmol, 98%);
purified by CC (Et3N:Et2O:petroleum ether = 1:20:20). Yield: 175 mg (0.345 mmol, 55%) of yellow solid;
mp = 53–55 ◦C. [α]D20
= 47.8 (c = 0.24, CH2Cl2). CHN analysis for C23H29F6N3S requires: C, 55.97;
−
H, 5.92; N, 8.51 and found: C, 55.77; H, 6.14; N, 8.14. EI-HRMS: m/z = 494.2061 (MH+); C23H30F6N3S
requires: m/z = 494.2059 (MH+). νmax 3144, 2953, 2877, 2815, 1667, 1508, 1468, 1376, 1274, 1171, 1128,
947, 884, 848, 720, 701, 681, 649 cm−1. H-NMR (600 MHz, DMSO-d6):
1
δ 0.89 (s, 3H, Me); 1.05–1.15
(m, 1H); 1.14 (s, 3H, Me); 1.17–1.27 (m, 1H); 1.47–1.59 (m, 6H); 1.58–1.64 (m, 1H); 1.66–1.75 (m, 1H);
1.92–2.01 (m, 1H); 2.37–2.54 (m, 5H); 3.45 (dd, J = 3.1; 14.2 Hz, 1H); 3.78 (dd, J = 5.0; 14.2 Hz, 1H); 7.74
(s, 1H, 1H of Ar); 8.06 (br s, 1H); 8.33 (s, 2H, 2H of Ar); 10.32 (br s, 1H). 13C-NMR (151 MHz, DMSO-d6):
δ
20.7, 20.9, 22.8, 26.5, 33.0, 35.6, 45.2, 45.5, 47.1, 50.9, 52.9, 72.2, 116.0, 121.5, 123.22 (q, J = 273 Hz),
130.26 (q, J = 33 Hz), 141.8, 180.0.
3.3.14. Synthesis of 1-(3,5-bis(trifluoromethyl)phenyl)-3-((1S,2S,4R)-7,7-dimethyl-1-
(2-(pyrrolidin-1-yl)ethyl)bicyclo[2.2.1]heptan-2-yl)thiourea (61)
Following General Procedure 6. Prepared from diamine 38 (25 mg, 0.106 mmol), Et2O
(2.5 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (18.6
(1. Et3N:Et2O:petroleum ether = 1:6:25 for the elution of nonpolar impurities; 2. Et3N:Et2O = 1:5 for the
elution of product 61). Yield: 49 mg (0.0954 mmol, 90%) of yellow solid; mp = 66–70 ◦C. [α]D20
16.1
µL, 0.10 mmol, 98%); purified by CC
=
−
(c = 0.18, CH2Cl2). CHN analysis for C24H31F6N3S requires: C, 56.79; H, 6.16; N, 8.28 and found: C,
56.48; H, 6.21; N, 8.00. EI-HRMS: m/z = 508.2224 (MH+); C24H32F6N3S requires: m/z = 508.2216 (MH+).

Molecules 2020, 25, 2978
17 of 22
νmax 3178, 3142, 2959, 2880, 2808, 1618, 1533, 1468, 1375, 1346, 1274, 1171, 1129, 882, 701, 681, 655, 620
1
cm−1. H-NMR (500 MHz, DMSO-d6):
δ 0.88 (s, 3H, Me); 0.90–0.98 (m, 1H); 0.94 (s, 3H, Me); 1.20–1.30
(m, 1H); 1.40–1.59 (m, 7H); 1.64 (s, 1H); 1.69–1.80 (m, 2H); 2.28–2.46 (m, 7H); 4.53 (br s, 1H); 7.71 (s, 1H);
8.22 (s, 2H); 8.74 (br s, 1H); 10.08 (br s, 1H). 13C-NMR (126 MHz, DMSO-d6):
δ
18.9, 19.9, 22.8, 25.7,
27.7, 28.9, 44.4, 45.7, 48.8, 51.0, 52.8, 53.4, 58.3, 115.5, 120.8, 123.22 (q, J = 273 Hz), 130.29 (q, J = 32 Hz)
,
142.2, 180.6.
3.3.15. Synthesis of 1-(3,5-bis(trifluoromethyl)phenyl)-3-(2-((1S,2R,4R)-7,7-dimethyl-2-
(pyrrolidin-1-yl)bicyclo[2.2.1]heptan-1-yl)ethyl)thiourea (62)
Following General Procedure 6 this compound was prepared from diamine 46 (100 mg, 0.423 mmol),
Et2O (2.5 mL), 1-isothiocyanato-3,5-bis(trifluoromethyl)benzene (74.5 L, 0.400 mmol, 98%); purified
by CC (EtOAc:MeOH = 10:1). Yield: 103 mg (0.203 mmol, 48%) of colorless solid; mp = 60–62 ◦C [α]D20
µ
.
=
40.3 (c = 0.12, CH2Cl2). EI-HRMS: m/z = 508.2215 (MH+); C24H32F6N3S requires: m/z = 508.2216
−
(MH+). νmax 3238, 2951, 2878, 2815, 1676, 1622, 1546, 1471, 1380, 1348, 1276, 1172, 1130 999, 946, 884,
1
847, 724, 701, 680 cm−1. H-NMR (500 MHz, DMSO-d6):
δ 0.83 (s, 3H, Me); 1.02 (s, 3H, Me); 0.97–1.15
(m, 2H); 1.39–1.52 (m, 1H); 1.52–1.72 (m, 8H); 1.72–1.86 (m, 1H); 1.87–1.97 (m, 1H); 2.21–2.35 (m, 1H);
2.42–2.63 (m, 4H); 3.44–3.70 (m, 2H); 7.72 (s, 1H); 8.25 (s, 2H); 8.40 (s, 1H, NH); 10.03 (br s, 1H, NH).
13C-NMR (126 MHz, DMSO-d6):
δ 20.0, 21.3, 22.9, 26.7, 26.9, 32.6, 35.9, 41.5, 44.3, 47.7, 51.2, 53.4, 72.4,
115.8, 121.6, 123.28 (q, J = 273 Hz), 130.11 (q, J = 34 Hz), 142.1, 180.2.
3.3.16. Synthesis of 1-(3,5-bis(trifluoromethyl)phenyl)-3-(2-((1S,2S,4R)-7,7-dimethyl-2-(pyrrolidin-
1-yl)bicyclo[2.2.1]heptan-1-yl)ethyl)thiourea (63)
Prepared from diamine 47 (189 mg, 0.80 mmol), Et2O (2.5 mL), 1-isothiocyanato-3,5-bis
(trifluoromethyl)benzene (152 µL, 0.80 mmol, 98%) following General Procedure 6 and purified by
CC (Et3N:EtOAc:MeOH = 0.2:20:1). Yield: 95 mg (0.187 mmol, 23%) of colorless solid; mp = 47–48 ◦C
.
[α]2D0 = +49.3 (c = 0.28, CH2Cl2). EI-HRMS: m/z = 508.2210 (MH+); C24H32F6N3S requires: m/z =
508.2216 (MH+). νmax 3241, 2946, 2879, 2808, 1620, 1541, 1376, 1344, 1273, 1169, 1125, 999, 947, 882,
1
847, 725, 700, 680 cm−1. H-NMR (500 MHz, DMSO-d6):
δ 0.94 (s, 3H, Me); 1.00 (s, 3H, Me); 1.08–1.14
(m, 1H); 1.14–1.20 (m, 1H); 1.29–1.38 (m, 1H); 1.45–1.50 (m, 1H); 1.59–1.76 (m, 7H); 1.86–1.94 (m, 1H);
1.94–2.02 (m, 1H); 2.52–2.71 (m, 6H); 3.60 (br s, 1H); 7.70 (s, 1H); 8.21 (s, 2H); 8.40 (br s, 1H, NH); 9.99
(
br s, 1H, NH). 13C-NMR (126 MHz, DMSO-d6):
δ 20.1, 20.6, 22.9, 26.2, 28.1, 29.8, 35.5, 41.2, 45.1, 49.6,
50.5, 53.2, 66.8, 115.8, 121.8, 123.28 (q, J = 273 Hz), 130.11 (q, J = 33 Hz), 142.1, 180.2.
4. Conclusions
Starting from two commercial building blocks, (1S)-(+)-10-camphorsulfonic acid (for the
preparation of 10-iodocamphor (18)) and (1S)-(+)-ketopinic acid (1), a series of 18 camphor-derived 1,2-,
1,3-, and 1,4-diamines (both regioisomers; exo- and endo-epimers) have been synthesized. The applied
synthetic methods are robust and structural diversity-oriented – they enable the preparation of both
diastereomers (exo and endo) as well as both regioisomers of each type of diamine. Amines have been
transformed with selected isothiocyanates into the corresponding noncovalent bifunctional thiourea
organocatalysts (16 compounds), which have been evaluated for the Michael addition of dimethyl
malonate, acetylacetone, and/or dibenzoylmethane to trans-β-nitrostyrene. The highest selectivity
was achieved with the endo-1,3-diamine derived catalyst 52 (91.5:8.5 er (S), full conversion), while the
corresponding exo-1,3-diamine-derived catalyst of 53, gave the same product with complementary
selectivity (82:18% er (R), 63% conversion). The preference of the 1,3-diamine derived organocatalysts
versus the 1,2- and 1,4-diamine-derived organocatalysts needs to be further investigated mechanistically,
both experimentally and theoretically (mechanistic model of activation [20
the transition state). After all, most of the established efficient organocatalysts are derivatives of
1,2-diamnies [20 45], while efficient 1,3-diamine derived organocatalysts are extremely rare [43 77 81].
The performance of the reported camphor-derived noncovalent, bifunctional, thiourea organocatalysts
,74–76], geometry of
,
,
–

Molecules 2020, 25, 2978
18 of 22
has so far not matched the efficiency of the established organocatalysts of this type [20
,
45]. The reported
organocatalyst need to be evaluated further in various other organocatalyzed transformations,
while their diamine precursors will be transformed into other types of organocatalysts and evaluated
in selected model organocatalyzed transformations to acquire a bigger picture of their efficiency
in comparison to already established catalysts [20
fully characterized including the determination of the absolute configuration at the newly formed
stereogenic center. In terms of structure, camphor-derived diamines 48 63 cover the representative
,45]. All the new organocatalysts have been
–
part of (regio and stereo) chemical space allocated to camphor-based 1,2-, 1,3-, and 1,4-diamines. With
regard to accessibility, synthetic methods reported in this paper allow for straightforward access to the
title nonracemic diamines, which are very useful building blocks for the preparation of a different kind
of nonracemic organocatalysts and ligands for the use in transition-metal catalysis.
Supplementary Materials: The following are available online. Synthesis and Characterization Data for
Compounds 2–17, 20b–d, 21b–d, 22b–d, 23b–d, and 24–63; Structure Determination by NMR, Figure S1:
Determination of the absolute configuration at the C-2 based on the observed NOE correlation spectroscopy cross
peaks, Figure S2: Determination of the absolute configuration at C-2 based on chemical shift correlations in the
series of primary endo-amines; Structure Determination by X-ray Diffraction Analysis, Figures S3–S11: Ortep
drawings of compounds 8, 18, 21a, 22a, 24, 28, 29, 37, and 52.
Author Contributions: Conceptualization, U.G., S.R., J.S., F.P. and B.Š.; methodology, U.G. and S.R.; software, U.G.,
S.R., J.S., F.P. and B.Š.; validation, U.G., S.R., J.S., F.P. and B.Š.; formal analysis, U.G. and S.R.; investigation, S.R. and
U.G.; resources, U.G., S.R. and J.S.; data curation, U.G., S.R., A.G., J.S., S.R., F.P. and B.Š.; writing—original draft
preparation, U.G., S.R., J.S., A.G., F.P. and B.Š.; writing—review and editing, U.G., J.S., F.P. and B.Š.; visualization,
U.G. and J.S.; supervision, U.G.; project administration, U.G. and J.S.; funding acquisition, J.S., U.G., F.P. and B.Š.
All authors have read and agreed to the published version of the manuscript.
Funding: This research was funded by the Slovenian Research Agency through grants P1-0179 and P1-0175.
Acknowledgments: We thank EN-FIST Centre of Excellence, Trg Osvobodilne fronte 13, 1000 Ljubljana, Slovenia,
for using BX FTIR spectrophotometer and Agilent 1260 Infinity HPLC system.
Conflicts of Interest: The authors declare no conflict of interest.
References and Notes
1.
2.
3.
4.
5.
Meerwein, H. Über den Reaktionsmechanismus der Umwandlung von Borneol in Camphen; [Dritte
Mitteilung über Pinakolinumlagerungen.]. Justus Liebigs Ann. Chem. 1914, 405, 129–175. [CrossRef]
Hanson, J.R. Wagner-Meerwein rearrangements. In Comprehensive Organic Synthesis; Trost, B.M., Fleming, I.,
Eds.; Pergamon: Oxford, UK, 1991; Volume 3, pp. 705–719.
Money, T. Remote functionalization of camphor: Application to natural product synthesis. Org. Synth.
Theory Appl. 1996, 3, 1–83.
Money, T. Camphor: A chiral starting material in natural product synthesis. Nat. Prod. Rep. 1985, 2, 253–289.
[CrossRef] [PubMed]
Holton, R.A.; Somoza, C.; Kim, H.-B.; Liang, F.; Biediger, R.J.; Boatman, P.D.; Shindo, M.; Smith, C.C.; Kim, S.;
Nadizadeh, H.; et al. The Total Synthesis of Paclitaxel Starting with Camphor. ACS Symp. Ser. 1995, 583,
288–301.
6.
7.
8.
9.
Nicolaou, K.C.; Yang, Z.; Liu, J.J.; Ueno, H.; Nantermet, P.G.; Guy, R.K.; Claiborne, C.F.; Renaud, J.;
Couladouros, E.A.; Paulvannan, K.; et al. Total synthesis of taxol. Nature 1994, 367, 630–634. [CrossRef]
Oppolzer, W. Camphor derivatives as chiral auxiliaries in asymmetric synthesis. Tetrahedron 1987, 43,
1969–2004. [CrossRef]
Oppolzer, W. Camphor as a natural source of chirality in asymmetric synthesis. Pure Appl. Chem. 1990, 62,
1241–1250. [CrossRef]
Kitamura, M.; Suga, S.; Kawai, K.; Noyori, R. Catalytic asymmetric induction. Highly enantioselective
addition of dialkylzincs to aldehydes. J. Am. Chem. Soc. 1986, 108, 6071–6072. [CrossRef]
10. Nugent, W.A. MIB: An advantageous alternative to DAIB for the addition of organozinc reagents to aldehydes.
Chem. Commun. 1999, 1369–1370. [CrossRef]
11. Stereoselective Organocatalysis; Rios, R. (Ed.) John Wiley & Sons: Hoboken, NJ, USA, 2013.

Molecules 2020, 25, 2978
19 of 22
12. Jakab, G.; Schreiner, P.R. Brønsted Acids: Chiral (Thio)urea Derivatives In Comprehensive Enantioselective
Organocatalysis; Dalko, P.I., Ed.; Wiley-VCH: Weinheim, Germany, 2013; pp. 315–342.
13. Grošelj, U. Camphor-Derivatives in Asymmetric Organocatalysis–Synthesis and Application. Curr. Org.
Chem. 2015, 19, 2048–2074. [CrossRef]
14. Grošelj, U. Camphor-derived heterocycles syntheses and potential applications. Targets Heterocycl. Syst.
2015, 19, 62–100.
15. Rajaram, S.; Sigman, M.S. Design of Hydrogen Bond Catalysts Based on a Modular Oxazoline Template:
Application to an Enantioselective Hetero Diels
[PubMed]
−
Alder Reaction. Org. Lett. 2005, 7, 5473–5475. [CrossRef]
16. List, B.; Lerner, R.A.; Barbas III, C.F. Proline-Catalyzed Direct Asymmetric Aldol Reactions. J. Am. Chem. Soc.
2000, 122, 2395–2396. [CrossRef]
17. Ahrendt, K.A.; Borths, C.J.; MacMillan, D.W.C. New Strategies for Organic Catalysis: The First Highly
Enantioselective Organocatalytic Diels-Alder Reaction. J. Am. Chem. Soc. 2000, 122, 4243–4244. [CrossRef]
18. Sigman, M.S.; Jacobsen, E.N. Schiff Base Catalysts for the Asymmetric Strecker Reaction Identified and
Optimized from Parallel Synthetic Libraries. J. Am. Chem. Soc. 1998, 120, 4901–4902. [CrossRef]
19. Sigman, M.S.; Vachal, P.; Jacobsen, E.N. A general catalyst for the asymmetric Strecker reaction. Angew.
Chem. Int. Ed. 2000, 39, 1279–1281. [CrossRef]
20. Okino, T.; Hoashi, Y.; Takemoto, Y. Enantioselective Michael Reaction of Malonates to Nitroolefins Catalyzed
by Bifunctional Organocatalysts. J. Am. Chem. Soc. 2003, 125, 12672–12673. [CrossRef] [PubMed]
21. Enders, D.; Kallfass, U. An efficient nucleophilic carbene catalyst for the asymmetric benzoin condensation.
Angew. Chem. Int. Ed. 2002, 41, 1743–1745. [CrossRef]
22. Reddy, R.J.; Kuan, H.-H.; Chou, T.-Y.; Chen, K. Novel Prolinamide-Camphor-Containing Organocatalysts
for Direct Asymmetric Michael Addition of Unmodified Aldehydes to Nitroalkenes. Chem. Eur. J. 2009, 15,
9294–9298. [CrossRef]
23. Chang, C.; Li, S.-H.; Reddy, R.J.; Chen, K. Pyrrolidine-Camphor Derivative as an Organocatalyst for
Asymmetic Michael Additions of
α,α-Disubstituted Aldehydes to β-Nitroalkenes: Construction of
Quaternary Carbon-Bearing Aldehydes under Solvent-Free Conditions. Adv. Synth. Catal. 2009, 351,
1273–1278. [CrossRef]
24. Ting, Y.-F.; Chang, C.; Reddy, R.J.; Magar, D.R.; Chen, K. Pyrrolidinyl–Camphor Derivatives as a New Class
of Organocatalyst for Direct Asymmetric Michael Addition of Aldehydes and Ketones to β-Nitroalkenes.
Chem. Eur. J. 2010, 16, 7030–7038. [CrossRef] [PubMed]
25. Tzeng, Z.-H.; Chen, H.-Y.; Reddy, R.J.; Huang, C.-T.; Chen, K. Highly diastereo- and enantioselective direct
aldol reactions promoted by water-compatible organocatalysts bearing a pyrrolidinyl-camphor structural
scaffold. Tetrahedron 2009, 65, 2879–2888. [CrossRef]
26. Bellis, E.; Kokotos, G. 4-Substituted prolines as organocatalysts for aldol reactions. Tetrahedron 2005, 61,
8669–8676. [CrossRef]
27. Liu, P.-M.; Chang, C.; Reddy, R.J.; Ting, Y.-F.; Kuan, H.-H.; Chen, K. Remarkable Reaction Rate
and Excellent Enantioselective Direct α-Amination of Aldehydes with Azodicarboxylates Catalyzed by
Pyrrolidinylcamphor-Derived Organocatalysts. Eur. J. Org. Chem. 2010, 42–46. [CrossRef]
28. Chen, Y.-m.; Lee, P.-H.; Lin, J.; Chen, K. Desymmetrization and Switching of Stereoselectivity in Direct
Organocatalytic Michael Addition of Ketones to 1,1-Bis(phenylsulfonyl)ethylene. Eur. J. Org. Chem. 2013
2013, 2699–2707. [CrossRef]
,
29. Zhou, Y.; Liu, Q.; Gong, Y. Camphor-derived C1-symmetric chiral diamine organocatalysts for asymmetric
Michael addition of nitroalkanes to enones. Org. Biomol. Chem. 2012, 10, 7618–7627. [CrossRef]
30. Lemay, M.; Ogilvie, W.W. Aqueous Enantioselective Organocatalytic Diels Alder Reactions Employing
−
Hydrazide Catalysts. A New Scaffold for Organic Acceleration. Org. Lett. 2005, 7, 4141–4144. [CrossRef]
31. He, H.; Pei, B.-J.; Chou, H.-H.; Tian, T.; Chan, W.-H.; Lee, A.W.M. Camphor Sulfonyl Hydrazines (CaSH) as
Organocatalysts in Enantioselective Diels−Alder Reactions. Org. Lett. 2008, 10, 2421–2424. [CrossRef]
32. Li, Q.; Wong, W.-Y.; Chan, W.-H.; Lee, A.W.M. Second Generation CaSH (Camphor Sulfonyl Hydrazine)
Organocatalysis. Asymmetric Diels–Alder Reactions and Isolation of the Catalytic Intermediate. Adv. Synth.
Catal. 2010, 352, 2142–2146. [CrossRef]
33. Li, Y.; Feng, Z.; You, S.-L. D-Camphor-derived triazolium salts for catalytic intramolecular crossed
aldehyde–ketone benzoin reactions. Chem. Commun. 2008, 2263–2265. [CrossRef]

Molecules 2020, 25, 2978
20 of 22
34. Li, Y.; Wang, X.-Q.; Zheng, C.; You, S.-L. Highly enantioselective intramolecular Michael reactions by
D-camphor-derived triazolium salts. Chem. Commun. 2009, 5823–5825. [CrossRef]
35. Rong, Z.-Q.; Jia, M.-Q.; You, S.-L. Enantioselective N-Heterocyclic Carbene-Catalyzed Michael Addition to
α,β-Unsaturated Aldehydes by Redox Oxidation. Org. Lett. 2011, 13, 4080–4083. [CrossRef] [PubMed]
36. Jia, M.-Q.; You, S.-L. N-Heterocyclic Carbene-Catalyzed Enantioselective Intramolecular N-Tethered
Aldehyde–Ketone Benzoin Reactions. ACS Catal. 2013, 3, 622–624. [CrossRef]
37. Jia, M.-Q.; You, S.-L. Desymmetrization of Cyclohexadienones via Intramolecular Stetter Reaction to Construct
Tricyclic Carbocycles. Synlett 2013, 24, 1201–1204. [CrossRef]
38. Rong, Z.-Q.; Li, Y.; Yang, G.-Q.; You, S.-L. D-Camphor-Derived Triazolium Salts for Enantioselective
Intramolecular Stetter Reactions. Synlett 2011, 1033–1037.
39. Rafin´ski, Z.; Kozakiewicz, A. Enantioselective Synthesis of Chromanones Bearing Quaternary Substituted
Stereocenters Catalyzed by (1R)-Camphor-Derived N-Heterocyclic Carbenes. J. Org. Chem. 2015, 80,
7468–7476. [CrossRef]
40. Grošelj, U.; Ricˇko, S.; Svete, J.; Stanovnik, B. Synthesis of 2-(3-(3,5-Bis(trifluoromethyl)phenyl)thioureido)-
3-((dimethylamino)methyl)camphor Organocatalysts. Chirality 2012, 24, 412–419. [CrossRef]
41. Grošelj, U.; Sevšek, A.; Ricˇko, S.; Golobicˇ, A.; Svete, J.; Stanovnik, B. Synthesis and Structural Characterization
of Novel Camphor-derived Amines. Chirality 2012, 24, 778–788. [CrossRef]
42. Ricˇko, S.; Golobicˇ, A.; Svete, J.; Stanovnik, B.; Grošelj, U. Synthesis of Novel Camphor-Derived Bifunctional
Thiourea Organocatalysts. Chirality 2015, 27, 39–52. [CrossRef]
43. Ricˇko, S.; Svete, J.; Štefane, B.; Perdih, A.; Golobicˇ, A.; Meden, A.; Grošelj, U. 1,3-Diamine-Derived Bifunctional
Organocatalyst Prepared from Camphor. Adv. Synth. Catal. 2016, 358, 3786–3796. [CrossRef]
44. Ricˇko, S.; Meden, A.; Ivancˇicˇ, A.; Perdih, A.; Štefane, B.; Svete, J.; Grošelj, U. Organocatalyzed Deracemization
of ∆2-Pyrrolin-4-ones. Adv. Synth. Catal. 2017, 359, 2288–2296. [CrossRef]
45. Malerich, J.P.; Hagihara, K.; Rawal, V.H. Chiral Squaramide Derivatives are Excellent Hydrogen Bond Donor
Catalysts. J. Am. Chem. Soc. 2008, 130, 14416–14417. [CrossRef] [PubMed]
46. Peng, F.-Z.; Shao, Z.-H.; Fan, B.-M.; Song, H.; Li, G.-P.; Zhang, H.-B. Organocatalytic Enantioselective Michael
Addition of 2,4-Pentanedione to Nitroalkenes Promoted by Bifunctional Thioureas with Central and Axial
Chiral Elements. J. Org. Chem. 2008, 73, 5202–5205. [CrossRef]
47. Almas¸i, D.; Alonso, D.A.; Gómez-Bengoa, E.; Nájera, C. Chiral 2-Aminobenzimidazoles as Recoverable
Organocatalysts for the Addition of 1,3-Dicarbonyl Compounds to Nitroalkenes. J. Org. Chem. 2009, 74,
6163–6168. [CrossRef] [PubMed]
48. Zhang, L.; Lee, M.-M.; Lee, S.-M.; Lee, J.; Cheng, M.; Jeong, B.-S.; Park, H.-g.; Jew, S.-s. Novel cinchona-
aminobenzimidazole bifunctional organocatalyst. Adv. Synth. Catal. 2009, 351, 3063–3066. [CrossRef]
49. Ashokkumar, V.; Siva, A. Cinchona alkaloid-based chiral catalysts act as highly efficient multifunctional
organocatalysts for the asymmetric conjugate addition of malonates to nitroolefins. Org. Biomol. Chem. 2015
13, 10216–10225. [CrossRef] [PubMed]
,
50. Bae, H.Y.; Song, C.E. Unprecedented Hydrophobic Amplification in Noncovalent Organocatalysis “on Water”:
Hydrophobic Chiral Squaramide Catalyzed Michael Addition of Malonates to Nitroalkenes. ACS Catal.
2015, 5, 3613–3619. [CrossRef]
51. Jim
Hern
Catalytic Performance in Michael Additions. J. Org. Chem. 2016, 81, 7419–7431. [CrossRef]
52. Veverkov , E.; Bilka, S.; Baran, R.; Šebesta, R. Squaramide-Catalyzed Michael Addition as a Key Step for the
Direct Synthesis of GABAergic Drugs. Synthesis 2016, 48, 1474–1482.
guez, D.R.; Guillena, G.; Alonso, D.A. Chiral 2-Aminobenzimidazoles in Deep Eutectic Mixtures: Recyclable
é
nez, E.I.; Vallejo Narváez, W.E.; Román-Chavarría, C.A.; Vazquez-Chavez, J.; Rocha-Rinza, T.;
á
ndez-Rodr guez, M. Bifunctional Thioureas with
í
α
-Trifluoromethyl or Methyl Groups: Comparison of
á
53.
Ñí
Organocatalysts for the Enantioselective Michael Addition of 1,3-Dicarbonyl Compounds to β-Nitroalkenes.
ACS Sustainable Chem. Eng. 2017, 5, 10649–10656. [CrossRef]
54. Tukhvatshin, R.S.; Kucherenko, A.S.; Nelyubina, Y.V.; Zlotin, S.G. Tertiary Amine-Derived Ionic
Liquid-Supported Squaramide as a Recyclable Organocatalyst for Noncovalent “On Water” Catalysis.
ACS Catal. 2017, 7, 2981–2989. [CrossRef]
55. Bartlett, P.D.; Knox, L.H. DL-Ketopinic acid. Org. Synth. 1965, 45, 55–56.
56. Bartlett, P.D.; Knox, L.H. D,L-10-Camphorsulfonyl chloride. Org. Synth. 1965, 45, 14–16.

Molecules 2020, 25, 2978
21 of 22
57. Spino, C.; Joly, M.-A.; Godbout, C.; Arbour, M. Ti-Catalyzed Reactions of Hindered Isocyanates with Alcohols.
J. Org. Chem. 2005, 70, 6118–6121. [CrossRef] [PubMed]
58. Ishidate, M.; Kawada, A. Cleavage of the camphor ring. V. 7-Hydroxy-π-apocamphane and 1-hydroxy-10-
apocamphor. Pharm. Bull. 1956, 4, 483–486. [CrossRef] [PubMed]
59. Wu, Z.-L.; Wu, H.-L.; Wu, P.-Y.; Uang, B.-J. Asymmetric addition of diethylzinc to aldehydes catalyzed by a
camphor-derived β-amino alcohol. Tetrahedron Asymmetry 2009, 20, 1556–1560. [CrossRef]
60. Grošelj, U.; Golobicˇ, A.; Knez, D.; Hrast, M.; Gobec, S.; Ricˇko, S.; Svete, J. Synthesis and preliminary biological
evaluations of (+)-isocampholenic acid-derived amides. Mol. Diversity 2016, 20, 667–676. [CrossRef]
61. Garcia Martínez, A.; Teso Vilar, E.; Garcia Fraile, A.; de la Moya Cerero, S.; Diaz Oliva, C.; Subramanian, L.R.;
Maichle, C. Synthesis of homochiral cyclopentane derivatives by Beckmann fragmentation of 1-substituted
2-norbornanones. Tetrahedron Asymmetry 1994, 5, 949–954. [CrossRef]
62. Garcia Martínez, A.; Teso Vilar, E.; Garcia Fraile, A.; de la Moya Cerero, S.; Ruiz, P.M.; Subramanian, L.R.
Synthesis of homochiral 3-substituted cyclopentanones from 2-norbornanones. Tetrahedron Asymmetry 1996
7, 2177–2180. [CrossRef]
,
63. Free amine could not be isolated in pure form. The crude amine obtained upon reduction of the respective
oxime was subsequently transformed with 3,5-bis(trifluoromethyl)phenylisothiocyanate into isolable pure
thiourea derivative.
64. The crude compound obtained after given workup was used in the following transformation without
further purification.
65. Garc
access to 10-N-substituted camphors. Tetrahedron 2005, 61, 599–601. [CrossRef]
66. Garc a Martinez, A.; de la Moya Cerero, S.; Teso Vilar, E.; Garc a Fraile, A.; Dí
í
a Martinez, A.; Teso Vilar, E.; Garc
í
a Fraile, A.; de la Moya Cerero, S.; D
í
az Morillo, C. Enantiospecific
í
í
az Morillo, C.; de las Casas
Engel, T. First efficient synthesis of enantiopure homoketopinic acid. Lett. Org. Chem. 2007, 4, 123–125.
[CrossRef]
67. Loudon, J.D. Mercury derivatives of camphor. I. The constitution of Reychler’s acid. J. Chem. Soc. 1933
,
823–825. [CrossRef]
68. Schenone, P.; Tasca, A.; Bignardi, G.; Mosti, L. N,N-disubstituted 10-amino-2-exo-bornanols and related
esters. Eur. J. Med. Chem. Chim. Ther. 1975, 10, 412–417.
69. Helliwell, M.; Thomas, E.J.; Townsend, L.A. Synthesis of chiral organotin reagents: Synthesis of
enantiomerically enriched bicyclo[2.2.1]hept-2-yl tin hydrides from camphor. X-ray crystal structures of
(dimethyl)[(1R,2S,4R)-1,7,7-trimethylbicyclo[2.2.1]hept-2-yl]tin chloride and methyl(phenyl)bis[(1R,2S,4R)-
1,7,7-trimethylbicyclo[2.2.1]hept-2-yl]stannane. J. Chem. Soc. Perkin Trans. 2002, 1286–1296.
70. Grošelj, U.; Golobicˇ, A.; Svete, J.; Ricˇko, S. Synthesis and reduction of 10-phthalimidocamphor oxime.
Acta Chim. Slov. 2017, 64, 790–797. [CrossRef]
71. For details see the Supporting Information.
72. Page, P.C.B.; Murrell, V.L.; Limousin, C.; Laffan, D.D.P.; Bethell, D.; Slawin, A.M.Z.; Smith, T.A.D. The first
stable enantiomerically pure chiral N-H oxaziridines: Synthesis and reactivity. J. Org. Chem. 2000, 65,
4204–4207. [CrossRef]
73. Ju, Y.; Varma, R.S. An Efficient and Simple Aqueous N-Heterocyclization of Aniline Derivatives:
Microwave-Assisted Synthesis of N-Aryl Azacycloalkanes. Org. Lett. 2005, 7, 2409–2411. [CrossRef]
74. Okino, T.; Hoashi, Y.; Furukawa, T.; Xu, X.; Takemoto, Y. Enantio- and Diastereoselective Michael Reaction of
1,3-Dicarbonyl Compounds to Nitroolefins Catalyzed by a Bifunctional Thiourea. J. Am. Chem. Soc. 2005
,
127, 119–125. [CrossRef]
75. Hamza, A.; Schubert, G.; Soós, T.; Pápai, I. Theoretical Studies on the Bifunctionality of Chiral Thiourea-Based
Organocatalysts: Competing Routes to C
[CrossRef]
−C Bond Formation. J. Am. Chem. Soc. 2006, 128, 13151–13160.
76. Tan, B.; Lu, Y.; Zeng, X.; Chua, P.J.; Zhong, G. Facile Domino Access to Chiral Bicyclo[3.2.1]octanes and
Discovery of a New Catalytic Activation Mode. Org. Lett. 2010, 12, 2682–2685. [CrossRef]
77. Sohtome, Y.; Shin, B.; Horitsugi, N.; Takagi, R.; Noguchi, K.; Nagasawa, K. Entropy-Controlled
Catalytic Asymmetric 1,4-Type Friedel–Crafts Reaction of Phenols Using Conformationally Flexible
Guanidine/Bisthiourea Organocatalyst. Angew. Chem. Int. Ed. 2010, 49, 7299–7303. [CrossRef] [PubMed]

Molecules 2020, 25, 2978
22 of 22
78. Sohtome, Y.; Horitsugi, N.; Takagi, R.; Nagasawa, K. Enantioselective Phospha-Michael Reaction of
Diphenyl Phosphonate with Nitroolefins Utilizing Conformationally Flexible Guanidinium/Bisthiourea
Organocatalyst: Assembly-State Tunability in Asymmetric Organocatalysis. Adv. Synth. Catal. 2011, 353,
2631–2636. [CrossRef]
79. Yao, W.; Chen, M.; Liu, X.; Jiang, R.; Zhang, S.; Chen, W. Ferrocene as a scaffold for effective bifunctional
amine–thiourea organocatalysts. Catal. Sci. Technol. 2014, 4, 1726–1729. [CrossRef]
80. Ren, X.; He, C.; Feng, Y.; Chai, Y.; Yao, W.; Chen, W.; Zhang, S. Novel ferrocene-based bifunctional
amine–thioureas for asymmetric Michael addition of acetylacetone to nitroolefins. Org. Biomol. Chem. 2015
13, 5054–5060. [CrossRef] [PubMed]
,
81. Wang, W.-H.; Abe, T.; Wang, X.-B.; Kodama, K.; Hirose, T.; Zhang, G.-Y. Self-assembled proline-amino
thioureas as efficient organocatalysts for the asymmetric Michael addition of aldehydes to nitroolefins.
Tetrahedron Asymmetry 2010, 21, 2925–2933. [CrossRef]
Sample Availability: Samples of the compounds 18, 20a–23a, 24, 52, and 53 are available from the authors.
©
2020 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access
article distributed under the terms and conditions of the Creative Commons Attribution
(CC BY) license (http://creativecommons.org/licenses/by/4.0/).
