Formation of Ammonia in the Reactions of a Tungsten Dinitrogen with Ruthenium
Dihydrogen Complexes under Mild Reaction Conditions1
Yoshiaki Nishibayashi,† Shin Takemoto, Shotaro Iwai, and Masanobu Hidai*
Department of Chemistry and Biotechnology, Graduate School of Engineering, The University of Tokyo,
Hongo, Bunkyo-ku, Tokyo 113-8656, Japan
ReceiVed July 17, 2000
Treatment of cis-[W(N2)2(PMe2Ph)4] (5) with an equilibrium mixture of trans-[RuCl(η2-H2)(dppp)2]X (3) with

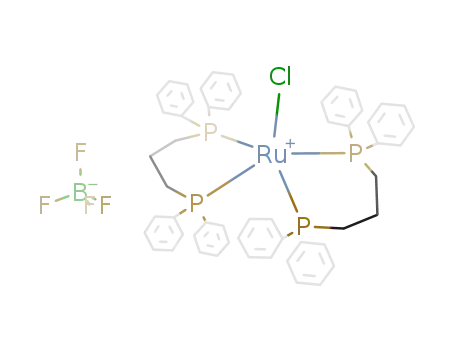

pKa ) 4.4 and [RuCl(dppp)2]X (4) [X ) PF6, BF4, or OTf; dppp ) 1,3-bis(diphenylphosphino)propane] containing
10 equiv of the Ru atom based on tungsten in benzene-dichloroethane at 55 °C for 24 h under 1 atm of H2 gave
NH3 in 45-55% total yields based on tungsten, together with the formation of trans-[RuHCl(dppp)2] (6). Free
NH3 in 9-16% yields was observed in the reaction mixture, and further NH3 in 36-45% yields was released
after base distillation. Detailed studies on the reaction of 5 with numerous Ru(η2-H2) complexes showed that the
yield of NH3 produced critically depended upon the pKa value of the employed Ru(η2-H2) complexes. When 5
was treated with 10 equiv of trans-[RuCl(η2-H2)(dppe)2]X (8) with pKa ) 6.0 [X ) PF6, BF4, or OTf; dppe )
1,2-bis(diphenylphosphino)ethane] under 1 atm of H2, NH3 was formed in higher yields (up to 79% total yield)
compared with the reaction with an equilibrium mixture of 3 and 4. If the pKa value of a Ru(η2-H2) complex was
increased up to about 10, the yield of NH3 was remarkably decreased. In these reactions, heterolytic cleavage of
H2 seems to occur at the Ru center via nucleophilic attack of the coordinated N2 on the coordinated H2 where a
proton (H+) is used for the protonation of the coordinated N2 and a hydride (H-) remains at the Ru atom. Treatment
of 5, trans-[W(N2)2(PMePh2)4] (14), or trans-[M(N2)2(dppe)2] [M ) Mo (1), W (2)] with Ru(η2-H2) complexes
at room temperature led to isolation of intermediate hydrazido(2-) complexes such as trans-[W(OTf)(NNH2)(PMe2-
Ph)4]OTf (19), trans-[W(OTf)(NNH2)(PMePh2)4]OTf (20), and trans-[WX(NNH2)(dppe)2]+ [X ) OTf (15), F
(16)]. The molecular structure of 19 was determined by X-ray analysis. Further ruthenium-assisted protonation of
hydrazido(2-) intermediates such as 19 with H2 at 55 °C was considered to result in the formation of NH3,
concurrent with the generation of W(VI) species. All of the electrons required for the reduction of N2 are provided
by the zerovalent tungsten.
Introduction
Extensive studies have long been continued to investigate the
reactivities of coordinated N2 in numerous N2 complexes of
transition metals.7-10 Among them, molybdenum and tungsten
N2 complexes of the type [M(N2)2(L)4] (M ) Mo, W; L )
tertiary phosphine)7,10 have been most intensively studied since
Industrial ammonia (NH3) production from dinitrogen (N2)
and dihydrogen (H2) has successfully been carried out for more
than 80 years by the use of Fe-based heterogeneous catalysts,
but the reaction conditions are extremely drastic.2,3 In contrast,
biological nitrogen fixation is well-known to occur at ambient
temperature and pressure.3-6 The mechanism remains unclear
although the X-ray structural model has recently been reported
for the FeMo-cofactor, the site for conversion of N2 to NH3, of
FeMo nitrogenase.4 However, it is generally believed that N2
is coordinated at the multimetallic site and converted to
NH3 by a sequential process of protonation followed by
reduction.5,6
