Efficien t a n d Selective Syn th esis of Cr ow n op a d d la n es P ossessin g
Tw o Cyclobu ta n e Rin gs a n d Exclu sive Com p lexa tion of Lith iu m
Seiichi Inokuma, Masashi Takezawa, Hiroko Satoh, Yosuke Nakamura, Takashi Sasaki, and
J un Nishimura*
Department of Chemistry, Gunma University, 1-5-1 Tenjin-cho, Kiryu 376-8515, J apan
Received J anuary 27, 1998
A new type of crown compounds (crownopaddlanes) bearing two cyclobutane rings were efficiently
and selectively prepared by means of intramolecular [2 + 2] photocycloaddition of appropriate
styrene derivatives, which was successfully carried out in cyclohexane under irradiation through
a Pyrex filter. Crownopaddlanes 4a , 5, and 6 exclusively and quantitatively extracted Li+ on the
solid-liquid extraction. Upon the competitive extraction, 4a showed the highest selectivity toward
Li+ over Na+ and K+ (Li+/Na+ ) 610, Li+/K+ ) 976). The structural factors working in the
complexation of the crownopaddlane were examined by X-ray crystallographic analysis.
In tr od u ction
Ring closure of linear precursors to crown ethers is
entropically unfavorable, and their polymerization often
cannot be avoided. Some improvements, such as the
template effect1-3 and/or high-dilution techniques,4,5 have
increased the yield of cyclization products. These im-
provements usually require some additional workup,
except for Okahara cyclization.6 Recently, we developed
a new high-yielding photocyclization for crown com-
pounds in which the template effect and high dilution
are not crucial. Thus, many “crownophanes”7 possessing
both cyclic polyether and cyclophane moieties have been
prepared in high yields (up to 95%) by the [2 + 2]
photocycloaddition of R,ω-bis(vinylphenyl)oligo(oxyeth-
ylenes). Quite astonishingly, this reaction was accom-
plished even with a relatively high concentration of
precursor olefins (100 mM). This approach has been
applied to the synthesis of sophisticated ionophoric
materials.
In previous extraction and liquid membrane transport
experiments, it has been revealed that crownophanes
1b was concluded to be due to its unique structure,10 and
the main cause of the reduced Li+ selectivity of 212 and
313 has been attributed to 2:1 (host:guest) complexation
with larger cations such as Na+ or K+. Therefore, if one
can strongly prevent the formation of the 2:1 (host:guest)
sandwich complex by adding structural factors to 1b, one
should be able to greatly increase its Li+ selectivity.
Generally, to increase the selectivity of crown ethers, one
introduces peripheral bulky groups.14-16 Another struc-
tural modification of host molecules which improves the
selectivity involves rigidifying or preorganizing them for
particular guest molecules. For example, a spherand
modified in this manner showed enormous Li+ affinity
have specific characteristics in host-guest interactions
with many kinds of metal cations8 and organic com-
pounds.9 Among the crownophanes, the prototypical
crownophane 1b with five ethereal oxygen atoms exhib-
ited a greater complexing ability toward Li+ than the
conventional lithiophilic 12-crown-4 (2) and dibenzo-14-
crown-4 (3) by solid-liquid extraction10 and liquid mem-
brane transport.11 The intriguing high lithiophilicity of
(1) Dale, J .; Kristiansen, P. O. J . Chem. Soc., Chem. Commun. 1971,
670.
(2) Greene, R. N. Tetrahedron Lett. 1972, 1793.
(3) Chastrette, M.; Chastrette, F. J . Chem. Soc., Chem. Commun.
1973, 534.
(4) Pedersen, C. J . J . Am. Chem. Soc. 1967, 89, 7017.
(5) Dietrich, B.; Lehn, J . M.; Sauvage, J . P. Tetrahedron Lett. 1969,
2885.
(6) Kuo, P.-L.; Kawamura, N.; Miki, M.; Okahara, M. Bull. Chem.
Soc. J pn. 1980, 53, 1689.
(11) Inokuma, S.; Katoh, R.; Yamamoto, T.; Nishimura, J . Chem.
Lett. 1991, 1751.
(12) Miyazaki, T.; Yanagida, S.; Itoh, A.; Okahara, M. Bull. Chem.
Soc. J pn. 1982, 55, 2005.
(7) Inokuma, S.; Sakai, S.; Nishimura, J . Top. Curr. Chem. 1994,
172, 87.
(8) Inokuma, S.; Sakai, S.; Katoh, R.; Nishimura, J . Bull. Chem. Soc.
J pn. 1994, 67, 1462.
(13) Suzuki, K.; Yamada, H.; Sato, K.; Watanabe, K.; Hisamoto, H.;
Tobe, Y.; Kobiro, K. Anal. Chem. 1993, 65, 3404.
(14) Kobiro, K.; Matsuoka, T.; Takada, S.; Kakiuchi, K.; Tobe, Y.;
Odaira, Y. Chem. Lett. 1986, 713.
(9) Inokuma, S.; Sakai, S.; Yamamoto, T.; Nishimura, J . J . Membr.
Sci. 1994, 97, 175.
(10) Inokuma, S.; Yamamoto, T.; Nishimura, J . Tetrahedron Lett.
1990, 31, 97.
(15) Faulkner, S.; Kataky, R.; Parker, D.; Teasdale, A. J . Chem. Soc.,
Perkin Trans. 2 1995, 1761.
(16) Kobiro, K.; Kaji, M.; Tsuzuki, S.; Tobe, Y.; Tuchiya, Y.; Nae-
mura, K.; Suzuki, K. Chem. Lett. 1995, 831.
S0022-3263(98)00152-2 CCC: $15.00 © 1998 American Chemical Society
Published on Web 08/05/1998

5792 J . Org. Chem., Vol. 63, No. 17, 1998
Inokuma et al.
Sch em e 1
yield of 4 and 9 was only 50%. In such cases, we usually
obtained some polymeric material which was not char-
acterized.
Generally, nonpolar solvents favored the photoreaction.
An extraordinarily high yield was obtained in the photo-
reaction of olefin 8a in cyclohexane (up to 93%), which
was comparable to those of prototypical crownophanes
1a ,b.10 This efficiency was attributed to steric effects due
to the high flexibility of C-O bonds in the linkages
between two phenoxy groups.20
The photoreaction yields are clearly dependent on the
polarity of the solvents and on the duration of irradiation.
The time course of the reaction of 8b is illustrated in
Figure 1. In cyclohexane, the yield of crownopaddlane
4b smoothly increased with irradiation time and reached
a maximum (up to 97%) at 20 min. At the same time,
the conversion approached 100% and 9b , which is
considered to be an intermediate of 4b, completely
disappeared. On the other hand, in acetonitrile (MeCN),
although the consumption rate of 8b was similar to that
in cyclohexane, the maximum yield of 4b was much lower
than that in cyclohexane and the photostability of the
product in this polar solvent was remarkably low. Fur-
thermore, intermediate 9b seemed to be long-lived, in
contrast to that in cyclohexane. Thus, double photo-
cyclization proceeds efficiently in nonpolar solvents such
as cyclohexane, benzene, and toluene. However, the yield
in polar solvents such as MeCN was slightly improved
by the addition of alkali metal salts (entries 6, 8, and
14-16 in Table 1). The template effect plays a role in
the polar solvents and seems to increase product stabil-
ity.7
Syn th esis of Cr ow n op a d d la n es w ith a Secon d a r y
Liga tin g Site. Lariat-type crownopaddlane 5 was pre-
pared following a sequence similar to that for 4. Photo-
cyclization of the precursor tetraolefin was carried out
in cyclohexane. The yield of crownopaddlane 6 with an
oxetane moiety was slightly lower than that of 4. Com-
pound 6 was readily converted to lariat-type crowno-
paddlane 5.
Sin gle Extr a ction of Alk a li Meta l Th iocya n a tes
in to CH2Cl2 by Cr ow n op a d d la n es. The complexing
ability of crownophanes toward alkali metal cations was
evaluated by solid-liquid extraction and compared with
those of 1a ,b, 2, and 3. This extraction is a simple
method for measuring the net complexing ability of
ligands since the process does not include dehydration
from cations in an aqueous phase. The results of the
extraction experiments with crownopaddlanes are sum-
marized in Table 2 together with those of reference crown
compounds.
(∆G ) 17 kcal mol-1).17,18 However, these structural
modifications often require multistep syntheses which
involve some tedious procedures and meager total yields.
Accordingly, we were prompted to prepare a highly
lithiophilic ionophore which optimized the structure of
1b by [2 + 2] photocycloaddition. Hence, we designed
“crownopaddlanes” 4 and 5 with two cyclobutane rings
on the basis of the following criteria. First, they must
have 12- to 14-membered rings with four ethereal oxygen
atoms to accept Li+. Second, they must have large
substituents to prevent 2:1 (host:guest) tetrahedrally
coordinated complexation with larger cations such as Na+
or K+. Third, they must have sufficiently lipophilic
substituents. Fourth, they preferably should have ad-
ditional ligating groups to improve the binding ability.
In this paper we describe the synthesis and lithiophilic
properties of 4 and 5 as well as some related compounds.
Resu lts a n d Discu ssion
Syn th esis of Cr ow n op a d d la n es. First, we tried to
synthesize crownopaddlanes (4), as shown in Scheme 1.

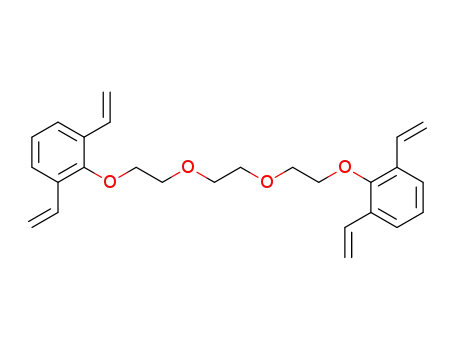

R,ω-Bis(2,6-dibromophenyl)oligo(oxyethylenes) (7) were
easily prepared by the conventional method and con-
verted to the corresponding tetraolefins (8) by the Stille
reaction.19 These precursor olefins were irradiated in a
variety of solvents with different polarities, as listed in
Table 1.
In most cases, the starting material was almost
completely consumed under irradiation. In some in-
stances, the yields and conversions were almost the same,
while in others they were considerably different. For
example, in run 7, the conversion was 96% but the total
Crownopaddlane 4a quantitatively and exclusively
extracted Li+. This selectivity was not attained with
conventional crown ethers 2 and 3: the former extracted
not only Li+ but also Na+ and K+ due to the formation of
2:1 sandwich complexes, as reported previously,12 while
the latter, which is more lithiophilic than 2,21 extracted
quite a large amount of Na+ as well as Li+. According
to a framework examination using a space-filling model,
the cavity size of 4a (ca. 1.2 Å) is quite suitable for Li+.
Furthermore, the two bulky cyclobutane blades attached
to the aromatic nuclei can effectively prevent it from
forming a 2:1 sandwich complex.
(17) Cram, D. J .; Kaneda, T.; Helgeson, R. C.; Lein, G. M. J . Am.
Chem. Soc. 1979, 101, 6752.
(18) Kaneda, T.; Umeda, S.; Tanigawa, H.; Misumi, S. J . Am. Chem.
Soc. 1985, 107, 4802.
(19) McKean, D. R.; Parrinello, G.; Renaldo, A. F.; Stille, J . K. J .
Org. Chem. 1987, 52, 422.
(20) Nakamura, Y.; Fujii, T.; Inokuma, S.; Nishimura, J . J . Phys.
Org. Chem. 1998, 11, 79-83.
(21) Olsher, U. J . Am. Chem. Soc. 1982, 104, 4006.

Crownpaddlanes Possessing Two Cyclobutane Rings
Ta ble 1. P r ep a r a tion of Cr ow n op a d d la n es 4 a n d 9a
