SYNTHETIC COMMUNICATIONS, 31(21), 3219–3223 (2001)
STEREOSELECTIVE SYNTHESIS
OF 9-METHYLENE-13-DEMETHYL
ANALOGS OF NATURAL RETINOIDS
Alain Valla,1, Virginie Prat,1 Alain Laurent,1
*
Zo Andriamialisoa,1 Dominique Cartier,1
Roger Labia,1 and Pierre Potier2
1Chimie et Biologie des Substances Naturelles
FRE 2125 CNRS 6, rue de 1’Universite –
29000 Quimper, France
2Institut de Chimie des Substances Naturelles,
UPR 2301 CNRS Avenue de la Terrasse 91198
Gif-sur-Yvette Cedex, France
ABSTRACT
9-Methylene-13-demethyl analogs of retinol, retinal and reti-
noic acid, methyl ester were synthesised via new synthons
b-methylenealdehydes.
Retinoids have various biological activities, including cellular differ-
entiation, apoptosis and also act as modulators of inflammatory and immu-
nological events.1,2 Although retinoids are thought to have great therapeutic
potential, the wide range of toxic effects has often limited their clinical use.3
*Corresponding author. Fax: (33) 2 98908048; E-mail: Valla@iutquimp.univ-brest.fr
3219
Copyright & 2001 by Marcel Dekker, Inc.
www.dekker.com

ORDER
REPRINTS
3220
VALLA ET AL.
Figure 1.
We recently reported the synthesis of a novel class of synthons,
b-methylenealdehydes, and their use in the synthesis of 13 Z retinoic
acids.4 Noteworthy, only a few examples of synthesis and use of b-methy-
lenealdehydes in organic chemistry were reported.5–11
Nevertheless, the stereochemistry of C-9 (9-methylene) could be pre-
served and we report here the syntheses of 9-methylene-13-demethyl analogs
of retinols, retinals and methyl retinoate via the b-methylenealdehydes 1a
and 1b (Figure 1).
Scheme 1.

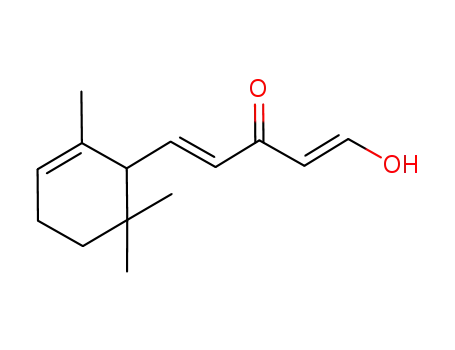

These new synthons 1(a, b) were respectively synthesised from
b-ionone 2a and a-ionone 2b. Formylation (CH3ONa, HCOOCH3, pentane)
and acetalisation of the sodium salts of hydroxymethylenic compounds 3
(a, b) (CH3OH, H2SO4) furnished the b-ketoacetals 4 (a, b). Witting reaction
(t-ButOK, (C6H5)3Pþ-CH3 BrÀ, cyclohexane) and mild acidic hydrolysis of
the b-methyleneacetals 5 (a, b) (HCOOH, pentane), produce the b-methyle-
nealdehydes 1 (35% from 2a and 30% from 2b)4 (Scheme 1).
Reaction of compounds 1 with 4-(diethoxyphosphoryl)-but-2-enoic
acid, methyl ester (NaH, DME, À60ꢀC), affords the 9-methylene derivatives
6a (40%) and 6b (45%), with no detectable conjugated isomers. Thus,
this Horner-Emmons synthesis of compounds 1 with 4-(diethoxyphos-
phoryl)-but-2E-enoic acid, methyl ester, led stereoselectively (ꢁ 99%) to
the new 7E, 11E, 13E-9-methylene-13-demethyl analogs of retinoic acid,
methyl esters.12

ORDER
REPRINTS
9-METHYLENE-13-DEMETHYL ANALOGS
3221
Scheme 2.
The retinol analogs 7 (7a, 65%, 7b, 70%) could be easily obtained
from these latter by reduction (DIBAL-H, À5ꢀC, then rt, 30 min), and the
retinal analogs 8 (8a, 60%, 8b, 70%) by MnO2 oxidation of alcohols 7
(MnO2, pentane, rt, 12 h) (Scheme 2).
ACKNOWLEDGMENT
We thank Prof. M. Giraud for his support of this research.
REFERENCES
1. Orfanos, C.E.; Ehlert, R.; Gollnick, H. Drugs 1987, 34, 459–503.
2. Linney, E. Current Topics in Developmental Biology, Academic Press,
Orlando, FL, 1992, pp. 309–350.
3. The retinoids, Biology, Chemistry and Medicine, 2nd ed.; Raven Press
Ltd., New York, 1994, pp. 545–572.
4. Giraud, M.; Valla, A.; Andriamialisoa, Z.; Potier, P. French Patent
1994, 9415189. BOPI 1996, 25, 2728260.
5. Huche, M. Tetrahedron Lett. 1976, 30, 2607.
6. Cresson, P.C.R. Hebd. Seances Acad. Sci. Ser. C 1974, 279, 859.
7. Kritchevsky, D. J. Amer. Chem. Soc. 1943, 65, 487.
8. Ansell, F.; Hancock, J.W.; Hickinbottom, W.H. J. Chem. Soc.
1956, 911.
9. Stella, L. Tetrahedron Lett. 1984, 25, 3457.
10. Cardillo, G.; Contento, M.; Sandri, S. J. Chem. Soc. Perkins Trans. 1
1979, 1729
11. Cardillo, G.; Contento, M.; Sandri, S. Tetrahedron Lett. 1974, 2215.
12. 6a: Yellow oil (40%). Anal. Calc. pour C20H28O2: C, 79.96; H, 9.39; O,
10.65. Found: C, 79.83; H, 9.43; O, 10.74. IR (film): 1721, 1644 cmÀ1
.

ORDER
REPRINTS
3222
VALLA ET AL.
1H NMR (400 Mz, C6D6): 7.55 (dd, 1H, J ¼ 15.5, J ¼ 10.8, C13-H); 6.24
(s, 2H, C7-H and C8-H); 6.06 (dd, 1H, J ¼ 15.2, J ¼10.8, C12-H); 5.96
(d, 1H, J ¼ 15.5, C14-H); 5.94 (dt, 1H, J ¼ 15.2, J ¼ 6.5, C11-H); 5.09
and 4.94 (2s, 2H, C9-CH2); 3.54 (s, 3H, CO2CH3); 2.94 (d, 2H, J ¼ 6.5,
C10-H); 2.02 (t, 2H, J ¼ 6.3, C3-H); 1.81 (s, 3H, C2-CH3); 1.67 (m, 2H,
C4-H); 1.54 (m, 2H, C5-H); 1.16 (s, 6H, C6-CH3). 13C NMR (100 Mz,
CDCl3); 167.5 (C15); 144.8, 141.7, 134.0, 129.5, 128.1 and 119.2 (C7, C8,
C11, C12, C13 and C14); 143.5, 137.2 and 129.1 (C1, C2 and C9); 115.6
(C9-CH2); 51.3 (CO2CH3); 39.3, 35.8, 32.7 and 19.1 (C3, C4, C5 and
C10); 34.0 (C6); 28.7 and 21.5 (C2-CH3 and C6-CH3).
6b: Yellow oil (45%). Anal. Calc. pour C20H28O2: C, 79.96; H, 9.39; O,
10.65. Found: C, 79.78; H, 9.45; O, 10.77. IR (film): 1721, 1644 cmÀ1
.
1H NMR (C6D6): 7.50 (dd, 1H, J ¼ 15.6, J ¼ 10.8, C13-H); 6.15 and
5.93 (2d, 2H, J ¼ 15.6, C8-H and C14-H); 6.00 (dd, 1H, J ¼ 15.2,
J ¼ 10.8, C12-H); 5.89 (dt, 1H, J ¼ 15.2, J ¼ 6.3, C11-H); 5.56 (dd, 1H,
J ¼ 15.6, J ¼ 9.5, C7-H); 5.51 (m, 1H, C3-H); 5.06 and 4.89 (2s, 2H,
C9-CH2); 3.54 (s, 3H, CO2CH3); 2.86 (d, 2H, J ¼ 6.3, C10-H); 2.20 (d,
1H, J ¼ 9.5, C1-H); 2.07 (m, 2H, C4-H); 1.73 (s, 3H, C2-CH3); 1.51 (dt,
1H, J ¼ 13.2, J ¼ 8.0, C5-H); 1.22 (dt, 1H, J ¼ 13.2, J ¼5.0, C5-H); 1.00
and 0.92 (2s, 6H, C6-CH3). 13C NMR (CDCl3): 167.5 (C15); 144.8,
141.6, 132.4, 132.2. 129.5, 120.9 and 119.1 (C3, C7, C8, C11, C12, C13
and C14); 143.2 and 133.9 (C2 and C9); 115.1 (C9-CH2); 54.5 and 51.4
(C1 and CO2CH3); 35.9, 31.7 and 22.9 (C4, C5 and C10); 32.3 (C6); 27.3,
26.9 and 22.8 (C2-CH3 and C6CH3).
7a: Yellow oil (65%). Anal. Calc. pour C19H28O: C, 83.77; H, 10.36; O,
5.87. Found: C, 83.59; H, 10.52; O, 5.89. IR (film): 3334 cmÀ1
.
1H NMR: (CDCl3): 6.27 and 6.14 (2dd, 2H, J ¼ 15.0, J ¼ 10.6, C12-H
and C13-H); 6.15 and 6.06 (2d, 2H, J ¼ 16.0, C7-H and C8-H); 5.81 (dt,
1H, J ¼ 15.0, J ¼ 6.7, C11-H); 5.75 (dt, 1H, J ¼ 15.0, J ¼ 6.0, C14-H);
5.00 and 4.95 (2s, 2H, C9-CH2); 4.17(d, 2H, J ¼ 6.0, C15-H); 3.07 (d,
2H, J ¼ 6.7, C10-H); 2.01 (t, 2H, J ¼ 6.2, C3-H); 1.70 (s, 3H, C2-CH3);
1.62 (m, 2H, C4-H); 1.47 (m, 2H, C5-H); 1.01 (s, 6H, C6-CH3).
13C NMR (CDCl3); 144.6, 137.4 and 128.9 (C1, C2 and C9); 134.4,
132.5, 131.5, 130.8, 130.0 and 127.7 (C7, C8, C11, C12, C13 and C14);
114.9 (C9-CH2); 63.2 (C15); 39.3, 35.4, 32.7 and 19.1 (C3, C4, C5, and
C10); 34.1 (C6); 28.7 and 21.5 (C2-CH3 and C6-CH3).
7b: Yellow oil (70%). Anal. Calc. pour C19H28O: C, 83.77; H, 10.36; O,
5.87. Found: C, 83.62; H, 10.51; O, 5.87. IR (film): 3331 cmÀ1
.
1H NMR (CDCl3): 6.23 and 6.09 (2dd, 2H, J ¼ 15.0, J ¼ 10.5, C12-H
and C13-H); 6.07 (d, 1H, J ¼ 15.6, C8-H); 5.76 (dt, 1H, J ¼ 15.0, J ¼ 6.7,
C11-H); 5.72 (dt, 1H, J ¼ 15.0, J ¼ 6.0, C14-H); 5.52 (dd, 1H, J ¼ 15.6,
J ¼ 9.5, C7-H); 5.42 (m, 1H, C3-H); 4.98 and 4.90 (2s, 2H, C9-CH2);

ORDER
REPRINTS
9-METHYLENE-13-DEMETHYL ANALOGS
3223
4.14 (d, 2H, J ¼ 6.0, C15-H); 3.00 (d, 2H, J ¼6.7, C10-H); 2.16 (d, 1H,
J ¼9.5, C1-H); 2.02 (m, 2H, C4-H); 1.59 (s, 3H, C2-CH3); 1.43 (dt, 1H,
J ¼ 13.0, J ¼ 8.0. C5-H); 1.19 (dt, 1H, J ¼ 13.0, J ¼ 4.8. C5-H); 0.91 and
0.82 (2s, 6H, C6-CH3).13C NMR (CDCl3): 144.8 and 134.6 (C2 and C9);
133.3, 132.8, 132.3, 131.9, 131.4, 130.5 and 121.4 (C3, C7, C8, C11, C12,
C13, and C14); 114.9 (C9-CH2); 63.6 (C15); 55.1 (C1); 36.1, 32.3 and 23.5
(C4, C5 and C10); 32.8 (C6); 27.8, 27.5 and 23.4 (C2-CH3 and C6-CH3).
8a: Yellow oil (60%). Anal. Calc. pour C19H26O: C, 84.39; H, 9.69; O,
5.92. Found: C, 84.25; H, 9.77; O, 5.98. IR (film): 1723, 1683,
1
1638 cmÀ1. H NMR (C6D6): 9.48 (d, 1H, J ¼7.8, C15-H); 6.51 (dd,
1H, J ¼ 15.4, J ¼ 9.9, C13-H); 6.26 (s, 2H, C7-H and C8-H); 6.02 (dd,
1H, J ¼ 15.4, J ¼ 7.8, C14-H); 5.95 (m, 2H, C11-H and C12-H); 5.12 and
4.92 (2s, 2H, C9-CH2); 2.95 (d, 2H, J ¼ 5.3, C10-H); 2.03 (t, 2H, J ¼ 6.2,
C3-H); 1.82 (s, 3H, C2-CH3); 1.67 (m, 2H, C4-H); 1.56 (m, 2H, C5-H);
1.17 (s, 6H, C6-CH3). 13H NMR (CDCl3): 193.8 (C15); 152.2, 144.2,
133.9, 130.4, 129.7 and 128.3 (C7, C8, C11, C12, C13 and C14); 143.2,
137.1 and 129.3 (C1, C2 and C9); 115.9 (C9-CH2); 39.3, 36.0, 32.7 and
19.1 (C3, C4, C5 and C10); 34.7 (C6); 28.7 and 21.5 (C2-CH3 and
C6-CH3).
8b: Yellow oil (70%). Anal. Calc. pour C19H26O: C, 84.39; H, 9.69; O,
5.92. Found: C, 84.33; H, 9.74; O, 5.93. IR (film): 1683, 1640 cmÀ1
.
1H NMR (C6D6): 9.46 (d, 1H, J ¼7.9, C15-H); 6.56 (dd 1H, J ¼ 15.5,
J ¼ 10.0, C13-H); 6.16 (d, 1H, J ¼15.5, C8-H); 6.00 (dd, 1H,
J ¼ 15.2, J ¼ 7.9, C14-H); 5.95 (m, 2H, C11-H and C12-H); 5.57 (dd,
1H, J ¼ 15.5, J ¼ 9.5, C7-H); 5.52 (m, 1H, C3-H); 5.08 and 4.92 (2s,
2H, C9-CH2); 2.88 (d, 2H, J ¼ 5.2, C10-H); 2.21 (d, 1H, J ¼9.5, C1-H);
2.07 (m, 2H, C4-H); 1.72 (s, 3H, C2-CH3); 1.51 (dt, 1H, J ¼ 13.0,
J ¼ 8.0, C5-H); 1.23 (dt, 1H, J ¼ 13.0, J ¼ 4.8. C5-H); 1.01 and 0.92
(2s, 6H, C6-CH3). 13C NMR (CDCl3): 193.8 (C15); 152.2, 144.1,
132.4, 132.2, 130.3, 129.7 and 121.0 (C3, C7, C8, C11, C12, C13, and
C14); 142.8 and 133.8 (C2 and C9); 115.5 (C9-CH2); 54.5 (C1); 36.2, 31.7
and 22.9 (C4, C5 and C10); 32.3 (C6); 27.3, 26.9 and 22.8 (C2-CH3 and
C6-CH3).
Received in the UK November 1, 2000

Request Permission or Order Reprints Instantly!
Interested in copying and sharing this article? In most cases, U.S. Copyright
Law requires that you get permission from the article’s rightsholder before
using copyrighted content.
All information and materials found in this article, including but not limited
to text, trademarks, patents, logos, graphics and images (the "Materials"), are
the copyrighted works and other forms of intellectual property of Marcel
Dekker, Inc., or its licensors. All rights not expressly granted are reserved.
Get permission to lawfully reproduce and distribute the Materials or order
reprints quickly and painlessly. Simply click on the "Request
Permission/Reprints Here" link below and follow the instructions. Visit the
U.S. Copyright Office for information on Fair Use limitations of U.S.
copyright law. Please refer to The Association of American Publishers’
(AAP) website for guidelines on Fair Use in the Classroom.
The Materials are for your personal use only and cannot be reformatted,
reposted, resold or distributed by electronic means or otherwise without
permission from Marcel Dekker, Inc. Marcel Dekker, Inc. grants you the
limited right to display the Materials only on your personal computer or
personal wireless device, and to copy and download single copies of such
Materials provided that any copyright, trademark or other notice appearing
on such Materials is also retained by, displayed, copied or downloaded as
part of the Materials and is not removed or obscured, and provided you do
not edit, modify, alter or enhance the Materials. Please refer to our Website
User Agreement for more details.
Order now!
Reprints of this article can also be ordered at
http://www.dekker.com/servlet/product/DOI/101081SCC100106030
