A novel platinum methylene complex
Klaus Praefcke a,1, Belkız Bilgin b,*, Joachim Pickardt a, Marina Borowski a
a Faculty of Chemistry, Technische Uni6ersita¨t Berlin, D-10623 Berlin, Germany
b
8
Department of Chemistry, Yıldız Teknik Uni6ersitesi, TR-80270, Sisli, Istanbul, Turkey
Received 7 July 1999; accepted 14 July 1999
Abstract
The dichlorobridged diplatinum organyls 4 and 5 undergo the expected chlorine–iodine exchange when treated with lithium
iodide in diiodomethylene. Surprisingly, a second type of product, the triple-bridged (one methylene group plus two iodo units
between the two Pt atoms) diplatinum complexes 7 and 8, respectively, are also formed in these unusual reactions. The formation
of these latter two interesting, novel compounds takes place via a change of configuration of their two ligand sections from anti
of their precursors (4 and 5, respectively) to syn present in 7 and 8; the mechanism of this process, however, is not yet clear. The
molecular structures of 7 and 8 are based on an X-ray crystal analysis of 7 and on their comparable characteristic NMR data.
© 1999 Elsevier Science S.A. All rights reserved.
Keywords: Anti/syn-transformation; Cycloplatination; Halogen exchange; Liquid crystal discussion; Overcrowded platinum organyls; Oxidative
addition; Platinum complexes of different oxidation states; Platinum methylene complexes; X-ray structure analysis
Here, we report not only the synthesis and character-
ization of two new planar diplatinum organyls (4 and
1. Introduction
6), but also the preparation of novel type m-methylene
The chemistry of cyclometallated complexes has at-
tracted much attention due to their applications in
organic synthesis. Whereas cyclometallated organopal-
bridged bis-metal complexes (7 and 8) formed by inter-
molecular oxidative addition reactions of di-
iodomethane onto cyclometallated diplatinum(II)
ladium compounds have been studied extensively, there
complexes.
are fewer studies of platinum(II) complexes with ortho-
metallated nitrogen donor ligands exhibiting liquid-
crystalline properties [1]. In particular, ortho-metallated
platinum(IV) complexes with nitrogen donor ligands
were unknown until recently and current knowledge is
2. Results and discussion
restricted to a few compounds synthesized by oxidative
addition of halogens or halocarbons to platinum(II)
precursors [2].
Since the discovery of the first example of metal
complexes with methylene bridged two metal atoms by
Herrmann et al. [3], such metal organyls have become
of special interest because of their affinity to methylene
groups on metal surfaces in heterogeneous reactions
[4,5].
The double-(chloro-)bridged platinum organyls 4 and
5 [6] containing two platinum atoms forming a flat
molecular core region were obtained by similar meth-
ods of ortho-metallation of diaryl imines — here 1 and
2 — as applied [6–8] for the syntheses of other equally
shaped dipalladium and diplatinum organyls with liq-
uid-crystalline properties (Scheme 1).

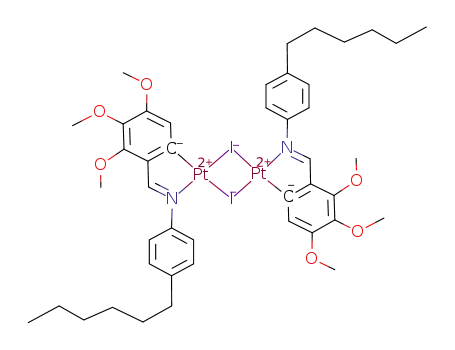

The exchange of the chloro-bridges in the diplatinum
organyl 4 with lithium iodide in dichloromethane–ace-
tone yielded not only the planar double-(iodo-)bridged
diplatinum(II) complex 6 but, surprisingly, also the
triple-bridged (methylene plus two iodo-bridges be-
tween the two Pt atoms) diplatinum(IV) organyl 7
(Scheme 1). Furthermore, this interesting and novel
* Corresponding author. Tel.: +90-212-2245000-1199; fax: +90-
212-2245013.
E-mail address: bilgin@yildiz.edu.tr (B. Bilgin)
1 Also corresponding author.
0022-328X/99/$ - see front matter © 1999 Elsevier Science S.A. All rights reserved.
PII: S0022-328X(99)00441-6

156
K. Praefcke et al. / Journal of Organometallic Chemistry 592 (1999) 155–161
and free-radical reactions (chain- and nonchain-types)
bis-octahedral diplatinum methylene complex 7 could
be isolated exclusively under the same conditions but
using longer reaction times.
Alternatively, 7 can also be obtained from the reac-
tion of 4 with diiodomethane but in lower yields, see
Section 3.
Another example of this kind of triple-bridged plat-
inum complex is the diplatinum organyl 8 (Scheme 1),
now having eight longer alkoxy chains. This homologue
was obtained analogously from the liquid-crystalline
diplatinum organyl 5 (Cr 91.7°C {ND 54.4°C} Iso [6];
Cr=crystalline, ND=nematic discotic, Iso=isotropic
liquid) and lithium iodide excess in dichloromethane–
acetone. Numerous repetitions of this transformation
reaction yielded 8 as the only product.
have been found. However, the SN process is dominant
2
in reactions of alkyl halides or halogens and square-pla-
nar d8 complexes with ligands that do not block the
coordination sites above and below the coordination
plane [2,9,10]. These studies cited indicate that the
oxidative addition reactions of the related chloro-
bridged diplatinum(II) complexes forming the Pt(IV)
species 7 and 8 may proceed in an SN manner about
2
which details are yet unknown.
All the compounds described here were fully charac-
1
terized by H-, 13C-, and also (in part) by 195Pt-NMR
1
spectroscopy as well as by elemental analysis. The H-
and 13C-NMR data for the diplatinum organyls 4 and 6
are similar to those of the analogous anti-configurated,
proved by X-ray analysis [6], square-planar platinum
organyl 5. The l(195Pt) value of −3130.3 ppm for the
chloro-bridged platinum organyl 4 is well within the
range expected for organoplatinum(II) compounds
[6b,8] with ortho-metallated nitrogen donor ligands.
Oxidative addition of alkyl halides or halogens on
Pt(II) compounds can proceed via several mechanisms
[2]. Depending on the metal substrate, the alkyl halide,
or the halogen, and the reaction conditions both SN
2
Scheme 1.

K. Praefcke et al. / Journal of Organometallic Chemistry 592 (1999) 155–161
157
spectra for 7 and 8 display a single absorption at 6.55
and 6.52 ppm, respectively, for the CH2-bridges. The
interpretation of the 13C-NMR signals of the m-CH2
groups of the triple-bridged, bis-octahedral complexes 7
and 8 was possible on the basis of a 2D C–H COSY
spectrum. The 13C-NMR spectra of 7 and 8 showed a
triplet at 9.88 and at 9.80 ppm, respectively, for the
CH2-bridges.
Furthermore, for the bis-octahedral compounds 7
and 8 the resonance frequency of the iminic protons (l
8.36 and 8.33 ppm, respectively) was shifted to a lower
field relative to the bis-square-planar platinum(II) com-
pounds 4, 5 [6] and 6, cf. Section 3. The aforementioned
selected NMR data undoubtedly prove that 7 and 8 are
of identical basic molecular structure.
Suitable crystals of 7 as a model compound for an
X-ray analysis, due to its short substituents compared
with those of the homologue 8, were grown by slowly
evaporating its methanol–acetone solution. The molec-
ular structure of 7 including the atom labelling based
on that X-ray study is illustrated in Fig. 1.
Fig. 1. The crystal structure of 7.
The new organyl 7 crystallizes in the triclinic space
Table 1
Crystal and data collection parameters for 7 a
(
group P1. The crystal data, data collection and refine-
ment details are summarized in Table 1. Table 2 gives
the atomic coordinates and Table 3 a compilation of
selected bond lengths and angles.
Formula
C45H58I4N2O6Pt2
1620.74
0.05×0.2×0.5
Triclinic
Formula weight
Crystal size (mm)
Crystal system
Space group
Z
All atoms occupy general positions in the unit cell.
The two platinum atoms are each octahedrally coordi-
nated by a terminal iodine atom, two bridging iodine
atoms, and a methylene group (C45) as well as by a
nitrogen atom and a ring carbon (C19) of the
trimethoxyphenyl ring. The (nonbonding) distance
(
P1 (No. 2)
2
,
a (A)
10.543(7)
16.132(8)
17.156(29)
100.54(10)
95.89(11)
101.31(5)
2783.8
1.93
,
b (A)
,
c (A)
h (°)
i (°)
k (°)
,
Pt1···Pt2 is 3.137(6) A. The iodine bridges are unsym-
,
metric with mean distances of 2.82(1) and 2.67(1) A,
3
most probably due to the trans-effects of the ligand
,
V (A )
dc (g cm−3
)
carbon versus the iodine atoms. The methylene bridge
,
Radiation u (A)
Mo–Ka, 0.71069
73.1
,
is symmetric with a mean PtꢀC distance of 2.08 A. The
v (cm−1
)
,
smallest intermolecular distance Pt···Pt is 8.74(2) A.
2qmax (°)
40.0
To the best of our knowledge, no dinuclear plati-
num(IV) compounds with methylene or related bridges
are known up until to now. However, there exists a
limited number of platinum(II) compounds of this type,
but, with the coordination number four, e.g.
hkl range
05h57, −155k515, −165l516
Scan type
ꢀ-scan
Min 1.0, max 29.3
4933
3194
Scan speed (deg min−1
No. of data measured
No. of unique data
)
I\2|(I)
1. [Pt2(m-CH2)(CH2PPh3)(m-dppm)2][PF6]
(dppm=
R
0.053
Ph2PCH2PPh2) with distances between PtꢀC 2.13(3)
Rw
w
0.055
1/[|2(F)+0.001951F2]
) −0.96/1.89
and Pt···Pt 3.12(2) A [11],
,
−3
,
Res. electron density (e A
Absorption correction
2. [Pt2(m-CH2)(m-Ph2PC2H4PPh2)2] with a PtꢀC dis-
Empirical, min/max corrections
0.710/1.459
,
tance of 2.08 A [12],
3. [Pt2W3(m-CC6H4Me-4)2(m3-CC6H4Me-4)(CO)6(h-
a Estimated standard deviations are given in parentheses.
C5H5)3] with distances between PtꢀC 2.02(3) and
,
Pt···Pt 2.95(2) A [13],
4. [Pt2(m-CꢁCHPh)(CꢂCPh)(PEt3)3I] with the following
The data given in the literature for the chemical shift
of CH2-bridges (3.43–8.03 ppm) [4,5] in related materi-
als differ considerably depending on the type of metal
atom as well as the nature of the ligands. The 1H-NMR
three distances: PtꢀC 2.10(9), Pt···Pt 2.72 (1) [14]
,
and PtꢀI 2.69(1) A.
A comparison of these excerpted measures shows
,
that the PtꢀC distance of 2.02(3) A in the third com-

158
K. Praefcke et al. / Journal of Organometallic Chemistry 592 (1999) 155–161
,
pound quoted here and the PtꢀI distance of 2.69(1) A in
Table 2
the fourth compound are in good agreement with those
Atom positions and Ueq values for 7 a
,
reported here for 7: 2.08(3) A and its shorter one of the
two PtꢀI distances of 2.67(1) and 2.82(1) A,
,
b
2
,
Atom
x
y
z
Ueq (A )
respectively.
Pt1
